Functional Analysis of the bZIP Transcription Factor CiFD in Regulating Lemon Branching

doi:10.16420/j.issn.0513-353x.2025-0507

Acta Horticulturae Sinica ›› 2026, Vol. 53 ›› Issue (4): 1101-1112.doi: 10.16420/j.issn.0513-353x.2025-0507

• Genetic & Breeding · Germplasm Resources · Molecular Biology • Previous Articles Next Articles

Functional Analysis of the bZIP Transcription Factor CiFD in Regulating Lemon Branching

YE Lixia¹^,², WU Yanmei², ZHANG Jinzhi²^,^*(), ZHANG Lei¹^,^*()

¹ Hubei Key Laboratory of Germplasm Innovation and Utilization of Fruit Trees，Institute of Fruit and Tea，Hubei Academy of Agricultural Science，Wuhan 430064，China
² College of Horticulture and Forestry Science，Huazhong Agricultural University，Wuhan 430070，China

Received:2025-07-23 Revised:2025-10-30 Online:2026-04-25 Published:2026-04-20
Contact: ZHANG Jinzhi, ZHANG Lei

Abstract

Abstract:

In lemon，phylogenetic analysis of the bZIP transcription factor CiFD revealed that it is most closely related to the Arabidopsis thaliana class A bZIP transcription factor AtbZIP27. The expression level of the CiFD gene was significantly higher in stems compared to other organs，and higher in stems with branches than those without branches. Overexpression of the CiFD gene in tobacco and trifoliate orange showed that the number of branches in transgenic plants was significantly higher than that in the non-transgenic control. Additionally，the qRT-PCR analysis revealed that the expression levels of NtTI1 and CiTI1，the homologous genes of TCP transcription factor THORNIDENTITY1（TI1），were significantly down-regulated in CiFD transgenic tobacco and trifoliate orange. Sequence analysis revealed that the CiTI1 promoter contains a bZIP transcription factor binding element，G-box. Yeast one-hybrid experiments showed that CiFD could bind to the CiTI1 promoter，and Dual-luciferase assays further indicated that CiFD protein represses CiTI1 gene expression. These findings indicate that the CiFD gene participates in regulating lemon branching by inhibiting the expression of the CiTI1 gene.

Key words: citrus, CiFD, CiTI1, gene, branching

YE Lixia, WU Yanmei, ZHANG Jinzhi, ZHANG Lei. Functional Analysis of the bZIP Transcription Factor CiFD in Regulating Lemon Branching[J]. Acta Horticulturae Sinica, 2026, 53(4): 1101-1112.

Figures/Tables 8

Table 1 Primers sequence of gene cloning，expression and vector construction

用途 Application	引物名称 Primer name	引物序列（5′-3′） Primer sequence
基因克隆 Gene clone	CiFD-cDNA-F	ATGTGGCCATCTCCAGCTAGAAACA
基因克隆 Gene clone	CiFD-cDNA-R	TTATTCTTACTTCTCAAAATGGAGC
启动子克隆 Promoter clone	pCiTI1-F	GCTGTTATGTGATATATCCCT
启动子克隆 Promoter clone	pCiTI1-R	AGCCATCTTTTTCTTAATCTTTC
基因过表达 Gene overexpression	CiFD-GFP-F	GCCCGTCGACCCCGGGGGTACCATGTGGCCATCTCCAGCTAG
基因过表达 Gene overexpression	CiFD-GFP-R	CGCCCTTGCTCACCATGAATTCAAATGGAGCAGTTGAGGTTC
酵母单杂 Yeast one-hybrid	pAbAi-pCiTI1-F	ATGATGAATTGAAAAGCTTGCTGTTATGTGATATATCCCT
酵母单杂 Yeast one-hybrid	AD-CiFDɑ-R	CTACGATTCATCTGCAGCTCGAGTCAAAATGGAGCACTTGAGG
双荧光素酶 Dual-luciferase	CiFD-62SK-F	GCCGCTCTAGAACTAGTGGATCCATGTGGCCATCTCCAGCTAG
	CiFD-62SK-R	GAGGTCGACGGTATCGATAAGCTTTCAAAATGGAGCAGTTGAGG
	CiTI1-0800-F	AGGTCGACGGTATCGATAAGCTTGCTGTTATGTGATATATCCCT
	CiTI1-0800-R	GCCGCTCTAGAACTAGTGGATCCAGCCATCTTTTTCTTAATCTTTC
基因定量 Gene quantification	CiFD-F	ATCACGCTAACACTGCCATCC
	CiFD-R	CAGACCCAGAATTCAGGCTC
	PtTI1-F	CTTCAAAGAAAGACAGGCATAG
	PtTI1-R	ACCAACATCGCCACAGCA
	NtTI1-F	GCGCTACTGCTAATATTGGTGC
	NtTI1-R	TCGCTCTAGCTTGCTTTCTTGA

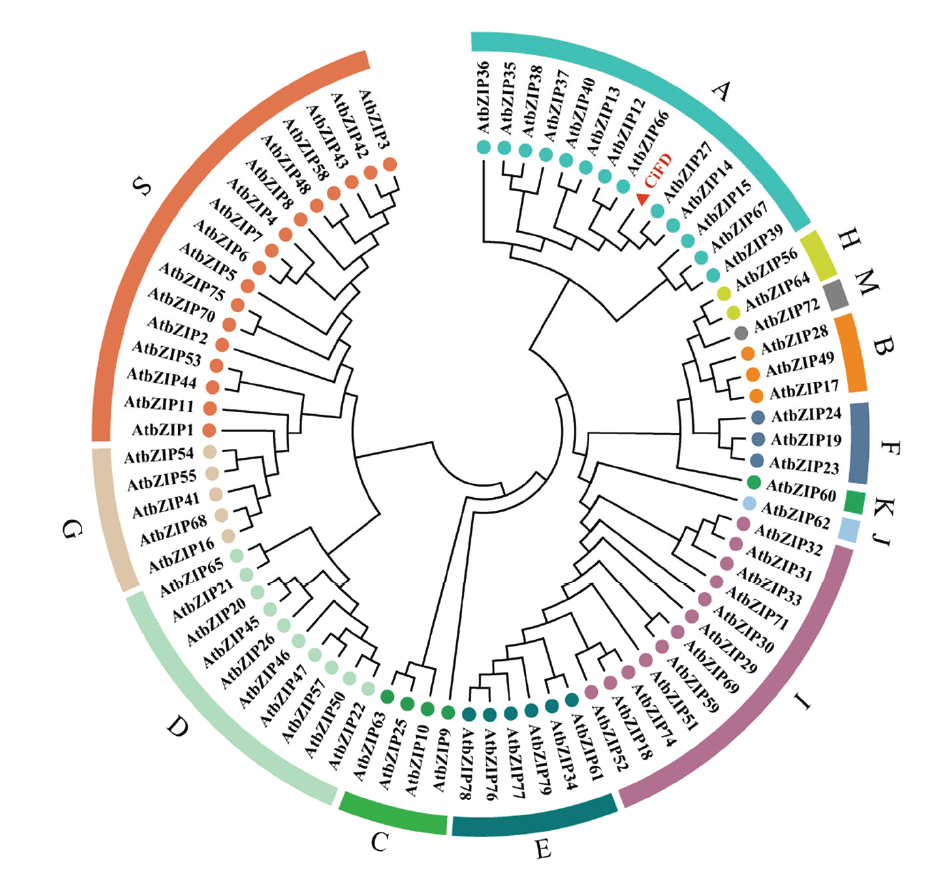

Fig. 1 Phylogenetic analysis of CiFD gene

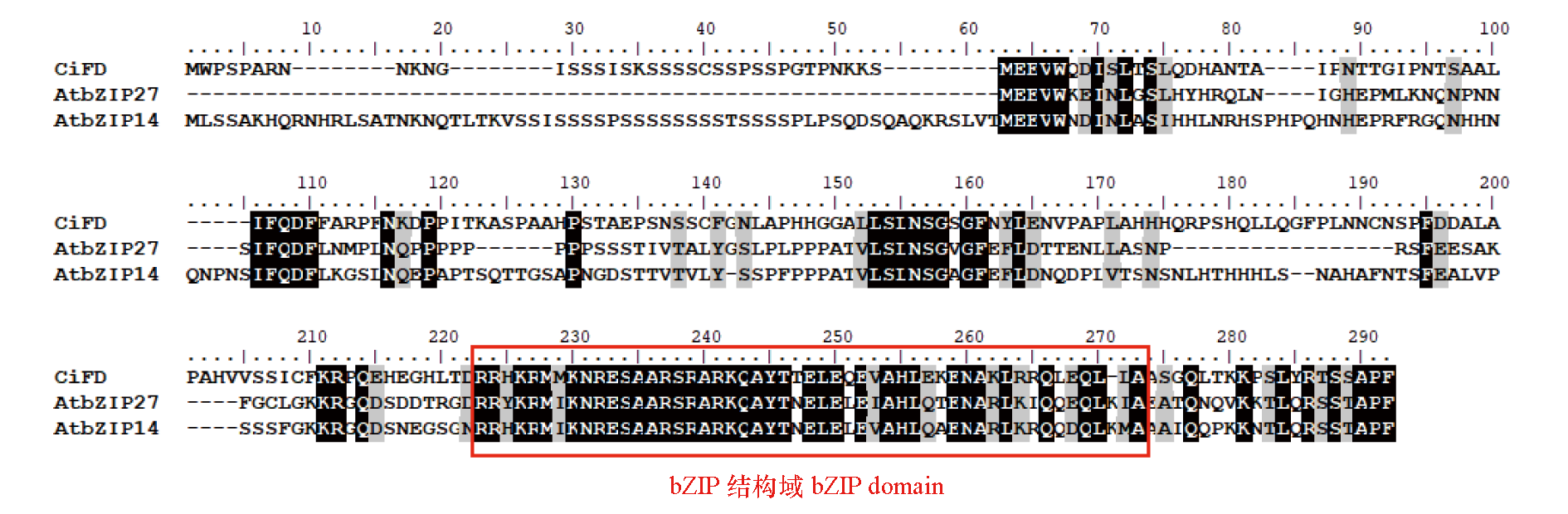

Fig. 2 Multiple sequence alignment of CiFD gene

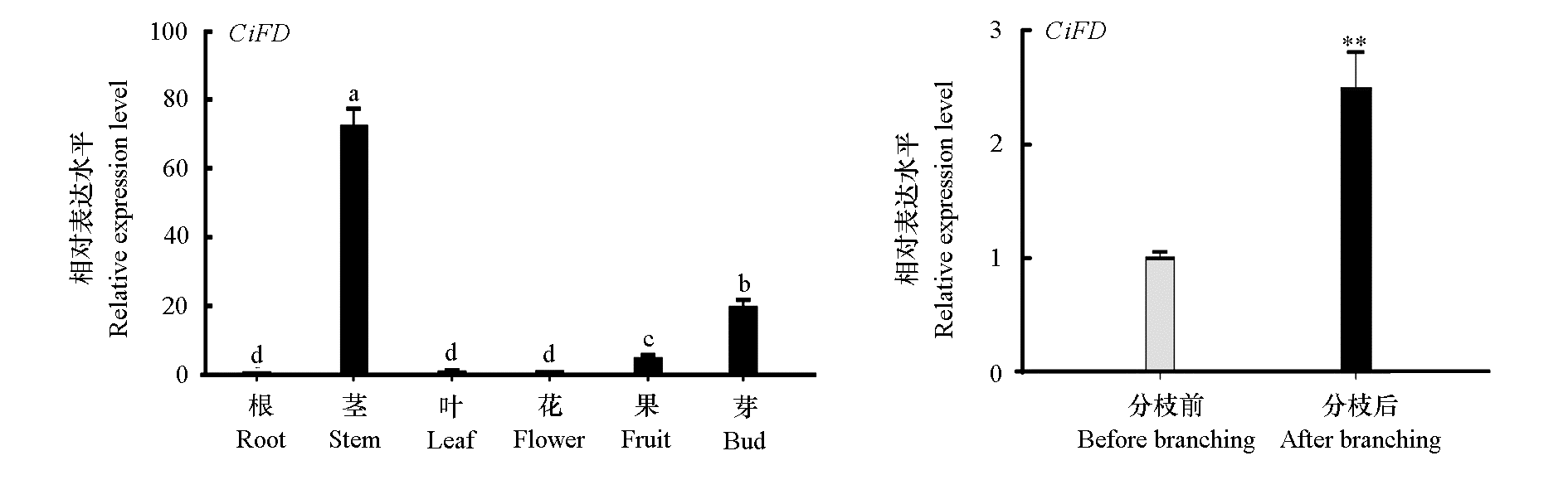

Fig. 3 Spatio-temporal expression analysis of CiFD gene Different lowercase letters indicate significant differences at the P < 0.05 level（Duncan's new multiple range test）；** indicates highly significant differences at the P < 0.01 level（Independent samples t-test）.

Fig. 4 Branching phenotype（A-C）and branch number statistics（D）of CiFD gene overexpressing tobacco Control：Tobacco wild type；CiFD-2#，CiFD-4#，and CiFD-5#：CiFD gene overexpression tobacco lines. The position of the red arrow indicates the main stem with or without branches. Independent sample t-test was used for significance analysis，and ***indicated that the difference was extremely significant（P < 0.001）

Fig. 5 Branching phenotype（A-C）of the CiFD gene overexpression trifoliate orange and branch number statistics（D） Control：Wild type control；CiFD-OE1，CiFD-OE15，and CiFD-OE24：Three CiFD gene overexpressing Poncirus trifoliata lines. The position of the red arrow indicates the main stem with or without branches. The independent sample t-test was used for significance analysis. * indicated a significant level of difference（P < 0.05），and *** indicated a very significant level of difference（P < 0.001）

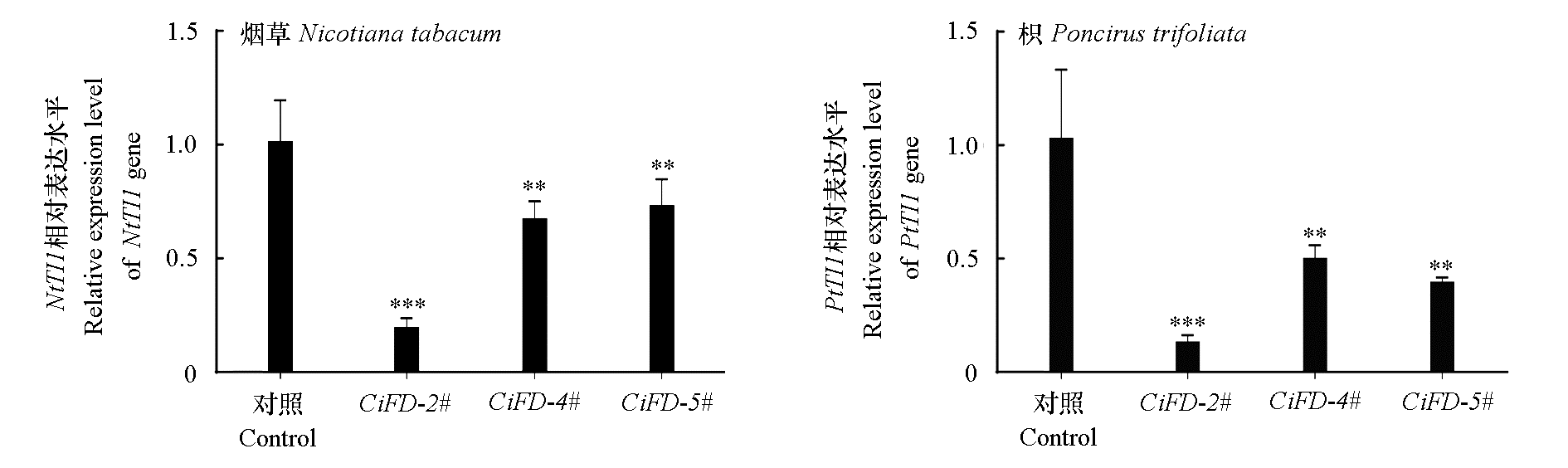

Fig. 6 Analysis of the expression levels of the NtTI1 gene and the PtTI1 gene in CiFD gene overexpressing plants The independent sample t-test was used for significance analysis. ** indicated a significant level of difference（P < 0.01），and *** indicated a very significant level of difference（P < 0.001）

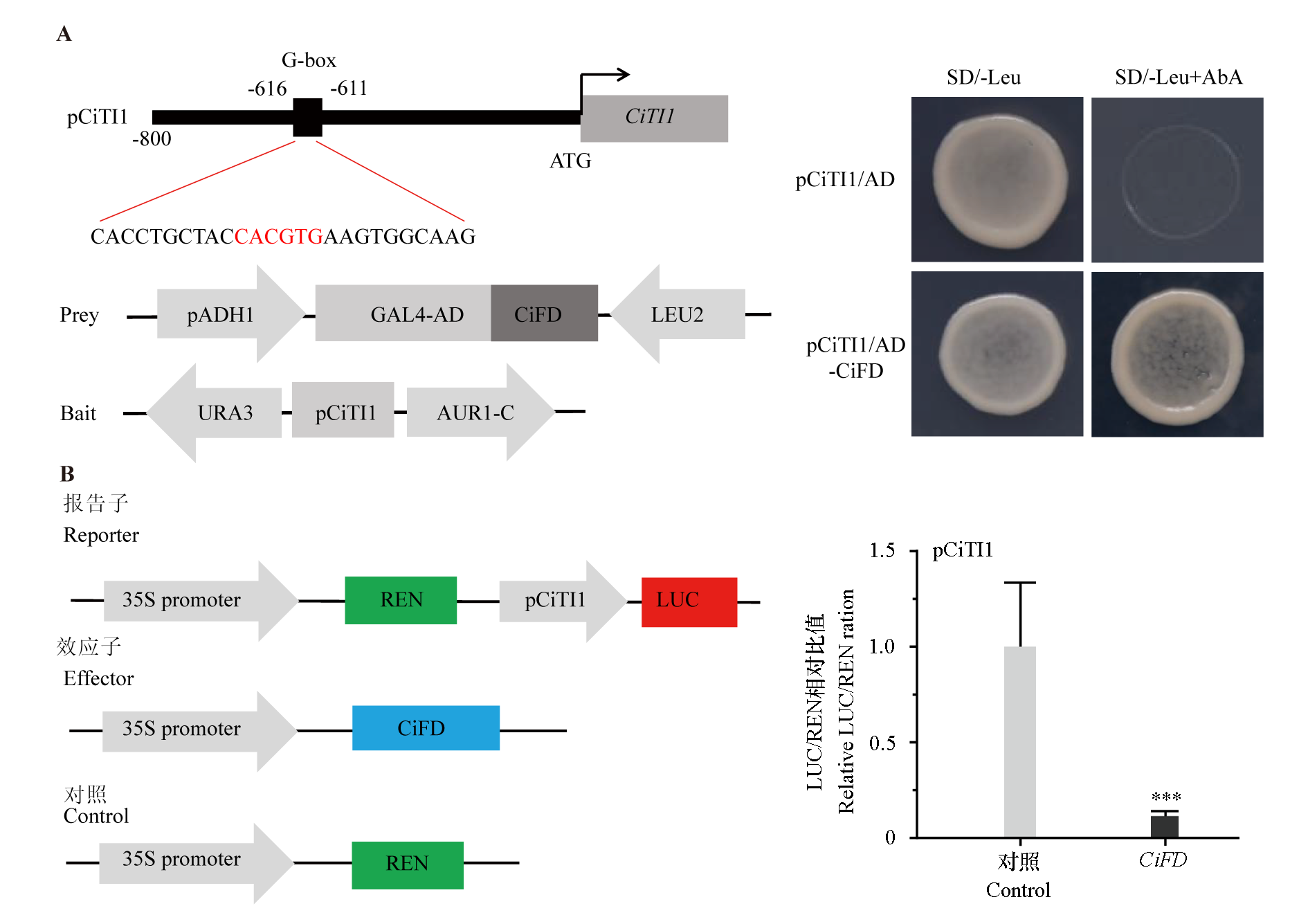

Fig. 7 Yeast one-hybrid（A）and dual luciferase（B）experiments verified that CiFD protein binds to the CiTI1 gene promoter and inhibits its expression

References 24

[1]	Abe M, Kobayashi Y, Yamamoto S, Daimon Y, Yamaguchi A, Ikeda Y, Ichinoki H, Notaguchi M, Goto K, Araki T. 2005. FD,a bZIP protein mediating signals from the floral pathway integrator FT at the shoot apex. Science, 309 (5737):1052-1056. doi: 10.1126/science.1115983 URL
[2]	Arite T, Iwata H, Ohshima K, Maekawa M, Nakajima M, Kojima M, Sakakibara H, Kyozuka J. 2007. DWARF10,an RMS1/MAX4/DAD1 ortholog,controls lateral bud outgrowth in rice. Plant Journal, 51 (6):1019-1029. doi: 10.1111/tpj.2007.51.issue-6 URL
[3]	Bennett T, Sieberer T, Willett B, Booker J, Luschnig C, Leyser O. 2006. The Arabidopsis MAX pathway controls shoot branching by regulating auxin transport. Current Biology, 16 (6):553-563. doi: 10.1016/j.cub.2006.01.058 pmid: 16546078
[4]	Collani S, Neumann M, Yant L, Schmid M. 2019. FT modulates genome-wide DNA-binding of the bZIP transcription factor FD. Plant Physiology, 180 (1):367-380. doi: 10.1104/pp.18.01505 pmid: 30770462
[5]	Ding C, Lin X, Zuo Y, Yu Z, Baerson S R, Pan Z, Zeng R, Song Y. 2021. Transcription factor OsbZIP 49 controls tiller angle and plant architecture through the induction of indole-3-acetic acid-amido synthetases in rice. Plant Journal, 108 (5):1346-1364. doi: 10.1111/tpj.v108.5 URL
[6]	Dong G, Ma D P, Li J. 2008. The histone methyltransferase SDG 8 regulates shoot branching in Arabidopsis. Biochemical and Biophysical Research Communications, 373 (4):659-664. doi: 10.1016/j.bbrc.2008.06.096 URL
[7]	Du J, Shao C, Wang D, Feng Z, Cui C, Li R, Jewaria P K, Wang X, Xiao J, Wang X. 2025. Deletion of the PtrDJ1C gene leads to increased branching in poplar. Plant Physiology and Biochemistry,223:109789.
[8]	E Z, Zhang Y P, Zhou J H, Wang L. 2014. Mini review roles of the bZIP gene family in rice. Genetics and Molecular Research, 13 (2):3025-3036. doi: 10.4238/2014.April.16.11 pmid: 24782137
[9]	Evers J B, van der Krol A R, Vos J, Struik P C. 2011. Understanding shoot branching by modelling form and function. Trends in Plant Science, 16 (9):464-467. doi: 10.1016/j.tplants.2011.05.004 pmid: 21658989
[10]	Gao Mengzhu, Zhang Hao, Gao Jing, Wang Fengru, Dong Jingao. 2016. Functional analysis of STMP in the process of the branch development in Arabidopsis thaliana. Journal of Agricultural Biotechnology, 24 (4):530-537. (in Chinese)
	高梦烛, 张昊, 高静, 王凤茹, 董金皋. 2016. STMP在拟南芥分枝发育过程中的功能鉴定. 农业生物技术学报, 24 (4):530-537.
[11]	Guan H, Chen X, Wang K, Liu X, Zhang D, Li Y, Song Y, Shi Y, Wang T, Li C, Li Y. 2022. Genetic vriation in ZmPAT7 contributes to tassel branch number in maize. International Journal of Molecular Sciences, 23 (5):2586. doi: 10.3390/ijms23052586 URL
[12]	Izawa T, Foster R, Chua N H. 1993. Plant bZIP protein DNA binding specificity. Journal of Molecular Biology, 230 (4):1131-1144. doi: 10.1006/jmbi.1993.1230 pmid: 8487298
[13]	Janssen B J, Drummond R S, Snowden K C. 2014. Regulation of axillary shoot development. Current Opinion in Plant Biology,17:28-35.
[14]	Kaneko-Suzuki M, Kurihara-Ishikawa R, Okushita-Terakawa C, Kojima C, Nagano-Fujiwara M, Ohki I, Tsuji H, Shimamoto K, Taoka K I. 2018. TFL1-like proteins in rice antagonize rice FT-like protein in inflorescence development by competition for complex formation with 14-3-3 and FD. Plant and Cell Physiology, 59 (3):458-468. doi: 10.1093/pcp/pcy021 pmid: 29401229
[15]	Lee C, Clark S E. 2015. A WUSCHEL-independent stem cell specification pathway is repressed by PHB,PHV and CNA in Arabidopsis. PLoS ONE, 10 (5):e0126006. doi: 10.1371/journal.pone.0126006 URL
[16]	Lein W, Usadel B, Stitt M, Reindl A, Ehrhardt T, Sonnewald U, Bornke F. 2008. Large-scale phenotyping of transgenic tobacco plants(Nicotiana tabacum)to identify essential leaf functions. Plant Biotechnology Journal, 6 (3):246-263. doi: 10.1111/pbi.2008.6.issue-3 URL
[17]	Mehrnia M, Balazadeh S, Zanor M I, Mueller-Roeber B. 2013. EBE,an AP2/ERF transcription factor highly expressed in proliferating cells,affects shoot architecture in Arabidopsis. Plant Physiology, 162 (2):842-857. doi: 10.1104/pp.113.214049 URL
[18]	Nidhi S, Preciado J, Tie L. 2021. Knox homologs shoot meristemless(STM)and KNAT 6 are epistatic to CLAVATA3(CLV3)during shoot meristem development in Arabidopsis thaliana. Molecular Biology Reports, 48 (9):6291-6302. doi: 10.1007/s11033-021-06622-4
[19]	Norkunas K, Harding R, Dale J, Dugdale B. 2018. Improving agroinfiltration-based transient gene expression in Nicotiana benthamiana. Plant Methods,14:71.
[20]	Parmentier-Line C M, Coleman G D. 2016. Constitutive expression of the poplar FD-like basic leucine zipper transcription factor alters growth and bud development. Plant Biotechnology Journal, 14 (1):260-270. doi: 10.1111/pbi.12380 pmid: 25915693
[21]	Reintanz B, Lehnen M, Reichelt M, Gershenzon J, Kowalczyk M, Sandberg G, Godde M, Uhl R, Palme K. 2001. Bus,a bushy Arabidopsis CYP79F1 knockout mutant with abolished synthesis of short-chain aliphatic glucosinolates. Plant Cell, 13 (2):351-367. doi: 10.1105/tpc.13.2.351 pmid: 11226190
[25]	Tantikanjana T, Yong J W, Letham D S, Griffith M, Hussain M, Ljung K, Sandberg G, Sundaresan V. 2001. Control of axillary bud initiation and shoot architecture in Arabidopsis through the SUPERSHOOT gene. Genes & Development, 15 (12):1577-1588. doi: 10.1101/gad.887301 URL
[26]	Taoka K, Ohki I, Tsuji H, Furuita K, Hayashi K, Yanase T, Yamaguchi M, Nakashima C, Purwestri Y.A, Tamaki S, Ogaki Y, Shimada C, Nakagawa A, Kojima C, Shimamoto K. 2011 14-3-3 proteins act as intracellular receptors for rice Hd3a florigen. Nature, 476 (7360):332-335. doi: 10.1038/nature10272
[27]	Wang S, Zhang X, Li B, Zhao X, Shen Y, Yuan Z. 2022. Genome-wide identification and characterization of bZIP gene family and cloning of candidate genes for anthocyanin biosynthesis in pomegranate(Punica granatum). BMC Plant Biology, 22 (1):170. doi: 10.1186/s12870-022-03560-6 pmid: 35379169
[28]	Yang H, Xue Q, Zhang Z, Du J, Yu D, Huang F. 2018. GmMYB181,a soybean R2R3-MYB protein,increases branch number in transgenic Arabidopsis. Frontiers in Plant Science,9:1027.
[29]	Yang J, Wang M, Li W, He X, Teng W, Ma W, Zhao X, Hu M, Li H, Zhang Y, Tong Y. 2019. Reducing expression of a nitrate-responsive bZIP transcription factor increases grain yield and N use in wheat. Plant Biotechnology Journal, 17 (9):1823-1833. doi: 10.1111/pbi.13103 pmid: 30811829
[30]	Yang X, Wang J, Dai Z, Zhao X, Miao X, Shi Z. 2019. miR156f integrates panicle architecture through genetic modulation of branch number and pedicel length pathways. Rice, 12 (1):40. doi: 10.1186/s12284-019-0299-5 pmid: 31147794
[31]	Ye L X, Wu Y M, Zhang J X, Zhang J X, Zhou H, Zeng R F, Zheng W X, Qiu M Q, Zhou J J, Xie Z Z, Hu C G, Zhang J Z. 2023. A bZIP transcription factor(CiFD)regulates drought- and low-temperature-induced flowering by alternative splicing in citrus. Journal of Integrative Plant Biology, 65 (3):674-691. doi: 10.1111/jipb.v65.3 URL
[32]	Zeng R F, Hu S F, Tian X, Zhong Z Q, Qi Y, Deng L, Zhao J Y, Ma M M, Huang X M, Hu C G, Wang H C, Zhang J Z. 2025. The regulatory module consisting of KNOTTED1-like homeobox 6,Homeobox-leucine zipper 14,and BLADE-ON-PETIOLE 2 is involved in shoot development and lateral branching in citrus. International Journal of Biological Macromolecules,316:144782.
[33]	Zeng R F, Zhou H, Fu L M, Yan Z, Ye L X, Hu S F, Gan Z M, Ai X Y, Hu C G, Zhang J Z. 2021. Two citrus KNAT-like genes,CsKN1 and CsKN2,are involved in the regulation of spring shoot development in sweet orange. Journal of Experimental Botany, 72 (20):7002-7019. doi: 10.1093/jxb/erab311 URL
[34]	Zhang F, Wang Y, Irish V F. 2021. CENTRORADIALIS maintains shoot meristem indeterminacy by antagonizing THORN IDENTITY 1 in citrus. Current Biology, 31 (10):2261. doi: 10.1016/j.cub.2021.04.032 URL
[35]	Zhang L, Fang W, Chen F, Song A. 2022. The role of transcription factors in the regulation of plant shoot branching. Plants-Basel, 11 (15):1997.
[36]	Zhang L, Fu X, Ye J, Chen S, Jin J, Liu W, Zhang Z, Zhou L, Chen S, Fang W, Song A, Chen F. 2025. CmbZIP 19 inhibits lateral bud elongation via the brassinolide pathway in chrysanthemum. Plant Journal,121:e70080.
[37]	Zhou Qin,Xie Yurong. 2022. Functional analysis of ELONGATED HYPOCOTYL 5 regulating branching in Arabidopsis thaliana. Current Biotechnology, 12 (3):379-386. (in Chinese)
	周琴, 谢钰容. 2022. 光信号转导因子HY5调控拟南芥分枝的功能研究. 生物技术进展, 12 (3):379-386. doi: 10.19586/j.2095-2341.2021.0102
[22]	Robil J M. 2023. The many side jobs of Lateral suppressor(Ls)in plant development. Plant Physiology, 193 (4):2254-2256. doi: 10.1093/plphys/kiad496 URL
[23]	Song Z, Yan T, Liu J, Bian Y, Heng Y, Lin F, Jiang Y, Wang D X, Xu D. 2020. BBX28/BBX29,HY5 and BBX30/31 form a feedback loop to fine-tune photomorphogenic development. Plant Journal, 104 (2):377-390. doi: 10.1111/tpj.v104.2 URL
[24]	Sorefan K, Booker J, Haurogne K, Goussot M, Bainbridge K, Foo E, Chatfield S, Ward S, Beveridge C, Rameau C, Leyser O. 2003. MAX4 and RMS1 are orthologous dioxygenase-like genes that regulate shoot branching in Arabidopsis and pea. Genes & Development, 17 (12):1469-1474. doi: 10.1101/gad.256603 URL
