Creating High Lycopene Fruit Using CRISPR/Cas9 Technology in Tomato

doi:10.16420/j.issn.0513-353x.2023-0782

Acta Horticulturae Sinica ›› 2024, Vol. 51 ›› Issue (2): 253-265.doi: 10.16420/j.issn.0513-353x.2023-0782

• Genetic&Breeding?Germplasm Resources?Molecular Biology • Previous Articles Next Articles

Creating High Lycopene Fruit Using CRISPR/Cas9 Technology in Tomato

YANG Liang¹^,²^,³^,⁴, LIU Huan¹^,³^,⁴, MA Yanqin¹^,²^,³^,⁴, LI Ju¹^,²^,³^,⁴, WANG Hai'e¹^,⁴, ZHOU Yujie¹^,³^,⁴, LONG Haicheng¹^,³^,⁴, MIAO Mingjun¹^,²^,³^,⁴, LI Zhi¹^,²^,³^,⁴^,^*(), CHANG Wei²^,³^,⁴^,⁵^,^*()

¹ Horticulture Research Institute，Sichuan Academy of Agricultural Sciences，Chengdu 610066，China
² Sichuan Province Engineering Technology Research Center of Vegetables，Pengzhou，Sichuan 611934，China
³ Vegetable Germplasm Innovation and Variety Improvement Key Laboratory of Sichuan Province，Chengdu 610066，China
⁴ Key Laboratory of Horticultural Crops Biology and Germplasm Enhancement in Southwest Regions，Ministry of Agriculture and Rural Affairs，Chengdu 610066，China
⁵ Sichuan Institute of Edible Fungi，Chengdu 610066，China

Received:2023-12-07 Revised:2024-01-06 Online:2024-02-25 Published:2024-02-26
Contact: LI Zhi, CHANG Wei

Abstract

Abstract:

The large-fruited cultivated tomato resource“T048”was used as the material for targeted editing of the tomato stay-green gene SlSGR1 using CRISPR/Cas9 technology. Sequence analysis of the target sites of 19 positive transgenic plants revealed that a total of ten plants had editing events，with an editing efficiency of 52.6%. The types of editing events involved deletions，insertions and substitutions of bases，most of which occurred 3-4 bp upstream of the PAM sequence. A total of 565 bp of sequence inversion between the two editing sites was also detected. Phenotypic analysis revealed that the homozygous edited plants in the T1 generation showed slower senescence of the leaves and rusty red color fruits，with significantly higher content of lycopene，chlorophyll and β-carotenoid，compared with unedited fruits. Analysis of the key genes for carotenoid synthesis revealed that the expression of the SGR1 in the fruit of the homozygous edited plants was significantly lower than that of the unedited plants，whereas the expression of the PSY1 was significantly higher than that of the unedited one. This study demonstrated that targeted editing of the SlSGR1 gene by CRISPR/Cas9 technology can effectively enhance the content of carotenoids such as lycopene and β-carotene in tomato fruits，and thus provide new germplasm for tomato nutritional quality breeding.

Key words: tomato, geno editing, lycopene, carotenoid, SlSGR1

YANG Liang, LIU Huan, MA Yanqin, LI Ju, WANG Hai'e, ZHOU Yujie, LONG Haicheng, MIAO Mingjun, LI Zhi, CHANG Wei. Creating High Lycopene Fruit Using CRISPR/Cas9 Technology in Tomato[J]. Acta Horticulturae Sinica, 2024, 51(2): 253-265.

Figures/Tables 9

Table 1 The primers used in this study

用途 Aim	引物名称 Primer name	引物序列（5′-3′） Primer sequence
载体构建Construction vector	SGR1-target1-F	ATATATGGTCTCGTTTGAGATGAAGTTGTTGCAGAGGTTTTAGAGCTAGAAATAG
载体构建Construction vector	SGR1-target2-R	ATTATTGGTCTCGAAACCCAGTGAGTGTTATGCCTTCCAAACTACACTGTTAGATTC
阳性克隆验证Identification of the positive clones	M13-F	GTAAAACGACGGCCAGT
阳性克隆验证Identification of the positive clones	SGR1-target2	CCAGTGAGTGTTATGCCTT
转基因株验证Identification of the transformation plants	Cas9-F	AGGTCACGGTTAAGCAGCTC
转基因株验证Identification of the transformation plants	Cas9-R	CCCTTCTGCGTGGTCTGATT
靶位点检测 Detection target	SGR1-Seqtarget-F	GTTTGATTTGCAGTTGCAAGGTT
靶位点检测 Detection target	SGR1-Seqtarget-R	AATGCTGCTTCCACAAACCC
Real-time PCR	SlACTIN-RT-F	GGGATGGAGAAGTTTGGTGGTGG
	SlACTIN-RT-R	CTTCGACCAAGGGATGGTGTAGC
	SGR1-RT-F	GGGTCCACTCAGAGATGCAA
	SGR1-RT-R	ACTCACTGGGGGAAAGCAAC
	PDS-RT-F	AAGGCGCTGTCTTATCAGGAAA
	PDS-RT-R	TAAACTACGCTTGCTTCCGACA
	ZDS-RT-F	ACCGTACAACTACGCTACAATGG
	ZDS-RT-R	CATCTGGCGTATAGAGGAGATTG
	PSY1-RT-F	TATTTGCTGGAAGGGTGACC
	PSY1-RT-R	TAGCTGAGCTCAATTCTGTC

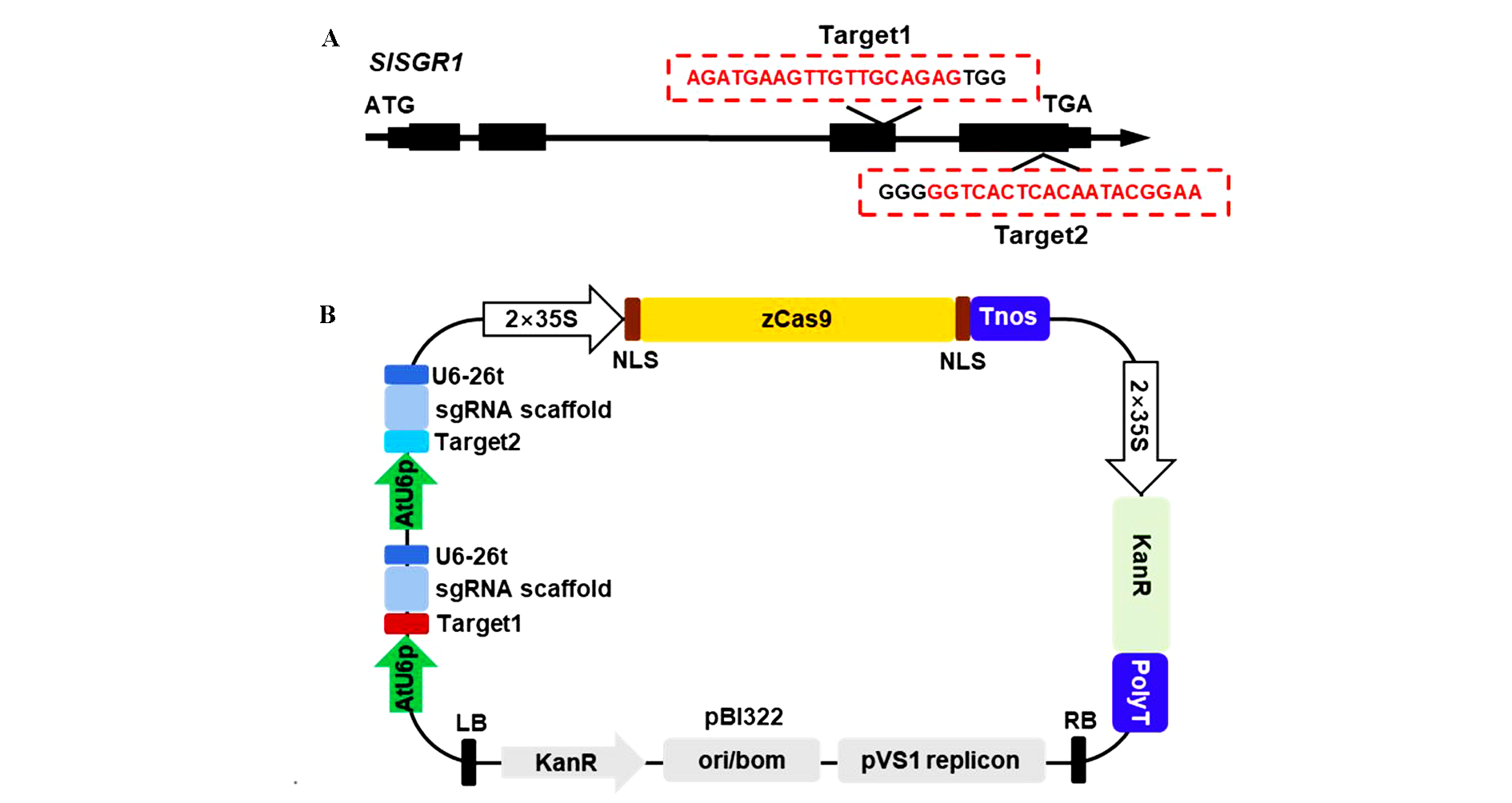

Fig. 1 Schematic representation of SlSGR1 with target sites（A）and the pKSE401-SGR1 vector（B）

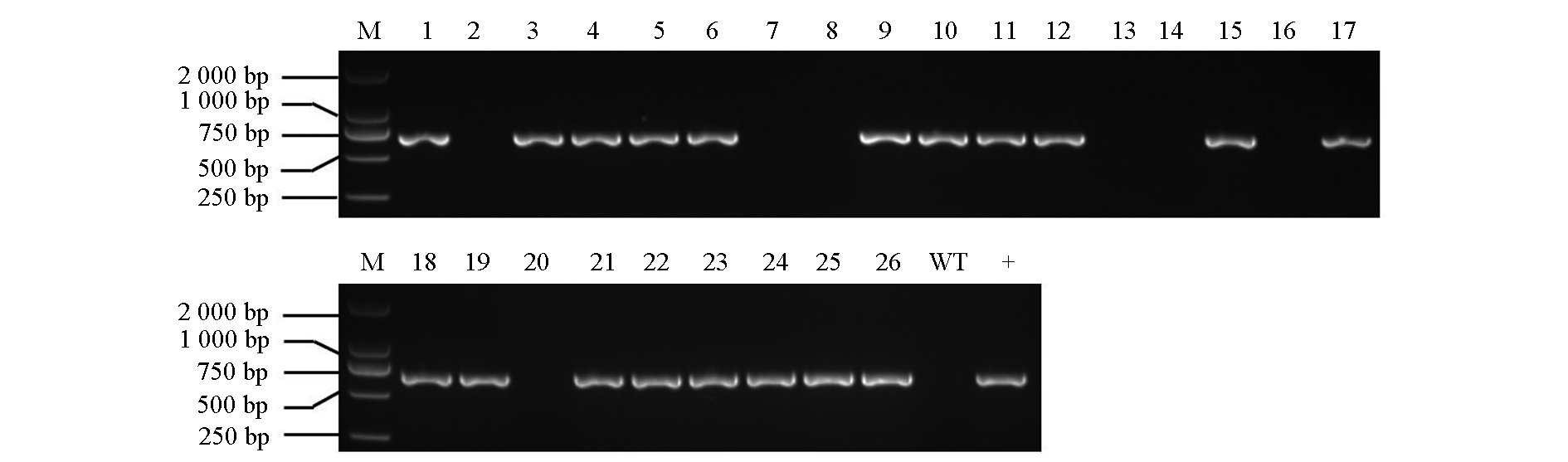

Fig. 2 Identification of positive transgenic lines in SlSGR1 edited T0 generation plants M：DL2000 DNA marker；1-26：Rooted plants；WT：Wild type；+：Positive control.

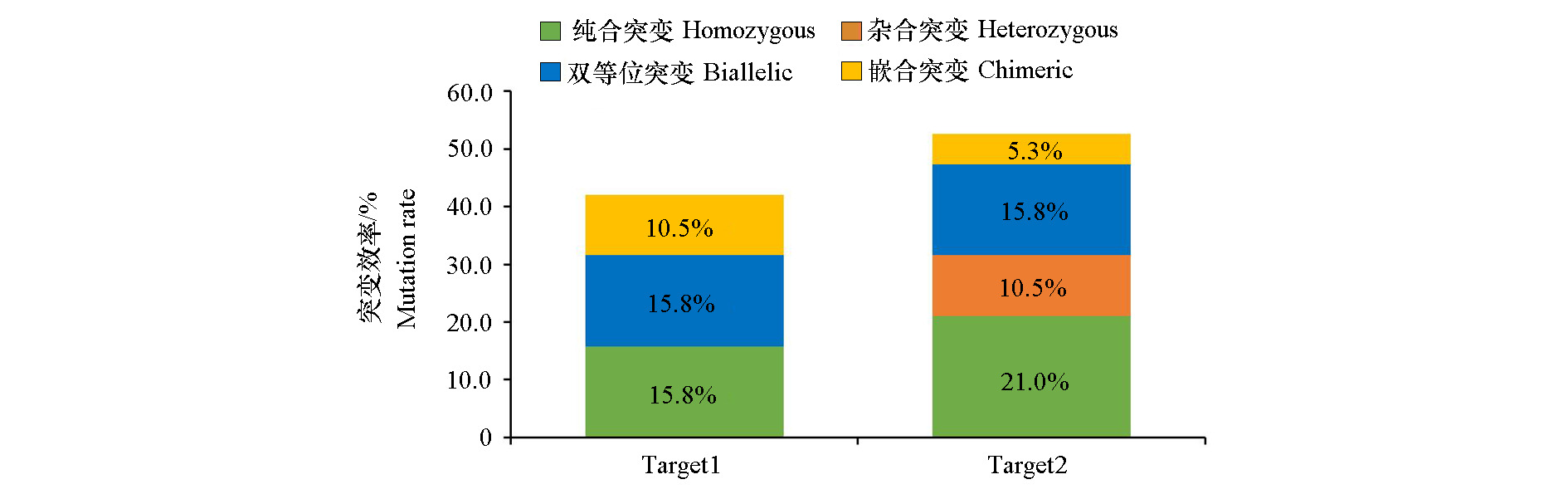

Fig. 3 Statistics of editing frequency and pattern in Target1 and Target2 loci of SlSGR1 edited plants

Fig. 4 Mutation sequence analysis of ten SlSGR1 edited T0 generation plants Ho：Homozygous mutation；He：Heterozygous mutation；Bi：Biallelic mutation；Ch：Chimeric mutation；WT：Wild type；d：Base deletion；i：Base insertion；s：Base substitution.

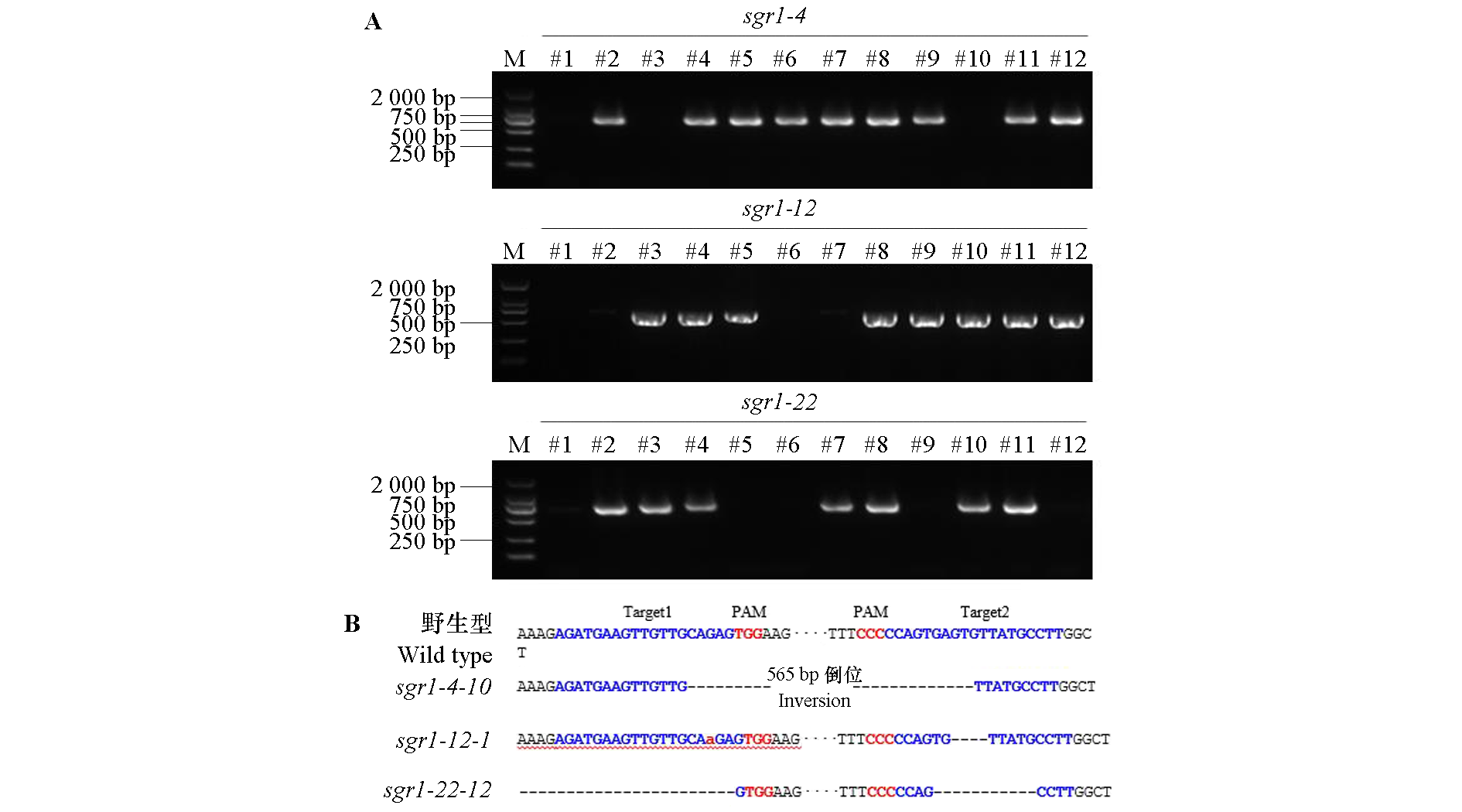

Fig. 5 Screening of T1 exogenous T-DNA-free homozygous lines in SlSGR1 edited plants （sgr1-4, sgr1-12 and sgr1-22）（A）and sequence analysis of their target sites（B）

Fig. 6 Phenotypes of leaves and fruits in SlSGR1 edited plants（sgr1-4-10，sgr1-12-1 and sgr1-22-12）

Table 2 Content of carotenoids，chlorophyll and nutritional quality traits in SlSGR1 edited plants

基因编辑株系 Genome editing plant		叶绿素/（μg • g^-1） Chlorophyll	β-胡萝卜素/（μg • g^-1） β-carotenoids	抗坏血酸/（μg · g^-1） Vitamin C	可溶性固形物/% Soluble solids
野生型Wild type	53.70 ± 9.54 b	4.28 ± 1.24 b	38.44 ± 3.98 b	251.64 ± 11.58 a	4.77 ± 0.40 a
sgr1-4-10	73.21 ± 9.56 a	29.60 ± 1.50 a	53.32 ± 2.74 a	246.43 ± 17.73 a	5.13 ± 0.85 a
sgr1-22-12	75.08 ± 9.11 a	37.20 ± 6.30 a	59.71 ± 1.13 a	254.73 ± 7.27 a	4.87 ± 0.15 a

Fig. 7 Relative expression of key genes of carotenoid synthesis pathway in four fruit development stages of different genome editing tomato plants MG：Mature green stage；Br：Break stage；Br + 4：Four days after break stage；Br + 10：Ten days after break stage.Columns with different lowercase letters indicate significant differences among lines in the same stage（P < 0.05）.

References 39

[1]	Barry C S, Pandey P. 2009. A survey of cultivated heirloom tomato varieties identifies four new mutant alleles at the green-flesh locus. Molecular Breeding, 24 (3):269-276.
[2]	Brooks C, Nekrasov V, Lippman Z B, van Eck J. 2014. Efficient gene editing in tomato in the first generation using the clustered regularly interspaced short palindromic repeats/CRISPR-associated 9 system. Plant Physiology, 166 (3):1292-1297.
[3]	Cong L, Ran F A, Cox D, Lin S, Barretto R, Habib N, Hsu P D, Wu X, Jiang W, Marraffini L A, Zhang F. 2013. Multiplex genome engineering using CRISPR/Cas systems. Science, 339 (6121):819-823. doi: 10.1126/science.1231143 pmid: 23287718
[4]	D’Ambrosio C, Stigliani A L, Giorio G. 2018. CRISPR/Cas 9 editing of carotenoid genes in tomato. Transgenic Research, 27 (4):367-378.
[5]	Dahan-Meir T, Filler-Hayut S, Melamed-Bessudo C, Bocobza S, Czosnek H, Aharoni A, Levy A A. 2018. Efficient in planta gene targeting in tomato using geminiviral replicons and the CRISPR/Cas9 system. Plant Journal, 95 (1):5-16.
[6]	Galpaz N, Ronen G, Khalfa Z, Zamir D, Hirschberg J. 2006. A chromoplast-specific carotenoid biosynthesis pathway is revealed by cloning of the tomato white-flower locus. Plant Cell, 18 (8):1947-1960. doi: 10.1105/tpc.105.039966 pmid: 16816137
[7]	Gao C X. 2021. Genome engineering for crop improvement and future agriculture. Cell, 184 (6):1621-1635. doi: 10.1016/j.cell.2021.01.005 pmid: 33581057
[8]	Hörtensteiner S. 2009. Stay-green regulates chlorophyll and chlorophyll-binding protein degradation during senescence. Trends in Plant Science, 14 (3):155-162. doi: 10.1016/j.tplants.2009.01.002 pmid: 19237309
[9]	Jacobs T B, LaFayette P R, Schmitz R J, Parrott W A. 2015. Targeted genome modifications in soybean with CRISPR/Cas9. BMC Biotechnology, 15:16. doi: 10.1186/s12896-015-0131-2 pmid: 25879861
[10]	Li Guobin, Cai Liangyu, Xiao Licheng, Wang Jiafa, Zhang Dedi, Zhang Junhong. 2023. Creating pink fruit and fruit without green shoulder using CRISPR/Cas 9 technology in tomato. Acta Horticulturae Sinica, 50 (5):985-999. (in Chinese) doi: 10.16420/j.issn.0513-353x.2022-0273
	李国斌, 蔡梁玉, 肖立成, 王家发, 张得迪, 张俊红. 2023. 利用CRISPR/Cas9技术创制番茄粉果和无绿肩材料. 园艺学报, 50 (5):985-999. doi: 10.16420/j.issn.0513-353x.2022-0273
[11]	Li J H, Zhang S J, Zhang R Z, Gao J, Qi Y P, Song G Q, Li W, Li Y L, Li G Y. 2020. Efficient multiplex genome editing by CRISPR/Cas 9 in common wheat. Plant Biotechnology Journal, 19 (3):427-429.
[12]	Liang G, Zhang H M, Lou D J, Yu D Q. 2016. Selection of highly efficient sgRNAs for CRISPR/Cas9-based plant genome editing. Scientific Reports, 6:21451. doi: 10.1038/srep21451 pmid: 26891616
[13]	Liu G W, Lin Q P, Jin S, Gao C X. 2022a. The CRISPR-Cas toolbox and gene editing technologies. Molecular Cell, 82 (2):333-347.
[14]	Liu H, Ding Y D, Zhou Y Q, Jin W Q, Xie K B, Chen L L. 2017. CRISPR-P 2.0:an improved CRISPR-Cas 9 tool for genome editing in plants. Molecular Plant, 10 (3):530-532.
[15]	Liu Y, Zhang C L, Wang X F, Li X M, You C X. 2022b. CRISPR/Cas 9 technology and its application in horticultural crops. Horticultural Plant Journal, 8 (4):395-407.
[16]	Liu Y H, Ou L J, Liu Z B, Lyu J H, Wang J, Song J S, Yang B Z, Chen W C, Yang S, Liu W, Zou X X. 2023. A novel single-base mutation in CaSGR1 confers the stay-green phenotype in pepper. Horticultural Plant Journal, 9 (2):293-305.
[17]	Livak K J, Schmittgen T D. 2001. Analysis of relative gene expression data using real-time quantitative PCR and the 2^-∆∆CTmethod. Methods, 25 (4):402-408. doi: 10.1006/meth.2001.1262 pmid: 11846609
[18]	Lu Y, Wang J Y, Chen B, Mo S D, Lian L, Luo Y M, Ding D H, Ding Y H, Cao Q, Li Y C, Li Y, Liu G Z, Hou Q Q, Cheng T T, Wei J T, Zhang Y R, Chen G W, Song C, Hu Q, Sun S, Fan G Y, Wang Y T, Liu Z T, Song B A, Zhu J K, Li H R, Jiang L J. 2021. A donor-DNA-free CRISPR/Cas-based approach to gene knock-up in rice. Nature Plants, 7 (11):1445-1452. doi: 10.1038/s41477-021-01019-4 pmid: 34782773
[19]	Lu Y M, Zhu J K. 2017. Precise editing of a target base in the rice genome using a modified CRISPR/Cas9 system. Molecular Plant, 10 (3):523-525. doi: S1674-2052(16)30297-0 pmid: 27932049
[20]	Luo Z D, Zhang J H, Li J H, Yang C X, Wang T T, Ouyang B, Li H X, Giovannoni J, Ye Z B. 2013. A STAY-GREEN protein SlSGR1 regulates lycopene and beta-carotene accumulation by interacting directly with SlPSY 1 during ripening processes in tomato. New Phytologist, 198 (2):442-452.
[21]	Ono K, Kimura M, Matsuura H, Tanaka A, Ito H. 2019. Jasmonate production through chlorophyll a degradation by Stay-Green in Arabidopsis thaliana. Journal of Plant Physiology, 238:53-62.
[22]	Park S Y, Yu J W, Park J S, Li J, Yoo S C, Lee N Y, Lee S K, Jeong S W, Seo H S, Koh H J, Jeon J S, Park Y I, Paek N C. 2007. The senescence-induced staygreen protein regulates chlorophyll degradation. Plant Cell, 19 (5):1649-1664.
[23]	Ren G D, An K, Liao Y, Zhou X, Cao Y J, Zhao H F, Ge X C, Kuai B K. 2007. Identification of a novel chloroplast protein AtNYE 1 regulating chlorophyll degradation during leaf senescence in Arabidopsis. Plant Physiology, 144 (3):1429-1441.
[24]	Sakuraba Y, Schelbert S, Park S Y, Han S H, Lee B D, Andrès C B, Kessler F, Hörtensteiner S, Paek N C. 2012. Stay-green and chlorophyll catabolic enzymes interact at light-harvesting complex ii for chlorophyll detoxification during leaf senescence in Arabidopsis. Plant Cell, 24 (2):507-518.
[25]	Sato T, Shimoda Y, Matsuda K, Tanaka A, Ito H. 2018. Mg-dechelation of chlorophyll a by stay-green activates chlorophyll b degradation through expressing non-yellow coloring 1 in Arabidopsis thaliana. Journal of Plant Physiology, 222:94-102.
[26]	Shan Q W, Wang Y P, Li J, Zhang Y, Chen K L, Liang Z, Zhang K, Liu J X, Xi J J, Qiu J L, Gao C X. 2013. Targeted genome modification of crop plants using a CRISPR-Cas system. Nature Biotechnology, 31 (8):686-688. doi: 10.1038/nbt.2650 pmid: 23929338
[27]	Shimoda Y, Ito H, Tanaka A. 2016. Arabidopsis STAY-GREEN,mendel’s green cotyledon gene,encodes magnesium-dechelatase. Plant Cell, 28 (9):2147-2160.
[28]	Svitashev S, Schwartz C, Lenderts B, Young J K, Mark Cigan A. 2016. Genome editing in maize directed by CRISPR-Cas 9 ribonucleoprotein complexes. Nature Communication, 7:13274.
[29]	van Eck J, Keen P, Tjahjadi M. 2019. Agrobacterium tumefaciens-mediated transformation of tomato. Methods in Molecular Biology, 1864:225-234.
[30]	Wang G X, Zong M, Liu D, Wu Y G, Tian S M, Han S, Guo N, Duan M M, Miao L M, Liu F. 2022. Efficient generation of targeted point mutations in the Brassica oleracea var. botrytis genome via a modified CRISPR/Cas9 system. Horticultural Plant Journal, 8 (4):527‐530.
[31]	Wang S J, Wang G, Li H L, Li F, Wang J B. 2023. Agrobacterium tumefaciens-mediated transformation of embryogenic callus and CRISPR/Cas9-mediated genome editing in‘Feizixiao’litchi. Horticultural Plant Journal, 9 (5):947-957.
[32]	Xie Z K, Wu S D, Chen J Y, Zhu X Y, Zhou X, Hörtensteiner S, Ren G D, Kuai B K. 2019. The C-terminal cysteine-rich motif of NYE1/SGR1 is indispensable for its function in chlorophyll degradation in Arabidopsis. Plant Molecular Biology, 101 (3):257-268.
[33]	Xing H L, Dong L, Wang Z P, Zhang H Y, Han C Y, Liu B, Wang X C, Chen Q J. 2014. A CRISPR/Cas9 toolkit for multiplex genome editing in plants. BMC Plant Biology,14327.
[34]	Yang Mengxia, Liu Xiaolin, Cao Xue, Wei Kai, Ning Yu, Yang Pei, Li Shanshan, Chen Ziyue, Wang Xiaoxuan, Guo Yanmei, Du Yongchen, Li Junming, Liu Lei, Li Xin, Huang Zejun. 2023. Construction and application of a CRISPR/Cas 9 system for multiplex gene editing in tomato. Acta Horticulturae Sinica, 50 (6):1215-1229. (in Chinese) doi: 10.16420/j.issn.0513-353x.2022-0339
	杨孟霞, 刘晓林, 曹雪, 魏凯, 宁宇, 杨沛, 李珊珊, 陈紫月, 王孝宣, 国艳梅, 杜永臣, 李君明, 刘磊, 李鑫, 黄泽军. 2023. 番茄CRISPR/Cas9介导的多基因编辑技术体系构建与应用. 园艺学报, 50 (6):1215-1229. doi: 10.16420/j.issn.0513-353x.2022-0339
[35]	Yang T X, Deng L, Zhao W, Zhang R X, Jiang H L, Ye Z B, Li C B, Li C Y. 2019. Rapid breeding of pink-fruited tomato hybrids using the CRISPR/Cas9 system. Journal of Genetics and Genomics, 46 (10):505-508. doi: S1673-8527(19)30167-5 pmid: 31734133
[36]	Zhang Aiping, Liu Jiangna, Yan Jianjun, Zhang Xiying, Bai Yunfeng. 2022. Progress and prospect of genome editing in tomato. Acta Horticulturae Sinica, 49 (1):221-232. (in Chinese) doi: 10.16420/j.issn.0513-353x.2020-0976
	张爱萍, 刘江娜, 闫建俊, 张西英, 白云凤. 2022. 番茄基因编辑研究进展和前景. 园艺学报, 49 (1):221-232. doi: 10.16420/j.issn.0513-353x.2020-0976
[37]	Zhang C S, Liu C L, Weng J F, Cheng B J, Liu F, Li X H, Xie C X. 2017. Creation of targeted inversion mutations in plants using an RNA-guided endonuclease. Crop Journal, 5 (1):83-88. doi: 10.1016/j.cj.2016.08.001
[38]	Zhang F, Wen Y, Guo X. 2014. CRISPR/Cas 9 for genome editing:progress,implications and challenges. Human Molecular Genetics, 23 (R1):R40-R46.
[39]	Zheng Aihong, Zhang Fen, Jiang Min, Yuan Qiao, Jiang Leiyu, Chen Qing, Tang Haoru, Sun Bo. 2019. Targeted editing of BoaZDS by CRISPR/Ca 9 technology in Chinese kale. Acta Horticulturae Sinica, 46 (1):57-64. (in Chinese)
	郑爱红, 张芬, 江敏, 袁巧, 江雷雨, 陈清, 汤浩茹, 孙勃. 2019. 利用CRISPR/Ca9技术靶向编辑芥蓝BoaZDS. 园艺学报, 46 (1):57-64. doi: 10.16420/j.issn.0513-353x.2018-0426
