Effects of Apple Mosaic Disease on Leaves Photosynthesis and Fruit Quality of‘Hirosaki Fuji’Apple

doi:10.16420/j.issn.0513-353x.2026-0123

Acta Horticulturae Sinica ›› 2026, Vol. 53 ›› Issue (7): 2119-2128.doi: 10.16420/j.issn.0513-353x.2026-0123

• Cultivation · Physiology & Biochemistry • Previous Articles Next Articles

Effects of Apple Mosaic Disease on Leaves Photosynthesis and Fruit Quality of‘Hirosaki Fuji’Apple

LUO Zhangji¹, LI Haojian¹, LI Lianzhen¹, HOU Xiangting¹, DONG Wen¹, SUN Ping¹, XUE Xiaomin², YOU Chunxiang¹^,^*(), ZHANG Zhenlu¹^,^*()

¹ College of Horticultural Science and Engineering， Shandong Agricultural University，Tai’an， Shandong 271018， China
² Shandong Institute of Pomology， Tai’an， Shandong 271000， China

Received:2026-03-18 Revised:2026-06-02 Online:2026-07-25 Published:2026-07-23
Contact: YOU Chunxiang, ZHANG Zhenlu

Abstract

Abstract:

In a seven-year-old‘Hirosaki Fuji’apple orchard，apple trees without mosaic symptoms（control）and those with obvious mosaic symptoms were selected to investigate the effects of apple mosaic disease（AMD）on leaf photosynthetic efficiency and key quality during fruit growth and development. The results showed that the net photosynthetic rate（P_n）of leaves exhibiting mosaic symptoms was significantly reduced compared with that of asymptomatic control leaves，accompanied by a significant increase in intercellular CO₂ concentration（C_i）. From 40 to 200 days after full bloom，measurements were taken every 30 days for indicators including single fruit mass，fruit longitudinal and transverse diameters，peel and flesh firmness，peel color difference and glossiness，soluble solids content，and titratable acidity. The occurrence of mosaic disease significantly inhibited the increase in single fruit mass and the expansion of fruit longitudinal and transverse diameters，accelerated the decline in peel firmness，and suppressed the degradation of titratable acidity，resulting in a reduced solid-to-acid ratio. However，no significant differences were observed between the diseased and control fruits in terms of soluble solids content，peel color difference，or glossiness.

Key words: apple, apple mosaic disease, apple necrotic mosaic virus, photosynthesis, fruit quality

LUO Zhangji, LI Haojian, LI Lianzhen, HOU Xiangting, DONG Wen, SUN Ping, XUE Xiaomin, YOU Chunxiang, ZHANG Zhenlu. Effects of Apple Mosaic Disease on Leaves Photosynthesis and Fruit Quality of‘Hirosaki Fuji’Apple[J]. Acta Horticulturae Sinica, 2026, 53(7): 2119-2128.

Figures/Tables 8

Table 1 Primer sequences and reaction conditions for virus detection

引物名称 Primer name	引物序列（5′-3′） Primer sequence	目标片段/bp Product size	退火温度/℃ Annealing temperature
ApNMV-F ApNMV-R	ATGGTGTGCAATCGCTGTCA CATCGACCATAAGGATATCA	560	58
ACLSV-F ACLSV-R	TCTGCAAGAGAATTTCAGTT GTCTACAGGCTATTTATTATAAG	802	48
ASGV-F ASGV-R	CCCGCTGTTGGATTTGATACACCTC CTGCAAGACCGCGACCAAGTTT	488	58

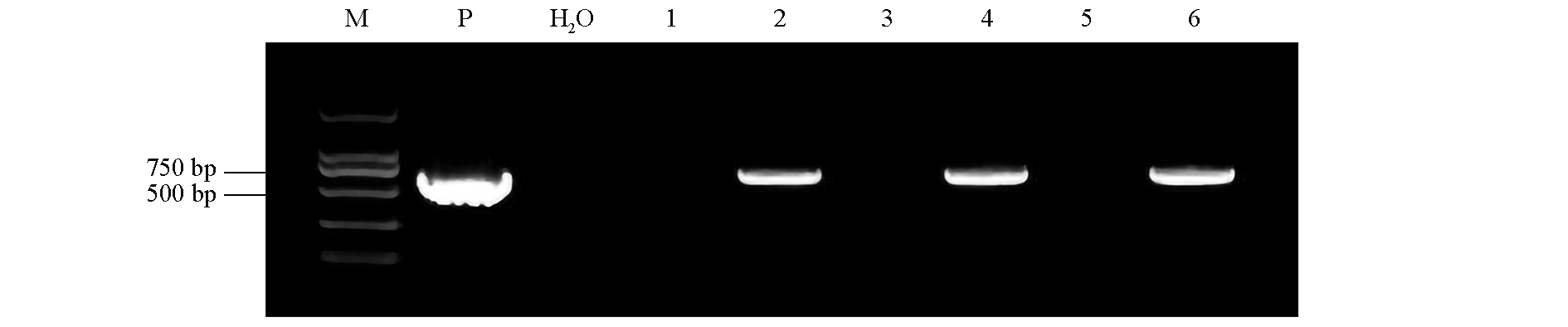

Fig. 1 PCR amplification of ApNMV in‘Hirosaki Fuji’apple plants M：DNA marker DL2000；P：Positive control；H2O：Blank control；2，4，6：Samples with mosaic disease；1，3，5：Samples without mosaic symptoms. The same below

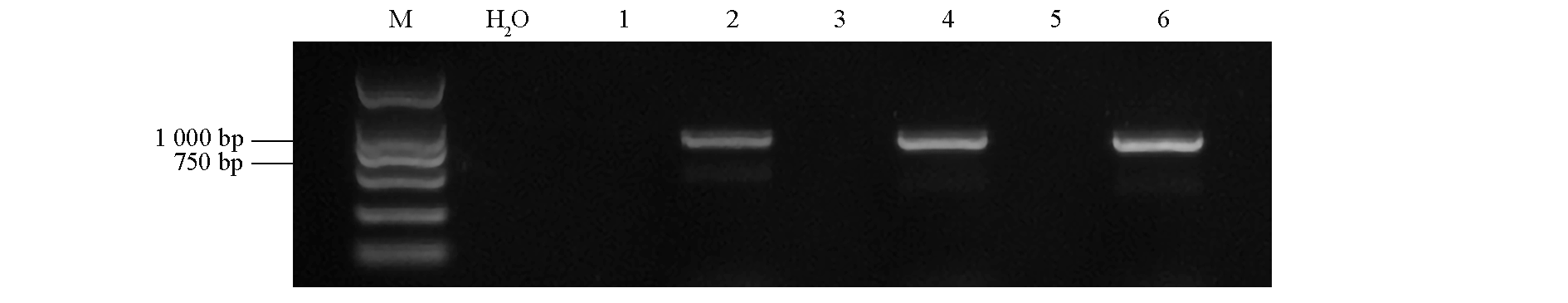

Fig. 2 PCR amplification of ACLSV in‘Hirosaki Fuji’apple plants

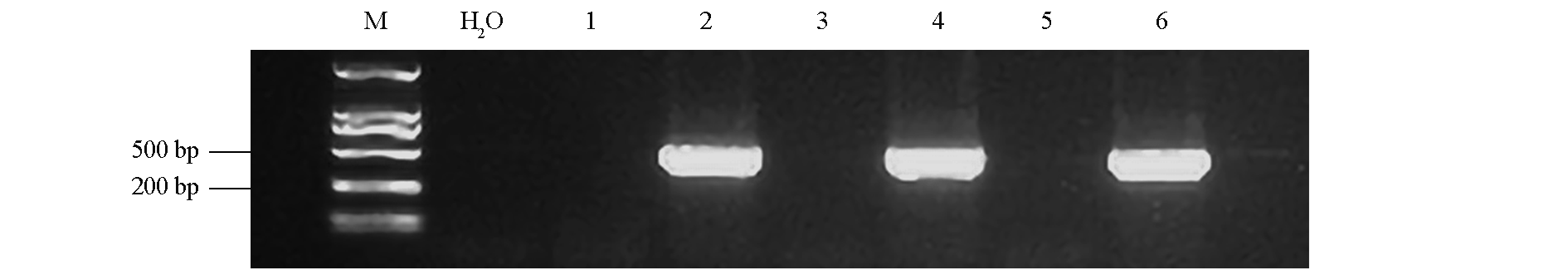

Fig. 3 PCR amplification of ASGV in‘Hirosaki Fuji’apple plants

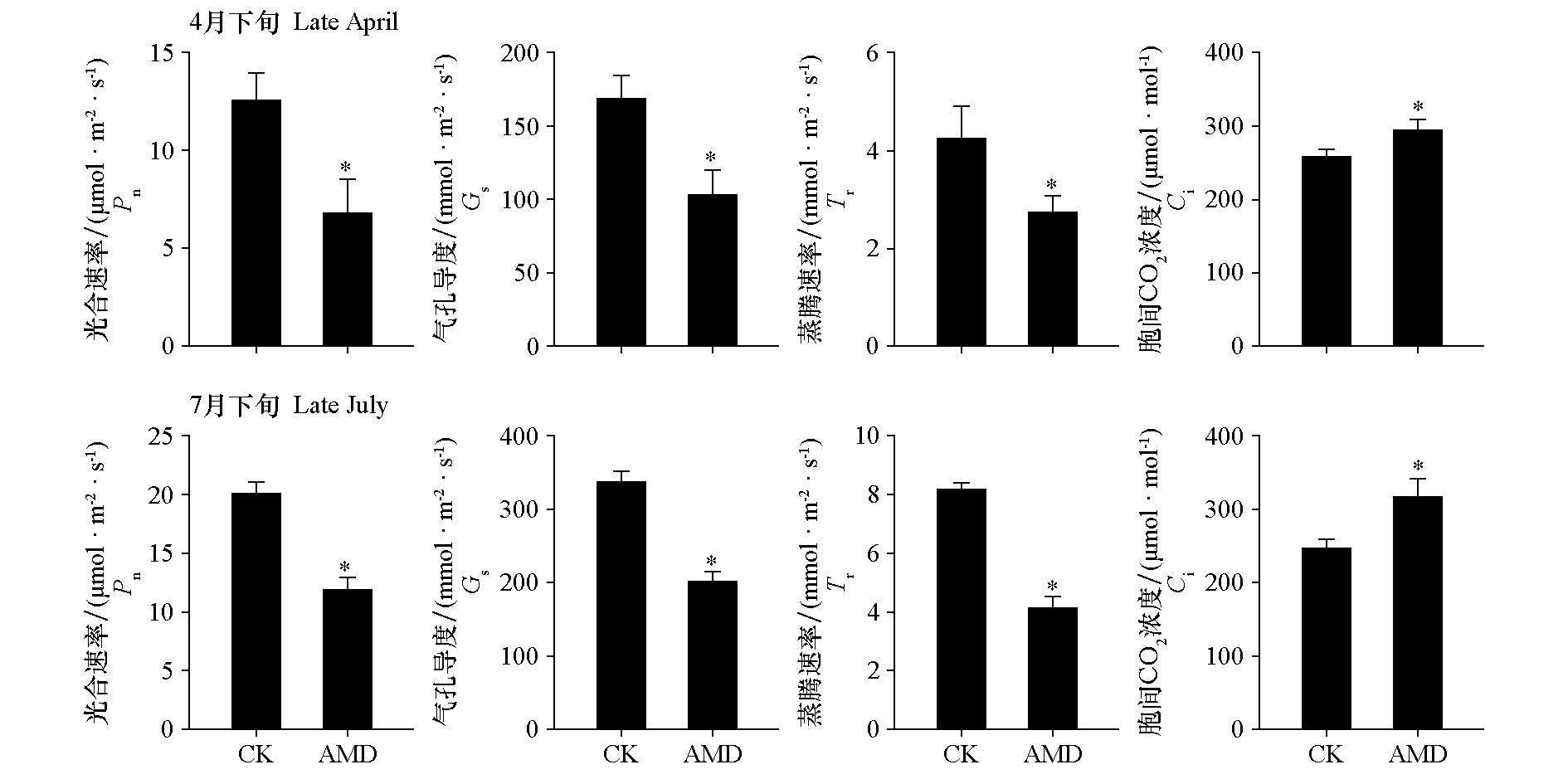

Fig. 4 Effect of mosaic disease infection on leaf photosynthesis CK：Asymptomatic control samples；AMD：Mosaic disease samples. Tukey，P < 0.05. The same below

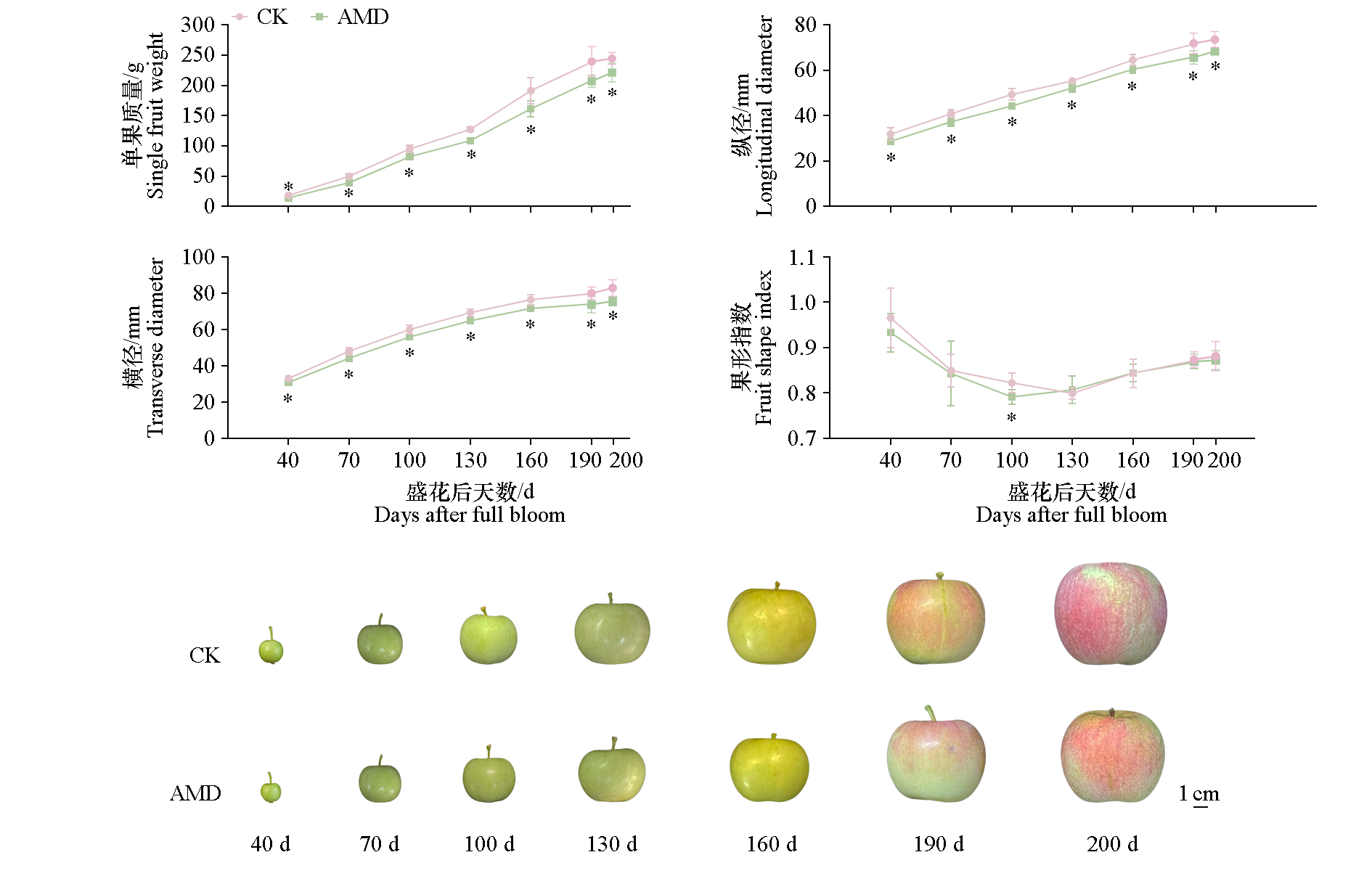

Fig. 5 Effects of mosaic disease on single fruit weight，longitudinal and transverse diameters，fruit shape index，and fruit comparison of‘Hirosaki Fuji’apples during fruit development The fruit bags are removed at 180 days after full bloom. The same below

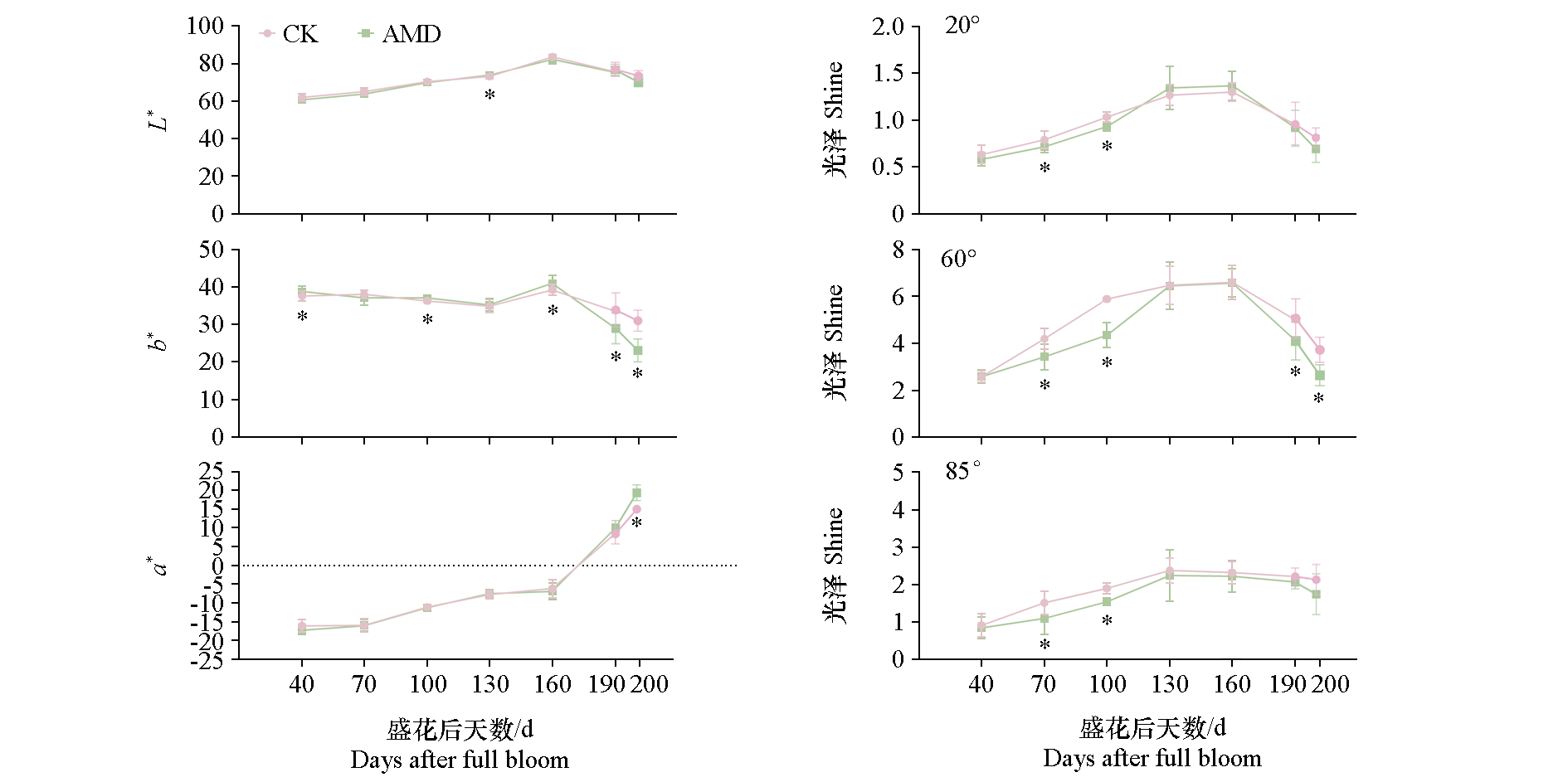

Fig. 6 Effects of mosaic disease on color difference and fruit shine（different measurement angle）of‘Hirosaki Fuji’apples

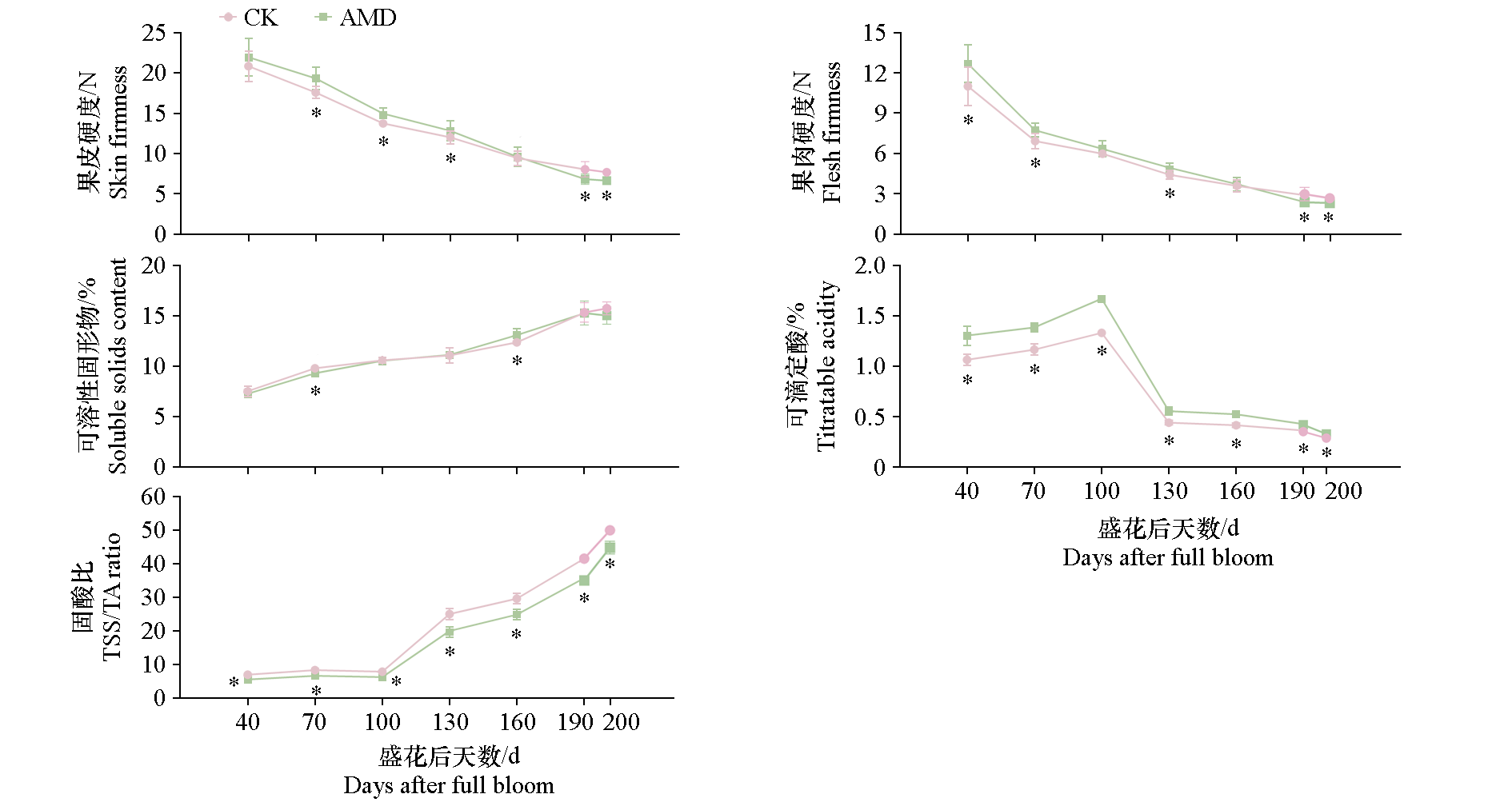

Fig. 7 Effects of mosaic disease on peel/pulp firmness，soluble solids，titratable acidity，and TSS/TA ratio in‘Hirosaki Fuji’apples during development

References 27

[1]	Bradford F C, Joley L. 1933. Infectious variegation in the apple. J Agric Res,46:901-908.
[2]	Cembali T, Folwell R J, Wandschneider P, Eastwell K C, Howell W E. 2003. Economic implications of a virus prevention program in deciduous tree fruits in the US. Crop Protection, 22 (10):1149-1156.
[3]	Chai Guangzhen, Song Laiqing, Jiang Zhongwu, Zhang Xueyong, Zhang Shuo, Liu Meiying, Tang Yan, Sun Yanxia, Zhao Lingling. 2017. Effects of apple mosaic disease on photosynthesis in different apple cultivars. Yantai Fruits,(3):8-10. (in Chinese)
	柴光臻, 宋来庆, 姜中武, 张学勇, 张硕, 刘美英, 唐岩, 孙燕霞, 赵玲玲. 2017. 苹果花叶病对不同苹果品种光合作用影响. 烟台果树,(3):8-10.
[4]	Chamberlain E E, Atkinson J D, Hunter J A, Wood G A. 1971. Effect of apple mosaic virus on growth and cropping of‘Freyberg’apple trees. New Zealand Journal of Agricultural Research,14:936-943.
[5]	Chen Rongxin, Zhong Yuanwen, Sun Lulong, Wang Hui, Wang Bochen, Jia Rongjian, Zhao Zhengyang. 2023. Occurrence of Viral diseases and sequence analysis of ASSVd in three new apple varieties. Journal of Fruit Science, 40 (6):1215-1225. (in Chinese)
	陈荣鑫, 钟远闻, 孙鲁龙, 王辉, 王伯臣, 贾荣俭, 赵政阳. 2023. 3个苹果新品种病毒病的发生状况及ASSVd序列分析. 果树学报, 40 (6):1215-1225.
[6]	Fulton R W. 1972. Apple mosaic virus// CMI/AAB description plant viruses No.83. Wellesbourne:Association of Applied Biologists.
[7]	Ge Yuquan, Li Hongfeng, Wang Chunyan, Wei Xiaoxia, Su Juan, Dong Shasha. 2021. Current status and sustainable development recommendations for China’s apple industry. Modern Food,(11):4-6. (in Chinese)
	葛玉全, 李红锋, 王春燕, 魏晓霞, 苏娟, 东莎莎. 2021. 我国苹果产业现状及可持续发展建议. 现代食品,(11):4-6.
[8]	Han Yuzhu, Hu Hongqing, Yu Yongxiong, Zhang Chaopeng, Fan Ziwei. 2019. Effects of alfalfa mosaic disease on photosynthesis,growth,and forage quality of alfalfa. Pratacultural Science, 36 (8):2061-2068. (in Chinese)
	韩玉竹, 胡鸿晴, 玉永雄, 张朝鹏, 范紫薇. 2019. 苜蓿花叶病对紫花苜蓿光合作用、生长及饲草品质的影响. 草业科学, 36 (8):2061-2068.
[9]	Han Zhilei, Yin Xiao, Hong Hao, Xu Shuai, Li Lili, Jiang Shanshan. 2025. Virus identification and genetic diversity analysis in apple production areas in the coastal region of Shandong. Acta Horticulturae Sinica, 52 (11):3031-3043. (in Chinese) doi: 10.16420/j.issn.0513-353x.2024-0925
	韩志磊, 阴筱, 洪浩, 许帅, 李丽莉, 姜珊珊. 2025. 山东沿海苹果产区病毒鉴定及遗传多样性分析. 园艺学报, 52 (11):3031-3043.
[10]	Jia Xiaojun, Hu Guojun, Zhang Zunping, Fan Xudong, Ren Fang, Dong Yafeng. 2023. Effect of apple stem grooving virus Infection on Fruit Quality of‘Gala’apple. China Fruits,(3):18-22. (in Chinese)
	贾晓君, 胡国君, 张尊平, 范旭东, 任芳, 董雅凤. 2023. 苹果茎沟病毒侵染对嘎拉苹果果实品质的影响. 中国果树,(3):18-22.
[11]	Kuang Zaiyin, Zeng Hualan, Sun Xiaofang, He Lian, Dai Shundong, Jiang Qiuping, Wei Taiyang, Zhang Qianfang, Ye Pengsheng. 2026. Research progress on detection methods and integrated control of soybean mosaic virus disease. Shandong Agricultural Sciences, https://link.cnki.net/urlid/37.1148.S.20260529.1053.002. in Chinese)
	况再银, 曾华兰, 孙小芳, 何炼, 代顺冬, 蒋秋平, 魏太阳, 张骞方, 叶鹏盛. 2026. 大豆花叶病毒病检测方法及综合防控研究进展. 山东农业科学, https://link.cnki.net/urlid/37.1148.S.20260529.1053.002.
[12]	Li Chunxia. 2021. Research advances in apple mosaic disease. Shaanxi Journal of Agricultural Sciences, 67 (8):82-86. (in Chinese)
	李春霞. 2021. 苹果花叶病研究进展. 陕西农业科学, 67 (8):82-86.
[13]	Li Donghong, Zhao Huiyan, Hu Zuqing, Hu Xiangshun, Zhang Yuhong. 2002. Damage,yield loss and control of apple mosaic disease. Journal of Northwest A & F University(Natural Science Edition), 30 (5):77-80. (in Chinese)
	李东鸿, 赵惠燕, 胡祖庆, 胡想顺, 张宇红. 2002. 苹果花叶病的危害、产量损失与防治研究. 西北农林科技大学学报(自然科学版), 30 (5):77-80.
[14]	Li Jing, Wang Xinyu, Hu Yao, Li Wenjia, Li Ruting, Jiang Zhongwu. 2021. Introduction to main characteristics of the traditional local cultivar‘Xiaoyezi’in Yantai. Yantai Fruits,(1):55. (in Chinese)
	李晶, 王新语, 呼瑶, 李文嘉, 李汝婷, 姜中武. 2021. 烟台传统特色品种‘小叶子’主要特性介绍. 烟台果树,(1):55.
[15]	Liao Huimin, Wang Wanting, Wang Yuqing, Cheng Jiayu, Liang Jinfang, Bao Weiguo. 2024. Study on the control of cucumber green mottle mosaic virus on watermelon and bottle gourd by dry heat treatment. Changjiang Vegetables,(16):14-18. (in Chinese)
	廖慧敏, 王婉婷, 王雨晴, 程佳雨, 梁金方, 包卫国. 2024. 干热处理在防治西瓜和蒲瓜黄瓜绿斑驳花叶病毒上的研究. 长江蔬菜,(16):14-18.
[16]	Liu Tao, Liu Weipeng, Liu Yingju, He Liang. 2023. Research progress on detection methods of cucumber mosaic virus. Bulletin of Biology, 58 (6):1-4. (in Chinese) doi: 10.2307/1537115 URL
	刘涛, 刘伟鹏, 刘英菊, 何良. 2023. 黄瓜花叶病毒检测方法的研究进展. 生物学通报, 58 (6):1-4.
[17]	Noda H, Yamagishi N, Yaegashi H, Xing F, Xie J P, Li S F, Zhou T, Ito T, Yoshikawa N. 2017. Apple necrotic mosaic virus,a novelilar virus from mosaic-diseased apple trees in Japan and China. Journal of General PlantPathology, 83 (2):83-90.
[18]	Petrzik K, Lenz O. 2011. Apple mosaic virus in pome fruits/Hadidi A,Barba M,Candresse T,Jelkmann W. Virus and viruslike diseases of pome and stone fruits. St. Paul: APS Press:25-28.
[19]	Shi W, Yao R, Sunwu R, Huang K, Liu Z, Li X, Yang Y, Wang J. 2020. Incidence and molecular identification of apple necrotic mosaic virus(ApNMV)in Southwest China. Plants(Basel), 9 (4):415.
[20]	Wang Xuan, Liu Jundi, Shao Liqun, Yan Zhenyu, Han Mingyu, Huo Xuexi. 2018. Annual development status,trends and suggestions for China’s apple industry. China Fruits,(3):101-104,108. (in Chinese)
	王璇, 刘军弟, 邵砾群, 闫振宇, 韩明玉, 霍学喜. 2018. 我国苹果产业年度发展状况及其趋势与建议. 中国果树,(3):101-104,108.
[21]	Wei Ningsheng. 1959. A preliminary report of the apple mosaic. Journal of Northwest Agricultural College,(3):41-84. (in Chinese)
	魏宁生. 1959. 苹果花叶病试验初报. 西北农学院学报,(3):41-84.
[22]	Xia Yan, Huang Song, Wu Xueli, Liu Yiqi, Wang Miaomiao, Song Chunhui, Bai Tuanhui, Song Shangwei, Pang Hongguang, Jiao Jian, Zheng Xianbo. 2022. Identification and analysis of apple viral dseases based on metavirome sequencing technology. Acta Horticulturae Sinica, 49 (7):1415-1428. (in Chinese) doi: 10.16420/j.issn.0513-353x.2021-0450
	夏炎, 黄松, 武雪莉, 刘一琪, 王苗苗, 宋春晖, 白团辉, 宋尚伟, 庞宏光, 焦健, 郑先波. 2022. 基于宏病毒组测序技术的苹果病毒病鉴定与分析. 园艺学报, 49 (7):1415-1428. doi: 10.16420/j.issn.0513-353x.2021-0450
[23]	Xing F, Robe B L, Zhang Z, Wang H, Li S. 2018. Genomic analysis,sequence diversity,and occurrence of apple necrotic mosaic virus,a novel Ilarvirus associated with mosaic disease of apple trees in China. Plant Disease, 102 (9):1841-1847. doi: 10.1094/PDIS-10-17-1580-RE pmid: 30125152
[24]	Xing Fei, Wang Hongqing, Li Shifang. 2020. Research status and analysis of the pathogen of apple mosaic disease in China. Journal of Fruit Science, 37 (12):1953-1963. (in Chinese)
	邢飞, 王红清, 李世访. 2020. 中国苹果花叶病病原研究现状分析. 果树学报, 37 (12):1953-1963.
[25]	Xu Baofeng, Li Cheng, Sun Jianshe. 2014. Effects of low-temperature storage and maturity on aroma components in‘Orin’apple. Food Research and Development, 35 (13):140-143. (in Chinese)
	许宝峰, 李成, 孙建设. 2014. 低温贮藏和成熟度对王林苹果香气成分的影响. 食品研究与开发, 35 (13):140-143.
[26]	Zou Qi. 2000. Laboratory guide for plant physiology. Beijing: China Agriculture Press. (in Chinese)
	邹琦. 2000. 植物生理学实验指导. 北京: 中国农业出版社.
[27]	Zuļģe N, Rubauskis E, Missa I, Reveliòa D, Borisova I. 2022. Evaluation of apple chlorotic leaf spot virus impact on fruit yield and vegetative growth in apple cultivars‘Antonovka’and‘Gita’.Proceedings of the Latvian Academy of Sciences. Section B. Natural,Exact,and Applied Sciences, 76 (4):495-499.
