Acta Horticulturae Sinica ›› 2021, Vol. 48 ›› Issue (4): 689-704.doi: 10.16420/j.issn.0513-353x.2020-0860
• Reviews • Previous Articles Next Articles
WANG Qi, LI Yunzhou, XU Wen, YAN Jianmin()
Received:
2021-01-07
Online:
2021-04-25
Published:
2021-04-29
Contact:
YAN Jianmin
E-mail:yjmqhd0201@163.com
CLC Number:
WANG Qi, LI Yunzhou, XU Wen, YAN Jianmin. Research Advance of Protein Transport Mechanism of TOC-TIC Complexes in Plant Chloroplast[J]. Acta Horticulturae Sinica, 2021, 48(4): 689-704.
Add to citation manager EndNote|Ris|BibTeX
URL: https://www.ahs.ac.cn/EN/10.16420/j.issn.0513-353x.2020-0860

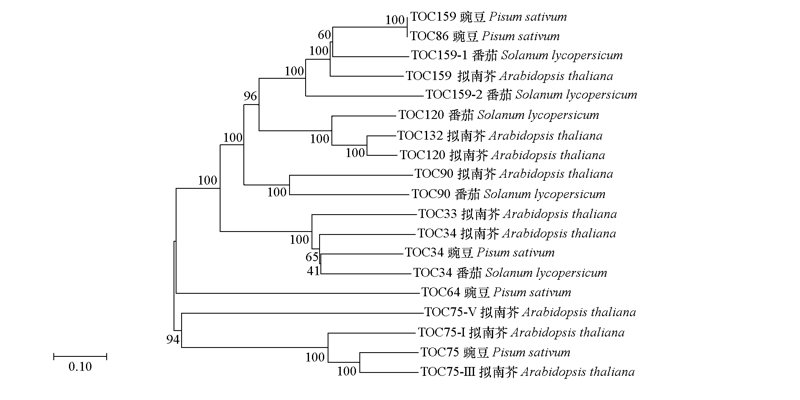

Fig. 2 Phylogenetic analysis of TOC complexes from the different species The number represents confidence and the scale of 0.10 represents 10 differences per 100 amino acids.
Fig. 3 Phylogenetic analysis of TIC complexes from the different species The number represents confidence and the scale of 0.10 represents 10 differences per 100 amino acids.
组分 Component | 预测功能 Proposed function | 拟南芥中 同源基因 Homologues in Arabidopsis | 突变体 Mutant name | 缺失突变体表现型 Knockout mutant phenotype(s) | 参考文献 Reference |
---|---|---|---|---|---|
Toc159 | 识别前体蛋白 Preprotein recognition | AtToc159 | ppi2/toc159 | 白化 Albino | Bauer et al. Kubis et al. |
AtToc132 | toc132 | 无明显表型 None detected | Kubis et al. | ||
AtToc120 | toc120 | 无明显表型 None detected | Ivanova et al. Kubis et al. | ||
toc132toc120 双突变 | 白化 Albino | Kubis et al. | |||
AtToc90 | ppi4/toc90 | 无明显表型 None detected | Hiltbrunner et al. Kubis et al. | ||
ppi2ppi4 双突变 | 白化 Albino | Hiltbrunner et al. Kubis et al. | |||
Toc34 | 识别前体蛋白 Preprotein recognition | AtToc33 | ppi1/toc33 | 幼苗苍白转绿 Albino turn green | Jarvis et al. Kubis et al. |
AtToc34 | ppi3/toc34 | 影响根部发育 Stunted roots | Constan et al. | ||
Toc75 | 形成易位通道 Translocation channel | AtToc75-Ⅲ | toc75-Ⅲ | 胚胎致死 Embryo lethal | Baldwin et al. |
AtToc75-Ⅳ | toc75-IV | 质体结构异常 Etioplast defects | Baldwin et al. | ||
AtToc75-Ⅰ | — | — | Baldwin et al. | ||
Toc64 | 结合转运肽 Binding transit peptide 调控转运效率 Transport efficiency | AtToc64-Ⅲ | toc64-III | — | Qbadou et al. Aronsson et al. |
AtToc64-Ⅴ | toc64-V | — | Aronsson et al. | ||
AtToc64-Ⅰ | toc63-I | — | Aronsson et al. | ||
Tic22 | AtTic22-Ⅲ | — | — | — | |
AtTic22-Ⅳ | — | — | — | ||
Tic20 | 参与TOC-TIC超复合体形成 TOC-TIC Supercomplex | AtTic20-Ⅰ | tic20-I | 白化 Albino | Chen et al. |
AtTic20-Ⅳ | tic20-IV | 无明显表型 None detected | Hirabayashi et al. | ||
tic20-Itic20-IV 双突变 | 胚胎致死 Embryo lethal | Hirabayashi et al. Kasmati et al. | |||
AtTic20-Ⅱ | — | — | — | ||
AtTic20-Ⅴ | — | — | — | ||
Tic21 | 参与易位通道的构成 Translocation channel | AtTic21 | pic1 | 白化 Albino | Teng et al. |
Tic110 | 参与易位通道构成 Translocation channel | AtTic110 | tic110 | 胚胎致死 Embryo lethal | Kovacheva et al. |
Tic40 | 促进转运 Transport rate promotion | AtTic40 | tic40 | 浅绿色 Pale-green | Chou et al. Kovacheva et al. |
Tic55 | 氧化还原调控 Redox regulation | AtTic55 | tic55 | 无明显表型 None detected | Boij et al. |
Tic62 | 氧化还原调控 Redox regulation | AtTic62 | tic62 | — | Benz et al. |
Tic32 | 钙依赖调控 Calcium regulation | AtTic32-Ⅳa | tic32-IVa | 胚胎致死 Embryo lethal | H?rmann et al. |
AtTic32-Ⅳb | — | — | — | ||
Tic236 | 连接TOC与TIC TOC-TIC connection | AtTic236 | tic236 | 胚胎致死 Embryo lethal | Chen et al. |
Table 1 Components of the TOC/TIC chloroplast protein import machinery,their homologues in Arabidopsis,and the associated knockout mutant phenotypes(modified from Jarvis,2008)
组分 Component | 预测功能 Proposed function | 拟南芥中 同源基因 Homologues in Arabidopsis | 突变体 Mutant name | 缺失突变体表现型 Knockout mutant phenotype(s) | 参考文献 Reference |
---|---|---|---|---|---|
Toc159 | 识别前体蛋白 Preprotein recognition | AtToc159 | ppi2/toc159 | 白化 Albino | Bauer et al. Kubis et al. |
AtToc132 | toc132 | 无明显表型 None detected | Kubis et al. | ||
AtToc120 | toc120 | 无明显表型 None detected | Ivanova et al. Kubis et al. | ||
toc132toc120 双突变 | 白化 Albino | Kubis et al. | |||
AtToc90 | ppi4/toc90 | 无明显表型 None detected | Hiltbrunner et al. Kubis et al. | ||
ppi2ppi4 双突变 | 白化 Albino | Hiltbrunner et al. Kubis et al. | |||
Toc34 | 识别前体蛋白 Preprotein recognition | AtToc33 | ppi1/toc33 | 幼苗苍白转绿 Albino turn green | Jarvis et al. Kubis et al. |
AtToc34 | ppi3/toc34 | 影响根部发育 Stunted roots | Constan et al. | ||
Toc75 | 形成易位通道 Translocation channel | AtToc75-Ⅲ | toc75-Ⅲ | 胚胎致死 Embryo lethal | Baldwin et al. |
AtToc75-Ⅳ | toc75-IV | 质体结构异常 Etioplast defects | Baldwin et al. | ||
AtToc75-Ⅰ | — | — | Baldwin et al. | ||
Toc64 | 结合转运肽 Binding transit peptide 调控转运效率 Transport efficiency | AtToc64-Ⅲ | toc64-III | — | Qbadou et al. Aronsson et al. |
AtToc64-Ⅴ | toc64-V | — | Aronsson et al. | ||
AtToc64-Ⅰ | toc63-I | — | Aronsson et al. | ||
Tic22 | AtTic22-Ⅲ | — | — | — | |
AtTic22-Ⅳ | — | — | — | ||
Tic20 | 参与TOC-TIC超复合体形成 TOC-TIC Supercomplex | AtTic20-Ⅰ | tic20-I | 白化 Albino | Chen et al. |
AtTic20-Ⅳ | tic20-IV | 无明显表型 None detected | Hirabayashi et al. | ||
tic20-Itic20-IV 双突变 | 胚胎致死 Embryo lethal | Hirabayashi et al. Kasmati et al. | |||
AtTic20-Ⅱ | — | — | — | ||
AtTic20-Ⅴ | — | — | — | ||
Tic21 | 参与易位通道的构成 Translocation channel | AtTic21 | pic1 | 白化 Albino | Teng et al. |
Tic110 | 参与易位通道构成 Translocation channel | AtTic110 | tic110 | 胚胎致死 Embryo lethal | Kovacheva et al. |
Tic40 | 促进转运 Transport rate promotion | AtTic40 | tic40 | 浅绿色 Pale-green | Chou et al. Kovacheva et al. |
Tic55 | 氧化还原调控 Redox regulation | AtTic55 | tic55 | 无明显表型 None detected | Boij et al. |
Tic62 | 氧化还原调控 Redox regulation | AtTic62 | tic62 | — | Benz et al. |
Tic32 | 钙依赖调控 Calcium regulation | AtTic32-Ⅳa | tic32-IVa | 胚胎致死 Embryo lethal | H?rmann et al. |
AtTic32-Ⅳb | — | — | — | ||
Tic236 | 连接TOC与TIC TOC-TIC connection | AtTic236 | tic236 | 胚胎致死 Embryo lethal | Chen et al. |
