‘西伯利亚’百合LiMYB4的克隆及在萜烯合成中的功能分析

doi:10.16420/j.issn.0513-353x.2025-0946

摘要/Abstract

摘要：

萜烯类物质是百合（Lilium spp.）花香的主要成分，MYB类转录因子在调控萜烯合成中发挥着重要作用。以‘西伯利亚’百合（Lilium‘Siberia’）为材料，克隆LiMYB4基因，并进行时空表达特异性、同源蛋白比对与系统发育分析，最后通过瞬时沉默与过表达验证其在百合萜烯合成中的功能。结果显示，LiMYB4的开放阅读框（open reading frame，ORF）序列为738 bp，编码245个氨基酸；LiMYB4具有2个典型的MYB保守结构域，为R2R3-MYB亚家族成员，与老鸦瓣（Amana edulis）AeMYB4蛋白的相似性最高（71.26%）；LiMYB4在内、外花被片中的表达水平显著高于根、茎和叶，随花发育开放呈先降低后升高趋势，并与萜烯释放规律相反；沉默LiMYB4后，‘西伯利亚’百合花瓣中主要萜烯类物质芳樟醇与罗勒烯的释放量均显著升高，而在过表达LiMYB4的花瓣中显著降低；分析萜烯骨架合成基因表达发现，沉默LiMYB4花瓣中合成基因LiDXR、LiGPPS、LiOcS、LiLiS的表达水平显著升高，过表达LiMYB4后则明显降低。以上结果表明，LiMYB4通过负调控萜烯合成通路基因的表达，抑制了‘西伯利亚’百合萜烯类物质的合成。

关键词: 百合, 花香, 萜类物质, LiMYB4, 功能

Abstract:

Terpenoids constitute the primary volatile components of lily floral scent，and MYB transcription factors are crucial regulators of terpenoid biosynthesis. In this study，Lilium‘Siberia’was used as the experimental material for cloning and characterizing LiMYB4，including analysis of spatiotemporal expression patterns，protein sequence homology，and phylogenetic relationships. In addition，transient silencing and overexpression assays were employed in the petals to investigate the role of LiMYB4 in terpenoid biosynthesis. The results showed that LiMYB4 contains a 738 bp ORF encoding 245 amino acids. The predicted LiMYB4 possesses two conserved MYB domain repeats and was thus classified as a member of the R2R3-MYB subfamily. The phylogenetic analysis showed the highest similarity（71.26%）with AeMYB4 from Amana edulis. The spatial expression profiling demonstrated significantly higher transcript level of LiMYB4 in perianths compared with roots，stems，or leaves. During floral development LiMYB4 expression first decreased and then increased，which was inversely correlated with terpenoid emission dynamics. The functional validation showed that transient silencing of LiMYB4 increased the emission of linalool and ocimene in petals. Conversely，LiMYB4 overexpression markedly reduced the emission of these volatiles. Further analysis of the terpene backbone biosynthesis genes revealed that the transcript levels of LiDXR，LiGPPS，LiOcS，and LiLiS were significantly upregulated in LiMYB4-silenced petals，but downregulated in LiMYB4-overexpressing petals. Collectively，these results demonstrate that LiMYB4 acts as a negative regulator of terpenoid biosynthesis in Lilium‘Siberia’by directly or indirectly suppressing the expression of key genes in the terpenoid biosynthesis pathway.

Key words: Lilium, floral scent, terpenoids, LiMYB4, function

沈言, 夏子轶, 冷平生, 马波, 胡增辉. ‘西伯利亚’百合LiMYB4的克隆及在萜烯合成中的功能分析[J]. 园艺学报, 2026, 53(2): 525-537.

SHEN Yan, XIA Ziyi, LENG Pingsheng, MA Bo, HU Zenghui. Cloning and Functional Analysis of LiMYB4 in Regulating Terpenoid Biosynthesis in Lilium‘Siberia’[J]. Acta Horticulturae Sinica, 2026, 53(2): 525-537.

图/表 10

图1 ‘西伯利亚’百合不同花发育时期（A）与盛开期器官组织（B）

Fig. 1 Different floral development stages（A），organs and tissues（B）in full flowering stage of Lilium‘Siberia’

表1 本研究中所用引物

Table 1 Primers used in this study

引物用途 Primer function	引物名称 Primer name	序列（5′-3′） Primer sequence
基因克隆 Gene clone	LiMYB4-QCF	ATGGTGAGAGCTCCTTGCTGTGA
基因克隆 Gene clone	LiMYB4-QCR	TCAGATTGTGGGCAAGTCCTGCA
亚细胞定位 Subcellular localization	LiMYB4-F	CAGTGGTCTCACAACATGGTGAGAGCTCCTTGCTG
亚细胞定位 Subcellular localization	LiMYB4-R	CAGTGGTCTCATACAGATTGTGGGCAAGTCCTGCA
实时荧光定量PCR qRT-PCR	qLiMYB4-F	AAATCTGAAGCACCCCACATT
实时荧光定量PCR qRT-PCR	qLiMYB4-R	CATCCACCATGCGAGTATGAT
基因沉默 Gene silencing	pTRV2-LiMYB4-EcoR Ⅰ-F	TTAGATTCTGTGAGTAAGGTTACCGATGGTGAGAGCTCCTTGCTG
基因沉默 Gene silencing	pTRV2-LiMYB4-Xho Ⅰ-R	AATGTCTTCGGGACATGCCCGGGCCACTATAGATGATTCGGTGGCCG
基因过表达 Gene overexpression	35S-LiMYB4-Sfi I-F	GTCCAGTCCTGGCCTCGTCGGCCATGGTGAGAGCTCCTTGCTG
基因过表达 Gene overexpression	35S-LiMYB4-Sfi I-R	GACCACAAGTGGCCAGACTGGCCGATTGTGGGCAAGTCCTGCAG

图2 LiMYB4基因克隆 A：‘西伯利亚’百合总RNA提取电泳检测图，M1：Trans2K Plus DNA marker；B：LiMYB4基因克隆电泳图，M2：DL2000 DNA Marker

Fig. 2 Cloning of LiMYB4 gene A：Agarose gel electrophoresis detection of total RNA in Lilium‘Siberia’；M1：Trans2K Plus DNA marker；B：Agarose gel electrophoresis of LiMYB4 gene；M2：DL2000 DNA marker

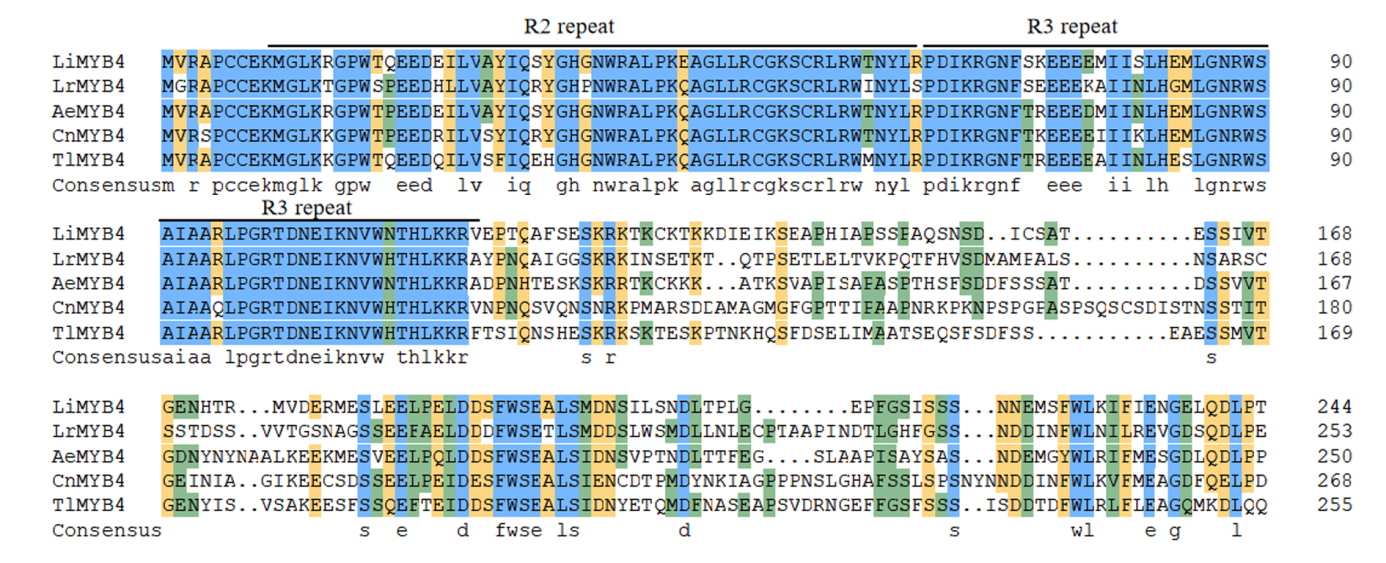

图3 LiMYB4与其他植物MYB4蛋白同源性比对分析 Lr：岷江百合；Ae：老鸦瓣；Cn：椰子；Tl：宽叶香蒲。蓝色、黄色、绿色分别表示同源性为100%、≥ 75%、≥ 50%；黑色横线标记为两个MYB保守结构域

Fig. 3 Homology alignment analysis of LiMYB4 with MYB4 from other plants Lr：Lilium regale；Ae：Amana edulis；Cn：Cocos nucifera；Tl：Typha latifolia. The blue，yellow，and green parts represent homology = 100%，≥ 75%，≥ 50%，respectively. Black horizontal lines mark two MYB conserved domains

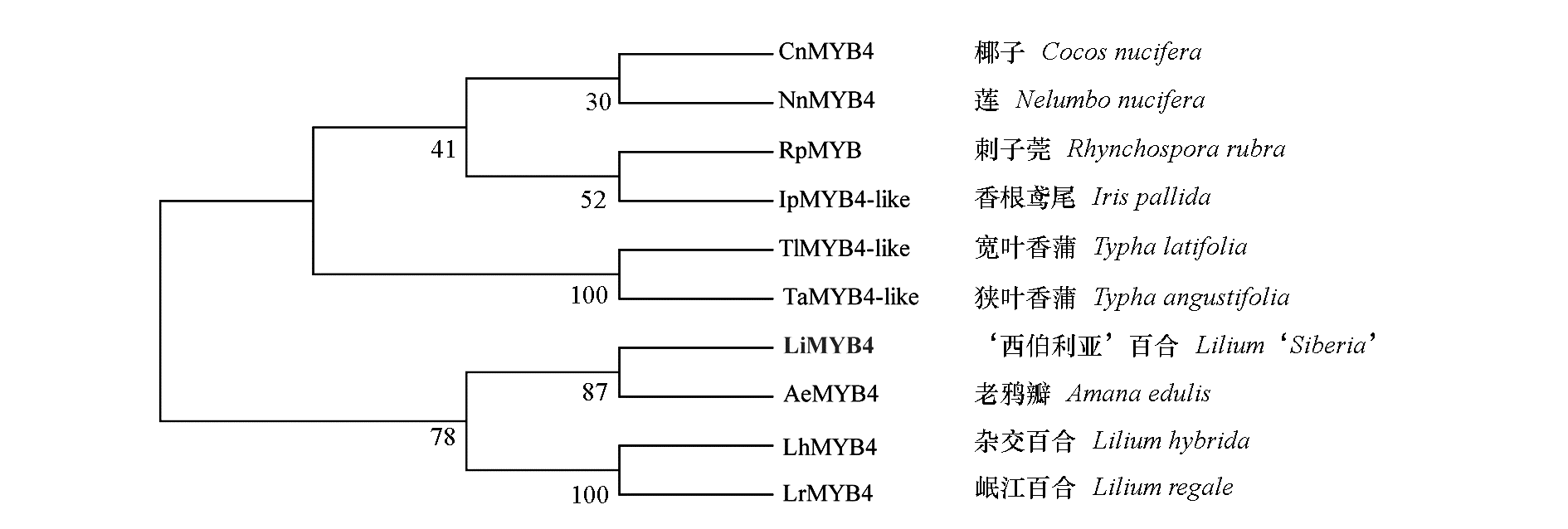

图4 LiMYB4与其他植物MYB4的系统进化树

Fig. 4 Phylogenetic tree of LiMYB4 and MYB4 from other species

图5 LiMYB4在‘西伯利亚’百合不同花发育阶段（A）和不同器官组织（B）的表达模式不同小写字母表示在P < 0.05水平上显著差异

Fig. 5 The expression patterns of LiMYB4 at different floral developmental stages（A）and in different organs and tissues（B）of Lilium‘Siberia’ Different lowercase letters indicate significant differences at the P < 0.05 level

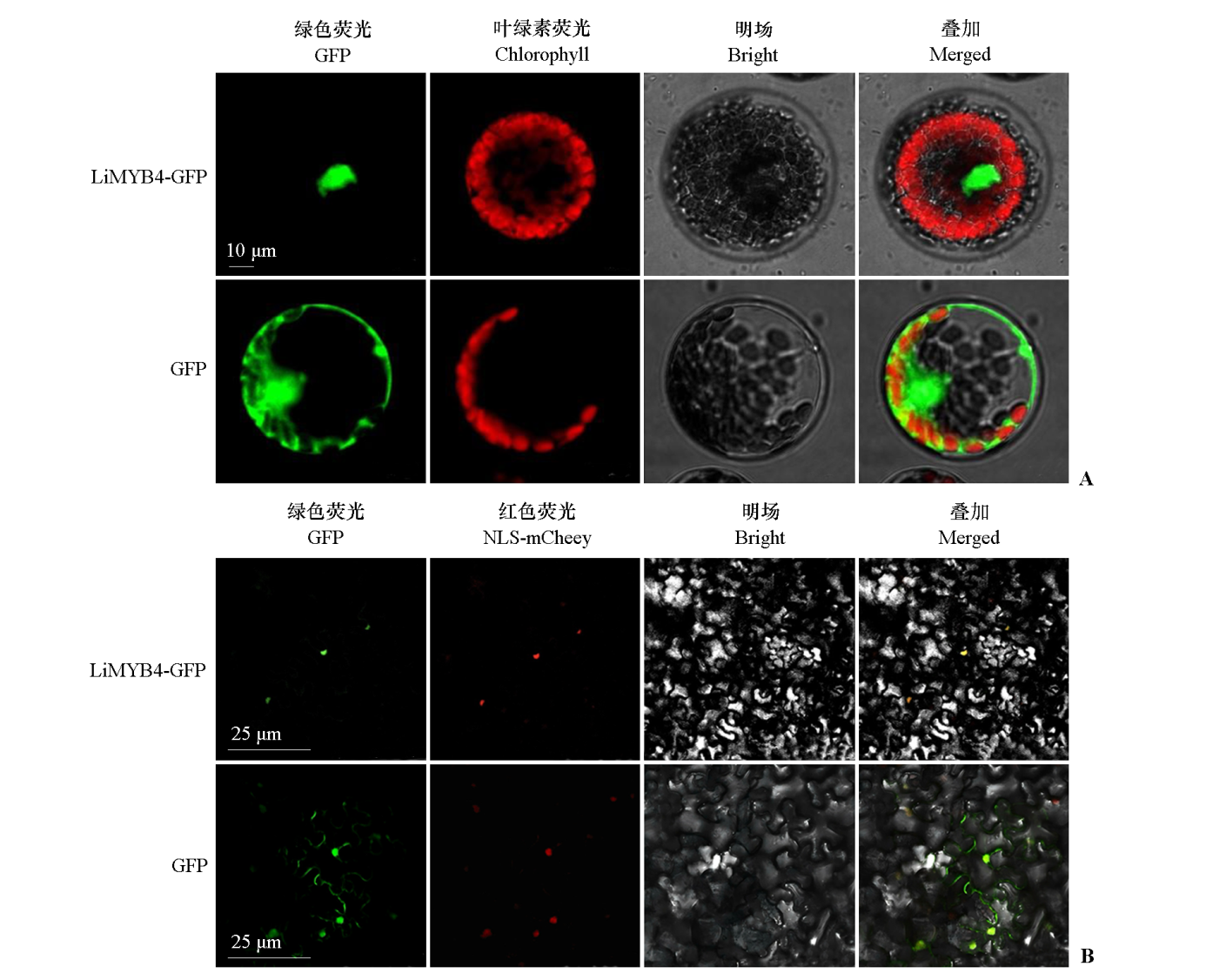

图6 LiMYB4的亚细胞定位 A：拟南芥原生质体，红色荧光为叶绿体自发荧光；B：烟草叶片，红色荧光为细胞核Marker

Fig. 6 Subcellular localization of LiMYB4 A：Arabidopsis protoplast，with red fluorescence representing chloroplast autofluorescence；B：Nicotiana benthamiana leaf，with red fluorescence indicating nuclear marker

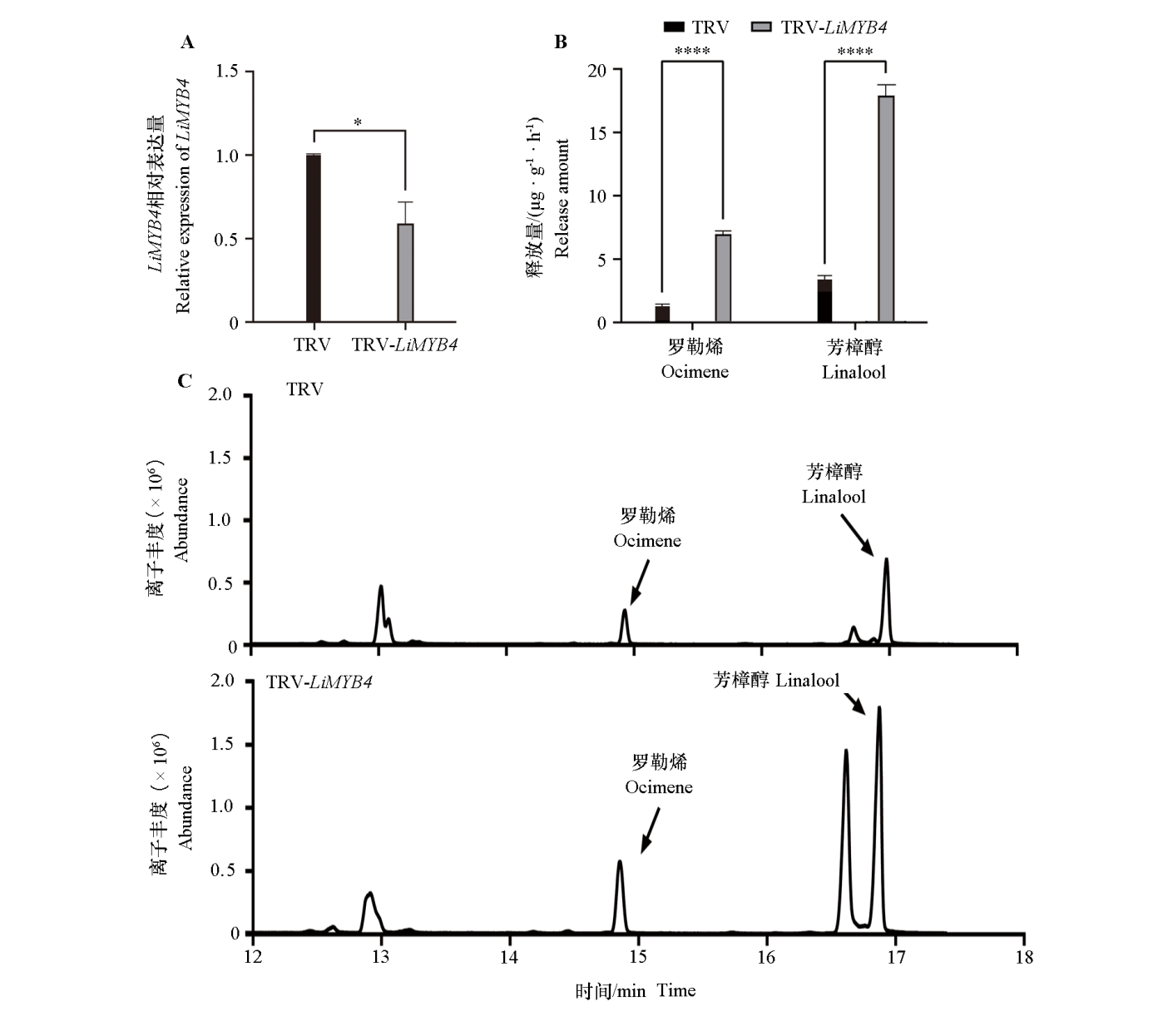

图7 瞬时沉默LiMYB4对‘西伯利亚’百合萜烯释放量的影响 A：基因沉默效率；B：两种主要萜烯化合物的释放量；C：TRV和TRV-LiMYB4花香化合物代表性总离子色谱图。

Fig. 7 Effect of silencing LiMYB4 on terpenoid emission in Lilium‘Siberia’ A：Gene silencing efficiency；B：The release amount of the two main monoterpenoids；C：Representative total ion chromatograms of the floral scent compounds from TRV and TRV-LiMYB4. t-test，* P < 0.05，****P < 0.0001

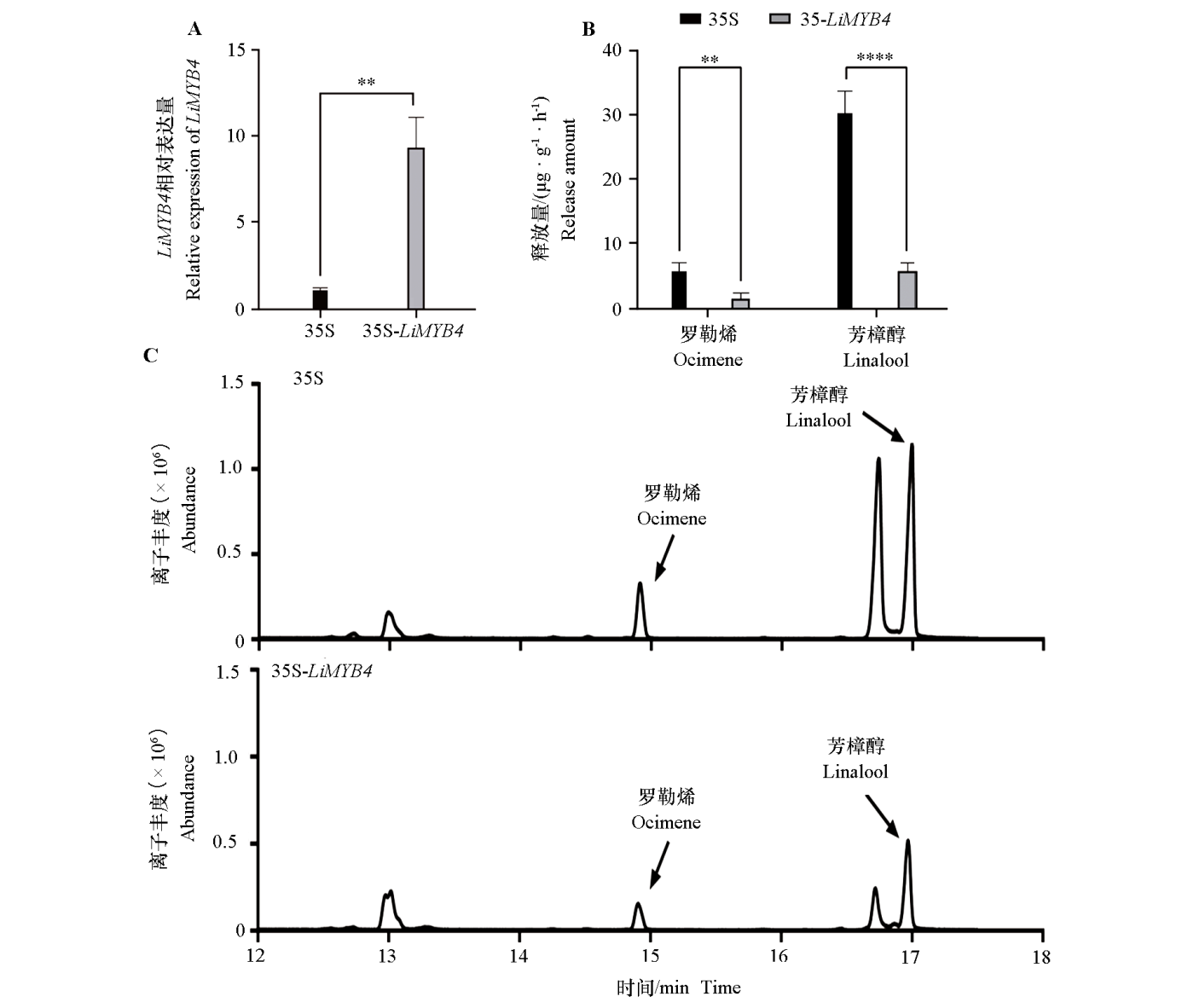

图8 瞬时过表达LiMYB4对‘西伯利亚’百合萜烯释放量的影响 A：基因过表达效率；B：两种主要萜烯化合物的释放量；C：35S和35S-LiMYB4花香化合物代表性总离子色谱图。

Fig. 8 Effect of overexpression LiMYB4 on terpenoid emission in Lilium‘Siberia’ A：Gene overexpression efficiency；B：The release amount of the two main monoterpenoids；C：Representative total ion chromatograms of the floral scent compounds from 35S and 35S-LiMYB4. t-test，**P < 0.01，****P < 0.0001

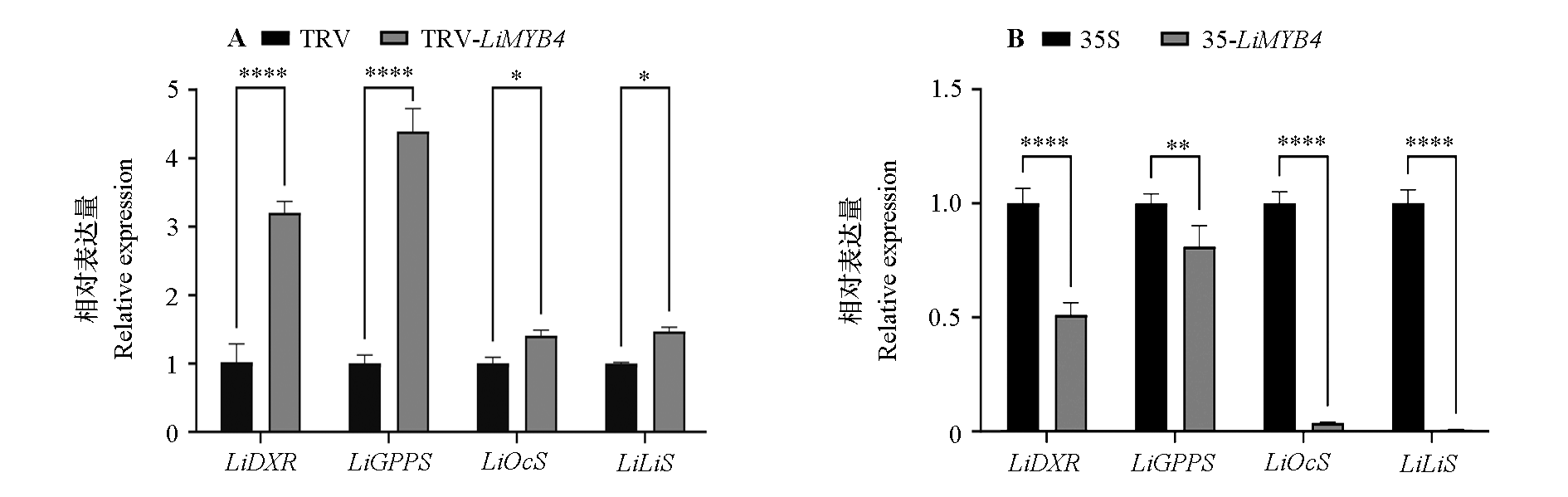

图9 瞬时沉默（A）和过表达（B）LiMYB4对萜烯合成通路基因LiDXR、LiGPPS、LiOcS和LiLiS表达的影响

Fig. 9 Effects of transient silencing（A）and overexpression（B）of LiMYB4 on the expression of terpenoid biosynthesis pathway genes LiDXR，LiGPPS，LiOcS，and LiLiS t-test，*P < 0.05，**P < 0.01，****P < 0.0001

参考文献 24

[1]	Chen Q, Wang M, Gao L, Lou Q, Gan Y, Li X, Li Y, Xin T, Xu W, Song J. 2025. A pivotal switch in β-domain determines the substrate selectivity of terpene synthases involved in Gardenia jasminoides floral scent synthesis. International Journal of Biological Macromolecules, 288:138333.
[2]	Guo Y, Guo Z, Zhong J, Liang Y, Feng Y, Zhang P, Zhang Q, Sun M. 2023. Positive regulatory role of R2R3 MYBs in terpene biosynthesis in Lilium‘Siberia’. Horticultural Plant Journal, 9 (5):1024-1038.
[3]	Han J, Li T, Wang X, Zhang X, Bai X, Shao H, Wang S, Hu Z, Wu J, Leng P. 2022. AmMYB24 regulates floral terpenoid biosynthesis induced by blue light in snapdragon flowers. Frontiers in Plant Science, 13:885168.
[4]	Han Y, Wang H, Wang X, Li K, Dong M, Li Y, Zhu Q, Shang F. 2019. Mechanism of floral scent production in Osmanthus fragrans and the production and regulation of its key floral constituents,beta-ionone and linalool. Horticulture Research, 6:106.
[5]	Ke Y, Abbas F, Zhou Y, Yu R, Fan Y. 2021. Auxin-responsive R2R3-MYB transcription factors HcMYB1 and HcMYB2 activate volatile biosynthesis in Hedychium coronarium flowers. Frontiers in Plant Science, 12:710826.
[6]	Lan Kaer, Liu Yuyang, Wu Shiyi, Yin Xiaopu, Wei Qiuhui. 2023. Research progress of MYB transcription factors regulating terpenoid biosynthesis in plants. Plant Physiology Journal, 59 (9):1709-1719. (in Chinese)
	蓝卡尔, 刘宇阳, 吴诗怡, 殷晓浦, 卫秋慧. 2023. MYB转录因子调控植物萜类生物合成的研究进展. 植物生理学报, 59 (9):1709-1719.
[7]	Lei G, Gao G, Zhou M, Guo J, Chen Y. 2024. Water soluble essential oil components of flowers of Paeonia × suffruticosa cultivars and in silico analysis with antidepressant targets. Natural Product Research, 38 (10):1776-1779.
[8]	Liu L, Chao N, Yidilisi K, Kang X, Cao X. 2022. Comprehensive analysis of the MYB transcription factor gene family in Morus alba. BMC Plant Biology, 22:362.
[9]	Ma B, Wu J, Zou J R, Wang J X, Hu Z H, Jia L M, Leng P S. 2024. Genome-wide identification and functional characterization of trans-IDS genes give new insights into terpene biosynthesis in Syringa oblata. Industrial Crops & Products, 213:118413.
[10]	Ma Bo, Yang Jun, Li Yingying, Wang Haonan, Hu Zenghui, Leng Pingsheng. 2020. Cloning and expression characteristic analysis of LiMCT gene in Lilium‘Siberia’. Molecular Plant Breeding, 18 (18):5933-5942. (in Chinese)
	马波, 杨珺, 李迎迎, 王浩楠, 胡增辉, 冷平生. 2020. ‘西伯利亚’百合LiMCT基因的克隆及表达特性分析. 分子植物育种, 18 (18):5933-5942.
[11]	Muhlemann J K, Klempien A, Dudareva N. 2014. Floral volatiles:from biosynthesis to function. Plant Cell & Environment, 37 (8):1936-1949.
[12]	Ramya M, Park P H, Chuang Y, Kwon O K, An H R, Park P M, Baek Y S, Kang B, Tsai W, Chen H. 2019. RNA sequencing analysis of Cymbidium goeringii identifies floral scent biosynthesis related genes. BMC Plant Biology, 19 (1):337.
[13]	Reddy V A, Wang Q, Dhar N, Kumar N, Venkatesh P N, Rajan C, Panicker D, Sridhar V, Mao H Z, Sarojam R. 2017. Spearmint R2R3-MYB transcription factor MsMYB negatively regulates monoterpene production and suppresses the expression of geranyl diphosphate synthase large subunit(MsGPPS.LSU). Plant Biotechnology Journal, 15 (9):1105-1119.
[14]	Sun Lichao, Li Shuying, Wang Fengzhong, Xin Fengjiao. 2017. Research progresses in the synthetic biology of terpenoids. Biotechnology Bulletin, 33 (1):64-75. (in Chinese)
	孙丽超, 李淑英, 王凤忠, 辛凤姣. 2017. 萜类化合物的合成生物学研究进展. 生物技术通报, 33 (1):64-75.
[15]	Xu M, Gao Q, Jiang M, Wang W, Hu J, Chang X, Liu D, Liang Y, Jiang Y, Chen F, Li C, Huang H, Chen F, Li F, Trigiano R N, Wang J, Jiao C, Zhou X, Zhang L. 2023. A novel genome sequence of Jasminum sambac helps uncover the molecular mechanism underlying the accumulation of jasmonates. Journal of Experimental Botany, 74 (4):1275-1290.
[16]	Yang Xue, Luo Jun, Yang Caixia, Wang Zhenheng, Xia Qi, Wang Yinquan. 2018. Cloning and expression analysis of transcription factor MYB 4 gene from Angelica sinensis. Journal of Henan Agricultural Sciences, 47 (12):48-56. (in Chinese)
	杨雪, 雒军, 杨彩霞, 王振恒, 夏琦, 王引权. 2018. 当归MYB4转录因子基因的克隆及表达分析. 河南农业科学, 47 (12):48-56.
[17]	Yang Y, Liu X, Hu Z, Zhang Y, Yu H, Yang L, Leng P. 2024. Negative regulatory role of LiSRM1 in monoterpene biosynthesis in Lilium‘Siberia’. Plant Physiology and Biochemistry, 216:109167.
[18]	Yang Y, Zhang X, Han M, Hu Z, Wu J, Ma N, Leng P, Zhou X-F. 2023. LiMYB 108 is involved in floral monoterpene biosynthesis induced by light intensity in Lilium‘Siberia’. Plant Cell Reports, 42:763-773.
[19]	Yang Yunyao, Zhang Yongchun, Chen Minmin, Han Xin, Yang LiuYan. 2024. Research progress on the synthesis and regulation mechanism of Lilium fragrance substances. Journal of Plant Genetic Resources, 33 (1):1-20. (in Chinese)
	杨云尧, 张永春, 陈敏敏, 韩炘, 杨柳燕. 2024. 百合花香物质合成与调控机制研究进展. 植物遗传资源学报, 33 (1):1-20.
[20]	Yang Y Y, Ma B, Li Y Y, Han M Z, Wu J, Zhou X F, Hu Z H. 2022. Transcriptome analysis identifies key gene LiMYB305 involved in monoterpene biosynthesis in Lilium‘Siberia’. Frontiers in Plant Science, 13:1021576.
[21]	Yang Z, Li Y, Gao F, Jin W, Li S, Kimani S, Yang S, Bao T, Gao X, Wang L. 2020. MYB 21 interacts with MYC2 to control the expression of terpene synthase genes in flowers of Freesia hybrida and Arabidopsis thaliana. Journal of Experimental Botany, 71 (14):4140-4158.
[22]	Yue Yuanzheng, Hu Hongmin, Liu Jiawei, Shen Huimin, Shi Tingting, Yang Xiulian, Wang Lianggui. 2023. Functional analysis of OfMYB1R 47 transcription factor in Osmanthus fragrans during the formation of aromatic volatiles. Journal of Zhejiang A & F University, 40 (3):465-474. (in Chinese)
	岳远征, 胡宏敏, 刘家伟, 申慧敏, 施婷婷, 杨秀莲, 王良桂. 2023. 桂花OfMYB1R47转录因子在芳香挥发物形成过程中的功能分析. 浙江农林大学学报, 40 (3):465-474.
[23]	Zhang Huixiu, Hu Zenghui, Leng Pingsheng, Wang Wenhe, Xu Fang, Zhao Jing. 2013a. Qualitative and quantitative analysis of floral volatile components from different varieties of Lilium spp. Scientia Agricultura Sinica, 46 (4):790-799. (in Chinese)
	张辉秀, 胡增辉, 冷平生, 王文和, 徐芳, 赵静. 2013a. 不同品种百合花挥发性成分定性与定量分析. 中国农业科学, 46 (4):790-799.
[24]	Zhang Huixiu, Leng Pingsheng, Hu Zenghui, Zhao Jing, Wang Wenhe, Xu Fang. 2013b. The floral scent emitted from Lilium‘Siberia’at different flowering stages and diurnal variation. Acta Horticulturae Sinica, 40 (4):693-702. (in Chinese)
	张辉秀, 冷平生, 胡增辉, 赵静, 王文和, 徐芳. 2013b. ‘西伯利亚’百合花香随开花进程变化及日变化规律. 园艺学报, 40 (4):693-702.
