Research on Flexible Wearable Leaf Humidity Sensor and Its Application in Melon Physiological Monitoring

doi:10.16420/j.issn.0513-353x.2025-0586

Acta Horticulturae Sinica ›› 2026, Vol. 53 ›› Issue (9): 2783-2896.doi: 10.16420/j.issn.0513-353x.2025-0586

• New Technology and New Method • Previous Articles Next Articles

Research on Flexible Wearable Leaf Humidity Sensor and Its Application in Melon Physiological Monitoring

WANG Yingli¹, ZHANG Hongliang², AKEBAIERJIANG Kadeer², CHEN Xiansheng¹, BIE Zhilong², HUANG Yuan²^,^*()

¹ College of Engineering， Huazhong Agricultural University， Wuhan 430070， China
² National Key Laboratory for Germplasm Innovation & Utilization of Horticultural Crops， College of Horticulture and Forestry Sciences，Huazhong Agricultural University， Wuhan 430070， China

Received:2025-06-29 Revised:2026-04-30 Online:2026-09-25 Published:2026-09-20
Contact: HUANG Yuan

Abstract

Abstract:

Using melon（Cucumis melo L.）as experimental material，this study conducted in-situ non-destructive monitoring of leaf water status under different stress conditions using sensors. Based on laser-induced graphene technology，this study developed a flexible wearable leaf moisture sensor for in situ monitoring of melon transpiration. The sensor was fabricated by patterning interdigitated electrodes on polyimide film and modifying the electrode surface with graphene oxide；After optimization，the optimized parameters were selected（7 pairs of interdigitated electrodes，350 μm width，and 100 μm spacing）. Performance tests demonstrated that the sensor exhibited high sensitivity in both capacitance and impedance modes（2.4 nF/% RH and 3.9 kΩ/% RH，respectively），along with robust resistance to temperature，light，and bending interference，while maintaining excellent stability over 20 days（fluctuation < 5%）. Application tests revealed that：（1）sensor attachment for 10 days caused no significant impact on melon leaf health；（2）it effectively identified melon leaf status under abiotic stress conditions，including temperature，low light，water deficit，and salinity；（3）it differentiated healing progress of grafted seedlings during graft union monitoring；（4）sensor capacitance was strongly correlated with transpiration rate and stomatal conductance（R² > 0.9）.

Key words: wearable sensor, leaf humility, laser-induced graphene, transpiration, non-destructive inspection, stress physiology, melon

CLC Number:

S652

WANG Yingli, ZHANG Hongliang, AKEBAIERJIANG Kadeer, CHEN Xiansheng, BIE Zhilong, HUANG Yuan. Research on Flexible Wearable Leaf Humidity Sensor and Its Application in Melon Physiological Monitoring[J]. Acta Horticulturae Sinica, 2026, 53(9): 2783-2896.

Figures/Tables 10

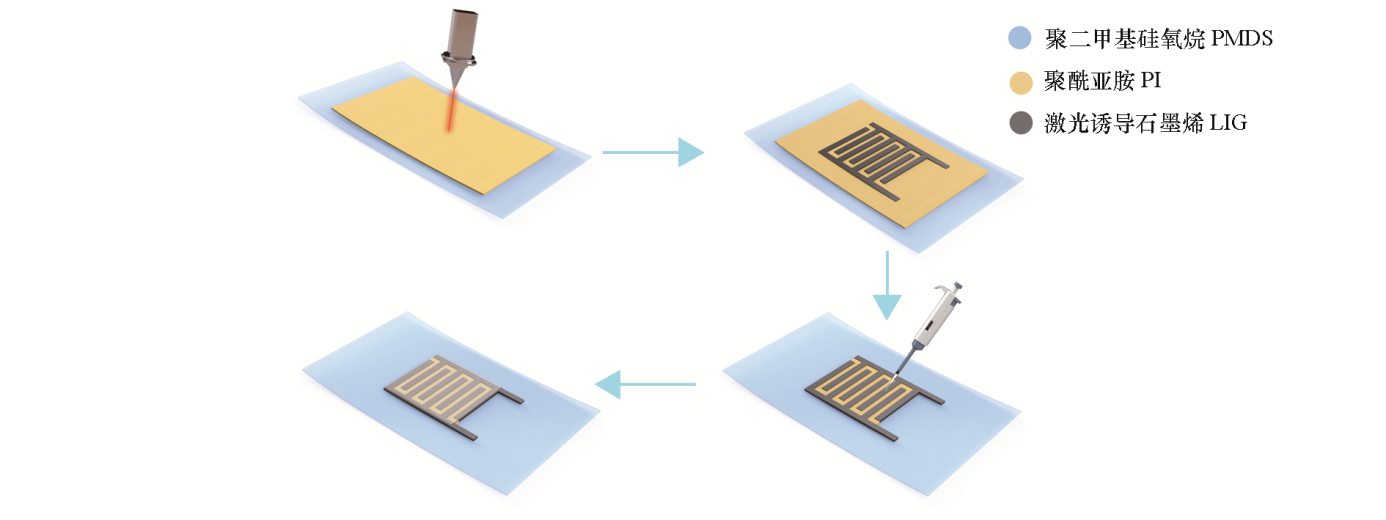

Fig. 1 Schematic diagram of the fabrication of a laser-induced graphene（LIG）based flexible humidity sensor

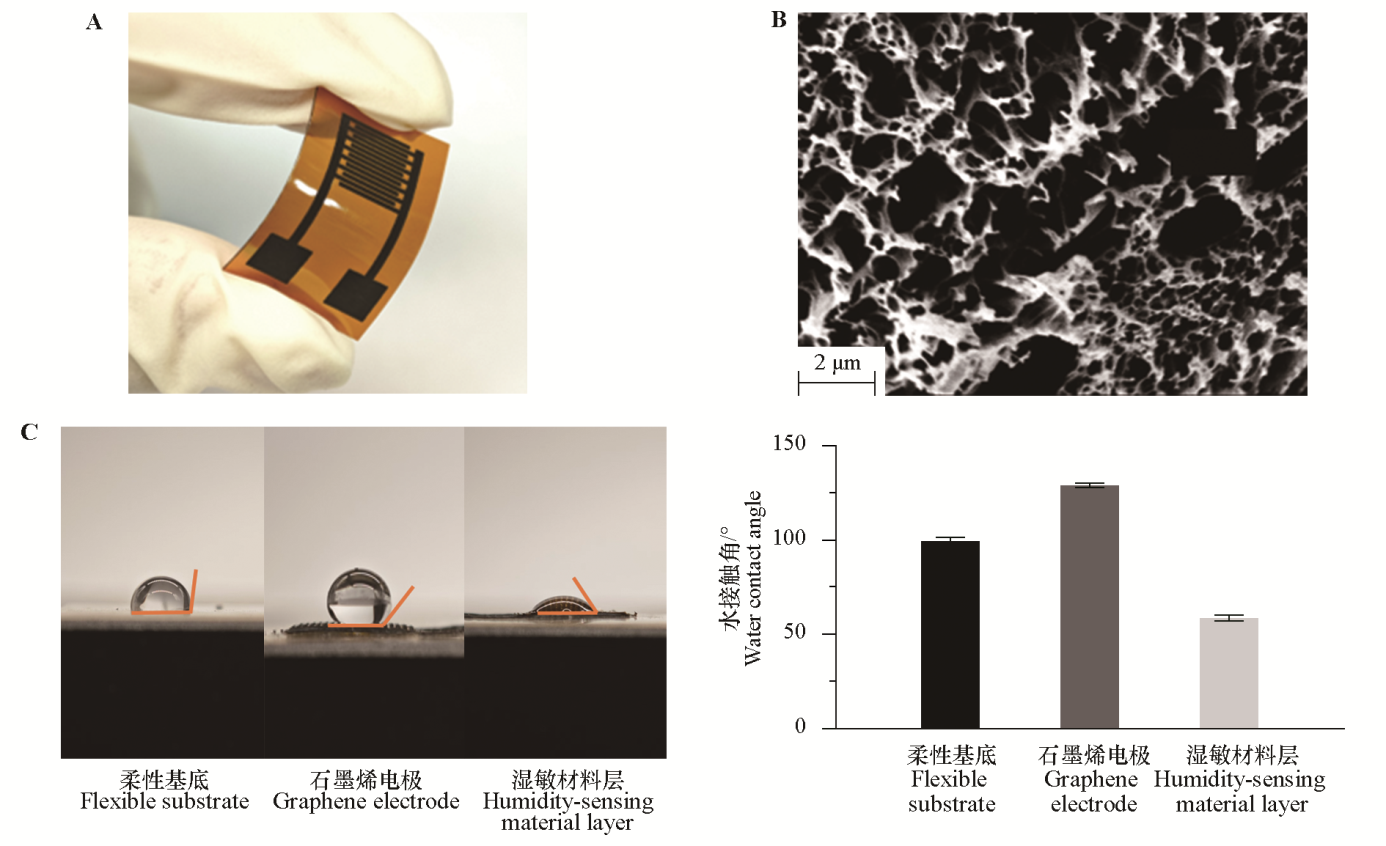

Fig. 2 Physical characterization of key materials for flexible humidity sensors A：Laser-induced graphene（LIG）interdigitated electrode diagram；B：Scanning electron microscopy（SEM）image of LIG；C：Hydrophilicity analysis of each component of the sensor

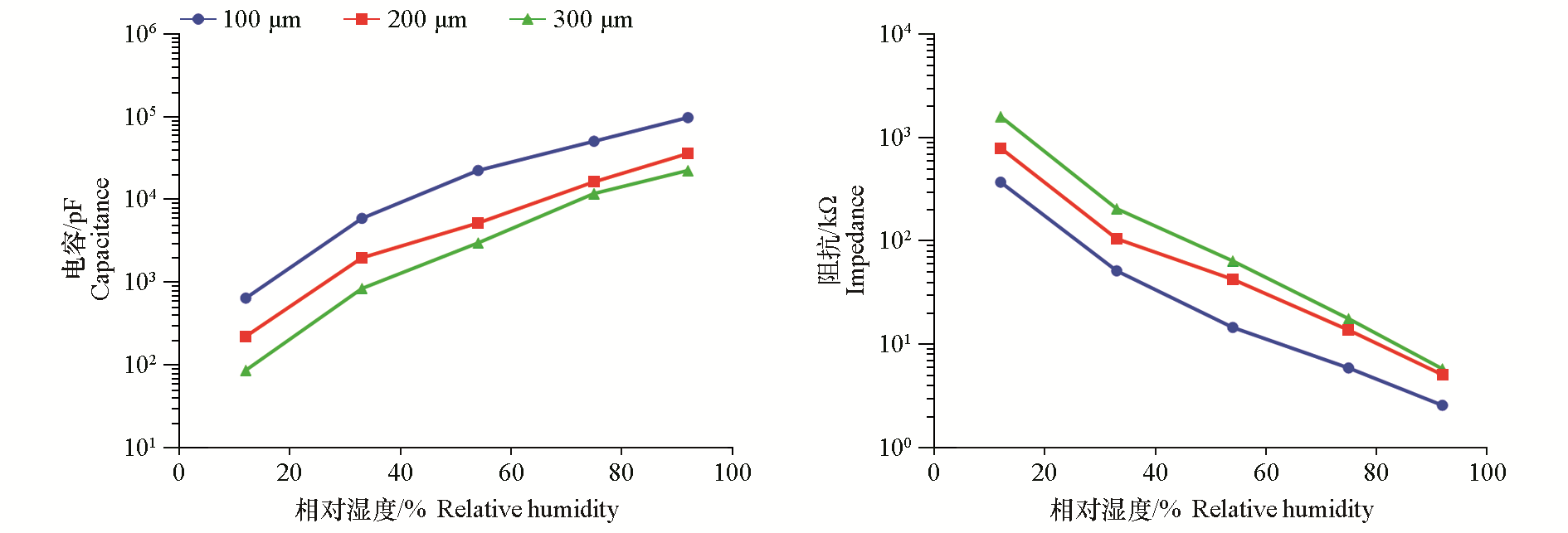

Fig. 3 Humidity response of sensors with different interdigital spacings based on capacitance and impedance modes

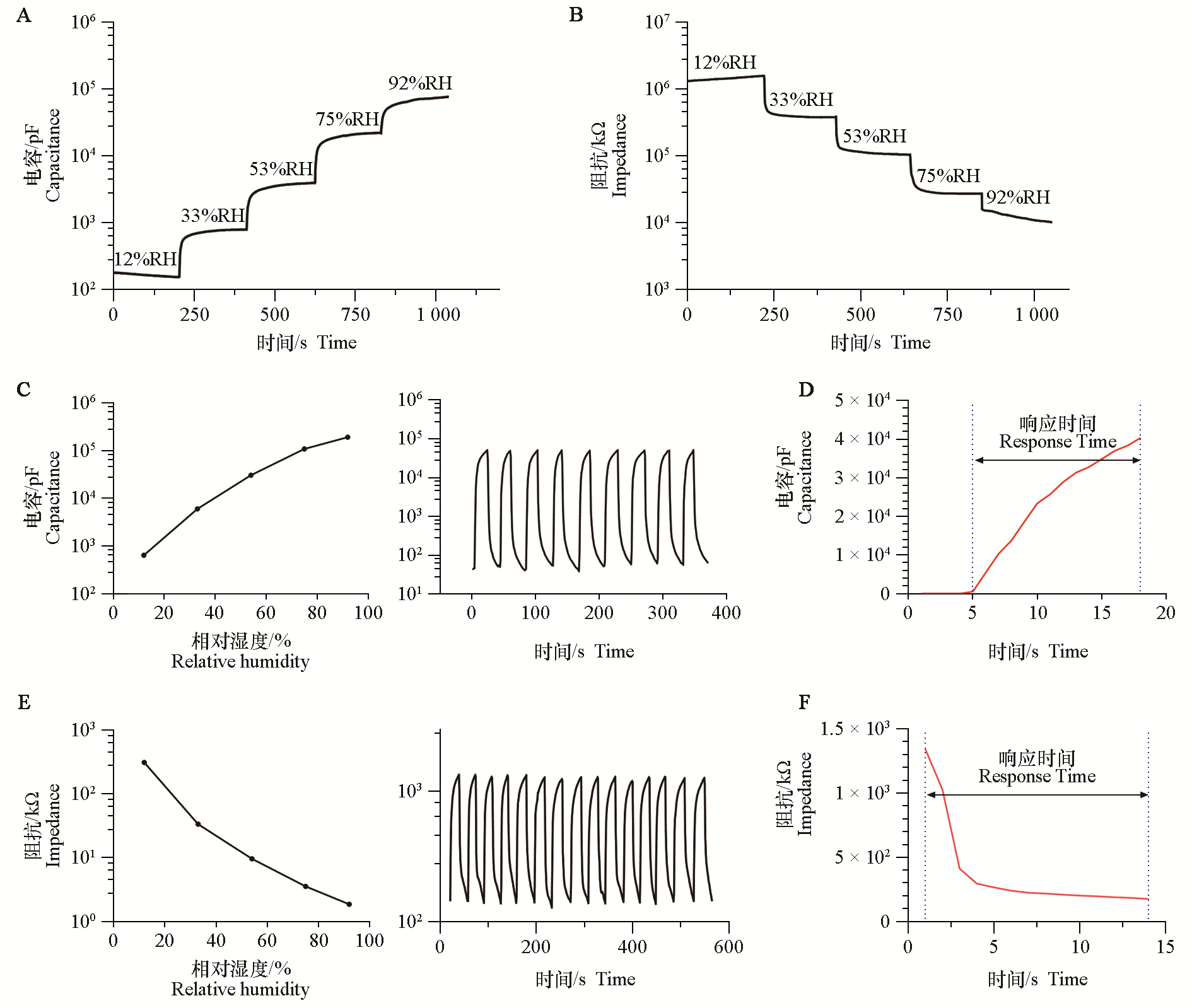

Fig. 4 Humidity response characteristics of sensors based on capacitance and impedance modes

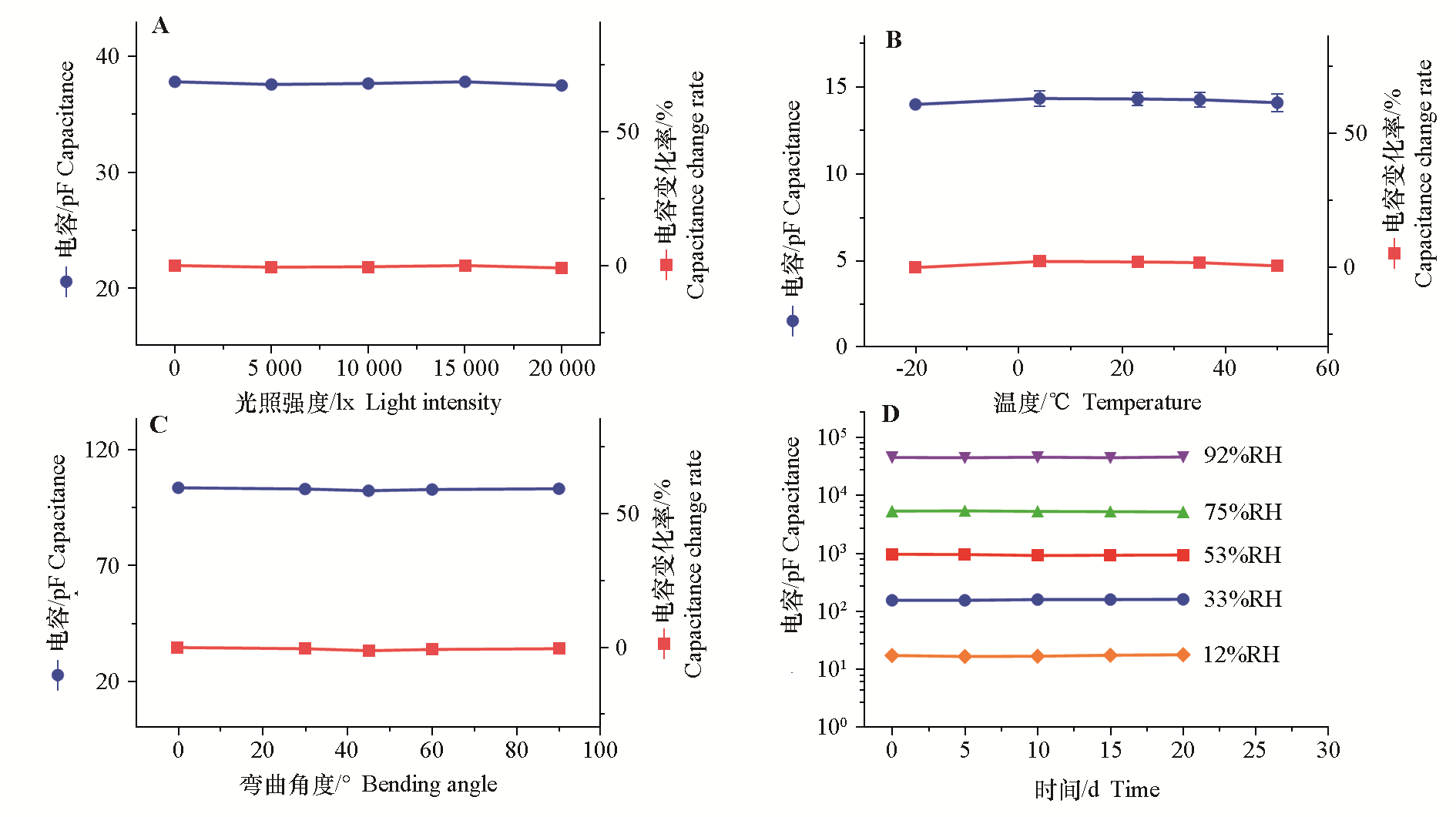

Fig. 5 Environmental stability test of sensors in capacitance mode A：Different light intensities；B：Different temperatures；C：Different bending angles；D：Long-term capacitance stability under different humidity levels over 20 days. The same below

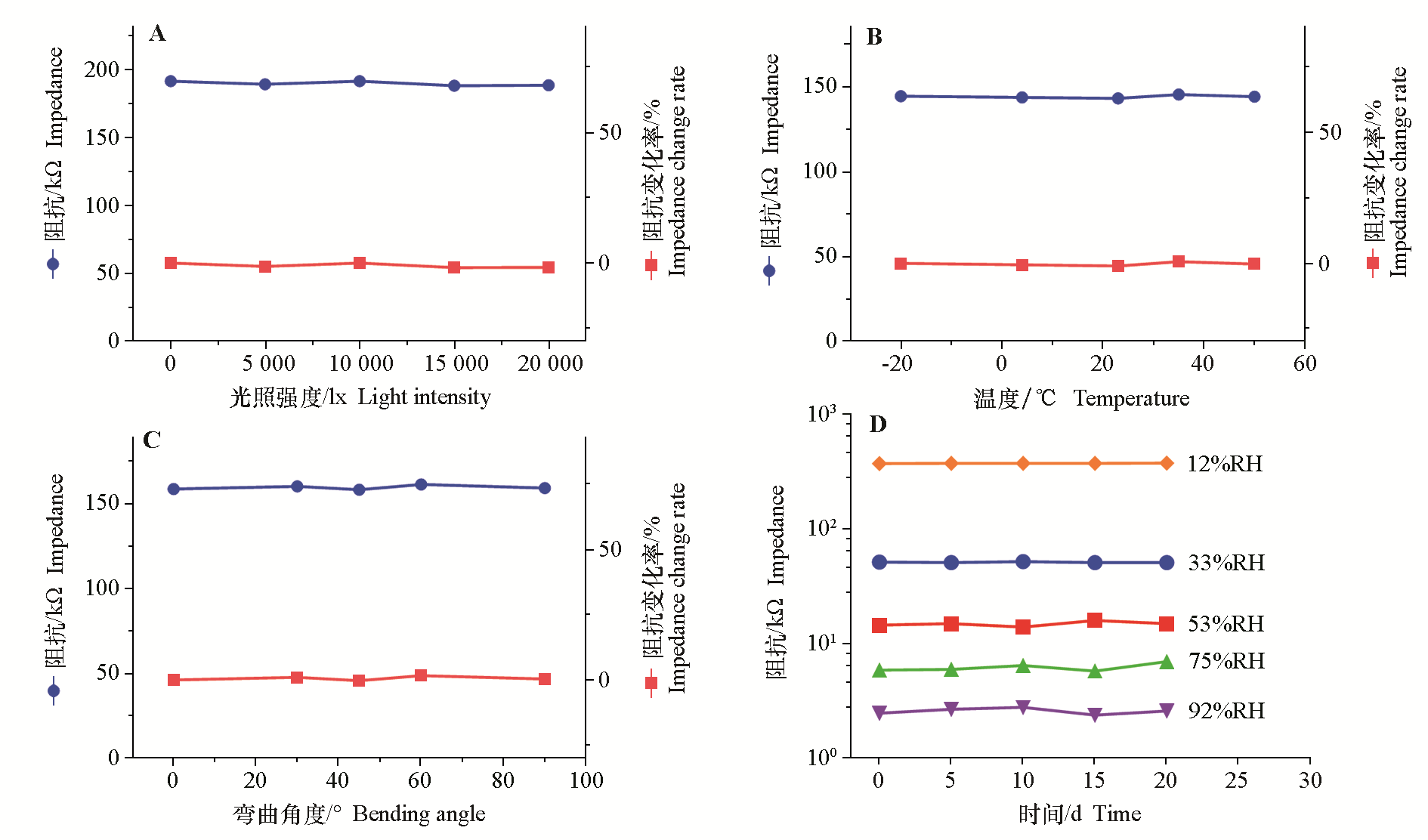

Fig. 6 Environmental stability test of sensors in impedance mode

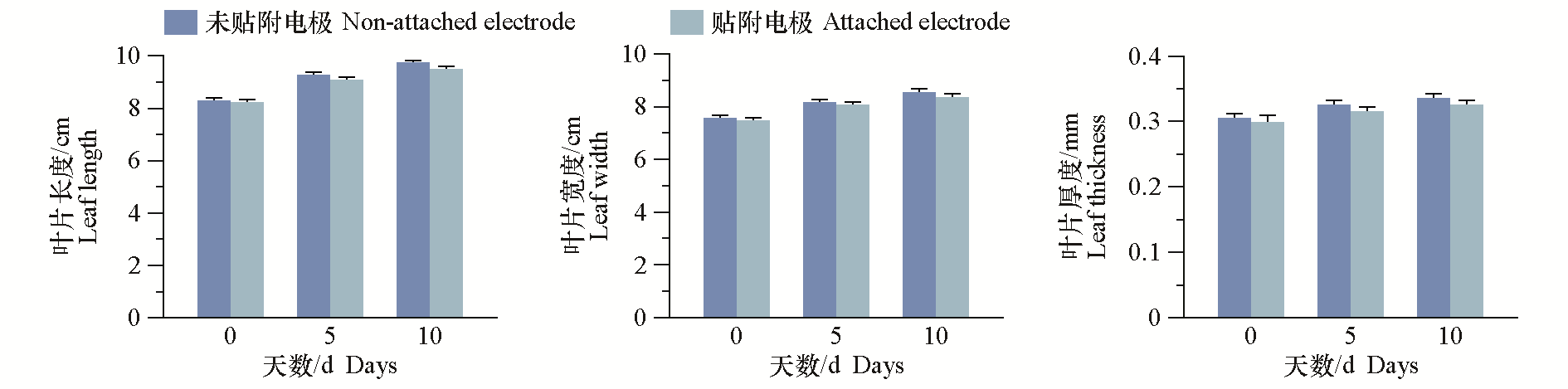

Fig. 7 Effect of sensor attachment on the growth of melon leaves

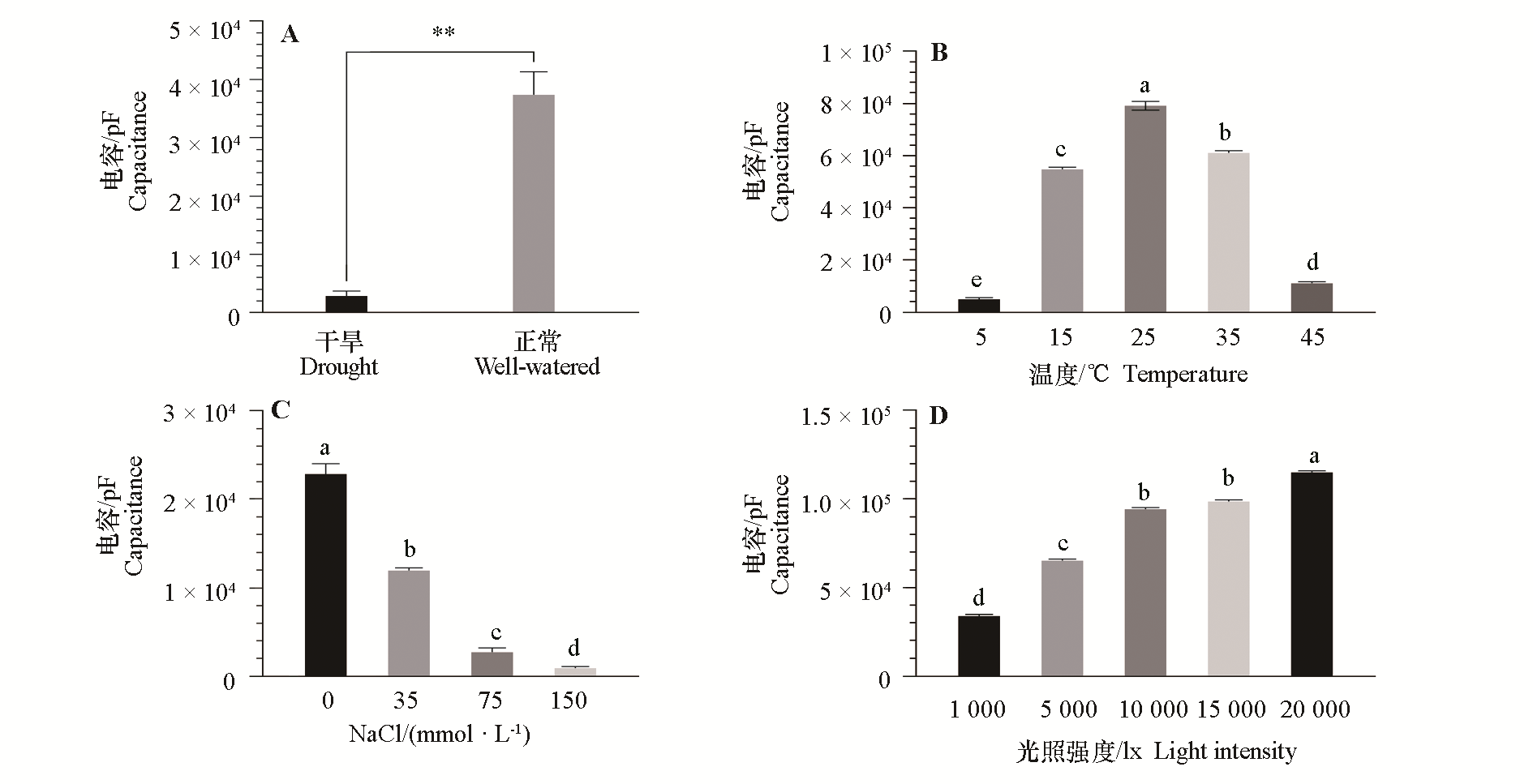

Fig. 8 Capacitance response of melon leaves under different stresses A：Drought stress；B：Temperature stress；C：Under salt（NaCl）stress；D：Light stress. ** P < 0.01. Different lowercase letters indicate significant differences at P < 0.05 according to Duncan’s new multiple range test。The same below

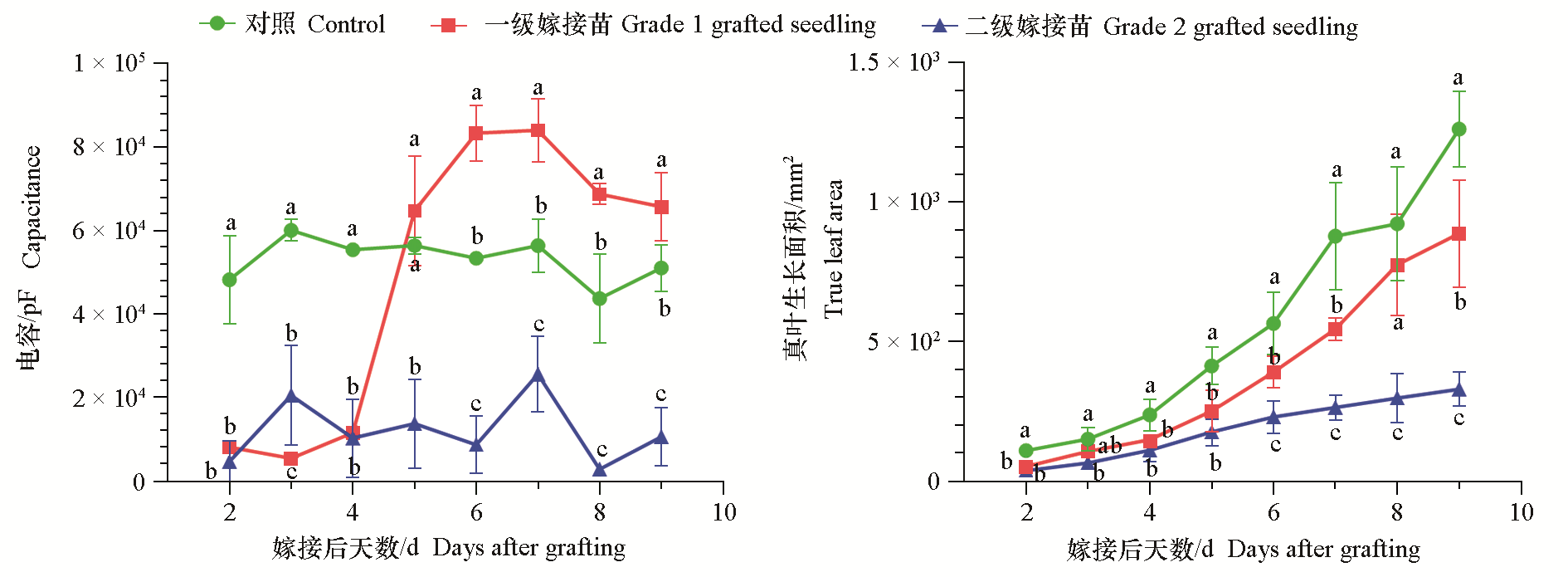

Fig. 9 Monitoring of the graft healing process based on capacitance and leaf area index

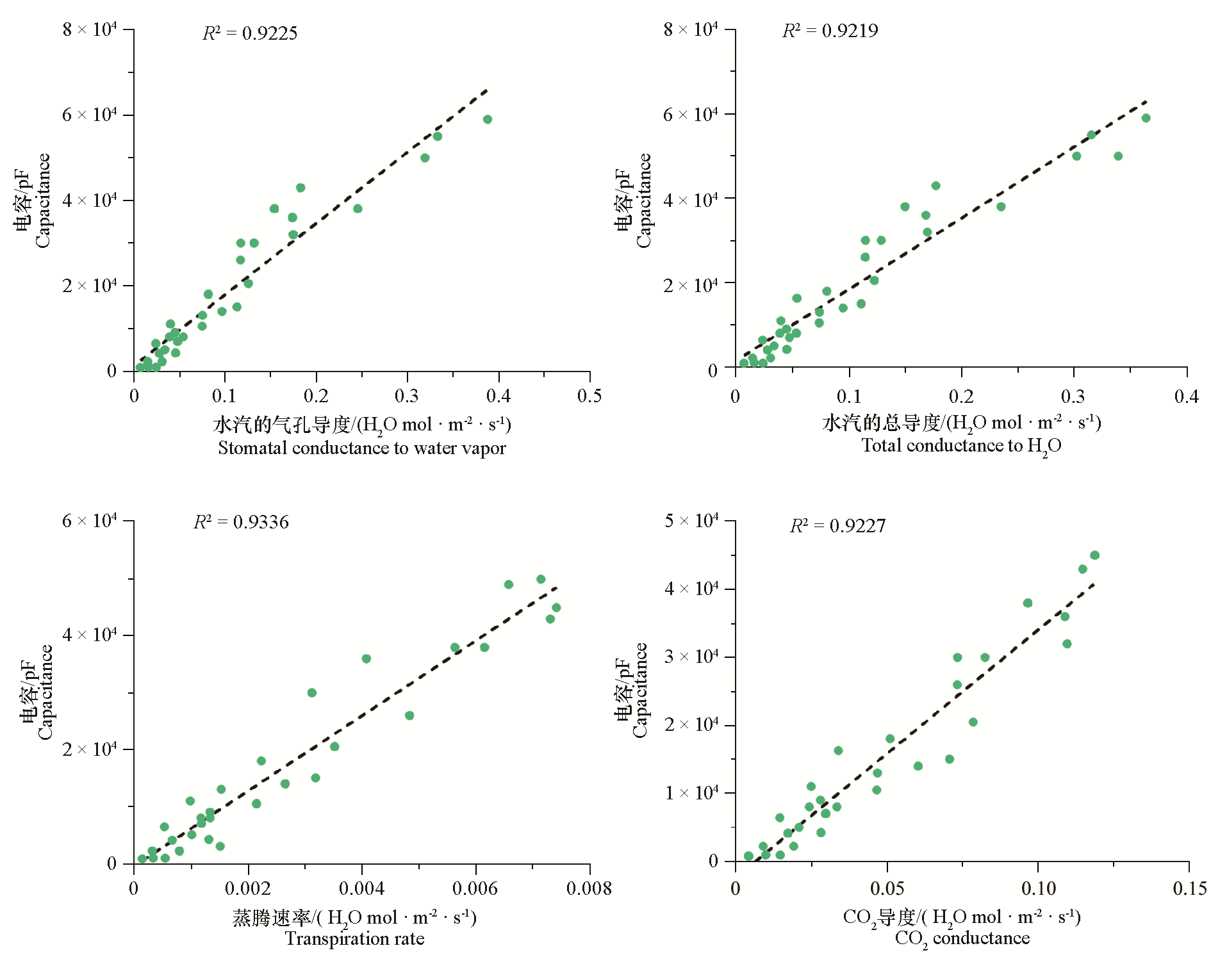

Fig. 10 Correlation between sensor capacitance values and key leaf gas exchange parameters
