Identification，Pathogenicity Analysis，and Biological Characterization of Lasiodiplodia theobromae Causing Grapevine Canker in Ningxia Wine Grape Region

doi:10.16420/j.issn.0513-353x.2025-0382

Acta Horticulturae Sinica ›› 2026, Vol. 53 ›› Issue (8): 2454-2468.doi: 10.16420/j.issn.0513-353x.2025-0382

• Plant Protection • Previous Articles Next Articles

Identification，Pathogenicity Analysis，and Biological Characterization of Lasiodiplodia theobromae Causing Grapevine Canker in Ningxia Wine Grape Region

PU Zhanyue¹, ZHAO Nan¹, WANG Yidong¹, XIN Ying¹^,², GU Peiwen¹^,^*()

¹ School of Agriculture， Ningxia University， Yinchuan 750021， China
² Yinchuan Forestry（Landscape）Pest Quarantine and Inspection Station， Yinchuan 750021， China

Received:2026-03-14 Revised:2026-06-02 Online:2026-08-25 Published:2026-08-25
Contact: GU Peiwen

Abstract

Abstract:

To clarify the pathogen species，pathogenicity and biological characteristics of grapevine canker in Ningxia，samples of diseased Cabernet Sauvignon and Syrah wine grape plants from five counties and cities including Yinchuan，Yongning and Qingtongxia were collected. Diseased plant samples from five counties/cities，including Yinchuan，Yongning，and Qingtongxia，covering seven wine grape cultivars：‘Cabernet Sauvignon’‘Syrah’‘Italian Riesling’‘Chardonnay’‘Merlot’‘Marselan’and ‘Viognier’. Pathogen isolation and purification were conducted using tissue isolation method. Pathogenicity of the isolated and purified strains was determined by scalding method and root irrigation method. The pathogen species were identified through morphological observation and multi-gene （ITS-TEF1-TUB2）combined phylogenetic analysis. The optimal carbon and nitrogen sources，pH value， and lethal temperature of the pathogen were determined by measuring mycelial growth and spore production. The results showed that all the strains causing the canker disease of wine grapes in Ningxia were Lasiodiplodia theobromae，among which FR2 had the strongest pathogenicity. The pathogenic strains were pathogenic to grape branches，pedicels and roots. According to the study on biological characteristics，the fungus grew and sporulated well when ammonium oxalate and ammonium acetate are used as nitrogen sources，glucose and sucrose as carbon sources，and the pH value is 5-7，with a lethal temperature of 55  ℃.

Key words: grapevine, grape canker disease, Lasiodiplodia theobromae, pathogenicity, biological characteristics

PU Zhanyue, ZHAO Nan, WANG Yidong, XIN Ying, GU Peiwen. Identification，Pathogenicity Analysis，and Biological Characterization of Lasiodiplodia theobromae Causing Grapevine Canker in Ningxia Wine Grape Region[J]. Acta Horticulturae Sinica, 2026, 53(8): 2454-2468.

Figures/Tables 11

Fig. 1 Symptoms of grapevine canker disease in the field（Cabernet Sauvignon） a：Hyperplasia and ulceration at the rootstock base；b：Necrosis and rot in both the rootstock base and root system；c：Scorch-like necrotic lesions along the leaf margins in the aboveground parts of diseased plants

Table 1 Sources and number of isolated strains of suspected pathogens of canker disease in wine grapes

分离部位Tissue of isolation	属 Genus	赤霞珠 Cabernet Sauvignon	西拉 Syrah	马瑟兰 Marselan	维欧妮 Viognier	贵人香 Italian Riesling	霞多丽 Chardonnay	美乐 Merlot	总数 Total number
根茎 Rhizome	镰刀菌属 Fusarium	6	6	6	6	4	6	4	38
	毛色二孢属 Lasiodiplodia	13	3	0	0	2	1	0	19
	茎点霉属 Phoma	1	0	0	0	0	0	0	1
	丝核菌属 Rhizoctonia	1	0	0	0	0	0	0	1
	角担菌属 Certatohasidium	1	0	0	0	0	0	0	1
	丛赤壳属 Dactylonectria	3	2	0	1	2	1	1	10
枝条 Branch	镰刀菌属 Fusarium	3	4	3	3	3	3	4	23
	毛色二孢属 Lasiodiplodia	0	0	0	0	0	0	0	0
	茎点霉属 Phoma	0	0	1	0	0	0	0	1
	丝核菌属 Rhizoctonia	0	0	0	0	0	0	0	0
	角担菌属 Certatohasidium	0	0	0	0	0	0	0	0
	丛赤壳属 Dactylonectria	1	0	0	0	0	0	0	1
果梗Stalk	镰刀菌属 Fusarium	3	3	3	2	2	2	3	18
	毛色二孢属 Lasiodiplodia	1	0	0	0	0	0	0	1
	茎点霉属 Phoma	0	0	0	0	1	0	0	1
	丝核菌属 Rhizoctonia	0	0	0	0	0	0	0	0
	角担菌属 Certatohasidium	0	0	0	0	0	0	0	0
	丛赤壳属 Dactylonectria	0	0	0	0	0	0	0	0
	总数Total number	33	18	13	12	14	13	12	115

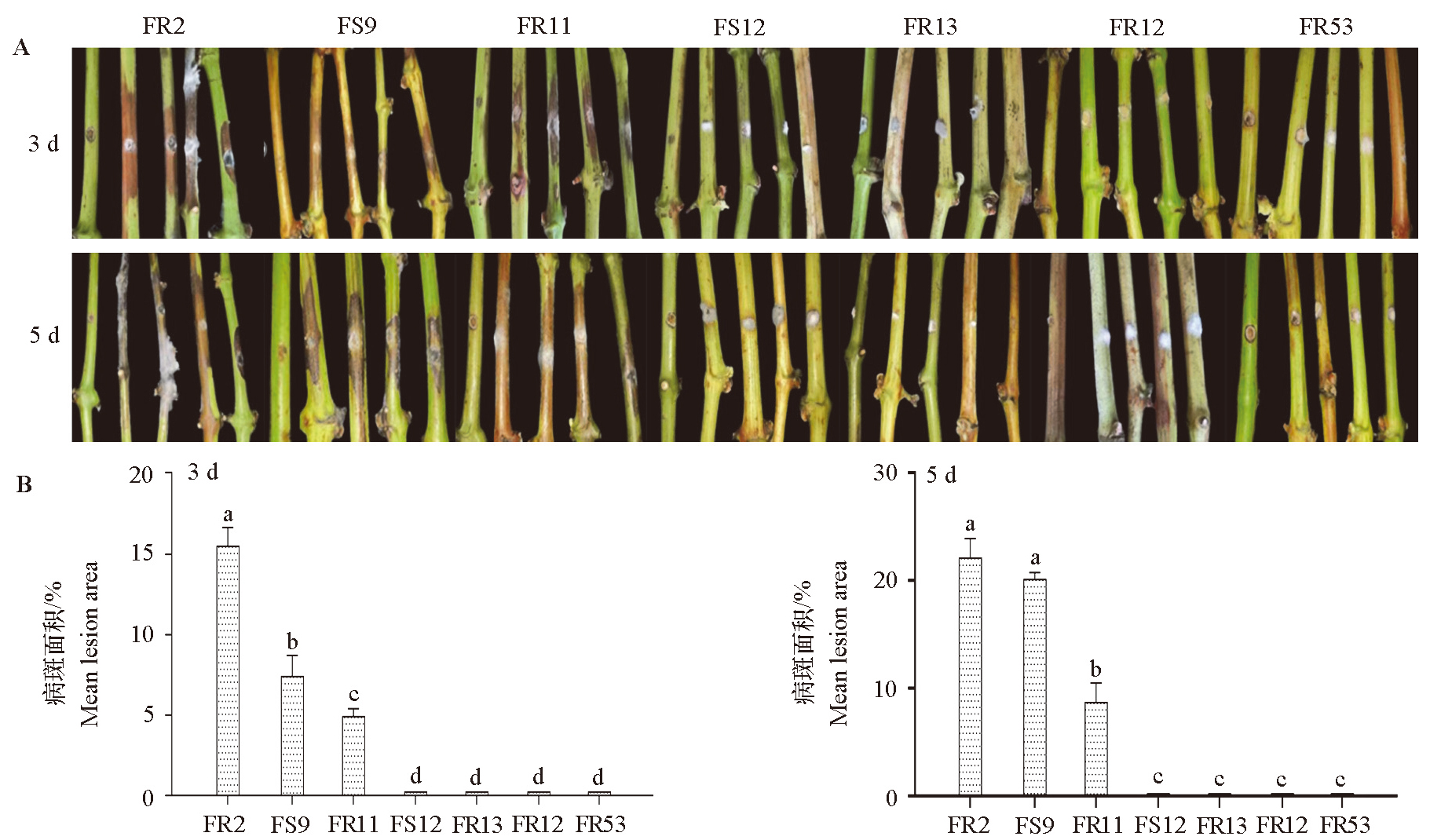

Fig. 2 Pathogenicity validation of detached branches from seven representative suspected strains（Cabernet Sauvignon） A：Symptomatic lesion expansion on grapevine shoots；B：Lesion area measurements at 3 d and 5 d post-inoculation（n = 4）. Different lowercase letters indicate significant differences（P < 0.05）. The same below

Fig. 3 Pathogenicity assay of detached shoots from wine grape cultivars A：From left to right，each variety is the control，and the branches inoculated for 3 and 5 days，respectively；B：Area of diseased spots on branches

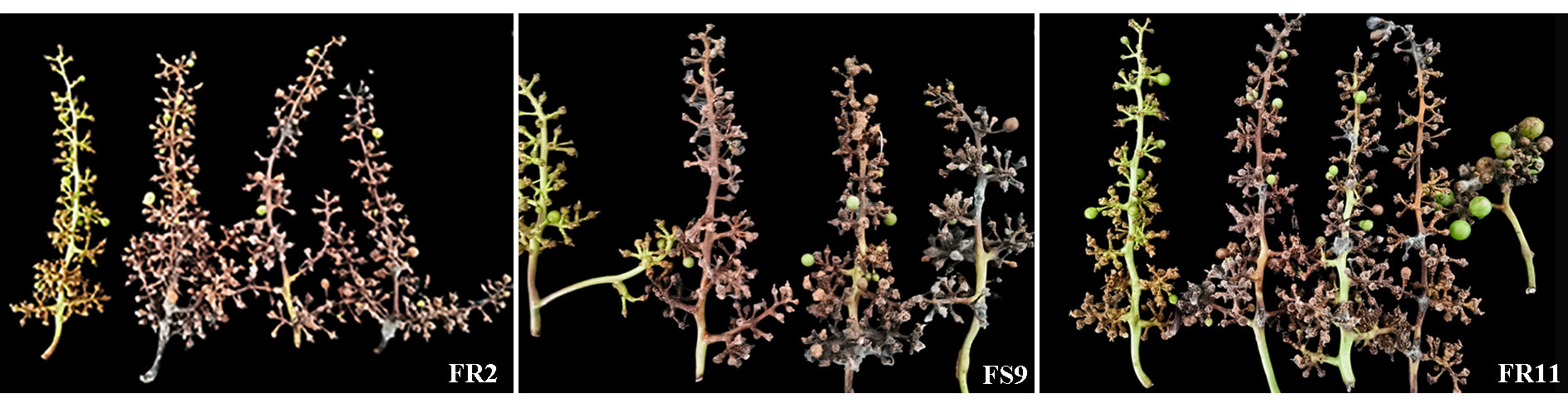

Fig. 4 Pathogenicity verification of wine grape clusters（Cabernet Sauvignon）

Fig. 5 Pot experiment of strain FR2（Italian Riesling） a：Symptoms of diseased plants in pot experiments；b，c：Epidermal rot of roots caused by FR2 accompanied by grayish-white mold layer；d：Necrosis and rot of lateral roots caused by FR2 under stereomicroscope；e：Cross-section of roots showing necrosis of xylem caused by FR2；f：Cross-section showing root rot and necrosis caused by FR2；g-i：Longitudinal and transverse sections showing fusiform ulcers caused by FR2；j：Pathogenic strains isolated from the root and stem of grape

Fig. 6 Morphological characteristics of Lasiodiplodia theobromae（A）and NJ phylogenetic tree based on combined ITS-EF1α-TUB sequences（B） a-c：Colony morphology；d：Pycnidia formed on PDA medium；e，f：Conidia production within pycnidia；g：Mature conidia；h：Conidial germination；i，j：Mature conidia and conidial germination；k：Paraphyses（notably elongated）；l：Pycnidium；m：Conidiophores（markedly short）

Fig. 7 Colony growth and spore production of FR2 strain under different nitrogen sources

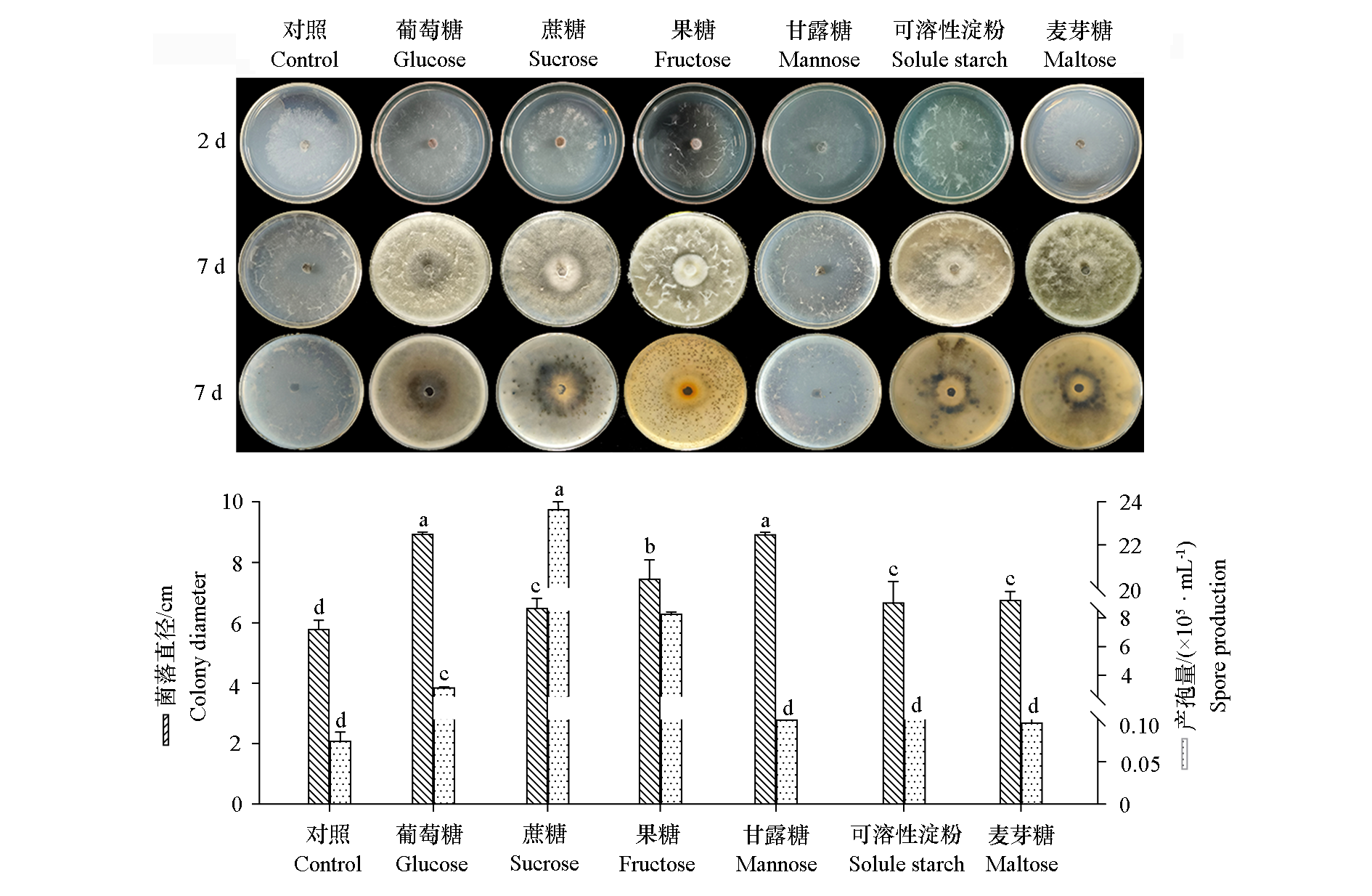

Fig. 8 Colony growth and spore production of FR2 strain under different carbon sources

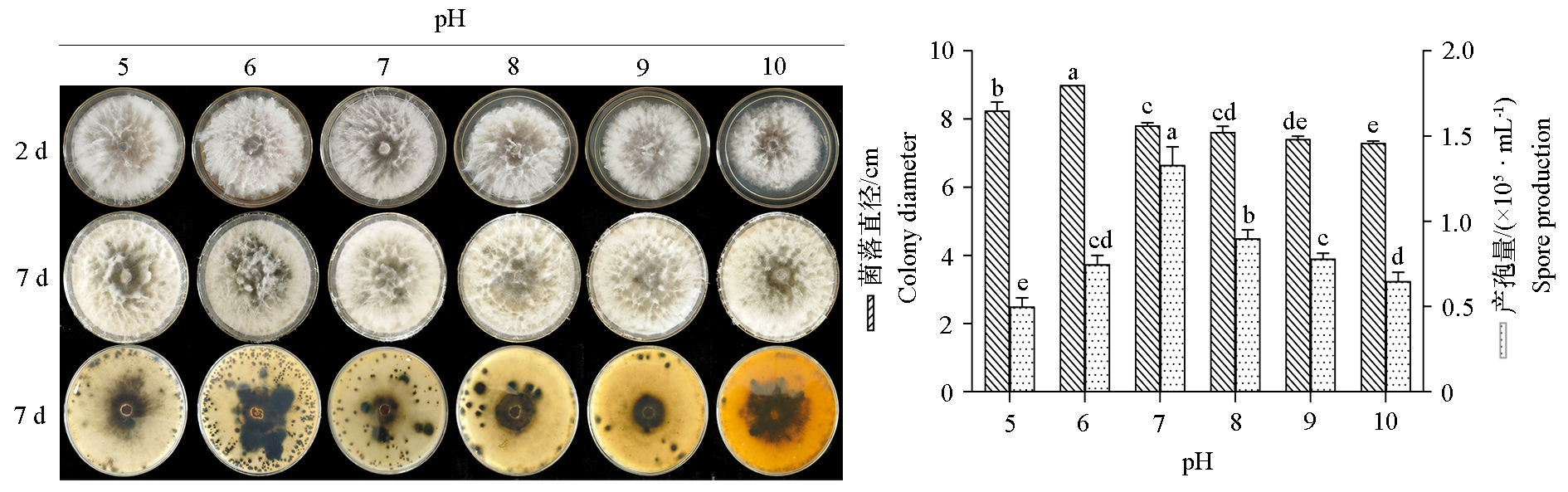

Fig. 9 Colony growth and spore production of FR2 strain at different pH values

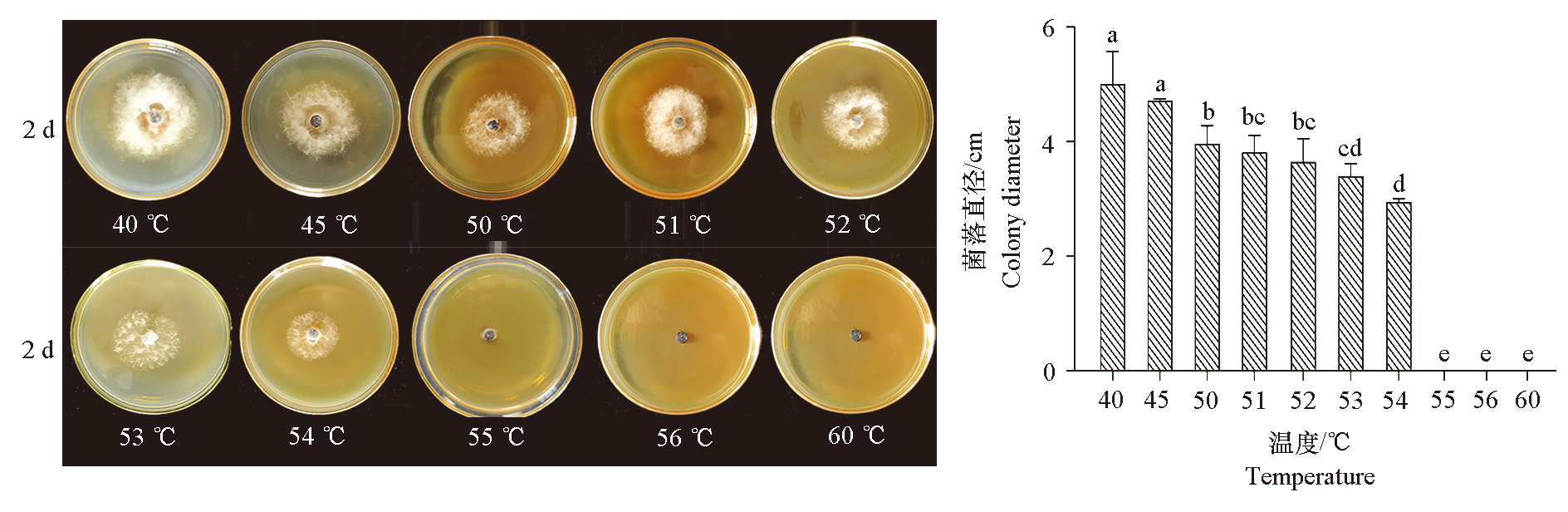

Fig. 10 Determination of lethal temperature for FR2 strain

References 26

[14]	Qu Xiangxiang, Hu Meijiao, Sun Jinhua, Gong Deqiang, Gao Zhaoyin, Chen Gengxin, Li Min. 2025. Resistance response of the jasmonic acid and salicylic acid signaling pathways in mango fruits infected with Lasiodiplodia theobromae. Journal of Food Science, 46 (1):11-17. (in Chinese)
	屈湘乡, 胡美姣, 孙进华, 弓德强, 高兆银, 陈更新, 李敏. 2025. 可可毛色二孢菌侵染芒果果实时茉莉酸和水杨酸信号通路的抗性响应. 食品科学, 46 (1):11-17.
[15]	Siebert J B. 2001. Eutypa:the economic toll on vineyards. Wines and Vines, 4:50-56.
[16]	Song Yaqin, Lou Binghai, Chen Aijun, He Jianjun, Bai Xianjin, Wang Qian, Li Yang, Liu Jinbiao, Chen Guopin. 2015. Isolation,identification and field dispersal dynamics of conidia of grapevine ulcer pathogen in Guilin region. Journal of Southern Agriculture, 46 (7):1228-1231. (in Chinese)
	宋雅琴, 娄兵海, 陈爱军, 何建军, 白先进, 王茜, 李杨, 刘金标, 陈国品. 2015. 桂林地区葡萄溃疡病菌分离鉴定及分生孢子田间扩散动态研究. 南方农业学报, 46 (7):1228-1231.
[17]	Wallis C, Lawrence D, Travadon R, Baumgartner K. 2021. Characterization of grapevine fungal canker pathogens by Fatty Acid Methyl Ester (FAME)profiles. Mycologia, 113 (1):9-10.
[18]	Wu Linna, Li Xinghong, Zang Wei, Zhou Yueyan, Yan Jiye. 2022. Identification and biological characteristics of Lasiodiplodia citricola causing Botryosphaeria dieback of grapes in Beijing. Phytopathologica Sinica, 52 (6):1003-1005. (in Chinese)
	吴林娜, 李兴红, 张玮, 周悦妍, 燕继晔. 2022. 北京葡萄溃疡病病原菌Lasiodiplodia citricola的鉴定和生物学特性初探. 植物病理学报, 52 (6):1003-1005. doi: 10.13926/j.cnki.apps.000607
[19]	Xu Jing, Li Jing, Zhang Yuxi. 2021. Identification of apricot gummosis pathogen in Zhouzhi,Shaanxi and its sensitivity to three fungicides. Journal of Northwest A & F University(Natural Science Edition), 49 (12):107-112. (in Chinese)
	许静, 李晶, 张雨溪. 2021. 陕西周至杏树流胶病病原菌鉴定及其对3种药剂的敏感性. 西北农林科技大学学报(自然科学版), 49 (12):107-112.
[20]	Yan J Y, Li X H,Kong, F F, Wang Z Y, He H P. 2011a. Occurrence of grapevine trunk disease caused by Botryosphaeria rhodina in China. Plant Disease, 95 (2):216-220.
[21]	Yan J Y, Peng Y L, Xie Y, Li X H, Wang Z Y. 2011b. First report of grape vine trunk disease caused by Botryosphaeria obtusa in China. Plant Disease, 95 (5):612-616.
[22]	Yan J Y, Xie Y, Zhang W, Wang Y, Liu J K, Hyde K D, Seem R C, Zhang G Z, Wang Z Y, Yao S W, Bai X J, Dissanayake A J, Peng Y L, Li X H. 2013. Species of Botryosphaeriaceae involved in grapevine dieback in China. Fungal Diversity, 61:221-236. doi: 10.1007/s13225-013-0251-8 URL
[1]	Aleinikova N V, Galkina Y S, Bolotianskaya E A, Arshava N V, Bozhko K N. 2022. Detection and identification of “black foot” pathogens of grapes in Crimea. BIO Web of Conferences, 53:7-10.
[2]	Cai L, Hyde K D, Taylor P W J, B S, Liu Z Y. 2009. A polyphasic approach for studying Colletotrichum. Fungal Diversity, 39 (2):183-204.
[3]	Che Jianmei, Liu Bo, Ruan Chuanqing, Wang Guofen, Huang Dandan, Yang Zhonglai, Guo Huihui. 2014. Identification of pathogen causing black spot disease on wax apple(Syzygium samarangense Merr. et Perry)and its biological characteristics. Fujian Journal of Agricultural Sciences, 29 (6):580-585. (in Chinese)
	车建美, 刘波, 阮传清, 王国芬, 黄丹丹, 杨忠来, 郭慧慧. 2014. 莲雾黑腐病病原菌的鉴定及其生物学特性研究. 福建农业学报, 29 (6):580-585.
[4]	Dai Liming, Liu Yixian, Shi Yuping, Li Lanlan, Zhang Xuan, Cai Zhiying. 2018. The biological characteristics of Lasiodiplodia theobromae causing leaf spot on rubber tree and the selection of fungicides in laboratory. Guangdong Agricultural Sciences, 45 (7):87-93. (in Chinese)
	戴利铭, 刘一贤, 施玉萍, 李岚岚, 张璇, 蔡志英. 2018. 橡胶树可可毛色二孢叶斑病菌生物学特性及药剂筛选试验. 广东农业科学, 45 (7):87-93.
[5]	Huang Yanhua, Ning Ping, Huang Yuanguang, Ou Shansheng, Zhang Yanxing, Qin Chaoni, Meng Cheng. 2022. Identification and biological characterization of stem rot pathogens from passion fruit. Southwest China Journal of Agricultural Sciences, 35 (1):105-112. (in Chinese)
	黄艳花, 宁平, 黄远光, 欧善生, 张燕杏, 覃潮妮, 蒙成. 2022. 百香果茎基腐病病原菌鉴定及其生物学特性. 西南农业学报, 35 (1):105-112.
[6]	Jampanya W, Boonlarppradab C, Srisuksam C, Samipak S, Amnuaykanjanasin A. 2025. Bioherbicidal effect of secondary metabolites from Lasiodiplodia theobromae for management of narrow-leaf and broad-leaf weeds. Crop Protection, 188:2-8.
[7]	Kuang Liuqing, Chen Shangwu, Zhang Wen, Ma Huiqin. 2014. Identification of associated fungi in pre-overwintering grapevine canker tissues from Beijing and Yunnan. Journal of China Agricultural University, 19 (1):99-106. (in Chinese)
	匡柳青, 陈尚武, 张文, 马会勤. 2014. 越冬前北京和云南葡萄溃疡病组织内相关真菌的鉴定. 中国农业大学学报, 19 (1):99-106.
[8]	Li Rong, Li Chunyan, Zhu Tingyan, Niu Hongyu. 2024. Study on the relationship between the quality of different maturity wine grapes and meteorological conditions in the eastern foot of Helan Mountain, Ningxia. Liaoning Agricultural Sciences,(6):23-28. (in Chinese)
	李荣, 李春艳, 朱婷艳, 牛宏宇. 2024. 宁夏贺兰山东麓不同熟性酿酒葡萄品质与气象条件的关系研究. 辽宁农业科学,(6):23-28.
[9]	Li X, Yan J, Kong F, Qiao G, Zhang Z, Wang Z. 2010. Botryosphaeria dothidea causing canker of grapevine newly reported in China. Plant Pathology, 59:1170. doi: 10.1111/j.1365-3059.2010.02297.x
[10]	Mondello V, Songy A, Battiston E, Pinto C, Coppin C, Trotel-Aziz P, Clément C, Mugnai L, Fontaine F. 2018. Grapevine trunk diseases:a review of fifteen years of trials for their control with chemicals and biocontrol agents. Plant Disease, 102 (7):1189-1216. doi: 10.1094/PDIS-08-17-1181-FE URL
[11]	Mousa W K, Raizada M N, Mousa W K, Raizada M N. 2013. Endophytic Fusarium species:a treasure trove of bioactive metabolites. Phytochemistry Reviews, 12 (1):1-20. doi: 10.1007/s11101-012-9231-y URL
[12]	Nascimento A R P, Mariano R D L R. 2004. Cancro bacteriano da videira:etiologia,epidemiologia e medidas de controle[Bacterial cancer of the vine:etiology,epidemiology and control measures]. Ciência Rural, 34:301-307. doi: 10.1590/S0103-84782004000100050 URL
[13]	Phillips A J L, Alves A, Abdollahzadeh J, Slippers B, Wingfield M J, Groenewald J Z, Crous P W. 2013. The Botryosphaeriaceae:genera and species known from culture. Studies in Mycology, 76:51-167. doi: 10.3114/sim0021 pmid: 24302790
[23]	Zhang Weining. 2017. Study on the classification and identification of antagonistic strain 61239 and its biocontrol effect[M. D. Dissertation]. Yangling: Northwest A & F University. (in Chinese)
	张伟宁. 2017. 拮抗毛壳菌61239的分类鉴定及其生防作用研究[硕士论文]. 杨凌: 西北农林科技大学.
[24]	Zhang Yuyin, Huang Xiaoxue, Liu Xiaomin, Wei Jianhe, Chen Xuyu. 2025. Identification,Biological characterization,and fungicide screening of the pathogen causing stem rot of Aquilaria sinensis(Lour.) Gilg. Molecular Plant Breeding, 14 (3):1-17. (in Chinese)
	张玉音, 黄小雪, 刘小敏, 魏建和, 陈旭玉. 2025. 白木香茎腐病病原菌鉴定、生物学特性及药剂筛选. 分子植物育种, 14 (3):1-17.
[25]	Zhang Ziran. 2024. Identification of Botryosphaeriaceae fungi causing fig branch diseases and study on pathogenicity mechanism[M. D. Dissertation]. Yantai: Yantai University. (in Chinese)
	张紫然. 2024. 引起无花果枝干病害的葡萄座腔菌科真菌鉴定及致病性机理研究[硕士论文]. 烟台: 烟台大学.
[26]	Zhou X, Zhang L, Li W, ChenY, Wang Q, Liu S. 2023. Synergistic interaction between Phoma sorghina and Rhizoctonia solani enhances root rot severity in soybean. Plant Pathology, 72 (4):789-801.
