Acta Horticulturae Sinica ›› 2026, Vol. 53 ›› Issue (6): 1623-1636.doi: 10.16420/j.issn.0513-353x.2025-0276
• Genetic & Breeding · Germplasm Resources · Molecular Biology • Previous Articles Next Articles
ZHONG Ziqin1,3,4,*, XIE Jingyao2,*, ZHANG Wei3, WU Jing3, YANG Mingzhe3, FENG Junting4, CHEN Chengjie4, LENG Yan3, LIU Hui3, WANG Zhou3, LIU Chaoyang3, LIANG Yinlong3, ZENG Liping3, MA Li3, HE Junhu4, MA Jun1,**(
), HE Yehua3,**(
), LUAN Aiping4,**(
)
Received:2025-12-22
Revised:2026-03-10
Online:2026-06-24
Published:2026-06-24
Contact:
MA Jun, HE Yehua, LUAN Aiping
ZHONG Ziqin, XIE Jingyao, ZHANG Wei, WU Jing, YANG Mingzhe, FENG Junting, CHEN Chengjie, LENG Yan, LIU Hui, WANG Zhou, LIU Chaoyang, LIANG Yinlong, ZENG Liping, MA Li, HE Junhu, MA Jun, HE Yehua, LUAN Aiping. Evaluation of Leaf Color Diversity and Preliminary Analysis of the Coloration Mechanisms in Ananas spp.[J]. Acta Horticulturae Sinica, 2026, 53(6): 1623-1636.
Add to citation manager EndNote|Ris|BibTeX
URL: https://www.ahs.ac.cn/EN/10.16420/j.issn.0513-353x.2025-0276
| 引物名称 | 引物序列(5′-3′) |
|---|---|
| Primer name | Primer sequence |
| qAcactin | F:CTGGCCTACGTGGCACTTGACTT;R:CACTTCTGGGCAGCGGAACCTTT |
| qAcMYB263 | F:ATGTAATGGCAGTACTGACTGGT;R:CCAGCTATCCACTCATCCACT |
| qAcMYB262 | F:TTCTCGCTTCCTCCACATGC;R:CCGTCGTCTTTGTCCTCGTT |
| qAcMYB266 | F:GACCGTGTCAAGCCCATCTC;R:CCAGTCAATACTGCCACTGC |
| qAcMYB267 | F:AGCTTCGCGGATGATGGATT;R:ATCCTCACCGGCATGAGAAC |
Table 1 The sequences of qRT-PCR primers in this study
| 引物名称 | 引物序列(5′-3′) |
|---|---|
| Primer name | Primer sequence |
| qAcactin | F:CTGGCCTACGTGGCACTTGACTT;R:CACTTCTGGGCAGCGGAACCTTT |
| qAcMYB263 | F:ATGTAATGGCAGTACTGACTGGT;R:CCAGCTATCCACTCATCCACT |
| qAcMYB262 | F:TTCTCGCTTCCTCCACATGC;R:CCGTCGTCTTTGTCCTCGTT |
| qAcMYB266 | F:GACCGTGTCAAGCCCATCTC;R:CCAGTCAATACTGCCACTGC |
| qAcMYB267 | F:AGCTTCGCGGATGATGGATT;R:ATCCTCACCGGCATGAGAAC |
Fig. 1 Phenotypic diversity and seven types of leaf coloration in Ananas spp. A:Leaf color and morphology of representative Ananas spp. germplasms;B:Color comparison between leaf tip and mid-section within the same germplasm;C:Adaxial and abaxial leaf coloration;D:Scanning electron microscopy(SEM)of abaxial leaf trichomes;E:Seven leaf color types:white(W,A. bracteatus‘Jinbian Hongbao’× A. lucidus‘Ziye’seedling),light yellow(LY,Mutant sucker on A. bracteatus‘Jinbian Hongbao’),yellow green(YG),light green(LG),green(G),red(R), and dark red(DR);F:Chimeric leaf type
Fig. 2 Free-hand sectioning observation of Ananas spp. leaf structure and pigmented tissues A:Green-leaf cultivar‘Lüzhenzhu’;B:Red-leaf cultivar‘Ziye’;C:Green-leaf cultivar‘Shenwan’with leaf streamers. A1,B1:Mid-region transverse section of the leaf;A2,B2,C2,C3:Histological structures of transverse leaf sections;A3,B3:Upper epidermal structures of leaves. St:Stomata;Ue:Upper epidermis;Le:Lower epidermis;WSP:Water storage parenchyma;VB:Vascular bundle;LS:Leaf streamers

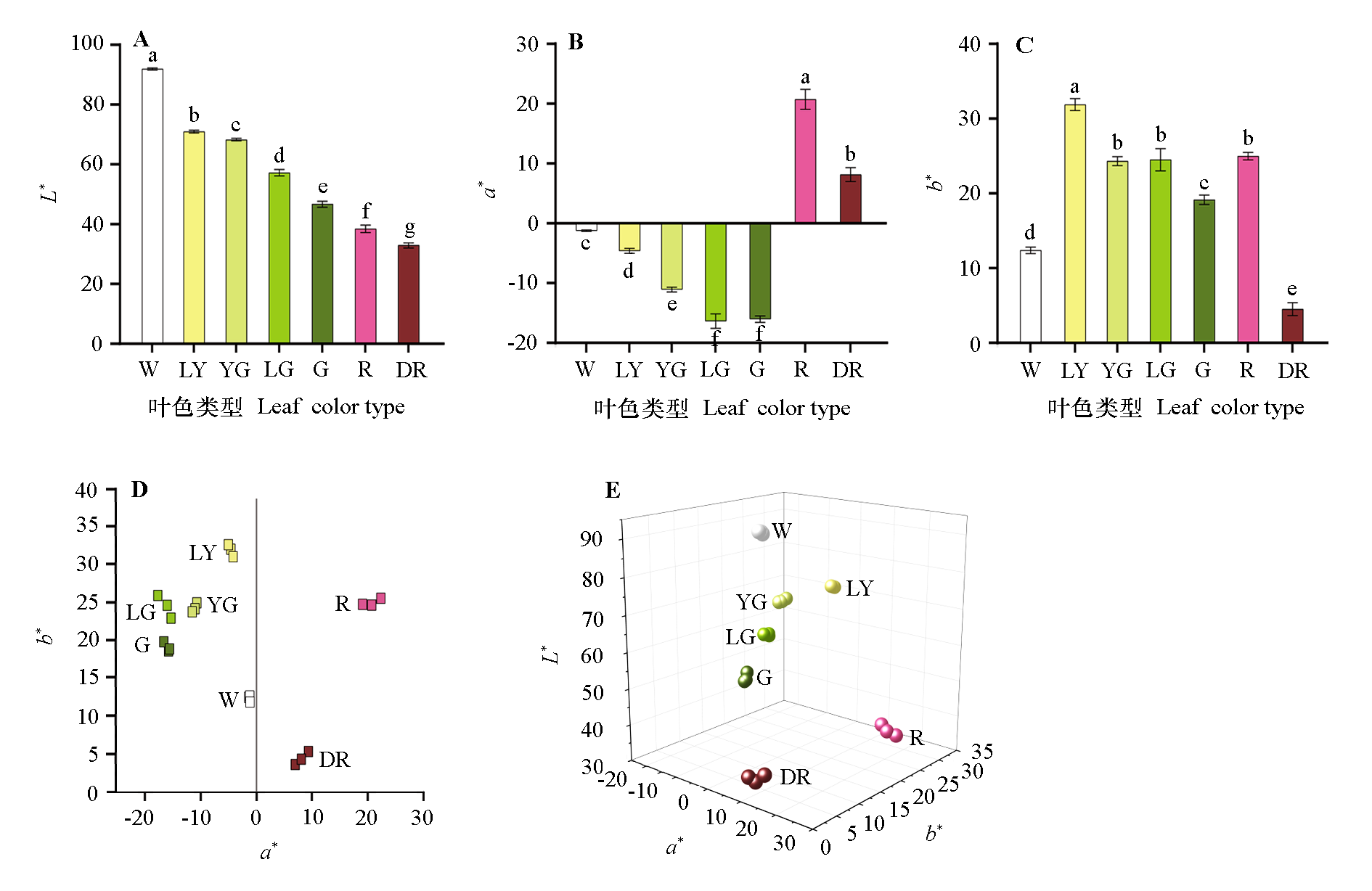

Fig. 3 Bar charts of L*,a*,b* values and spatial distribution characteristics of different leaf color types A:Lightness(L*);B:Red-green value(a*);C:Yellow-blue value(b*);D:Two-dimensional distribution of leaf color in a*b* space;E:Three-dimensional distribution of leaf color in L*a*b* space. W:White;LY:Light yellow;YG:Yellow green;LG:Light green;G:Green;R:Red;DR:Dark red. Different lowercase letters indicate significant differences at P < 0.05. The same below

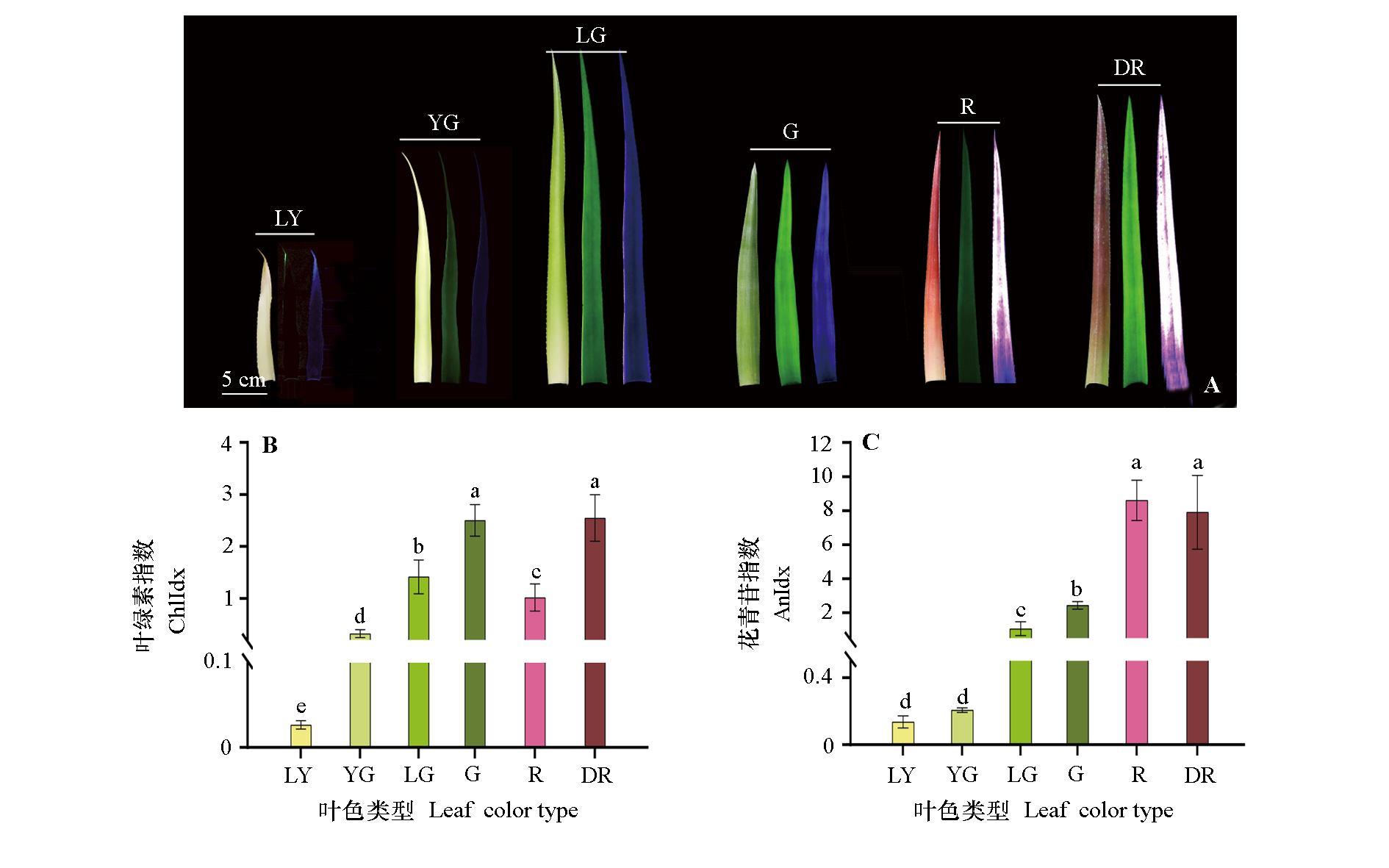

Fig. 4 Spectral index analysis of leaves with different color types A:Leaf color phenotypes and spectral imaging(for each type:phenotype,chlorophyll spectral image,anthocyanin spectral image);B:Chlorophyll index(ChlIdx);C:Anthocyanin index(AnIdx)
| 指标 Item | L* | a * | b* | 叶绿素 指数 ChlIdx | 花青苷 指数 AnIdx | 叶绿素含量 Chlorophyll content | 类胡萝卜素含量 Carotenoid content | 花青苷含量 Anthocyanin content |
|---|---|---|---|---|---|---|---|---|
| L* | 1 | |||||||
| a * | -0.599 | 1 | ||||||
| b* | 0.753 | -0.225 | 1 | |||||
| 叶绿素指数 ChlIdx | -0.779 | -0.016 | -0.835* | 1 | ||||
| 花青苷指数 AnIdx | -0.917* | 0.867* | -0.591 | 0.474 | 1 | |||
| 叶绿素含量Chlorophyll content | -0.657 | -0.150 | -0.624 | 0.936** | 0.323 | 1 | ||
| 类胡萝卜素含量 Carotenoid content | -0.642 | -0.182 | -0.630 | 0.942** | 0.299 | 0.999** | 1 | |
| 花青苷含量Anthocyanin content | -0.836* | 0.930** | -0.502 | 0.322 | 0.984** | 0.151 | 0.126 | 1 |
Table 2 Correlation analysis of color space parameters,spectral indices,and pigment contents in Ananas spp. leaves
| 指标 Item | L* | a * | b* | 叶绿素 指数 ChlIdx | 花青苷 指数 AnIdx | 叶绿素含量 Chlorophyll content | 类胡萝卜素含量 Carotenoid content | 花青苷含量 Anthocyanin content |
|---|---|---|---|---|---|---|---|---|
| L* | 1 | |||||||
| a * | -0.599 | 1 | ||||||
| b* | 0.753 | -0.225 | 1 | |||||
| 叶绿素指数 ChlIdx | -0.779 | -0.016 | -0.835* | 1 | ||||
| 花青苷指数 AnIdx | -0.917* | 0.867* | -0.591 | 0.474 | 1 | |||
| 叶绿素含量Chlorophyll content | -0.657 | -0.150 | -0.624 | 0.936** | 0.323 | 1 | ||
| 类胡萝卜素含量 Carotenoid content | -0.642 | -0.182 | -0.630 | 0.942** | 0.299 | 0.999** | 1 | |
| 花青苷含量Anthocyanin content | -0.836* | 0.930** | -0.502 | 0.322 | 0.984** | 0.151 | 0.126 | 1 |
| 类型 Type | 含量/(mg · g-1) Content | a* | 叶绿素指数 ChlIdx | 花青苷指数 AnIdx | ||
|---|---|---|---|---|---|---|
| 叶绿素 Chlorophyll | 花青苷 Anthocyanin | 类胡萝卜素 Carotenoid | ||||
| 白White | < 0.9 | < 0.05 | < 0.02 | -2 ~ 0 | 0 ~ 0.02 | 0 ~ 0.5 |
| 淡黄Light yellow | < 0.9 | < 0.05 | 0.02 ~ 0.2 | -5 ~-2 | 0.02 ~ 0.2 | 0 ~ 0.5 |
| 黄绿Yellow green | 1.0 ~ 1.9 | < 0.05 | 0.2 ~ 0.5 | -15 ~-5 | 0.2 ~ 1.0 | 0 ~ 0.5 |
| 浅绿Light green | 2.0 ~ 4.9 | 0.05 ~ 0.5 | 0.5 ~ 1.0 | <-15 | 1.0 ~ 2.0 | 0 ~ 1.5 |
| 绿Green | ≥ 5.0 | 0.05 ~ 0.5 | ≥ 1.0 | <-15 | > 2.0 | 0 ~ 4.0 |
| 红Red | < 4.9 | ≥ 3.0 | 0 ~ 1.0 | > 10 | 0.02 ~ 2.0 | > 4.0 |
| 暗红Dark red | ≥ 5.0 | ≥ 3.0 | ≥ 1.0 | > 5 | > 2.0 | > 4.0 |
Table 3 Quantitative classification criteria for different leaf color types of Ananas spp.
| 类型 Type | 含量/(mg · g-1) Content | a* | 叶绿素指数 ChlIdx | 花青苷指数 AnIdx | ||
|---|---|---|---|---|---|---|
| 叶绿素 Chlorophyll | 花青苷 Anthocyanin | 类胡萝卜素 Carotenoid | ||||
| 白White | < 0.9 | < 0.05 | < 0.02 | -2 ~ 0 | 0 ~ 0.02 | 0 ~ 0.5 |
| 淡黄Light yellow | < 0.9 | < 0.05 | 0.02 ~ 0.2 | -5 ~-2 | 0.02 ~ 0.2 | 0 ~ 0.5 |
| 黄绿Yellow green | 1.0 ~ 1.9 | < 0.05 | 0.2 ~ 0.5 | -15 ~-5 | 0.2 ~ 1.0 | 0 ~ 0.5 |
| 浅绿Light green | 2.0 ~ 4.9 | 0.05 ~ 0.5 | 0.5 ~ 1.0 | <-15 | 1.0 ~ 2.0 | 0 ~ 1.5 |
| 绿Green | ≥ 5.0 | 0.05 ~ 0.5 | ≥ 1.0 | <-15 | > 2.0 | 0 ~ 4.0 |
| 红Red | < 4.9 | ≥ 3.0 | 0 ~ 1.0 | > 10 | 0.02 ~ 2.0 | > 4.0 |
| 暗红Dark red | ≥ 5.0 | ≥ 3.0 | ≥ 1.0 | > 5 | > 2.0 | > 4.0 |
| 温度指标 Temperature index | 2022-11 | 2022-12 | 2023-01 | 2023-02 | 2023-03 |
|---|---|---|---|---|---|
| 平均高温 Average high temperature | 26 | 25 | 18 | 18 | 25 |
| 平均低温 Average low temperature | 18 | 18 | 9 | 10 | 14 |
| 最高温 Maximum temperature | 31 | 30 | 22 | 26 | 28 |
| 最低温 Minimum temperature | 9 | 9 | 4 | 7 | 11 |
Table 4 Temperature variations across different months
| 温度指标 Temperature index | 2022-11 | 2022-12 | 2023-01 | 2023-02 | 2023-03 |
|---|---|---|---|---|---|
| 平均高温 Average high temperature | 26 | 25 | 18 | 18 | 25 |
| 平均低温 Average low temperature | 18 | 18 | 9 | 10 | 14 |
| 最高温 Maximum temperature | 31 | 30 | 22 | 26 | 28 |
| 最低温 Minimum temperature | 9 | 9 | 4 | 7 | 11 |

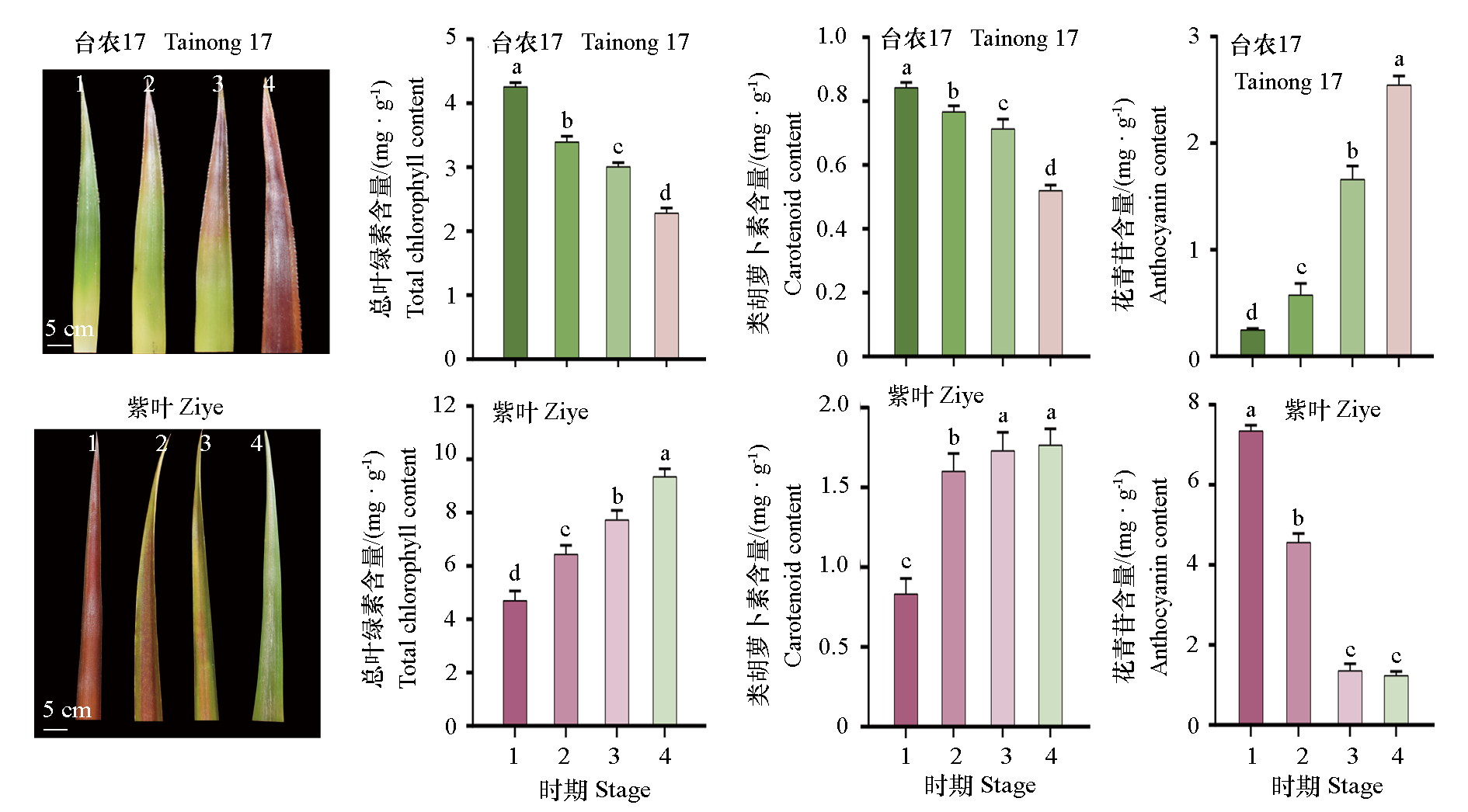

Fig. 6 Winter chilling effects on leaf coloration and contents of chlorophyll,carotenoids,and anthocyanins in Ananas‘Tainong 17’(green leaf type)and‘Ziye’(dark red leaf type) 1:Before winter;2:During the cold wave;3:5 days after the cold wave;4:15 days after the cold wave
| [1] |
Bromeliad Society International. 2025. BSI Members Only. https://www.bsi.org/new/.
|
| [2] |
|
| [3] |
|
| [4] |
Florida Council of Bromeliad Societies. 2025. Bromeliad Encyclopedia. http://fcbs.org.
|
| [5] |
|
|
韩佳祺, 赵自仙, 郭华春. 2024. 光合参数结合形态指标评价马铃薯响应低磷胁迫的品种间差异. 植物遗传资源学报, 25 (10):1713-1725.
|
|
| [6] |
|
|
何业华, 胡中沂, 马均, 方少秋, 卢敏, 谢志亮, 彭兵. 2009. 凤梨类植物的种质资源与分类. 经济林研究, 27 (3):102-107.
|
|
| [7] |
International Union for the Protection of New Varieties of Plants(UPOV). 2013. Pineapple(Ananas comosus(L.) Merr.):guidelines for the conduct of tests for distinctness,uniformity and stability. UPOV Code:ANANA_COM,TG/295/1. Geneva:UPOV. http://www.hinshu2.maff.go.jp/info/sinsakijun/botanical_taxon.html.
|
| [8] |
|
|
李晶晶, 何业华, 栾爱萍, 胡峰, 曾晶, 刘朝阳, 张伟, 吴竞, 薛彪, 韩玉琴, 刘国华. 2021. 凤梨叶缘变化规律及无性繁殖方式对叶刺性状稳定性的影响. 果树学报, 38 (1):82-89.
|
|
| [9] |
|
| [10] |
|
| [11] |
|
| [12] |
|
| [13] |
|
| [14] |
|
| [15] |
|
| [16] |
Ministry of Agriculture of the People’s Republic of China. 2015. NY/T 2750—2015. Guidelines for the conduct of tests for distinctness,uniformity and stability(DUS):pineapple. Beijing: Ministry of Agriculture of the People’s Republic of China. (in Chinese)
|
|
中华人民共和国农业部. 2015. NY/T 2750—2015. 植物品种特异性、一致性和稳定性测试指南凤梨属. 北京: 中华人民共和国农业部.
|
|
| [17] |
Ministry of Agriculture,Forestry and Fisheries(MAFF). 1982. Classification standards for pineapple varieties. Tokyo:MAFF. (in Japenese)
|
|
農林水産省. 1982. パインアップル品種特性分類審査基準. 東京:農林水産省.
|
|
| [18] |
Ministry of Agriculture,Forestry and Fisheries(MAFF). 2018. Test guidelines for distinctness,uniformity and stability of pineapple(Ananas comosus(L.)Merr.). Tokyo:MAFF. (in Japenese)
|
|
農林水産省. 2018. パインアップル種(Ananas comosus(L.) Merr.)品種特異性・一貫性・安定性試験指針. 東京:農林水産省.
|
|
| [19] |
|
| [20] |
|
| [21] |
|
|
田密霞, 周福慧, 姜爱丽, 祝朋芳, 陈晨, 刘程惠, 原畅. 2023. 芸薹属植物呈色机理研究进展. 园艺学报, 50 (9):1971-1986.
|
|
| [22] |
|
|
王寒, 段思源, 秦培, 邹瑜锦, 文静, 易斌, 马朝芝, 沈金雄, 傅廷栋, 高金祥, 涂金星. 2024. 甘蓝型油菜子叶黄化致死突变体BnaC02.YTL的遗传解析. 中国油料作物学报, 46 (6):1232-1239.
|
|
| [23] |
|
| [24] |
|
|
杨明哲. 2024. 菠萝F1群体红叶性状QTL定位及GASA家族全基因组鉴定[硕士论文]. 广州: 华南农业大学.
|
|
| [25] |
|
| [26] |
|
|
张伟. 2024. 凤梨花序、果皮中花青苷积累的分子调控机制研究[博士论文]. 广州: 华南农业大学.
|
|
| [27] |
|
| [28] |
|
| [29] |
|
| [30] |
|
|
周徐子鑫, 杨威, 毛美琴, 薛彦斌, 马均. 2022. 金边红苞凤梨叶色突变体色素鉴定及类胡萝卜素合成限速基因筛选. 园艺学报, 49 (5):1081-1091.
|
|
| [31] |
|
|
钟紫琴. 2023. 凤梨叶色遗传分析及相关转录因子AcMYB262的鉴定[硕士论文]. 广州: 华南农业大学.
|
