ToCV和TYLCV侵染番茄对烟粉虱解毒酶的影响

doi:10.16420/j.issn.0513-353x.2023-0484

摘要/Abstract

摘要：

番茄病毒病已成为目前番茄生产最主要的病害之一，造成番茄的大量减产甚至绝收，其中番茄褪绿病毒（tomato chlorosis virus，ToCV）和番茄黄化曲叶病毒（tomato yellow leaf curl virus，TYLCV）危害最为严重，二者的复合侵染还会对烟粉虱的取食、获毒以及传毒等行为产生一系列影响，给番茄病毒病的防治造成了很大困难。为了明确在ToCV和TYLCV复合侵染条件下，烟粉虱取食带毒番茄对其体内解毒酶以及生理防御反应相关基因变化的影响，以便更好地对烟粉虱进行防治，通过酶活性测定和实时荧光定量PCR技术，研究烟粉虱取食ToCV、TYLCV单独侵染及ToCV + TYLCV复合侵染番茄48 h后其体内解毒酶变化，并以健康番茄作为对照。结果表明，除取食ToCV单独侵染番茄的烟粉虱谷胱甘肽S-转移酶（Glutathione S-transferase，GST）和UDP-葡萄糖醛酸转移酶（UDP-glucuronosy-ltransferase，UDPGT）活性较取食健康番茄烟粉虱下降，烟粉虱带毒后GST、羧酸酯酶（Carboxylesterase，CarE）、乙酰胆碱酯酶（Acetylcholinesterase，AchE）、细胞色素 P450（Cytochrome P450，CYP450）和UDP活性和基因表达量均较健康烟粉虱升高，且其中取食复合侵染番茄后CarE、AchE、P450、UDP酶活性和基因表达量变化均存在显著差异。研究结果表明，取食复合侵染番茄和TYLCV单独侵染番茄后，不同程度诱导了烟粉虱的解毒防御，从而有助于烟粉虱传播病毒。

关键词: 番茄, 烟粉虱, 番茄褪绿病毒, 番茄黄化曲叶病毒, 复合侵染, 解毒酶

Abstract:

Tomato virus disease has become one of the most important diseases in tomato production，resulting in a large reduction in tomato yield or even a failure of the harvest. Tomato chlorosis virus（ToCV） and tomato yellow leaf curl virus（TYLCV）cause severe losses in the field，and co-infection of ToCV and YLCV will also have a series of effects on the B. tabaci feeding，virus acquisition，and virus transmission，causing great difficulties in the prevention of tomato virus diseases. The changes of detoxification enzymes and gene related to physiological defense responses，after B. tabaci feeding on tomatoes co-infected with ToCV and TYLCV was clarified，to control B. tabaci effectively. In this study，the changes of detoxification enzymes in co-infected B. tabaci were studied by enzyme activity determination and real-time fluorescence quantitative PCR technology，and healthy tomatoes were used as the control. The results showed that expect the enzyme activity of glutathione S-transferase（GST）and UDP-glucuro- nosyltransferase（UDPGT）of B. tabaci fed on ToCV infected tomatoes were lower than those fed on healthy B. tabaci，viruliferous B. tabaci’s GST，carboxylesterase（CarE），acetylcholinesterase（AchE），cytochrome P450（CYP450）and UDP enzyme activities and gene expression levels were higher than those of healthy B. tabaci，and there were significant differences in CarE，AchE，P450，UDP enzyme activities and gene expression levels after B. tabaci feeding and infection. The results showed that the detoxification defense of B. tabaci was induced to different degrees after feeding on the co-infected tomato and TYLCV-infected tomato plant，thus helping B. tabaci to transmitt the virus.

Key words: tomato, Bemisia tabaci, ToCV, TYLCV, co-infection, detoxification enzymes

朱婕, 卢丁伊慧, 张德咏, 张战泓, 张卓, 史晓斌, 刘勇. ToCV和TYLCV侵染番茄对烟粉虱解毒酶的影响[J]. 园艺学报, 2024, 51(2): 411-422.

ZHU Jie, LU Dingyihui, ZHANG Deyong, ZHANG Zhanhong, ZHANG Zhuo, SHI Xiaobin, LIU Yong. Effect of ToCV and TYLCV Infection on Detoxification Enzymes of Bemisia tabaci[J]. Acta Horticulturae Sinica, 2024, 51(2): 411-422.

图/表 4

表1 试验中所用引物

Table 1 Primer list used in the experiment

目的 Purpose	引物名称 Primer name	引物序列（5′-3′） Primer sequence
ToCV RT-PCR	ToCV-3F	GGTTTGGATTTTGGTACTACATTCAGT
ToCV RT-PCR	ToCV-3R	AAACTGCCTGCATGAAAAGTCTC
TYLCV RT-PCR	TYLCV-F	GTTCACGGATTTCGTTGTATG
TYLCV RT-PCR	TYLCV-R	AGAGGGACTGGCAAAGCAACA
Bemisia tabaci 参考基因 Bemisia tabaci reference genes	Actin-F	CGCTGCCTCCACCTCATT
	Actin-R	ACCGCAAGATTCCATACCC
	EF-1α-F	AGCCTTGTGCCAATTTCCG
	EF-1α-R	CCTTCAGCATTACCGTCC
	CarE-F	CCCTCTCGAGCAGCAAAGAA
	CarE-R	GGCCTTCAAGAGAACGGACA
	GST-F	GAGCCGGTTCGTTTCATCCT
	GST-R	TCCCAAATGGTGTGGTTGGT
	AchE-F	CCACGAGGATTGCCTCTACC
	AchE-R	GAGAGCGGAACCATCCCAAA
	P450-F	CAACAATGCTGGTTCGGAGC
	P450-R	CCAAGTGAGCTGTGATGGGT
	UDP-F	CGGCGTAAATTTGCAGCGTA
	UDP-R	TGCAACCCGCCTATCAAACT

图1 烟粉虱不携带病毒（A）、携带TYLCV（B）、携带ToCV（C）、携带ToCV和TYLCV（D、E）检测结果 M：DNA marker；1 ~ 12：烟粉虱样品；N：阴性对照；P：阳性对照。

Fig. 1 The results of healthy（A），TYLCV-infected（B），ToCV-infected（C），ToCV and TYLCV-infected（D，E）Bemisia tabaci M：DNA marker；1-12：B. tabaci sample；N：Negative control；P：Positive control.

图2 取食健康和携带病毒（ToCV + TYLCV、ToCV、TYLCV）番茄48 h后的烟粉虱的解毒酶活性不同小写字母表示0.05水平差异显著。下同。

Fig. 2 Detoxification activity of Bemisia tabaci 48h after feeding on healthy and virus-carrying （ToCV + TYLCV，ToCV，TYLCV）tomatoes Different lowercase letters indicate significant difference at 0.05 level. The same below.

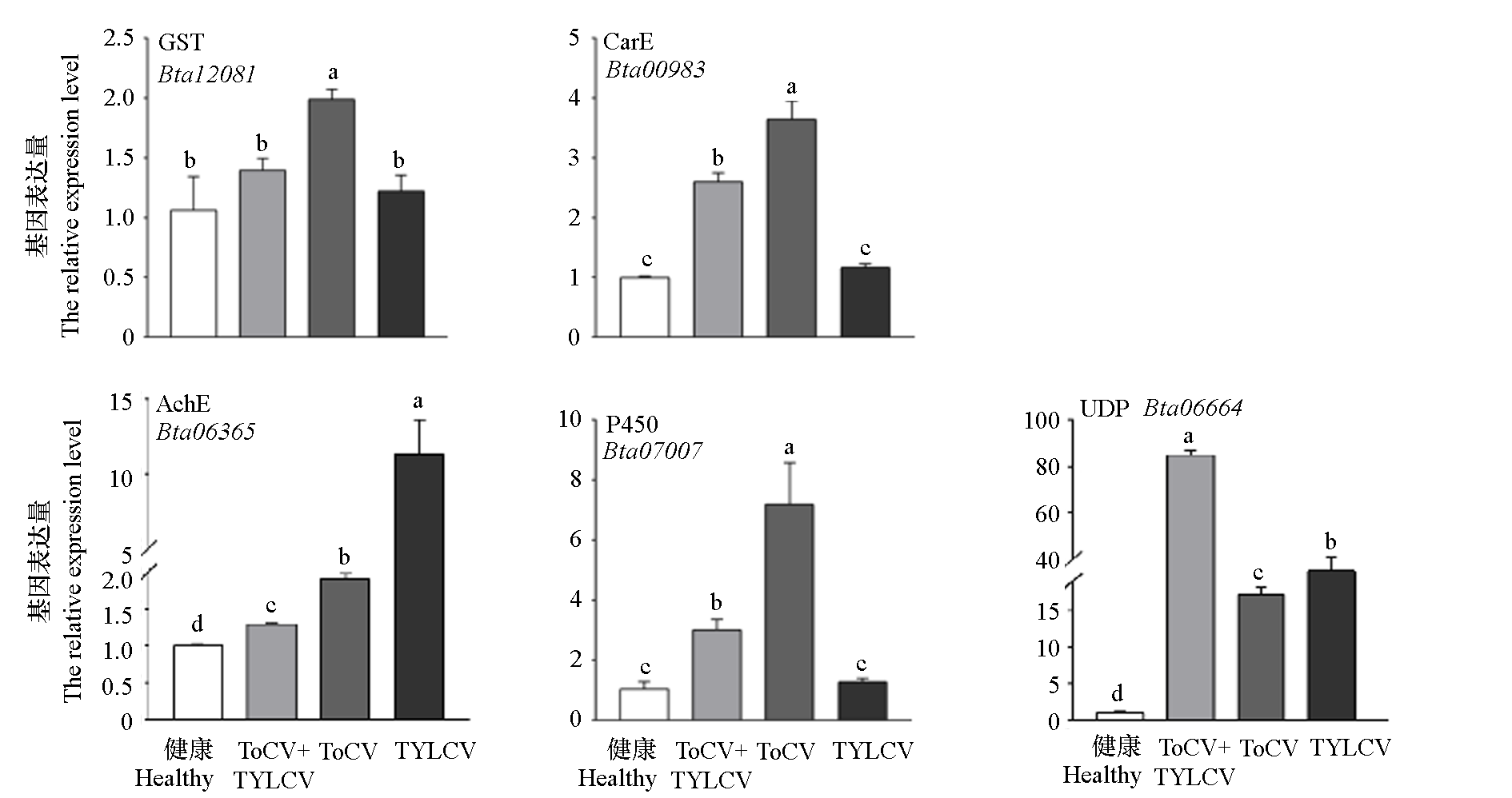

图3 取食健康和携带病毒（ToCV + TYLCV、ToCV、TYLCV）番茄48 h烟粉虱体内解毒酶相关基因表达量的变化

Fig. 3 Changes of detoxification enzyme related gene expression in healthy and virus-carrying tomatoes （ToCV + TYLCV，ToCV，TYLCV）for 48 h in Bemisia tabaci

参考文献 37

[1]	Bock K W. 2016. The UDP-glycosyltransferase(UGT)superfamily expressed in humans,insects,and plants:Animal-plant arms-race and co-evolution. Biochem Pharmacol, 99:11-17.
[2]	Cao Zeng, Wang Jin-na, Zhang You-jun, Xie Wen, Wang Shao-li. 2015. Effects of feeding on TYLCV-infected tomato on detoxification enzyme and protective enzymes of Bemisia tabaci(Gennadius). Plant Protection, 41 (6):103-108,112. (in Chinese)
	曹增, 王金娜, 张友军, 谢文, 王少丽. 2015. 烟粉虱取食感染TYLCV番茄对其解毒酶和保护酶活性的影响. 植物保护, 41 (6):103-108,112.
[3]	Chu Dong, Zhang You-jun. 2018. Research progress on the damage and management of Bemisia tabaci(Gennadius)in China over the past 10 years. Plant Protection, 44 (5):51-55. (in Chinese)
	褚栋, 张友军. 2018. 近10年我国烟粉虱发生为害及防治研究进. 植物保护, 44 (5):51-55.
[4]	Dai Hui-jie. 2018. Studies on the transmission characteristics of tomato chlorosis virus by Bemisia tabaci Q and transcriptomic analysis[Ph. D. Dissertation]. Tai’an: Shandong Agricultural University. (in Chinese)
	代惠洁. 2018. Q烟粉虱对番茄褪绿病毒的传播特性及其转录组分析[博士论文]. 泰安: 山东农业大学.
[5]	Dalmon A, Bouyer S, Cailly M, Girard H, Lecoq H, Desbiez C, Jacquemond M. 2005. First Report of tomato chlorosis virus and tomato infectious chlorosis virus in tomato crops in France. Plant Disease, 89 (11):1243.
[6]	DaPalma T, Doonan B P, Trager N M, Kasma L M. 2010. A systematic approach to a virus-virus interactions. Virus Research, 149 (1):1-9. doi: 10.1016/j.virusres.2010.01.002 pmid: 20093154
[7]	Ding Tian-bo, Zhou Xue, Yang Nan, Yang Yang, Tang Yao, Chu Dong. 2021. Host adaptability of Bemisia tabaci on tomato plants with ToCV single infection and TYLCV & ToCV co-infection and the changes in the nutrient contents and defense response of host plants. Acta Entomologica Sinica, 64 (3):384-391. (in Chinese)
	丁天波, 周雪, 杨楠, 杨炀, 唐瑶, 褚栋. 2021. ToCV单独侵染和TYLCV & ToCV复合侵染番茄植株上烟粉虱寄主适应性及寄主植物营养成分含量和防御反应变化. 昆虫学报, 64 (3):384-391.
[8]	Du Tian-hua, Wei Xue-gao, Yin Cheng, Yang Jing, Huang Ming-jiao, Gui Lian-you, Yang Xin, Zhang You-jun. 2022. Cloning of the Bemisia tabaci Q biotype UDP-glycosyltransferase UGT354A1gene and its role in thiamethoxam resistance. Chinese Journal of Applied Entomology, 59 (2):257-267. (in Chinese)
	杜田华, 危学高, 殷城, 杨静, 黄明娇, 桂连友, 杨鑫, 张友军. 2022. Q型烟粉虱UDP-糖基转移酶UGT354A1基因克隆及其在噻虫嗪抗性中的作用. 应用昆虫学报, 59 (2):257-267.
[9]	Gil-Salas F M, Petersb J, Boonhamb N, Cuadradoa I M, Janssen D. 2012. Co-infection with the cucumber vein yellowing virus and cucurbit yellow stunting disorder virus leads to cucumber synergism. Plant Pathology, 61:468-478.
[10]	Hanssen I M, Lapidot M, Thomma B P. 2010. Emerging viral diseases of tomato crops. Molecular Plant Microbe Interactions, 23 (5):539-548.
[11]	He Chao, Xie Wen, Zhang You-jun. 2017. Comparison of the responses of glutathione S-transferase genes in Bemisia tabaci B to different host plant transfers. Plant Protection, 43 (6):72-77. (in Chinese)
	何超, 谢文, 张友军. 2017. 谷胱甘肽S-转移酶基因在B型烟粉虱寄主转换中的差异比较. 植物保护, 43 (6):72-77.
[12]	Hu Rong, Feng Li-xiao, Zhang Yu, Zhang Song-bai, Zhang De-yong, Liu Yong. 2020. Co-infection rate and phylogenetic analysis of tomato chlorosis virus and tomato yellow leaf curl virus in six provinces of China. China Vegetables,(9):31-35. (in Chinese)
	胡荣, 冯丽肖, 张宇, 张松柏, 张德咏, 刘勇. 2020. 我国6个省份番茄褪绿病毒和番茄黄化曲叶病毒复合侵染率及序列系统发育分析. 中国蔬菜,(9):31-35.
[13]	Karunker I, Benting J, Luker B, Ponge T, Nauen R, Roditakis E, Vontas J, Gorman K. 2008. Over-expression of cytochrome P 450 CYP6CM1 is associated with high resistance to imidacloprid in the B and Q biotypes of Bemisia tabaci(Hemiptera:Aleyrodidae). Insect Biochemistry and Molecular Biology, 38:634-644. doi: 10.1016/j.ibmb.2008.03.008 pmid: 18510975
[14]	Li J J, Li X M, Bai R E, Shi Y, Tang Q B, An S H, Song Q S, Yan F M. 2015. RNA interference of the P 450 CYP6CM1 gene has different efficacy in B and Q biotypes of Bemisia tabaci. Pest Management Science, 71 (8):1175-1181.
[15]	Liao Jin-yu. 2020. The mechanism of cathepsin affects the transmission of the tomato chlorosis virus by Q Bemisia tabaci[M. D. Dissertation]. Changsha: Hunan University. (in Chinese)
	廖锦钰. 2020. 组织蛋白酶影响Q烟粉虱传播番茄褪绿病毒的机制[硕士论文]. 长沙: 湖南大学.
[16]	Liu Guo-xia, Li Jiao-jiao, Zhang An-sheng. 2021. Impact of ToCV on important biological parameters, and activities of protective and detoxification enzymes in Bemisia tabaci Q. Journal of Environmental Entomology, 43 (5):1237-1243. (in Chinese)
	刘国霞, 李娇娇, 张安盛. 2021. 番茄褪绿病毒对Q型烟粉虱重要生物学参数及保护酶和解毒酶活力的影响. 环境昆虫学报, 43 (5):1237-1243.
[17]	Liu Wei. 2019. Direct and indirect effect of tomato chorosis virus on Bemisia tabaci[M.D. Dissertation]. Changsha: Hunan University. (in Chinese)
	刘微. 2019. 番茄褪绿病毒对烟粉虱直接和间接的影响[硕士论文]. 长沙: 湖南大学.
[18]	Liu Wei, Shi Xiaobin, Tang Xin. 2018. Molecular identification of combined tomato chlorosis virus and tomato yellow leaf curl virus infection in Yunnan Province. Acta Horticulturae Sinica, 45 (3):552-560. (in Chinese)
	刘微, 史晓斌, 唐鑫. 2018. 云南番茄褪绿病毒和番茄黄化曲叶病毒复合侵染的分子鉴定. 园艺学报, 45 (3):552-560. doi: 10.16420/j.issn.0513-353x.2017-0735
[19]	Liu Yong, Li Fan, Li Yue-yue, Zhang Song-bai, Gao Xi-wu, Xie Yan, Yan Fei, Zhang An-sheng, Dai Liang-ying, Cheng Zhao-bang, Ding Ming, Niu Yan-bing, Wang Sheng-ji, Che Hai-yan, Jiang Tong, Shi Xiao-bin, He Zi-fu, Wu Yun-feng, Zhang De-yong, Qing Ling, Yan Wan-rong, Yang Xue-hui, Tang Ya-fei, Zheng Ying-hong, Tang Qian-jun, Zhang Song-bai, Zhang Dong-fang, Cai Li, Tao Xiao-rong. 2019. Types,distributions and occurrence trend of viruses infecting main vegetable crops in China. Scientia Agricultura Sinica, 52 (2):239-261. (in Chinese) doi: 10.3864/j.issn.0578-1752.2019.02.005
	刘勇, 李凡, 李月月, 张松柏, 高希武, 谢艳, 燕飞, 张安盛, 戴良英, 程兆榜, 丁铭, 牛颜冰, 王升吉, 车海彦, 江彤, 史晓斌, 何自福, 吴云锋, 张德咏, 青玲, 严婉荣, 杨学辉, 汤亚飞, 郑红英, 唐前君, 章松柏, 章东方, 蔡丽, 陶小荣. 2019. 侵染我国主要蔬菜作物的病毒种类、分布与发生趋势. 中国农业科学, 52 (2):239-261. doi: 10.3864/j.issn.0578-1752.2019.02.005
[20]	Livak K J, Schmittgen T. 2001. Analysis of relative gene expression data using real-time quantitative PCR and the 2^-ΔΔCt method. Methods, 25 (4):402-408. doi: 10.1006/meth.2001.1262 pmid: 11846609
[21]	Luan J B, Wang Y L, Wang J, Wang X W, Liu S S. 2013. Detoxification activity and energy cost are attenuated in whiteflies feeding on tomato yellow leaf curl China virus-infected tobacco plants. Insect Molecular Biology, 22 (5):597-607. doi: 10.1111/imb.12048 pmid: 23889516
[22]	Luo Rui-xue, Zhao Dan, Pan Qiu-yi, Zeng Yin, Shi Xiao-bin, Zhang De-yong, Shi Cai-hua, Liu Yong. 2022. Influence of co-infection of Tomato yellow leaf curl virus and tomato chlorosis virus on the transmission of tomato yellow leaf curl virus. Plant Protection, 48 (5):116-121,128. (in Chinese)
	罗瑞雪, 赵丹, 潘求一, 曾颖, 史晓斌, 张德咏, 史彩华, 刘勇. 2022. 番茄黄化曲叶病毒与番茄褪绿病毒复合侵染对番茄黄化曲叶病毒传播的影响. 植物保护, 48 (5):116-121,128.
[23]	Mackenzie P I, Bock K W, Burchell B, Guillemette C, Nebert D W. 2005. Nomenclature update for the mammalian UDP glycosyltransferase (UGT) gene superfamily. Pharmacogenetics & Genomics, 15 (10):677-685.
[24]	Meech R, Miners J O, Lewis B C, Mackenzie P I. 2012. The glycosidation of xenobiotics and endogenous compounds:versatility and redundancy in the UDP glycosyltransferase superfamily. Pharmacology & Therapeutics, 134:200-218.
[25]	Robertson H M, Martos R, Sears C R, Todres E Z, Wlden K K, Nardi J B. 1999. Diversity of odourant binding proteins revealed by an expressed sequence tag project on male Manduca sexta moth antennae. Insect Molecular Biology, 8:501-518. doi: 10.1046/j.1365-2583.1999.00146.x pmid: 10620045
[26]	Shi X, Zhang Z, Zhang C, Zhou X G, Zhang D Y, Liu Y. 2021. The molecular mechanism of efficient transmission of plant viruses in variable virus-vector-plant interactions. Horticultural Plant Journal, 7 (6):501-508.
[27]	Shi X B, Tang X, Zhang X, Zhang D Y, Li F, Yan F, Zhang Y J, Zhou X G, Liu Y. 2017. Transmission efficiency, preference and behavior of Bemisia tabaci MEAM1 and MED under the influence of tomato chlorosis virus. Frontiers in Plant science, 8 (1):2271.
[28]	Su Q, Preisser E L, Zhou X M, Xie W, Liu B M, Wang S L, Wu Q J, Zhang Y J. 2015. Manipulation of host quality and defense by a plant virus improves the performance of whitefly vectors. Journal of Economic Entomology, 108 (1):11-19.
[29]	Tsai W S, Shih S L, Green S K, Hanson P, Liu H Y. 2004. First report of the occurrence of tomato chlorosis virus and tomato infectious chlorosis virus in Taiwan. Plant Disease, 88 (3):311-335.
[30]	Wang Hai-ou, Li Xue, Zhang Ni. 2007. Changes of carboxylesterase and acetylcholinesterase activity of Bemisia tabaci B after host conversion// Plant protection and modern agriculture. Beijing: China Agricultural Science and Technology Press:41-46. (in Chinese)
	王海鸿, 李雪, 张妮. 2007. 寄主转换后B型烟粉虱羧酸酯酶和乙酰胆碱酯酶活力的变化// 植物保护与现代农业. 北京: 中国农业科学技术出版社:41-46.
[31]	Wang Jian-jun, Han Zhao-jun, Wang Yin-chang. 2001. Advances in toxicology of neonicotinoid insecticides. Journal of Plant Protection,(2):178-182. (in Chinese)
	王建军, 韩召军, 王荫长. 2001. 新烟碱类杀虫剂毒理学研究进展. 植物保护学报,(2):178-182.
[32]	Wu J B, Dai F M, Zhou X P. 2006. First report of tomato yellow leaf curl virus in China. Plant Disease, 90 (10):1359.
[33]	Wu Qing-jun, Zhang Wen-ji, Zhang You-jun, Xu Bao-yun, Zhu Guo-ren. 2001. The role of detoxification enzymes in the resistance of Plutella xylostella to abamectin. Chinese Journal of Pesticide Science, 3 (3):23-28. (in Chinese)
	吴青君, 张文吉, 张友军, 徐宝云, 朱国仁. 2001. 解毒酶系在小菜蛾对阿维菌素抗性中的作用寄主转换后B型烟粉虱羧酸酯酶. 农药学学报, 3 (3):23-28.
[34]	Zhang Ai-hong, Yang Fei, Pan Yang, Sun Xiang-rui, Zhang Shang-qin, Miao Hong-qin. 2019. Identification and distribution of mixed infections of tomato yellow leaf curl virus and tomato chlorosis virus in Hebei Province. Acta Phytopathologica Sinica, 49 (2):271-275. (in Chinese)
	张爱红, 杨菲, 潘阳, 孙祥瑞, 张尚卿, 苗洪芹. 2019. 河北省番茄黄化曲叶病毒和番茄褪绿病毒复合侵染及分布. 植物病理学报, 49 (2):271-275.
[35]	Zhou Tao, Yang Pu-yun, Zhao Ru-na, Shi Ying-chun, Yuan Kai,Fan Zai-feng. 2014. Alarming the transmission and damage of tomato chlorosis virus in China. Plant Protection, 40 (5):196-200. (in Chinese)
	周涛, 杨普云, 赵汝娜, 师迎春, 原锴, 范在丰. 2014. 警惕番茄褪绿病毒在我国的传播和危害. 植物保护, 40 (5):196-200.
[36]	Zhou Xue-ping, Cui Xiao-feng, Tao Xiao-rong. 2003. Geminiviruses emerging threat for crop production. Acta Phytopathologica Sinica,(6):487-492. (in Chinese)
	周雪平, 崔晓峰, 陶小荣. 2003. 双生病毒—— 一类值得重视的植物病毒. 植物病理学报,(6):487-492.
[37]	Zhu Chang-liang, Wu Guan-ling, Zhang Zhao-song. 1999. Advances in molecular biology of insect cytochrome P450. Chinese Journal of Parasitology and Parasitic Diseases,(1):49-52. (in Chinese)
	朱昌亮, 吴观陵, 张兆松. 1999. 昆虫细胞色素P450分子生物学研究进展. 中国寄生虫学与寄生虫病杂志,(1):49-52.
