紫丁香SoCHR35参与罗勒烯合成的功能解析

doi:10.16420/j.issn.0513-353x.2024-0817

摘要/Abstract

摘要：

为探究RNA介导的DNA甲基化途径中染色质重塑复合体ATP酶35（Chromatin remodeling complex ATPase 35，CHR35）在紫丁香（Syringa oblata）花香成分罗勒烯合成中的作用，克隆了SoCHR35，并进行了生物信息学、时空表达模式分析、功能验证和亚细胞定位。结果显示，SoCHR35的CDS序列全长2 073 bp，编码690个氨基酸；该蛋白含有典型的SNF2保守结构域DEXDc和HELICc，与芳香植物紫苏（Perilla frutescens）和芝麻（Sesamum indicum）等聚类在同一分支。时空表达分析表明，该基因表达随花发育表现出先降低后升高趋势，与花香释放呈负相关。在紫丁香花瓣中瞬时过表达该基因，罗勒烯释放量显著降低；瞬时沉默该基因，罗勒烯释放量则显著升高。通过亚细胞定位发现，SoCHR35定位于叶绿体，与罗勒烯合成酶SoTPS2表达定位相同；瞬时沉默SoCHR35后，花瓣中SoTPS2的表达水平显著升高。结果表明，SoCHR35负调控紫丁香罗勒烯的合成，影响花香释放，且可能是通过直接或间接调控SoTPS2发挥作用。

关键词: 紫丁香, 罗勒烯, SoCHR35, DNA甲基化, 花香

Abstract:

In order to investigate the role of SoCHR35（Chromatin remodeling complex ATPase 35），a member of RNA-mediated DNA methylation pathway，in the biosynthesis of lilac floral substance—ocimene，the SoCHR35 gene was cloned and analyzed，including bioinformatics，spatiotemporal expression pattern，functional characterization，and subcellular localization. The results showed that the total length of the CDS sequence of SoCHR35 was 2 073 bp，encoding for 690 amino acids. The protein had the typical SNF2 conserved domains of DEXDc and HELICc，and was clustered with CHR35 of Perilla frutescens and Sesamum indicum. The spatiotemporal expression analysis showed that with the flower development the expression level of SoCHR35 first decreased and then increased，which was negatively correlated with the release of floral scents. After transiently overexpressing SoCHR35 in lilac petals，the release amount of ocimene was significantly reduced，while transiently silencing of SoCHR35 lead to a remarkable increase in the release amount of ocimene. Through subcellular localization，SoCHR35 was found to be located in chloroplasts，which was same to the expression position of SoTPS2，a ocimene synthase gene. Moreover，the transient silencing of SoCHR35 resulted in a significant enhancement of SoTPS2 expression in petals. These results indicated that SoCHR35 negatively regulated the biosynthesis of ocimene in lilac petals to impact the floral scent release，which may result from a direct or indirect regulation of SoTPS2.

Key words: Syringa oblata, ocimene, SoCHR35, DNA methylation, floral scent

汪进萱, 倪莹, 孟昕, 冷卓, 马波, 冷平生, 吴静, 胡增辉. 紫丁香SoCHR35参与罗勒烯合成的功能解析[J]. 园艺学报, 2025, 52(10): 2655-2665.

WANG Jinxuan, NI Ying, MENG Xin, LENG Zhuo, MA Bo, LENG Pingsheng, WU Jing, HU Zenghui. Functional Analysis of SoCHR35 in the Biosynthesis of Ocimene in Syringa oblata[J]. Acta Horticulturae Sinica, 2025, 52(10): 2655-2665.

图/表 7

表1 本研究中所用到的引物序列

Table 1 Primer sequences used in this study

引物用途 Primer function	引物名称 Primer name	引物序列（5′-3′） Primer sequence
克隆基因 Gene clone	SoCHR35-F	ATGGTTAATGACATTGTTCTACATGT
克隆基因 Gene clone	SoCHR35-R	CCTTTTGAAGACAGCAACCACAT
实时荧光定量PCR qRT-PCR	SoActin-F	TGGAATGTGCTGAGAGATGC
	SoActin-R	TGCTGACCGTATGAGCAAAG
	qSoCHR35-F	AATTTTCCCACATCCACGGC
	qSoCHR35-R	TTCCAGAACCAGGTCATGA
	qSoTPS2-F	GGTTTGCTTCAGGGCACTTG
	qSoTPS2-R	CATCCACCTGAACGGTTCCA
基因过表达 Gene overexpression	PRI101-SoCHR35-F	ATGCCCGTCGACCCCGGGATGGTTAATGACATTGTTCTACATGTTGGC
基因过表达 Gene overexpression	PRI101-SoCHR35-R	TGCTCACCATGGATCCTTACCTTTTGAAGACAGCAACCACATCT TGGGAGATGATACGCTGTT
基因沉默 Gene silencing	TRV2-SoCHR35-F	GTCCAGTCCTGGCCTCGTCGGCCGATAACTATAAGAGGAAGGTTACCGTAATACAAGATC
	TRV2-SoCHR35-R	GACCACAAGTGGCCAGACTGGCCTAAGAAATTCTTCAACTTTGGGTGAACATAAACTGC
	TRV1-F	TTACAGGTTATTTGGGCTAG
	TRV1-R	CCGGGTTCAATTCCTTATC

图1 SoCHR35与其他物种CHR35蛋白序列比对分析黑色、红色、蓝色部分分别表示同源性 = 100%、≥ 75%、≥ 50%；红色框为DEXDc保守基序，绿色框为HELICc保守基序。Oe：油橄榄；Si：芝麻；Ac：中华猕猴桃；Ap：穿心莲；Ca：辣椒；Ce：咖啡

Fig. 1 Alignment and analysis of SoCHR35 with CHR35 protein sequences of other species The black，red，and blue parts represent homology = 100%，≥ 75%，≥ 50%，respectively. Red boxes are DEXDc conserved motifs，and green boxes are HELICc conserved motifs. Oe：Olea europaea；Si：Sesamum indicum；Ac：Actinidia chinensis；Ap：Andrographis paniculata；Ca：Capsicum annuum；Ce：Coffea eugenioides

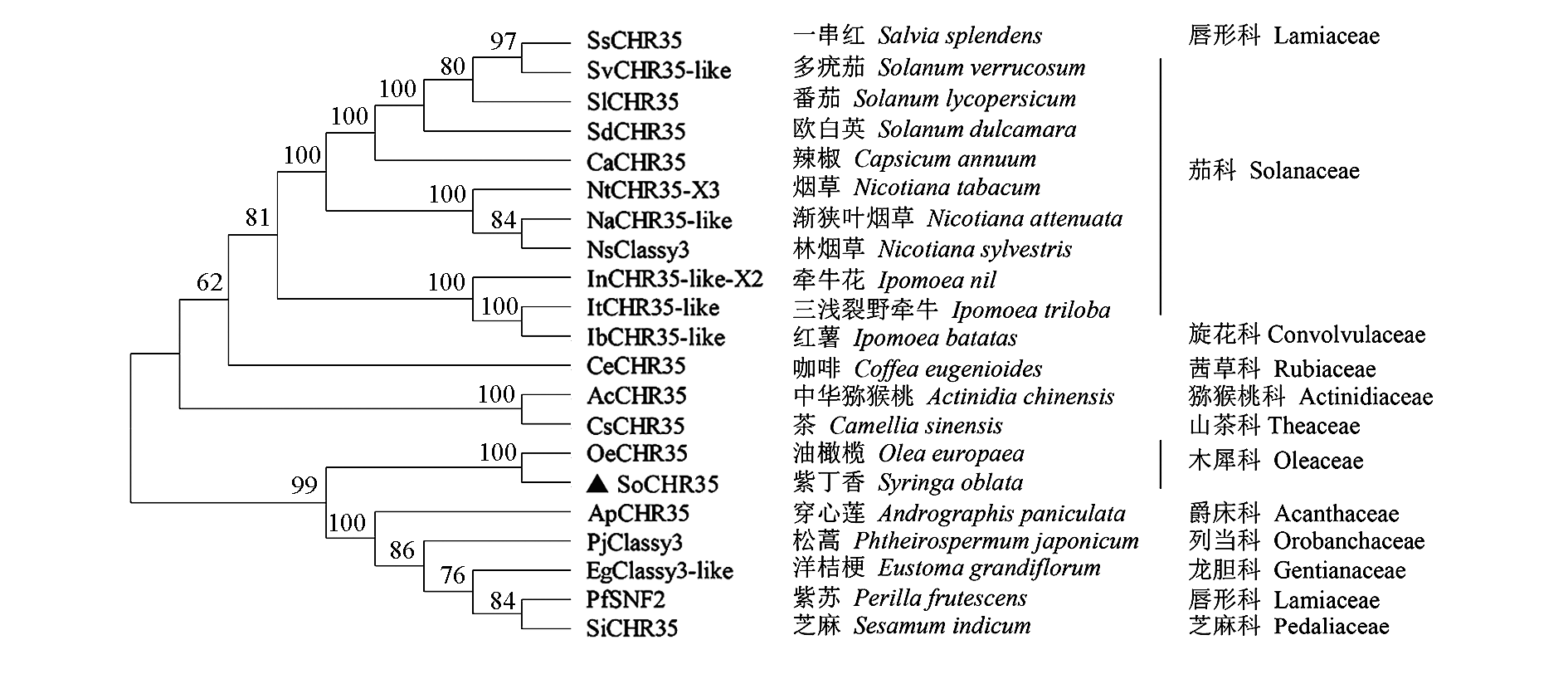

图2 紫丁香SoCHR35与其他植物同源蛋白的系统发育树

Fig. 2 Phylogenetic tree of SoCHR35 from Syringa oblata and homologous proteins of other plant species

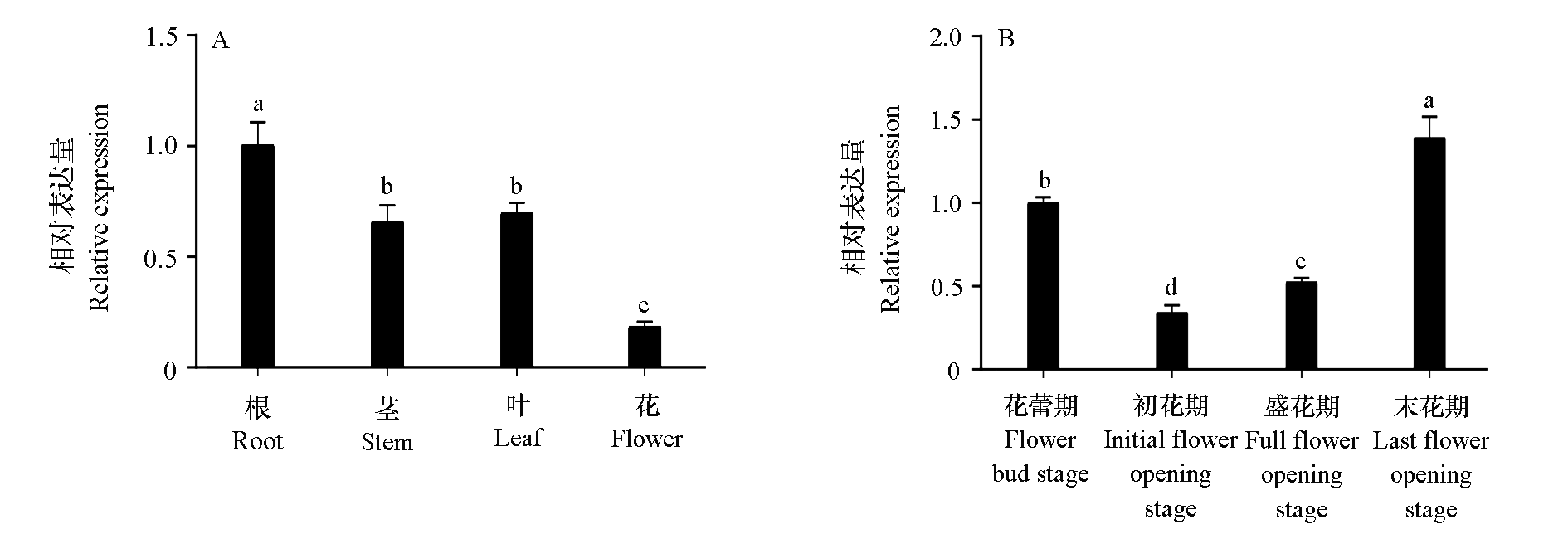

图3 SoCHR35在不同器官（A）和不同花发育阶段（B）的表达模式不同小写字母表示在P < 0.05水平上显著差异

Fig. 3 The expression pattern of SoCHR35 in different organs（A）and at different floral developmental stages（B） Different lowercase letters indicate significant differences at the P < 0.05 level

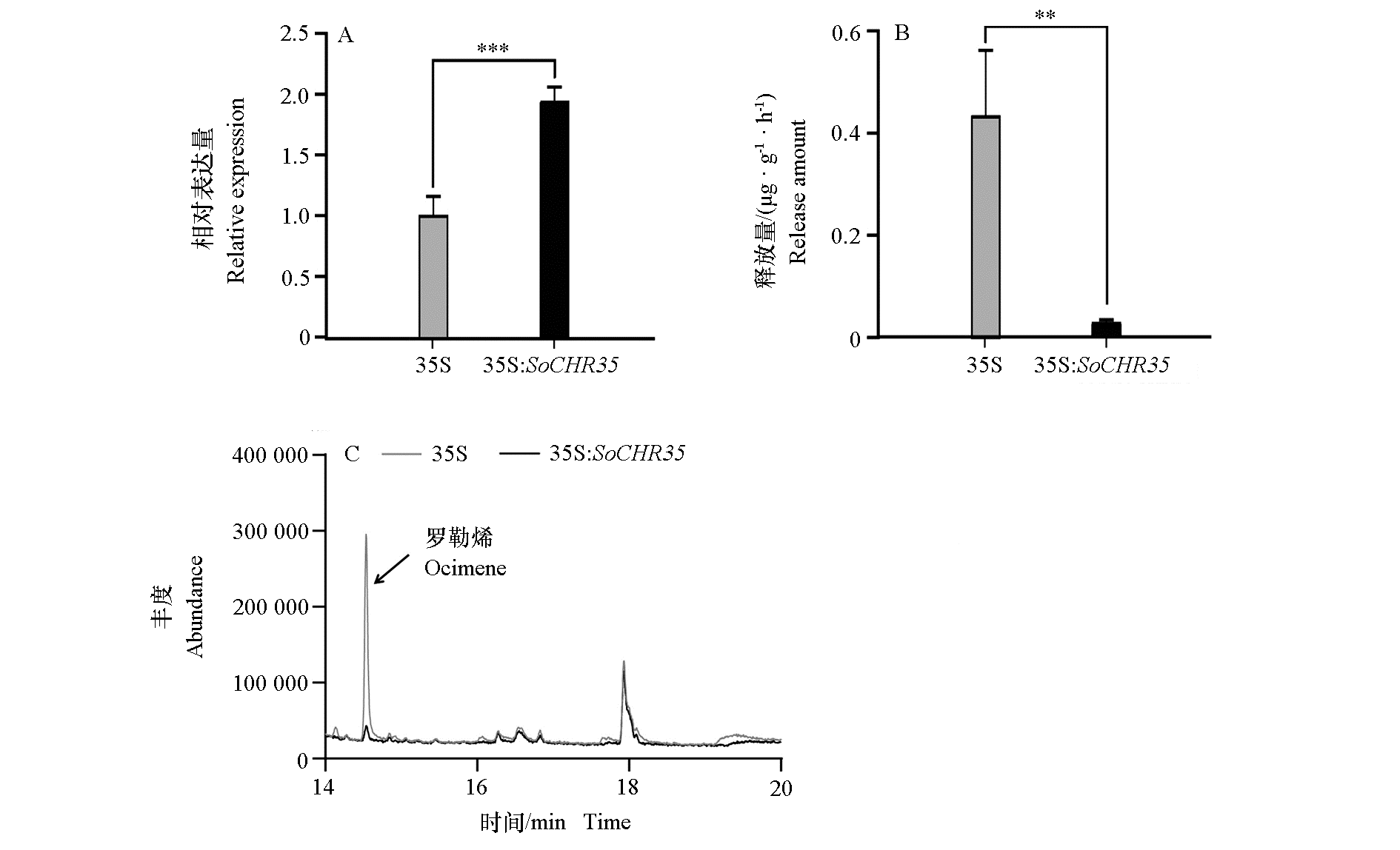

图4 瞬时过表达SoCHR35对花香的影响 A：基因过表达效率；B：花香释放量；C：35S和35S:SoCHR35花瓣的香气化合物总离子色谱图

Fig. 4 The effect on floral scent of SoCHR35 transient overexpression A：Gene overexpression efficiency；B：The release amount of floral scents；C：Total ion current（TIC）chromatograms of the floral scent compounds emitted from lilac of 35S and 35S:SoCHR35 t-test，**P < 0.01，***P < 0.001

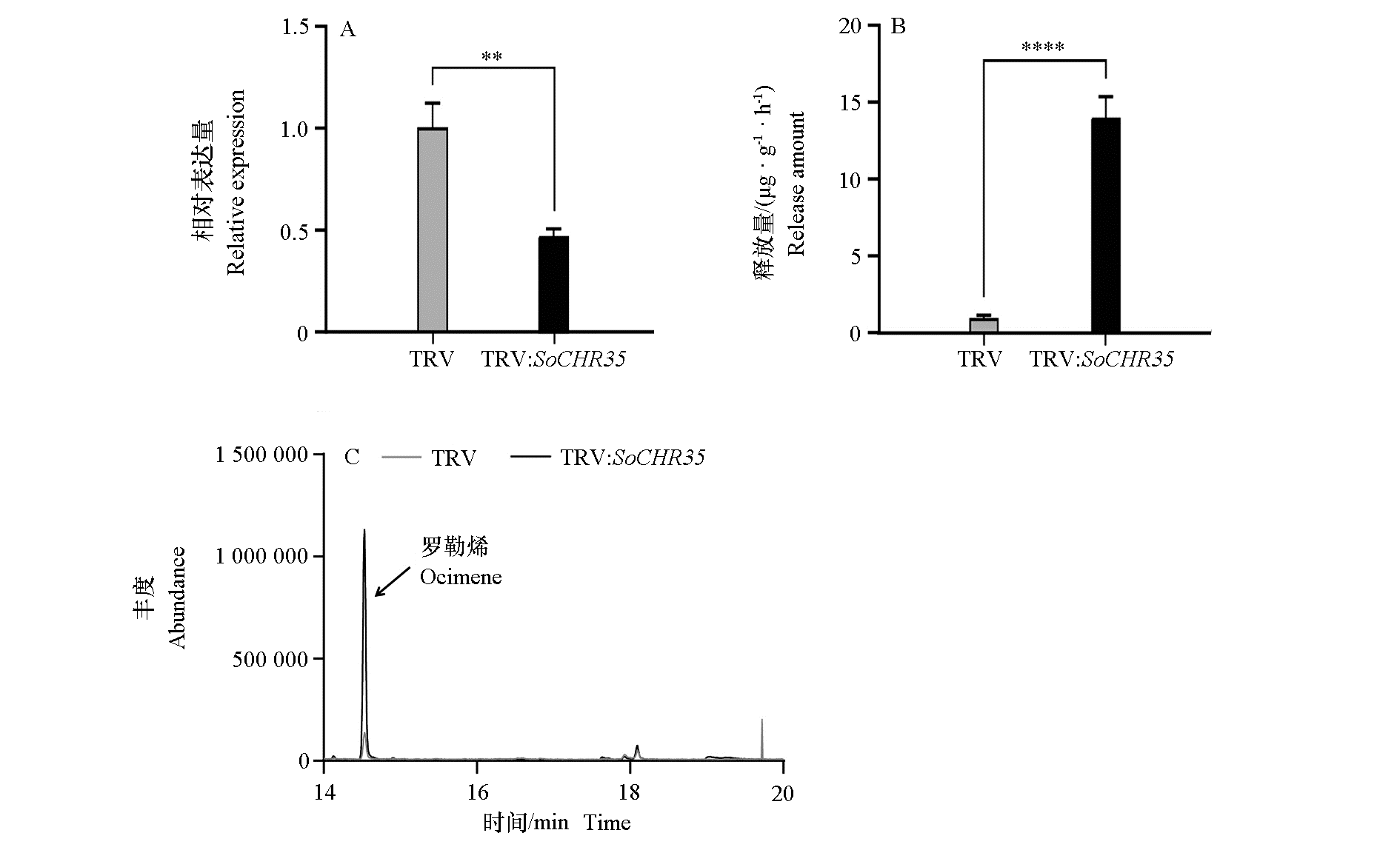

图5 VIGS瞬时沉默SoCHR35对花香的影响 A：基因沉默效率；B：花香释放量；C：TRV和TRV:SoCHR35花瓣的香气化合物总离子色谱图

Fig. 5 The effect on floral scent of SoCHR35 transient silencing A：Gene silencing efficiency；B：The release amount of floral；C：Total ion current（TIC）chromatograms of the floral scent compounds emitted from lilac of TRV and TRV:SoCHR35 t-test，** P < 0.01，**** P < 0.0001

图6 SoCHR35蛋白的亚细胞定位（A）及其对下游SoTPS2的表达分析（B）

Fig. 6 The subcellular localization of SoCHR35（A）and the expression analysis of downstream SoTPS2（B） t-test，*** P < 0.001

参考文献 38

[1]	Amoutzias G D, Veron A S, Weiner J, Robinson-Rechavi M, Bornberg-Bauer E, Oliver S G, Robertson D L. 2007. One billion years of bZIP transcription factor evolution:conservation and change in dimerization and DNA-binding site specificity. Molecular Biology anad Evolution, 24 (3):827-835.
[2]	Byers K J, Bradshaw H D, Riffell J A. 2014. Three floral volatiles contribute to differential pollinator attraction in monkeyflowers(Mimulus). Journal of Experiment Biology, 217 (4):614-623.
[3]	Chen J H, Hu Y, Zhu Z S, Zheng P, Liu S Q, Sun B M. 2025. Dynamic DNA methylation modification in catechins and terpenoids biosynthesis during tea plant leaf development. Horticultural Plant Journal, 11 (2):906-920.
[4]	Cho E J, Choi S H, Kim J H, Kim J E, Lee M H, Chung B Y, Woo H R, Kim J H. 2016. A mutation in plant-specific SWI2/SNF2-like chromatin-remodeling proteins,DRD1 and DDM1,delays leaf senescence in Arabidopsis thaliana. PLoS ONE, 11 (1):e0146826.
[5]	Clapier C R, Cairns B R. 2009. The biology of chromatin remodeling complexes. Annual Review of Biochemistry, 78:273-304. doi: 10.1146/annurev.biochem.77.062706.153223 pmid: 19355820
[6]	Dong Y M, Wei Z L, Zhang W Y, Li J R, Han M X, Bai H T, Li H, Shi L. 2024. LaMYC7,a positive regulator of linalool and caryophyllene biosynthesis,confers plant resistance to Pseudomonas syringae. Horticulture Research, 11 (4):uhae044.
[7]	Elhamamsy A R. 2016. DNA methylation dynamics in plants and mammals:overview of regulation and dysregulation. Cell Biochemistry and Function, 34 (5):289-298. doi: 10.1002/cbf.3183 pmid: 27003927
[8]	Esteller M. 2008. Epigenetics in cancer. The New England Journal of Medicine, 358 (11):1148-1159. doi: 10.1056/NEJMra072067 pmid: 18337604
[9]	Guo Y H, Guo Z Y, Zhong J, Liang Y L, Feng Y, Zhang P, Zhang Q X, Sun M. 2023. Positive regulatory role of R2R3 MYBs in terpene biosynthesis in Lilium‘Siberia’. Horticultural Plant Journal, 9 (5):1024-1038.
[10]	Han Y J, Lu M M, Yue S M, Li K, Dong M F, Liu L Xn, Wang H Y, Shang F D. 2022. Comparative methylomics and chromatin accessibility analysis in Osmanthus fragrans uncovers regulation of genetic transcription and mechanisms of key floral scent production. Horticulture Research, 9:uhac096.
[11]	Huang M, Sanchez-Moreiras A M, Abel C, Sohrabi R, Lee S, Gershenzon J, Tholl D. 2012. The major volatile organic compound emitted from Arabidopsis thaliana flowers,the sesquiterpene(E)-β-caryophyllene,is a defense against a bacterial pathogen. New Phytologist, 193 (4):997-1008.
[12]	Hui Ruihua, Hou Dongyan, Li Tiechun, Diao Quanping, Xiao Haiyan. 2020. Analysis of volatile chemical constituents in flowers and flowers buds of lilacs by HS-SPME-GC-MS. Journal of Anshan Normal University, 124 (6):31-33. (in Chinese)
	回瑞华, 侯冬岩, 李铁纯, 刁全平, 肖海燕. 2020. 紫丁香花与花蕾挥发性化学成分的HS-SPME-GC-MS分析. 鞍山师范学院学报, 124 (6):31-33.
[13]	Kanno T, Mette M F, Kreil D P, Aufsatz W, Matzke M, Matzke A J. 2004. Involvement of putative SNF 2 chromatin remodeling protein DRD1 in RNA-directed DNA methylation. Current Biology, 14 (9):801-805.
[14]	Kouzarides T. 2007. Chromatin modifications and their function. Cell, 128 (4):693-705. doi: 10.1016/j.cell.2007.02.005 pmid: 17320507
[15]	Law J A, Jacobsen S E. 2010. Establishing,maintaining and modifying DNA methylation patterns in plants and animals. Nature Reviews Genetics, 11 (3):204-220.
[16]	Li B, Carey M, Workman J L. 2007. The role of chromatin during transcription. Cell, 128 (4):707-719. doi: 10.1016/j.cell.2007.01.015 pmid: 17320508
[17]	Liu H N, Shu Q, Kui L W, Espley R V, Allan A C, Pei M S, Li X L, Su J, Wu J. 2022. DNA methylation reprogramming provides insights into light-induced anthocyanin biosynthesis in red pear. Plant Science, 326:111499.
[18]	Liu Yuanchun. 2023. Mechanism of CHR16 response to drought stress in Arabidopsis thaliana[M. D. Dissertation]. Lanzhou: Lanzhou University. (in Chinese)
	刘元春. 2023. 拟南芥CHR16响应干旱胁迫的机制研究[硕士论文]. 兰州: 兰州大学.
[19]	Ma B, Wu J, Shi T L, Yang Y Y, Wang W B, Zheng Y, Su S C, Yao Y C, Xue W B, Porth I, El-Kassaby Y A, Leng P S, Hu Z H, Mao J F. 2022. Lilac(Syringa oblata)genome provides insights into its evolution and molecular mechanism of petal color change. Communications Biology, 5:686.
[20]	Ma Bo, Li Lei, Hu Zenghui, Leng Pingsheng, Wang Jinxuan, Leng Zhuo, Yang Yihui, Jia Liming, Wu Jing. 2024. Functional analysis of SoF3'H in the synthesis of anthocyanidin in Syringa oblata petals. Acta Horticulturae Sinica, 51 (8):1833-1843. (in Chinese)
	马波, 李雷, 胡增辉, 冷平生, 汪进萱, 冷卓, 杨艺慧, 贾黎明, 吴静. 2024. 紫丁香SoF3′H对花瓣中花青苷合成的功能解析. 园艺学报, 51 (8):1833-1843.
[21]	Matzke M A, Mosher R A. 2014. RNA-directed DNA methylation:an epigenetic pathway of increasing complexity. Nature Reviews Genetics, 15 (6):394-408.
[22]	Qi X Y, Wang H D, Liu S Y, Chen S S, Feng J, Chen H J, Qin Z Y, Chen Q M, Blilou I, Deng Y M. 2024. The chromosome-level genome of double-petal phenotypejasmine provides insights into the biosynthesis offloral scent. Horticultural Plant Journal, 10 (1):259-272.
[23]	Shao Fengqing, Luo Xiurong, Wang Qi, Zhang Xianzhi, Wang Wencai. 2023. Advances in research of DNA methylation regulation during fruit ripening. Acta Horticulturae Sinica, 50 (1):197-208. (in Chinese) doi: 10.16420/j.issn.0513-353x.2021-1130
	邵凤清, 罗秀荣, 王奇, 张宪智, 王文彩. 2023. 果实成熟过程中的DNA 甲基化调控研究进展. 园艺学报, 50 (1):197-208. doi: 10.16420/j.issn.0513-353x.2021-1130
[24]	Simkin A J, Underwood B A, Auldridge M, Loucas H M, Shibuya K, Schmelz E, Clark D G, Klee H J. 2004. Circadian regulation of the PhCCD 1 carotenoid cleavage dioxygenase controls emission of β-ionone,a fragrance volatile of petunia flowers. Plant Physiology, 136 (3):3504-3514.
[25]	Sun Yu. 2022. The role of chromatin remodeling complex ATPases CHR12 and CHR23 in Arabidopsis thaliana[M. D. Dissertation]. Lanzhou: Lanzhou University. (in Chinese)
	孙瑜. 2022. 染色质重塑复合体ATP酶CHR12和CHR23在拟南芥逆境胁迫中的作用[硕士论文]. 兰州: 兰州大学.
[26]	Takehira K, Hayashi Y, Nozawa K, Chen L, Suzuki T, Masuta Y, Kato A, Ito H. 2022. DRD1,a SWI/SNF-like chromatin remodeling protein,regulates a heat-activated transposon in Arabidopsis thaliana. Genes & Genetic Systems, 96 (3):151-158.
[27]	Tholl D, Chen F, Petri J, Gershenzon J, Pichersky E. 2005. Two sesquiterpene synthases are responsible for the complex mixture of sesquiterpenes emitted from Arabidopsis flowers. Plant Journal, 42 (5):757-771.
[28]	Wang Wenjing, Lü Sijia, Wang Qinghao, He Fan, Wu Yueyan. 2021. Research advance on the metabolism and regulation of plant floral fragrance. Molecular Plant Breeding, 19 (22):7612-7617. (in Chinese)
	王文静, 吕思佳, 汪庆昊, 何凡, 吴月燕. 2021. 植物花香物质代谢与调控研究进展. 分子植物育种, 19 (22):7612-7617.
[29]	Wang Y, Dou Y, Wang R, Guan X L, He Z H, Zheng J. 2017. Molecular characterization and functional analysis of chalcone synthase from Syringa oblata Lindl. in the flavonoid biosynthetic pathway. Gene, 635:16-23. doi: S0378-1119(17)30702-3 pmid: 28890377
[30]	Wu Jing, Zou Jirui, Wang Jinxuan, Ma Bo, Meng Xin, Hu Zenghui, Leng Pingsheng. 2024. Identification of floral components and functional analysis of key TPS genes in Syringa oblata. Journal of Plant Genetic Resources, 25 (5):824-833. (in Chinese) doi: 10.13430/j.cnki.jpgr.20231117003
	吴静, 邹吉睿, 汪进萱, 马波, 孟昕, 胡增辉, 冷平生. 2024. 紫丁香花香成分鉴定及关键TPS基因的功能分析. 植物遗传资源学报, 25 (5):824-833. doi: 10.13430/j.cnki.jpgr.20231117003
[31]	Xie L M, Bai X, Zhang H, Qiu X Q, Jian H Y, Wang Q G, Wang H C, Feng D D, Tang K X, Yan H J. 2023. Loss of rose fragrance under chilling stress is associated with changes in DNA methylation and volatile biosynthesis. Genes(Basel), 14 (3):692.
[32]	Yang X X, Zhao J, Zheng J, Leng P S, Li X L, Hu Z H, Liu J B, Meng X. 2016. Analysis of floral scent emitted from Syringa plants. Journal of Forestry Research, 27 (2):273-281.
[33]	Yuan Mengmeng. 2016. Study on the aroma composition and flavor styles classification from flowers of eleven fragrant-flowered plants[M. D. Dissertation]. Xinxiang: Henan Institute of Science and Technology. (in Chinese)
	员梦梦. 2016. 11种香花植物鲜花香气成分及香型分类研究[硕士论文]. 新乡: 河南科技学院.
[34]	Zhang B, Tieman D M, Jiao C, Xu Y M, Chen K S, Fei Z J, Giovannoni J J, Klee H J. 2016. Chilling-induced tomato flavor loss is associated with altered volatile synthesis and transient changes in DNA methylation. Proceedings of the National Academy of Sciences of United States of America, 113 (44):12580-12585.
[35]	Zhang Chi. 2023. Transcription factor NAC and DNA methylation synergistically regulate volatile formation during peach fruit ripening[Ph. D. Dissertation]. Hangzhou: Zhejiang University. (in Chinese)
	张弛. 2023. 转录因子NAC和DNA甲基化协同调控桃果实成熟过程芳香物质形成[博士论文]. 杭州: 浙江大学.
[36]	Zhou C E, Zhu C, Tian C Y, Xie S Y, Xu K, Huang L J, Wen S J, Zhang C, Lai Z X, Lin Y L, Guo Y Q. 2023. The chromosome-scale genome assembly of Jasminum sambac var. unifoliatum provides insights into the formation of floralfragrance. Horticultural Plant Journal, 9 (6):1131-1148.
[37]	Zhou L J, Huang R H, Liu T H, Liu W C, Chen Y Y, Lü P F, Luo L, Pan H T, Yu C, Zhang Q X. 2023. Volatile metabolome and transcriptome reveal fragrance release rhythm and molecular mechanisms of Rosa yangii. Journal of Integrative Agriculture, 22 (7):2111-2125.
[38]	Zhu J K. 2009. Active DNA demethylation mediated by DNA glycosylases. Annual Review of Genetics, 43:143-166.
