‘海黄’牡丹芳樟醇合酶基因PsTPS14的克隆及功能验证

doi:10.16420/j.issn.0513-353x.2023-0383

摘要/Abstract

摘要：

以芳香型牡丹品种‘海黄’（Paeonia × lemoinei‘High Noon’）为材料，根据转录组测序所得片段，克隆得到PsTPS14基因，该结构基因的完整CDS序列长903 bp，共编码300个氨基酸。氨基酸序列分析发现该蛋白具有较高的保守性，有1个保守结构域Terpene_cyclase_plant_C1。PsTPS14在‘海黄’牡丹半开期花瓣中表达量最高，与其花香挥发物释放规律一致。亚细胞定位分析表明PsTPS14主要定位于叶绿体中。利用瞬时表达方法将PsTPS14过表达载体注射到烟草叶片和淡香型牡丹‘凤丹’切花花瓣中，通过GC-MS方法可检测到烟草叶片和‘凤丹’花瓣中芳樟醇的释放，同时PsTPS14高表达，且芳樟醇合酶含量及其活性明显升高。研究结果表明PsTPS14在植物体内调控芳樟醇的合成。

关键词: 牡丹, 芳樟醇, 芳樟醇合酶基因, 基因克隆, 功能验证

Abstract:

The linalool synthase gene PsTPS14 was cloned from the aromatic tree peony‘High Noon’based on the transcriptome sequencing. The complete CDS sequence of this gene was 903 bp in length encoding 300 amino acids. The analysis of the amino acids sequence showed that the protein has one conservative domain（Terpene_cyclase_plant_C1）. The expression level of PsTPS14 was the highest in half opening stage of petals in tree peony‘High Noon’，consistent with the release pattern of floral volatiles. Subcellular localization analysis showed that PsTPS14 was mainly localized in the chloroplast. The overexpression vector of PsTPS14 was injected into tobacco leaves and the petals of cut flowers of ‘Fengdan’，a light scent tree peony cultivar，by using the transient expression method. The release of linalool in tobacco leaves and‘Fengdan’petals could be detected by GC-MS method. At the same time，the expression level of PsTPS14 was higher in tobacco leaves and‘Fengdan’petals，and the content and activity of linalool synthase were significantly increased. This study showed that PsTPS14 regulated the synthesis of linalool in plants.

Key words: tree peony, linalool, linalool synthase gene, gene cloning, functional verification

王佩云, 李子昂, 白杨, 杨萍, 尹承芃, 李传荣, 张馨文, 宋秀华. ‘海黄’牡丹芳樟醇合酶基因PsTPS14的克隆及功能验证[J]. 园艺学报, 2024, 51(6): 1273-1283.

WANG Peiyun, LI Ziang, BAI Yang, YANG Ping, YIN Chengpeng, LI Chuanrong, ZHANG Xinwen, SONG Xiuhua. Cloning and Functional Verification of Linalool Synthase Gene PsTPS14 in Tree Peony‘High Noon’[J]. Acta Horticulturae Sinica, 2024, 51(6): 1273-1283.

图/表 10

表1 本研究中所用引物序列

Table 1 Sequences of primers used in this study

基因名 Gene name	作用 Function	引物序列（5′-3′） Primer sequence
TPS14	基因克隆 Gene clone	F：ATGGCCTATTCCAGTGGCTCC；R：AGTGTTTAGAATTAAACCACTTTGCTT
TPS14	qRT-PCR	F：GCTCCTCTACTTTCTGGCGTTGTC；R：GCTGTGATCTTGGGCAAGGTTCC
ubiquintin	内参基因 Internal reference gene	F：GACCTATACCAAGCCGAAG；R：CGTTCCAGCACCACAATC

图1 牡丹PsTPS14的PCR扩增产物

Fig. 1 PCR amplification products of PsTPS14 gene from tree peony

图2 PsTPS14蛋白和同源蛋白的系统进化树分析 Perilla frutescens：紫苏；Salvia dorisiana：红鼠尾草；Lavandula × intermedia：薰衣草；Solanum lycopersicum：番茄；Ficus carica：无花果；Freesia hybrid cultivar：香雪兰；Rosa chinensis：中国月季；Citrus unshiu：蜜柑；Arabidopsis thaliana：拟南芥；Osmanthus fragrans：桂花；Paeonia suffruticosa：牡丹‘海黄’；Paeonia delavayi：滇牡丹；Camellia saluenensis：山茶；Citrus sinensis：甜橙；Malus × domestica：苹果.

Fig. 2 Phylogenetic tree analysis of PsTPS14 proteins and homologous proteins

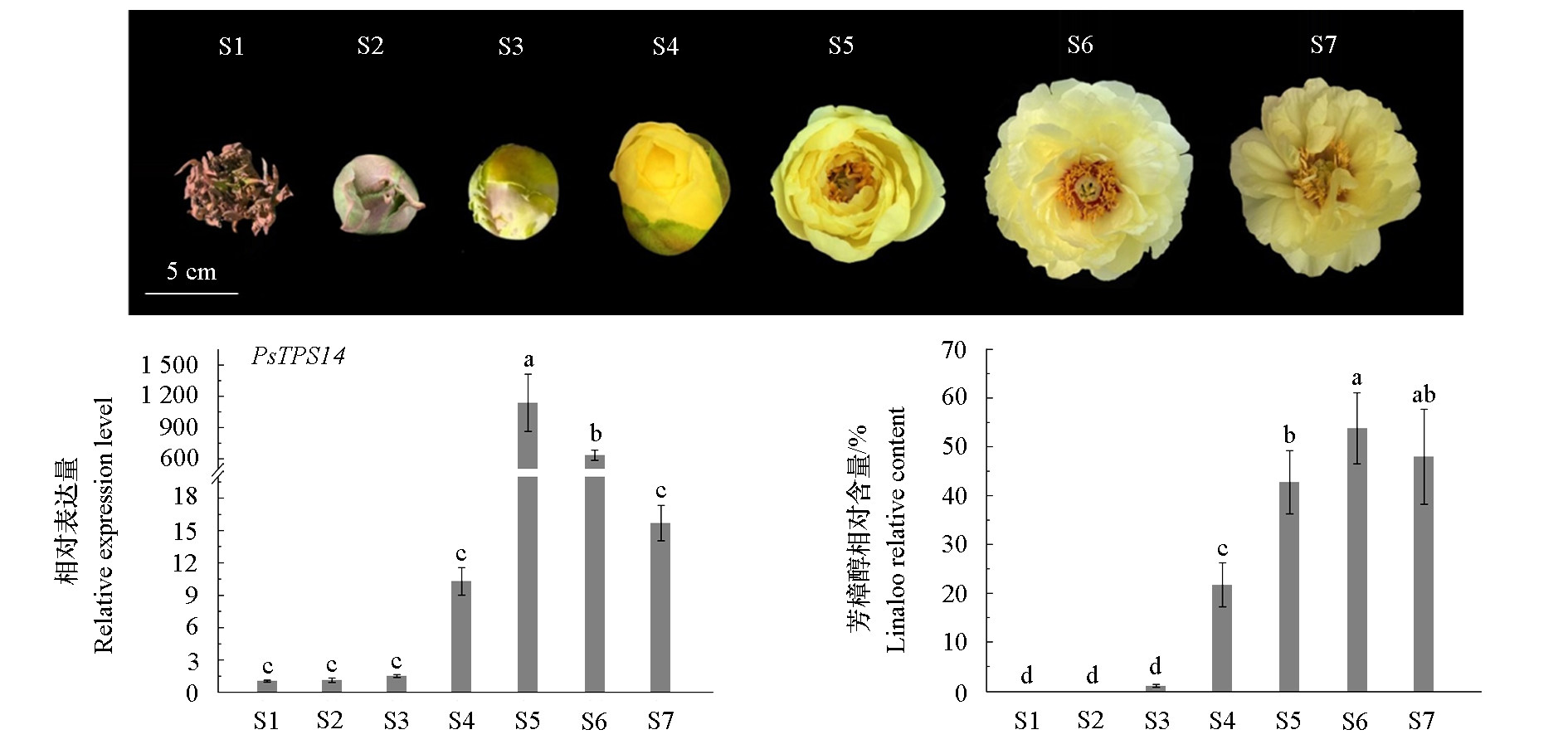

图3 ‘海黄’牡丹不同开花期PsTPS14的表达量与芳樟醇的相对含量 S1：现蕾期；S2：风铃期；S3：圆桃期；S4：初开期；S5：半开期；S6：盛开期；S7：衰败期。不同小写字母表示差异显著（P < 0.05）。下同。

Fig. 3 The expression level of PsTPS14 and relative content of linalool in different flowering stages of tree peony‘High Noon’ S1：Squaring stage；S2：Wind bell stage；S3：Ballon stage；S4：Initial opening stage；S5：Half opening stage；S6：Full opening stage；S7：Declining stage. Different lowercase letters indicate significant differences at 0.05 level. The same below.

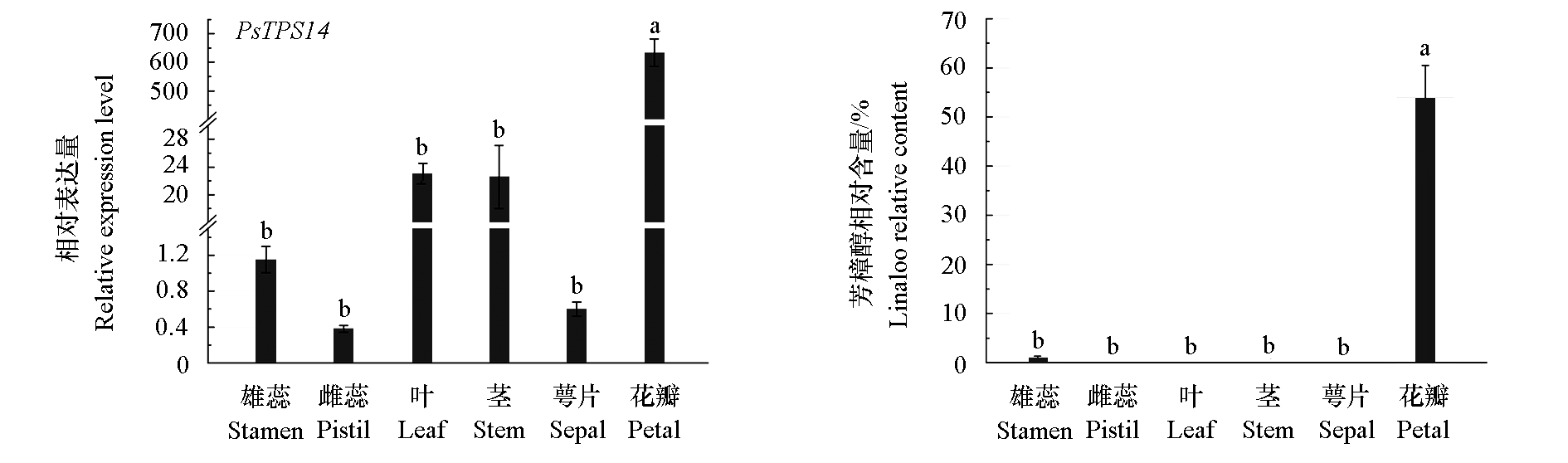

图4 ‘海黄’牡丹盛开期不同器官PsTPS14的表达量与芳樟醇的相对含量

Fig. 4 The expression level of PsTPS14 and relative content of linalool in different organs of tree peony ‘High Noon’during its full opening stage

图5 牡丹PsTPS14的亚细胞定位

Fig. 5 Subcellular localization of PsTPS14 in tree peony

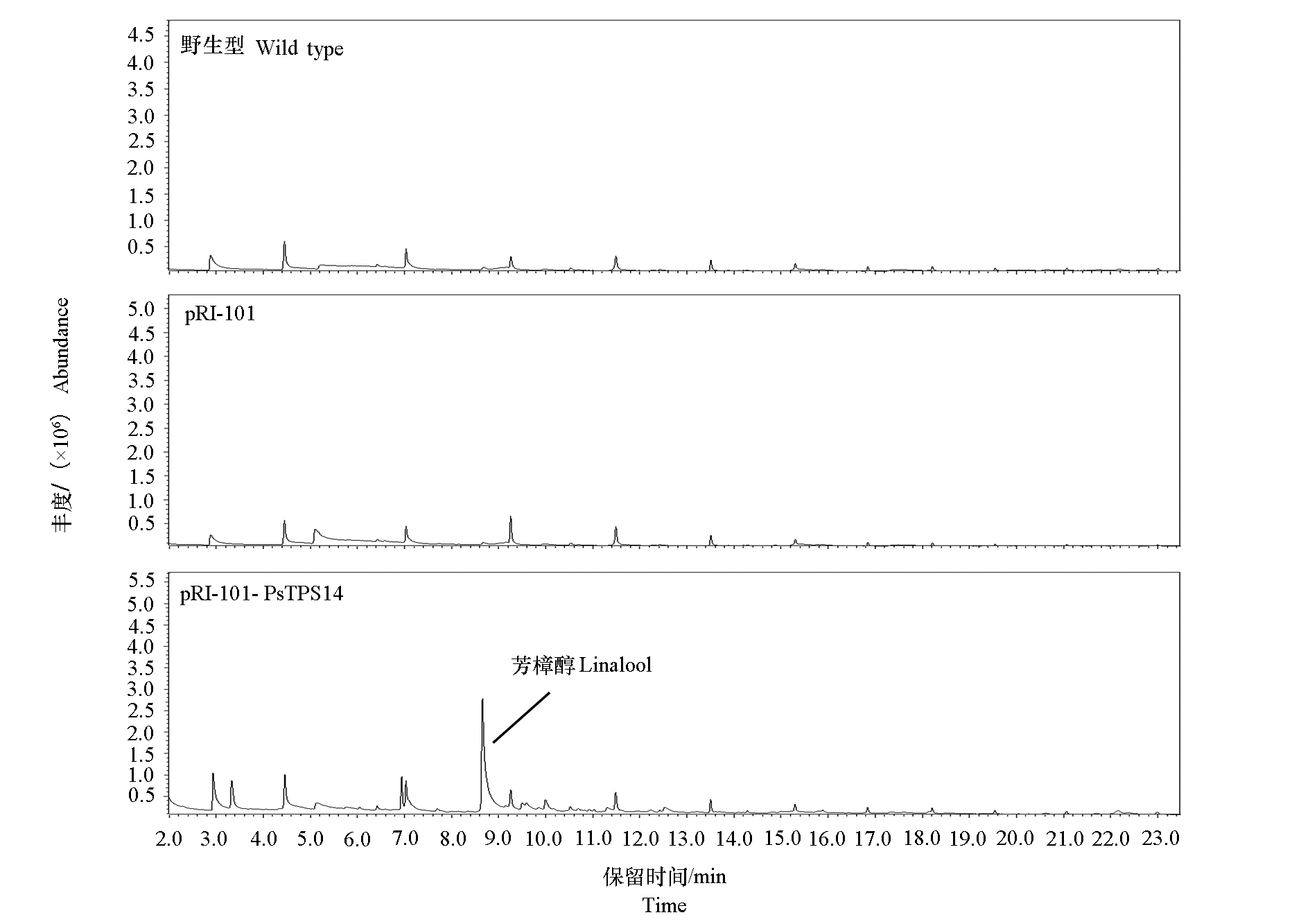

图6 异源瞬时转化PsTPS14的烟草叶片中挥发物GC-MS分析

Fig. 6 GC-MS analysis of volatile compounds in tobacco leaves undergoing heterologous transient transformation of PsTPS14

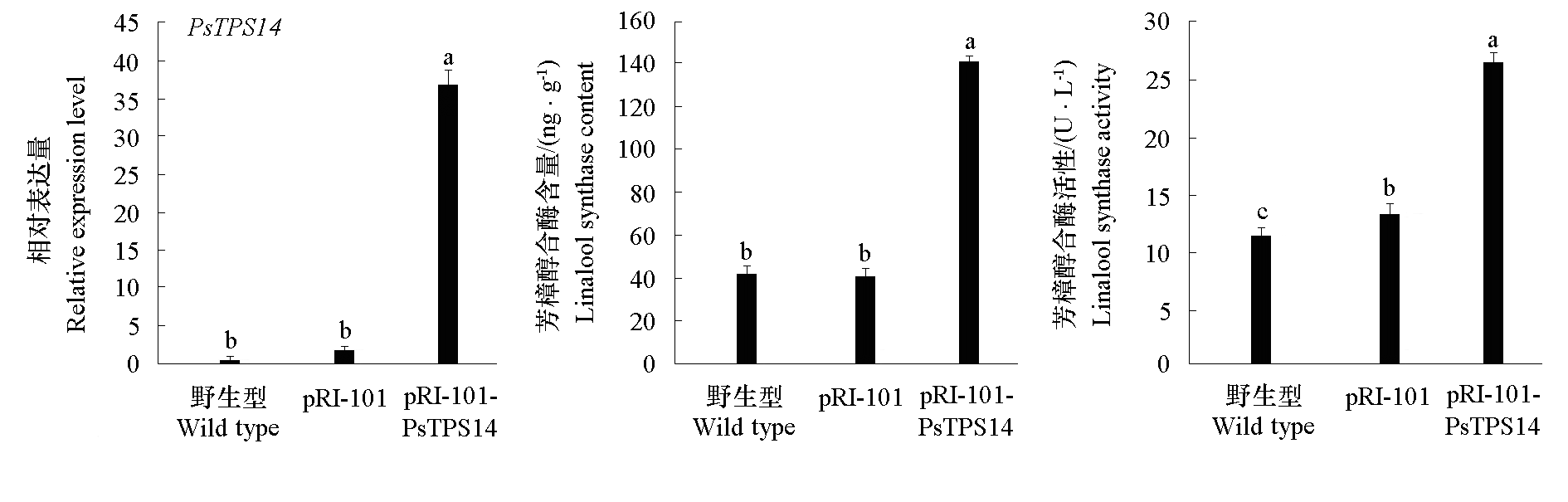

图7 异源瞬时转化PsTPS14的烟草叶片中PsTPS14的相对表达量、芳樟醇合酶含量及其活性

Fig.7 Relative expression level，linalool synthase content and activity of PsTPS14 in tobacco leaves undergoing heterologous transient transformation of PsTPS14

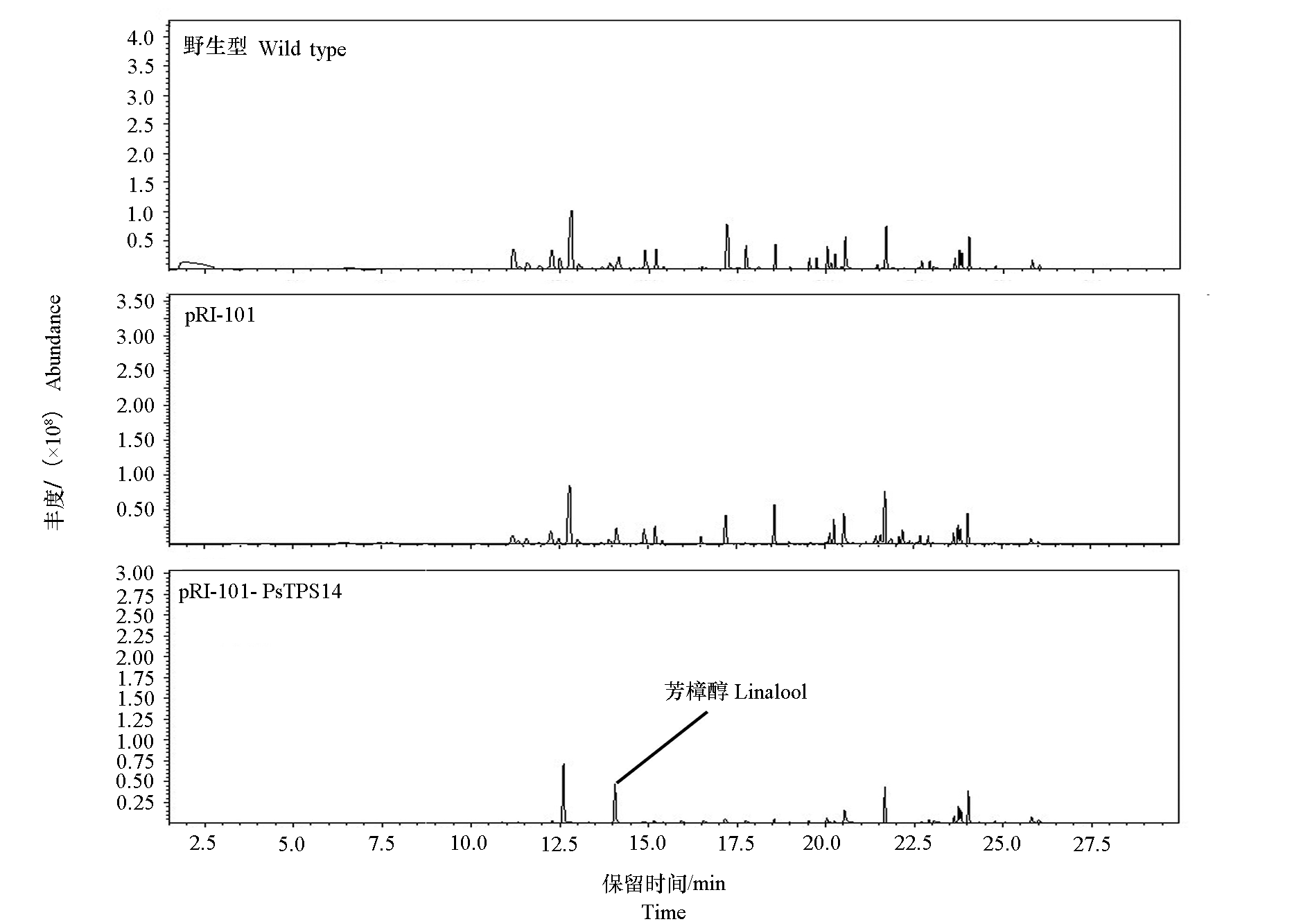

图8 同源瞬时转化PsTPS14的‘凤丹’牡丹中挥发物GC-MS分析

Fig. 8 GC-MS analysis of volatile compounds in Paeonia ostia‘Fengdan’undergoing homologous transient transformation of PsTPS14

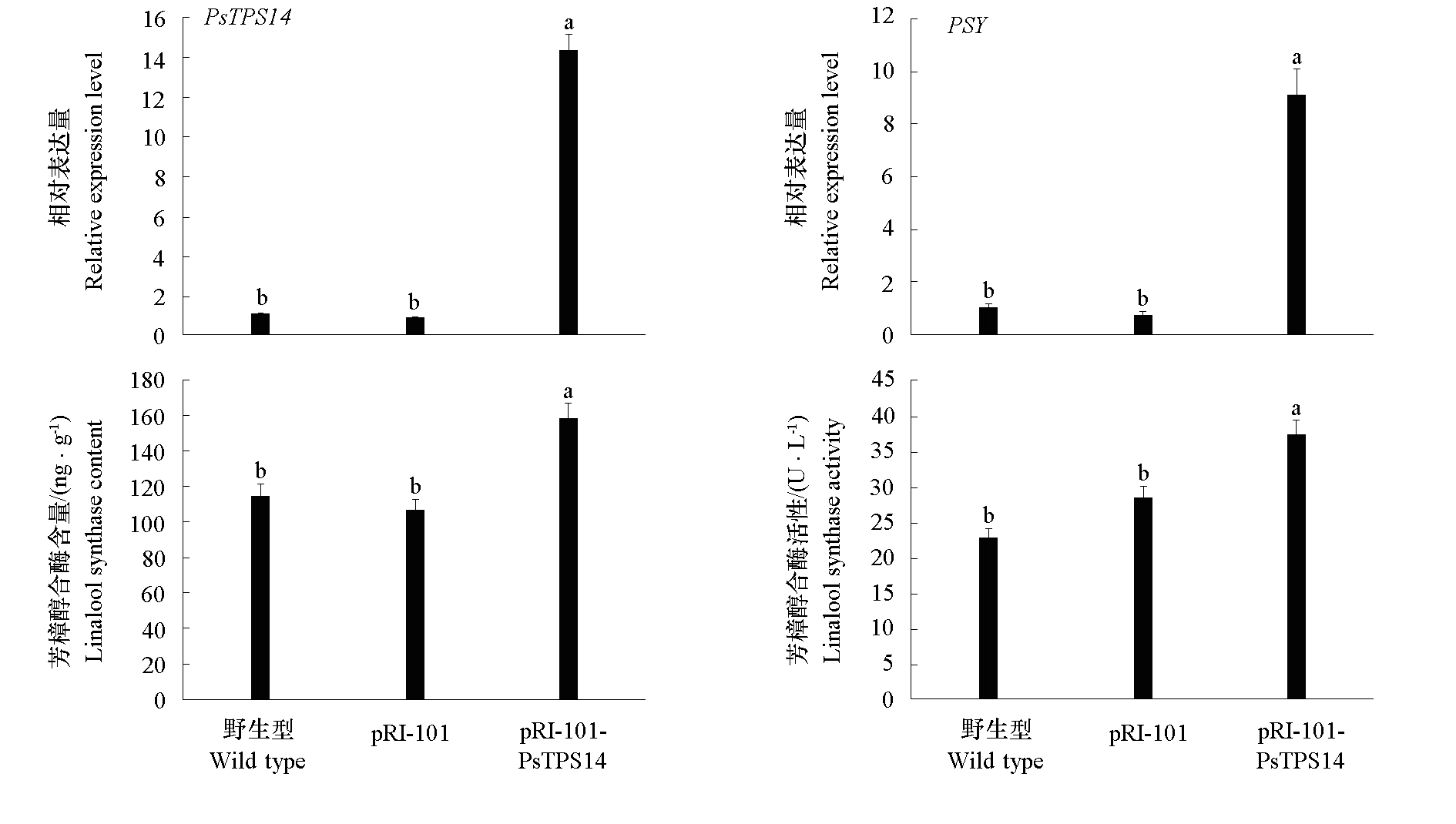

图9 同源瞬时转化PsTPS14的‘凤丹’牡丹中PsTPS14和PSY的相对表达量、芳樟醇合酶含量及其活性

Fig. 9 Relative expression levels of PsTPS14 and PSY，content and activity of linalool synthase in Paeonia ostia ‘Fengdan’undergoing homologous transient transformation of PsTPS14

参考文献 25

[1]	Cai X, Mai R Z, Zou J J, Zhang H Y, Zeng X L, Zheng R R, Wang C Y. 2014. Analysis of aroma-active compounds in three sweet osmanthus (Osmanthus fragrans)cultivars by GC-olfactometry and GC-MS. Journal of Zhejiang University Science, 15 (7):638-648.
[2]	Du Wen-wen, Duan Qing, Jia Wen-jie, Ma Lu-lin, Wang Xiang-ning, Wang Ji-hua. 2022. Determination of volatile compounds and analysis of characteristic aroma components of four kind of Begonia species flowers. Journal of Yunnan University(Natural Sciences Edition), 44 (5):1043-1053. (in Chinese)
	杜文文, 段青, 贾文杰, 马璐琳, 王祥宁, 王继华. 2022. 4种秋海棠花香挥发性物质测定与特征香气成分分析. 云南大学学报(自然科学版), 44 (5):1043-1053.
[3]	Fan Zheng-qi, Li Ji-yuan, Tian Min, Li Xin-lei, Ni Sui. 2006. Preliminary studies of aromatic constituents among three species(variation)of Camellia. Acta Horticulturae Sinica, 33 (3):592-596. (in Chinese)
	范正琪, 李纪元, 田敏, 李辛雷, 倪穗. 2006. 三个山茶花种(品种)香气成分初探. 园艺学报, 33 (3):592-596.
[4]	Feng Nan. 2017. Determination of floral volatile components and preliminary study on function of two terpene synthases in wintersweet[M. D. Dissertation]. Wuhan: Huazhong Agricultural University. (in Chinese)
	冯楠. 2017. 蜡梅花香挥发物测定及2个萜烯合酶基因功能初步研究[硕士论文]. 武汉: 华中农业大学.
[5]	Gao F Z, Liu B F, Li M, Gao X Y, Fang Q, Liu C, Ding H, Wang L, Gao X. 2018. Identification and characterization of terpene synthase genes accounting for volatile terpene emissions in flowers of Freesia × hybrida. Journal of Experimental Botany, 69 (18):4249-4265.
[6]	Guo Ying, Zhan Xue-lin, Zhou Han-qi, Qiu Yu, Liu Kun-xiang, Xu Hong. 2022. Identification and expression analysis of the genes related to floral compounds in Petunia hybrida. Molecular Plant Breeding, 20 (15):4931-4939. (in Chinese)
	郭莹, 詹雪林, 周涵奇, 邱雨, 刘坤祥, 徐虹. 2022. 矮牵牛花香成分的鉴定及相关基因的表达分析. 分子植物育种, 20 (15):4931-4939.
[7]	Hou Yixuan, Zhang Ling, Lü Mengwen, Wu Yaoxing, Wang Liangsheng, Zhang Xiuqing, Li Shanshan. 2023. Analysis of volatile components from the petal of intersectional hybrids of Paeonia. Acta Horticulturae Sinica, 50 (4):842-852. (in Chinese) doi: 10.16420/j.issn.0513-353x.2021-1221
	侯异璇, 张玲, 吕梦雯, 武耀星, 王亮生, 张秀卿, 李珊珊. 2023. 芍药属组间杂种花香成分分析. 园艺学报, 50 (4):842-852. doi: 10.16420/j.issn.0513-353x.2021-1221
[8]	Huang Xue,Wang Chao,Wang Xiao-han,Sun Xian-zhi,Guo Xian-feng. 2010. Preliminary study of aromatic components in herbaceous peonies of‘Yangfei Chuyu’and‘Dafugui’. Acta Horticulturae Sinica, 37 (5):817-822. (in Chinese)
	黄雪, 王超, 王晓菡, 孙宪芝, 郭先锋. 2010. 芍药‘杨妃出浴’和‘大富贵’花香成分初探. 园艺学报, 37 (5):817-822.
[9]	Jiang Ya-jun. 2022. PpIDD4,PpIDD12 and PpIDD13 are involved in DELLA-dependent feedback regulation of gibberellin biosynthesis and PpIDD11 regulates pistil stigma elongation in peach[Ph. D. Dissertation]. Zhengzhou: Henan Agricultural University. (in Chinese)
	蒋亚君. 2022. 桃PpIDD4、PpIDD12和PpIDD13参与DELLA依赖的赤霉素合成反馈调控及PpIDD11调控雌蕊柱头伸长的功能[博士论文]. 郑州: 河南农业大学.
[10]	Jin Nan, Kan Xia-yue, Yan Ya-jie, Zhao Shu-ping, Wu Peng, Li Liang-jun, Feng Kai. 2022. Cloning and expression analysis of OjHMGS gene related to terpenoid biosynthesis in Oenanthe javanica. Plant Physiology Journal, 58 (11):2079-2087. (in Chinese)
	金楠, 阚夏月, 严雅洁, 赵书平, 吴鹏, 李良俊, 冯凯. 2022. 水芹萜类合成相关OjHMGS基因克隆与表达分析. 植物生理学报, 58 (11):2079-2087.
[11]	Li S S, Chen L G, Xu Y J, Wang L J, Wang L S. 2012. Identification of floral fragrances in tree peony cultivars by gas chromatography-mass spectrometry. Scientia Horticulturae, 142:158-165.
[12]	Li S S, Zhang L, Sun M, Lv M W, Yang Y, Xu W Z, Wang L S. 2023. Biogenesis of flavor-related linalool is diverged and genetically conserved in tree peony(Paeonia × suffruticosa). Horticulture Research, 10 (2):uhac253.
[13]	Li Z A, Zhang X W, Li K, Wang P Y, Li C R, Song X H. 2022. Integrative analysis of transcriptomic and volatile compound profiles sheds new insights into the terpenoid biosynthesis in tree peony. Industrial Crops & Products, 188:115672.
[14]	Lipko A, Swiezewska E. 2016. Isoprenoid generating systems in plants - a handy toolbox how to assess contribution of the mevalonate and methylerythritol phosphate pathways to the biosynthetic process. Prog Lipid Res, 63:70-92. doi: 10.1016/j.plipres.2016.04.002 pmid: 27133788
[15]	Luan Y T, Chen Z J, Tang Y H, Sun J, Meng J S, Tao J, Zhao D Q. 2022. Tree peony PsMYB44 negatively regulates petal blotch distribution by inhibiting dihydroflavonol-4-reductase gene expression. Annals of Botany, 131 (2):323-334.
[16]	Shimada T, Endo T, Rodríguez A, Fujii H, Goto S, Matsuura T, Hojo Y, Ikeda Y, Morii C, Fujikawa T, Peña L, Omura M. 2017. Ectopic accumulation of linalool confers resistance to Xanthomonas citri subsp. citri in transgenic sweet orange plants. Tree Physiol, 37 (5):654-664.
[17]	Sun Hai-nan, Ji Zhen-yu, Wang You-liang. 2020. Aroma profile identification of different rose cultivars by gas chromatography mass spectrometry coupled to headspace solid phase microextraction. Journal of Jiangsu Forestry Science & Technology, 47 (6):1-6. (in Chinese)
	孙海楠, 嵇震宇, 汪有良. 2020. 固相微萃取法对不同月季品种花朵香气成分的GC-MS分析. 江苏林业科技, 47 (6):1-6.
[18]	Takehiko S, Tomoko E, Hiroshi F, Ana R, Leandro P, Mitsuo O. 2014. Characterization of three linalool synthase genes from Citrus unshiu Marc. and analysis of linalool-mediated resistance against Xanthomonas citri subsp. citri and Penicilium italicum in citrus leaves and fruits. Plant Science, 229:154-166. doi: S0168-9452(14)00225-8 pmid: 25443842
[19]	Wu Bo-ping. 2019. Identification and regulation of UGT gene family members related to glycosylated linalool formation in peach fruit[Ph. D. Dissertation]. Hangzhou: Zhejiang University. (in Chinese)
	吴伯萍. 2019. 桃果实结合态芳樟醇形成相关的UGT基因家族成员鉴别与调控研究[博士论文]. 杭州: 浙江大学.
[20]	Yang Qin,Li Hang-cheng,Xiao Hong,Liu Shi-jian,Fang Ming-zhu. 2017. The analysis and comparison of aroma components between Dian Hong Roses and Mo Hong Roses. Food Research and Development, 38 (8):153-157. (in Chinese)
	杨秦, 李杭橙, 肖洪, 刘士健, 方明珠. 2017. 云南滇红玫瑰与墨红玫瑰香气成分比较与分析. 食品研究与开发, 38 (8):153-157.
[21]	Zhang Ling. 2019. Screening of special floral scent germplasm and exploration of the key genes related to biosynthesis of floral scent in tree peony[M. D. Dissertation]. Nanjing: Nanjing Agricultural University. (in Chinese)
	张玲. 2019. 牡丹花香特异种质筛选及其花香形成关键基因挖掘[硕士论文]. 南京: 南京农业大学.
[22]	Zhang Qin,Zhou Dan-dan,Peng Jing,Pan Lei-qing,Tu Kang. 2021. Changes of bound aroma compounds and their relationship between soluble sugars in nectarines during postharvest storage. Food Science, 42 (6):206-214. (in Chinese) doi: 10.7506/spkx1002-6630-20200317-261
	张琴, 周丹丹, 彭菁, 潘磊庆, 屠康. 2021. 油桃采后结合态香气变化规律及其与可溶性糖的关联性. 食品科学, 42 (6):206-214.
[23]	Zhang Wan-bo, Ma Xiao-ying, Chen Su-mei, Chen Fa-di, Jiang Yi-fan. 2022. Diversity of floral volatiles in cut chrysanthemum with different flower types and diameters. Journal of Nanjing Agricultural University, 45 (4):675-683. (in Chinese)
	张万博, 马晓莹, 陈素梅, 陈发棣, 姜一凡. 2022. 不同花型及花径切花菊花香挥发物多样性分析. 南京农业大学学报, 45 (4):675-683.
[24]	Zhao Yin-quan, Pan Hui-tang, Zhang Qi-xiang, Sun Ming, Pan Cai-bo. 2010. Studies on the volatile constituents from cultivars of Prunus mume. Journal of Tropical and Subtropical Botany, 18 (3):310-315. (in Chinese)
	赵印泉, 潘会堂, 张启翔, 孙明, 潘才博. 2010. 不同类型梅花品种挥发性成分的研究. 热带亚热带植物学报, 18 (3):310-315.
[25]	Zhu Lin-lin, Zhou Wan-fei, Ning Xuan, Zhu Jun, Xi Wan, Zeng Xu-mei, Xiong Kang-shun, Wang Cai-yun, Luo Jing, Zheng Ri-ru. 2022. Analysis of free aromatic components of different Osmanthus fragrans cultivars. Acta Horticulturae Sinica, 49 (11):2395-2406. (in Chinese)
	朱琳琳, 周婉飞, 宁璇, 朱君, 席婉, 曾旭梅, 熊康舜, 王彩云, 罗靖, 郑日如. 2022. 不同桂花品种游离态香气物质分析. 园艺学报, 49 (11):2395-2406. doi: 10.16420/j.issn.0513-353x.2021-0773
