GABA对葡萄叶片光合色素及糖含量和果实风味的影响

doi:10.16420/j.issn.0513-353x.2023-0144

摘要/Abstract

摘要：

为探讨外源γ-氨基丁酸（GABA）对酿酒葡萄叶片光合色素及糖含量和果实品质风味的影响，以‘蛇龙珠’葡萄为试材，于开花期、坐果期、膨大期和转色期用5、10、15、20 mmol · L^-1的GABA溶液喷施叶面，以喷施蒸馏水为对照，测定不同时期叶片光合色素、糖含量及成熟期果实品质风味，并采用PEN3电子鼻无损检测技术和气相色谱—质谱联用（GC-MS）技术结合聚类、线性判别（LDA）、主成分（PCA）及相关性分析对果实品质风味进行综合评价与分析。结果表明：GABA处理提高了‘蛇龙珠’葡萄叶片叶绿素、类胡萝卜素、可溶性糖和淀粉含量，改善了果实风味品质，其中各物候期10 mmol · L^-1GABA处理总叶绿素含量均显著高于对照，成熟期10 mmol · L^-1 GABA处理果实可溶性糖含量较对照提高了9%，草酸及酒石酸含量分别较对照提高了121%和108%。与对照相比GABA处理增加了果实香气物质种类与含量，且不同浓度GABA处理后葡萄果实香气物质种类相似，但含量差异显著，电子鼻分析结果与GC-MS测定结果基本一致，其中10 mmol · L^-1 GABA处理挥发性香气物质含量最高，大多数传感器敏感性响应值均较高。利用PCA、LDA法分析表明电子鼻检测结果能较好区分不同浓度GABA处理的‘蛇龙珠’葡萄果实的风味。相关性分析发现，葡萄叶片可溶性糖、淀粉及果实糖酸组分含量与香气物质之间存在一定的相关性。综上，GABA可能通过提高叶片光合色素、可溶性糖和淀粉含量，促进了果实糖酸积累，增加了挥发性香气物质含量，从而改善了果实风味品质，并且以10 mmol · L^-1 GABA处理最佳。

关键词: 葡萄, γ-氨基丁酸, 生理特性, 电子鼻, 品质风味

Abstract:

In order to investigate the effects of exogenous γ-aminobutyric acid（GABA）on the photosynthetic pigment and sugar content of leaves and fruit flavor quality in wine grape‘Cabernet Gernischt’，GABA solution with different concentrations（5，10，15 and 20 mmol · L^-1）was sprayed on the leaves at the flowering stage，fruit setting stage，enlargement stage and veraison stage，and distilled water was sprayed as the control. Photosynthetic pigment and sugar content of leaves at different stages and fruit flavor quality at the ripened stage were determined. Flavor quality of fruits was comprehensively evaluated and analyzed by using the PEN3 electronic nose non-destructive detection technology and gas chromatography-mass spectrometry（GC-MS）technology combined with cluster analysis，linear discriminant analysis（LDA），principal component analysis（PCA）and correlation analysis. The results showed that GABA treatment increased the contents of chlorophyll，carotenoids，soluble sugar and starch of the leaves of‘Cabernet Gernischt’grape and improved the flavor quality of the fruit. Notably，the total chlorophyll content in 10 mmol · L^-1GABA-treated leaves was significantly higher than that of the control at different developmental stages. After treatment with 10 mmol · L^-1 GABA，the soluble sugar content of ripened grape fruits increased by 9% compared to the control group，while the levels of oxalic acid and tartaric acid showed respective increments of 121% and 108%. Compared with the control，GABA treatment increased the variety and content of fruit aroma volatiles. The aroma substances in fruits treated with different concentrations of GABA were similar in types，but showed significant difference in contents. The aroma profiles obtained by electronic nose analysis were basically consistent with that by GC-MS analysis. Among the different concentrations used in this study，10 mmol · L^-1GABA treatment had the highest content of volatile aroma substances，as well as the higher sensitivity response values for most sensors. PCA and LDA analysis showed that the electronic nose detection results could better distinguish the flavor of‘Cabernet Gernischt’grape fruits treated with different concentrations of GABA. The correlation analysis showed that the contents of soluble sugar，starch in leaves and fruit sugars and organic acids have correlation with the formation of aroma substances in fruit. In summary，exogenous GABA treatment improved the flavor quality of the fruit by enhancing the contents of photosynthetic pigments，soluble sugar and starch in leaves and prompting the accumulation of sugars and organic acids and aroma volatiles in grape fruits；10 mmol · L^-1 was chosen as the optimum concentration of GABA.

Key words: grape, γ-aminobutyric acid, physiological characteristics, electronic nose, quality and flavor

李斗, 王宇航, 王春恒, 金鑫, 杨江山, 陈亚娟, 戴子博, 冯丽丹. GABA对葡萄叶片光合色素及糖含量和果实风味的影响[J]. 园艺学报, 2024, 51(4): 815-831.

LI Dou, WANG Yuhang, WANG Chunheng, JIN Xin, YANG Jiangshan, CHEN Yajuan, DAI Zibo, and FENG Lidan. Effects of Exogenous GABA on Physiological Characteristics of Leaves and Fruit Flavor in Wine Grape[J]. Acta Horticulturae Sinica, 2024, 51(4): 815-831.

图/表 9

参考文献 47

[1]	Adlard E R. 2018. Jokie Bakker and Ronald J. Clarke:wine flavour chemistry(2nd Edn). Chromatographia, 81 (8):1241-1241.
[2]	Ali M, Raza M A, Li S G, Zhou Li C, Huan C, Shu L S, Zheng X L. 2021. 1-MCP Regulates Ethanol Fermentation and GABA shunt pathway involved in kiwifruit quality during postharvest storage. Horticultural Plant Journal, 7 (1):23-30.
[3]	Cai J, Zhu B Q, Wang Y H, Lu L, Lan Y B, Reeves M J, Duan C Q. 2014. Influence of pre-fermentation cold maceration treatment on aroma compounds of Cabernet Sauvignon wines fermented in different industrial scale fermenters. Food Chemistry, 154:217-229. doi: 10.1016/j.foodchem.2014.01.003 pmid: 24518336
[4]	Cai J S, Zhu Y Y, Ma R H, Thakur K, Zhang J G, Wei Z J. 2021. Effects of roasting level on physicochemical,sensory,and volatile profiles of soybeans using electronic nose and HS-SPME-GC-MS. Food Chemistry, 340 (3):127880.
[5]	Cao Weiyu, Lu Wenpeng, Shu Nan, Yang Yiming, Fan Shutian. 2022. Research progress on wine flavor substances and their influencing factors. China Brewing, 41 (5):1-7. (in Chinese) doi: 10.11882/j.issn.0254-5071.2022.05.001
	曹炜玉, 路文鹏, 舒楠, 杨义明, 范书田. 2022. 葡萄酒风味物质及其影响因素研究进展. 中国酿造, 41 (5):1-7. doi: 10.11882/j.issn.0254-5071.2022.05.001
[6]	Cao X M, Wei C Y, Duan W Y, Gao Y, Kuang J F, Liu M C, Chen K S, Klee H, Zhang B. 2021. Transcriptional and epigenetic analysis reveals that NAC transcription factors regulate fruit flavor ester biosynthesis. The Plant Journal, 106 (3):785-800. doi: 10.1111/tpj.15200 pmid: 33595854
[7]	Chen Gang, Li Sheng. 2016. Plant physiology experiment. Beijing: Higher Education Press:96. (in Chinese)
	陈刚, 李胜. 2016. 植物生理学实验. 北京: 高等教育出版社:96.
[8]	Cheng Shuiqi, Wang Lijuan, Gao Yinan. 2023. Research progress of aroma compounds in strawberry fruits. Shandong Agricultural Sciences, 55 (1):157-164. (in Chinese)
	程帅旗, 王丽娟, 高轶楠. 2023. 草莓果实香气物质研究进展. 山东农业科学院, 55 (1):157-164.
[9]	Chen Lu, Shi Jun, Zhang Xiao-meng, Wang Yan-ling, Zhang Jing-jing, Yang Fan, Lu Hao-ze, Yu Jia-jun, Xue Jie. 2022. Effects of wine grape varieties and producing areas on aroma quality of wine in the eastern foot of Helan Mountain. China Brewing, 41 (4):39-45. (in Chinese) doi: 10.11882/j.issn.0254-5071.2022.04.007
	陈璐, 石俊, 张晓蒙, 王妍凌, 张晶晶, 杨帆, 卢灏泽, 于佳俊, 薛洁. 2022. 酿酒葡萄品种及产区对贺兰山东麓葡萄酒香气质量的影响研究. 中国酿造, 41 (4):39-45. doi: 10.11882/j.issn.0254-5071.2022.04.007
[10]	Chen Xiu, Luo Zhen-yu, Zhang Ya-nan, Yang Xue-zhen, Yu Zhi-hui, Xiang Miao-lian, Chen Jin-yin, Chen Ming. 2022. Effects of exogenous γ-aminobutyric acid treatment on fruit quality and preservation of postharvest Jing’an ponkan. Journal of Fruit Science, 39 (4):652-661. (in Chinese)
	陈秀, 罗震宇, 张亚男, 杨雪珍, 余志汇, 向妙莲, 陈金印, 陈明. 2022. 外源GABA处理对采后靖安椪柑果实品质和保鲜效果的影响. 果树学报, 39 (4):652-661.
[11]	Doolette C L, Read T L, Howell N R, Cresswell T, Lombi E. 2020. Zinc from foliar-applied nanoparticle fertiliser is translocated to wheat grain:A 65Zn radiolabelled translocation study comparing conventional and novel foliar fertilisers. Science of the Total Environment, 749:142369.
[12]	Esmaeil R, Seyyed M S, Elnaz E, Sina S M, Christos A, Damalas. 2018. Exogenous application of gamma-aminobutyric acid(GABA)alleviates the effect of water deficit stress in black cumin(Nigella sativa L.). Industrial Crops and Products, 112:741-748.
[13]	Etienne A, Génard M, Lobit P, Mbeguié D, Bugaud C. 2013. What controls fleshy fruit acidity? A review of malate and citrate accumulation in fruit cells. Journal of Experimental Botany, 64 (6):1451-1469. doi: 10.1093/jxb/ert035 pmid: 23408829
[14]	Faraj H, Nabil K. 2019. Exogenous GABA is quickly metabolized to succinic acid and fed into the plant tca cycle. Plant Signaling & Behavior, 14 (3):e1573096.
[15]	Farooq M, Nawaz A, Chaudhry M A M, Indrasti R, Rehman A. 2017. Improving resistance against terminal drought in bread wheat by exogenous application of proline and gamma-aminobutyric acid. Journal of Agronomy and Crop Science, 203 (6):464-472.
[16]	Fatemeh N, Elaheh Z B, Seyed H M, Rafie A. 2020. Extending the shelf life of pomegranate(Punica granatum L.) by GABA coating application. Journal of Food Measurement and Characterization, 14 (5):2760-2772. doi: 10.1007/s11694-020-00521-1
[17]	Feng Ya-lan, Yin Fei, Xu Ke, Jia Xiao-yi, Zhou Shuang, Ma Chao. 2021. Role of sucrose metabolism and signal transduction in plant development and stress response. Journal of Nuclear Agricultural Sciences, 35 (9):2044-2055. (in Chinese) doi: 10.11869/j.issn.100-8551.2021.09.2044
	冯雅岚, 尹飞, 徐柯, 贾晓艺, 周爽, 马超. 2021. 蔗糖代谢及信号转导在植物发育和逆境响应中的作用. 核农学报, 35 (9):2044-2055. doi: 10.11869/j.issn.100-8551.2021.09.2044
[18]	Ferreira V, Lopez R. 2019. The actual and potential aroma of winemaking grapes. Biomolecules, 9 (12):818.
[19]	Han S K, Nan Y Y, Qu W, He Y H, Ban Q Y, Lv Y R, Rao J P. 2018. Exogenous γ-aminobutyric acid treatment that contributes to regulation of malate metabolism and ethylene synthesis in apple fruit during storage. Journal of Agricultural and Food Chemistry, 66 (51):13473-13482. doi: 10.1021/acs.jafc.8b04674 pmid: 30512945
[20]	He Ya-juan, Ma Zong-huan, Wei Xia-xia, Li Yu-mei, Li Yan-biao, Ma Wei-feng, Ding Sun-lei, Mao Juan, Chen Bai-hong. 2021. Comparative analysis of sugar and organic acid contents of different apple cultivars in dryland of loess plateau. Science and Technology of Food Industry, 42 (10):248-254. (in Chinese)
	贺雅娟, 马宗桓, 韦霞霞, 李玉梅, 李彦彪, 马维峰, 丁孙磊, 毛娟, 陈佰鸿. 2021. 黄土高原旱塬区不同品种苹果果实糖及有机酸含量比较分析. 食品工业科技, 42 (10):248-254.
[21]	Hua Zhi-rui, Cui Xing, Li Xiao-ling. 2022. Effects of exogenous betaine on physiological characteristics of gentian seedlings under salt stress. Acta Agriculturae Jiangxi, 34 (5):81-87. (in Chinese)
	华智锐, 崔行, 李小玲. 2022. 外源甜菜碱对盐胁迫下龙胆幼苗生理特性的影响. 江西农业学报, 34 (5):81-87.
[22]	Li Hui-feng, Wang Hai-bo, Li Lin-guang, Lü De-guo, Yang Jian-ming. 2011. Effects of bagging on‘Hanfu’apple aroma compounds. Chinese Journal of Eco-Agriculture, 19 (4):843-847. (in Chinese)
	李慧峰, 王海波, 李林光, 吕德国, 杨建明. 2011. 套袋对‘寒富’苹果果实香气成分的影响. 中国生态农业学报, 19 (4):843-847.
[23]	Li Yan-biao, Ma Wei-feng, Jia Jin, Mou De-sheng, Li Sheng-bao, Mao Juan. 2021. Evaluation on fruit quality of Cabernet Sauvignon wine grapes from different producing areas in hexi corridor. Acta Botanica Boreali-Occidentalia Sinica, 41 (5):817-827. (in Chinese)
	李彦彪, 马维峰, 贾进, 牟德生, 李生保, 毛娟. 2021. 河西走廊不同产地‘赤霞珠’酿酒葡萄果实品质评价. 西北植物学报, 41 (5):817-827.
[24]	Li Zhonghan, Tang Meiling, Zheng Qiuling, Liu Minghui, Kang Hui, Gao Zhen, Du Yuanpeng. 2023. The effect of rain shelter material Coverlys TF150^® on the fruit quality of‘Miguang’grape. Acta Horticulturae Sinica, 50 (5):1073-1084. doi: 10.16420/j.issn.0513-353x.2022-0057
	李中瀚, 唐美玲, 郑秋玲, 刘明慧, 康慧, 高振, 杜远鹏. 2023. 聚乙烯编织物Coverlys TF150^®覆盖对‘蜜光’葡萄果实品质的影响. 园艺学报, 50 (5):1073-1084. doi: 10.16420/j.issn.0513-353x.2022-0057
[25]	Ola H A E, Amr E, Gniewko N, Reham F, Tomasz W, Soumya M, Ayman F A, Hussien M E, Ahmed A E, Hany G A E, Ehab A, Adil A G, Nihal E N, Ahmed M E, Ahmed B, Mohamed F M I. 2021. Protective effect of γ-aminobutyric acid against chilling stress during reproductive stage in tomato plants through modulation of sugar metabolism,chloroplast integrity,and antioxidative defense systems. Frontiers in Plant Science, 12:663750.
[26]	Pan Jing, Han Lei. 2017. Comparison of determination methods of chlorophyll content in grape leaves. Northwest Horticulture(Comprehensive),(6):58-60. (in Chinese)
	潘静, 韩蕾. 2017. 葡萄叶片叶绿素含量测定方法比较. 西北园艺(综合),(6):58-60.
[27]	Peng Cheng, Lu Yu-sheng, Chang Xiao-xiao, Chen Zhe, Lin Zhi-xiong, Qiu Ji-shui. 2021. Effects of different fertilization treatments on soil nutrient in the orchardand fruit aroma component of Prunus persica‘Apple’peach. Guangdong Agricultural Sciences, 48 (4):69-76. (in Chinese)
	彭程, 陆育生, 常晓晓, 陈喆, 林志雄, 邱继水. 2021. 不同施肥方式对苹果桃园土壤养分及果实香气成分的影响. 广东农业科学, 48 (4):69-76.
[28]	Peng Li-li, Jiang Wei-bing, Han Jian, Wang Ming-yu, Zhang Bin-bin, Ma Rui-juan. 2013. Effect of fruit(flower)removing on soluble sugar accumulation in peach leaves with different maturity. Jiangsu Journal of Agricultural Sciences, 29 (4):857-863. (in Chinese)
	彭丽丽, 姜卫兵, 韩健, 王明玉, 张斌斌, 马瑞娟. 2013. 去果(花)对不同成熟期桃叶片可溶性糖积累的影响. 江苏农业学报, 29 (4):857-863.
[29]	Petropulos V I, Bogeva E, Stafilov T, Stefova M, Siegmund B, Pabi N, Lankmayr E. 2014. Study of the influence of maceration time and oenological practices on the aroma profile of Vranec wines. Food Chemistry, 165:506-514. doi: 10.1016/j.foodchem.2014.05.144 pmid: 25038705
[30]	Quamruzzaman M, Manik S M N, Shabala S, Zhou M. 2021. Improving performance of salt-grown crops by exogenous application of plant growth regulators. Biomolecules, 11 (6):788.
[31]	Ramesh S A, Tyerman S D, Gilliham M. 2017. γ-Aminobutyric acid(GABA)signalling in plants. Cellular and Molecular Life Sciences, 74 (9):1577-1603.
[32]	Rocco L, Anna C, Samantha S, Kemp B, Kerslake F. 2021. A review on the aroma composition of Vitis vinifera L. Pinot noir wines:origins and influencing factors. Critical Reviews in Food Science and Nutrition, 61 (10):1589-1604.
[33]	Wang Ming-jie, Song Peng-hui, Lu Huil-ing, Liang Wen-wei, Lü Yun-bo. 2021. Effects of different tree types,leaf canopy shapes and flower cluster shaping methods on fruit quality of‘Centennial Seedless’grape. Non-wood Forest Research, 39 (2):188-195. (in Chinese)
	王明洁, 宋鹏慧, 鲁会玲, 梁文卫, 吕云波. 2021. 树形和叶幕形及花穗整形方式对‘无核白鸡心’葡萄果实品质的影响. 经济林研究, 39 (2):188-195.
[34]	Wang Q H, Gao F, Chen X X, Wu W J, Wang L, Shi Ji L, Huang Y, Shen Y Y, Wu G L, Guo J X. 2022. Characterization of key aroma compounds and regulation mechanism of aroma formation in local binzi(Malus pumila × Malus asiatica)fruit. BMC Plant Biology, 22 (1):532.
[35]	Wang X J, Tao Y S, Wu Y, An R Y, Yue Z Y. 2017. Aroma compounds and characteristics of noble-rot wines of chardonnay grapes artificially botrytized in the vineyard. Food Chemistry, 226:41-50.
[36]	Wang Xin, Yan Yong-qing, Yin Yuan, Liu Wei, Wang He, Ji Shao-xu. 2019. Effect of exogenous γ-aminobutyric acid(GABA)on photosynthetic characteristics of Nitraria sibirica pall under salt stress. Jiangsu Journal of Agricultural Sciences, 35 (5):1032-1039. (in Chinese)
	王馨, 闫永庆, 殷媛, 刘威, 王贺, 季绍旭. 2019. 外源γ-氨基丁酸(GABA)对盐胁迫下西伯利亚白刺光合特性的影响. 江苏农业学报, 35 (5):1032-1039.
[37]	Wang Yong-chao, Zhang Ying-lei, Yan Dong-liang, He Ling-zhi, Li Zhuo, Yan Bo-wen, Shao Rui-xin, Guo Jia-meng, Yang Qing-hua. 2020. Physiological response of γ-aminobutyric acid to protect photosynthetic system of maize seedlings under drought stress. Acta Prataculturala Sinica, 29 (6):191-203. (in Chinese)
	王泳超, 张颖蕾, 闫东良, 何灵芝, 李卓, 燕博文, 邵瑞鑫, 郭家萌, 杨青华. 2020. 干旱胁迫下γ-氨基丁酸保护玉米幼苗光合系统的生理响应. 草业学报, 29 (6):191-203. doi: 10.11686/cyxb2019377
[38]	Wei Shou-hui, Xiao Xue-mei, Zhong Yuan, Yu Ji-hua, Lü Jian, Hu Lin-li, Tang Zhong-qi, Liu Fan-hong, Wang Shu-ya. 2020. Effects of supplemental illumination in different periods on the quality and volatile compounds of tomato fruit in solar greenhouse. Transactions of the Chinese Society of Agricultural Engineering, 36 (8):188-196. (in Chinese)
	魏守辉, 肖雪梅, 钟源, 郁继华, 吕剑, 胡琳莉, 唐中祺, 柳帆红, 王舒亚. 2020. 日光温室不同时段补光对番茄果实品质及挥发性物质影响. 农业工程学报, 36 (8):188-196.
[39]	Xie W J, Li Y H, Li Y Z, Ma L, Ashraf U, Tang X R, Pan S G, Tian H, Mo Z W. 2021. Application of γ-aminobutyric acid under low light conditions:effects on yield,aroma, element status,and physiological attributes of fragrant rice. Ecotoxicology and Environmental Safety, 213:111941.
[40]	Yang Na, Wu Hong, Gan Li-jun, Zhu Chang-hua. 2018. Effects of foliar spraying of γ-aminobutyric acid on wheat yield and quality. Journal of the Chinese Cereals and Oils Association, 33 (3):8-20. (in Chinese)
	杨娜, 伍宏, 甘立军, 朱昌华. 2018. 叶喷γ-氨基丁酸对小麦产量和品质的影响. 中国粮油学报, 33 (3):8-20.
[41]	Yu Huan, Guan Jing-xi, Yang Ying, Huang Xiao-yun, Cheng Guo, Xie Tai-li, Xie Lin-jun. 2019. Effects of seven wild wine yeast strains on the aroma compounds of‘Guipu 3’dry white wines. Food Science, 40 (4):251-258. (in Chinese) doi: 10.7506/spkx1002-6630-20180207-097
	余欢, 管敬喜, 杨莹, 黄晓云, 成果, 谢太理, 谢林君. 2019. 7株野生葡萄酒酵母对‘桂葡3号’干白葡萄酒香气成分的影响. 食品科学, 40 (4):251-258. doi: 10.7506/spkx1002-6630-20180207-097
[42]	Zhang Feixue, Zhang Shuhong, Ma Yandong, Chen Feng, Song Xianjie, Liu Ruijie. 2023. Effects of TDZ,CPPU and GA₃ on fruit quality of‘Shine Muscat’grape. Acta Horticulturae Sinica, 50 (12):2633-2640. doi: 10.16420/j.issn.0513-353x.2023-0083
	张飞雪, 张书红, 马延东, 陈峰, 宋贤杰, 刘锐杰. 2023. TDZ、CPPU和GA₃对‘阳光玫瑰’葡萄果实品质的影响. 园艺学报, 50 (12):2633-2640. doi: 10.16420/j.issn.0513-353x.2023-0083
[43]	Zhang S J, Petersen M A, Liu J. 2015. Influence of pre-fermentation treatments on wine volatile and sensory profile of the new disease tolerant cultivar solaris. Molecules, 20 (12):21609-21625. doi: 10.3390/molecules201219791 pmid: 26633351
[44]	Zhang Yang, Peng Jing-jing, Li Kun-yi, Yang Jie, Guo An-que. 2023. Effects of organic acid added before fermentation on color and sensory quality of‘Syrah’red wine. Food and Fermentation Industries, 49 (7):90-98. (in Chinese)
	张扬, 彭晶晶, 李坤一, 杨洁, 郭安鹊. 2023. 发酵前添加有机酸对‘西拉’红葡萄酒颜色和感官质量的影响. 食品与发酵工业, 49 (7):90-98. doi: 10.13995/j.cnki.11-1802/ts.032226
[45]	Zhang Yun-feng, Chen Kai, Li Jing-ming. 2021. Influence of training systems on the aroma of vidal blanc grapes analyzed by headspace solid phase microextraction-gas chromatography-mass spectrometry. Food Science, 42 (20):83-90. (in Chinese) doi: 10.7506/spkx1002-6630-20201010-077
	张云峰, 陈凯, 李景明. 2021. HS-SPME-GC-MS法分析栽培架式对威代尔葡萄果实香气的影响. 食品科学, 42 (20):83-90.
[46]	Zhou L, Jingjin Y, Yan P, Bingru H. 2016. Metabolic pathways regulated by γ-aminobutyric acid(GABA)contributing to heat tolerance in creeping bentgrass(Agrostis stolonifera). Scientific Reports, 6 (1):30338.
[47]	Zhou Peng-hui. 2016. Penglai regions in different white wine grape polyphenols diversity research. Liquor Making, 43 (2):89-92. (in Chinese)
	周鹏辉. 2016. 蓬莱产区不同白色酿酒葡萄中酚类物质差异性研究. 酿酒, 43 (2):89-92.

编号 No.	传感器名称 Sensor name	性能描述 Performance description
R1	W1C	对芳香性物质敏感 Sensitive to aromatic substances
R2	W5S	灵敏度高，对氮氧化物反应灵敏，对阴性氮氧化物感应更加灵敏 High sensitivity，sensitive to nitrogen oxides，more sensitive to negative nitrogen oxides
R3	W3C	对芳香成分的检测，主要对氨水灵敏 The detection of aromatic components is mainly sensitive to ammonia water
R4	W6S	主要对氢气敏感 Mainly sensitive to hydrogen
R5	W5C	主要检测烷烃、芳香型化合物，极性很小的化合物 It mainly detects alkanes，aromatic compounds，and compounds with low polarity
R6	W1S	对甲烷敏感，灵敏度大 High sensitivity to methane
R7	W1W	主要对硫化物敏感。另外，对很多的萜烯类和有机硫化物也都很敏感 Mainly sensitive to sulfides. In addition，it is also sensitive to many terpenes and organic sulfides
R8	W2S	对乙醇灵敏，对羰基也都有响应 Sensitive to ethanol and responsive to carbonyl groups
R9	W2W	对芳香成分和有机硫化物敏感 Sensitive to aromatic components and organic sulfides
R10	W3S	用于烷烃高浓度检测，对甲烷非常敏感 Used for high concentration detection of alkanes，very sensitive to methane

编号 No.	传感器名称 Sensor name	性能描述 Performance description
R1	W1C	对芳香性物质敏感 Sensitive to aromatic substances
R2	W5S	灵敏度高，对氮氧化物反应灵敏，对阴性氮氧化物感应更加灵敏 High sensitivity，sensitive to nitrogen oxides，more sensitive to negative nitrogen oxides
R3	W3C	对芳香成分的检测，主要对氨水灵敏 The detection of aromatic components is mainly sensitive to ammonia water
R4	W6S	主要对氢气敏感 Mainly sensitive to hydrogen
R5	W5C	主要检测烷烃、芳香型化合物，极性很小的化合物 It mainly detects alkanes，aromatic compounds，and compounds with low polarity
R6	W1S	对甲烷敏感，灵敏度大 High sensitivity to methane
R7	W1W	主要对硫化物敏感。另外，对很多的萜烯类和有机硫化物也都很敏感 Mainly sensitive to sulfides. In addition，it is also sensitive to many terpenes and organic sulfides
R8	W2S	对乙醇灵敏，对羰基也都有响应 Sensitive to ethanol and responsive to carbonyl groups
R9	W2W	对芳香成分和有机硫化物敏感 Sensitive to aromatic components and organic sulfides
R10	W3S	用于烷烃高浓度检测，对甲烷非常敏感 Used for high concentration detection of alkanes，very sensitive to methane

物候期 Phenological period	GABA/ （mmol · L^-1）	叶绿素a Chlorophyll a	叶绿素b Chlorophyll b	类胡萝卜素 Carotinoid	总叶绿素 Total chlorophyll
开花期 Flowering period	0（对照Control）	1.58 ± 0.04 c	0.57 ± 0.09 b	0.37 ± 0.05 b	2.14 ± 0.05 d
	5	1.85 ± 0.07 b	0.54 ± 0.07 b	0.43 ± 0.02 a	2.39 ± 0.10 c
	10	2.27 ± 0.14 a	0.77 ± 0.05 a	0.45 ± 0.01 a	3.04 ± 0.13 a
	15	2.00 ± 0.10 b	0.67 ± 0.04 ab	0.43 ± 0.03 a	2.67 ± 0.07 b
	20	1.81 ± 0.07 b	0.72 ± 0.04 a	0.44 ± 0.01 a	2.53 ± 0.05 bc
坐果期 Fruiting period	0（对照Control）	1.99 ± 0.07 c	0.75 ± 0.07 b	0.45 ± 0.01 c	2.74 ± 0.13 c
	5	2.19 ± 0.06 b	0.81 ± 0.10 ab	0.52 ± 0.04 b	3.00 ± 0.16 bc
	10	2.54 ± 0.09 a	1.03 ± 0.14 a	0.58 ± 0.01 a	3.57 ± 0.23 a
	15	2.44 ± 0.05 a	0.95 ± 0.09 ab	0.56 ± 0.02 ab	3.39 ± 0.15 ab
	20	2.24 ± 0.11 b	0.87 ± 0.06 ab	0.55 ± 0.01 ab	3.11 ± 0.15 bc
膨大期 Expansion period	0（对照Control）	2.21 ± 0.05 c	0.89 ± 0.05 b	0.48 ± 0.02 b	3.10 ± 0.06 d
	5	2.44 ± 0.02 b	1.01 ± 0.08 b	0.52 ± 0.07 ab	3.45 ± 0.05 c
	10	2.70 ± 0.05 a	1.29 ± 0.05 a	0.59 ± 0.02 a	4.00 ± 0.05 a
	15	2.49 ± 0.06 b	1.18 ± 0.05 a	0.58 ± 0.05 a	3.67 ± 0.04 b
	20	2.49 ± 0.04 b	0.97 ± 0.05 b	0.53 ± 0.01 ab	3.47 ± 0.10 c
转色期 Veraison period	0（对照Control）	2.33 ± 0.08 c	1.03 ± 0.12 c	0.51 ± 0.01 c	3.36 ± 0.09 d
	5	2.56 ± 0.04 b	1.20 ± 0.07 abc	0.57 ± 0.01 b	3.76 ± 0.11 c
	10	2.84 ± 0.06 a	1.31 ± 0.02 a	0.63 ± 0.02 a	4.15 ± 0.04 a
	15	2.78 ± 0.04 a	1.26 ± 0.08 ab	0.59 ± 0.04 ab	4.04 ± 0.06 ab
	20	2.75 ± 0.05 a	1.11 ± 0.08 bc	0.57 ± 0.01 b	3.86 ± 0.13 bc
成熟期 Maturity period	0（对照Control）	1.85 ± 0.15 d	0.88 ± 0.02 c	0.50 ± 0.01 b	2.73 ± 0.15 c
	5	2.24 ± 0.09 bc	1.01 ± 0.09 bc	0.56 ± 0.04 a	3.24 ± 0.02 b
	10	2.57 ± 0.04 a	1.20 ± 0.01 a	0.57 ± 0.02 a	3.77 ± 0.03 a
	15	2.45 ± 0.13 ab	1.12 ± 0.06 ab	0.55 ± 0.03 ab	3.57 ± 0.18 a
	20	2.09 ± 0.12 c	0.96 ± 0.10 c	0.52 ± 0.02 ab	3.06 ± 0.21 b

物候期 Phenological period	GABA/ （mmol · L^-1）	叶绿素a Chlorophyll a	叶绿素b Chlorophyll b	类胡萝卜素 Carotinoid	总叶绿素 Total chlorophyll
开花期 Flowering period	0（对照Control）	1.58 ± 0.04 c	0.57 ± 0.09 b	0.37 ± 0.05 b	2.14 ± 0.05 d
	5	1.85 ± 0.07 b	0.54 ± 0.07 b	0.43 ± 0.02 a	2.39 ± 0.10 c
	10	2.27 ± 0.14 a	0.77 ± 0.05 a	0.45 ± 0.01 a	3.04 ± 0.13 a
	15	2.00 ± 0.10 b	0.67 ± 0.04 ab	0.43 ± 0.03 a	2.67 ± 0.07 b
	20	1.81 ± 0.07 b	0.72 ± 0.04 a	0.44 ± 0.01 a	2.53 ± 0.05 bc
坐果期 Fruiting period	0（对照Control）	1.99 ± 0.07 c	0.75 ± 0.07 b	0.45 ± 0.01 c	2.74 ± 0.13 c
	5	2.19 ± 0.06 b	0.81 ± 0.10 ab	0.52 ± 0.04 b	3.00 ± 0.16 bc
	10	2.54 ± 0.09 a	1.03 ± 0.14 a	0.58 ± 0.01 a	3.57 ± 0.23 a
	15	2.44 ± 0.05 a	0.95 ± 0.09 ab	0.56 ± 0.02 ab	3.39 ± 0.15 ab
	20	2.24 ± 0.11 b	0.87 ± 0.06 ab	0.55 ± 0.01 ab	3.11 ± 0.15 bc
膨大期 Expansion period	0（对照Control）	2.21 ± 0.05 c	0.89 ± 0.05 b	0.48 ± 0.02 b	3.10 ± 0.06 d
	5	2.44 ± 0.02 b	1.01 ± 0.08 b	0.52 ± 0.07 ab	3.45 ± 0.05 c
	10	2.70 ± 0.05 a	1.29 ± 0.05 a	0.59 ± 0.02 a	4.00 ± 0.05 a
	15	2.49 ± 0.06 b	1.18 ± 0.05 a	0.58 ± 0.05 a	3.67 ± 0.04 b
	20	2.49 ± 0.04 b	0.97 ± 0.05 b	0.53 ± 0.01 ab	3.47 ± 0.10 c
转色期 Veraison period	0（对照Control）	2.33 ± 0.08 c	1.03 ± 0.12 c	0.51 ± 0.01 c	3.36 ± 0.09 d
	5	2.56 ± 0.04 b	1.20 ± 0.07 abc	0.57 ± 0.01 b	3.76 ± 0.11 c
	10	2.84 ± 0.06 a	1.31 ± 0.02 a	0.63 ± 0.02 a	4.15 ± 0.04 a
	15	2.78 ± 0.04 a	1.26 ± 0.08 ab	0.59 ± 0.04 ab	4.04 ± 0.06 ab
	20	2.75 ± 0.05 a	1.11 ± 0.08 bc	0.57 ± 0.01 b	3.86 ± 0.13 bc
成熟期 Maturity period	0（对照Control）	1.85 ± 0.15 d	0.88 ± 0.02 c	0.50 ± 0.01 b	2.73 ± 0.15 c
	5	2.24 ± 0.09 bc	1.01 ± 0.09 bc	0.56 ± 0.04 a	3.24 ± 0.02 b
	10	2.57 ± 0.04 a	1.20 ± 0.01 a	0.57 ± 0.02 a	3.77 ± 0.03 a
	15	2.45 ± 0.13 ab	1.12 ± 0.06 ab	0.55 ± 0.03 ab	3.57 ± 0.18 a
	20	2.09 ± 0.12 c	0.96 ± 0.10 c	0.52 ± 0.02 ab	3.06 ± 0.21 b

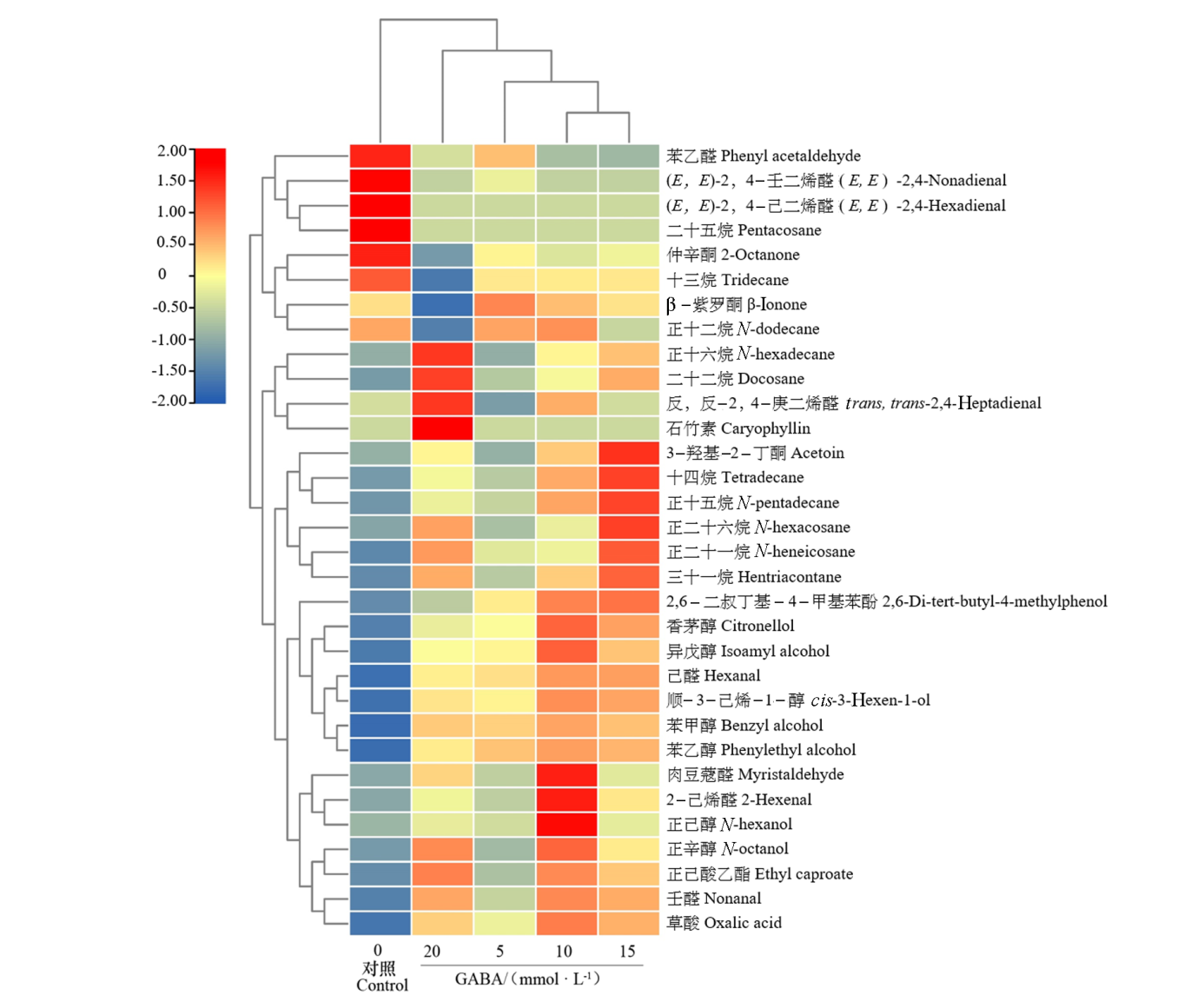

种类 Variety	化合物 Compound			GABA/（mmol · L^-1）
种类 Variety	化合物 Compound			0（对照 Control）		5		10		15	20
醛类	己醛 Hexanal			1 895.75 ± 83.31 c		2 519.73 ± 62.45 b		2 684.39 ± 77.21 a		2 668.31 ± 19.03 a	2 488.53 ± 68.68 b
Aldehydes	2-己烯醛 2-Hexenal			282.09 ± 9.29 e		432.87 ± 6.12 d		1 126.38 ± 47.18 a		675.26 ± 50.58 b	583.36 ± 8.61 c
	(E,E)-2,4-己二烯醛 (E,E)-2,4-Hexadienal			268.73 ± 50.57 a		—		—		—	—
	壬醛 Nonanal			79.16 ± 2.53 c		130.09 ± 17.44 b		197.27 ± 7.39 a		184.79 ± 16.10 a	186.90 ± 5.58 a
	反，反-2,4-庚二烯醛 trans,trans-2,4-Heptadienal			15.53 ± 2.01 b		12.86 ± 0.47 b		18.73 ± 2.31 a		15.42 ± 0.49 b	21.53 ± 1.58 a
		苯乙醛 Phenyl acetaldehyde	67.69 ± 4.19 a		53.79 ± 4.23 b		38.07 ± 3.96 c		37.03 ± 4.28 c		43.18 ± 1.42 c
		肉豆蔻醛 Myristaldehyde	120.72 ± 3.60 d		146.69 ± 0.63 c		260.04 ± 18.37 a		162.86 ± 3.36 c		192.86 ± 13.36 b
		(E,E)-2,4-壬二烯醛 (E, E)-2,4-Nonadienal	17.43 ± 2.47 a		2.75 ± 0.08 b		—		—		—
		种类 Kind	8		7		6		6		6
		总和 Sum	2 747.10 d		3 298.78 c		4 324.89 a		3 743.67 b		3 516.37 bc
醇类 Alcohols		香茅醇 Citronellol	43.18 ± 1.42 c		53.46 ± 0.72 ab		60.97 ± 3.98 a		58.07 ± 6.30 ab		52.26 ± 6.01 b
		正己醇 N-hexanol	451.04 ± 5.14 c		500.46 ± 9.53 bc		725.06 ± 44.45 a		520.65 ± 6.08 b		520.85 ± 41.23 b
		异戊醇 Isoamyl alcohol	630.73 ± 16.15 b		653.46 ± 0.72 a		667.63 ± 3.06 a		658.07 ± 6.30 a		652.26 ± 6.01 a
		顺-3-己烯-1-醇 cis-3-Hexen-1-ol	—		37.93 ± 2.15 c		52.46 ± 2.33 a		49.26 ± 0.39 b		39.93 ± 1.40 c
		苯甲醇 Benzyl alcohol	—		44.76 ± 1.94 b		51.33 ± 2.24 a		47.03 ± 3.77 ab		45.62 ± 3.86 b
		正辛醇 N-octanol	114.07 ± 15.53 d		148.56 ± 7.88 c		314.31 ± 21.72 a		232.97 ± 1.55 b		291.12 ± 7.86 a
		苯乙醇 Phenylethyl alcohol	—		85.46 ± 3.11 b		95.29 ± 5.87 a		89.12 ± 4.66 ab		74.13 ± 0.77 c
		种类 Kind	4		7		7		7		7
		总和 Sum	1 239.02 d		1 524.08 c		1 967.05 a		1 655.18 b		1 676.18 b
酮类 Ketones		3-羟基-2-丁酮 Acetoin	—		—		138.05 ± 6.80 b		251.34 ± 4.23 a		106.30 ± 5.38 c
		仲辛酮 2-Octanone	97.79 ± 7.93 a		60.52 ± 0.14 b		50.72 ± 1.52 c		55.18 ± 4.14 bc		27.79 ± 2.35 d
		β-紫罗酮 β-Ionone	19.07 ± 1.70 b		25.23 ± 4.10 a		21.36 ± 0.90 ab		18.81 ± 3.14 b		—
		种类 Kind	2		2		3		3		2
		总和 Sum	116.86 d		85.75 e		210.13 b		325.33 a		134.09 c
酸类Acids		草酸 Oxalic acid	147.90 ± 6.88 d		293.27 ± 30.64 c		398.21 ± 6.41 a		363.32 ± 3.00 b		341.48 ± 6.91 b
酯类Esters		正己酸乙酯 Ethyl caproate	493.27 ± 30.64 b		530.48 ± 34.51 b		623.81 ± 6.11 a		598.21 ± 6.41 a		627.79 ± 2.35 a
烷烃类 Alkanes		正十二烷 N-dodecane	40.80 ± 2.07 a		41.00 ± 3.84 a		42.14 ± 3.41 a		31.96 ± 1.64 b		23.49 ± 2.96 c
		十三烷 Tridecane	64.40 ± 0.53 a		57.02 ± 10.30 a		56.98 ± 4.07 a		57.04 ± 1.41 a		43.77 ± 3.33 b
		十四烷 Tetradecane	208.36 ± 19.69 e		241.90 ± 16.42 d		312.77 ± 15.24 b		354.80 ± 1.16 a		273.23 ± 15.37 c
		正十五烷 N-pentadecane	114.76 ± 10.01 d		151.90 ± 2.90 c		208.36 ± 19.69 b		241.90 ± 16.42 a		168.85 ± 14.10 c
		正十六烷 N-hexadecane	—		—		69.52 ± 0.32c		93.94 ± 4.14b		160.31 ± 27.74a
		二十二烷 Docosane	702.18 ± 55.33 e		814.76 ± 10.01 d		931.71 ± 20.71 c		1 065.43 ± 89.63 b		1 218.76 ± 10.03 a
		正二十一烷 N-heneicosane	—		264.80 ± 11.02 d		293.65 ± 4.22 c		585.18 ± 11.13 a		485.18 ± 11.13 b
		二十五烷 Pentacosane	60.42 ± 2.18 a		—		—		—		—
		正二十六烷 N-hexacosane	19.07 ± 1.70 b		19.90 ± 0.97 b		21.36 ± 0.90 ab		25.23 ± 4.10 a		23.49 ± 2.96 ab
		三十一烷 Hentriacontane	51.12 ± 6.80 d		60.42 ± 2.18 c		72.36 ± 5.77 b		81.36 ± 0.90 a		75.23 ± 4.10 ab
		种类 Kind	8		8		9		9		9
		总和 Sum	1 261.12 d		1 651.69 c		2 008.87 b		2 536.83 a		2 472.31 a
酚类 Phenols		2,6-二叔丁基-4-甲基苯酚 2,6-Di-tert-butyl-4-methylphenol	609.49 ± 13.61 c		693.15 ± 7.28 ab		733.86 ± 69.52 a		739.78 ± 28.66 a		652.26 ± 46.10 bc
萜烯类 Terpenes		石竹素 Caryophyllin	—		—		—		—		7.05 ± 0.49 a
		种类 Kind	25		27		28		28		28
		总和 Sum	6 614.76 c		8 077.19 b		10 266.82 a		9 962.33 a		9 427.53 ab
