西瓜卵形家族蛋白编码基因ClOFP16的克隆及功能研究

doi:10.16420/j.issn.0513-353x.2025-0571

摘要/Abstract

摘要：

卵形家族蛋白（ovate family proteins，OFP）是一类植物中特有的转录因子，参与植物细胞内的信号转导和生物合成。以西瓜‘TN07011’为材料，克隆ClOFP16的编码基因（ClOFP16，Cla97C10G206030.1）并对其进行功能分析。结果表明：ClOFP16为1 020 bp，共编码339个氨基酸，其蛋白N端含有DNA结合结构域，C端含有Ovate保守结构域。亚细胞定位结果显示ClOFP16定位于细胞核中。利用RT-qPCR分析发现，ClOFP16在盐和4 ℃低温胁迫下上调表达，在干旱胁迫中下调表达。在拟南芥中过表达ClOFP16，T₃代拟南芥种子纵径减小；T₃代植株在盐和低温胁迫下ClOFP16表达量显著上调，且其SOD、POD和CAT酶活性显著上升，叶绿素和可溶性蛋白含量显著提高，而MDA的累积降低。综上，ClOFP16在植物生长发育和非生物胁迫响应中具有重要功能。

关键词: 西瓜, 转录因子, ClOFP16, 非生物胁迫, 功能验证

Abstract:

Ovate family proteins（OFP）constitute a class of plant-specific transcription factors implicated in intracellular signal transduction and biosynthetic processes in plants. Utilizing the watermelon cultivar‘TN07011’，the coding sequence（CDS）of ClOFP16 were isolated and performed functional characterization. Results demonstrate that ClOFP16 comprises 1 020 base pairs，encoding a protein of 339 amino acids. The encoded protein harbors an N-terminal DNA-binding domain and a C-terminal conserved Ovate domain. Subcellular localization assays confirmed the nuclear localization of ClOFP16. RT-qPCR analysis demonstrated that ClOFP16 transcript abundance was significantly upregulated under salt and 4 ℃ cold stress，but downregulated under drought stress. Arabidopsis thaliana overexpressing ClOFP16 exhibited reduced seed longitudinal diameter in T₃ generation. Under salt and low-temperature stress conditions，T₃ generation plants exhibited a significant upregulation of ClOFP16 expression. Concurrently，the activities of the antioxidant enzymes SOD，POD，and CAT were markedly increased. Furthermore，total chlorophyll content and soluble protein content were significantly elevated，while the accumulation of malondialdehyde（MDA）was reduced. Collectively，these findings implicate ClOFP16 in pivotal roles governing plant growth and development，as well as in mediating adaptive responses to abiotic stress.

Key words: watermelon, transcription factor, ClOFP16, abiotic stress, functional verification

蔡泽宇, 李爱, 朱佳伟, 邓满, 靳羽璇, 张卫华, 吴颖. 西瓜卵形家族蛋白编码基因ClOFP16的克隆及功能研究[J]. 园艺学报, 2026, 53(5): 1329-1342.

CAI Zeyu, LI Ai, ZHU Jiawei, DENG Man, JIN Yuxuan, ZHANG Weihua, WU Ying. Cloning and Functional Analysis of Citrullus lanatus Ovate Family Protein Gene ClOFP16[J]. Acta Horticulturae Sinica, 2026, 53(5): 1329-1342.

图/表 12

表1 ClOFP16基因PCR及RT-qPCR所用引物

Table 1 Primers for PCR and RT-qPCR of ClOFP16 gene

引物名称 Primer name	引物序列（5'-3'） Primer sequences	引物用途 Primer purpose
ClOFP16-F	ATGAAGAAGCAAAGGCAAAAAAG	目标基因克隆
ClOFP16-R	CTAATAATGAACTCCAATATCC	Target gene cloning
ClOFP16-MQ-F	GGGGTACCATGAAGAAGCAAAGGCAAAAAAG	植物过表达载体构建
ClOFP16-MQ-R	GCGTCGACCTAATAATGAACTCCAATATCC	Construction of plant overexpression vector
ClOFP16-Y-R	GCGTCGACATAATGAACTCCAATATCCGTCATG	亚细胞定位载体构建 Construction of subcellular localization vector
ClOFP16-Q-F	AAAAGAACCGTGGTGGGC
ClOFP16-Q-R	TGTGATCTGGGCGTGAAA
Atactin-F	GCCATCCAAGCTGTTCTCTC	内参引物
Atactin-R	GCTCGTAGTCAACAGCAACAA	Reference gene
ClACTIN-F	TTGTGTTGGACTCTGGTGATGG
ClACTIN-R	CCGTTCAGCAGTGGTGGTG

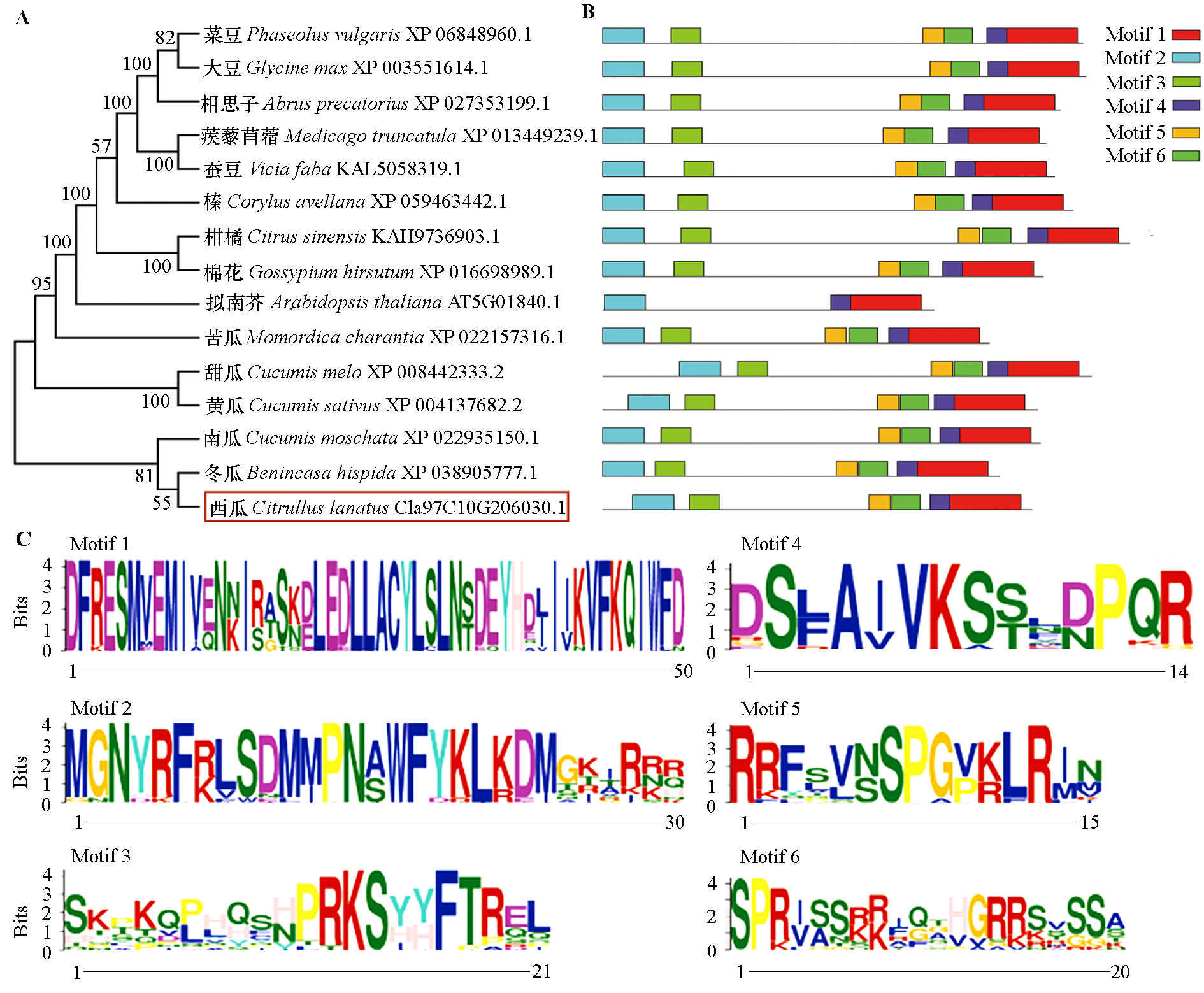

图1 OFP的系统发育进化树（A）、保守基序（B）和保守基序的序列特征（C）

Fig. 1 Phylogenetic tree of OFP（A），conserved motifs（B），and sequence characteristics of conserved motifs（C）

图2 ClOFP与其他物种OFP的多序列比对

Fig. 2 Multi sequence alignment of ClOFP with OFP from other species

图3 ClOFP16在烟草表皮中的亚细胞定位

Fig. 3 Subcellular localization of ClOFP16 in tobacco epidermis

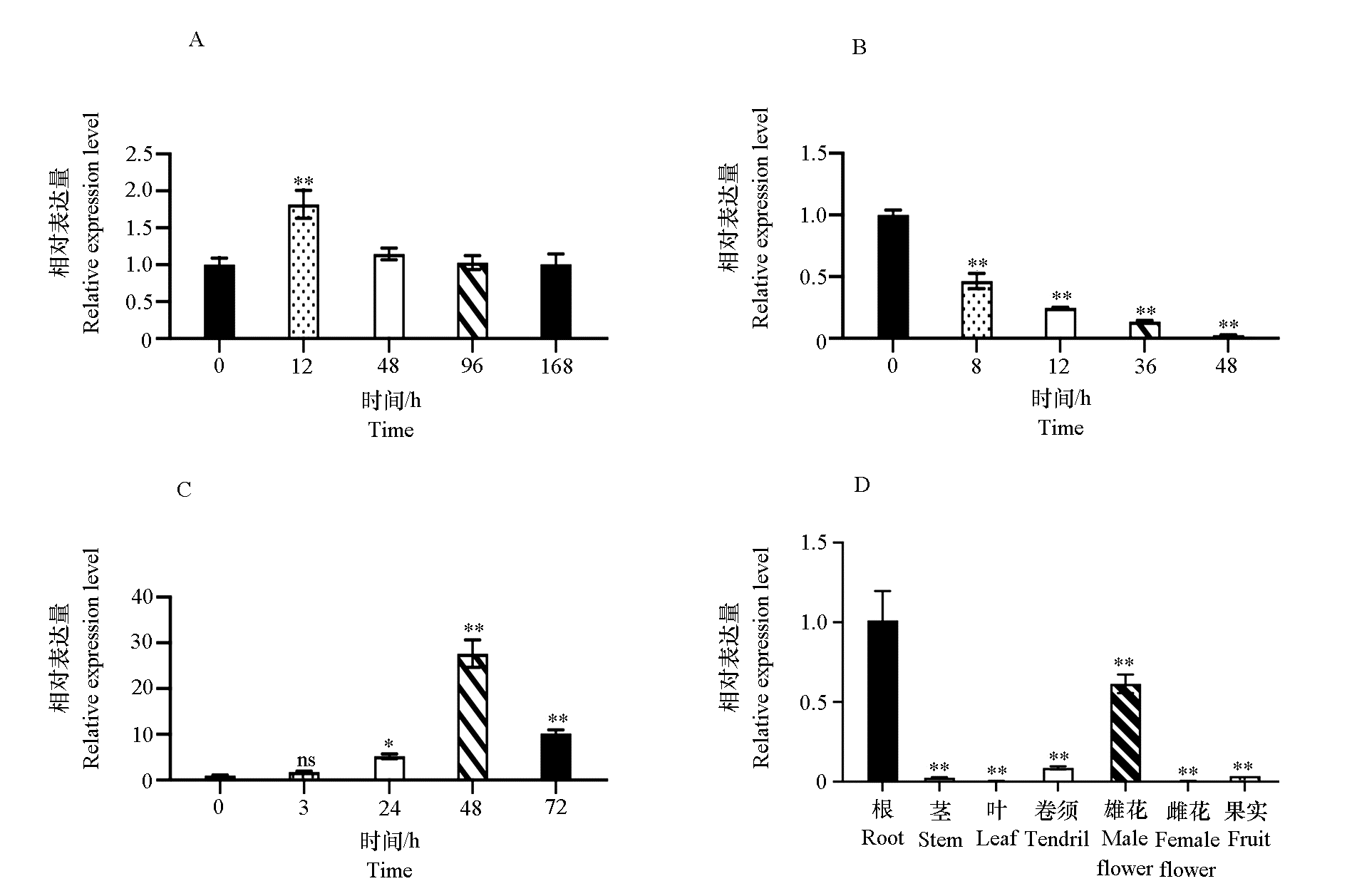

图4 ClOFP16在胁迫（A、B、C）和不同组织（D）中的表达模式 A：盐胁迫；B：干旱胁迫；C：低温胁迫；D：不同组织。*和**分别表示在P < 0.05、P < 0.01 下存在显著差异；ns表示无显著差异。下同

Fig. 4 Expression patterns of ClOFP16 under stress treatments（A，B，C）and in different tissues（D） A：Salt；B：Drought；C：Low temperature；D：Different tissues. * and ** indicate significant differences at P < 0.05，P < 0.01 respectively；ns indicates no significant difference. The same below

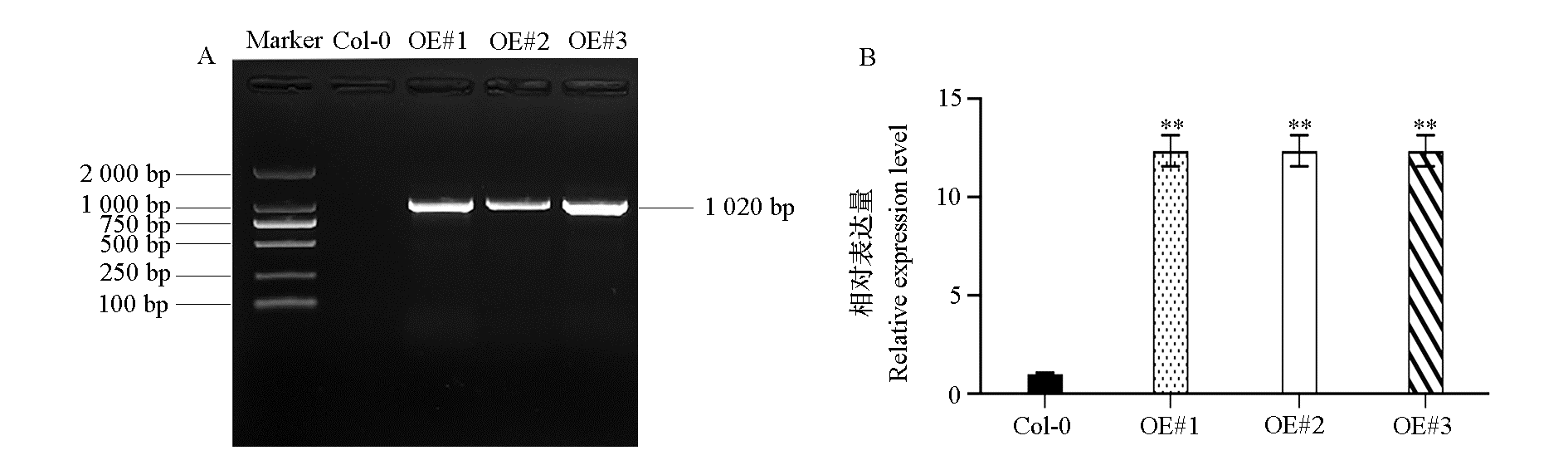

图5 拟南芥过表达ClOFP16株系（OE#）的鉴定

Fig. 5 Identification of Arabidopsis thaliana overexpressing ClOFP16 strain（OE#）

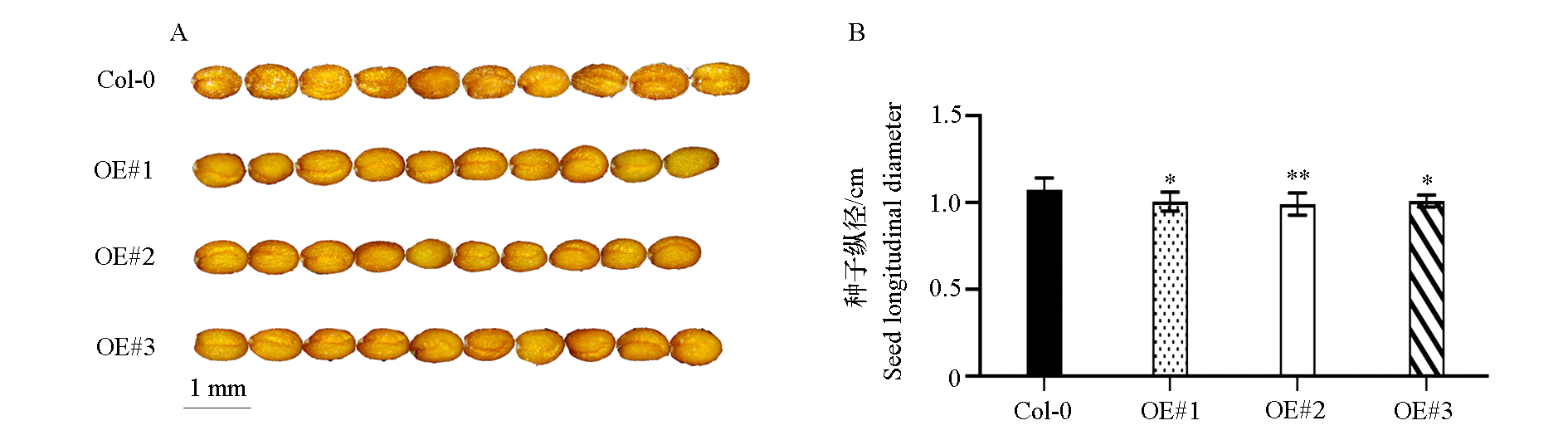

图6 拟南芥种子平均纵径长度比较

Fig. 6 Comparison of average longitudinal diameter length of Arabidopsis seeds

图7 非生物胁迫下14 d的T3代拟南芥OE#1、OE#2和OE#3的表型

Fig. 7 Phenotypes of OE#1，OE#2，and OE#3 in T3 Arabidopsis thaliana under abiotic stresses for 14 d

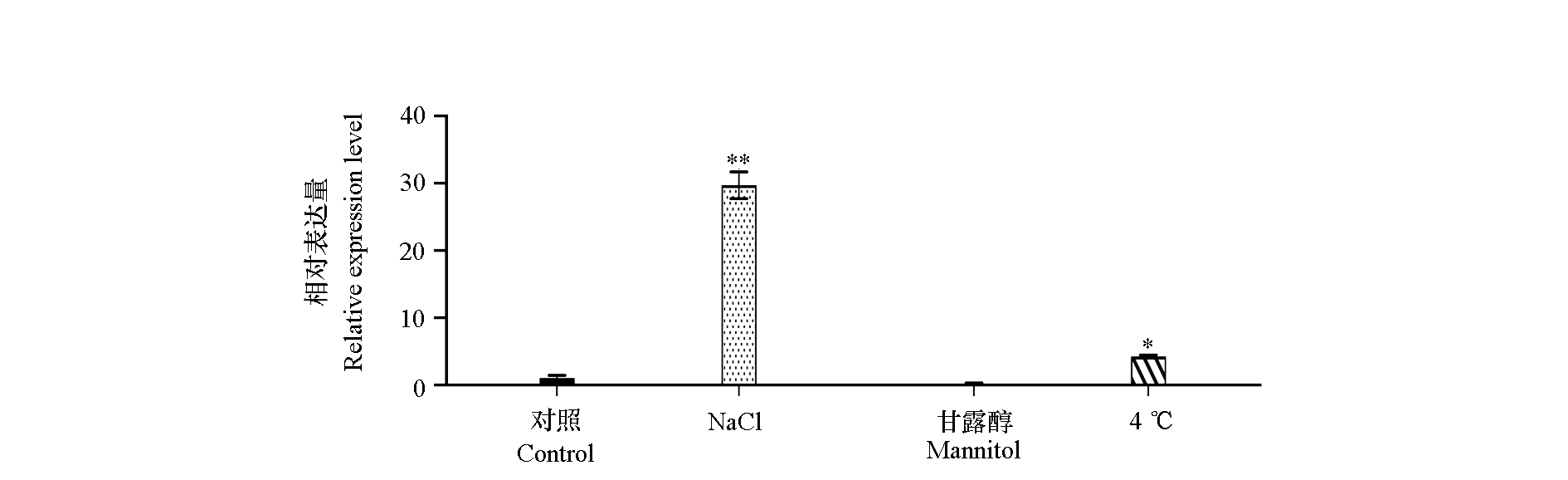

图8 非生物胁迫下过表达ClOFP16拟南芥中基因表达量

Fig. 8 Overexpression of ClOFP16 gene expression in Arabidopsis under abiotic stresses

图9 拟南芥在盐胁迫（A）、干旱胁迫（B）和低温胁迫（C）下的NBT和DAB染色观察

Fig. 9 Observation of NBT and DAB staining in Arabidopsis thaliana under salt stress（A），drought stress（B），and low temperature stress（C）

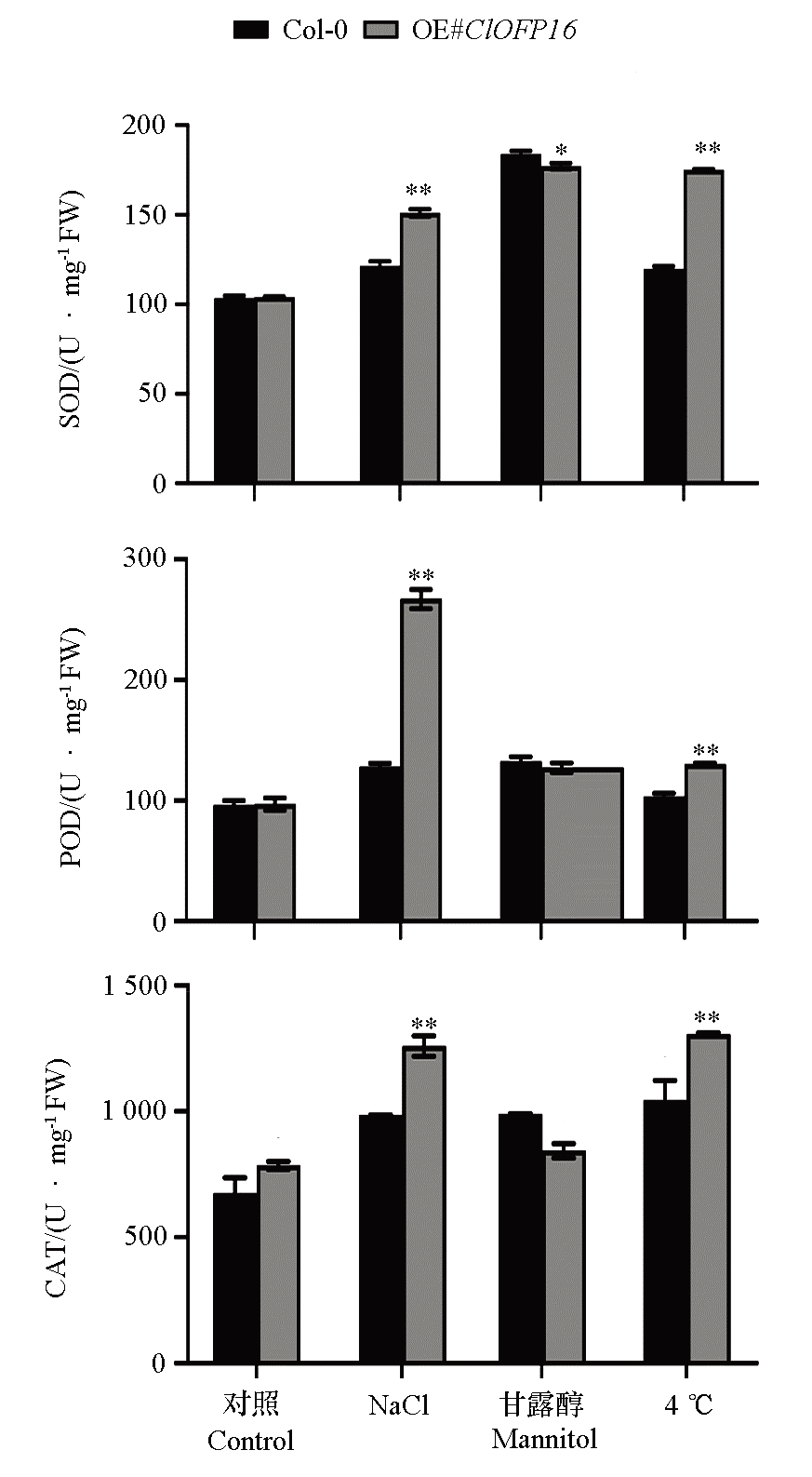

图10 非生物胁迫下OE#ClOFP16株系中SOD、POD和CAT酶活性

Fig. 10 SOD，POD，and CAT enzyme activities in OE#ClOFP16 strain under abiotic stress

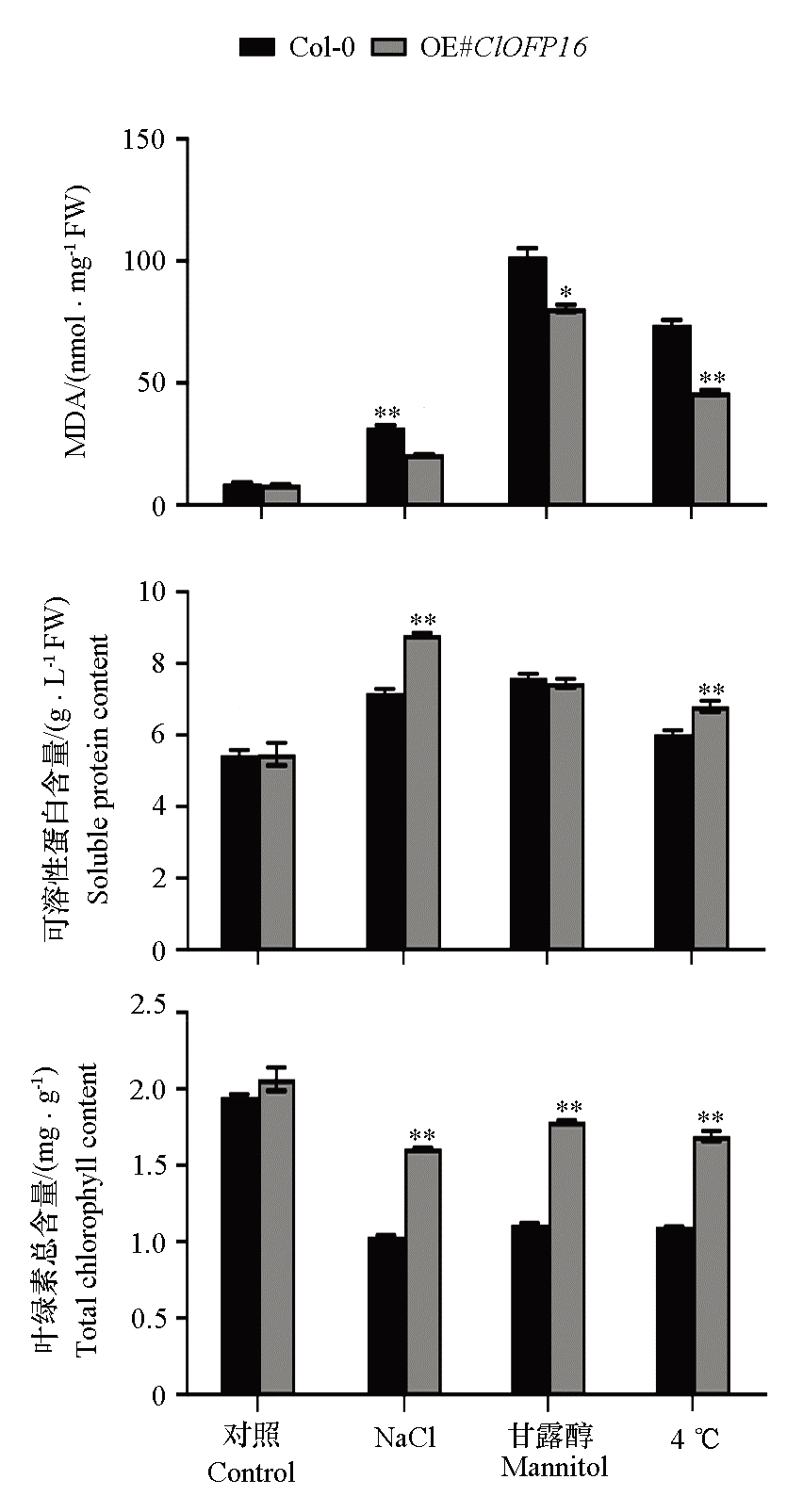

图11 非生物胁迫下OE#ClOFP16株系的丙二醛、可溶性蛋白和叶绿素含量

Fig. 11 Analysis of MDA，SP，and Chl content in the OE#ClOFP16 strain under abiotic stress

参考文献 32

[1]	Chen Haoyuan. 2021. Mechanism analysis of OsOFP22 regulating plant morphology and grain shape by gibberellin and brassinosteroids in rice(Oryza sativa L.)[Ph. D. Dissertation]. Changchun: Jilin University. (in Chinese)
	陈浩源. 2021. OsOFP22通过赤霉素和油菜素甾醇调控水稻株型和粒型的机制分析[博士论文]. 长春: 吉林大学.
[2]	Chen Hongjuan. 2023. Functional study of OsOFP29 gene in regulating rice architecture and grain shape[M. D. Dissertation]. Nanning: Guangxi University. (in Chinese)
	陈洪娟. 2023. OsOFP29基因调控水稻株型和粒型的功能研究[硕士论文]. 南宁: 广西大学.
[3]	Chen S, Zhong K, Li Y, Bai C, Xue Z, Wu Y. 2024. Joint transcriptomic and metabolomic analysis provides new insights into drought resistance in watermelon(Citrullus lanatus). Frontiers in Plant Science, 15:1364631. doi: 10.3389/fpls.2024.1364631 URL
[4]	Cheng Xin. 2021. Bioinformatics analysis of OFP gene family in Solanum lycopersicum. Jiangsu Agricultural Science, 49 (18):39-48. (in Chinese)
	程欣. 2021. 番茄OFP基因家族生物信息学分析. 江苏农业科学, 49 (18):39-48.
[5]	He C, Luo C, Yan J, Zhai X, Liu W, Xie D, Wu Y, Jiang B. 2024. Genome-wide identification of the OVATE family proteins and functional analysis of BhiOFP1,BhiOFP5,and BhiOFP18 during fruit development in wax gourd (Benincasa hispida). Plant Physiology and Biochemistry, 216:109135. doi: 10.1016/j.plaphy.2024.109135 URL
[6]	Hu Yifeng. 2022. Analysis of wheat OFP transcription factor gene family and preliminary functional verification[M.D. Dissertation]. Jingzhou:Changjiang University. (in Chinese)
	胡义锋. 2022. 小麦OFP转录因子基因家族分析及初步功能验证[硕士论文]. 荆州: 长江大学.
[7]	Huang Wei, Li Jing, Huang Wei, Cai Pumo, Li Yanyan, Nie Chuanpeng. 2025. Bioinformatics analysis of OFP genes family in tea. plant. Molecular Plant Breeding, https://link.cnki.net/urlid/46.1068.S.20221201.1332.004. (in Chinese)
	黄威, 李静, 黄薇, 蔡普默, 李焰焰, 聂传朋. 2025. 茶树OFP基因家族生物信息学分析. 分子植物育种, https://link.cnki.net/urlid/46.1068.S.20221201.1332.004.
[8]	Liu D, Sun W, Yuan Y, Zhang N, Hayward A, Liu Y, Wang Y. 2014. Phylogenetic analyses provide the first insights into the evolution of OVATE family proteins in land plants. Annals of Botany, 113 (7):1219-1233. doi: 10.1093/aob/mcu061 pmid: 24812252
[9]	Liu J, Van E J, Cong B, Tanksley S D. 2002. A new class of regulatory genes underlying the cause of pear-shaped tomato fruit. Proceedings of the National Academy of Sciences of the United States of America, 99 (20):13302-13306.
[10]	Liu Y, Zhang W H, Dinakaran E, Liu H, Jin D D, Wang X, Wu Y. 2022. Metabolome and transcriptome analysis reveals molecular mechanisms of watermelon under salt stress. Environmental and Experimental Botany, 206:105200. doi: 10.1016/j.envexpbot.2022.105200 URL
[11]	Ma Y M, Yang C, He Y, Tian Z H, Li J X. 2017. Rice OVATE family protein 6 regulates plant development and confers resistance to drought and cold stresses. Journal of Experimental Botany, 68 (17):4885-4898. doi: 10.1093/jxb/erx309 pmid: 29048565
[12]	Rodríguez G R, Kim H J, Knaap V D. 2013. Mapping of two suppressors of OVATE(sov)loci in tomato. Heredity, 111 (3):256-264. doi: 10.1038/hdy.2013.45 pmid: 23673388
[13]	Su Yanyan, Wang Yutong, Jing Yanfu, Xu Yaoguang, Yu Yang, Xie Hua. 2025. Identification of PpTRM gene family members and screening the interacting PpTRMs with the fruit shape regulator PpOFP1 in peach. Acta Horticulturae Sinica, 52 (11):2835-2845. (in Chinese) doi: 10.16420/j.issn.0513-353x.2025-0250
	苏艳艳, 王雨童, 荆彦付, 徐摇光, 于洋, 谢华. 2025. 桃TRM基因家族鉴定及与果形调控因子PpOFP1的互作筛选. 园艺学报, 52 (11):2835-2845. doi: 10.16420/j.issn.0513-353x.2025-0250
[14]	Sun X, Ma Y, Yang C, Li J. 2020. Rice OVATE family protein 6 regulates leaf angle by modulating secondary cell wall biosynthesis. Plant Molecular Biology, 104 (3):249-261. doi: 10.1007/s11103-020-01039-2
[15]	Thomas M C, Chiang C M. 2006. The general transcription machinery and general cofactors. Critical Reviews in Biochemistry and Molecular Biology, 41 (3):105-178. doi: 10.1080/10409230600648736 pmid: 16858867
[16]	Tsaballa A, Pasentsis K, Darzentas N, Tsaftaris A S. 2011. Multiple evidence for the role of an Ovate-like gene in determining fruit shape in pepper. BMC Plant Biology,(11):46.
[17]	Wang D, Cao Z, Wang W, Zhu W, Tang Y. 2020. Genome-wide characterization of OFP family genes in wheat(Triticum aestivum L.) reveals that TaOPF29a-A promotes drought tolerance. BioMed Research International,(2020):9708324.
[18]	Wang H, Chen J G, Chang Y. 2021. Identification,expression,and interaction analysis of Ovate family proteins in Populus trichocarpa reveals a role of PtOFP1 regulating drought stress response. Frontiers in Plant Science,12:650109.
[19]	Wang S, Chang Y, Guo J, Zeng Q, Ellis B E, Chen J G. 2011. Arabidopsis ovate family proteins,a novel transcriptional repressor family,control multiple aspects of plant growth and development. PLoS ONE, 6 (8):e23896. doi: 10.1371/journal.pone.0023896 URL
[20]	Wu Q, Sun J, Fu J, Yu H, Wang X, Wang S, Adhikari P B, Deng X, Xu Q. 2022. Genome-wide identification of ovate family in citrus and functional characterization of CitOFP19. Plant Science, 32:111328.
[21]	Wu S, Zhang B, Keyhaninejad N, Rodríguez G R, Kim H J, Chakrabarti M, Illa-Berenguer E, Taitano N K, Gonzalo M J, Díaz A, Pan Y, Leisner C P, Halterman D, Buell C R, Weng Y, Jansky S H, van Eck H, Willemsen J, Monforte A J, Meulia T, van der Knaap E. 2018. A common genetic mechanism underlies morphological diversity in fruits and other plant organs. Nature Communications, 9 (1):4734. doi: 10.1038/s41467-018-07216-8 pmid: 30413711
[22]	Xiao Y, Liu D, Zhang G, Tong H, Chu C. 2017. Brassinosteroids regulate OFP1,a DLT interacting protein,to modulate plant architecture and grain,morphology in rice. Frontiers in Plant Science,8:1698.
[23]	Xu Ruirui, Li Rui, Wang Xiaofei, Hao Yujin. 2018. Identification and expression analysis under abiotic stresses of OFP gene family in apple. Chinese Agricultural Science, 51 (10):1948-1959. (in Chinese)
	许瑞瑞, 李睿, 王小非, 郝玉金. 2018. 苹果OFP基因家族的全基因组鉴定与非生物逆境表达分析. 中国农业科学, 51 (10):1948-1959. doi: 10.3864/j.issn.0578-1752.2018.10.014
[24]	Xu J, Zhang M, Liu G, Yang X, Hou X. 2016. Comparative transcriptome profiling of chilling stress responsiveness in grafted watermelon seedlings. Plant Physiology and Biochemistry,109:561-570.
[25]	Yang Li. 2017. Regulation of siliques morphology by AtOFP16,a member of the class III OVATE family proteins in Arabidopsis[M. D. Dissertation]. Chuangchun: Northeast Normal University. (in Chinese)
	杨丽. 2017. Ⅲ型卵形蛋白家族转录因子AtOFP16调控拟南芥荚果形态的机制[硕士论文]. 长春: 东北师范大学.
[26]	Yu H, Jiang W, Liu Q, Zhang H, Piao M, Chen Z, Bain M. 2017. Expression pattern and subcellular localization of the Ovate protein family in rice. PLoS ONE, 10 (3):e0118966. doi: 10.1371/journal.pone.0118966 URL
[27]	Yuan Yue, Zhang Yaguang, Gao Shimin, Tao Jianmin. 2016. Bioinformatics and expression of the OVATE gene family in grape. Scientia. Agricultura Sinica, 49 (19):3786-3797. (in Chinese)
	袁月, 张亚光, 高世敏, 陶建敏. 2016. 葡萄OVATE基因家族生物信息学及表达. 中国农业科学, 49 (19):3786-3797. doi: 10.3864/j.issn.0578-1752.2016.19.010
[28]	Zhang Lei, Wu Jingchun, Zhang Haiying, Gong Guoyi, Liu Tangjing, Zhang Jie, Xu Yong. 2023. Advances in functional genes for important traits in watermelon. Acta Horticulturae Sinica, 50 (12):2748-2764. (in Chinese) doi: 10.16420/j.issn.0513-353x.2022-1218
	张磊, 武竞春, 张海英, 宫国义, 柳唐镜, 张洁, 许勇. 2023. 西瓜重要性状功能基因研究进展. 园艺学报, 50 (12):2748-2764. doi: 10.16420/j.issn.0513-353x.2022-1218
[29]	Zhang Yanqin, Chang Jianzhong, Dong Chunlin, Yang Lili, Zhang Zheng, Yang Rui, Liang Gaimei, Ding Baopeng. 2020. Genome-wide identification and expression analysis of OFP gene family in Zea mays. Molecular Plant Breeding, 18 (20):6595-6604. (in Chinese)
	张彦琴, 常建忠, 董春林, 杨丽莉, 张正, 杨睿, 梁改梅, 丁保朋. 2020. 玉米OFP基因家族全基因组鉴定及表达分析. 分子植物育种, 18 (20):6595-6604.
[30]	Zhao Chunyan. 2017. The cloning and functional analysis of OFP20 gene in tomato[M. D. Dissertation]. Tai’an: Shandong Agricultural University. (in Chinese)
	赵春燕. 2017. 番茄OFP20基因的克隆及功能初步分析[硕士论文]. 泰安: 山东农业大学.
[31]	Zhao Hong. 2023. Functional study of OsOFP14 and OsOFP19 genes in rice[M. D. Dissertation]. Nanning: Guangxi University. (in Chinese)
	赵红. 2023. 水稻OsOFP14和OsOFP19基因的功能研究[硕士论文]. 南宁: 广西大学.
[32]	Zhou Q, Li Y, Wang X, Yan C, Ma C, Liu J, Dong S. 2022. Effects of different drought degrees on physiological characteristics and endogenous hormones of soybean. Plants, 11 (17):2282. doi: 10.3390/plants11172282 URL
