柑橘2个三倍体果实囊衣发育与化渣性评价

doi:10.16420/j.issn.0513-353x.2023-0493

摘要/Abstract

摘要：

探讨柑橘倍性杂交三倍体后代及其二倍体母本果实化渣性差异及原因，为柑橘三倍体果实化渣相关研究奠定数据基础。以本地早橘和红橘为对照，分别对以其为母本与四倍体倍性杂交获得的2个三倍体有性后代果实囊衣发育过程中的厚度变化和组分含量进行分析，探究囊衣结构及其成分对化渣性的影响。结果表明：2个三倍体后代果实囊衣厚度、细胞层数、硬度和剪切力在不同发育时期均显著大于其二倍体母本；与二倍体母本相比，2个三倍体后代囊衣细胞壁更厚，微纤丝密度更大，结构更紧密；囊衣的纤维素、半纤维素、水溶性果胶和原果胶含量均显著高于其二倍体母本，木质素含量则在部分发育时期显著低于二倍体母本。综上所述，果实囊衣厚，纤维素、半纤维素和果胶含量高可能是柑橘部分三倍体化渣性较差的主要原因，而这些指标可用于三倍体化渣性的评价和筛选。

关键词: 柑橘, 三倍体, 囊衣, 化渣性, 纤维素含量

Abstract:

To investigate the reason for the fruit mastication difference between citrus triploid progeny with their diploid parents，two triploid hybrids derived from the crosses with Bendizao tangerine and Red tangerine as female parent were selected as materials to investigate the effect of segmental membrane structure and its components on the mastication of triploid fruits comparing with their diploid parents. In this study，using the two diploid parents as the control，the fruit mastication of the two triploid hybrids was firstly determined with texture analyzer at mature stage. It showed that the hardness and shear force of the segmental membrane of the two triploid progenies were significantly higher than that of their diploid parents，indicating that the segmental membranes of the two triploid hybrids might thicker than that of their corresponding diploid parents. It showed that the thickness and cell layer number of the segmental membranes of the two triploid hybrids were significantly higher than that of their corresponding diploid parents at the same developmental stage started from 120 days after flowering（DAF）. The ultrastructure of the segmental membrane showed that the cell walls in the two triploid hybrids were thicker and the cellulose microfibrils were denser than those of their diploid parents. The content of water-soluble pectin，protopectin，cellulose and hemicellulose in the segment membrane of the two triploid hybrids were significantly higher than that of their diploid parents，while the lignin content was significantly lower at some developmental stage. In conclusion，segmental membrane thickness，water-soluble pectin，protopectin，cellulose and hemicellulose contents are important factors affecting the mastication of some citrus triploid hybrids，providing some useful evaluation indexes to screen superior triploid lines with good fruit mastication quickly from a large-scale triploid population.

Key words: Citrus, triploid hybrids, segmental membrane, mastication, cellulose content

曹惠祥, 罗鑫, 刘婉荣, 管书萍, 王婷婷, 伍小萌, 郭文武, 解凯东. 柑橘2个三倍体果实囊衣发育与化渣性评价[J]. 园艺学报, 2024, 51(6): 1179-1188.

CAO Huixiang, LUO Xin, LIU Wanrong, GUAN Shuping, WANG Tingting, WU Xiaomeng, GUO Wenwu, XIE Kaidong. Evaluation of Fruit Segmental Membrane Development and Mastication in Two Citrus Triploids[J]. Acta Horticulturae Sinica, 2024, 51(6): 1179-1188.

图/表 5

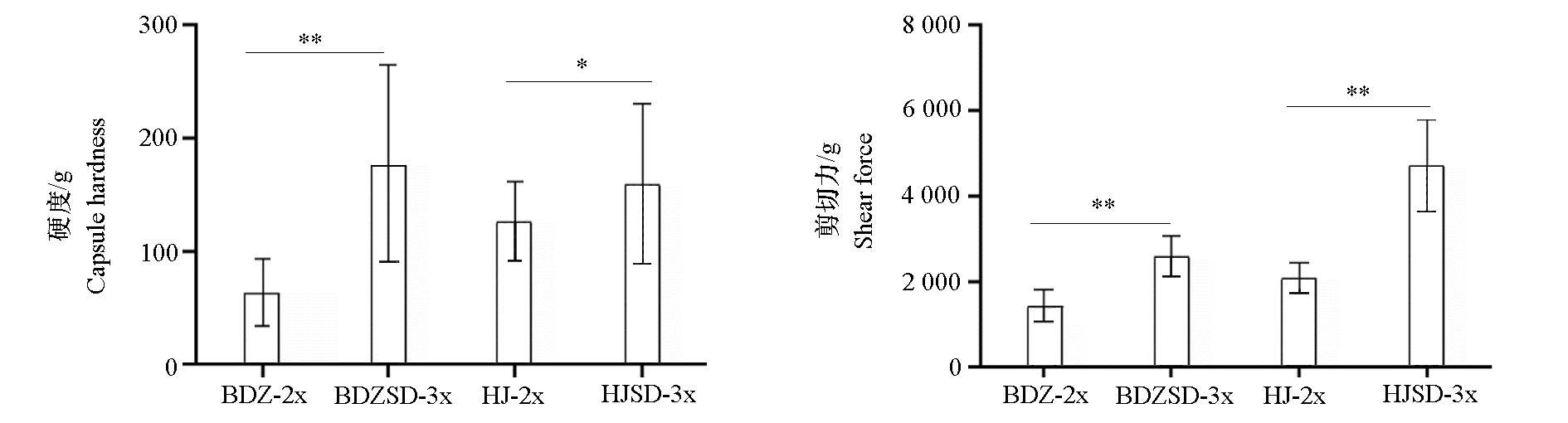

图1 三倍体后代（BDZSD-3x、HJSD-3x）及其二倍体母本（BDZ-2x、HJ-2x）成熟期果实的囊衣硬度和囊瓣剪切力

Fig. 1 Capsule hardness and shear force determination of the segmental membranes in two triploid hybrids（BDZSD-3x，HJSD-3x）and their corresponding diploid parents（BDZ-2x，HJ-2x） t-test，* α = 0.05，** α = 0.01.

图2 三倍体后代（BDZSD-3x、HJSD-3x）及其二倍体母本（BDZ-2x、HJ-2x）花后60 ~ 210 d的果实囊衣发育动态

Fig. 2 Cytological observation of the segmental membranes in the two triploid hybrids（BDZSD-3x，HJSD-3x）and their corresponding diploid parents（BDZ-2x，HJ-2x）60-120 d after anthesis

图3 三倍体后代（BDZSD-3x、HJSD-3x）及其二倍体母本（BDZ-2x、HJ-2x）花后120 ~ 210 d的果实囊衣的厚度和细胞层数

Fig. 3 Thickness and cell layer number determination of the segmental membranes in the two triploid hybrids（BDZSD-3x，HJSD-3x）with their corresponding diploid parents（BDZ-2x，HJ-2x）120-210 d after anthesis t-test，* α = 0.05，** α = 0.01.

图4 三倍体后代（BDZSD-3x、HJSD-3x）及其二倍体母本（BDZ-2x、HJ-2x）花后90、150和210 d果实囊衣超微结构

Fig. 4 Ultrastructural comparison of the segmental membranes in the two triploid hybrids（BDZSD-3x，HJSD-3x）and their corresponding diploid parents（BDZ-2x，HJ-2x）90，150 and 210 d after anthesis

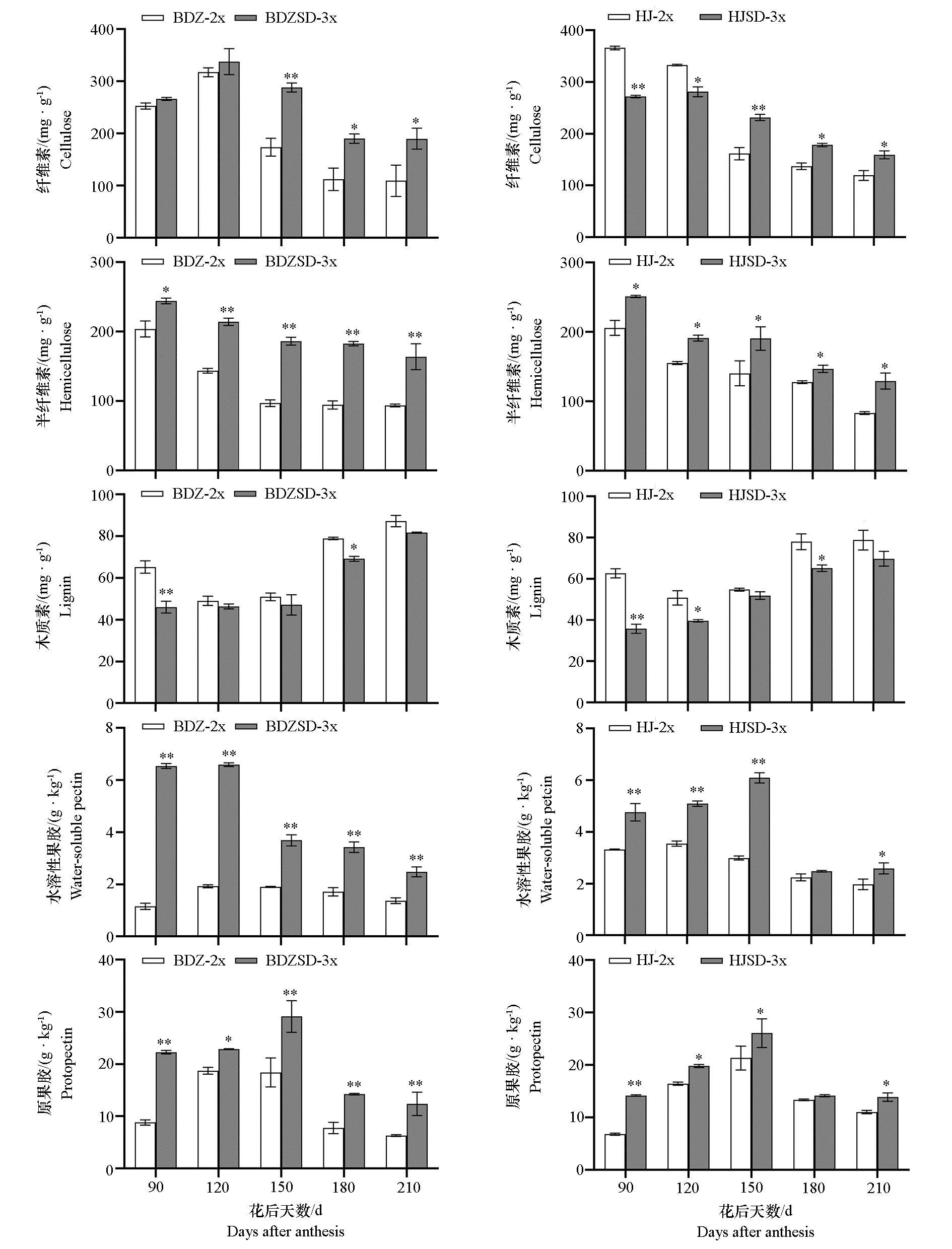

图5 三倍体后代（BDZSD-3x、HJSD-3x）及其二倍体母本（BDZ-2x、HJ-2x）花后90 ~ 210 d果实囊衣纤维素等含量

Fig. 5 Cellulose，hemicellulose，lignin，water-soluble pectin and protopectin contents in the segmental membranes in the two triploid hybrids（BDZSD-3x，HJSD-3x）and their corresponding diploid parents（BDZ-2x，HJ-2x）90-210 after anthesis t-test，* α = 0.05，** α = 0.01.

参考文献 23

[1]	Chen Jiajing, Liu Yuan, Wu Yanuo, Xu Juan, Zhang Hongyan. 2023. Sensory fuzzy modeling and sugar and acid analysis based evaluation of fruit quality difference in different‘Ehime Kashi 28’samples. Acta Horticulturae Sinica, 50 (11):2466-2476. (in Chinese) doi: 10.16420/j.issn.0513-353x.2022-0978
	陈嘉景, 刘园, 吴雅诺, 徐娟, 张红艳. 2023. 基于感官模糊建模和糖酸分析评价‘红美人’杂柑的品质. 园艺学报, 50 (11):2466-2476. doi: 10.16420/j.issn.0513-353x.2022-0978
[2]	Cuenca J, Aleza P, Juárez J A, Pina J A, Navarro L. 2010. ‘Safor’Mandarin,a new citrus mid-late triploid hybrid. HortScience, 45 (6):977-980.
[3]	Cuenca J, Aleza P, Juárez J, Pina J A, Navarro L. 2015. Two new IVIA triploid Mandarin hybrids:‘Alborea’and‘Albir’. Acta Horticulturae, 1065 (1):209-214.
[4]	Deng Xiuxin. 2022. A review and perspective for citrus breeding in China during the last six decades. Acta Horticulturae Sinica, 49 (10):2063-2074. (in Chinese) doi: 10.16420/j.issn.0513-353x.2021-0701
	邓秀新. 2022. 中国柑橘育种60年回顾与展望. 园艺学报, 49 (10):2063-2074. doi: 10.16420/j.issn.0513-353x.2021-0701
[5]	Feng G Z, Ai X, Yi H L, Guo W W, Wu J X. 2021. Genomic and transcriptomic analyses of Citrus sinensis varieties provide insights into Valencia orange fruit mastication trait formation. Horticulture Research, 8:218.
[6]	Gao Jing-fei, Wang Zhi-hui, Xiong Bo, Shi Dong-dong, Zhang Ting-ting, Zeng Hai-qiong, Liao Ling, Cao Shu-yan, Gu Xian-jie, Li Qing-nan. 2015. Correlations of albedo fracture toughness with cell wall substances and enzyme activities in Kiyomi fruits. Food Science, 36 (23):131-135. (in Chinese) doi: 10.7506/spkx1002-6630-201523025
	高婧斐, 汪志辉, 熊博, 石冬冬, 张婷婷, 曾海琼, 廖玲, 曹淑燕, 古咸杰, 李清南. 2015. 细胞壁组分及酶活性与清见果实囊衣绵韧的相关性. 食品科学, 36 (23):131-135. doi: 10.7506/spkx1002-6630-201523025
[7]	Gu Qing-qing, Tang Hong-ying, Wei Qing-jiang, Gu Xiang, Feng Fang-fang, Luo Zheng-rong. 2016. Studies on the relationship between cellulose metabolism and fruit mastication trait of Nanfeng tangerine. Acta Horticulturae Sinica, 43 (5):867-875. (in Chinese) doi: 10.16420/j.issn.0513-353x.2015-0750
	辜青青, 唐红英, 魏清江, 古湘, 冯芳芳, 罗正荣. 2016. 南丰蜜橘果实纤维素代谢与化渣的关系研究. 园艺学报, 43 (5):867-875. doi: 10.16420/j.issn.0513-353x.2015-0750
[8]	Gu Xiang. 2016. Study on the relationship between lignin metabolism and mastication of Nanfeng tangerine[M. D. Dissertation]. Nanchang: Jiangxi Agricultural University. (in Chinese)
	古湘. 2016. 南丰蜜橘木质素代谢与化渣的关系研究[硕士论文]. 南昌: 江西农业大学.
[9]	Lei Y, Liu Y Z, Gu Q Q, Yang X Y, Deng X X, Chen J Y. 2012. Comparison of cell wall metabolism in the pulp of three cultivars of‘Nanfeng’tangerine differing in mastication trait. Journal of the Science of Food and Agriculture, 92 (3):496-502.
[10]	Li Fei-fei, Lian Xue-fei, Yin Tao, Chang Yuan-yuan, Ma Xiao-chuan, Chen Yue-wen, Ye Li, Li Yun-song, Lu Xiao-peng. 2023. The relationship between mastication and development of segment membranes in citrus fruits. Scientia Agricultura Sinica, 56 (2):333-344. (in Chinese) doi: 10.3864/j.issn.0578-1752.2023.02.010
	李菲菲, 廉雪菲, 尹韬, 常媛媛, 马小川, 陈岳文, 叶丽, 李云松, 卢晓鹏. 2023. 柑橘果实囊衣发育与化渣性的形成. 中国农业科学, 56 (2):333-344. doi: 10.3864/j.issn.0578-1752.2023.02.010
[11]	Lian X F, Li F F, Chang Y Y, Zhou T, Chen Y W, Yin T, Li Y S, Ye L, Jin Y, Lu X P. 2021. Physiological and ultrastructural alterations linked to intrinsic mastication inferiority of segment membranes in Satsuma mandarin(Citrus unshiu Marc.)fruits. Plants, 11 (1):39.
[12]	Liu Y Z, Dong T, Lei Y, Deng X X. 2011. Isolation of a polygalacturonase gene from Citrus sinensis fruit and its expression relative to fruit mastication trait,fruit development,and calcium or boron treatments. Plant Molecular Biology Reporter, 29:51-59.
[13]	Recupero G R, Russo G, Recupero S. 2005. New Promising Citrus triploid hybrids selected from crosses between monoembryonic diploid female and tetraploid male parents. HortScience, 3:516-520.
[14]	Tang Hong-ying. 2015. Study on the relationship between cellulose,hemicellulose metabolism and mastication of Nanfeng tangerine[M. D. Dissertation]. Nanchang: Jiangxi Agricultural University. (in Chinese)
	唐红英. 2015. 南丰蜜橘纤维素、半纤维素代谢与化渣性关系研究[硕士论文]. 南昌: 江西农业大学.
[15]	Wang Kun-jiao, Han-Xu, Zhang Zhi-cheng, Zhu Zong-ying, Tan Qi-ling, Hu Cheng-xiao. 2018. Effects of recommended fertilization on fruit quality and pulp texture inmandarin orange‘Satsuma Mandarin’and‘Nanfeng Tangerine’. Journal of Fruit Science, 35 (10):1190-1196. (in Chinese)
	王鲲娇, 韩旭, 张志成, 朱宗瑛, 谭启玲, 胡承孝. 2018. 推荐施肥对‘温州蜜柑’和‘南丰蜜橘’品质与化渣性的影响. 果树学报, 35 (10):1190-1196.
[16]	Wang R, Fang Y N, Wu X M, Qing M, Li C C, Xie K D, Deng X X, Guo W W. 2020. The miR399-CsUBC24 module regulates reproductive development and male fertility in citrus. Plant Physiology, 183:1681-1695.
[17]	Wang Ting-ting, Zhou Yang-guang, Zhu Hong-xian, Zhang Miao, Duan Yao-yuan, Cao Hui-xiang, Guan Shu-ping, Xie Kai-dong, Wu Xiao-meng, Long Chun-rui, Gao Jun-yan, Guo Wen-wu. 2022. Inheritance of sugar and acid content in the fruits of triploid hybrids originated from two 2x × 4x crosses with Nadorcott tangor as female parent. Journal of Fruit Science, 39 (7):1147-1156. (in Chinese)
	王婷婷, 周阳广, 朱虹娴, 张苗, 段耀园, 曹惠祥, 管书萍, 解凯东, 伍小萌, 龙春瑞, 高俊燕, 郭文武. 2022. 2个柑橘三倍体有性群体果实糖酸性状遗传评价. 果树学报, 39 (7):1147-1156.
[18]	Wei Zhang-kui. 2013. Research on mastication of late orange base on textural properties[M. D. Dissertation]. Wuhan: Huazhong Agricultural University. (in Chinese)
	魏张奎. 2013. 基于质构特性的夏橙化渣性研究[硕士论文]. 武汉: 华中农业大学.
[19]	Xie Kai-dong, Wang Xiao-pei, Wang Hui-qin, Liang Wu-jun, Xie Zong-zhou, Guo Da-yong, Yi Hua-lin, Deng Xiu-xin, Grosser Jude W, Guo Wen-wu. 2014. High efficient and extensive production of triploid citrus plants by crossing polyembryonic diploids with tetraploids. Acta Horticulturae Sinica, 41 (4):613-620. (in Chinese)
	解凯东, 王晓培, 王惠芹, 梁武军, 谢宗周, 郭大勇, 伊华林, 邓秀新, Grosser Jude W, 郭文武. 2014. 以柑橘多胚性二倍体母本倍性杂交培育三倍体. 园艺学报, 41 (4):613-620.
[20]	Yan Min, Luo Li-juan, Han Zhong-xing, Yuan Ye, Li Jiang-bo, Du Wei,Liu Yong-zhong. 2019. Comparative study on fruit texture,cell wall structural components and nutrient content between‘Nanfengmiju’and‘Nanfengmiguang’. Hans Journal of Agricultural Sciences, 9 (8):689-696. (in Chinese)
	严敏, 罗丽娟, 韩忠星, 袁野, 李江波, 杜威, 刘永忠. 2019. 南丰蜜橘和南丰蜜广果实质构特性、细胞壁成分及营养元素比较研究. 农业科学, 9 (8):689-696.
[21]	Zhang Li-fang. 2014. Correlation analysis on pectic metabolism and mastication of Nanfeng tangerine fruit[M. D. Dissertation]. Nanchang: Jiangxi Agricultural University. (in Chinese)
	张丽芳. 2014. 南丰蜜橘果胶代谢与化渣性关系研究[硕士论文]. 南昌: 江西农业大学.
[22]	Zheng C S, Lian X, Tan Q L, Zhang Y, Gui H P, Hu C X. 2015. Soil application of calcium and magnesium fertilizer influences the fruit pulp mastication characteristics of Nanfeng tangerine(Citrus reticulata Blanco cv. Kinokuni). Scientia Horticulturae, 191:121-126.
[23]	Zhu Hong-xian. 2021. Evaluation of antioxidant and flavanone glycoside metabolism characteristics of triploid progenies in citrus[M. D. Dissertation]. Wuhan: Huazhong Agricultural University. (in Chinese)
	朱虹娴. 2021. 柑橘三倍体群体果实抗氧化性及黄烷酮糖苷代谢特点评价[硕士论文]. 武汉: 华中农业大学.
