CsPUB54与PmRXLR1互作负向调控黄瓜对疫病的抗性

doi:10.16420/j.issn.0513-353x.2024-0274

摘要/Abstract

摘要：

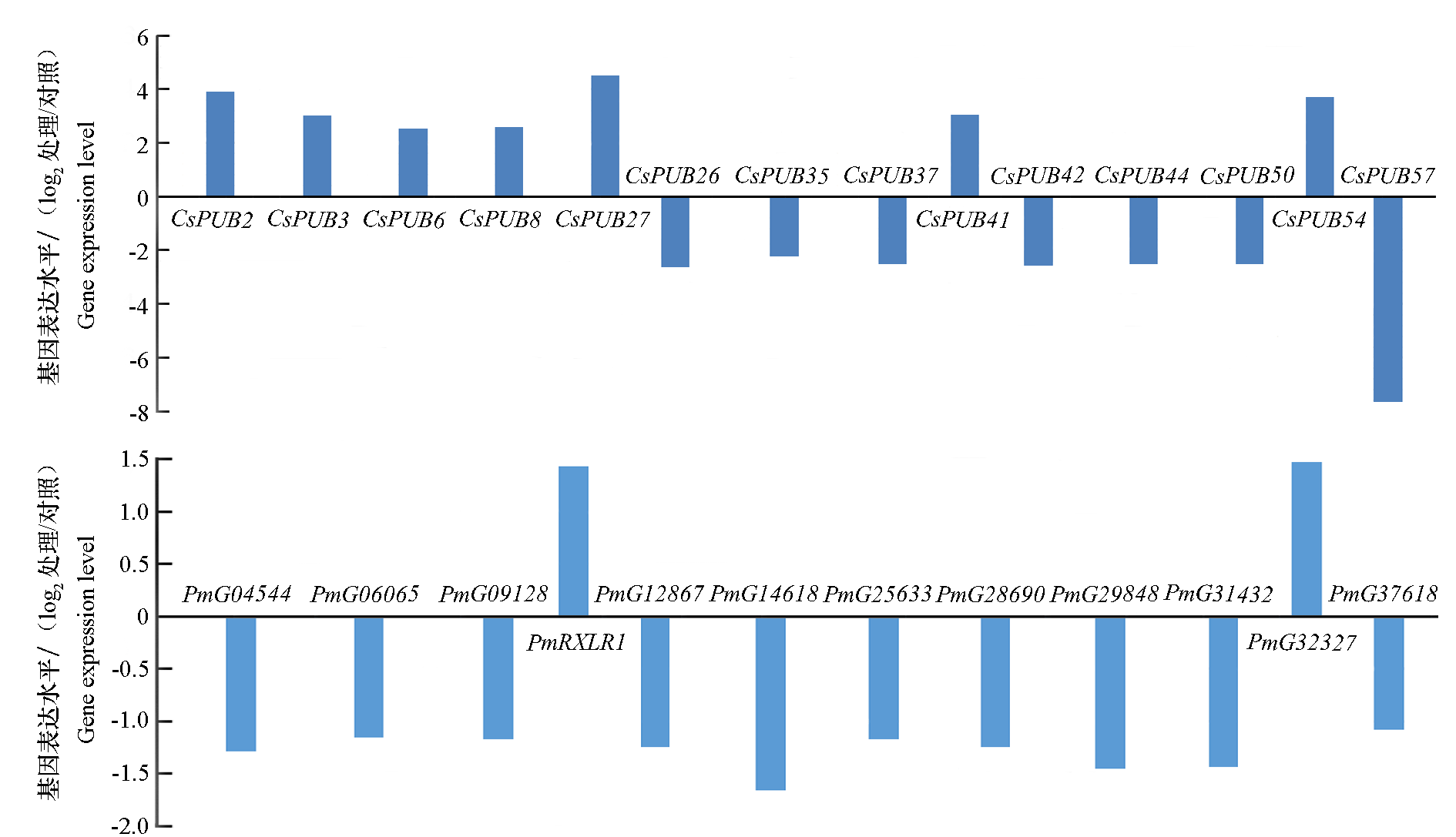

以高感疫病的黄瓜B80和瓜类疫霉菌（Phytophthora melonis）为材料，从B80黄瓜中克隆了1个含有U-box功能域的PUB蛋白家族基因CsPUB54，从P. melonis中克隆到1个RXLR效应蛋白基因，命名为PmRXLR1。B80接种P. melonis 24 h的转录组和qRT-PCR的试验结果均显示，P. melonis对B80黄瓜的侵染能够诱导CsPUB54和PmRXLR1表达量的快速提升。通过基因瞬时沉默方法将CsPUB54进行沉默，能够增加黄瓜子叶对P. melonis的抗性。另外，酵母双杂交和Pull-down的试验结果证实CsPUB54与PmRXLR1在体内和体外均可互作。利用碱基突变的方法将PmRXLR1的W和Y功能域分别进行突变，产生7个突变体。这些突变体分别与CsPUB54的互作检测显示，PmRXLR1中的W和Y功能域是PmRXLR1和CsPUB54互作所必需的，而W功能域中的异亮氨酸（I）是互作必需的关键氨基酸。CsPUB54与已发表的植物免疫负调控PUB蛋白进行遗传进化分析显示，CsPUB54与拟南芥AtPUB22、AtPUB23的遗传变异率较小，亲缘关系最近。这些研究数据表明CsPUB54能够通过与PmRXLR1互作负向调控黄瓜对瓜类疫霉的抗性。

关键词: 黄瓜, 疫病, 瓜类疫霉, 蛋白互作, 负向调控, 抗性

Abstract:

B80 cucumber with highly susceptible to Phytophthora blight，and Phytophthora melonis（P. melonis）were used as experimental materials. The gene that encodes a PUB protein containing the U-box domain from B80，named CsPUB54，and a RXLR effector protein gene，named PmRXLR1 from P. mellonis were cloned. Experimental results of transcriptome and qRT-PCR of cucumber leaves inoculated with P. mellonis for 24 hours both showed that the infection could induce rapid increase of gene expression levels of CsPUB54 and PmRXLR1. CsPUB54 gene silencing through transient gene silencing method could increase the resistance of cucumber cotyledons to P. melonis. In addition，the results of yeast two hybrid and Pull-down experiments confirmed that CsPUB54 could interact with PmRXLR1 both in vivo and in vitro. Using the method of base mutation，the W and Y functional domains of PmRXLR1 were mutated respectively，resulting in 7 mutants. The interaction detection between these mutants and CsPUB54 showed that the W and Y functional domains were necessary for the interaction between PmRXLR1 and CsPUB54，and the isoleucine（I）in the W functional domain was a key amino acid required for the interaction. Genetic evolution analysis of CsPUB54 and PUB proteins related to plant immune negative regulatory that have been published showed that CsPUB54 had a low genetic variation rate and the closest relationship with AtPUB22 and AtPUB23 in Arabidopsis thaliana. These research data suggest that CsPUB54 can negatively regulate cucumber resistance to P. melonis through interaction with PmRXLR1.

Key words: cucumber, Phytophthora blight, Phytophthora meloni, protein interaction, negative regulation, resistance

王瑞, 吴红霏, 张长远, 曹海顺, 谭德龙, 郭金菊, 王云龙, 王茹芳, 袁余, 吴廷全. CsPUB54与PmRXLR1互作负向调控黄瓜对疫病的抗性[J]. 园艺学报, 2025, 52(3): 591-602.

WANG Rui, WU Hongfei, ZHANG Changyuan, CAO Haishun, TAN Delong, GUO Jinju, WANG Yunlong, WANG Rufang, YUAN Yu, WU Tingquan. CsPUB54 Negatively Regulates Cucumber Resistance to Phytophthora Melonis by Interacting with PmRXLR1 Effector[J]. Acta Horticulturae Sinica, 2025, 52(3): 591-602.

图/表 9

参考文献 32

[1]	Bos J I, Armstrong M R, Gilroy E M, Boevink P C, Hein I, Taylor R M, Zhendong T, Engelhardt S, Vetukuri R R, Harrower B. 2010. Phytophthora infestans effector AVR3a is essential for virulence and manipulates plant immunity by stabilizing host E3 ligase CMPG1. Proceedings of the National Academy of Sciences, 107 (21):9909-9914.
[2]	Bozkurt T O, Schornback S, Win J, Shindo T, Ilyas M, Oliva R, Cano L M, Jones A M, Huitema E, van der Hoorn R A. 2011. Phytophthora infestans effector AVRblb2 prevents secretion of a plant immune protease at the haustorial interface. Proceedings of the National Academy of Sciences, 108 (51):20832-20837.
[3]	Chen X R, Zhang Y, Li H Y, Zhang Z H, Sheng G L, Li Y P, Xing Y P, Huang S X, Tao H, Kuan T, Zhai Y, Ma W. 2019. The RXLR effector PcAvh 1 is required for full virulence of Phytophthora capsici. Molecular Plant-Microbe Interactions, 32 (8):986-1000.
[4]	Dou D, Kale S D, Wang X, Jiang R H, Bruce N A, Arredondo F D, Zhang X, Tyler B M. 2008. RXLR-mediated entry of Phytophthora sojae effector Avr1b into soybean cells does not require pathogen-encoded machinery. The Plant Cell, 20 (7):1930-1947.
[5]	González-Lamothe R, Tsitsigiannis D I, Ludwig A A, Panicot M, Shirasu K, Jones J D. 2006. The U-box protein CMPG1 is required for efficient activation of defense mechanisms triggered by multiple resistance genes in tobacco and tomato. The Plant Cell, 18:1067-1083.
[6]	Guo B, Wang H, Yang B, Jiang W, Jing M, Li H, Xia Y, Xu Y, Hu Q, Wang F, Yu F, Wang Y, Ye W, Dong S, Xing W, Wang Y. 2019. Phytophthora sojae effector PsAvh 240 inhibits host aspartic protease secretion to promote infection. Molecular Plant, 12 (4):552-564.
[7]	Han P L, Dong Y H, Gu K D, Yu J Q, Hu D G, Hao Y J. 2019. The apple U-box E3 ubiquitin ligase MdPUB29 contributes to activate plant immune response to the fungal pathogen Botryosphaeria dothidea. Planta, 249 (4):1177-1188.
[8]	He Q, McLellan H, Boevink P C, Sadanandom A, Xie C, Birch P R, Tian Z. 2015. U-box E3 ubiquitin ligase PUB17 acts in the nucleus to promote specific immune pathways triggered by Phytophthora infestans. Journal of Experimental Botany, 66 (11):3189-3199.
[9]	Hu Weiwe, Zhang Wu, Liu Lianzhong, Cai Ruiying, Zhu Xiaoqian. 2016. Measurement of relative lesion area on soybean leaf using image processing technology. Jiangsu Journal of Agricultural Sciences, 32 (4):774-779. (in Chinese)
	胡维炜, 张武, 刘连忠, 蔡芮莹, 朱小倩. 2016. 利用图像处理技术计算大豆叶片相对病斑面积. 江苏农业学报, 32 (4):774-779.
[10]	Huang J, Chen L, Lu X, Peng Q, Zhang Y, Yang J, Zhang B Y, Yang B, Waletich J R, Yin W, Zheng X, Wang Y, Dong S. 2019. Natural allelic variations provide insights into host adaptation of Phytophthora avirulence effector PsAvr3c. New Phytologist, 221 (2):1010-1022. doi: 10.1111/nph.15414 pmid: 30169906
[11]	Ishikawa K, Yamaguchi K, Sakamoto K, Yoshimura S, Inoue K, Tsuge S, Kojima C, Kawasaki T. 2014. Bacterial effector modulation of host e3 ligase activity suppresses PAMP-triggered immunity in rice. Nature Communications, 5 (1):5430.
[12]	Jiang R H, Tripathy S, Govers F, Tyler B M. 2008. RXLR effector reservoir in two Phytophthora species is dominated by a single720 / Molecular Plant-Microbe Interactionsrapidly evolving superfamily with more than 700 members. Proc Natl Acad Sci US A, 105 (12):4874-4879.
[13]	Li S, Hanlon R, Wise H, Pal N, Brar H, Liao C, Gao H, Perez E, Zhou L, Tyler M B, Bhattacharyya M K. 2021. Interaction of Phytophthora sojae effector Avr1b with E3 ubiquitin ligase GmPUB1 is required for recognition by soybeans carrying Phytophthora resistance Rps1-b and Rps1-k genes. Frontiers in Plant Science, 12:725571.
[14]	Lin L, Chen Q, Yuan K, Xing C, Qiao Q, Huang X, Zhang S. 2024. E3 ubiquitin ligase PbrATL18 is a positive factor in pear resistance to drought and Colletotrichum fructicola infection. Horticultural Plant Journal, 10 (3):698-712.
[15]	Lin Y, Hu Q, Zhou J, Yin W, Yao D, Shao Y, Zhao Y, Guo B, Xia Y, Chen Q, Wang Y, Ye W, Xie Q, Tyler B M, Xing W, Wang Y. 2021. Phytophthora sojae effector Avr1d functions as an E2 competitor and inhibits ubiquitination activity of GmPUB13 to facilitate infection. Proc Natl Acad Sci US A, 118 (10):e2018312118.
[16]	Lu D, Lin W, Gao X, Wu S, Cheng C, Avila J, Heese A, Devarenne T P, He P, Shan L. 2011. Direct ubiquitination of pattern recognition receptor FLS 2 attenuates plant innate immunity. Science, 332 (6036):1439-1442.
[17]	Luo M, Sun X, Qi Y, Zhou J, Wu X, Tian Z. 2021. Phytophthora infestans RXLR effector Pi 04089 perturbs diverse defense-related genes to suppress host immunity. BMC Plant Biology, 21 (1):1-15.
[18]	Mao X, Yu C, Li L, Wang M, Yang L, Zhang Y, Zhang Y, Wang J, Li C, Reynolds M P, Jing R. 2022. How many faces does the plant U-Box E3 ligase have? International Journal of Molecular Sciences, 23 (4):2285.
[19]	Qi Chenhui, Zhao Xianyan, Han Pengliang, Jiang Han, Wang Yongxu, Hu Dagang, Hao Yujin. 2017. Functional identification of salt tolerance and ABA sensitivity of apple U-box E3 ubiquitin ligase MdPUB24. Acta Horticulturae Sinica, 44 (12):2255-2264. (in Chinese) doi: 10.16420/j.issn.0513-353x.2017-0430 URL
	齐晨辉, 赵先炎, 韩朋良, 姜翰, 王永旭, 胡大刚, 郝玉金. 2017. 苹果U-box型E3泛素连接酶MdPUB24的耐盐性和ABA敏感性鉴定. 园艺学报, 44 (12):2255-2264. doi: 10.16420/j.issn.0513-353x.2017-0430 URL
[20]	Qin T, Liu S, Zhang Z, Sun L, He X, Lindsey K, Zhu L, Zhang X. 2019. GhCyP3 improves the resistance of cotton to Verticillium dahliae by inhibiting the E3 ubiquitin ligase activity of GhPUB17. Plant Molecular Biology, 99:379-393. doi: 10.1007/s11103-019-00824-y pmid: 30671725
[21]	Stegmann M, Anderson R, Ichimura K, Pecenkova T, Reuter P, Žárský V, McDowell J, Shirasu K, Trujillo M. 2012. The ubiquitin ligase PUB22 targets a subunit of the exocyst complex required for PAMP-triggered responses in Arabidopsis. The Plant Cell, 24:4703-4716. doi: 10.1105/tpc.112.104463 pmid: 23170036
[22]	Tyler B M, Tripathy S, Zhang X, Dehal P, Jiang R H, Aerts A, Arredondo F D, Baxter L, Bensasson D and Beynon J L. 2006. Phytophthora genome sequences uncover evolutionary origins and mechanisms of pathogenesis. Science, 313:1261-1266.
[23]	Wang H, Trusch F, Turnbull D, Aguilera-Galvez C, Breen S, Naqvi S, Jones J, Hein I, Tian Z, Vleeshouwers V, Gilroy E, Birch P R. 2021. Evolutionarily distinct resistance proteins detect a pathogen effector through its association with different host targets. New Phytologist, 232 (3):1368-1381. doi: 10.1111/nph.17660 pmid: 34339518
[24]	Wang J, Qu B, Dou S, Li L, Yin D, Pang Z, Zhou Z, Tian M, Liu G, Xie Q, Tang D, Chen X, Zhu L. 2015. The E3 ligase OsPUB15 interacts with the receptor-like kinase PID2 and regulates plant cell death and innate immunity. BMC Plant Biology, 15:1-15.
[25]	Wang R, Du H, Jin Q, Lin Y, Zhong Y, Yao C, Xu X, Wu T. 2019. Stability determination of candidate reference genes in cucumber plants subjected to stresses from Phytophthora melonis. Journal of Plant Science and Phytopathology, 3:28-35.
[26]	Wang Rui, Lin Yu’e, Du Hu, Jin Qingmin, Yang Xiaoshan, Wu Tingquan. 2019. Establishment of a rapid method for identifying resistance to cucumber diseases and identification of cucumber germplasm resources. Guangdong Agricultural Science, 46 (10):13-18. (in Chinese)
	王瑞, 林毓娥, 杜虎, 金庆敏, 杨晓珊, 吴廷全. 2019. 快速鉴定瓜类疫病抗性方法的建立及黄瓜种质资源鉴定. 广东农业科学, 46 (10):13-18.
[27]	Wang Rui, Lin Yu’e, Liang Zhaojun, Jin Qingmin, Wu Tingquan. 2016. Isolation and identification of cucumber blight pathogens in Guangdong area. Chinese Agricultural Science Bulletin, 32 (1):76-80. (in Chinese) doi: 10.11924/j.issn.1000-6850.casb15070017
	王瑞, 林毓娥, 梁肇均, 金庆敏, 吴廷全. 2016. 广东地区黄瓜疫病病原菌的分离与鉴定. 中国农学通报, 32 (1):76-80. doi: 10.11924/j.issn.1000-6850.casb15070017
[28]	Whisson S C, Boevink P C, Moleleki L, Avrova A O, Morales J G, Gilroy E M, Armstrong M R, Grouffaud S, van West P, Chapman S. 2007. A translocation signal for delivery of oomycete effector proteins into host plant cells. Nature, 450:115-118.
[29]	Wong J, Gao L, Yang Y, Zhai J, Arikit S, Yu Y, Duan S, Chan V, Xiong Q, Yan J, Li S, Liu R, Wang Y, Tang G, Meyers B C, Chen X, Ma W. 2014. Roles of small RNA s in soybean defense against Phytophthora sojae infection. The Plant Journal, 79 (6):928-940.
[30]	Wu T, Wang R, Xu X, He X, Sun B, Zhong Y, Liang Z, Luo S and Lin Y. 2017. Cucumis sativus L-type lectin receptor kinase (CsLecRK) gene family response to Phytophthora melonis,Phytophthora capsici and water immersion in disease resistant and susceptible cucumber cultivars. Gene, 549 (2):214-222.
[31]	Yang C W, Gonzalez-Lamothe R, Ewan R A, Rowland O, Yoshioka H, Shenton M, Ye H, O’Donnell E, Jones J D, Sadanandom A. 2006. The E3 ubiquitin ligase activity of Arabidopsis PLANT U-BOX17 and its functional tobacco homolog ACRE276 are required for cell death and defence. The Plant Cell, 18:1084-1098.
[32]	Zhou J, Liu D, Wang P, Ma X, Lin W, Chen S, Mishev K, Lu D, Kumar R, Vanhoutte I, Meng X, He P, Russinova E, Shan L. 2018. Regulation of Arabidopsis brassinosteroid receptor BRI1 endocytosis and degradation by plant U-box PUB12/PUB13-mediated ubiquitination. Proc Natl Acad Sci US A, 115 (8):E1906-E1915.

名称Name	编码序列Coding sequence	蛋白序列Protein sequence
CsPUB54	ATGGATGAACAAATCGAAGTCCCCCACTATTTCCTCTGCCCCATCTCCCTCCAAATCATGAAAGACCCTGTAACTCTTCCCTCCGGCATCACCTACGATCGCCACTCCATTGAAACTTGG CTCTTCTCCGGCAAAAACTCCTCCTGCCCCGTCACTAAACTCCCAGTCTCCGACTCCGATTCCGATCTCCTCACCCCCAACCACACCCTCCGCCGTCTCATCCAAGCTTGGTGTACTTTGA ACTCCTCCCATGGCGTCGAACGTTTCCCCACTCCTAAACCCCCCATTCATAAATCCCAAATCCTTCACATTATTTCCACTTCCAACACTTCCCCTTCTTCCCAAATCTCCTCCATTCGCCG TCTCCGCTCCATTTCCGCCGAGTCTGAAACTAATCGCCGATGCGTTGAATTCGCCGGTGCGCCGGAGTTTTTAGTCTCTGTTATTGTGGGTTCTGATTCCTCGGCTTCTCATGAAGCCCTCT CCACTCTTCATAACCTCCGTCTCTCTGATTCAACGTTTAAATCATTGGCTACCCGCCCTGAATTCCTCGAGTCCTTGACCGATTTCATGAAATTACAACAGGGTACTCATGAATCGTCCAGA ACGTACGCGGTGTTGATTTTGAAATCAATTATTGAAGTCGCTGAACCAATTCAACTAAGCTTCTTGAAACCCGAATTGTTTGTGCAAATCGTTGAGATTTTGAAAGATCGATCATCCTCTCAA CAGATTTTCAAAGCGGCATTGGGTATTTTGATTGCGGTGAGTCCATTGGGGAGAAACA GACTGAAGGCAGTAGAAGCAGGTGGAGTTAGGGCTTTGGTTGAGATTTTACTGTCGTCGCCGGAAAAAAGAGTATGTGAAATGACATTGACGGCGATGGATATACTGTGTGGGTGTGCGGAT GGAAGAGCGGCGCTGTTGGCACACGGCGGAGGGATGGCAGTGGTTTCGAAGAAGATATTGAGAGTGTCGCAATTGGGGAGTGAAAGGGCGGTGAGAATATTGTATTCGGTGGCTAAATTCTCA GGAAGTCCTGCGGTGTTGATGGAAATGGCGCAACTGGGGATTGTGGCAAAGCTATGTTTGGTTCTGCAAATTGAAAATGGAGGCAAGACGAAGGAGAAAGCTAAAGAGATTTTGAAAATGCAT TCTCGTCTTTGGAAGAACTCACCTTGTATTCCTTCTAAATTGGCTTCTTCATATCCTACAAATTAA	MDEQIEVPHYFLCPISLQIMKDPVTLPSGITYDRHSIETWLFSGKNSSCPVTKLPVSDSDSDLLTPNHTLRRLIQAWCTLNSSHGVERFPTPKPPIHKSQILHIISTSNTSPSSQISSIRRLRS ISAESETNRRCVEFAGAPEFLVSVIVGSDSSASHEALSTLHNLRLSDSTFKSLATRPEFLESLTDFMKLQQGTHESSRTYAVLILKSIIEVAEPIQLSFLKPELFVQIVEILKDRSSSQQIFKAA LGILIAVSPLGRNRLKAVEAGGVRALVEILLSSPEKRVCEMTLTAMDILCGCADGRAALLAHGGGMAVVSKKILRVSQLGSERAVRILYSVAKFSGSPAVLMEMAQLGIVAKLCLVLQIENGGKTK EKAKEILKMHSRLWKNSPCIPSKLASSYPTN^*
PmRXLR1	ATGCGTCTGTCTTTCATGCTTTCTGTTGCTGTGGTCATCGGCCACCTCGTGGCCTGCAACGCGACTGC GGACTTCGACGGAACTGAAGTGTCCACGATGGAGTCGCCAGACATCGTCCGGCCCTCG CTCAAGAACGACGACATTGCCGGTGGGAGGTTGCTGCGATCCCACCAAGAGGACGACGCGGAGGAACGGACCTTCATCATTACTGAACTGATGAACAAGGCGGCGGTTAAAAAGTTGGCCAGGCAG ATGCTGAAGGACCCATCAAAGGAGAAGGAAGCGTACGAGGCGTGGGCAGCGAACAAGTACACCCTGGTCCAAATCAAGAACTGGCTGAAAATCGGGGACCCCAAGAACAAAGGAAAATATGACCG CATCTACAACGGGTACGGCTTTCACCTGTATCAGGATTAA	MRLSFMLSVAVVIGHLVACNATADFDGTEVSTMESPDIVRPSLKNDDIAGGRLLRSHQEDDAEERTFIITELMNKAAVKKLARQMLKDPSKEKE AYEAWAANKYTLVQIKNWLKIGDPKNKGKYDRIYNGYGFHLYQD^*
PmRXLR1 （无信号肽 No signal peptide）	ACTGCGGACTTCGACGGAACTGAAGTGTCCACGATGGAGTCGCCAGACATCGTCCGGCCCTCGCTCAAGAACGACGACATTGCCGGTGGGAGGTTGCTGCGATCCCACCAAGAGGACGACGCGG AGGAACGGACCTTCATCATTACTGAACTGATGAACAAGGCGGCGGTTAAAAAGTTGGCCAGGCAGATGCTGAAGGACCCATCAAAGGAGAAGGAAGCGTACGAGGCGTGGGCAGCGAACAAGTA CACCCTGGTCCAAATCAAGAACTGGCTGAAAATCGGGGACCCCAAGAACAAAGGAAAATATGACCGCATC TACAACGGGTACGGCTTTCACCTGTATCAGGATTAA	TADFDGTEVSTMESPDIVRPSLKNDDIAGGRLLRSHQEDDAEERTFIITELMNKAAVKKLARQMLKDPSKEKEAYEA WAANKYTLVQIKNWLKIGDPKNKGKYDRIYNGYGFHLYQD^*

名称Name	编码序列Coding sequence	蛋白序列Protein sequence
CsPUB54	ATGGATGAACAAATCGAAGTCCCCCACTATTTCCTCTGCCCCATCTCCCTCCAAATCATGAAAGACCCTGTAACTCTTCCCTCCGGCATCACCTACGATCGCCACTCCATTGAAACTTGG CTCTTCTCCGGCAAAAACTCCTCCTGCCCCGTCACTAAACTCCCAGTCTCCGACTCCGATTCCGATCTCCTCACCCCCAACCACACCCTCCGCCGTCTCATCCAAGCTTGGTGTACTTTGA ACTCCTCCCATGGCGTCGAACGTTTCCCCACTCCTAAACCCCCCATTCATAAATCCCAAATCCTTCACATTATTTCCACTTCCAACACTTCCCCTTCTTCCCAAATCTCCTCCATTCGCCG TCTCCGCTCCATTTCCGCCGAGTCTGAAACTAATCGCCGATGCGTTGAATTCGCCGGTGCGCCGGAGTTTTTAGTCTCTGTTATTGTGGGTTCTGATTCCTCGGCTTCTCATGAAGCCCTCT CCACTCTTCATAACCTCCGTCTCTCTGATTCAACGTTTAAATCATTGGCTACCCGCCCTGAATTCCTCGAGTCCTTGACCGATTTCATGAAATTACAACAGGGTACTCATGAATCGTCCAGA ACGTACGCGGTGTTGATTTTGAAATCAATTATTGAAGTCGCTGAACCAATTCAACTAAGCTTCTTGAAACCCGAATTGTTTGTGCAAATCGTTGAGATTTTGAAAGATCGATCATCCTCTCAA CAGATTTTCAAAGCGGCATTGGGTATTTTGATTGCGGTGAGTCCATTGGGGAGAAACA GACTGAAGGCAGTAGAAGCAGGTGGAGTTAGGGCTTTGGTTGAGATTTTACTGTCGTCGCCGGAAAAAAGAGTATGTGAAATGACATTGACGGCGATGGATATACTGTGTGGGTGTGCGGAT GGAAGAGCGGCGCTGTTGGCACACGGCGGAGGGATGGCAGTGGTTTCGAAGAAGATATTGAGAGTGTCGCAATTGGGGAGTGAAAGGGCGGTGAGAATATTGTATTCGGTGGCTAAATTCTCA GGAAGTCCTGCGGTGTTGATGGAAATGGCGCAACTGGGGATTGTGGCAAAGCTATGTTTGGTTCTGCAAATTGAAAATGGAGGCAAGACGAAGGAGAAAGCTAAAGAGATTTTGAAAATGCAT TCTCGTCTTTGGAAGAACTCACCTTGTATTCCTTCTAAATTGGCTTCTTCATATCCTACAAATTAA	MDEQIEVPHYFLCPISLQIMKDPVTLPSGITYDRHSIETWLFSGKNSSCPVTKLPVSDSDSDLLTPNHTLRRLIQAWCTLNSSHGVERFPTPKPPIHKSQILHIISTSNTSPSSQISSIRRLRS ISAESETNRRCVEFAGAPEFLVSVIVGSDSSASHEALSTLHNLRLSDSTFKSLATRPEFLESLTDFMKLQQGTHESSRTYAVLILKSIIEVAEPIQLSFLKPELFVQIVEILKDRSSSQQIFKAA LGILIAVSPLGRNRLKAVEAGGVRALVEILLSSPEKRVCEMTLTAMDILCGCADGRAALLAHGGGMAVVSKKILRVSQLGSERAVRILYSVAKFSGSPAVLMEMAQLGIVAKLCLVLQIENGGKTK EKAKEILKMHSRLWKNSPCIPSKLASSYPTN^*
PmRXLR1	ATGCGTCTGTCTTTCATGCTTTCTGTTGCTGTGGTCATCGGCCACCTCGTGGCCTGCAACGCGACTGC GGACTTCGACGGAACTGAAGTGTCCACGATGGAGTCGCCAGACATCGTCCGGCCCTCG CTCAAGAACGACGACATTGCCGGTGGGAGGTTGCTGCGATCCCACCAAGAGGACGACGCGGAGGAACGGACCTTCATCATTACTGAACTGATGAACAAGGCGGCGGTTAAAAAGTTGGCCAGGCAG ATGCTGAAGGACCCATCAAAGGAGAAGGAAGCGTACGAGGCGTGGGCAGCGAACAAGTACACCCTGGTCCAAATCAAGAACTGGCTGAAAATCGGGGACCCCAAGAACAAAGGAAAATATGACCG CATCTACAACGGGTACGGCTTTCACCTGTATCAGGATTAA	MRLSFMLSVAVVIGHLVACNATADFDGTEVSTMESPDIVRPSLKNDDIAGGRLLRSHQEDDAEERTFIITELMNKAAVKKLARQMLKDPSKEKE AYEAWAANKYTLVQIKNWLKIGDPKNKGKYDRIYNGYGFHLYQD^*
PmRXLR1 （无信号肽 No signal peptide）	ACTGCGGACTTCGACGGAACTGAAGTGTCCACGATGGAGTCGCCAGACATCGTCCGGCCCTCGCTCAAGAACGACGACATTGCCGGTGGGAGGTTGCTGCGATCCCACCAAGAGGACGACGCGG AGGAACGGACCTTCATCATTACTGAACTGATGAACAAGGCGGCGGTTAAAAAGTTGGCCAGGCAGATGCTGAAGGACCCATCAAAGGAGAAGGAAGCGTACGAGGCGTGGGCAGCGAACAAGTA CACCCTGGTCCAAATCAAGAACTGGCTGAAAATCGGGGACCCCAAGAACAAAGGAAAATATGACCGCATC TACAACGGGTACGGCTTTCACCTGTATCAGGATTAA	TADFDGTEVSTMESPDIVRPSLKNDDIAGGRLLRSHQEDDAEERTFIITELMNKAAVKKLARQMLKDPSKEKEAYEA WAANKYTLVQIKNWLKIGDPKNKGKYDRIYNGYGFHLYQD^*

用途Usage	引物名称Primer name	引物序列（5′-3′）Primer sequence
基因克隆 Gene cloning	CsPUB54-F (C) CsPUB54-R (C) PmRXLR1-F (C) PmRXLR1-R (C)	ATGGATGAACAAATCGAAGTCCCCCAC TTAATTTGTAGGATATGAAGAAGCCA ATGCGTCTGTCTTTCATGCTTTC TTAATCCTGATACAGGTGAAAGCCG
载体构建 Vector construction	CsPUB54-F (V) CsPUB54-R (V) PmRXLR1-F (V) PmRXLR1-R (V)	CATATGATGGATGAACAAATCG CGCGGATCCTTAATTTGTAGGATATG CCGGAATTCACTGCGGACTTCGACG CGCGGATCCTTAATCCTGATACAGGTG
基因表达 Gene expression	CsPUB54-F (E) CsPUB54-R (E)	CAAATCTCCTCCATTCGCCGTC TCATGAAATCGGTCAAGGACTC
黄瓜内参基因 Cucumber reference gene	CsUBQ-F CsUBQ-R	GCGTAAGAAGAAGACCTACACCA CCTTTCCAGAGTCATCGACCT
瓜类疫霉菌ITS检测 ITS detection of Phytophthora melons	DC6-F ITS4-R	5′-GAGGGACTTTTGGGTAATCA-3′ 5′-TCCTCCGCTTATTGATATGC-3′

用途Usage	引物名称Primer name	引物序列（5′-3′）Primer sequence
基因克隆 Gene cloning	CsPUB54-F (C) CsPUB54-R (C) PmRXLR1-F (C) PmRXLR1-R (C)	ATGGATGAACAAATCGAAGTCCCCCAC TTAATTTGTAGGATATGAAGAAGCCA ATGCGTCTGTCTTTCATGCTTTC TTAATCCTGATACAGGTGAAAGCCG
载体构建 Vector construction	CsPUB54-F (V) CsPUB54-R (V) PmRXLR1-F (V) PmRXLR1-R (V)	CATATGATGGATGAACAAATCG CGCGGATCCTTAATTTGTAGGATATG CCGGAATTCACTGCGGACTTCGACG CGCGGATCCTTAATCCTGATACAGGTG
基因表达 Gene expression	CsPUB54-F (E) CsPUB54-R (E)	CAAATCTCCTCCATTCGCCGTC TCATGAAATCGGTCAAGGACTC
黄瓜内参基因 Cucumber reference gene	CsUBQ-F CsUBQ-R	GCGTAAGAAGAAGACCTACACCA CCTTTCCAGAGTCATCGACCT
瓜类疫霉菌ITS检测 ITS detection of Phytophthora melons	DC6-F ITS4-R	5′-GAGGGACTTTTGGGTAATCA-3′ 5′-TCCTCCGCTTATTGATATGC-3′

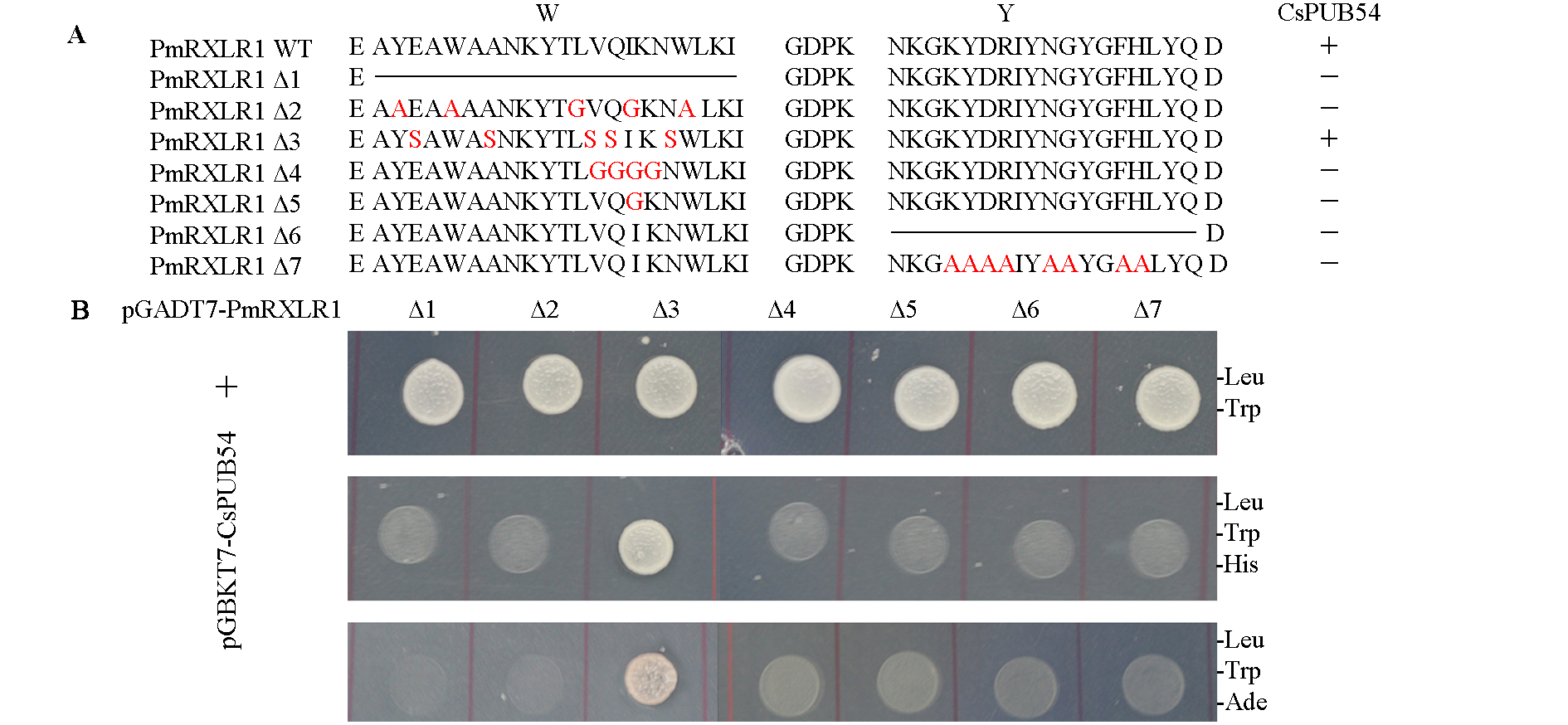

突变体Mutant	序列Sequence
PmRXLR1 Δ1 碱基Base	ACTGCGGACTTCGACGGAACTGAAGTGTCCACGATGGA GTCGCCAGACATCGTCCGGCCCTCGCTCAAGAACGACGACATTGCCGGTGGGAGGTTGCTGCGA TCCCACCAAGAGGACGACGCGGAGGAAC GGACCTTCATCATTACTGAACTGATGAACAAGGCGGCGGTTAA AAAGTTGGCCAGGCAGATGCTGAAGGACCCATCAAAGGAGAAGGAA---GGGGACCCCAAGAAC AAAGGAAAATATGACCGCATCTACAACGGGTACGGCTTTCACCTGTATCAGGATTAA
PmRXLR1 Δ1 氨基酸Amino acid	TADFDGTEVSTMESPDIVRPSLKNDDIAGGRLLRSH QEDDAEERTFIITELMNKAAVKKLARQMLKDPSKEKE---GDPKNKGKYDRIYNGYGFHLYQD*
PmRXLR1 Δ2 碱基Base	ACTGCGGACTTCGACGGAACTGAAGTGTCCACGATGGAGTCGCCAGACATCGTCCGG CCCTCGCTCAAGAACGACGACATTGCCGGTGGGAGGTTGCTGCGATCCCACCAAGAGGACGACGCGGAGGAACGGACCTTCATCATTACT GAACTGATGAACAAGGCGGCGGTTAAAAAGTTGGCCAGGCAGAT GCTGAAGGACCCATCAAAGGAGAAGGAAGCG GCGGAGGCG GCAGCAGCGAACAAGTACACC GGAGTCCAA GGAAAGAAC GCACTGAAAATCGGGGACCCCAAGAACAAAGGAAAATATGACCGCATCT ACAACGGGTACGGCTTTCACCTGTATCAGGATTAA
PmRXLR1 Δ2 氨基酸Amino acid	TADFDGTEVSTMESPDIVRPSLKNDDIAGGRLLRSH QEDDAEERTFIITELMNKAAVKKLARQMLKDPSKEKEAAEAAAANKYT GVQGKNALKIGDPKNKGKYDRIYNGYGFHLYQD*
PmRXLR1 Δ3 碱基Base	ACTGCGGACTTCGACGGAACTGAAGTGTCCACGATGGAGTCGCCAGACATCGTCCGGCCCTCG CTCAAGAACGACGACATTGCCGGTGGGAGGTTGCTGCGATCCCACCAAGAGGACGACGCGGAGG AACGGACCTTCATCATTACT GAACTGATGAACAAGGCGGCGGTTAAAAAGTTGGCCAGGCA GATGCTGAAGGACCCATCAAAGGAGAAGGAAGCGTAC TCCGCGTGGGCA TCCAACAAGTACACCCTG TCCTCCATCAAG TCCTGGCTGAAAATCGGGGACCCCAAGAACAAAGGAAA ATATGACCGCATCTACAACGGGTACG GCTTTCACCTGTATCAGGATTAA
PmRXLR1 Δ3 氨基酸Amino acid	TADFDGTEVSTMESPDIVRPSLKND DIAGGRLLRSHQEDDAEERTFIITELMNKAAVKKLA RQMLKDPSKEKEAY SAWA SNKYTL SSIK SWLKIGDPKNKGKYDRIY NGYGFHLYQD*
PmRXLR1 Δ4 碱基Base	ACTGCGGACTTCGACGGAACTGAAGTGTCCACGATGGAGTCGCCAGACATCGTCCGGCCCTCGCTCAAGAACGACGACATTGCC GGTGGGAGGTTGCTGCGATCCCACCAAGAGGACGACGCGGAGGAACGGACCTTCATCATTACTGAACTGATGAACAAGGC GGCGGTTAAAAAGTTGGCCAGGCAGATGCTGAAGGACCCATCAAAGGAGAAGGAAGCGTACGAGGCGTGGGCA GCGAACAAGTACACCCTG GGCGGTGGAGGGAACTGGCTGAAAATCGGGGACC CCAAGAACAAAGGAAAATATGACCGCATCTACAACGGGTACGGCTTTCACCTGTATCAGGATTAA
PmRXLR1 Δ4 氨基酸Amino acid	TADFDGTEVSTMESPDIVRPSLKNDDIAGGRLLRSHQEDDAEERTFIITE LMNKAAVKKLARQMLKDPSKEKEAYEAWAANKYTLGGGGNWLKIGDPKNKGKYDRIYNGYGFHLYQD*
PmRXLR1 Δ5 碱基Base	ACTGCGGACTTCGACGGAACTGAAGTGTCCACGATGGAGTCGCCAGACATCGTCCGGCCCTCGCTCAAGAACGAC GACATTGCCGGTGGGAGGTTGCTGCGATCCCACCAAGAGGACGACGCGGAGGAACGGACCTTCATCATTACTGAACTGATG AACAAGGCGGCGGTTAAAAAGTTGGCCAGGCAGATGC TGAAGGACCCATCAAAGGAGAAGGAAGCGTACGAGGCGTGGGC AGCGAACAAGTACACCCTGGTCCAA GGCAAGAACTGGCTGAAAATCGGGGACCCCAA GAACAAAGGAAAATATGACCGCATCTACAACGGGTACGGC TTTCACCTGTATCAGGATTAA
PmRXLR1 Δ5 氨基酸Amino acid	TADFDGTEVSTMESPDIVRPSLKNDDIAGGRLLRSHQEDDAE ERTFIITELMNKAAVKKLARQMLKDPSKEKEAYEAWAANKYTLVQ GKNWLKIGDPKNKGK YDRIYNGYGFHLYQD*
PmRXLR1 Δ6 碱基Base	ACTGCGGACTTCGACGGAACTGAAGTGTCCACGATGGAGTCGCCAGACATCGTCCGGCCCTCGCTCAAG AACGACGACATTGCCGGTGGGAGGTTGCTGCGATCCCACCAAGAGGACGACGCGGAGGAACGGACCTTCATCATTACTGAACTGATGAACAAGGCGGCGGTT AAAAAGTTGGCCAGGCAGATGCTGAAGGACCCATCAAAGGAGAAGGAAGCGTACGAGGCGTGGGCAGCGAACAAGTACACCCTGGTCCAAATCAAGAACTGGCT GAAAATCGGGGACCCCAAG---GATTAA
PmRXLR1 Δ6 氨基酸Amino acid	TADFDGTEVSTMESPDIVRPSLKNDDIAGGRLLRSHQEDDAEERTFIITELMNK AAVKKLARQMLKDPSKEKEAYEAWAANKYTLVQIKNWLKIGDPK---D*
PmRXLR1 Δ7 碱基Base	ACTGCGGACTTCGACGGAACTGAAGTGTCCACGATGGAGTCGCCAGACATCGTCCGGCCCTCGCTCAAGAACGACG ACATTGCCGGTGGGAGGTTGCTGCGATCCCACCAAGAGGACGACGCGGAGGAACGGACCTTCATCATTACTGAACTGATGAACAAGGCGGCGGTTAAAAAGTTGGCC AGGCAGATGCTGAAGGACCCATCAAAGGAGA AGGAAGCGTACGAGGCGTGGGCAGCGAACAAGTACACCCTGGTCCAAATCAAGAACTGGCTGAAAATCGGGGACCCCAAG AACAAAGGAGCAGCTGCCGCCATCTACGCCGCGTACGGCG CTGCCCTGTATCAGGATTAA
PmRXLR1 Δ7 氨基酸Amino acid	TADFDGTEVSTMESPDIVRPSLKNDDIAGGRLLRSHQEDD AEERTFIITELMNKAAVKKLARQMLKDPSKEKEAY EAWAANKYTLVQIKNWLKIGDPKNKGAAAAIYAAYGAALYQD*
