园艺学报 ›› 2023, Vol. 50 ›› Issue (5): 985-999.doi: 10.16420/j.issn.0513-353x.2022-0273
李国斌, 蔡梁玉, 肖立成, 王家发, 张得迪, 张俊红()
收稿日期:
2022-11-27
修回日期:
2023-01-16
出版日期:
2023-05-25
发布日期:
2023-05-31
通讯作者:
*(E-mail:zhangjunhng@hzau.edu.cn)基金资助:
LI Guobin, CAI Liangyu, XIAO Licheng, WANG Jiafa, ZHANG Dedi, ZHANG Junhong()
Received:
2022-11-27
Revised:
2023-01-16
Published:
2023-05-25
Online:
2023-05-31
摘要:
以栽培番茄品种(系)Ailsa Craig(AC)、B5和B9为试材,利用CRISPR/Cas9双元表达载体系统,对番茄品质调控关键基因SlGLK2和SlMYB12进行定点敲除。获得AC背景下SlGLK2和SlMYB12的基因编辑植株各9株,B5背景下SlGLK2的基因编辑植株3株,B9背景下SlMYB12的基因编辑植株4株。通过对靶点测序发现,在靶位点的PAM上游3 ~ 4 bp处发生了不同形式的碱基缺失、插入或替换,主要以1 ~ 10 bp的缺失和单碱基G和T的插入为主;也产生了两靶点间的大片段缺失,最大片段为334 bp。AC背景下敲除SlMYB12产生粉色果实,敲除SlGLK2基因,果实肩部的绿色明显变浅,B5背景下的3株基因编辑番茄均无“绿肩”。本研究中利用CRISPR/Cas9技术在不同番茄种质中成功创制了敲除SlGLK2或SlMYB12的基因编辑材料,以期为番茄品质育种提供优良种质。
中图分类号:
李国斌, 蔡梁玉, 肖立成, 王家发, 张得迪, 张俊红. 利用CRISPR/Cas9技术创制番茄粉果和无绿肩材料[J]. 园艺学报, 2023, 50(5): 985-999.
LI Guobin, CAI Liangyu, XIAO Licheng, WANG Jiafa, ZHANG Dedi, ZHANG Junhong. Creating Pink Fruit and Fruit Without Green Shoulder Using CRISPR/ Cas9 Technology in Tomato[J]. Acta Horticulturae Sinica, 2023, 50(5): 985-999.
基因 Gene | sgRNA 靶标序列 Target sequence of sgRNA |
---|---|
SlGLK2-sgRNA1 | TGGTGTCGATTAAATTCCCA |
SlGLK2-sgRNA2 | TGAATAGCAGGTTCTTCACA |
SlMYB12-sgRNA1 | AACACCTTGTTGTGAAAAA |
SlMYB12-sgRNA2 | CCAAGAGCCTTCTCCATTAG |
表1 SlGLK2和SlMYB12的靶标序列
Table 1 Target sites of SlGLK2 and SlMYB12 gene
基因 Gene | sgRNA 靶标序列 Target sequence of sgRNA |
---|---|
SlGLK2-sgRNA1 | TGGTGTCGATTAAATTCCCA |
SlGLK2-sgRNA2 | TGAATAGCAGGTTCTTCACA |
SlMYB12-sgRNA1 | AACACCTTGTTGTGAAAAA |
SlMYB12-sgRNA2 | CCAAGAGCCTTCTCCATTAG |
引物 Primer | 用途 Purpose | 序列(5′-3′) Sequence |
---|---|---|
SlGLK2-CRISPR | 构建载体Construction vector | F:GAATCTAACAGTGTAGTTTGTGGTGTCGATTAAATTCCCAGTTT TAGAGC TAGAAATAG |
R:GCTATTTCTAGCTCTAAAACTGAATAGCAGGTTCTTCACACAA ACTACACTG TTAGATT | ||
SlMYB12-CRISPR | 构建载体Construction vector | F:GAATCTAACAGTGTAGTTTGAACACCTTGTTGTGAAAAAGGTT TTAGAGCT AGAAATAG |
R:GCTATTTCTAGCTCTAAAACCCAAGAGCCTTCTCCATTAGCAA ACTACACTG TTAGATT | ||
SlGLK2 | 检测靶点Detection target | F:GATGCTGGCATTTGTGTGATTC |
R:TTAATTACGACTAGAACCGTCAACG | ||
SlMYB12 | 检测靶点Detection target | F:TAACTAGACTAAAGTGAAGAGCGGG |
R:CTAATTACCTGTTACCCAAAGTTGC |
表2 构建CRISPR所用的引物序列
Table 2 Primer sequence used for construct CRISPR vector
引物 Primer | 用途 Purpose | 序列(5′-3′) Sequence |
---|---|---|
SlGLK2-CRISPR | 构建载体Construction vector | F:GAATCTAACAGTGTAGTTTGTGGTGTCGATTAAATTCCCAGTTT TAGAGC TAGAAATAG |
R:GCTATTTCTAGCTCTAAAACTGAATAGCAGGTTCTTCACACAA ACTACACTG TTAGATT | ||
SlMYB12-CRISPR | 构建载体Construction vector | F:GAATCTAACAGTGTAGTTTGAACACCTTGTTGTGAAAAAGGTT TTAGAGCT AGAAATAG |
R:GCTATTTCTAGCTCTAAAACCCAAGAGCCTTCTCCATTAGCAA ACTACACTG TTAGATT | ||
SlGLK2 | 检测靶点Detection target | F:GATGCTGGCATTTGTGTGATTC |
R:TTAATTACGACTAGAACCGTCAACG | ||
SlMYB12 | 检测靶点Detection target | F:TAACTAGACTAAAGTGAAGAGCGGG |
R:CTAATTACCTGTTACCCAAAGTTGC |
图3 番茄AC和B5品种基因编辑植株中SlGLK2编辑情况检测 红色标记为靶点;加粗字体为PAM;蓝色加号和横线分别为插入和缺失;绿色标记为替换。下同。
Fig. 3 Targeted mutagenesis of SlGLK2 gene in gene-edited tomato The red marker is the target. The bold font is PAM. The blue plus and the horizontal lines are the base insertions and deletions respectively. The green markers are the base substitutions. The same below.

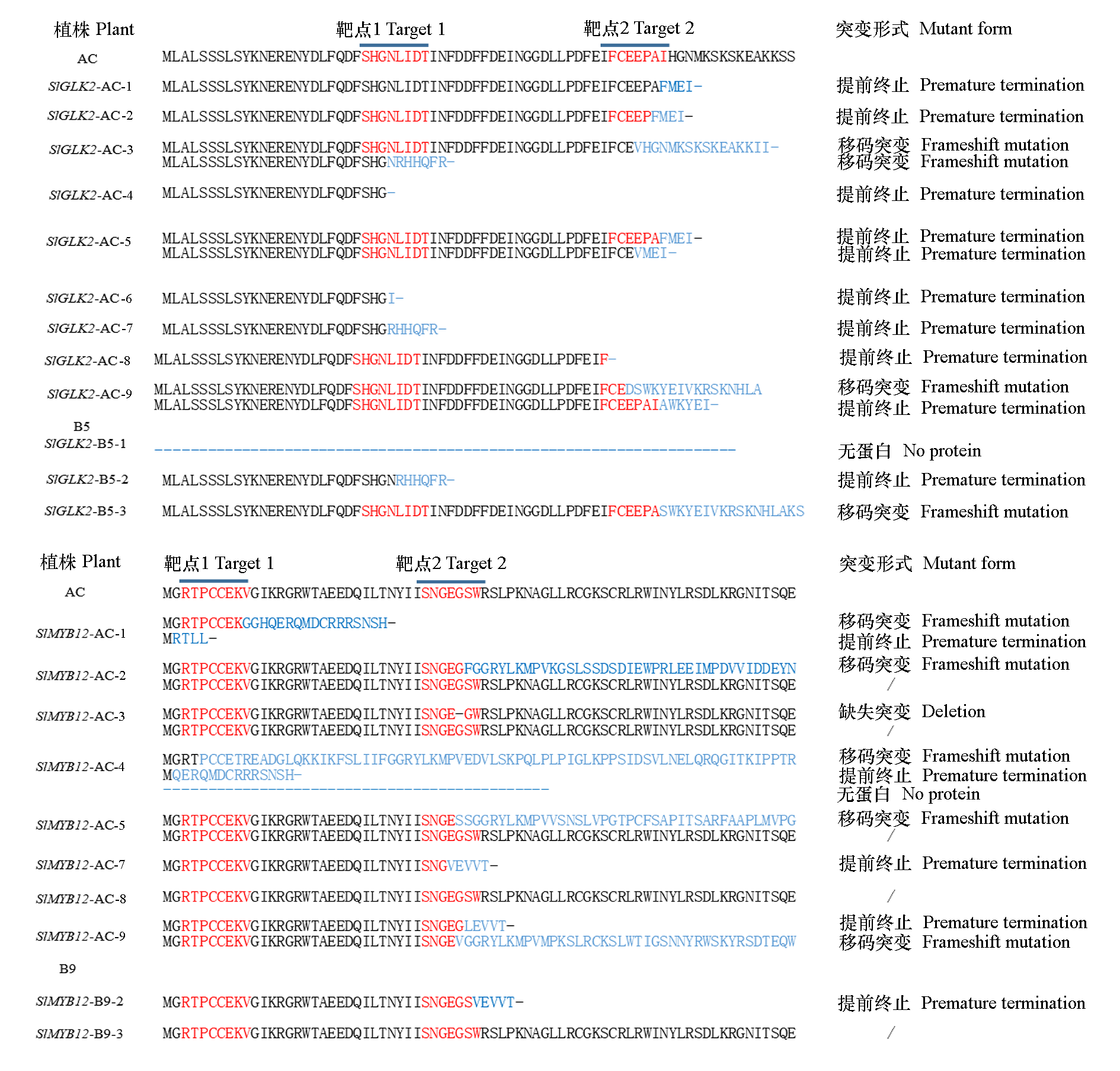

图5 栽培番茄品种AC、B5和B9的基因编辑植株SlGLK2和SlMYB12氨基酸序列分析 红色标记为靶点;蓝色为突变的氨基酸;短横线表示终止密码子。
Fig. 5 Amino acid sequence analysis of the SlGLK2 and SlMYB12 in gene editing transgenic plants of AC,B5 and B9 tomatos The red marker is the target. Blue represents the mutated amino acid. The dash indicates the stop codon.
图8 SlGLK2-AC基因编辑材料果实中叶绿素含量 * 指与对照AC的白色柱形所示数值有显著性差异(P < 0.05)。
Fig. 8 The chlorophyll content of fruits in SlGLK2-AC gene-edited plants * indicates that there is a significant difference in the values shown of white histogram as the control AC(P < 0.05).
材料 Material | 单果质量/g Fruit weight | 果实纵径/mm Fruit length | 果实横径/mm Fruit diameter | 果形指数 Index of fruit shape | 果实硬度/(× 105 Pa) Fruit hardness |
---|---|---|---|---|---|
AC | 28.95 ± 0.83 b | 34.51 ± 0.37 c | 38.02 ± 0.77 c | 0.90 ± 0.03 a | 8.14 ± 0.37 b |
SlMYB12-AC-3 | 28.82 ± 0.75 b | 34.45 ± 0.76 c | 37.79 ± 0.64 c | 0.91 ± 0.02 a | 7.86 ± 0.52 b |
SlMYB12-AC-4 | 29.46 ± 1.02 b | 34.04 ± 0.25 c | 38.03 ± 0.92 c | 0.89 ± 0.02 a | 8.32 ± 0.41 b |
SlMYB12-AC-7 | 28.03 ± 0.62 b | 34.26 ± 0.43 c | 37.65 ± 0.43 c | 0.91 ± 0.01 a | 8.22 ± 0.26 b |
SlGLK2-AC-3 | 27.97 ± 0.69 b | 33.52 ± 0.21 c | 37.63 ± 0.26 c | 0.89 ± 0.03 a | 8.47 ± 0.67 b |
SlGLK2-AC-4 | 28.84 ± 1.25 b | 33.96 ± 0.64 c | 38.12 ± 0.71 c | 0.89 ± 0.02 a | 7.92 ± 0.85 b |
SlGLK2-AC-5 | 28.88 ± 0.48 b | 34.62 ± 0.41 c | 38.46 ± 0.65 c | 0.90 ± 0.01 a | 8.08 ± 0.56 b |
B5 | 80.82 ± 0.67 a | 41.42 ± 1.21 ab | 53.96 ± 1.84 ab | 0.76 ± 0.04 b | 11.33 ± 1.08 a |
SlGLK2-B5-1 | 79.94 ± 1.23 a | 39.61 ± 1.73 b | 52.75 ± 2.17 b | 0.75 ± 0.06 b | 10.76 ± 0.84 a |
SlGLK2-B5-2 | 81.89 ± 1.06 a | 43.30 ± 1.55 a | 55.53 ± 1.49 a | 0.77 ± 0.03 b | 11.59 ± 0.86 a |
SlGLK2-B5-3 | 81.03 ± 1.35 a | 41.42 ± 1.83 ab | 55.02 ± 2.27 a | 0.75 ± 0.05 b | 10.94 ± 1.23 a |
表3 基因编辑材料的果实性状
Table 3 Fruit traits of gene-edited plants
材料 Material | 单果质量/g Fruit weight | 果实纵径/mm Fruit length | 果实横径/mm Fruit diameter | 果形指数 Index of fruit shape | 果实硬度/(× 105 Pa) Fruit hardness |
---|---|---|---|---|---|
AC | 28.95 ± 0.83 b | 34.51 ± 0.37 c | 38.02 ± 0.77 c | 0.90 ± 0.03 a | 8.14 ± 0.37 b |
SlMYB12-AC-3 | 28.82 ± 0.75 b | 34.45 ± 0.76 c | 37.79 ± 0.64 c | 0.91 ± 0.02 a | 7.86 ± 0.52 b |
SlMYB12-AC-4 | 29.46 ± 1.02 b | 34.04 ± 0.25 c | 38.03 ± 0.92 c | 0.89 ± 0.02 a | 8.32 ± 0.41 b |
SlMYB12-AC-7 | 28.03 ± 0.62 b | 34.26 ± 0.43 c | 37.65 ± 0.43 c | 0.91 ± 0.01 a | 8.22 ± 0.26 b |
SlGLK2-AC-3 | 27.97 ± 0.69 b | 33.52 ± 0.21 c | 37.63 ± 0.26 c | 0.89 ± 0.03 a | 8.47 ± 0.67 b |
SlGLK2-AC-4 | 28.84 ± 1.25 b | 33.96 ± 0.64 c | 38.12 ± 0.71 c | 0.89 ± 0.02 a | 7.92 ± 0.85 b |
SlGLK2-AC-5 | 28.88 ± 0.48 b | 34.62 ± 0.41 c | 38.46 ± 0.65 c | 0.90 ± 0.01 a | 8.08 ± 0.56 b |
B5 | 80.82 ± 0.67 a | 41.42 ± 1.21 ab | 53.96 ± 1.84 ab | 0.76 ± 0.04 b | 11.33 ± 1.08 a |
SlGLK2-B5-1 | 79.94 ± 1.23 a | 39.61 ± 1.73 b | 52.75 ± 2.17 b | 0.75 ± 0.06 b | 10.76 ± 0.84 a |
SlGLK2-B5-2 | 81.89 ± 1.06 a | 43.30 ± 1.55 a | 55.53 ± 1.49 a | 0.77 ± 0.03 b | 11.59 ± 0.86 a |
SlGLK2-B5-3 | 81.03 ± 1.35 a | 41.42 ± 1.83 ab | 55.02 ± 2.27 a | 0.75 ± 0.05 b | 10.94 ± 1.23 a |
材料 Material | 可溶性固形物/% Soluble solid | 可滴定酸/% Titrable acid | 固酸比 S/T | 总维生素C/(mg · g-1) Total vitamin C | 还原维生素C/(mg · g-1) Reduced vitamin C |
---|---|---|---|---|---|
AC | 5.7 ± 0.34 a | 0.62 ± 0.21 b | 9.19 ± 0.87 a | 0.09 ± 0.01 b | 0.09 ± 0.01 c |
SlMYB12-AC-3 | 5.3 ± 0.27 b | 0.69 ± 0.17 b | 7.68 ± 1.21 b | 0.08 ± 0.02 b | 0.08 ± 0.01 c |
SlMYB12-AC-4 | 5.5 ± 0.61 a | 0.64 ± 0.13 b | 8.59 ± 0.96 ab | 0.12 ± 0.02 b | 0.09 ± 0.01 c |
SlMYB12-AC-7 | 5.8 ± 0.29 a | 0.63 ± 0.24 b | 9.21 ± 1.35 a | 0.10 ± 0.01 b | 0.09 ± 0.01 c |
SlGLK2-AC-3 | 5.9 ± 0.53 a | 0.68 ± 0.30 b | 8.67 ± 1.07 ab | 0.11 ± 0.01 b | 0.10 ± 0.01 c |
SlGLK2-AC-4 | 5.6 ± 0.28 a | 0.66 ± 0.27 b | 8.48 ± 0.67 ab | 0.11 ± 0.02 b | 0.09 ± 0.01 c |
SlGLK2-AC-5 | 5.5 ± 0.36 a | 0.63 ± 0.18 b | 8.73 ± 1.26 a | 0.11 ± 0.02 b | 0.09 ± 0.01 c |
B5 | 6.0 ± 0.27 a | 1.10 ± 0.22 a | 5.45 ± 0.93 c | 0.20 ± 0.03 a | 0.19 ± 0.02 a |
SlGLK2-B5-1 | 6.0 ± 0.34 a | 1.04 ± 0.17 a | 5.77 ± 0.72 c | 0.16 ± 0.04 a | 0.15 ± 0.03 b |
SlGLK2-B5-2 | 5.6 ± 0.51 a | 1.08 ± 0.31 a | 5.18 ± 0.64 c | 0.20 ± 0.03 a | 0.17 ± 0.02 a |
SlGLK2-B5-3 | 5.8 ± 0.43 a | 1.21 ± 0.37 a | 4.79 ± 1.37 d | 0.18 ± 0.03 a | 0.16 ± 0.03 ab |
表4 基因编辑材料的营养品质
Table 4 Fruits quality traits of gene-edited plants
材料 Material | 可溶性固形物/% Soluble solid | 可滴定酸/% Titrable acid | 固酸比 S/T | 总维生素C/(mg · g-1) Total vitamin C | 还原维生素C/(mg · g-1) Reduced vitamin C |
---|---|---|---|---|---|
AC | 5.7 ± 0.34 a | 0.62 ± 0.21 b | 9.19 ± 0.87 a | 0.09 ± 0.01 b | 0.09 ± 0.01 c |
SlMYB12-AC-3 | 5.3 ± 0.27 b | 0.69 ± 0.17 b | 7.68 ± 1.21 b | 0.08 ± 0.02 b | 0.08 ± 0.01 c |
SlMYB12-AC-4 | 5.5 ± 0.61 a | 0.64 ± 0.13 b | 8.59 ± 0.96 ab | 0.12 ± 0.02 b | 0.09 ± 0.01 c |
SlMYB12-AC-7 | 5.8 ± 0.29 a | 0.63 ± 0.24 b | 9.21 ± 1.35 a | 0.10 ± 0.01 b | 0.09 ± 0.01 c |
SlGLK2-AC-3 | 5.9 ± 0.53 a | 0.68 ± 0.30 b | 8.67 ± 1.07 ab | 0.11 ± 0.01 b | 0.10 ± 0.01 c |
SlGLK2-AC-4 | 5.6 ± 0.28 a | 0.66 ± 0.27 b | 8.48 ± 0.67 ab | 0.11 ± 0.02 b | 0.09 ± 0.01 c |
SlGLK2-AC-5 | 5.5 ± 0.36 a | 0.63 ± 0.18 b | 8.73 ± 1.26 a | 0.11 ± 0.02 b | 0.09 ± 0.01 c |
B5 | 6.0 ± 0.27 a | 1.10 ± 0.22 a | 5.45 ± 0.93 c | 0.20 ± 0.03 a | 0.19 ± 0.02 a |
SlGLK2-B5-1 | 6.0 ± 0.34 a | 1.04 ± 0.17 a | 5.77 ± 0.72 c | 0.16 ± 0.04 a | 0.15 ± 0.03 b |
SlGLK2-B5-2 | 5.6 ± 0.51 a | 1.08 ± 0.31 a | 5.18 ± 0.64 c | 0.20 ± 0.03 a | 0.17 ± 0.02 a |
SlGLK2-B5-3 | 5.8 ± 0.43 a | 1.21 ± 0.37 a | 4.79 ± 1.37 d | 0.18 ± 0.03 a | 0.16 ± 0.03 ab |
[1] |
Adato A, Mandel T, Mintz-Oron S, Venger I, Levy D, Yativ M, Dominguez E, Wang Z, de Vos R C, Jetter R, Schreiber L, Heredia A, Rogachev I, Aharoni A. 2009. Fruit-surface flavonoid accumulation in tomato is controlled by a SlMYB12-regulated transcriptional network. PLoS Genetics, 5 (12):e1000777.
doi: 10.1371/journal.pgen.1000777 URL |
[2] |
Ballester A R, Molthoff J, de Vos R, Hekkert B, Orzaez D, Fernandez-Moreno J P, Tripodi P, Grandillo S, Martin C, Heldens J, Ykema M, Granell A, Bovy A. 2010. Biochemical and molecular analysis of pink tomatoes:deregulated expression of the gene encoding transcription factor SlMYB 12 leads to pink tomato fruit color. Plant Physiology, 152 (1):71-84.
doi: 10.1104/pp.109.147322 pmid: 19906891 |
[3] |
Brand A, Borovsky Y, Hill T, Rahman K A, Bellalou A, van Deynze A, Paran I. 2014. CaGLK 2 regulates natural variation of chlorophyll content and fruit color in pepper fruit. Theoretical and Applied Genetics, 127 (10):2139-2148.
doi: 10.1007/s00122-014-2367-y URL |
[4] |
Brooks C, Nekrasov V, Lippman Z B, van Eck J. 2014. Efficient gene editing in tomato in the first generation using the clustered regularly interspaced short palindromic repeats/CRISPR-associated9 system. Plant Physiology, 166 (3):1292-1297.
doi: 10.1104/pp.114.247577 pmid: 25225186 |
[5] |
Czerednik A, Busscher M, Angenent G C, de Maagd R A. 2015. The cell size distribution of tomato fruit can be changed by overexpression of CDKA1. Plant Biotechnology Journal, 13 (2):259-268.
doi: 10.1111/pbi.12268 pmid: 25283700 |
[6] |
Deng L, Wang H, Sun C, Li Q, Jiang H, Du M, Li C B, Li C. 2018. Efficient generation of pink-fruited tomatoes using CRISPR/Cas9 system. Journal of Genetics and Genomics, 45 (1):51-54.
doi: S1673-8527(17)30178-9 pmid: 29157799 |
[7] |
Filler Hayut S, Melamed Bessudo C, Levy A A. 2017. Targeted recombination between homologous chromosomes for precise breeding in tomato. Nature Communications, 8:15605.
doi: 10.1038/ncomms15605 pmid: 28548094 |
[8] |
Ilahy R, Tlili I, Siddiqui M W, Hdider C, Lenucci M S. 2019. Inside and beyond color:Comparative overview of functional quality of tomato and watermelon fruits. Frontiers in Plant Science, 10:769.
doi: 10.3389/fpls.2019.00769 URL |
[9] |
Karkute S G, Singh A K, Gupta O P, Singh P M, Singh B. 2017. CRISPR/Cas 9 mediated genome engineering for improvement of horticultural crops. Frontiers in Plant Science, 8:1635.
doi: 10.3389/fpls.2017.01635 pmid: 28970844 |
[10] |
Li Guobin, Ai Guo, Wei Jing, Zhang Junhong. 2021. A review of base editing technology and its application in crop genetic improvement. Acta Horticulturae Sinica, 48 (4):719-732. (in Chinese)
doi: 10.16420/j.issn.0513-353x.2020-0540 |
李国斌, 艾国, 韦静, 张俊红. 2021. 碱基编辑技术及其在作物遗传改良中的应用综述. 园艺学报, 48 (4):719-732.
doi: 10.16420/j.issn.0513-353x.2020-0540 |
|
[11] |
Li J, Zhang H, Si X, Tian Y, Chen K, Liu J, Chen H, Gao C. 2017. Generation of thermosensitive male-sterile maize by targeted knockout of the ZmTMS5 gene. Journal of Genetics and Genomics, 44 (9):465-468.
doi: 10.1016/j.jgg.2017.02.002 URL |
[12] | Li Jun-ming, Xiang Chao-yang, Wang Xiao-xuan, Guo Yan-mei, Huang Ze-jun, Liu Lei, Li Xin, Du Yong-chen. 2021. ‘Thirteenth Five-Year Plan’status and outlook of tomato industry in China. Chinese Vegetables,(2):13-20. (in Chinese) |
李君明, 项朝阳, 王孝宣, 国艳梅, 黄泽军, 刘磊, 李鑫, 杜永臣. 2021. “十三五”我国番茄产业现状及展望. 中国蔬菜,(2):13-20. | |
[13] |
Lin T, Zhu G, Zhang J, Xu X, Yu Q, Zheng Z, Zhang Z, Lun Y, Li S, Wang X, Huang Z, Li J, Zhang C, Wang T, Zhang Y, Wang A, Zhang Y, Lin K, Li C, Xiong G, Xue Y, Mazzucato A, Causse M, Fei Z, Giovannoni J J, Chetelat R T, Zamir D, Stadler T, Li J, Ye Z, Du Y, Huang S. 2014. Genomic analyses provide insights into the history of tomato breeding. Nature Genetics, 46 (11):1220-1226.
doi: 10.1038/ng.3117 pmid: 25305757 |
[14] |
Liu Y, Zhang C L, Wang X F, Li X M, You C X. 2022. Genome-wide identification and evolutionary analysis of MLO gene family in Rosaceae plants. Horticultural Plant Journal, 8 (4):395-407.
doi: 10.1016/j.hpj.2022.04.007 URL |
[15] |
Ma X, Zhang Q, Zhu Q, Liu W, Chen Y, Qiu R, Wang B, Yang Z, Li H, Lin Y, Xie Y, Shen R, Chen S, Wang Z, Chen Y, Guo J, Chen L, Zhao X, Dong Z, Liu Y G. 2015. A robust CRISPR/Cas 9 system for convenient,high-efficiency multiplex genome editing in monocot and dicot plants. Molecular Plant, 8 (8):1274-1284.
doi: 10.1016/j.molp.2015.04.007 URL |
[16] |
Nguyen C V, Vrebalov J T, Gapper N E, Zheng Y, Zhong S, Fei Z, Giovannoni J J. 2014. Tomato GOLDEN2-LIKE transcription factors reveal molecular gradients that function during fruit development and ripening. The Plant Cell, 26 (2):585-601.
doi: 10.1105/tpc.113.118794 pmid: 24510723 |
[17] | Ouyang Bo. 2002. Study of several disease-course-associated protein genes in transformed tomatoes[Ph. D. Dissertation]. Wuhan: Huazhong Agricultural University. (in Chinese) |
欧阳波. 2002. 几种病程相关蛋白基因转化番茄的研究[博士论文]. 武汉: 华中农业大学. | |
[18] |
Powell A L T, Nguyen C, Hill T, Cheng K L, Figueroa-Balderas R, Aktas H, Ashrafi H, Pons C, Fernández-Muñoz R, Vicente A, Lopez-Baltazer J, Barry C S, Liu Y S, Chetelate R, Granell A, van Deynze A, Giovannoni J J, Bennett A B. 2012. Uniform ripening encodes a Golden 2-like transcription factor regulating tomato fruit chloroplast development. Science, 336:1711-1715.
doi: 10.1126/science.1222218 pmid: 22745430 |
[19] |
Rodriguez-Leal D, Lemmon Z H, Man J, Bartlett M E, Lippman Z B. 2017. Engineering quantitative trait variation for crop improvement by genome editing. Cell, 171 (2):470-480.
doi: 10.1016/j.cell.2017.08.030 URL |
[20] |
Tang T, Yu X, Yang H, Gao Q, Ji H, Wang Y, Yan G, Peng Y, Luo H, Liu K, Li X, Ma C, Kang C, Dai C. 2018. Development and validation of an effective CRISPR/Cas 9 vector for efficiently isolating positive transformants and transgene-free mutants in a wide range of plant species. Frontiers in Plant Science, 9:1533.
doi: 10.3389/fpls.2018.01533 URL |
[21] |
Voytas D F. 2013. Plant genome engineering with sequence-specific nucleases. Annual Review of Plant Biology, 64:327-350.
doi: 10.1146/annurev-arplant-042811-105552 pmid: 23451779 |
[22] | Wang Dan, Wang Mi, Liu Jun, Zhou Xiaohui, Liu Songyu, Yang Yan, Zhuang Yong. 2022. Cloning of U6 promoters and establishment of CRISPR/Cas 9 mediated gene editing system in eggplant. Acta Horticulturae Sinica, 49 (4):791-800. (in Chinese) |
王丹, 王谧, 刘军, 周晓慧, 刘松瑜, 杨艳, 庄勇. 2022. 茄子U6启动子克隆及CRISPR/Cas9介导的基因编辑体系建立. 园艺学报, 49 (4):791-800.
doi: 10.16420/j.issn.0513-353x.2020-0265 |
|
[23] |
Wang G X, Zong M, Liu D, Wu Y, Tian S W, Han S, Guo N, Duan M M, Miao LM, Liu Fan. 2022. Efficient generation of targeted point mutations in the Brassica oleracea var. botrytis genome via a modified CRISPR/Cas 9 system. Horticultural Plant Journal, 8 (4):527-530.
doi: 10.1016/j.hpj.2022.01.005 URL |
[24] |
Wang Y, Cheng X, Shan Q, Zhang Y, Liu J, Gao C, Qiu J L. 2014. Simultaneous editing of three homoeoalleles in hexaploid bread wheat confers heritable resistance to powdery mildew. Nature Biotechnology, 32 (9):947-951.
doi: 10.1038/nbt.2969 pmid: 25038773 |
[25] |
Yu Q H, Wang B, Li N, Tang Y, Yang S, Yang T, Xu J, Guo C, Yan P, Wang Q, Asmutola P. 2017. CRISPR/Cas9-induced targeted mutagenesis and gene replacement to generate long-shelf life tomato lines. Scientific Reports, 7 (1):11874.
doi: 10.1038/s41598-017-12262-1 |
[26] |
Zhang Aiping, Liu Jiangna, Yan Jianjun, Zhang Xiying, Bai Yunfeng. 2022. Progress and prospect of genome editing in tomato. Acta Horticulturae Sinica, 49 (1):221-232. (in Chinese)
doi: 10.16420/j.issn.0513-353x.2020-0976 |
张爱萍, 刘江娜, 闫建俊, 张西英, 白云凤. 2022. 番茄基因编辑研究进展和前景. 园艺学报, 49 (1):221-232.
doi: 10.16420/j.issn.0513-353x.2020-0976 |
|
[27] |
Zhang H, Zhang J, Wei P, Zhang B, Gou F, Feng Z, Mao Y, Yang L, Zhang H, Xu N, Zhu J K. 2014. The CRISPR/Cas 9 system produces specific and homozygous targeted gene editing in rice in one generation. Plant Biotechnology Journal, 12 (6):797-807.
doi: 10.1111/pbi.12200 pmid: 24854982 |
[28] |
Zhang J, Zhang H, Botella J R, Zhu J K. 2018. Generation of new glutinous rice by CRISPR_Cas9-targeted mutagenesis of the waxy gene in elite rice varieties. Journal of Integrative Plant Biology, 60:369-375.
doi: 10.1111/jipb.v60.5 URL |
[29] |
Zuo Xin, Li Mingming, Li Xinrong, Miao Chunyan, Li Yanfang, Yang Xu, Zhang Zhongyi, Wang Fengqing. 2022. CRISPR/Cas 9 technology for RcPDS1 gene editing in Rehmannia chingii. Acta Horticulturae Sinica, 49 (7):1532-1544. (in Chinese)
doi: 10.16420/j.issn.0513-353x.2021-0475 |
左鑫, 李铭铭, 李欣容, 苗春妍, 李炎枋, 杨旭, 张重义, 王丰青. 2022. CRISPR/Cas9技术在天目地黄RcPDS1基因编辑中的应用. 园艺学报, 49 (7):1532-1544.
doi: 10.16420/j.issn.0513-353x.2021-0475 |
[1] | 苏银玲, 杨子祥, 但 忠, 麻继仙, 杨 龙, 李易蓉, 唐正富, 汪玲敏, 木万福. 番茄新品种‘云番茄 68’[J]. 园艺学报, 2023, 50(S1): 63-64. |
[2] | 樊 娟, 沈松真, 苗青青, 张乐辉, 姚恩鹏, 裴卓强. 番茄新品种‘卫红 16 号’[J]. 园艺学报, 2023, 50(S1): 65-66. |
[3] | 杨孟霞, 刘晓林, 曹雪, 魏凯, 宁宇, 杨沛, 李珊珊, 陈紫月, 王孝宣, 国艳梅, 杜永臣, 李君明, 刘磊, 李鑫, 黄泽军. 番茄CRISPR/Cas9介导的多基因编辑技术体系构建与应用[J]. 园艺学报, 2023, 50(6): 1215-1229. |
[4] | 张辉, 朱为民, 朱龙英, 杨学东, 张迎迎, 田守波, 万延慧, 刘雅慧, 杨志杰. 樱桃番茄新品种‘沪樱9号’[J]. 园艺学报, 2023, 50(6): 1379-1380. |
[5] | 徐悦, 李子雄, 陈婕, 孙亮. 2,4-D调控番茄果形的转录基础[J]. 园艺学报, 2023, 50(4): 802-814. |
[6] | 郑锦荣, 聂俊, 李艳红, 谭德龙, 谢玉明, 张长远. 樱桃番茄新品种‘粤科达101’[J]. 园艺学报, 2023, 50(4): 909-910. |
[7] | 刘玉菡, 陶宁, 王庆国, 李清清. 番茄中ABC转运蛋白SlABCG23调控茉莉酸信号途径[J]. 园艺学报, 2023, 50(3): 559-568. |
[8] | 史洪丽, 李腊, 郭翠梅, 余婷婷, 简伟, 杨星勇. 番茄灰霉病生防菌株TL1的分离、鉴定及其生防能力分析[J]. 园艺学报, 2023, 50(1): 79-90. |
[9] | 忽靖宇, 阙开娟, 缪田丽, 吴少政, 王田田, 张磊, 董鲜, 季鹏章, 董家红. 侵染鸢尾的番茄斑萎病毒鉴定[J]. 园艺学报, 2023, 50(1): 170-176. |
[10] | 郑积荣, 王同林, 胡松申. 高品质番茄新品种‘杭杂603’[J]. 园艺学报, 2022, 49(S2): 103-104. |
[11] | 郑积荣, 王同林. 番茄新品种‘杭杂601’[J]. 园艺学报, 2022, 49(S2): 105-106. |
[12] | 郑积荣, 王同林. 樱桃番茄新品种‘杭杂503’[J]. 园艺学报, 2022, 49(S2): 107-108. |
[13] | 黄婷婷, 刘淑芹, 张永志, 李 平, 张志焕, 宋立波. 樱桃番茄新品种‘樱莎红4号’[J]. 园艺学报, 2022, 49(S2): 109-110. |
[14] | 张前荣, 李大忠, 裘波音, 林 珲, 马慧斐, 叶新如, 刘建汀, 朱海生, 温庆放. 设施番茄新品种‘闽农科2号’[J]. 园艺学报, 2022, 49(S1): 73-74. |
[15] | 韩帅, 吴婕, 张河庆, 席亚东. 四川莴笋上番茄斑萎病毒的电镜观察与小RNA测序鉴定[J]. 园艺学报, 2022, 49(9): 2007-2016. |
阅读次数 | ||||||
全文 |
|
|||||
摘要 |
|
|||||
版权所有 © 2012 《园艺学报》编辑部 京ICP备10030308号-2 国际联网备案号 11010802023439
编辑部地址: 北京市海淀区中关村南大街12号中国农业科学院蔬菜花卉研究所 邮编: 100081
电话: 010-82109523 E-Mail: yuanyixuebao@126.com
技术支持:北京玛格泰克科技发展有限公司
