芥蓝二氢黄酮醇4-还原酶基因BoaDFR的克隆与功能鉴定

doi:10.16420/j.issn.0513-353x.2020-0378

摘要/Abstract

摘要：

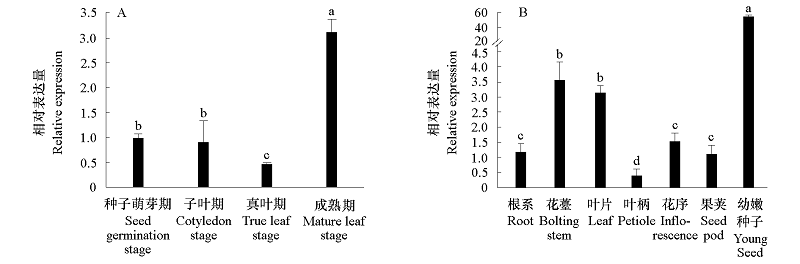

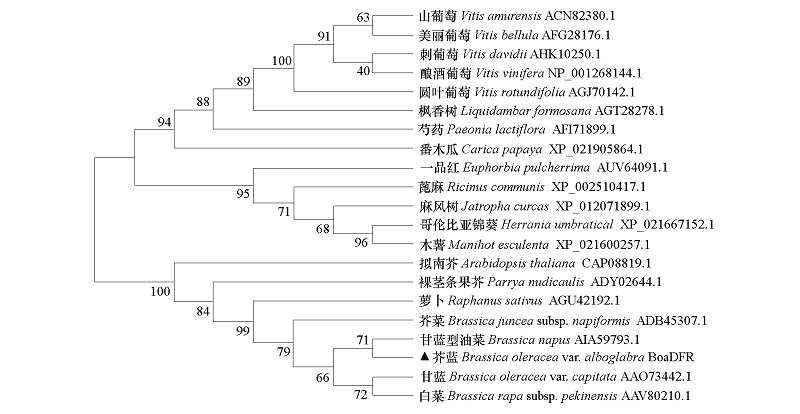

以白花芥蓝‘四季粗条’为材料克隆了BoaDFR基因,GenBank登录号为MT472647,CDS序列长为1 158 bp,编码385个氨基酸,与甘蓝型油菜、甘蓝和白菜等具有高度同源性。BoaDFR表达水平在芥蓝不同发育时期、不同器官中存在显著差异,随植株发育总体呈现先下降后上升的趋势,在幼嫩种子中表达量最高。芥蓝原生质体的亚细胞定位结果显示BoaDFR定位在细胞核上。构建了农杆菌介导的芥蓝瞬时过表达体系,将BoaDFR转入白花芥蓝‘四季粗条’和黄花芥蓝‘福州黄花’中,发现BoaDFR在两种芥蓝中均高水平表达,转基因植株叶片颜色明显变紫,花青素苷显著积累,总含量最高达461.43 μg·g^-1 FW,而野生型和转空载体芥蓝叶片中几乎检测不到花青素苷。通过HPLC在转基因植株叶片中共检测到8种花青素苷,均为矢车菊花青素苷,其中矢车菊-3-阿魏酰-丙二酰-槐糖苷-5-葡萄糖苷占比最高。

关键词: 芥蓝, 二氢黄酮醇4-还原酶（DFR）, 花青素苷, 基因瞬时过表达, 基因功能

Abstract:

The BoaDFR was cloned from the cultivar‘Siji Cutiao’of white flower Chinese kale,and the GenBank accession number was MT472647. BoaDFR is 1 158 bp-long CDS sequence,encoding 385 amino acids. BoaDFR has high homology with DFR of Brassica napus,B. oleracea and B. rapa. The expression level of BoaDFR differed significantly at different stages and organs,and generally showed a trend of decreasing first and then rising during the plant growth. The highest expression level of BoaDFR was in young seeds,which was significantly higher than other organs. The subcellular localization showed that BoaDFR was localized in the nucleus. The Agrobacterium-mediated transient overexpression system in Chinese kale was constructed,and BoaDFR was transferred into‘Siji Cutiao’and‘Fuzhou Huanghua’. It was found that BoaDFR can be expressed at high levels in both two cultivars and the leaves of transgenic plants obviously turned purple,the anthocyanin accumulated significantly and the highest content was up to 461.43 μg·g ^-1FW,whereas the anthocyanin almost could not be detected in both wild-type and empty vector plants. Furthermore,a total of eight anthocyanins were detected in the transgenic plant leaves by HPLC,all of which were cyanidins,and cyanidin 3-feruloylmalonylso- phoroside-5- glucoside was predominant.

Key words: Chinese kale, dihydroflavonol 4-reductase（DFR）, anthocyanin, gene transient overexpression, gene function

中图分类号:

S635

郑好, 张芬, 简越, 黄文莉, 梁莎, 江敏, 袁巧, 汪俏梅, 孙勃. 芥蓝二氢黄酮醇4-还原酶基因BoaDFR的克隆与功能鉴定[J]. 园艺学报, 2021, 48(1): 73-82.

ZHENG Hao, ZHANG Fen, JIAN Yue, HUANG Wenli, LIANG Sha, JIANG Min, YUAN Qiao, WANG Qiaomei, SUN Bo. Cloning and Function Identification of Dihydroflavonol 4-Reductase Gene BoaDFR in Chinese Kale[J]. Acta Horticulturae Sinica, 2021, 48(1): 73-82.

图/表 9

参考文献 22

[1]	Büchert A M, Civello P M, Martínez G A. 2011. Effect of hot air,UV-C,white light and modified atmosphere treatments on expression of chlorophyll degrading genes in postharvest broccoli(Brassica oleracea L.)florets. Scientia Horticulturae, 127(3):214-219. doi: 10.1016/j.scienta.2010.11.001 URL
[2]	Duan Yanjiao, Zhang Lugang, He Qiong, Zhang Mingke, Shi Jiangchao. 2012. Expression of transcriptional factors and structural genes of anthocyanin biosynthesis in purple-heading Chinese cabbage. Acta Horticulturae Sinica, 39(11):2159-2167. (in Chinese)
	段岩娇, 张鲁刚, 何琼, 张明科, 石姜超. 2012. 紫心大白菜花青素积累特性及相关基因表达分析. 园艺学报, 39(11):2159-2167.
[3]	Lee W S, You J A, Chung H, Lee Y H, Baek N I, Yoo J S, Park Y D. 2008. Molecular cloning and biochemical analysis of dihydroflavonol 4-reductase(DFR)from Brassica rapa ssp. pekinesis(Chinese cabbage)using a heterologous system. Journal of Plant Biology, 51(1):42-47. doi: 10.1007/BF03030739 URL
[4]	Lei J J, Chen G J, Chen C M, Cao B H. 2017. Germplasm diversity of Chinese kale in China. Horticultural Plant Journal, 3(3):101-104. doi: 10.1016/j.hpj.2017.07.006 URL
[5]	Li Yali, Li Xin, Xiao Jie, Li Ruiling, Yang Huali, Sun Bo, Tang Haoru. 2018. Function and regulation characterization of dihydroflavonol 4-reductase in anthocyanin biosynthesis. Acta Botanica Boreali-Occidentalia Sinica, 38(1):187-196. (in Chinese)
	李亚丽, 李欣, 肖婕, 李瑞玲, 杨华丽, 孙勃, 汤浩茹. 2018. 二氢黄酮醇-4-还原酶在花青素合成中的功能及调控研究进展. 西北植物学报, 38(1):187-196.
[6]	Liu H L, Lou Q, Ma J R, Su B B, Gao Z Z, Liu Y L. 2019. Cloning and functional characterization of dihydroflavonol 4-reductase gene involved in anthocyanidin biosynthesis of grape hyacinth. International Journal of Molecular Sciences, 20(19):4743. doi: 10.3390/ijms20194743 URL
[7]	Liu X P, Gao B Z, Han F Q, Fang Z Y, Yang L M, Zhuang M, Lv H H, Liu Y M, Li Z S, Cai C C, Yu H L, Li Z Y, Zhang Y Y. 2017, Genetics and fine mapping of a purple leaf gene,BoPr,in ornamental kale(Brassica oleracea L. var. acephala). BMC Genomics, 18(1):230. doi: 10.1186/s12864-017-3613-x URL
[8]	Livak K J, Schmittgen T D. 2001. Analysis of relative gene expression data using real-time quantitative PCR and the 2^-ΔΔCT method. Methods, 25(4):402-408. pmid: 11846609
[9]	Marles M A S, Gruber M Y, Scoles G J, Scolesb A D. 2003. Pigmentation in the developing seed coat and seedling leaves of Brassica carinata is controlled at the dihydroflavonol reductase locus. Phytochemistry, 62(5):663-672. pmid: 12620317
[10]	Meyer P, Heidmann I, Forkmann G, Saedler H. 1987. A new petunia flower colour generated by transformation of a mutant with a maize gene. Nature, 330(6149):677-678. pmid: 3683587
[11]	Sun B, Yuan Q, Zheng H, Liang S, Jiang M, Wang M M, Chen Q, Li M Y, Zhang Y, Luo Y, Gong R G, Zhang F, Tang H R. 2019. An efficient and economical protocol for isolating,purifying and PEG-mediated transient gene expression of Chinese kale hypocotyl protoplasts. Plants, 8(10):385. doi: 10.3390/plants8100385 URL
[12]	Sun B, Zhang F, Xue S L, Chang J Q, Zhang A H, Jiang M, Miao H Y, Wang Q M, Tang H R. 2018. Molecular cloning and expression analysis of the ζ-carotene desaturase gene in Chinese kale(Brassica oleracea var. alboglabra Bailey). Horticultural Plant Journal, 4(3):94-102. doi: 10.1016/j.hpj.2018.03.005 URL
[13]	Tanaka Y, Ohmiya A. 2008. Seeing is believing:engineering anthocyanin and carotenoid biosynthetic pathways. Current Opinion in Biotechnology, 19(2):190-197. doi: 10.1016/j.copbio.2008.02.015 URL
[14]	Tian J, Han Z Y, Zhang J, Hu Y J, Song T T. 2015. The balance of expression of dihydroflavonol 4-reductase and flavonol synthase regulates flavonoid biosynthesis and red foliage coloration in crabapples. Scientific Reports, 5:12228. doi: 10.1038/srep12228 pmid: 26192267
[15]	Tian Zhendong. 2018. Cloning and overexpression vector construction of DFR,a related gene to pink leaf in ornamental kale[M. D. Dissertation]. Shenyang:Shenyang Agricultural University. (in Chinese)
	田振东. 2018. 羽衣甘蓝粉色叶相关基因DFR的克隆及表达载体构建[硕士论文]. 沈阳:沈阳农业大学.
[16]	Watanabe K, Kobayashi A, Endo M, Sage-Ono K, Toki S, Ono M. 2017. CRISPR/Cas9-mediated mutagenesis of the dihydroflavonol-4-reductase-B(DFR-B)locus in the Japanese morning glory Ipomoea(Pharbitis)nil. Scientific Reports, 7:10028. doi: 10.1038/s41598-017-10715-1 pmid: 28855641
[17]	Wu X L, Gu L W, Prior R L, Mckay S. 2004. Characterization of anthocyanins and proanthocyanidins in some cultivars of Ribes,Aronia,and Sambucus and their antioxidant capacity. Journal of Agricultural and Food Chemistry, 52(26):7846-7856. doi: 10.1021/jf0486850 URL
[18]	Xie S, Zhao T, Zhang Z, Meng J. 2018. Reduction of dihydrokaempferol by Vitis vinfera dihydroflavonol 4-reductase to produceorange pelargonidin-type anthocyanins. Journal of Agricultural and Food Chemistry, 66(13):3524-3532. doi: 10.1021/acs.jafc.7b05766 URL
[19]	Xu Zhiru, Liu Tong, Cui Guoxin, Li Chunlei, Ma Jing, Li Yuhua. 2014. Cloning and function identification of dihydroflavonol 4-reductase genes in Turnip. Acta Horticulturae Sinica, 41(4):687-700. (in Chinese)
	许志茹, 刘通, 崔国新, 李春雷, 马静, 李玉花. 2014. 芜菁二氢黄酮醇4-还原酶基因的克隆与功能鉴定. 园艺学报, 41(4):687-700.
[20]	Yuan Yuhui, Zhu Shoujing, Zou Jie, Zeng Xianjun, Xiao Qiang, Xu Xinren, Liu Xianjun. 2019. Expression of BjuA09DFR gene in Brassica juncea and its promoter cloning,transformation and analysis. Acta Botanica Boreali-Occidentalia Sinica, 39(1):24-31. (in Chinese)
	袁玉辉, 朱守晶, 邹杰, 曾贤军, 肖强, 徐新仁, 刘显军. 2019. 芥菜型油菜BjuA09DFR基因及其启动子的克隆与转化和表达. 西北植物学报, 39(1):24-31.
[21]	Yuan Y X, Chiu L W, Li L. 2009. Transcriptional regulation of anthocyanin biosynthesis in red cabbage. Planta, 230(6):1141-1153. doi: 10.1007/s00425-009-1013-4 URL
[22]	Zhang Shujiang, Ma Yue, Xu Xueling, Qian Wei, Zhang Shifan, Li Fei, Zhang Hui, Sun Rifei. 2014. Components and amounts of anthocyanins in several Brassica vegetables. Acta Horticulturae Sinica, 41(7):1451-1460. (in Chinese)
	张淑江, 马越, 徐学玲, 钱伟, 章时蕃, 李菲, 张慧, 孙日飞. 2014. 芸薹属5种紫红色蔬菜花青素苷含量及组分分析. 园艺学报, 41(7):1451-1460.

用途 Use	引物名称 Primer name	序列（5′-3′） Sequence
CDS全长扩增 Amlification of CDS	DFR-CDS-F	ATGGTAGCTCACAAAGAGACCGTGT
CDS全长扩增 Amlification of CDS	DFR-CDS-R	CTAAGCACAGATCTGCTGTGCCGA
qRT-PCR	DFR-qPCR-F	CGCATCAGGATTCATTGGTTCAT
qRT-PCR	DFR-qPCR-R	CGTCTTCGCGTTTGGCAAATCA
定量内参引物 Primers for internal control	β-actin-F	CCACCAATCTTGTACACATCC
定量内参引物 Primers for internal control	β-actin-R	AGACCACCAAGTACTACTGCAC
亚细胞定位 Subcellular localization	DFR-GFP-XmaI-F	CCCCCCGGGATGGTAGCTCACAAAGA
亚细胞定位 Subcellular localization	DFR-GFP-XbaI-R	GCTCTAGAAGCACAGATCTGCTGTG
过表达酶切位点引物 Primers for overexpression sites	DFR-pCAM-XbaI-F	GGGGGATCCACTAGTTCTAGAATGGTAGCTCACAAAGAGACCGTG
过表达酶切位点引物 Primers for overexpression sites	DFR-pCAM-SalI-R	AAGCTTACGATACCGTCGACCTAAGCACAGATCTGCTGTGCC

用途 Use	引物名称 Primer name	序列（5′-3′） Sequence
CDS全长扩增 Amlification of CDS	DFR-CDS-F	ATGGTAGCTCACAAAGAGACCGTGT
CDS全长扩增 Amlification of CDS	DFR-CDS-R	CTAAGCACAGATCTGCTGTGCCGA
qRT-PCR	DFR-qPCR-F	CGCATCAGGATTCATTGGTTCAT
qRT-PCR	DFR-qPCR-R	CGTCTTCGCGTTTGGCAAATCA
定量内参引物 Primers for internal control	β-actin-F	CCACCAATCTTGTACACATCC
定量内参引物 Primers for internal control	β-actin-R	AGACCACCAAGTACTACTGCAC
亚细胞定位 Subcellular localization	DFR-GFP-XmaI-F	CCCCCCGGGATGGTAGCTCACAAAGA
亚细胞定位 Subcellular localization	DFR-GFP-XbaI-R	GCTCTAGAAGCACAGATCTGCTGTG
过表达酶切位点引物 Primers for overexpression sites	DFR-pCAM-XbaI-F	GGGGGATCCACTAGTTCTAGAATGGTAGCTCACAAAGAGACCGTG
过表达酶切位点引物 Primers for overexpression sites	DFR-pCAM-SalI-R	AAGCTTACGATACCGTCGACCTAAGCACAGATCTGCTGTGCC

品种 Cultivar	植株 Plant lines	L^*		a^*		b^*
品种 Cultivar	植株 Plant lines	叶正面 Leaf front	叶背面 Leaf back	叶正面 Leaf front	叶背面 Leaf back	叶正面 Leaf front	叶背面 Leaf back
四季粗条 Siji Cutiao	野生型Wild type	43.02 a	51.96 a	-10.29 b	-11.81 d	25.15 a	24.45 a
	空载体Empty vector	44.13 a	53.13 a	-9.55 b	-11.13 d	25.88 a	25.80 a
	过表达Overexpression #1	29.89 c	40.55 b	4.16 a	5.95 b	4.15 bc	2.35 c
	过表达Overexpression #2	35.31 b	53.13 a	3.67 a	-1.51 c	6.40 b	14.70 b
	过表达Overexpression #3	29.57 c	30.79 c	3.64 a	12.72 a	4.01 c	-6.47 d
福州黄花 Fuzhou Huanghua	野生型Wild type	45.76 a	53.77 a	-10.81 c	-10.49 b	26.64 b	23.66 a
	空载体Empty vector	47.72 a	55.99 a	-9.38 c	-12.27 b	32.23 a	27.45 a
	过表达Overexpression #1	31.49 c	54.10 a	4.61 a	-2.83 a	5.12 d	13.77 b
	过表达Overexpression #2	34.57 bc	54.03 a	-1.63 b	-3.32 a	9.50 c	11.71 bc
	过表达Overexpression #3	35.37 b	51.09 b	-1.22 b	-1.06 a	4.96 d	7.20 c

品种 Cultivar	植株 Plant lines	L^*		a^*		b^*
品种 Cultivar	植株 Plant lines	叶正面 Leaf front	叶背面 Leaf back	叶正面 Leaf front	叶背面 Leaf back	叶正面 Leaf front	叶背面 Leaf back
四季粗条 Siji Cutiao	野生型Wild type	43.02 a	51.96 a	-10.29 b	-11.81 d	25.15 a	24.45 a
	空载体Empty vector	44.13 a	53.13 a	-9.55 b	-11.13 d	25.88 a	25.80 a
	过表达Overexpression #1	29.89 c	40.55 b	4.16 a	5.95 b	4.15 bc	2.35 c
	过表达Overexpression #2	35.31 b	53.13 a	3.67 a	-1.51 c	6.40 b	14.70 b
	过表达Overexpression #3	29.57 c	30.79 c	3.64 a	12.72 a	4.01 c	-6.47 d
福州黄花 Fuzhou Huanghua	野生型Wild type	45.76 a	53.77 a	-10.81 c	-10.49 b	26.64 b	23.66 a
	空载体Empty vector	47.72 a	55.99 a	-9.38 c	-12.27 b	32.23 a	27.45 a
	过表达Overexpression #1	31.49 c	54.10 a	4.61 a	-2.83 a	5.12 d	13.77 b
	过表达Overexpression #2	34.57 bc	54.03 a	-1.63 b	-3.32 a	9.50 c	11.71 bc
	过表达Overexpression #3	35.37 b	51.09 b	-1.22 b	-1.06 a	4.96 d	7.20 c

品种 Cultivar	植株 Plant line	A	B	C	D	E	F	G	H	I
四季粗条 Siji Cutiao	野生型Wild-type	0 c	0 d	0 b	0 d	0 c	0 d	0 d	0 d	0 d
	空载体Empty vector	0 c	0 d	0 b	0 d	0 c	0 d	0 d	0 d	0 d
	过表达Overexpression #1	4.31 b	80.36 c	3.79 a	12.80 b	42.13 a	157.79 b	54.85 b	26.15 b	382.17 b
	过表达Overexpression #2	4.69 b	102.39 a	3.53 a	6.53 c	15.58 d	100.52 c	43.03 c	15.22 c	291.49 c
	过表达Overexpression #3	5.97 a	98.73 b	4.30 a	17.07 a	43.85 a	177.94 a	74.21 a	39.36 a	461.43 a
福州黄花 Fuzhou Huanghua	野生型Wild-type	0 c	1.58 d	0 c	0 c	0 d	4.40 d	0 d	0.98 b	6.97 d
	空载体Empty vector	0 c	0 e	0 c	0 c	0 d	0 e	0 d	0 c	0 e
	过表达Overexpression #1	2.47 a	71.20 a	12.06 a	4.80 a	15.61 a	202.46 a	72.35 a	3.51 a	384.47 a
	过表达Overexpression #2	1.14 b	12.41 c	0 c	0 c	5.32 c	42.76 c	18.32 c	0 c	79.95 c
	过表达Overexpression #3	2.41 a	33.63 b	6.56 b	2.04 b	7.43 b	86.70 b	55.44 b	0 c	194.20 b
