Establishment of Agrobacterium rhizogenes-Mediated Genetic Transformation System in Vegetable Pea

doi:10.16420/j.issn.0513-353x.2023-0944

Acta Horticulturae Sinica ›› 2024, Vol. 51 ›› Issue (10): 2439-2448.doi: 10.16420/j.issn.0513-353x.2023-0944

• Plant Protection • Previous Articles Next Articles

Establishment of Agrobacterium rhizogenes-Mediated Genetic Transformation System in Vegetable Pea

FENG Zhijuan, LIU Na, BU Yuanpeng, ZHANG Guwen, WANG Bin, GONG Yaming^*()

Key Laboratory of Vegetable Legumes Germplasm Enhancement and Molecular Breeding in Southern China of Ministry of Agriculture and Rural Affairs，State Key Laboratory for Managing Biotic and Chemical Threats to the Quality and Safety of Agro-Products，Institute of Vegetables，Zhejiang Academy of Agricultural Sciences，Hangzhou 310000，China

Received:2024-01-28 Revised:2024-07-29 Online:2024-12-13 Published:2024-10-21
Contact: GONG Yaming

Abstract

Abstract:

This study established a simple and efficient Agrobacterium rhizogenes-mediated genetic transformation system in vegetable pea. The vegetable pea seeds of‘Zhewan1’were sown into pots with wet sterile vermiculite. The hypocotyls of vegetable pea seedlings were cut at the junction of cotyledon node and hypocotyl and the residual seedlings were selected as explants. The hairy roots were induced with Agrobacterium rhizogenes AR1193 strain harboring the construct of pCAMBIA3301-GUS. The results indicated that 100% of the inoculated explants could produce hair roots. The effect of different seedling age of explant on hairy root induction was also investigated. It was found that the 7-day-old seedling was favorable for hair root induction and the number of hairy root per seedling was 14.60. Further，the hair roots were amplified by RT-PCR of GUS gene and stained with the GUS dye. It was proven that the exogenous GUS gene could be successfully expressed in the hair roots and 35.21% of the hair roots were transgenic positive roots.

Key words: vegetable pea, Agrobacterium rhizogenes, seeding age, hairy root, genetic transformation, transgenic root

FENG Zhijuan, LIU Na, BU Yuanpeng, ZHANG Guwen, WANG Bin, GONG Yaming. Establishment of Agrobacterium rhizogenes-Mediated Genetic Transformation System in Vegetable Pea[J]. Acta Horticulturae Sinica, 2024, 51(10): 2439-2448.

Figures/Tables 6

Fig. 1 Seedlings of vegetable pea cultivated in the vermiculite

Fig. 2 Agrobacterium rhizogenes-mediated genetic transformation process of vegetable pea A：Ideal stage（7-day-old seedling）of vegetable pea for transformation；B：Agrobacterium rhizogenes AR1193 strain containing the pCAMBIA3301-GUS vector cultured on the solid TY plate；C：Agrobacterium rhizogenes AR1193 strain containing pCAMBIA3301-GUS vector cultured in the liquid TY medium；D：The cotyledon and primary root were cut and the cut of residual seedling was scraped on the solid plate grown AR1193；E：Inoculated explants（coated the bacterial mass）were planted into sterile vermiculite and watered with liquid TY medium；F：Inoculated explants were covered with the plastic cover；G：Induced hairy roots；H：GUS staining of hairy roots.

Fig. 3 Effect of different seedling age（5，7 or 9 d）of explant inoculated with AR1193-pCAMBIA3301 strain for different treatment time（10，14 or 18 d）on hairy root induction

Table 1 Induction efficiency of hairy root from different seedling age of explant

苗龄 Seedling stage	培养时间 Cultivation time	侵染外植体数 Number of the explant inoculated	产生毛状根外植体数 Number of explant produced hairy root	外植体平均生根数 Number of hairy root per explant	GUS染色显蓝毛状根数 Number of GUS positive root per explant	毛状根诱导率/% Induction efficiency of hairy root	毛状根转化率/% Transformation frequency of hairy root
5 d	10 d	30	30	3.00 ± 1.61 d		100
	14 d	30	30	4.00 ± 1.70 cd		100
	18 d	30	30	6.50 ± 1.80 c		100
7 d	10 d	30	30	6.50 ± 2.20 c	5.14 ± 1.55	100	35.21
	14 d	30	30	14.60 ± 1.72 a		100
	18 d	30	30	14.60 ± 2.40 a		100
9 d	10 d	30	30	6.50 ± 1.62 c		100
	14 d	30	30	11.00 ± 2.60 b		100
	18 d	30	30	11.00 ± 2.10 b		100

Fig. 4 Validation of transgenic hairy roots of vegetable pea by GUS staining

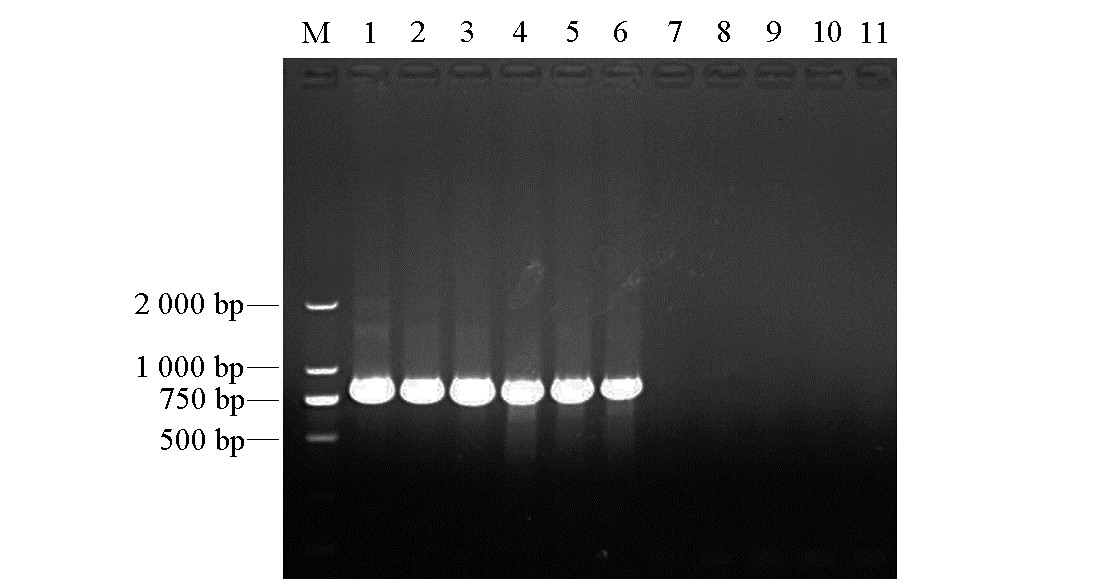

Fig. 5 Validation of transgenic hairy roots of vegetable pea by RT-PCR M：DNA marker；1-5：Transgenic hairy roots inoculated by AR1193-pCAMBIA3301-GUS；6：pCAMBIA3301-GUS plasmid；7-9：Non-inoculated roots；10：AR1193 strain；11：H2O.

References 34

[1]	Cao D, Hou W, Song S, Sun H, Wu C, Gao Y, Han T. 2009. Assessment of conditions affecting Agrobacterium rhizogenes-mediated transformation of soybean. Plant Cell,Tissue and Organ Culture,96:45-52.
[2]	Estrada-Navarrete G, Alvarado-Affantranger X, Olivares J, Guillén G, Díaz-Camino C, Campos F, Quinto C, Gresshoff P, Sanchez F. 2007. Fast,efficient and reproducible genetic transformation of Phaseolus spp. by Agrobacterium rhizogenes. Nature Protocols, 2 (7):1819-1824. doi: 10.1038/nprot.2007.259 pmid: 17641650
[3]	Fan Y, Zhang X, Zhong L, Wang X, Jin L, Lyu S. 2020. One-step generation of composite soybean plants with transgenic roots by Agrobacterium rhizogenes-mediated transformation. BMC Plant Biology, 20 (1):1-11.
[4]	Feng Z, Liu N, Zhang G, Bu Y, Wang B, Gong Y. 2022. Promoter of vegetable soybean GmTIP1;6 responds to diverse abiotic stresses and hormone signals in transgenic Arabidopsis. International Journal of Molecular Sciences, 23 (20):12684.
[5]	Feng Zhijuan, Liu Na, Zhang Guwen, Bu Yuanpeng, Wang Bin, Gong Yaming. 2023. Construction of vegetable pea yeast one-hybrid cDNA library and sugar transporter PsSWEET 15 bait vector. Molecular Plant Breeding, 21 (19):6390-6397. (in Chinese)
	冯志娟, 刘娜, 张古文, 卜远鹏, 王斌, 龚亚明. 2023. 菜用豌豆酵母单杂交cDNA文库及糖转运蛋白PsSWEET15诱饵载体构建. 分子植物育种, 21 (19):6390-6397.
[6]	Gantait S, Mukherjee E. 2021. Hairy root culture technology:applications,constraints and prospect. Applied Microbiology and Biotechnology,105:35-53.
[7]	Häkkinen S, Oksman-Caldentey K. 2018. Progress and prospects of hairy root research//Vikas Srivastava,Shakti Mehrotra,Sonal Mishra. Hairy roots:an effective tool of plant biotechnology. Springer(eBook):3-19.
[8]	Keresz A, Li D, Indrasumunar A, Nguyen C, Nontachaiyapoom S, Kinkema M, Gresshoff P. 2007. Agrobacterium rhizogenes-mediated transformation of soybean to study root biology. Nature Protocols, 2 (4):948-952. doi: 10.1038/nprot.2007.141 pmid: 17446894
[9]	Kreplak J, Madoui M, Cápal P, Novák P, Labadie K, Aubert G, Bayer P, Gali K, Syme R, Main D, Klein A, Bérard A, Vrbová I, Fournier C, d’Agata L, Belser C, Berrabah W, Toegelová H, Milec Z, Vrána J, Lee H, Kougbeadjo A, Térézol M, Huneau C, Turo C, Mohellibi N, Neumann P, Falque M, Gallardo K, McGee R, Tar’an B, Bendahmane A, Aury J, Batley J, Le Paslier M, Ellis N, Warkentin T, Coyne C, Salse J, Edwards D, Lichtenzveig J, Macas J, Doležel J, Wincker P, Burstin J. 2019. A reference genome for pea provides insight into legume genome evolution. Nature Genetics, 51 (9):1411-1422. doi: 10.1038/s41588-019-0480-1 pmid: 31477930
[10]	Leppyanen I, Kirienko A, Dolgikh E. 2019. Agrobacterium rhizogenes-mediated transformation of Pisum sativum L. roots as a tool for studying the mycorrhizal and root nodule symbioses. Peer J,7:e6552.
[11]	Li G, Liu R, Xu R, Varshney R, Ding H, Li M, Yan X, Huang S, Li J, Wang D, Ji Y, Wang C, He J, Luo Y, Gao S, Wei P, Zong X, Yang T. 2023. Development of an Agrobacterium-mediated CRISPR/Cas 9 system in pea(Pisum sativum L.). The Crop Journal, 11 (1):132-139.
[12]	Li Ling, Shen Baoyu, Zhang Yanhong, Guo Xiaolei, Zong Xuxiao. 2023. Studies on main components of edible quality in vegetable pea varieties (Pisum sativum L.) and their dynamic accumulation. China Vegetables,(2):96-102. (in Chinese)
	李玲, 沈宝宇, 张艳红, 郭晓雷, 宗绪晓. 2023. 菜用豌豆食用品质主要组分及其积累动态研究. 中国蔬菜,(2):96-102.
[13]	Liu N, Lyu X, Zhang X, Zhang G, Zhang Z, Guan X, Chen X, Yang X, Feng Z, Gao Q, Shi W, Deng Y, Sheng K, Ou J, Zhu Y, Wang B, Bu Y, Zhang M, Zhang L, Zhao T, Gong Y. 2024. Reference genome sequence and population genomic analysis of peas provide insights into the genetic basis of Mendelian and other agronomic traits. Nature Genetics. https://doi.org/10.1038/s41588-024-01867-8.
[14]	Liu N, Zhang G, Xu S, Mao W, Hu Q, Gong Y. 2015. Comparative transcriptomic analyses of vegetable and grain pea(Pisum sativum L.)seed development. Frontiers in Plant Science,6:1039.
[15]	Liu Na, Hu Qizan, Guo Yafei, Xu Shengchun, Zhang Guwen, Feng Zhijuan, Gong Yaming. 2016. Effects of sowing date and planting density on yield and commodity of vegetable pea Zhewan 1. Journal of Zhejiang Agricultural Sciences, 57 (3):321-323. (in Chinese)
	刘娜, 胡齐赞, 郭亚飞, 徐盛春, 张古文, 冯志娟, 龚亚明. 2016. 播种期和密度对菜用豌豆浙豌1号商品性和产量的影响. 浙江农业科学, 57 (3):321-323.
[16]	Liu Tingting, Zhang Huijie, Qian Jingfei. 2023. Realistic challenges and international experience in the development of China pulse industry. Jiangsu Journal of Agriculture Science, 39 (3):831-840. (in Chinese)
	刘婷婷, 张蕙杰, 钱静斐. 2023. 中国食用豆产业发展的现实挑战与国际经验借鉴. 江苏农业学报, 39 (3):831-840.
[17]	Ludvíková M, Griga M. 2022. Pea transformation:history,current status and challenges. Czech Journal of Genetics and Plant Breeding, 58 (3):127-161.
[18]	Mei Cuo, Liu Zhipeng. 2020. Establishment of Agrobacterium rhizogenes-mediated transformation system of common vetch(Vicia sativa subsp. nigra). Chinese Journal of Grassland, 42 (5):1-7. (in Chinese)
	梅错, 刘志鹏. 2020. 发根农杆菌介导的箭筈豌豆毛状根遗传转化体系的建立. 中国草地学报, 42 (5):1-7.
[19]	Morey K, Peebles C. 2022. Hairy roots:an untapped potential for production of plant products. Frontiers in Plant Science,13:2808.
[20]	Pandey A, Rubiales D, Wang Y, Fang P, Sun T, Liu N, Xu P. 2021. Omics resources and omics-enabled approaches for achieving high productivity and improved quality in pea(Pisum sativum L.). Theoretical and Applied Genetics,134:755-776.
[21]	Puonti-Kaerlas J, Eriksson T, Engstrom P. 1990. Production of transgenic pea(Pisum sativum L.) plants by Agrobacterium tumefaciens-mediated gene transfer. Theoretical and Applied Genetics,80:246-252.
[22]	Qin Yaqi, Hu Guibing, Zhao Jietang. 2020. Studies on Agrobacterium rhizogenesis-mediated transformation of LcMYB1gene into tobacco leaves. 2020. Acta Horticulturae Sinica, 47 (4):635-642. (in Chinese) doi: 10.16420/j.issn.0513-353x.2019-0695
	秦雅琪, 胡桂兵, 赵杰堂. 2020. 发根农杆菌介导的荔枝LcMYB1转化烟草叶片的研究. 园艺学报, 47 (4):635-642. doi: 10.16420/j.issn.0513-353x.2019-0695
[23]	Su Y, Lin C, Zhang J, Hu B, Wang J, Li J, Wang S, Liu R, Li X, Song Z, Wang J. 2022. One-step regeneration of hairy roots to induce high tanshinone plants in Salvia miltiorrhiza. Frontiers in Plant Science,13:913985.
[24]	Sun Dongyang, Hu Xinrong, Xue Wentong. 2019. Research progress of efficacy components and physiological activity of pea. Science and Technology of Food Industry, 40 (2):316-320. (in Chinese)
	孙冬阳, 呼鑫荣, 薛文通. 2019. 豌豆功效成分及其生理活性的研究进展. 食品工业科技, 40 (2):316-320.
[25]	Tong Yueqiang, Nie Jiangwen, Zang Huadong, Yang Yadong, Zeng Zhaohai. 2022. Spatio-temporal dynamics and development tendency of global green pea production from 1961 to 2018. Crops,(3):47-54. (in Chinese)
	佟越强, 聂江文, 臧华栋, 杨亚东, 曾昭海. 2022. 1961—2018年全球青豌豆生产时空变化及发展趋势. 作物杂志,(3):47-54.
[26]	Wan Yiman, Xiao Shenghui, Bai Yichao, Fan Jiayin, Wang Yan, Wu Chang’ai. 2023. Establishment and optimization of a high-efficient hairy-root system in foxtail millet(Setaria italica L.). 2023. Acta Agronomica Sinica, 49 (7):1758-1768. (in Chinese) doi: 10.3724/SP.J.1006.2023.24197
	万夷曼, 肖圣慧, 白依超, 范佳音, 王琰, 吴长艾. 2023. 谷子毛状根诱导方法的建立与优化. 作物学报, 49 (7) :1758-1768. doi: 10.3724/SP.J.1006.2023.24197
[27]	Wu Lei, Yang Tao, Cheng Honglin,Wujing. 2022. Research progress of food legume bio-breeding. China Basic Science,(4):54-68. (in Chinese)
	吴磊, 杨涛, 陈红霖, 武晶. 2022. 食用豆生物育种研究进展. 中国基础科学,(4):54-68.
[28]	Xiang Taihe, Wang Lin, Jiang Huan, Tian Jingluan. 2011. Hairy roots induced by Agrobacterium rhizogenes K 599 in chrysanthemumin vivo and plant regeneration from hairy roots. Acta Horticulturae Sinica, 38 (7):1365-1370. (in Chinese)
	向太和, 王琳, 蒋欢, 田璟鸾. 2011. 发根农杆菌K599对菊花活体转化及其高效再生. 园艺学报, 38 (7):1365-1370.
[29]	Xu Shengchun, Zheng Huazhang, Feng Zhijuan, Liu Na, Zhang Guwen, Hu Qizan, Gong Yaming. 2019. Key construction strategies for core germplasm collection in vegetable pea(Pisum sativum). Journal of Zhejiang University (Agric. & Life Sci.), 45 (4):401-406. (in Chinese)
	徐盛春, 郑华章, 冯志娟, 刘娜, 张古文, 胡齐赞, 龚亚明. 2019. 菜用豌豆核心种质构建的关键策略. 浙江大学学报, 45 (4):401-406.
[30]	Xu X, Yu T, Ma J, Chen J, Zhou Y, Chen M, Chen Z, Ma Y, Xu Z, Zhang Z. 2023. Transformation and detection of soybean hairy roots. Bio-Protocol, 13 (11):e4691. doi: 10.21769/BioProtoc.4691 pmid: 37323638
[31]	Yang Mengxia, Liu Xiaolin, Cao Xue, Wei Kai, Ning Yu, Yang Pei, Li Shanshan, Chen Ziyue, Wang Xiaoxuan, Guo Yanmei, Du Yongchen, Li Junming, Liu Lei, Li Xin, Huang Zejun. 2023. Construction and application of a CRISPR/Cas 9 system for multiplex gene editing in tomato. Acta Horticulturae Sinica, 50 (6):1215-1229. (in Chinese) doi: 10.16420/j.issn.0513-353x.2022-0339
	杨孟霞, 刘晓林, 曹雪, 魏凯, 宁宇, 杨沛, 李珊珊, 陈紫月, 王孝宣, 国艳梅, 杜永臣, 李君明, 刘磊, 李鑫, 黄泽军. 2023. 番茄CRISPR/Cas9介导的多基因编辑技术体系构建与应用. 园艺学报, 50 (6):1215-1229. doi: 10.16420/j.issn.0513-353x.2022-0339
[32]	Yang P, Li Z, Wu C, Luo Y, Li J, Wang P, Gao X, Gao J, Feng B. 2019. Identification of differentially expressed genes involved in the molecular mechanism of pericarp elongation and differences in sucrose and starch accumulation between vegetable and grain pea(Pisum sativum L.). International Journal of Molecular Sciences, 20 (24):6135.
[33]	Yang T, Liu R, Luo Y, Hu S, Wang D, Wang C, Pandey M, Ge S, Xu Q, Li N, Li G, Huang Y, Saxena R, Ji Y, Li M, Yan X, He Y, Liu Y, Wang X, Xiang C, Varshney R, Ding H, Gao S, Zong X. 2022. Improved pea reference genome and pan-genome highlight genomic features and evolutionary characteristics. Nature Genetics, 54 (10):1553-1563. doi: 10.1038/s41588-022-01172-2 pmid: 36138232
[34]	Yu T, Liu Y, Fu J, Ma J, Fang Z, Chen J, Zheng L, Lu Z, Zhou Y, Chen M, Xu Z, Ma Y. 2021. The NF-Y-PYR module integrates the abscisic acid signal pathway to regulate plant stress tolerance. Plant Biotechnology Journal,19:2589-2605.
