Cloning and Functional Analysis of Pineapple AcZFP1 Gene Under Low Temperature Stress

doi:10.16420/j.issn.0513-353x.2023-0089

Acta Horticulturae Sinica ›› 2024, Vol. 51 ›› Issue (3): 495-508.doi: 10.16420/j.issn.0513-353x.2023-0089

• Genetic & Breeding·Germplasm Resources·Molecular Biology • Previous Articles Next Articles

Cloning and Functional Analysis of Pineapple AcZFP1 Gene Under Low Temperature Stress

LUO Jiandong¹, QIU Mengqing¹, ZHOU Huimin¹, XIE Weiwei¹, Huang Haixin¹, LIU Jieqi¹, ZHANG Zimin¹, XU Jian², CHEN Chengjie¹, HE Yehua¹, LIU Chaoyang¹^,^*()

¹ Key Laboratory of Biology and Germplasm Enhancement of Horticultural Crops in South China，Ministry of Agriculture and Rural Affairs，Colleage of Horticulture，South China Agricultural University Guangzhou 510642，China
² Guangxi South Subtropical Agricultural Science Research Insititute，Chongzuo，Guangxi 532415，China

Received:2023-04-24 Revised:2023-11-30 Online:2024-03-25 Published:2024-03-22
Contact: LIU Chaoyang

Abstract

Abstract:

In this study，a C2H2 zinc finger proteins gene，named AcZFP1，was obtained from ‘Shenwan’pineapple. The open reading frame of AcZFP1 was 816 bp，which encoded 271 amino acids，and contained two typical zinc finger protein domains. The phylogenetic tree analysis showed that AcZFP1 shared the closest relationship with OsZFP252 and OsMSR15. Gene expression pattern analysis showed that AcZFP1 could be induced by several kinds of stress and hormonal treatment like cold，NaCl，PEG，ABA，SA and MeJA. Subcellular localization assays showed that AcZFP1 located in the nucleus. The AcZFP1-overexpressing（OE）Arabidopsis lines have higher survival rate and F_v/F_m under low temperature stress compared to wild type Arabidopsis. Moreover，the OE lines also showed higher level of soluble protein content，higher activity of superoxide dismutase（SOD）and peroxidase（POD），lower level of malondialdehyde（MDA）content. Further qRT-PCR analysis indicated that AcZFP1 could promote the expression of four typical Arabidopsis endogenous cold-responsive genes such as AtRD29A and AtCOR47，and play a positive regulatory role in low temperature stress.

Key words: pineapple, AcZFP1, low temperature stress, function analysis

LUO Jiandong, QIU Mengqing, ZHOU Huimin, XIE Weiwei, Huang Haixin, LIU Jieqi, ZHANG Zimin, XU Jian, CHEN Chengjie, HE Yehua, LIU Chaoyang. Cloning and Functional Analysis of Pineapple AcZFP1 Gene Under Low Temperature Stress[J]. Acta Horticulturae Sinica, 2024, 51(3): 495-508.

Figures/Tables 12

Table 1 Primers and sequences used in this study

用途 Usage		引物名称 Primer name	引物序列（5′-3′） Sequence
基因克隆 Gene cloning		AcZFP1-F AcZFP1-R	ATGGCAATTGATGCTTTAGA TCAAGCCGGGATTAGGAGCC
亚细胞定位 Subcellular localization	C18-AcZFP1-F C18-AcZFP1-R		cggtatcgataagcttATGGCAATTGATGCTTTAGA cgggctgcaggaattcAGCCGGGATTAGGAGCCGG
转化植株PCR验证 PCR assay of the transgenic plants		Det-AcZFP1-F Det-AcZFP1-R		CGCAGTACAAGTGCTCCGTA CGGGGCTTCTTGAAAGGGT
实时荧光定量PCR Fluorescent quantitative real-time PCR（qRT-PCR）	qAcZFP1-F qAcZFP1-R qAcActin-F qAcActin-R qAtActin-F qAtActin-R qAtKIN1-F qAtKIN1-R qAtKIN2-F qAtKIN2-R qAtCOR47-F qAtCOR47-R qAtRD29A-F qAtRD29A-R		GTGCCACTACGAAGGAACGA GTTTTGCACCCTCAAACCCT CTGGCCTACGTGGCACTTGACTT CACTTCTGGGCAGCGGAACCTTT CCTTCGTCTTGATCTTGCGG AGCGATGGCTGGAACAGAAC ACCAACAAGAATGCCTTCCA CCGCATCCGATACACTCTTT GTCAGAGACCAACAAGAATGCC TGACTCGGATCGCTACTTGTTC CAGTGTCGGAGAGTGTGGTG ACAGCTGGTGAATCCTCTGC GCCGAGAAACTTCAGATTGG CCATTCCTCCTCCTCCTTTC

Fig. 1 PCR amplification results of the AcZFP1 gene in pineapple‘Shenwan’

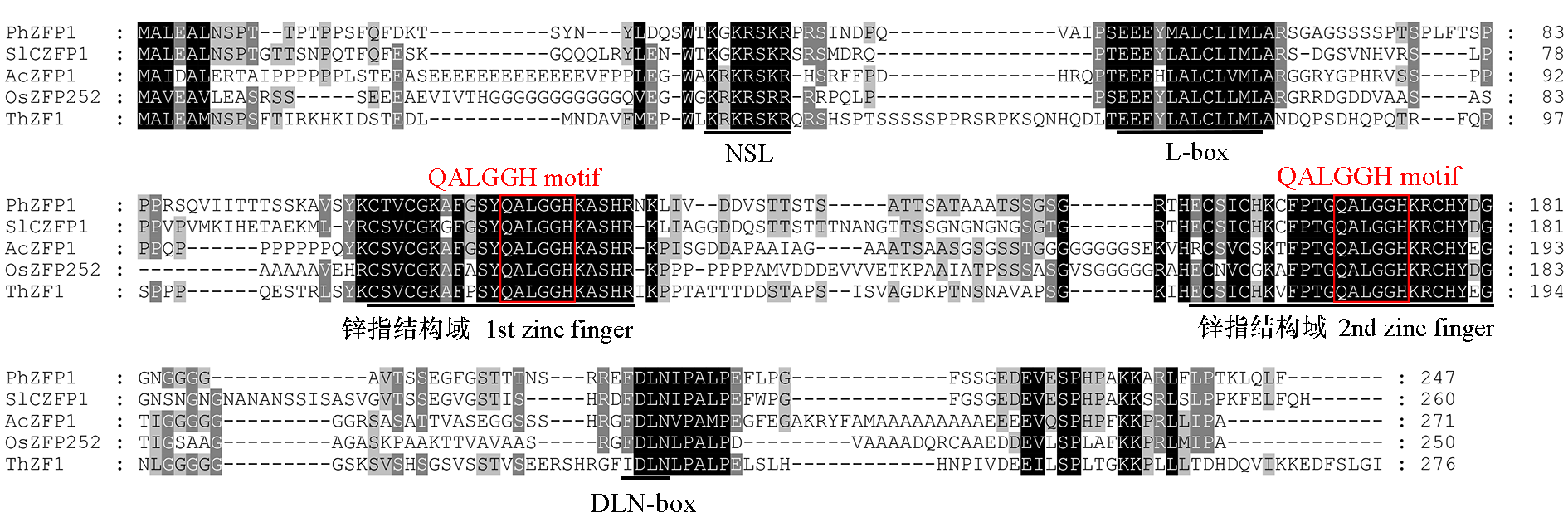

Fig. 2 Protein sequence alignment of AcZFP1 and ZFP proteins in other species Ph：Petunia hybrida；Sl：Solanum lycopersicum；Ac：Ananas comosus；Os：Oryza sativa；Th：Thellungiella halophila. The red box indicates the highly conserved sequences peculiar to zinc finger proteins in plants.

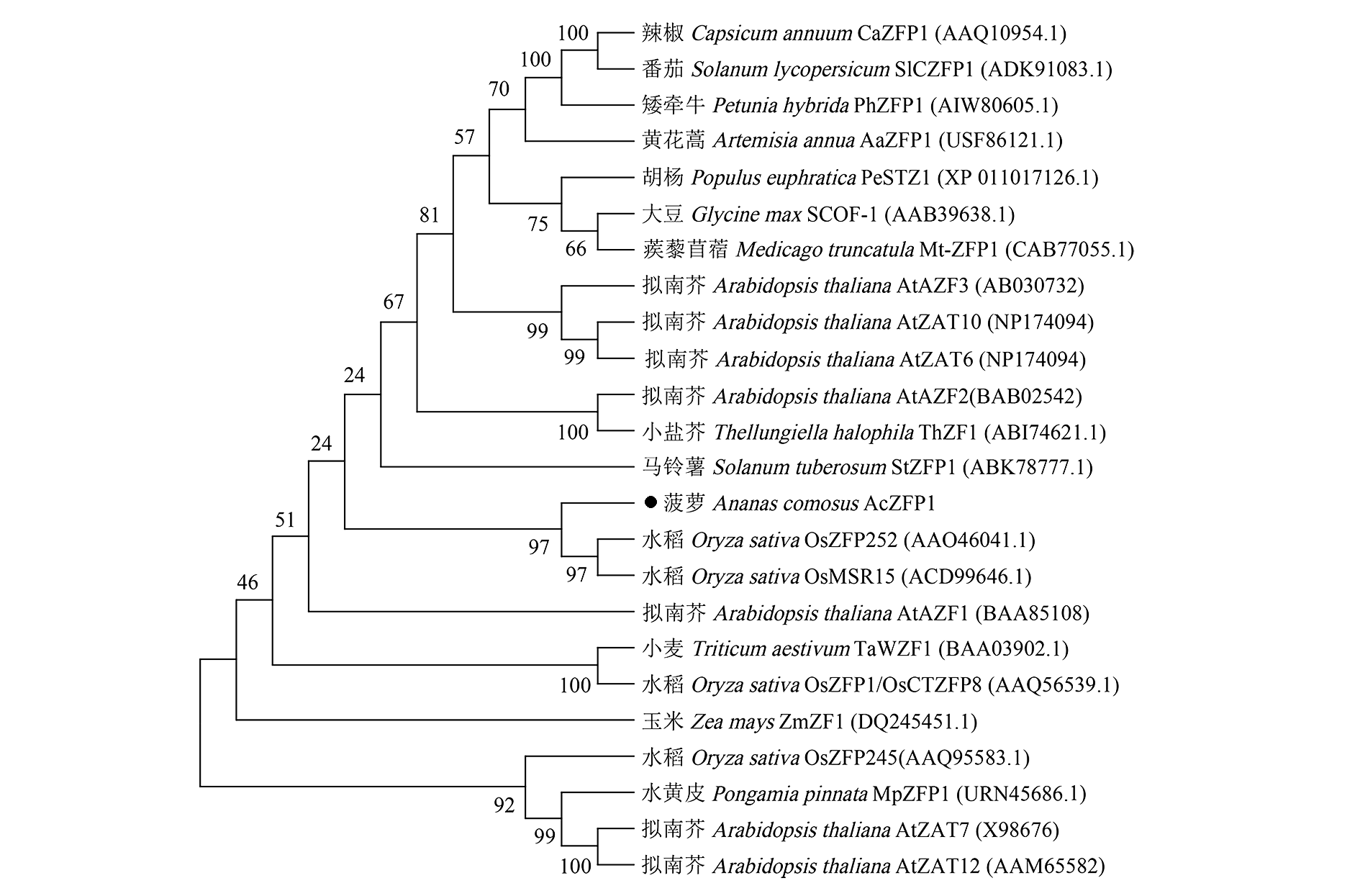

Fig. 3 Phylogenetic tree analysis of pineapple AcZFP1 and ZFP proteins in other plant species Numbers at node represent bootstrap support values.

Table 2 Analysis of cis-elments in the promoter of AcZFP1

作用元件 Functional element	序列 Sequence	位点功能 Function of site	位置/bp Location
LTRE	CCGAC	低温响应元件Low temperature responsive element	+627，+194
MBS	CAACTG	与干旱诱导相关的MYB绑定位点 MYB binding site involved in drought-inducibility	-316
ABRE	ACGTC	参与ABA响应cis-Acting element involved in the abscisic acid responsiveness	-838，-1 495， +1 366
CGTCA-motif	CGTCA	参与MeJA响应 cis-Acting element involved in the MeJA-responsiveness	+876，+1509
TGACG-motif	TGACG	参与MeJA响应cis-Acting element involved in the MeJA-responsiveness	-876，-1 509
P-box	CCTTTTG	赤霉素应答元件Gibberellin-responsive element	+219，-1 054
SARE	TGACG	水杨酸响应元件Salicylic acid -responsive promoter element	-881，-1 514
G-box	CACGTG	参与光响应cis-Acting regulatory element involved in light responsiveness	-1 365
TCT-motif	TCTTAC	光响应元件的一部分Part of a light responsive element	-722
TCCC-motif	TCTCCCT	光响应元件的一部分Part of a light responsive element	+1 830，+1 858

Fig. 4 The subcellular localization of AcZFP1 The green fluorescence indicates the location of the fusion protein，and the red fluorescence indicates the location of the nucleus. If the two fluorescence signals are in the same place，the fluorescence signal will be yellow after superposition.

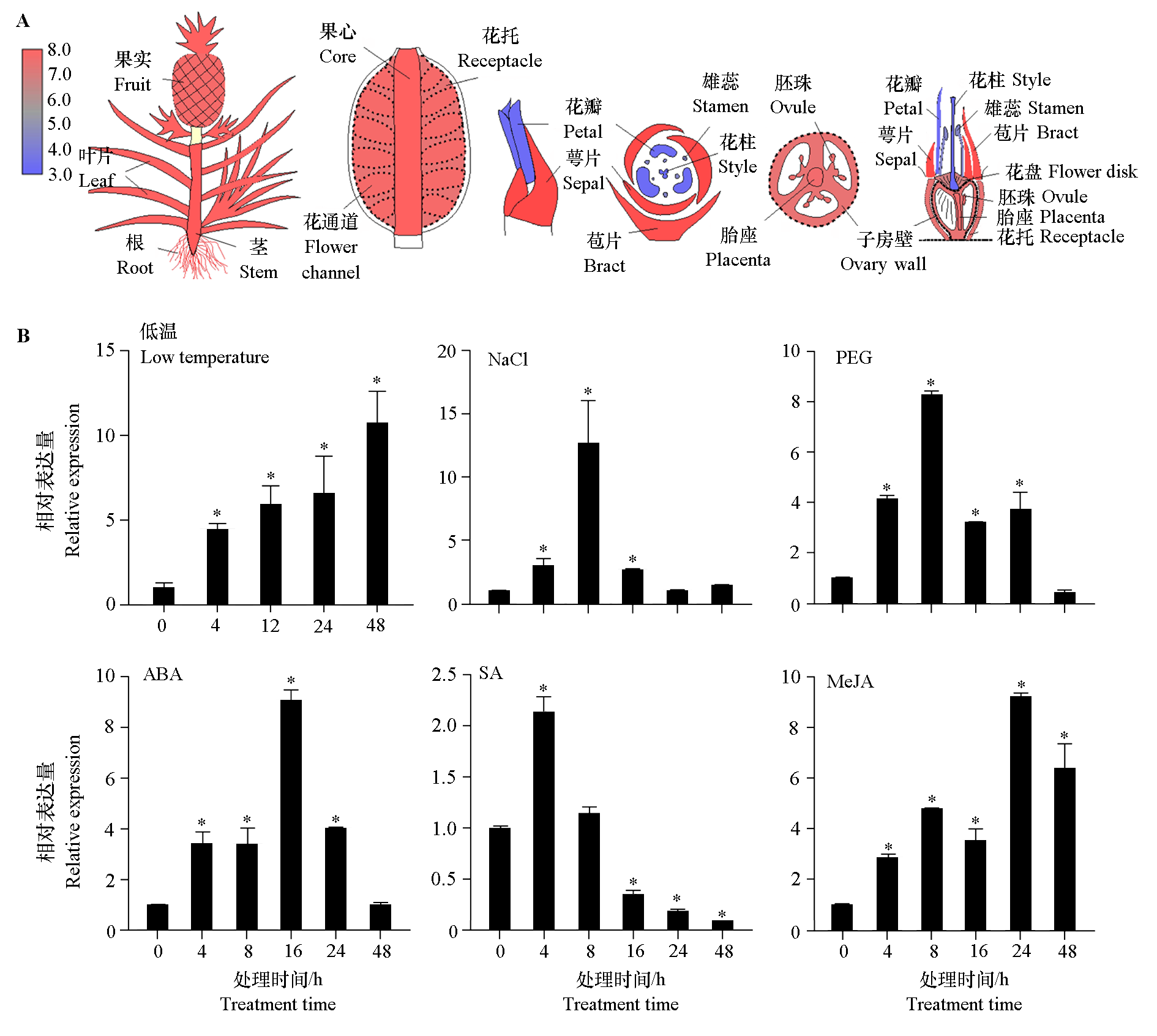

Fig. 5 Expression of AcZFP1 in different tissues（A）and expression under low temperature，NaCl，PEG，ABA，SA and MeJA treated（B） Asterisks indicate significant differences from control（0 h）（P < 0.05）.

Fig. 6 PCR verification of Arabidopsis thaliana overexpressing AcZFP1（OE）（A）and observation of green fluorescent protein（B）

Fig. 7 Morphological characteristics（A）and Fv/Fm chlorophyll fluorescence image（B）of wild type（WT）and overexpressing AcZFP1 Arabidopsis thaliana lines（OE）under cold treatment

Fig. 8 Comparison of survival rate（A）and Fv/Fm（B）in wild type（WT）and overexpressing AcZFP1 Arabidopsis thaliana lines（OE）under cold treatment Asterisks indicate significant differences from wild type（WT）（P < 0.05）. The same below.

Fig. 9 POD and SOD activities，soluble protein and MDA content of wild-type（WT）and overexpressing AcZFP1 Arabidopsis thaliana lines（OE）under low temperature treatment conditions

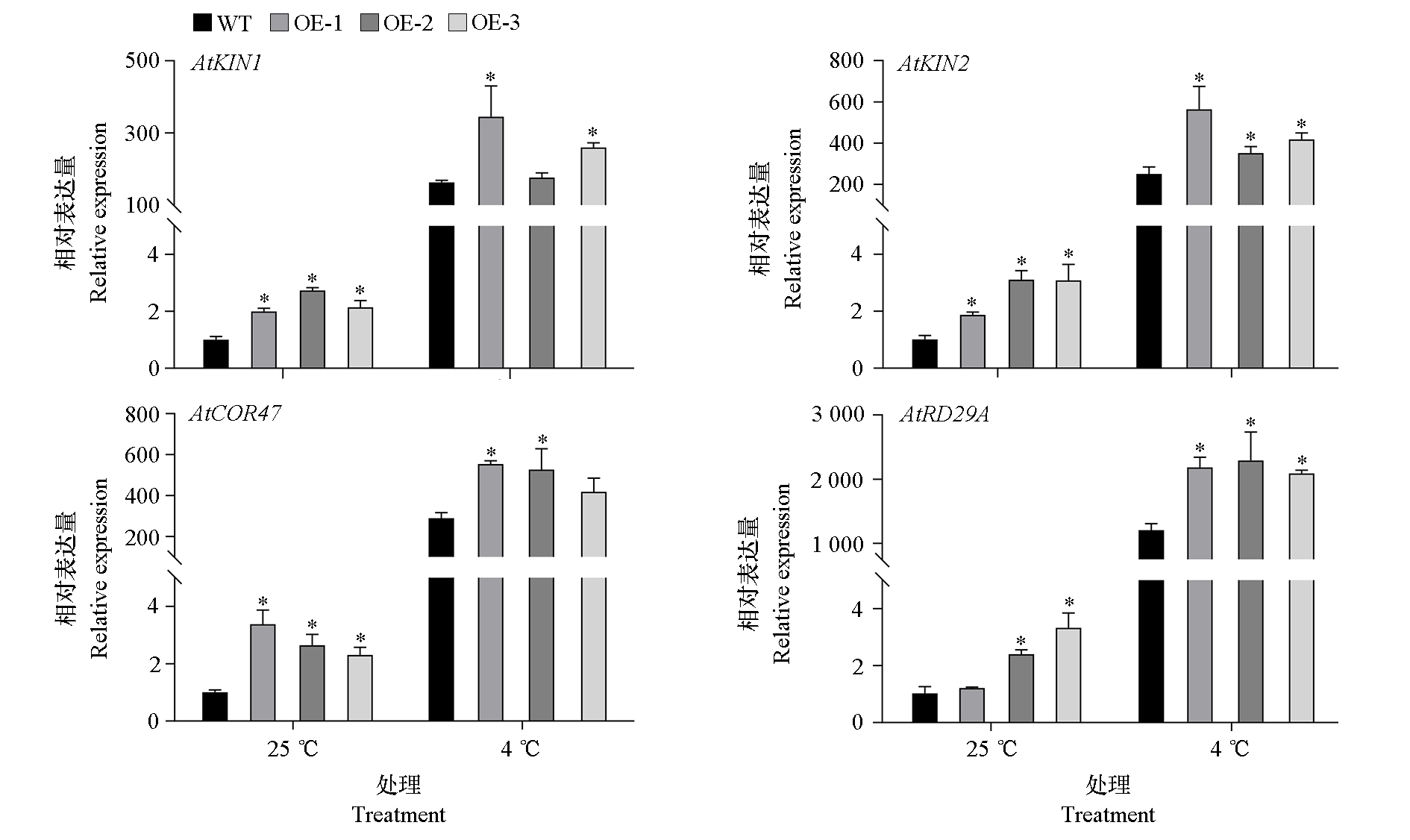

Fig. 10 Expression of cold-responsive genes in wild type（WT）and the transgenic lines（OE）under low temperature treatment

References 43

[1]	An J P, Li R, Qu F J, You C X, Wang X F, Hao Y J. 2018. R2R3-MYB transcription factor MdMYB 23 is involved in the cold tolerance and proanthocyanidin accumulation in apple. Plant Journal, 96 (3):562-577.
[2]	Bouard W, Houde M. 2022. The C2H2 zinc finger protein TaZFP13D increases drought stress tolerance in wheat. Plant Stress,Doi:10.1016/j.stress.2022.100119.
[3]	Chen C J, Zhang Y F, Xu Z Q, Luan A P, Mao Q, Feng J T, Xie T, Gong X, Wang X S, Chen H, He Y H. 2016. Transcriptome profiling of the pineapple under low temperature to facilitate its breeding for cold tolerance. PLoS ONE, 11 (9):e0163315.
[4]	Ciftci-Yilmaz S, Mittler R. 2008. The zinc finger network of plants. Cellular and Molecular Life Sciences, 65 (7-8):1150-1160. doi: 10.1007/s00018-007-7473-4 pmid: 18193167
[5]	Deng Y A, Li L, Peng Q, Feng L F, Yang J F, Zhan R T, Ma D M. 2022. Isolation and characterization of AaZFP1,a C₂H₂ zinc finger protein that regulates the AaIPPI1 gene involved in artemisinin biosynthesis in Artemisia annua. Planta, 255 (6):122.
[6]	Ding Y L, Shi Y T, Yang S H. 2019. Advances and challenges in uncovering cold tolerance regulatory mechanisms in plants. New Phytologist, 222 (4):1690-1704. doi: 10.1111/nph.15696 pmid: 30664232
[7]	Ding Y L, Shi Y T, Yang S H. 2020. Molecular regulation of plant responses to environmental temperatures. Molecular Plant, 13 (4):544-564. doi: S1674-2052(20)30034-4 pmid: 32068158
[8]	Han Y C, Fu C C. 2019. Cold-inducible MaC₂H₂s are associated with cold stress response of banana fruit via regulating MaICE₁. Plant Cell Reports, 38 (5):673-680.
[9]	He F, Li H G, Wang J J, Su Y Y, Wang H L, Feng C H, Yang Y L, Niu M X, Liu C, Yin W L, Xia X L. 2019. PeSTZ1,a C2H2‐type zinc finger transcription factor from Populus euphratica,enhances freezing tolerance through modulation of ROS scavenging by directly regulating PeAPX2. Plant Biotechnology Journal, 17 (11):2169-2183.
[10]	Huang J, Sun S J, Xu D Q, Yang X, Bao Y M, Wang Z F, Tang H J, Zhang H S. 2009. Increased tolerance of rice to cold,drought and oxidative stresses mediated by the overexpression of a gene that encodes the zinc finger protein ZFP245. Biochemical and Biophysical Research Communications, 389 (3):556-561. doi: 10.1016/j.bbrc.2009.09.032 pmid: 19751706
[11]	Jia C H, Wang Z, Wang J Y, Miao H X, Zhang J B, Xu B Y, Liu J H, Jin Z Q, Liu J H. 2022. Genome-wide analysis of the banana WRKY transcription factor gene family closely related to fruit ripening and stress. Plants, 11 (5):10.3390/plants11050662.
[12]	Jin Y M, Piao R H, Yan Y F, Chen M J, Wang L, He H X, Liu X X, Gao X A, Jiang W Z, Lin X F. 2018. Overexpression of a new zinc finger protein transcription factor OsCTZFP8 improves cold tolerance in rice. International Journal of Genomics,10.1155/2018/5480617.
[13]	Kim J C, Lee S H, Yan Y F, Cheong Y H, Yoo C M, Lee S L, Chun H J, Yun D J, Hong J C, Lee S Y, Lim C O, Cho M J. 2001. A novel cold-inducible zinc finger protein from soybean,SCOF-1,enhances cold tolerance in transgenic plants. Plant Journal, 25 (3):247-259. doi: 10.1046/j.1365-313x.2001.00947.x pmid: 11208017
[14]	Li Ke, Shen Mengxiao, Pan Weihao, Zhang Shixuan, Mao Xinye, Yin Yahong, Li Yongqiang, Zhu Youyin, Guo Weidong. 2023. Preliminary investigation of C2H 2 family genes in blueberry flower bud dormancy release. Acta Horticulturae Sinica, 50 (4):737-753. (in Chinese)
	李可, 申朦晓, 潘炜浩, 章诗渲, 毛欣烨, 尹亚红, 李永强, 朱友银, 郭卫东. 2023. 蓝莓C2H2家族基因在花芽休眠解除中的作用初探. 园艺学报, 50 (4):737-753. doi: 10.16420/j.issn.0513-353x.2022-0044
[15]	Liu C Y, Xie T, Chen C J, Luan A P, Long J M, Li C H, Ding Y Q, He Y H. 2017b. Genome-wide organization and expression profiling of the R2R3-MYB transcription factor family in pineapple(Ananas comosus). BMC Genomics, 18 (1):1-16.
[16]	Liu D C, Yang L, Luo M, Wu Q, Liu S B, Liu Y. 2017a. Molecular cloning and characterization of PtrZPT2-1,a ZPT2 family gene encoding a Cys2/His2-type zinc finger protein from trifoliate orange[Poncirus trifoliata(L.)Raf.] that enhances plant tolerance to multiple abiotic stresses. Plant Science,263:66-78.
[17]	Liu Y H, Khan A R, Gan H B. 2022. C2H 2 zinc finger proteins response to abiotic stress in plants. International Journal of Molecular Sciences, 23 (5):1-15.
[18]	Luo P, Chen L M, Chen Y N, Shen Y X, Cui Y Y. 2022. RmZAT10,a novel Cys2/His2 zinc finger transcription factor of Rosa multiflora,functions in cold tolerance through modulation of proline biosynthesis and ROS homeostasis. Environmental and Experimental Botany,198:104845.
[19]	Luo X, Bai X, Zhu D, Li Y, Ji W, Cai H, Wu J, Liu B H, Zhu Y M. 2012. GsZFP1,a new Cys2/His2-type zinc-finger protein,is a positive regulator of plant tolerance to cold and drought stress. Planta,235:1141-1155.
[20]	Mao Q, Chen C J, Xie T, Luan A P, Liu C Y, He Y H. 2018. Comprehensive tissue-specific transcriptome profiling of pineapple(Ananas comosus)and building an eFP-browser for further study. Peer J,6:6028.
[21]	Sanewski G M, Bartholomew D P, Paull R E. 2018. The pineapple:botany,production and uses. CABI:Wallingford,UK.
[22]	Shi H T, Wang X, Ye T T, Chen F F, Deng J, Yang P F, Zhang Y S, Zhang C. 2014. The cysteine2/histidine2-type transcription factor ZINC FINGER OF ARABIDOPSIS THALIANA6 modulates biotic and abiotic stress responses by activating salicylic acid-related genes and C-REPEAT- BINDING FACTOR genes in Arabidopsis. Plant Physiology, 165 (3):1367-1379.
[23]	Sun X M, Zhu Z F, Zhang L L, Fang L C, Zhang J S, Wang Q F, Li S H, Liang Z C, Xin H P. 2019. Overexpression of ethylene response factors VaERF080 and VaERF087 from Vitis amurensis enhances cold tolerance in Arabidopsis. Scientia Horticulturae,243:320-326.
[24]	Sun Guangming. 2019. Science and practice of Chinese fruit trees · Pineapple. Xi’an: Shaanxi Science and Technology Press. (in Chinese)
	孙光明. 2019. 中国果树科学与实践 · 菠萝. 西安: 陕西科学技术出版社.
[25]	Tian Z D, Zhang Y, Liu J, Xie C H. 2010. Novel potato C2H2-type zinc finger protein gene,StZFP1,which responds to biotic and abiotic stress. plays a role in salt tolerance. Plant Biology,12:689-697.
[26]	Wang D R, Yang K, Wang X, You C X. 2022a. A C2H2-type zinc finger transcription factor,MdZAT17,acts as a positive regulator in response to salt stress. Journal of Plant Physiology,275:153737.
[27]	Wang D R, Yang K, Wang X, Lin X L, Rui L, Liu H F, Liu D D, You C X. 2022b. Overexpression of MdZAT5,an C2H2-type zinc finger protein, regulates anthocyanin accumulation and salt stress response in apple calli and Arabidopsis. International Journal of Molecular Sciences, 23 (3):10.3390/ijms23031897.
[28]	Wang K, Ding Y F, Cai C, Chen Z X, Zhu C. 2018. The role of C2H 2 zinc finger proteins in plant responses to abiotic stresses. Physiologia Plantarum, 165 (4):690-700.
[29]	Xie M M, Sun J H, Gong D P, Kong Y Z. 2019. The Roles of Arabidopsis C1-2i Subclass of C2H2-type zinc-finger transcription factors. . Genes, 10 (9):653.
[30]	Yan Ming-jia. 2019. Characterization of zinc-finger protein MdZFP2 in response to drought and freezing stress in apple[M. D. Dissertation]. Yangling: Northwest A & F University. (in Chinese)
	闫明佳. 2019. 苹果锌指蛋白MdZFP2在抗旱、耐寒中的功能研究[硕士论文]. 杨凌: 西北农林科技大学.
[31]	Yang K, An J P, Li C Y, Shen X N, Liu Y J, Wang D R, Ji X L, Hao L J, You C X. 2021. The apple C2H2-type zinc finger transcription factor MdZAT 10 positively regulates JA-induced leaf senescence by interacting with MdBT2. Horticulture Research, 8 (1):2107-2120.
[32]	Yao P F, Sun Z X, Li C L, Zhao X R, Li M F, Deng R Y, Huang Y J, Zhao H X, Chen H, Wu Q. 2018. Overexpression of Fagopyrum tataricum FtbHLH2 enhances tolerance to cold stress in transgenic Arabidopsis. Plant Physiology and Biochemistry,125:85-94.
[33]	Yu G H, Jiang L L, Ma X F, Xu Z S, Liu M M, Shan S G, Cheng X G. 2014. A soybean C2H2-type zinc finger gene GmZF1 enhanced cold tolerance in transgenic Arabidopsis. PLoS ONE, 9 (10):e109399.
[34]	Zhang D Y, Tong J F, Xu Z L, Wei P P, Xu L, Wan Q, Huang Y H, He X L, Yang J Y, Shao H B, Ma H X. 2016a. Soybean C2H2-type zinc finger protein GmZFP3 with conserved QALGGH motif negatively regulates drought responses in transgenic Arabidopsis. Frontiers in Plant Science,7:325.
[35]	Zhang H L, Sun Z, Feng S, Zhang J W, Zhang F, Wang W E, Hu H R, Zhang W, Bao M Z. 2022. The C2H2-type zinc finger protein PhZFP 1 regulates cold stress tolerance by modulating galactinol synthesis in Petunia hybrida. Journal of Experimental Botany, 73 (18):6434-6448.
[36]	Zhang Huilin, Zhu Wan, Tian Li, Zhang Wei. 2019. Characterization and expression analysis of petunia PhZPT2- 12 transcription factor related to cold response. Acta Horticulturae Sinica, 46 (8):1543-1552. (in Chinese) doi: 10.16420/j.issn.0513-353x.2018-0891
	张慧琳, 朱婉, 田丽, 张蔚. 2019. 矮牵牛冷响应转录因子PhZPT2-12的特性及表达分析. 园艺学报, 46 (8):1543-1552. doi: 10.16420/j.issn.0513-353x.2018-0891
[37]	Zhang X, Guo X P, Lei C L, Cheng Z J, Lin Q B, Wang J L, Wu F Q, Wang J, Wan J M. 2011a. Overexpression of SlCZFP1,a novel TFIIIA-type zinc finger protein from tomato,confers enhanced cold tolerance in transgenic Arabidopsis and rice. Plant Molecular Biology Reporter, 29 (2011):185-196.
[38]	Zhang X, Zhang B, Li M J, Yin X M, Huang L F, Cui Y C, Wang M L, Xia X J. 2016b. OsMSR15 encoding a rice C2H2-type zinc finger protein confers enhanced drought tolerance in transgenic Arabidopsis. Journal of Plant Biology, 59 (3):271-281.
[39]	Zhang Y, Su J B, Duan S, Ao Y, Dai J R, Liu J, Wang P, Li Y G, Liu B, Feng D R, Wang J F, Wang H B. 2011b. A highly efficient rice green tissue protoplast system for transient gene expression and studying light/chloroplast-related processes. Plant Methods, 7 (1):30.
[40]	Zhang Z Y, Liu H H, Sun C, Ma Q B, Bu H Y, Chong K, Xu Y Y. 2018. A C₂H₂ zinc-finger protein OsZFP 213 interacts with OsMAPK3 to enhance salt tolerance in rice. Journal of Plant Physiology,229:100-110.
[41]	Zhao G C, Xie S F, Zong S P, Wang T, Mao C J, Shi J X, Li J Y. 2022. Mutation of TL1,encoding a novel C2H 2 zinc finger protein,improves grains eating and cooking quality in rice. Theoretical and Applied Genetics, 135 (10):3531-3543.
[42]	Zhong Chan-juan, Peng Wei-ye, Wang Bing, Liu Shi-ming, Dai Liang-ying, Li Wei. 2020. Advances of plant C2H 2 zinc finger proteins in response to stresses. Plant Physiology Journal, 56 (11):2356-2366. (in Chinese)
	钟婵娟, 彭伟业, 王冰, 刘世名, 戴良英, 李魏. 2020. 植物逆境响应相关的C2H2型锌指蛋白研究进展. 植物生理学报, 56 (11):2356-2366.
[43]	Zhou Yun-wei, Liu Yan-Ping, Dai Si-lan. 2006. Identification of cold resistant plants by chlorophyll fluorescence analysis technique. Plant Physiology Communications, 42 (5):945-950. (in Chinese)
	周蕴薇, 刘艳萍, 戴思兰. 2006. 用叶绿素荧光分析技术鉴定植物抗寒性的剖析. 植物生理学通讯, 42 (5):945-950.
