山葡萄VaJAZ9和VaCOI1基因的抗寒功能研究

doi:10.16420/j.issn.0513-353x.2023-0910

摘要/Abstract

摘要：

以山葡萄（Vitis amurensis Rupr.）‘左山-1’为试材，克隆了VaCOI1基因并对其功能进行分析。结果表明，VaCOI1基因位于13号染色体，其ORF全长1 797 bp，编码598个氨基酸，属于F-box家族基因；聚类分析表明VaCOI1蛋白与锦葵HuCOI1和可可TcCOI1同源性较高。双分子荧光互补实验表明VaJAZ9与VaCOI1蛋白具有互作关系。对异源过表达VaJAZ9和VaCOI1拟南芥株系进行低温处理，过表达VaCOI1拟南芥的成活率高于野生型，电导率低于野生型，而过表达VaJAZ9拟南芥的成活率低于野生型，电导率高于野生型。实时荧光定量PCR分析表明，过表达VaCOI1拟南芥中与低温相关的基因AtKIN1、AtCOR15A及AtRD29A表达量上调，而过表达VaJAZ9植株中AtKIN1、AtCOR15A及AtRD29A表达量下调。综上所述，VaCOI1在低温胁迫反应中起正调控的作用，而VaJAZ9起负调控的作用。

关键词: 山葡萄, 茉莉酸信号途径, JAZ9, COI1, 抗寒

Abstract:

In this study，the VaCOI1 gene from Vitis amurensis Rupr.‘Zuoshan-1’were cloned，and the gene function was analysed. The results show that the VaCOI1 gene is located on chromosome 13，and its ORF has a full-length of 1 797 bp，encoding 598 amino acids，and belongs to the F-box family. Clustering analysis indicates that the VaCOI1 protein performed a high homology with HuCOI1（Herrania umbratica）and TcCOI1（Theobroma cacao）. Bimolecular fluorescence complementation（BiFC）assays indicate that VaJAZ9 can interact with the VaCOI1 protein. The heterologously overexpressing of VaJAZ9 and VaCOI1 in Arabidopsis thaliana shows that at the low temperature，the VaCOI1 overexpressing plants had a higher survival rate and a lower conductivity than the wild type plants，whereas the VaJAZ9 overexpressing plants had a lower survival rate and a higher conductivity than the wild type plants. Quantitative real-time PCR（qRT-PCR）analysis show that the low temperature related genes including AtKIN1，AtCOR15A and AtRD29A were up-regulated in the VaCOI1 overexpressing A. thaliana，whereas these genes were down-regulated in overexpressing VaJAZ9 plants. In conclusion，the results show that the VaCOI1 acts as a positive regulator in response to low temperature stress，whereas the VaJAZ9 acts as a negative regulator.

Key words: Vitis amurensis, JA signaling pathway, JAZ9, COI1, cold resistance

孙雨桐, 刘德帅, 黄栩筝, 迟敬楠, 齐迅, 姚文孔. 山葡萄VaJAZ9和VaCOI1基因的抗寒功能研究[J]. 园艺学报, 2024, 51(10): 2243-2254.

SUN Yutong, LIU Deshuai, HUANG Xuzheng, CHI Jingnan, QI Xun, YAO Wenkong. Study on the Cold Resistance Function of VaJAZ9 and VaCOI1 Genes in Vitis amurensis[J]. Acta Horticulturae Sinica, 2024, 51(10): 2243-2254.

图/表 8

表1 各种载体构建及RT-PCR的相关引物

Table 1 PCR primers for vector construction and RT-PCR

用途 Application	引物 Primer	引物序列（5′-3′） Primer sequence
构建载体	COI1-2300-F	AGAACACGGGGGACGAGCTCATGGAGGATGGAAACGAGAGAAAG
Vector construction	COI1-2300-R	ACCATGGTGTCGACTCTAGACAACGTAAGAAAAGATGCAGGGTC
	JAZ9-2300-F	ACGAGCTCGGTACCCGGGGATCCATGTCGAGCTCCTCGGATATTGC
	JAZ9-2300-R	CCCTTGCTCACCATGGTGTCGACCTTTGGAGATTTGGCAGCCAAGC
BiFC验证	221-CE-JAZ9-XbaI-F	GAGAACACGGGGGACTCTAGAATGTCGAGCTCCTCGGATATTGC
BiFC verification	221-CE-JAZ9-XhoI-R	GTACATGGTACCCCGCTCGAGCTTTGGAGATTTGGCAGCCAAGC
	221-NE-COI1-BamHI-F	GGCCCAGGCCTACTAGTGGATCCATGGAGGATGGAAACGAGAGAAAG
	221-NE-COI1-XhoI-R	TACCCGGGAGCGGTACCCTCGAGCTACAACGTAAGAAAAGATGCAGGGTC
过表达植株检测	COI1-F	ATGGAGGATGGAAACGAGAGAAAG
Detection of	COI1-R	CTGCTCATCAGCACCTCTCTC
overexpressed plant	JAZ9--F	ATGTCGAGCTCCTCGGATATTGC
	JAZ9-R	CACGATCACTTGGCCACCGTAG
实时荧光定量PCR	RT-COI1-F	GCTTGCTTGACACAGAGGACCA
Real-time	RT-COI1-R	CCAATCACGTTCCTGGCCTCAA
Quantitative PCR	RT-AtActin-F	CTTGCACCAAGCAGCATGAA
	RT-AtActin-R	CCGATCCAGACACTGTACTTCCTT
	AtRT-CBF1-F	ACTTCGCTGACTCGGCTTGG
	AtRT-CBF1-R	ACGCACCTTCGCTCTGTTCC
	AtRT-CBF2-F	GGAATCAACCTGTGCCAAGGAA
	AtRT-CBF2-R	CCAACATCGCCTCTTCATCCATAT
	AtRT-CBF3-F	TTCCTCAGGCGGTGATTATATTCC
	AtRT-CBF3-R	CTCCGACGAACTCCTCTGTATATTG
	RT-RD29A-F	CAGAGGAACCACCACTCAACACA
	RT-RD29A-R	CTCTAGGTTTACCTGTTACGCCTG
	RT-RD29B-F	ATGGAGTCACAGTTGACACGTCCT
	RT-RD29B-R	CTTCTGGGTCTTGCTCGTCATACT
	RT-KIN1-F	ATGTCAGAGACCAACAAGAATGCC
	RT-KIN1-R	CTACTTGTTCAGGCCGGTCTTG
	RT-AtCOR15A-F	AGTCGTTGATCTACGCCGCTAA
	RT-AtCOR15A-R	TCTCACCATCTGCTAATGCCTCTT

图1 山葡萄‘左山-1’和欧洲葡萄‘霞多丽’COI1基因受0 ℃低温诱导表达比较 *和**表示同期品种间差异显著（* P < 0.05，** P < 0.01）。

Fig. 1 Comparisons of low temperature induced expression of‘Zuoshan-1’and‘Chardonnay’COI1 genes at 0 ℃ The asterisk（* and **）represent significant differences compared to the control for the same period（* P < 0.05，** P < 0.01）.

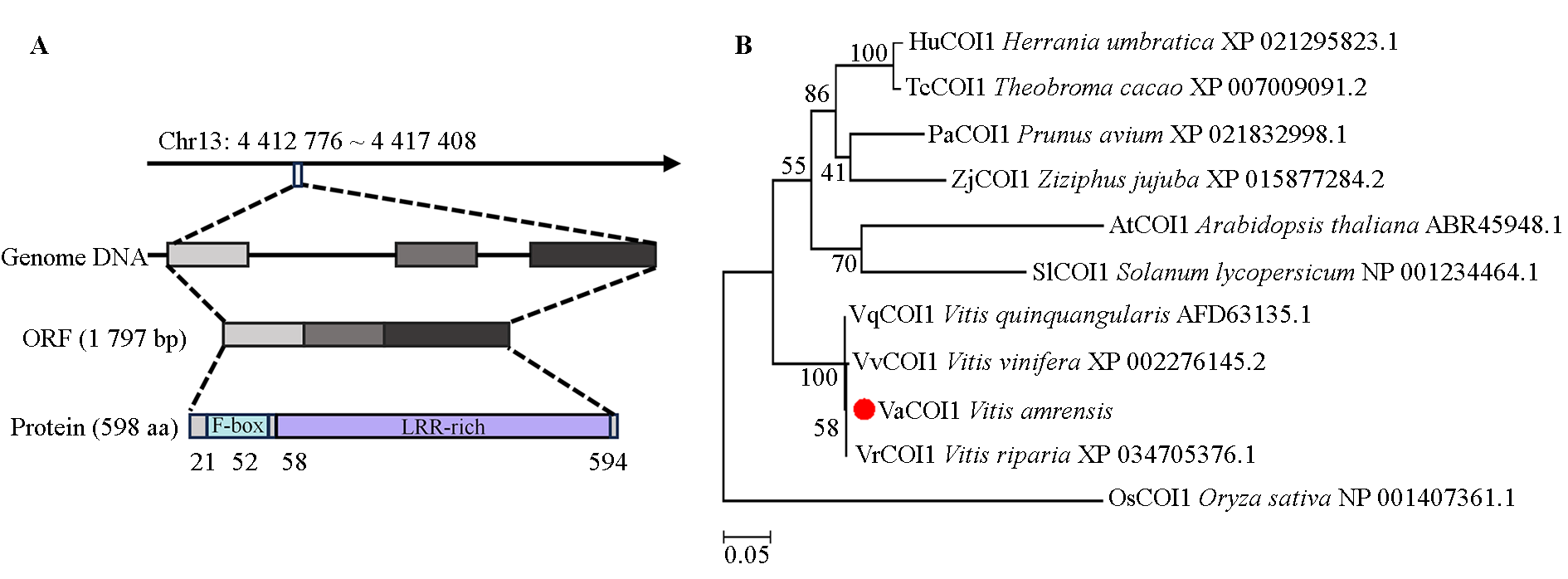

图2 VaCOI1基因生物信息分析 A：VaCOI1染色体定位；B：聚类分析。

Fig. 2 Bioinformatics analysis of the VaCOI1 A：VaCOI1 chromosome localization analysis；B：Clustering analysis.

图3 BiFC验证VaCOI1和VaJAZ9互作

Fig. 3 BiFC assay validates the interaction between VaCOI1 and VaJAZ9

图4 VaCOI1（A）与VaJAZ9（B）过表达拟南芥株系的鉴定 M：DNA marker。泳道1：阴性对照，泳道2：阳性对照，其余为拟南芥阳性幼苗的PCR条带。

Fig. 4 Identification of heterologous expression Arabidopsis thaliana of VaCOI1（A）and VaJAZ9（B） M：DNA marker. Lane 1：Negative control，Lane 2：Positive control，the rests are PCR bands of positive seedlings of Arabidopsis thaliana.

图5 VaCOI1过表达拟南芥的耐寒性分析 A：在基质中过表达拟南芥播种14 d后-6 ℃处理6 h，室温恢复4 d；B：在培养基中-6和-8 ℃处理植株；C、D：-6和-8 ℃处理幼苗的电导率和存活率。WT：野生型。OE：过表达拟南芥株系。** P < 0.01。下同。

Fig. 5 Analysis of cold overexpression VaCOI1 in Arabidopsis thaliana A：Heterologous expression of Arabidopsis sown in substrate for 14 d after-6 ℃ treatment for 6 h；B：In medium，plants treated with -6 and-8 ℃；C and D：Conductivity and survival of plants with medium at-6 and-8 ℃. WT：Wild type. OE：Overexpression of Arabidopsis thaliana. ** P < 0.01. Tge same below.

图6 VaJAZ9过表达拟南芥的耐寒性分析

Fig. 6 Analysis the cold resistance of the VaJAZ29 gene in Arabidopsis thaliana

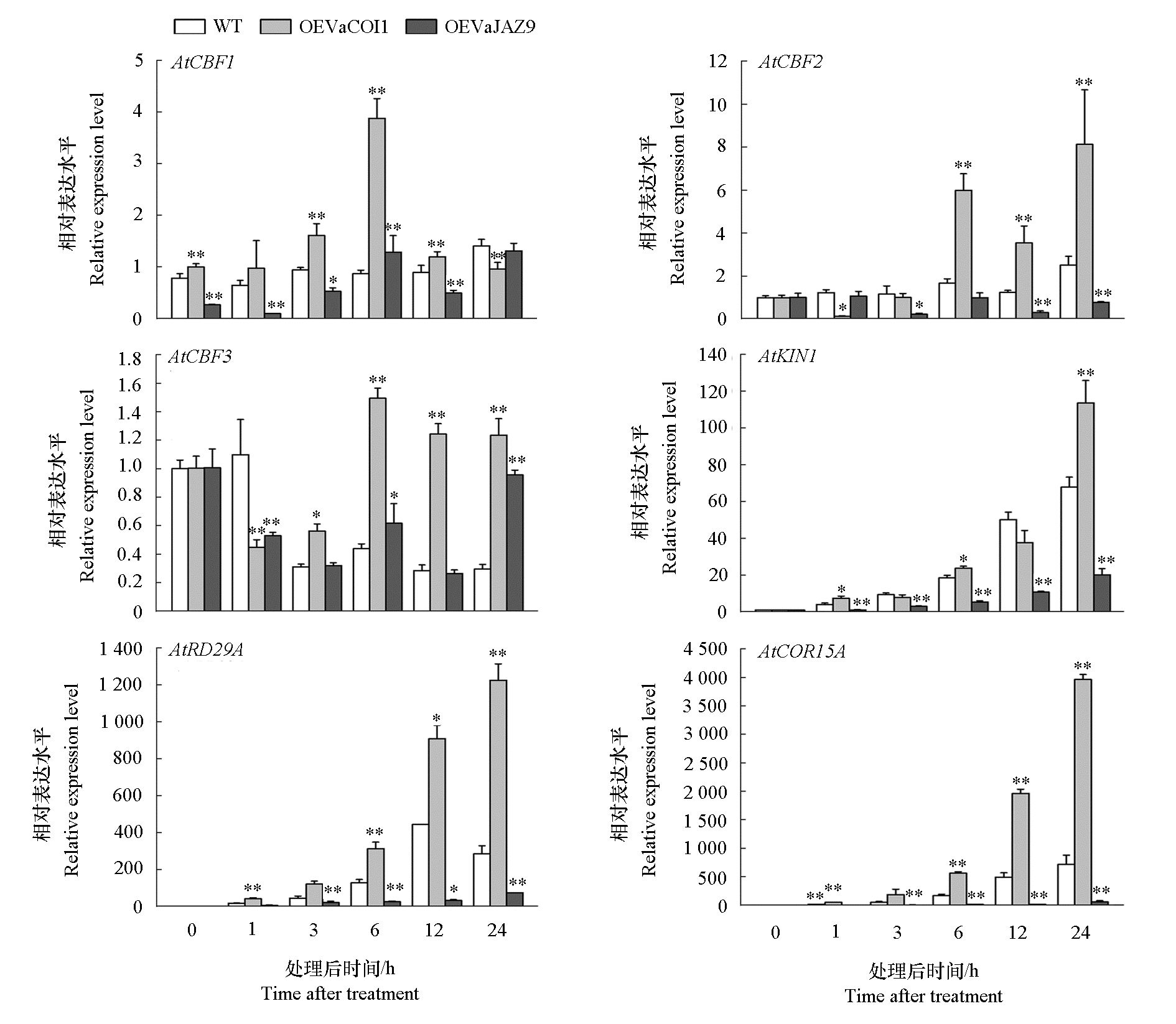

图7 过表达VaJAZ9和VaCOI1拟南芥中抗寒相关基因的表达量分析

Fig. 7 The qRT-PCR analysis of cold resistance related genes in heterologously expressing Arabidopsis thaliana * P < 0.05；** P < 0.01.

参考文献 34

[1]	Ali I, Sher H, Ali A, Hussain S, Ullah Z. 2022. Simplified floral dip transformation method of Arabidopsis thaliana. Journal of Microbiological Methods,197:106492.
[2]	An J P, Wang X F, Zhang X W, You C X, Hao Y J. 2020. Apple B‐box protein BBX37 regulates jasmonic acid mediated cold tolerance through the JAZ‐BBX37‐ICE1‐CBF pathway and undergoes MIEL1‐mediated ubiquitination and degradation. New Phytologist, 229 (5):2707-2729.
[3]	Chen J, Yang H, Ma S, Yao R, Huang X, Yan J, Xie D, Brunner A. 2021. HbCOI1 perceives jasmonate to trigger signal transduction in Hevea brasiliensis. Tree Physiology, 41 (3):460-471.
[4]	Chen M, Guo H, Chen S, Li T, Li M, Rashid A, Xu C, Wang K. 2019. Methyl jasmonate promotes phospholipid remodeling and jasmonic acid signaling to alleviate chilling injury in peach fruit. Journal of Agricultural and Food Chemistry, 67 (35):9958-9966. doi: 10.1021/acs.jafc.9b03853 pmid: 31419123
[5]	Chini A, Ben-Romdhane W, Hassairi A, Aboul-Soud M. 2017. Identification of TIFY/JAZ family genes in Solanum lycopersicum and their regulation in response to abiotic stresses. PLoS ONE, 12 (6):1-18.
[6]	Dong Yufei. 2023. miR164 targets SlNAM3 to regulate ethylene-mediated low temperature resistance mechanism in tomato[Ph. D. Dissertation]. Hangzhou: Zhejiang University. (in Chinese)
	董宇飞. 2023. miR164靶向SlNAM3调控乙烯介导的番茄低温抗性机制[博士论文]. 杭州: 浙江大学.
[7]	Du H, Liu H, Xiong L. 2013. Endogenous auxin and jasmonic acid levels are differentially modulated by abiotic stresses in rice. Frontiers in Plant Science,4:397.
[8]	Hu Y, Jiang L, Wang F, Yu D. 2013. Jasmonate regulates the inducer of CBF expression-C-repeat binding factor/DRE binding factor 1 cascade and freezing tolerance in Arabidopsis. Plant Cell, 25 (8):2907-2924.
[9]	Hu Y, Jiang Y, Han X, Wang H, Pan J, Yu D. 2017. Jasmonate regulates leaf senescence and tolerance to cold stress: crosstalk with other phytohormones. Journal of Experimental Botany, 68 (6):1361-1369. doi: 10.1093/jxb/erx004 pmid: 28201612
[10]	Kazan K, Manners J M. 2012. JAZ repressors and orchestration of phytohormone crosstalk. Trends in Plant Science, 17 (1):22-31.
[11]	Li J, Javed H U, Wu Z, Wang L, Han J, Zhang Y, Ma C, Jiu S, Zhang C, Wang S. 2022. Improving berry quality and antioxidant ability in‘Ruidu Hongyu’grapevine through preharvest exogenous 2,4-epibrassinolide,jasmonic acid and their signaling inhibitors by regulating endogenous phytohormones. Frontiers in Plant Science,13:1035022.
[12]	Li X Q, Yin X J, Hao Li W J, Guo C F, Gao H, Zheng Y, Fan C H, Wang X P. 2014. Genome-wide identification and analysis of the apple(Malus × domestica Borkh.) TIFY gene family. Tree Genetics & Genomes, 11 (1):808.
[13]	Liu Deshuai, Feng Mei, Yao Lei, Wang Ye, Fan Shanshan, Yao Wenkong. 2023. Prokaryotic expression of grapevine VvJAZ 9 protein and preparation of polyclonal antibody. Journal of Nuclear Agriculture, 37 (6):1138-1149. (in Chinese)
	刘德帅, 冯美, 姚磊, 王烨, 樊姗姗, 姚文孔. 2023. 葡萄VvJAZ9蛋白原核表达与多克隆抗体制备. 核农学报, 37 (6):1138-1149. doi: 10.11869/j.issn.1000-8551.2023.06.1138
[14]	Liu Y, Zhou J, Lu M, Yang J, Tan X. 2022. The Core Jasmonic acid-signalling module CoCOI1/CoJAZ1/CoMYC2 are involved in jas mediated growth of the pollen tube in Camellia oleifera. Current Issues in Molecular Biology, 44 (11):5405-5415.
[15]	Luo J, Wei K, Wang S, Zhao W, Ma C, Hettenhausen C, Wu J, Cao G, Sun G, Baldwin I T, Wu J, Wang L. 2016. COI1-regulated hydroxylation of jasmonoyl-l-isoleucine impairs Nicotiana attenuata’s resistance to the generalist herbivore Spodoptera litura. Journal of Agricultural and Food Chemistry, 64 (14):2822-2831. doi: 10.1021/acs.jafc.5b06056 pmid: 26985773
[16]	Melotto M, Mecey C, Niu Y, Chung H S, Katsir L, Yao J, Zeng W, Thines B, Staswick P, Browse J, Howe G A, He S Y. 2008. A critical role of two positively charged amino acids in the Jas motif of Arabidopsis JAZ proteins in mediating coronatine- and jasmonoyl isoleucine- dependent interactions with the COI 1 F-box protein. The Plant Journal, 55 (6):979-988. doi: 10.1111/j.1365-313X.2008.03566.x pmid: 18547396
[17]	Pang Xi, Zhang Kang, Yu Lu, Cao Hongzhe, Zang Jinping, Zhang Jing, Xing Jihong, Dong Jingao. 2019. Analysis of the expression pattern of maize JAZ family genes. Journal of Hebei Agricultural University, 42 (2):24-29,53. (in Chinese)
	庞茜, 张康, 于璐, 曹宏哲, 藏金萍, 张靖, 邢继红, 董金皋. 2019. 玉米JAZ家族基因的表达规律分析. 河北农业大学学报, 42 (2):24-29,53. doi: 10.13320/j.cnki.jauh.2019.0028
[18]	Sheard L B, Tan X, Mao H B, Withers J, Ben-Nissan G, Hinds T R, Kobayashi Y, Hsu F F, Sharon M, Browse J, He S Y, Rizo J, Howe G A, Zheng N. 2010. Jasmonate perception by inositolphosphate-potentiated COI1-JAZ co-receptor. Nature, 468 (7322):400-405.
[19]	Stotz H U, Jikumaru Y, Shimada Y, Sasaki E, Stingl N, Mueller M J, Kamiya Y. 2011. Jasmonate-dependent and COI1-independent defense responses against Sclerotinia sclerotiorum in Arabidopsis thaliana:auxin is part of COI1-independent defense signaling. Plant and Cell Physiology, 52 (11):1941-1956.
[20]	Sun H, Chen L, Li J, Hu M, Ullah A, He X, Yang X, Zhang X. 2017. The Jasmonate Zim-domain gene family mediates JA signaling and stress response in cotton. Plant Cell Physiology, 58 (12):2139-2154.
[21]	Sun Yutong, Liu Deshuai, Qi Xun, Feng Mei, Huang Xuzheng, Yao Wenkong. 2023. Progress of jasmonic acid in regulating plant growth,development and stress. Biotechnology Bulletin, 39 (11):99-109. (in Chinese) doi: 10.13560/j.cnki.biotech.bull.1985.2023-0323
	孙雨桐, 刘德帅, 齐迅, 冯美, 黄栩筝, 姚文孔. 2023. 茉莉酸调控植物生长发育和胁迫的研究进展. 生物技术通报, 39 (11):99-109. doi: 10.13560/j.cnki.biotech.bull.1985.2023-0323
[22]	Tran H T, Schramm C, Shavrukov Y, Stangoulis J C, Jenkins C L, Anderson P A. 2023. An accurate,reliable,and universal qPCR method to identify homozygous single insert T-DNA with the example of transgenic rice. Frontiers in Plant Science,14:1221-1230.
[23]	Um T Y, Lee H Y, Lee S, Chang S H, Chung P J, Oh K B, Choi Y D. 2018. Jasmonate Zim-domain protein 9 interacts with slender rice 1 to mediate the antagonistic interaction between jasmonic and gibberellic acid signals in rice. Frontiers in Plant Science, 9:1866.
[24]	Wang Y, Xu H, Liu W, Wang N, Qu C, Jiang S, Fang H, Zhang Z, Chen X. 2018. Methyl jasmonate enhances apple’ cold tolerance through the JAZ-MYC2 pathway. Plant Cell, 136 (1):75-84.
[25]	Wang Yue. 2018. Identification of TIFY gene family and elimination of PtWRKY36 gene by CRISPR/Cas 9 technique in poplar[M. D. Dissertation]. Hefei: Anhui Agricultural University. (in Chinese)
	王跃. 2018. 杨树TIFY基因家族的鉴定和 CRISPR/Cas 9 技术敲除PtWRKY36基因的研究[硕士论文]. 合肥: 安徽农业大学.
[26]	Wasternack C, Hause B. 2013. Jasmonates: biosynthesis,perception,signal transduction and action in plant stress response,growth and development. Annals of Botany, 111 (6):1021-1058. doi: 10.1093/aob/mct067 pmid: 23558912
[27]	Wu H, Ye H, Yao R, Zhang T, Xiong L. 2015. OsJAZ9acts as a transcriptional regulator in jasmonate signaling and modulates salt stress tolerance in rice. Plant Science,232:1-12.
[28]	Yan J, Yao R, Chen L, Li S, Gu M, Nan F, Xie D. 2018. Dynamic perception of jasmonates by the F-Box protein COI1. Molecular Plant, 11 (10):1237-1247. doi: S1674-2052(18)30241-7 pmid: 30092285
[29]	Yao W K, Wang L, Wang J, Yao W, Wang L, Wang J, Ma F, Wang Y J. 2017. VpPUB24,a novel gene from Chinese grapevine,Vitis pseudoreticulata,targets VpICE1 to enhance cold tolerance. Journal of Experimental Botany, 68 (11):2933-2949.
[30]	Ye H, Du H, Tang N, Li X, Xiong L. 2009. Identification and expression profiling analysis of TIFY family genes involved in stress and phytohormone responses in rice. Plant Molecular Biology, 71 (3):291-305.
[31]	Yu Qinhan, Jiao Shuzhen, Wu Nan, Zhang Ningbo, Xu Weirong. 2021. Cloning,expression and antiserum preparation of grape E 3 ubiquitinase HOS1 gene. Acta Horticulturae Sinica, 48 (6):1173-1182. (in Chinese) doi: 10.16420/j.issn.0513-353x.2020-0557
	俞沁含, 焦淑珍, 吴楠, 张宁波, 徐伟荣. 2021. 葡萄E3泛素酶HOS1基因克隆、表达及抗血清制备. 园艺学报, 48 (6):1173-1182. doi: 10.16420/j.issn.0513-353x.2020-0557
[32]	Zhao G, Song Y, Wang C, Butt H I, Wang Q, Zhang C. 2016. Genome-wide identification and functional analysis of the TIFY gene family in response to drought in cotton. Molecular Genetics and Genomics, 291 (6):2173-2187. pmid: 27640194
[33]	Zhang Y, Gao M, Singer S D, Fei Z, Wang H, Wang X. 2012. Genome-wide identification and analysis of the TIFY gene family in grape. PLoS ONE, 7 (9):e44465.
[34]	Zheng Jiarui, Yang Xiaoyan, Ye Jiabao, Liao Yongling, Xu Feng. 2023. Advances in the function of MYC 2 transcription factor in plants. Acta Horticulturae Sinica, 50 (4):896-908. (in Chinese) doi: 10.16420/j.issn.0513-353x.2022-0102
	郑嘉瑞, 杨晓燕, 叶家保, 廖咏玲, 许锋. 2023. MYC2转录因子在植物中的功能研究进展. 园艺学报, 50 (4):896-908. doi: 10.16420/j.issn.0513-353x.2022-0102
