桂花OfNCED3调控转基因烟草叶片类胡萝卜素和叶绿素的合成

doi:10.16420/j.issn.0513-353x.2022-0330

摘要/Abstract

摘要：

从桂花（Osmanthus fragrans）‘堰虹桂’转录组数据库中筛选获得OfNCED3基因序列。氨基酸序列分析发现OfNCED3具有NCED家族特有的2个保守结构域MIAHPKxDP和HDFAITE以及4个保守的组氨酸残基。进化树分析发现OfNCED3与番茄SlNCED1聚为一支。实时荧光定量PCR结果表明，桂花开放过程中，OfNCED3在类胡萝卜素含量较高的‘堰虹桂’花瓣中的表达量显著低于类胡萝卜素含量较低的‘玉玲珑’，推测OfNCED3可能与‘堰虹桂’和‘玉玲珑’花瓣中类胡萝卜素含量差异有关。通过农杆菌介导的遗传转化方法获得过表达OfNCED3烟草株系。利用分光光度计和超高效液相（ultra high performance liquid chromatography，UPLC）测定叶绿素、类胡萝卜素和ABA的含量，并采用实时荧光定量PCR分析类胡萝卜素通路上相关基因的表达差异，结果发现异源过表达OfNCED3导致转基因烟草叶片中叶绿素和类胡萝卜素含量下降，ABA含量增加，类胡萝卜素合成基因的表达量明显上调，且下游合成基因上调幅度高于上游合成基因。本研究表明OfNCED3能降解类胡萝卜素，促进内源ABA合成。

关键词: 桂花, NCED, 类胡萝卜素, 叶绿素, ABA

Abstract:

In this study，the OfNCED3 cDNA sequence were acquired based on the transcriptional data of Osmanthus fragrans‘Yanhong Gui’. The multiple sequence alignment analysis showed that OfNCED3 had two conservative domain（MIAHPKxDP and HDFAITE）characteristics of the NCED family and four conserved histidine residues. Phylogenetic analysis indicated that OfNCED3 is grouped together with SlNCED1. The results of real-time quantitative PCR showed that the expression of OfNCED3 in the petals of‘Yanhong Gui’with higher carotenoid content was significantly lower than that of‘Yu Linglong’with lower carotenoid content during flower opening process. It is speculated that OfNCED3 may be related to the difference of carotenoid contents between‘Yanhong Gui’and‘Yu Linglong’petals. Transgenic tobacco lines overexpressing OfNCED3 were obtained by an Agrobacterium-mediated method. The contents of chlorophyll，carotenoid and ABA were determined by using spectrophotometer and ultra high performance liquid chromatography（UPLC），and the expression levels of genes related to carotenoid pathway were analyzed via real-time quantitative PCR. The overexpression of OfNCED3 gene expression resulted in a significant decrease of chlorophyll and carotenoid contents and a increase of endogenous ABA content. The expression of carotenoid synthesis genes was significantly up-regulated，and the downstream synthesis genes were more up-regulated than the upstream synthesis genes. This research suggests OfNCED3 can promote the synthesis of ABA by degrading carotenoids in plants.

Key words: Osmanthus fragrans, NCED, carotenoids, chlorophyll, ABA

中图分类号:

S685.13

杜艳霞, 王艺光, 肖政, 董彬, 方遒, 钟诗蔚, 杨丽媛, 赵宏波. 桂花OfNCED3调控转基因烟草叶片类胡萝卜素和叶绿素的合成[J]. 园艺学报, 2023, 50(6): 1284-1294.

DU Yanxia, WANG Yiguang, XIAO Zheng, DONG Bin, FANG Qiu, ZHONG Shiwei, YANG Liyuan, ZHAO Hongbo. Ectopic Overexpression of OfNCED3 Regulates the Synthesis of Carotenoids and Chlorophylls in Transgenic Tobacco Leaves[J]. Acta Horticulturae Sinica, 2023, 50(6): 1284-1294.

图/表 8

表1 实时荧光定量PCR特异性引物

Table 1 Specific primers for real-time quantitative PCR

基因 Gene	正向引物（5′-3′） Forward primer	反向引物（5′-3′） Reverse primer
OfNCED3	TTCAAAGCCGCAATGGAATTTTATT	GATAGATTCTGGGATTTTCCCTGTC
OfACT	CCCAAGGCAAACAGAGAAAAAAT	ACCCCATCACCAGAATCAAGAA
Nt26S-RNA	GAAGAAGGTCCCAAGGGTTC	TCTCCCTTTAACACCAACGG

图1 OfNCED3氨基酸序列与其他物种NCED的多重序列比对 Of：桂花；Sl：番茄；At：拟南芥；Nt：烟草；Cs：甜橙。方框表示NCED家族特有保守结构域序列MIAHPKxDP和HDFAITE；▼表示4个活性保守的组氨酸位点。

Fig. 1 Multiple alignment of amino acid sequences of OfNCED3 and NCEDs in other plants Of：Osmanthus fragrans；Sl：Solanum lycopersicum；At：Arabidopsis thaliana；Nt：Nicotiana tabacum；Cs：Citrus sinensis. The NCED motifs of MEAHPKXDP and HDFAITK are boxed. Four conserved histidines required for activity are marked by ▼.

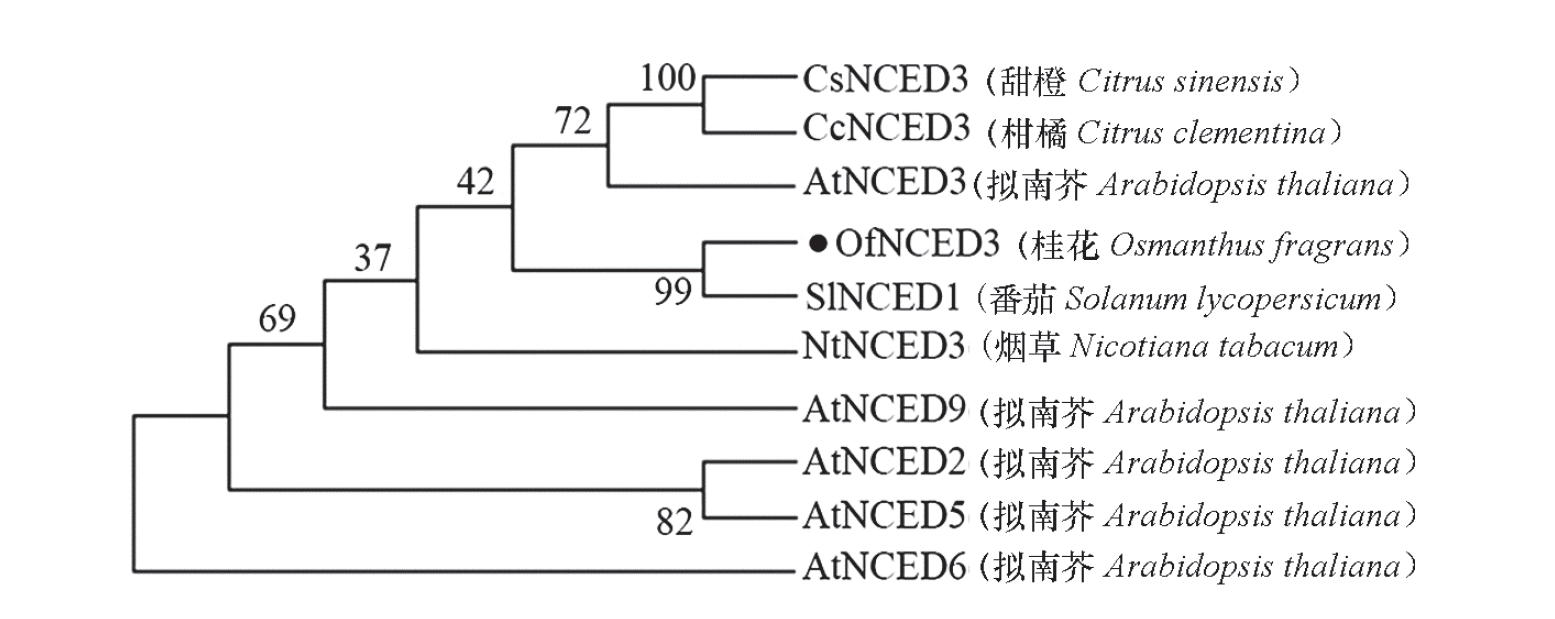

图2 桂花OfNCED3蛋白与其他物种NCED蛋白系统进化树分析

Fig. 2 Phylogenetic tree of NCED proteins in Osmanthus fragrance and other plants

图3 OfNCED3基因在‘堰虹桂’和‘玉玲珑’桂花花开放进程中的表达量 S1：圆珠期；S2：顶壳期；S3：铃梗期；S4：初开期。 ** 代表不同品种之间差异显著（P < 0.01）；*** 代表不同品种之间差异极显著（P < 0.001）。

Fig. 3 Expression level of OfNCED3 gene in flower opening process of Osmanthus fragrans‘Yanhong Gui’and‘Yu Linglong’ S1：Bead stage；S2：Apical shell stage；S3：Boll stem stage；S4：Initial flowering stage. ** indicate statistically significant difference (P < 0.01); *** indicate extremely significant difference (P < 0.001).

图4 OfNCED3过表达载体（A）、转化烟草表型（B）及其表达水平（C）

Fig. 4 Overexpression vector (A), transformed tobacco phenotype (B) and expression level (C) of OfNCED3 in transgenic tobacco plants

图5 过表达OfNCED3对烟草叶片中叶绿素（A）、类胡萝卜素（B）和ABA（C）影响不同小写字母表示差异显著（P < 0.05）。下同。

Fig. 5 Effects of overexpression of OfNCED3 gene on chlorophyll（A）, carotenoid（B）and ABA（C）content in tobacco leaves Different lowercase letters indicate significant differences（P < 0.05）. The same below.

图6 转OfNCED3烟草植株中类胡萝卜素通路上相关基因的表达量

Fig. 6 Relative expression levels of carotenoid biosynthetic genes in tobacco leaves of the control and transgenic lines

表2 转OfNCED3烟草植株中类胡萝卜素通路上相关基因的表达量上调幅度

Table 2 Up-regulation of relative expression levels of carotenoid biosynthetic genes in leaves of the control and transgenic lines

基因 gene	WT	OE-1	OE-2	基因 gene	WT	OE-1	OE-2	基因 gene	WT	OE-1	OE-2
NtPSY	1	2.12	2.70	NtLCYB2	1	2.55	1.41	NtCCD4-b	1	15.21	5.65
NtPDS	1	4.06	3.51	NtVDE	1	1.66	2.04	NtCCD4-c	1	5.83	5.98
NtZDS	1	4.20	3.27	NtNXC	1	0.92	2.42	NtNCED3-a	1	3.91	11.29
NtCRTISO	1	5.00	5.55	NtCCD1-a	1	0.65	7.16	NtNCED3-b	1	26.54	21.82
NtLCYE	1	5.79	3.31	NtCCD1-b	1	1.17	0.52	NtNCED5	1	3.03	2.16
NtLCYB1	1	1.02	2.02	NtCCD4-a	1	2.49	4.95
