原儿茶醛—氧化锌—壳聚糖杂化涂膜的制备及其对油蟠桃的保鲜效果

doi:10.16420/j.issn.0513-353x.2024-0887

园艺学报 ›› 2025, Vol. 52 ›› Issue (11): 2959-2968.doi: 10.16420/j.issn.0513-353x.2024-0887

原儿茶醛—氧化锌—壳聚糖杂化涂膜的制备及其对油蟠桃的保鲜效果

李娜¹, 曹金锋³^,^*(), 翟美珠²^,^*(), 李莹⁴, 晋书建⁵, 李玥⁶

¹ 元氏县轩鑫农业生态园有限公司，石家庄 050061
² 河北工程技术学院，石家庄 050061
³ 北京林业大学，北京 100083
⁴ 河北省林业和草原科学研究院，石家庄 050061
⁵ 康保县自然资源和规划局，河北张家口 076650
⁶ 河北省科技创新服务中心，石家庄 050061

收稿日期:2025-07-23 修回日期:2025-09-25 出版日期:2025-11-26 发布日期:2025-11-26
通讯作者:
^* E-mail：122472647@qq.com；
zhaimeizhu2024@126.com
基金资助:
河北省高等学校科学技术研究项目(ZC2023146); 河北省重点研发计划项目(21321201D)

Preparation of Protocatechuic Aldehyde Zinc Oxide Chitosan Hybrid Coating and Its Preservation Effect on Flat-Nectarine

LI Na¹, CAO Jinfeng³^,^*(), ZHAI Meizhu²^,^*(), LI Ying⁴, JIN Shujian⁵, LI Yue⁶

¹ Yuanshi Xuanxin Agricultural Ecological Park Co, Ltd， Shijiazhuang 050061， China
² Hebei University of Engineering and Technology， Shijiazhuang 050061， China
³ Beijing Forestry University， Beijing 100083， China
⁴ Hebei Academy of Forestry and Grassland Sciences， Shijiazhuang 050061， China
⁵ Kangbao County Natural Resources and Planning Bureau， Zhangjiakou， Hebei 076650， China
⁶ The Science and Technology Innovation Service Center of Hebei Province， Shijiazhuang 050061， China

Received:2025-07-23 Revised:2025-09-25 Published:2025-11-26 Online:2025-11-26

摘要/Abstract

摘要： 以壳聚糖（chitosan，CS）为成膜基质，与交联剂原儿茶醛（protocatechualdehyde，PCA）和无机填料纳米氧化锌（ZnO）复合，制备不同组分的原儿茶醛—氧化锌—壳聚糖杂化涂膜用于油蟠桃保鲜。对杂化涂膜的机械性能、气体阻隔能力、抗氧化和抗菌性能和贮藏过程中油桃果实的失重率、硬度、可溶性固形物、可滴定酸、丙二醛含量等指标进行测试。结果表明，随着PCA含量增加，交联度的提高，涂膜内部致密度提高，力学性能和气体阻隔能力显著改善；儿茶醛和氧化锌的添加还可以显著提高涂膜的抗菌和抗氧化性能。原儿茶醛—氧化锌—壳聚糖杂化涂膜能够显著延缓油桃采后腐烂变质，维持果实品质，储藏12 d后果实腐烂率减少70%，硬度可达3.8 kg · cm^-2，可溶性固形物、可滴定酸消耗量与未经涂膜处理相比分别提高68%和136%，丙二醛含量下降41%。

关键词: 油蟠桃, 采后, 壳聚糖, 原儿茶醛, 氧化锌, 保鲜涂膜剂, 品质

Abstract:

Using chitosan（CS）as the film-forming matrix，a hybrid coating composed of protocatechualdehyde（PCA）as a cross-linking agent and inorganic filler nano-zinc oxide（ZnO）was prepared with varying compositions for the preservation of flat-nectarines. The mechanical properties，gas barrier capacity，antioxidant and antibacterial performance of the hybrid coating，as well as the weight loss rate，hardness，soluble solids，titratable acid，and malondialdehyde content of the stored flat-nectarines，were tested. The results showed that as the PCA content increased，the cross-linking degree improved，leading to enhanced internal density，significantly better mechanical properties，and improved gas barrier capacity. The addition of protocatechualdehyde and zinc oxide also significantly enhanced the antibacterial and antioxidant performance of the coating. The protocatechualdehyde-zinc oxide-chitosan hybrid coating effectively delayed postharvest decay and maintained fruit quality，reducing the fruit decay rate by 70% after 12 days of storage. The hardness reached 3.8 kg · cm^-2，while the soluble solids and titratable acid consumption increased by 68% and 136% respectively compared to untreated fruits，and the malondialdehyde content decreased by 41%.

Key words: flat-nectarine, postharvest, chitosan, protocatechuic aldehyde, zinc oxide, preservation coating agent, quality

李娜, 曹金锋, 翟美珠, 李莹, 晋书建, 李玥. 原儿茶醛—氧化锌—壳聚糖杂化涂膜的制备及其对油蟠桃的保鲜效果[J]. 园艺学报, 2025, 52(11): 2959-2968.

LI Na, CAO Jinfeng, ZHAI Meizhu, LI Ying, JIN Shujian, LI Yue. Preparation of Protocatechuic Aldehyde Zinc Oxide Chitosan Hybrid Coating and Its Preservation Effect on Flat-Nectarine[J]. Acta Horticulturae Sinica, 2025, 52(11): 2959-2968.

图/表 7

表1 不同涂膜各组分含量

Table 1 Content parameters of each component of the coating film

涂膜名称 Coating name	壳聚糖/% Chitosan（CS）	纳米氧化锌/% ZnO	原儿茶醛/% Protocatechualdehyde（PCA）
对照Control	0	0	0
CS	3.0	—	—
CS-ZnO	3.0	0.2	—
CS-PCA-ZnO-1	3.0	0.2	0.05
CS-PCA-ZnO-2	3.0	0.4	0.10
CS-PCA-ZnO-3	3.0	0.6	0.15

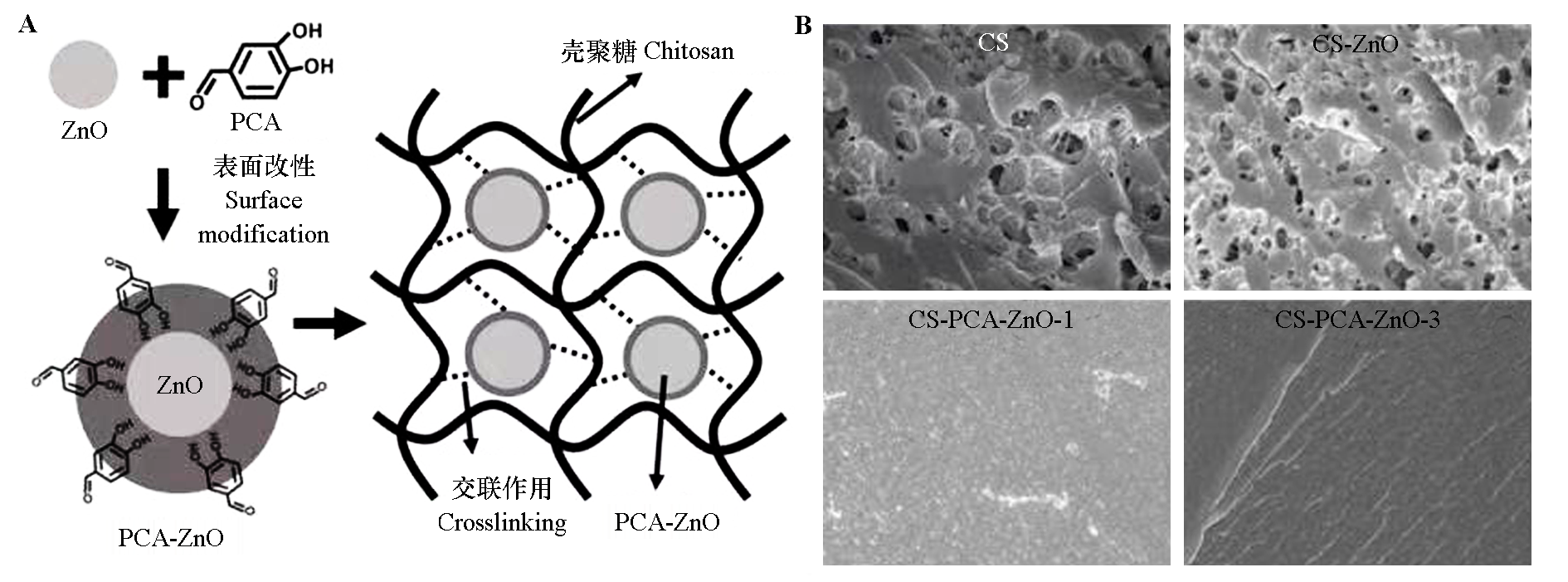

图1 原儿茶醛—氧化锌—壳聚糖杂化涂膜的结构示意图（A）和不同涂膜的微观结构（B）

Fig. 1 Schematic diagram of the structure of the hybrid coating of protocatechuic aldehyde zinc oxide chitosan（A）and microstructure of different coatings（B）

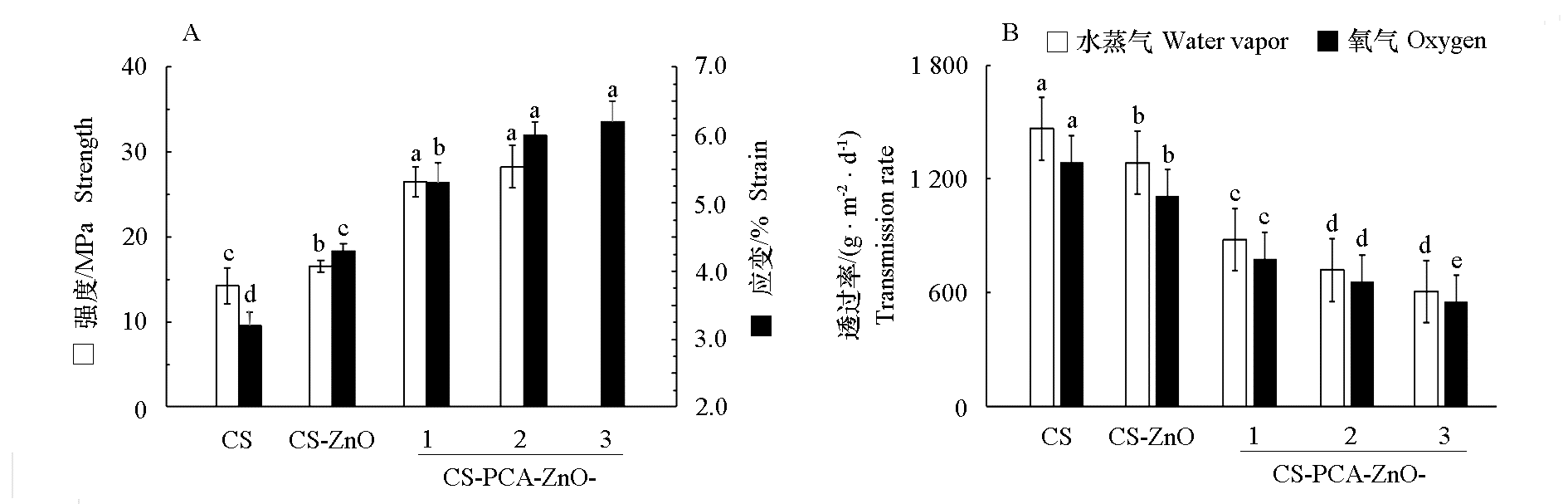

图2 涂膜的力学性能（A）和气体阻隔能力（B）不同字母表示各处理间差异显著（P < 0.05）。下同

Fig. 2 Mechanical property（A）and gas barrier capacity（B） of coating materials Different letters indicate significant differences between treatments（P < 0.05）. The same below.

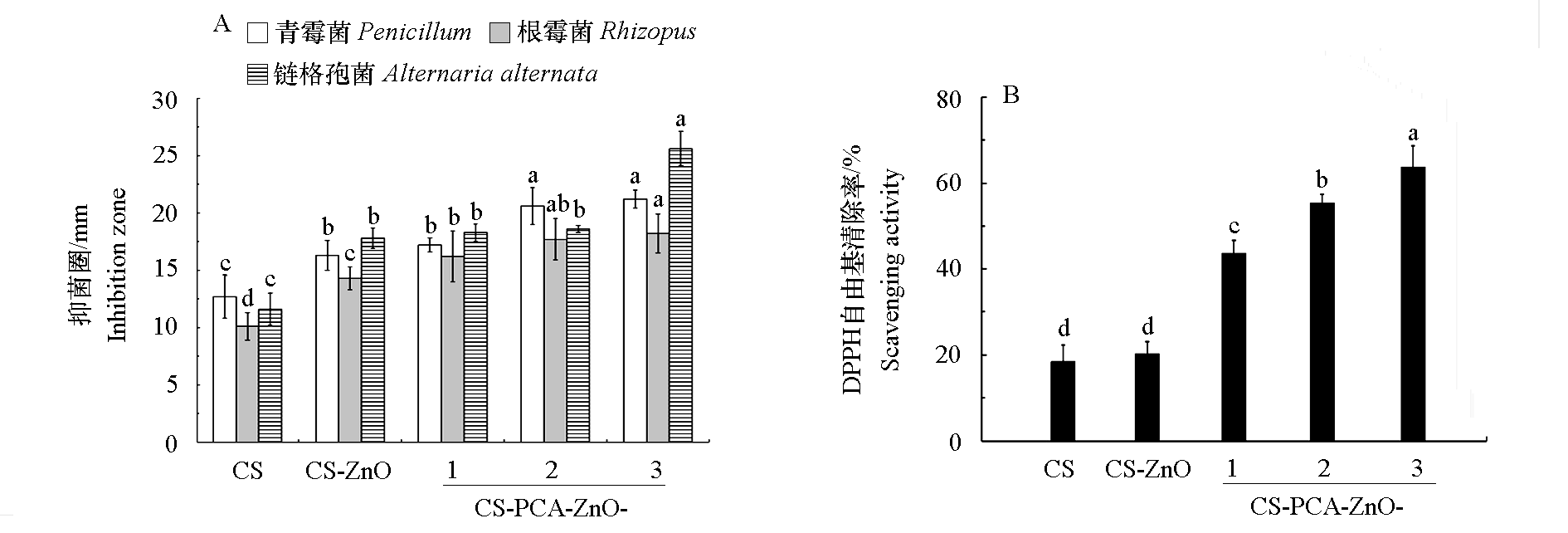

图3 涂膜的抑菌性能（A）和抗氧化性能（B）

Fig. 3 Antibacterial properties（A）and ntioxidant activity（B）of the coating materials

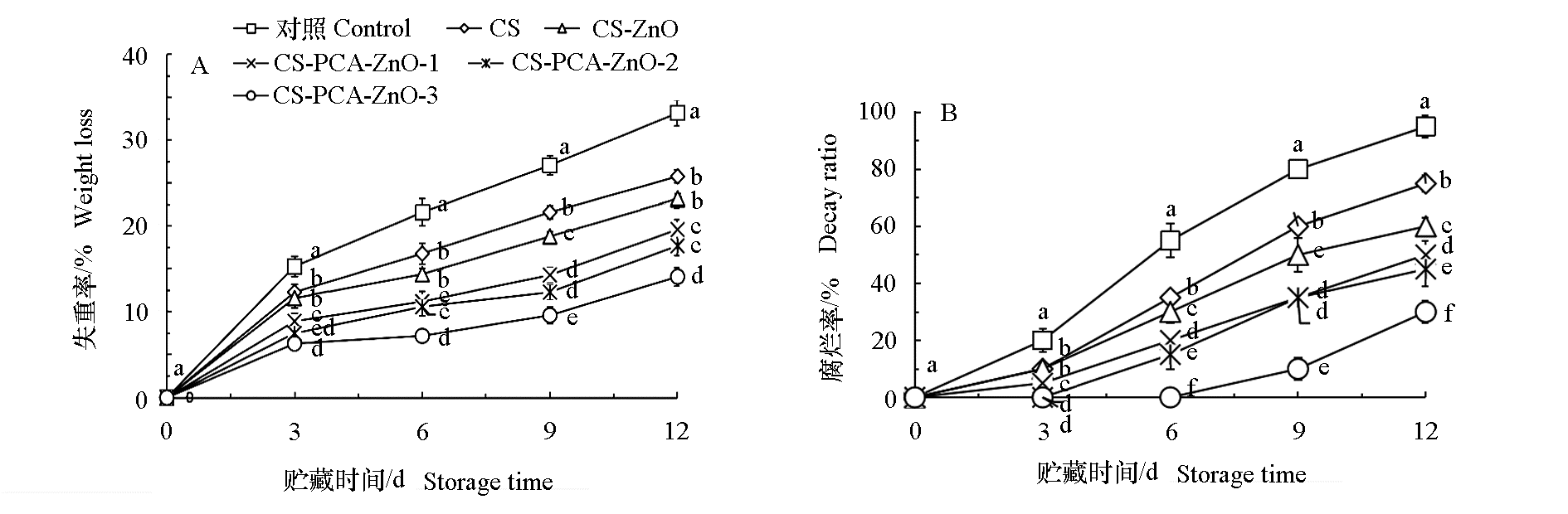

图4 不同涂膜处理对油蟠桃果实失重率（A）和腐烂率（B）的影响

Fig. 4 The effect of different coating treatments on the weight loss rate（A）and decay rate（B）of flat-nectarine fruit

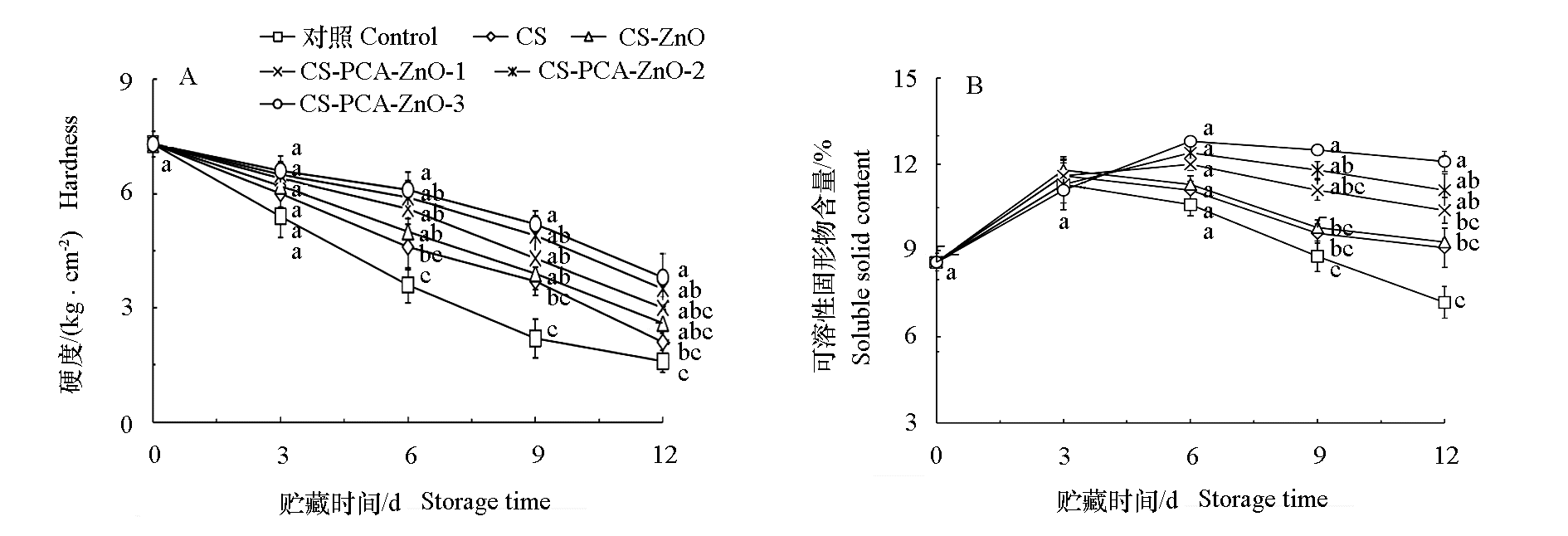

图5 不同涂膜处理对油蟠桃果实硬度（A）和可溶性固形物（B）的影响

Fig. 5 The effect of different coating treatments on the hardness（A）and the content of soluble solids（B）of flat-nectarine fruit

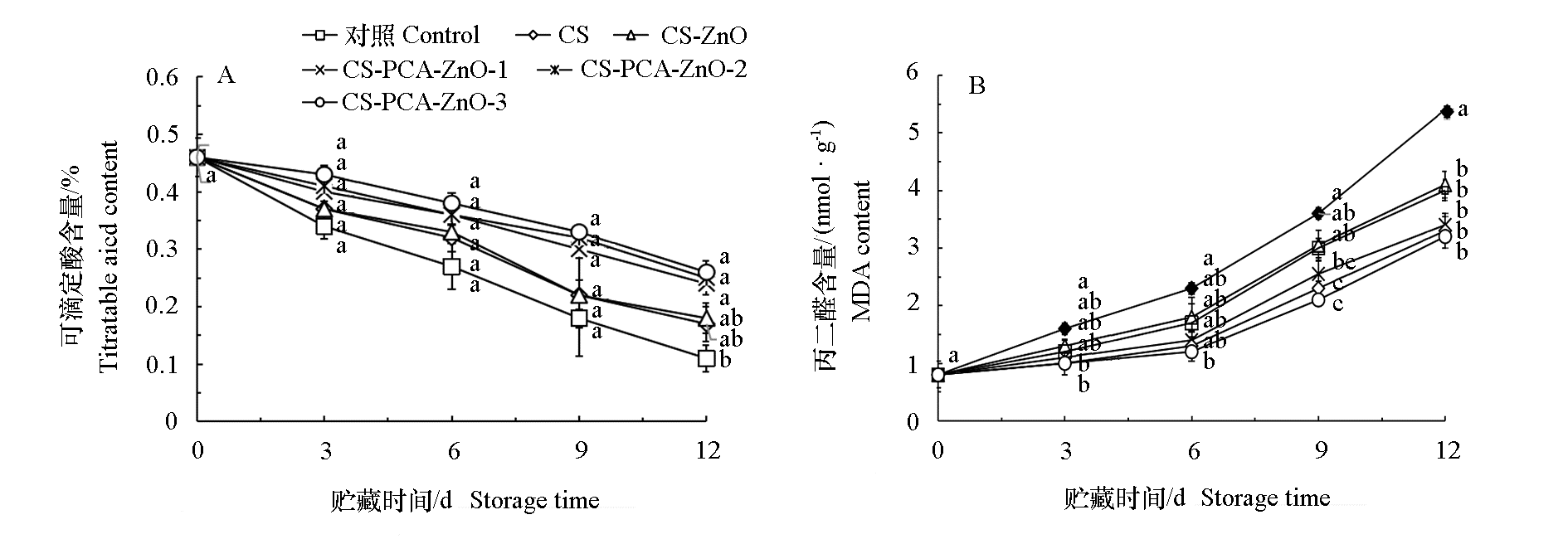

图6 不同涂膜处理对油蟠桃果实可滴定酸（A）和丙二醛（B）含量的影响

Fig. 6 The effect of different coating treatments on the titratable acid（A）and malondialdehyde（B）content of flat-nectarine fruit

参考文献 24

[1]	Chen Yuqin, Li Zhongbai, Yao Min, Zhang Yun, Zhu Qiujin, Yang Qingdan. 2021. Study on the preparation of gelatin-chitosan-cinnamon essential oil natural film coating and its antibacterial effect. Journal of Light Industry, 36 (4):9-17. (in Chinese)
	陈玉芹, 李仲佰, 姚敏, 张芸, 朱秋劲, 杨清丹. 2021. 明胶—壳聚糖—肉桂精油天然涂膜液的制备及其抑菌效果研究. 轻工学报, 36 (4):9-17.
[2]	Ding Jie, Liu Chunyan, Huang Peng, Li Hongying, Tang Qian, Mao Xiangxue, Gan Junwei, Liu Yaowen, Qin Wen. 2023. Latest reserch progress on edible coating applications and their mechanisms in fruits and vegetables. Food and Fermentaion Industries, 49 (4):318-327. (in Chinese)
	丁捷, 刘春燕, 黄彭, 李红莹, 唐倩, 毛湘雪, 甘俊伟, 刘耀文, 秦文. 2023. 果蔬可食性保鲜涂膜技术应用及机理最新研究进展. 食品与发酵工业, 49 (4):318-327.
[3]	Gao Yanli, Xu Dan, Ren Dan, Wu Xiyu. 2020. Migration of Zn in nano zinc oxide composite coatings and its effects on postharvest tangerine fruits. Food and Fermentation Industries, 46 (15):154-161. (in Chinese)
	高燕利, 徐丹, 任丹, 吴习宇. 2020. 纳米氧化锌复合涂膜中锌的迁移及其对采后红橘的影响. 食品与发酵工业, 46 (15):154-161.
[4]	Gong Xuefeng, Qiu Xiaolin, Zhao Ye, Wang Jie. 2022. Synthesis and characterization of pH responsive tea polyphenols/mesoporous zinc oxide nano-complex with antioxidant and antibacterial activity. Journal of Functional Materials, 53 (8):8186-8195. (in Chinese)
	弓雪峰, 丘晓琳, 赵烨, 王杰. 2022. 茶多酚—介孔纳米氧化锌控释抗氧抗菌配合体的制备与表征. 功能材料, 53 (8):8186-8195.
[5]	He Lifang, Yang Mei, Liu Zhi, Wang Fangyu, Bin Dongmei, Chen Xiaohua. 2018. Effect of mango peel extract combined with carboxymethyl chitosan composite coating on grape preservation. Food Science and Technology, 43 (10):50-54. (in Chinese)
	何丽芳, 阳美, 刘最, 王芳宇, 宾冬梅, 陈晓华. 2018. 芒果皮提取液与羧甲基壳聚糖复合涂膜对葡萄保鲜效果的影响. 食品科技, 43 (10):50-54.
[6]	Huang Wenjia, Du Liqing, Gu Hui. 2022. Analysis of control effect and mechanism of cinnamon essential oil composite chitosan coatings on postharvest papaya anthracnose. Chinese Journal of Tropical Crops, 43 (2):369-376. (in Chinese)
	黄文佳, 杜丽清, 谷会. 2022. 肉桂精油复合壳聚糖涂膜对采后番木瓜炭疽病的防治效果及作用机制分析. 热带作物学报, 43 (2):369-376.
[7]	Jiang W, Lei X J, Rao Z N, Zhao J C, Zeng K F, Ming J. 2025. Stable pickering emulsions of cinnamaldehyde were formulated using Tannic acid-assisted cellulose nanofibers and applied for mango preservation. International Journal of Biological Macromolecules,290:139135.
[8]	Jin S C, Xiong L H, Yu Y Q, Xing J P, Li J Z, Han J Q, Mei C T, Li K, Xiao H N. 2023. Structural design of a hyperbranched chitosan-based bioplastic with excellent strength,antibacterial,and UV shielding performance. Chemical Engineering Journal,471:144687.
[9]	Li F J, Zhang X Y, Wang J H, Jiang Y P, Zhang X H, Li X A. 2022. Preharvest application of 1-methylcyclopropene and ethephon altered cuticular wax biosynthesis and fruit quality of apples at harvest and during cold storage. Horticultural Plant Journal, 8 (2):143-152.
[10]	Li Y N, Ye Q Q, Hou W F, Zhang G Q. 2018. Development of antibacterial ε-polylysine/chitosan hybrid films and the effect on citrus. International Journal of Biological Macromolecules,118:2051-2026.
[11]	Li Ying, Yang Xinyue, Wang Xueyu, Zhao Mengna, Feng Jia, Xia Xiufang. 2022. Research progress on the film-forming mechanism and characteristics of chitosan-based composite membranes. Science and Technology of Food Industry, 43 (27):430-438. (in Chinese)
	李莹, 杨欣悦, 王雪羽, 赵梦娜, 冯佳, 夏秀芳. 2022. 壳聚糖基复合膜的成膜机理和特性研究进展. 食品工业科技, 43 (27):430-438.
[12]	Liu Xueping, Zhang Yongtao, Liu Lingxiao, Zhao Li, Leng Peng. 2023. Research progress on preservation technology and processing technology of peach. Cereals & Oils, 36 (5):19-23. (in Chinese)
	刘雪平, 张永涛, 刘凌霄, 赵莉, 冷鹏. 2023. 桃保鲜技术与加工工艺研究进展. 粮食与油脂, 36 (5):19-23.
[13]	Ma M J, Gu M F, Zhang S Z, Yuan Y K. 2024. Effect of tea polyphenols on chitosan packaging for food preservation:physicochemical properties,bioactivity,and nutrition. International Journal of Biological Macromolecules,259:129267.
[14]	Mou L Y, Zhang J, Lu Y, Bilal M, Li J L, Li G P. 2023. Preservative paper containing phenolic acid grafted on chitosan for post-harvest peach preservation. Food Bioscience,55:102925.
[15]	Song X R, Chai Z H, Zhu Y, Li C L, Liang X Q. 2019. Preparation and characterization of magnetic chitosan-modified diatomite for the removal of gallic acid and caffeic acid from sugar solution. Carbohydrate Polymers,219:316-327.
[16]	Sun X X, Wu Q L, Picha D H, Ferguson M H, Ndukwe I E, Azadi P. 2021. Comparative performance of bio-based coatings formulated with cellulose,chitin,and chitosan nanomaterials suitable for fruit preservation. Carbohydrate Polymers,259:117764.
[17]	Wu Chao, Yang Fuyan, Gao Bangli. 2022. Preservation effect of compound coating of chitosan potassium sorbate and ε-polylysine on blueberry. Northern Horticulture,(7):99-105. (in Chinese)
	吴超, 杨富雁, 郜帮丽. 2022. 壳聚糖、山梨酸钾和ε-聚赖氨酸对蓝莓的复合涂膜保鲜效果. 北方园艺,(7):99-105.
[18]	Wu W N, Zhou Y, Pan J F, Wu Y Y, Goksen G, Shao P. 2023. Multibranched flower-like ZnO anchored on pectin/cellulose nanofiber aerogel skeleton for enhanced comprehensive antibacterial capabilities. Carbohydrate Polymers,322:121320.
[19]	Xiao Yan, Wei Zhongshi, Yang Fucai, Liu Yufan, Mo Wenzhi, Zhao Lichun, Lu Yucui, Liao Xiayun. 2024. Bacteriostatic activity and mechanism of Ottelia acuminata polyphenols against Staphylococcus aureus. Journal of Yangzhou University(Agricultural and Life Science Edition), 45 (6):90-97,137. (in Chinese)
	肖艳, 韦钟师, 杨富才, 刘宇凡, 莫文芝, 赵立春, 卢玉翠, 廖夏云. 2024. 海菜花多酚对金黄色葡萄球菌的抑菌活性及作用机制. 扬州大学学报(农业与生命科学版), 45 (6):90-97,137.
[20]	Xie Xueqiang, Mu Kehuan. 2020. Preservation effects of soaking nectarine fruits in chitosan liquids added licorice or goldthread extracts. Journal of Anhui Agricultural Sciences, 48 (16):174-177. (in Chinese)
	谢学强, 牟柯澴. 2020. 壳聚糖添加甘草和黄连提取液对油桃保鲜效果的影响. 安徽农业科学, 48 (16):174-177.
[21]	Yang Changkai, Li Guoying. 2024. Study on the collagen hydrogel of fish skin via laccase- proto-catechuic aldehyde cross-linking. Leather Science And Engineering, 34 (2):1-6. (in Chinese)
	杨长凯, 李国英. 2024. 漆酶—原儿茶醛交联鱼皮胶原蛋白水凝胶的研究. 皮革科学与工程, 34 (2):1-6,46.
[22]	Zhang Mei, Li Xiaojun, Cheng Yue, Zhang Zhijun, Qu Zhican. 2022. A study on the preparation and antibacterial mechanism of plant-derived preservatives. Food Research and Development, 43 (1):139-145. (in Chinese)
	张梅, 李晓君, 成悦, 张志军, 渠志灿. 2022. 植物源防腐剂的制备及抑菌机理研究. 食品研究与开发, 43 (1):139-145.
[23]	Zhang Yu, Chen Zeshi, Wang Hao, Chen Shangcen. 2021. Preparation and application of chitosan-hydrocaffeic acid grafting copolymer. Food Science and Technology, 46 (8):233-237. (in Chinese)
	张宇, 陈泽世, 王浩, 陈上岑. 2021. 壳聚糖—氢化咖啡酸接枝共聚物的制备及其应用. 食品科技, 46 (8):233-237.
[24]	Zhao Yuan, Yan Wenjing, Zhao Jianying, Zhang Jianhao. 2019. Water resistance and structure of PVA composite membrane modified by citral and nano-SiO₂crosslinking. Science and Technology of Food Industry, 40 (17):148-153,160. (in Chinese)
	赵媛, 严文静, 赵见营, 章建浩. 2019. 柠檬醛/纳米SiO₂交联改性 PVA复合材料阻水性能和结构研究. 食品工业科技, 40 (17):148-153,160.
