茄子SmWRKY4的克隆及耐冷性功能验证

doi:10.16420/j.issn.0513-353x.2023-0880

摘要/Abstract

摘要：

前期研究发现茄子SmWRKY4的表达受到冷信号抑制。进一步以‘成都墨茄’为材料克隆出SmWRKY4全长序列，分析结果显示其开放阅读框为1 518 bp，编码505个氨基酸，含有2个WRKY结构域，属于第Ⅰ类WRKY转录因子。SmWRKY4启动子含有茉莉酸甲酯和水杨酸等激素响应元件及缺氧和低温等逆境胁迫响应元件。系统进化树分析表明，SmWRKY4与番茄和马铃薯的同源蛋白在进化关系上更近。表达模式分析显示SmWRKY4能够响应脱落酸、水杨酸和茉莉酸甲酯等外源植物生长调节剂和冷胁迫，并在茄子茎和花药中高表达。敲除SmWRKY4的突变体能够增强光合作用，降低细胞通透性，提高耐冷性。推测SmWRKY4负调控茄子耐冷性。

关键词: 茄子, SmWRKY4, 耐冷性, 克隆, 功能验证, 光合作用, 细胞通透性, 激素

Abstract:

Previous study showed that the expression level of SmWRKY4 was inhibited by cold stress. The full-length sequence of SmWRKY4 was cloned from‘Chengdu Moqie’in this study. Analysis results revealed that the open reading frame of the SmWRKY4 gene was 1 518 bp，encoding 505 amino acids which contained two WRKY domains. Consequently，SmWRKY4 protein belonged to group Ⅰ WRKY transcription factor. SmWRKY4 promoter contained hormone-response elements including MeJA and SA and stress-response elements including oxygen deficit and low temperature. Phylogenetic tree analysis suggested that SmWRKY4 protein was more closely related to its homologous proteins in tomato and potato. Expression pattern analysis showed that SmWRKY4 could respond to ABA，SA，MeJA and cold stress，and was highly expressed in eggplant stem and anther. SmWRKY4 mutation could enhance photosynthesis，reduce cell permeability and improve cold tolerance. These results suggested that SmWRKY4 negatively regulated cold tolerance in eggplant.

Key words: eggplant, SmWRKY4, cold tolerance, gene cloning, functional verification, photosynthesis, cell permeability, hormones

杨艳, 刘军, 周晓慧, 刘松瑜, 庄勇. 茄子SmWRKY4的克隆及耐冷性功能验证[J]. 园艺学报, 2025, 52(1): 101-110.

YANG Yan, LIU Jun, ZHOU Xiaohui, LIU Songyu, ZHUANG Yong. Cloning and Functional Verification of SmWRKY4 Gene in Cold Tolerance of Solanum melongena[J]. Acta Horticulturae Sinica, 2025, 52(1): 101-110.

图/表 9

表1 本研究中所用的引物

Table 1 Primers used in this study

用途 Usage	引物名称 Primer name	引物序列（5′-3′） Primer sequence
基因克隆 Gene cloning	SmWRKY4-CDS F	TACAAATCTATCTCTCTCGAGATGGATGACGAAATCGACAGCT
基因克隆 Gene cloning	SmWRKY4-CDS R	GCCCTTGCTCACCATGGATCCGCAAGGCTTTATTTCAAATCCAA
启动子克隆 Promoter cloning	SmWRKY4-pro F	CTGGGTTCCCGACGAAGAAT
启动子克隆 Promoter cloning	SmWRKY4-pro R	GATTCCGACGAGCACACATTG
基因检测 Gene detection	35S-F	GATGTGACATCTCCACTGACGT
基因检测 Gene detection	SmWRKY4 5′ Reverse	TGATGTTCCGTTCGTGCTTG
实时荧光定量PCR qRT-PCR	SmWRKY4 qRT-PCR F	GTGATGGGTACAATTGGCGG
	SmWRKY4 qRT-PCR R	ACTTTTGCCATTGGTAGGCG
	SmActin qRT-PCR F	GCAGCTCCTCCATCGAAAAG
	SmActin qRT-PCR R	CCGATCAGCAATACCAGGG

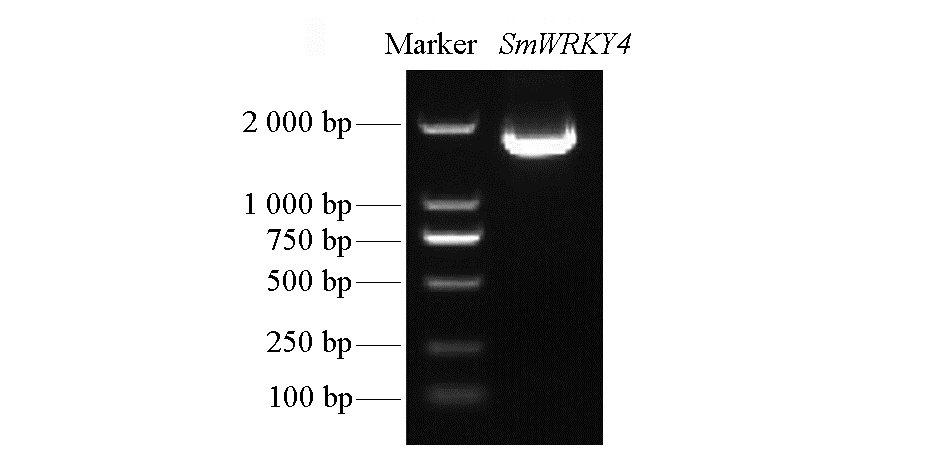

图1 SmWRKY4的克隆

Fig. 1 The cloning of SmWRKY4

图2 WRKY4同源蛋白系统进化树

Fig. 2 Phylogenetic tree of WRKY4 homologous proteins

图3 茄子SmWRKY4在不同组织的表达模式用ANOVA进行显著性分析，不同小写英文字母表示组间具有显著差异（P < 0.05）。下同

Fig. 3 The expression pattern of SmWRKY4 in different tissues Significance analyses were performed using ANOVA. Different lowercase letters indicate a significant difference between different tissues（P < 0.05）. The same below

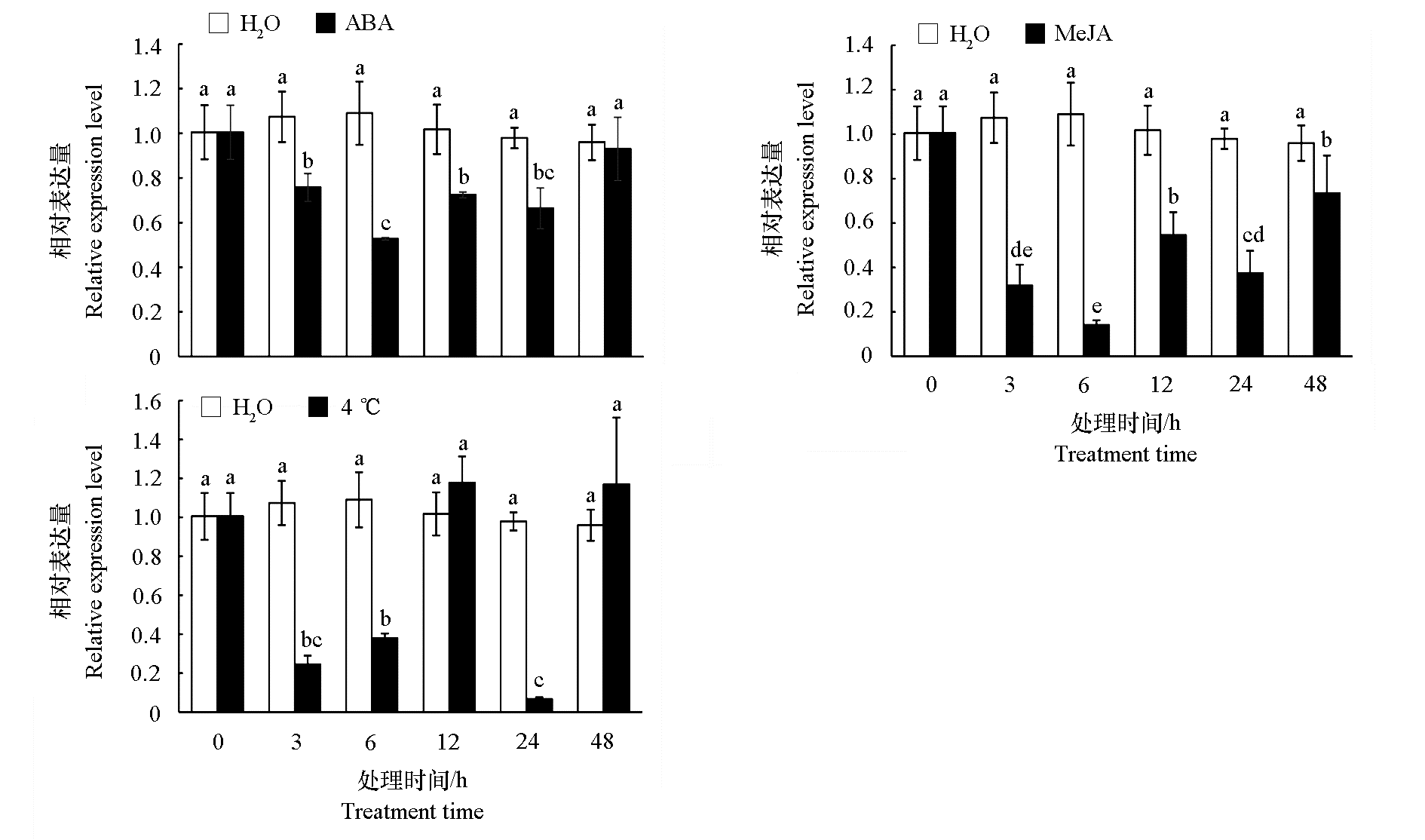

图4 SmWRKY4在不同外源生长调节剂处理下的表达模式

Fig. 4 The expression pattern of SmWRKY4 under treatments with different exogenous growth regulators

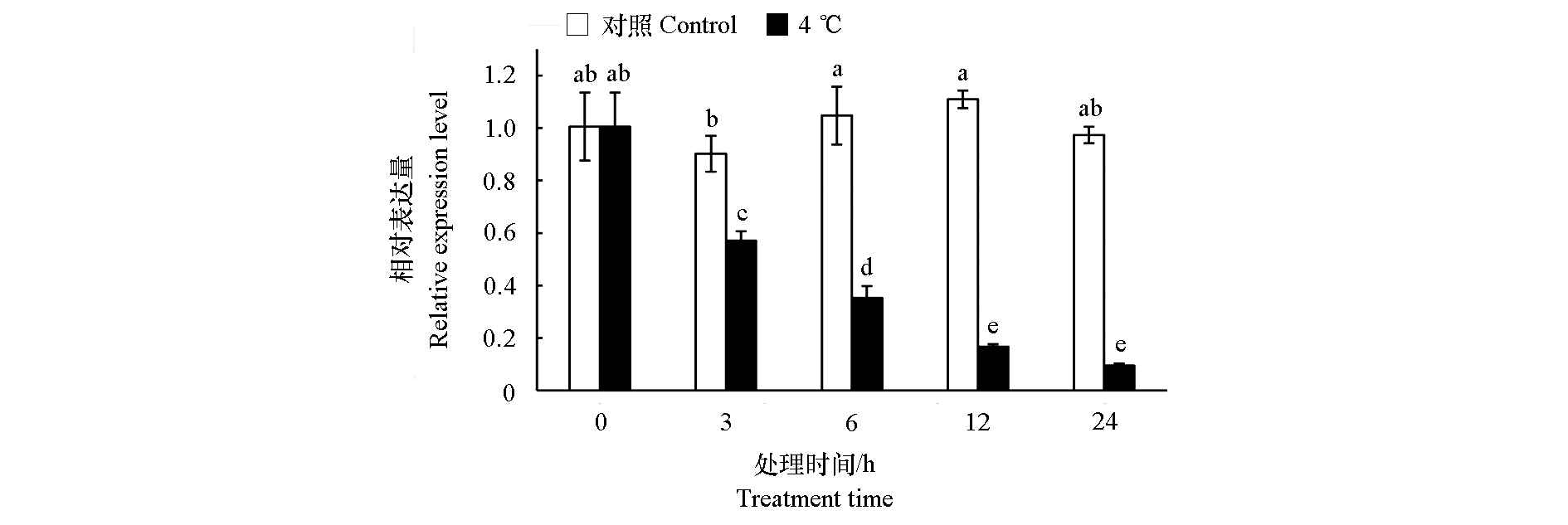

图5 SmWRKY4在4 ℃冷胁迫下的表达模式

Fig. 5 The expression pattern of SmWRKY4 under cold treatment

图6 常温和冷胁迫下茄子野生型（WT）和wrky4-3突变体的表型

Fig. 6 The phenotypes of wild type and mutant wrky4-3 under normal growth temperature and cold stress

图7 冷胁迫7 d对茄子野生型（WT）和突变体wrky4-3植株叶绿素相对含量（A）和Fv/Fm（B）的影响

Fig. 7 Effects of cold stress for 7 d on chlorophyll content（A）and Fv/Fm（B）of wild-type（WT）and SmWRKY4 gene mutation

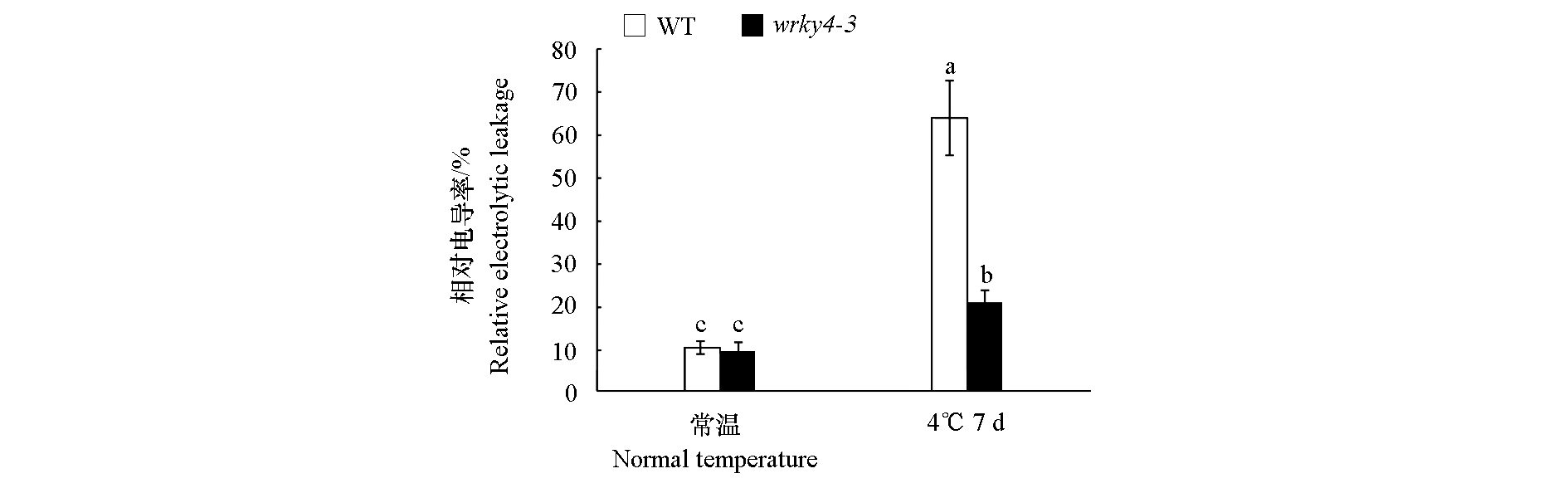

图8 冷胁迫7 d对茄子野生型（WT）和突变体wrky4-3植株相对电导率的影响

Fig. 8 Effects of cold stress for 7 d on relative electrolytic leakage of wild-type（WT）and SmWRKY4 gene mutation

参考文献 32

[1]	Baillo E, Hanif M S, Xu P, Zhang Z B. 2023. Sorghum WRKY transcription factor SbWRKY 45 enhanced seed germination under drought stress in transgenic Arabidopsis. Turkish Journal of Botany, 47 (1):23-33.
[2]	Chen Yunfei, Liu Fang, Ma Jinghua, Ou Mingzhu, Ren Qifei. 2023. Effect of shade on photosynthetic fluorescence characteristics of Ligusticum chuanxiong. Guizhou Science, 41 (5):33-38. (in Chinese)
	陈云飞, 刘芳, 马菁华, 欧明烛, 任启飞. 2023. 遮荫对川芎光合荧光特性的影响. 贵州科学, 41 (5):33-38.
[3]	Concellon A, Anon M C, Chaves A R. 2007. Effect of low temperature storage on physical and physiological characteristics of eggplant fruit (Solanum melongena L.). LWT-Food Science and Technology, 40:389-396.
[4]	Cui J, Jiang N, Meng J, Yang G L, Liu W W, Zhou X X, Ma N, Hou X X, Luan Y S. 2019. LncRNA33732-respiratory burst oxidase module associated with WRKY 1 in tomato-Phytophthora infestans interactions. The Plant Journal, 97 (5):933-946.
[5]	Ding Y L, Shi Y T, Yang S H. 2019. Advances and challenges in uncovering cold tolerance regulatory mechanisms in plants. New Phytologist, 222 (4):1690-1704. doi: 10.1111/nph.15696 pmid: 30664232
[6]	Dong Q L, Tian Y, Zhang X M, Duan D Y, Zhang H, Yang K Y, Jia P, Luan H A, Guo S P, Qi G H, Mao K, Ma F W. 2024. Overexpression of the transcription factor MdWRKY 115 improves drought and osmotic stress tolerance by directly binding to the MdRD22 promoter in apple. Horticultural Plant Journal, 10 (3):629-640.
[7]	Duan Y J, Jiang Y Z, Ye S L, Karim A, Ling Z Y, He Y Q, Yang S Q, Luo K M. 2015. PtrWRKY73,a salicylic acid-inducible poplar WRKY transcription factor,is involved in disease resistance in Arabidopsis thaliana. Plant Cell Reports, 34 (5):831-841.
[8]	Eulgem T, Rushton P J, Robatzek S, Somssich I E. 2000. The WRKY superfamily of plant transcription factors. Trends in Plant Science, 5 (5):199-206. doi: 10.1016/s1360-1385(00)01600-9 pmid: 10785665
[9]	Gao Pengfei, Gao Bing, Feng Zhenghong, Wu Jianhui. 2023. Cloning and Cd-resistant analysis of PsWRKY40 in Potentilla sericea. Acta Horticulturae Sinica, 50 (6):1269-1283. (in Chinese) doi: 10.16420/j.issn.0513-353x.2022-0213
	高鹏飞, 高冰, 冯郑红, 吴建慧. 2023. 绢毛委陵菜PsWRKY40的克隆与耐镉功能分析. 园艺学报, 50 (6):1269-1283. doi: 10.16420/j.issn.0513-353x.2022-0213
[10]	Hu Y R, Chen L G, Wang H P, Zhang L P, Wang F, Yu D Q. 2013. Arabidopsis transcription factor WRKY8 functions antagonistically with its interacting partner VQ9 to modulate salinity stress tolerance. The Plant Journal, 74 (5):730-745.
[11]	Lei R H, Li X L, Ma Z B, Lv Y, Hu Y R, Yu D Q. 2017. Arabidopsis WRKY2 and WRKY 34 transcription factors interact with VQ20 protein to modulate pollen development and function. The Plant Journal, 91 (6):962-976.
[12]	Li M Y, Zhao S Q, Yang J Y, Ren Y, Su J, Zhao J J, Ren X P, Wang C Y, Chen S S, Yu X M, Chen F, Wang X D. 2022. Exogenous expression of barley HvWRKY6 in wheat improves broad-spectrum resistance to leaf rust Fusarium crown rot,and sharp eyespot. International Journal of Biological Macromolecules, 218:1002-1012.
[13]	Li W, Wang H P, Yu D Q. 2016. Arabidopsis WRKY transcription factors WRKY12 and WRKY13 oppositely regulate flowering under short-day conditions. Molecular Plant, 9 (11):1492-1503.
[14]	Liu Ning, Gao Yubao, Jia Caixia, Ren Anzhi. 2000. Changes in POD activity,free proline content and cytomembrane per-meability of Lolium multiflorum leaves under different levels of os-motic stress. Plant Physiology Journal, 36 (1):11-14. (in Chinese)
	刘宁, 高玉葆, 贾彩霞, 任安芝. 2000. 渗透胁迫下多花黑麦草叶内过氧化物酶活性和脯氨酸含量以及质膜相对透性的变化. 植物生理学通讯, 36 (1):11-14.
[15]	Mare C, Mazzucotelli E, Crosatti C, Francia E, Stanca A M, Cattivelli L. 2004. Hv-WRKY38:a new transcription factor involved in cold- and drought-response in barley. Plant Molecular Biology, 55 (3):399-416.
[16]	Pan Xinfeng, Ye Fangting, Mao Zhijun, Li Zaowei, Fan Kai. 2022. Genomic identification and molecular evolution of the WRKY family in Nymphaea colorata. Acta Horticulturae Sinica, 49 (5):1121-1135. (in Chinese) doi: 10.16420/j.issn.0513-353x.2021-0092 URL
	潘鑫峰, 叶方婷, 毛志君, 李兆伟, 范凯. 2022. 睡莲WRKY家族的全基因组鉴定和分子进化分析. 园艺学报, 49 (5):1121-1135. doi: 10.16420/j.issn.0513-353x.2021-0092 URL
[17]	Sun Huiru, Dang Fengfeng, Ren Min, Zhang Jianing, Fan Bei, Chen Guoliang, Cheng Guoting, Wang Yanfeng. 2024. Function analysis of SlWRKY46in regulating tomato response to low temperature stress. Acta Horticulturae Sinica, 51 (12):2758-2774. (in Chinese) doi: 10.16420/j.issn.0513-353x.2024-0014
	孙会茹, 党峰峰, 任敏, 张嘉宁, 樊蓓, 陈国梁, 程国亭, 王延峰. 2024. 番茄SlWRKY46调控低温胁迫响应的功能研究. 园艺学报, 51 (12):2758-2774. doi: 10.16420/j.issn.0513-353x.2024-0014
[18]	Wei Xin, Wang Sheng, Wang Hongguang, Wang Xingdong, Yang Yuchun, Liu Youchun, Liu Cheng. 2023. Study on cold resistance of different types of blueberry varieties under low temperature stress. Jiangsu Agricultural Sciences, 51 (19):131-137. (in Chinese)
	魏鑫, 王升, 王宏光, 王兴东, 杨玉春, 刘有春, 刘成. 2023. 低温胁迫下不同类型蓝莓品种的抗寒性研究. 江苏农业科学, 51 (19):131-137.
[19]	Wei Y, Meng N, Wang Y C, Cheng J, Duan C Q, Pan Q H. 2023. Transcription factor VvWRKY 70 inhibits both norisoprenoid and flavonol biosynthesis in grape. Plant Physiology, 193 (3):2055-2070. doi: 10.1093/plphys/kiad423 pmid: 37471439
[20]	Xing B C, Wan S Q, Su L Y, Riaz M W, Li L H, Ju Y L, Zhang W S, Zheng Y, Shao Q S. 2023. Two polyamines-responsive WRKY transcription factors from Anoectochilus roxburghii play opposite functions on flower development. Plant Science, 327:111566.
[21]	Yang Y, Liu J, Zhou X H, Liu S Y, Zhuang Y. 2020a. Transcriptomics analysis unravels the response to low temperature in sensitive and tolerant eggplants. Scientia Horticulturae, 271:109468.
[22]	Yang Y, Liu J, Zhou X H, Liu S Y, Zhuang Y. 2020b. Identification of WRKY gene family and characterization of cold stress-responsive WRKY genes in eggplant. PeerJ, 8:e8777.
[23]	Yokotani N, Sato Y, Tanabe S, Chujo T, Shimizu T, Okada K, Yamane H, Shimono M, Sugano S, Takatsuji H, Kaku H, Minami E, Nishizawa Y. 2013. WRKY 76 is a rice transcriptional repressor playing opposite roles in blast disease resistance and cold stress tolerance. Journal of Experimental Botany, 64 (16):5085-5097. doi: 10.1093/jxb/ert298 pmid: 24043853
[24]	Yu Zhengjiao, Li Shukun, Chu Pengfei, Fang Yuting, Wang Deying, Li Yanan, Wu Bingjie. 2023. Effects of exogenous melatonin on photosynthetic,fluorescence and biochemical characteristics of tomato seedlings under low temperature stress. Shandong Agricultural Sciences, 55 (8):48-55. (in Chinese)
	于郑娇, 李书昆, 褚鹏飞, 房雨婷, 王德颖, 李亚楠, 吴冰洁. 2023. 外源褪黑素对低温胁迫下番茄幼苗光合荧光及生化特性的影响. 山东农业科学, 55 (8):48-55.
[25]	Yuan Y, Ren S Y, Liu X F, Su L Y, Wu Y, Zhang W, Li Y, Jiang Y D, Wang H H, Fu R, Bouzayen M, Liu M C, Zhang Y. 2022. SlWRKY 35 positively regulates carotenoid biosynthesis by activating the MEP pathway in tomato fruit. New Phytologist, 234 (1):164-178.
[26]	Zhang Guorong, Liang Zhangmei, Guo Jianyong, Zhang Zening, Zhang Pengfei, Zhao Qifeng, Liang Jinjun, Wen Pengfei. 2023. Clone and expression analysis of VvWRKY26 gene in grape(Vitis vinifera). Journal of Agricultural Biotechnology, 31 (3):475-487. (in Chinese)
	张国蓉, 梁长梅, 郭建勇, 张泽宁, 张鹏飞, 赵旗峰, 梁晋军, 温鹏飞. 2023. 葡萄VvWRKY26基因克隆与表达分析. 农业生物技术学报, 31 (3):475-487.
[27]	Zhang M X, Zhao R R, Huang K, Huang S Z, Wang H T, Wei Z Q, Li Z, Bian M D, Jiang W Z, Wu T, Du X L. 2022. The OsWRKY63-OsWRKY76-OsDREB1B module regulates chilling tolerance in rice. The Plant Journal, 112 (2):383-398.
[28]	Zhang S L, Dong L J, Zhang X, Fu X H, Zhao L, Wu L Z, Wang X F, Liu J F. 2023. The transcription factor GhWRKY 70 from gossypium hirsutum enhances resistance to verticillium wilt via the jasmonic acid pathway. BMC Plant Biology, 23 (1):141.
[29]	Zhang Weiyin, Wang Suqin, Ma Chongjian, Yuan Yuan, Yang Xiaoyan, Jiang Yuanyuan. 2023. Sequence characteristics and expression analysis of flowering-related gene EjWRKY12 in Eriobotrya japonica. Acta Botanica Boreali-Occidentalia Sinica, 43 (9):1470-1477. (in Chinese)
	张苇胤, 王素琴, 马崇坚, 原远, 杨晓燕, 蒋园园. 2023. 枇杷成花相关基因EjWRKY12序列特性及表达分析. 西北植物学报, 43 (9):1470-1477.
[30]	Zhang Y, Yu H J, Yang X Y, Li Q, Ling J, Wang H, Gu X F, Huang S W, Jiang W J. 2016. CsWRKY46,a WRKY transcription factor from cucumber,confers cold resistance in transgenic-plant by regulating a set of cold-stress responsive genes in an ABA-dependent manner. Plant Physiology and Biochemistry, 108:478-487. doi: S0981-9428(16)30338-2 pmid: 27592172
[31]	Zhao L, Zhang W, Song Q, Xuan Y, Li K, Cheng L, Qiao H, Wang G, Zhou C. 2020. A WRKY transcription factor,TaWRKY40-D,promotes leaf senescence associated with jasmonic acid and abscisic acid pathways in wheat. Plant Biology, 22 (6):1072-1085.
[32]	Zheng Youfeng, Chen Jialan, Xiao Fang, An Zixian, Li Yixuan, Lai Zhongxiong, Mou Jianmei, Liu Shengcai. 2022. Effects of different temperatures on photosynthetic characteristics and expression of photosynthesis-related genes in Amaranthus tricolor. Journal of Plant Resources and Environment, 31 (5):50-57. (in Chinese)
	郑友峰, 陈家兰, 肖昉, 安子贤, 李宜轩, 赖钟雄, 牟建梅, 刘生财. 2022. 不同温度对苋菜光合特性及光合作用相关基因表达的影响. 植物资源与环境学报, 31 (5):50-57.
