干旱胁迫下大蒜幼苗的代谢组学分析

doi:10.16420/j.issn.0513-353x.2022-0888

摘要/Abstract

摘要：

利用高效液相色谱串联质谱广泛靶向代谢组学的方法，通过主成分分析、正交偏最小二乘判别分析、聚类分析、富集分析、相关性分析等方法，测定并比较干旱胁迫和对照大蒜幼苗叶片的代谢物质成分。结果共检测出23类743种代谢物，其中313种上调，430种下调，差异代谢物134种，占总体代谢物的18.03%。上、下调差异代谢物质数量最多的为黄酮、苯丙素、黄酮醇、黄酮类、核苷酸及衍生物、氨基酸及衍生物、糖类、有机酸及衍生物等8类物质，主要富集在黄酮和黄烷酮的生物合成途径中，干旱胁迫后大蒜幼苗叶片黄酮差异代谢物数量较多且上调。对大蒜黄酮代谢途径进行分析，咖啡酸和麦黄酮O-丙二酰己糖苷的上调关联代谢物质最多，推测干旱胁迫下黄酮和苯丙素物质含量的增加会显著提高大蒜的抗旱性。

关键词: 大蒜, 干旱胁迫, 代谢组学, 黄酮, 苯丙素

Abstract:

Using high performance liquid chromatography tandem mass spectrometry extensively targeted metabolomics，garlic leaves metabolic components were detected and analyzed by principal component analysis，orthogonal partial least squares discriminant analysis，cluster analysis，enrichment analysis and correlation analysis. As a result，a total of 743 metabolites in 23 classes were identified，313 up-regulated and 430 down-regulated metabolites，with 134 differential metabolites，accounting for 18.03% of the overall metabolites. The highest number of up- and down-regulated differential metabolites were flavone，phenylpropanoids，flavonol，flavonoid，nucleotide and derivatives，amino acid and derivatives，carbohydrates，organic acid and derivatives，which were mainly enriched in the flavone and flavonol biosynthesis. The number of different metabolites of flavonoids in the leaves of garlic sprout after drought stress was higher and up-regulated. The metabolic pathways of garlic flavonoids were analyzed，and caffeate acid and tricin O-malonylhexoside were the most up-regulated metabolites. It was speculated that the increase of flavone and phenylpropanoids under drought stress significantly improved the drought resistance of garlic.

Key words: garlic, drought stress, metabolomics, flavone, phenylpropanoids

田洁, 周倩怡, 铁原毓, 孙海宏, 黄思杰. 干旱胁迫下大蒜幼苗的代谢组学分析[J]. 园艺学报, 2024, 51(1): 133-144.

TIAN Jie, ZHOU Qianyi, TIE Yuanyu, SUN Haihong, and HUANG Sijie. Metabolomic Analysis of Garlic Seedling Under Drought Stress[J]. Acta Horticulturae Sinica, 2024, 51(1): 133-144.

图/表 8

表1 干旱胁迫下大蒜幼苗叶片中的代谢物数量

Table 1 Statistical table of metabolites in garlic sprout leaves under drought stress

代谢物种类 Metabolite species	总计 Sum	上调 Up	下调 Down	差异显著 Significant difference
黄酮Flavone	106	73	33	24
氨基酸及衍生物Amino acid and derivatives	97	30	67	20
有机酸及衍生物Organic acids and derivatives	85	30	55	10
脂质Lipids	70	20	50	4
核苷酸及衍生物Nucleotide and derivates	63	10	53	24
苯丙素Phenylpropanoids	59	38	21	7
生物碱Alkaloids	37	17	20	7
黄酮醇Flavonol	28	9	19	2
糖类Carbohydrates	20	4	16	14
维生素及衍生物Vitamins and derivatives	19	6	13	4
醇类Alcohols	17	10	7	2
花青素Anthocyanins	16	6	10	2
萜类Terpene	16	8	8	2
黄酮类Flavonoid	15	8	7	3
酚胺Phenolamides	15	6	9	2
黄烷酮Flavanone	13	5	8	1
吲哚及衍生物Indole derivatives	11	5	6	1
异黄酮Isoflavone	9	6	3	0
多酚Polyphenol	6	3	3	1
甾体Sterides	5	3	2	0
醌类Quinones	3	2	1	0
原花青素Proanthocyanidins	1	1	0	0
其他Others	32	13	19	4
总计Sum	743	313	430	134

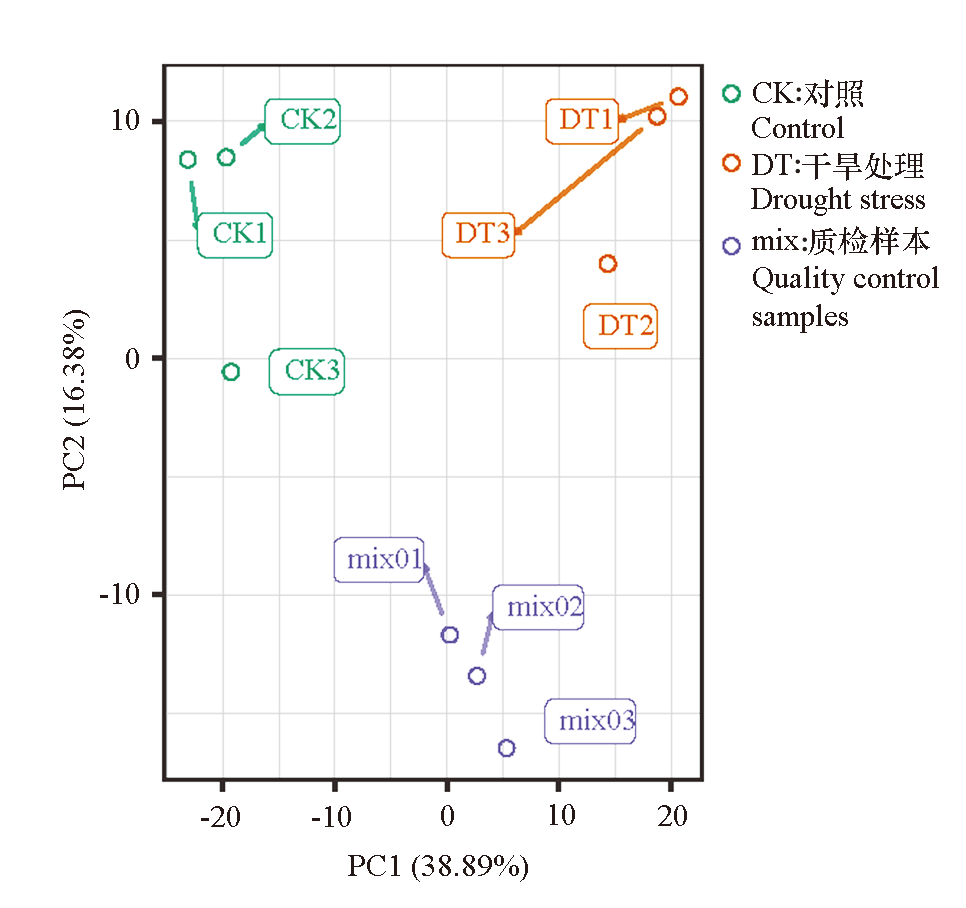

图1 大蒜幼苗干旱胁迫和对照叶片样本及质控的PCA结果

Fig. 1 PCA results of two groups of sample and quality control

图2 干旱胁迫下大蒜幼苗叶片OPLS-DA得分图（A）和验证图（B）

Fig. 2 The score chart（A）and verification chart（B）of OPLS-DA of garlic leaves under drought stress

图3 干旱胁迫下大蒜幼苗叶片差异代谢物热图

Fig. 3 The heat map of differential metabolite of garlic leaves under drought stress

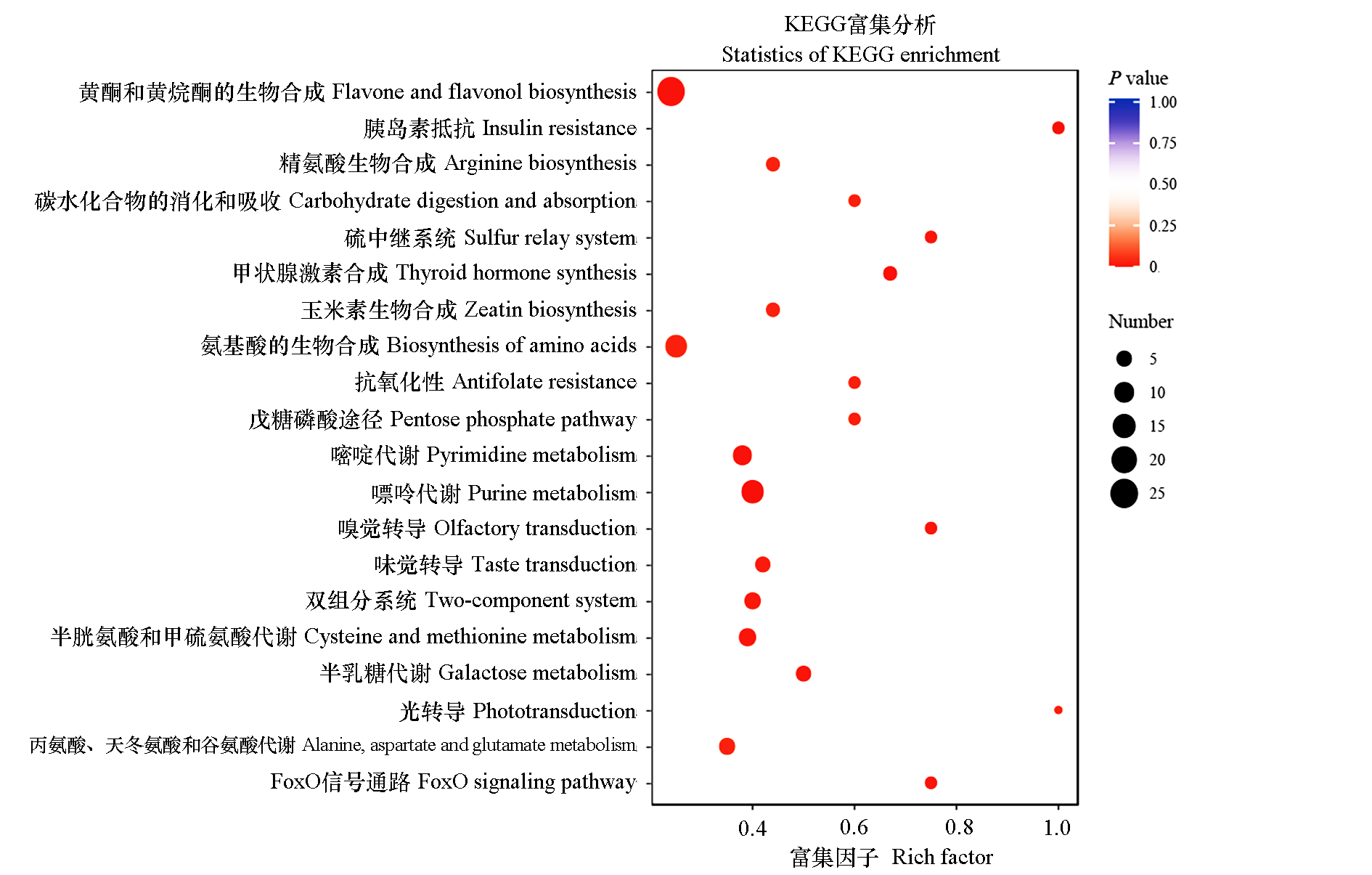

图4 干旱胁迫下大蒜幼苗叶片差异代谢物KEGG富集图

Fig. 4 Differential metabolite KEGG enrichment map of garlic leaves under drought stress

图5 干旱胁迫下大蒜幼苗叶片差异代谢物主成分分析

Fig. 5 Differential metabolite analysis based on PCA of garlic leaves under drought stress

图6 干旱胁迫下大蒜幼苗叶片中黄酮代谢途径解析图 * 表示不同处理间差异显著（P < 0.05）；**表示不同处理间差异极显著（P < 0.01）。

Fig. 6 Analytical diagram of flavonoid metabolism pathway of garlic leaves under drought stress * indicates significant difference among different treatments（P < 0.05）；** indicates highly significant difference among different treatments （P < 0.01）.

图7 干旱胁迫下大蒜幼苗叶片中黄酮代谢相关性网络图

Fig. 7 Correlation network map of flavonoid metabolism pathway of garlic leaves under drought stress

参考文献 29

[1]	Bai Yu, Mao Dan, Wang Ji-yue. 2018. Research progress on the flavonoids biosynthesis and its response to drought stress. Journal of Anhui Agricultural Sciences, 46 (16):24-26. (in Chinese)
	白禹, 卯丹, 王继玥. 2018. 黄酮类物质的生物合成及对干旱胁迫响应的研究进展. 安徽农业科学, 46 (16):24-26.
[2]	Bian Hai-yan, Zhong Qi-wen, Huang Si-jie, Wang Li-hui, Yang Shi-peng, Tian Jie. 2018. Analysis of gene expressions of fructan metabolism key enzymes in garlic under drought stress. Molecular Plant Breeding, 16 (20):6770-6776. (in Chinese)
	边海燕, 钟启文, 黄思杰, 王丽慧, 杨世鹏, 田洁. 2018. 干旱胁迫下大蒜果聚糖代谢关键酶基因的表达分析. 分子植物育种, 16 (20):6770-6776.
[3]	Bian Hai-yan, Guo Chun-qian, Liu Xin-yu, Wang Zi-tong, Yan Yi-wei, Tian Jie, Wang Jin-min. 2020. Effects of low temperature stress on the growth and key enzyme genes of garlic metabolism in garlic. Journal of Qinghai University(Natural Science), 38 (3):44-50. (in Chinese)
	边海燕, 郭春倩, 刘新雨, 王紫彤, 闫艺薇, 田洁, 王晋民. 2020. 低温胁迫对乐都紫皮大蒜生长及果聚糖代谢关键酶基因的影响. 青海大学学报, 38 (3):44-50.
[4]	Chen X M, Shi X Y, Ai Q, Han J Y, Wang H S, Fu Q S. 2022. Transcriptomic and metabolomic analyses reveal that exogenous strigolactones alleviate the response of melon root to cadmium stress. Horticultural Plant Journal, 8 (5):637-649. doi: 10.1016/j.hpj.2022.07.001 URL
[5]	Chmielewska K, Rodziewicz P, Swarcewicz B, Sawikowska A, Krajewski P, Marczak U, Ciesioka D, Kuczyńska A, Mikoajczak K, Ogrodowicz P. 2016. Analysis of drought-induced proteomic and metabolomic changes in barley(Hordeum vulgare L.)leaves and roots unravels some aspects of biochemical mechanisms involved in drought tolerance. Front Plant Sci, 7:1108. doi: 10.3389/fpls.2016.01108 pmid: 27512399
[6]	Doshi P, Ad S P, Banerjee K. 2010. Phenolic composition and antioxidant activity in grapevine parts and berries(Vitis vinifera L.)cv. Kishmish Chornyi(Sharad Seedless)during maturation. International Journal of Food Science & Technology, 41 (S1):1-9.
[7]	Fan Min, Jin Liping, Huang Sanwen, Xie Kaiyun, Liu Qingchang, Qu Dongyu. 2008. Effects of drought on gene expressions of key enzymes incarotenoid flavonoid biosynthesis in potato. Acta Horticulturae Sinica, 35 (4):535-542. (in Chinese)
	范敏, 金黎平, 黄三文, 谢开云, 刘庆昌, 屈冬玉. 2008. 干旱胁迫对马铃薯类黄酮和类胡萝卜素合成关键酶基因表达的影响. 园艺学报, 35 (4):535-542.
[8]	Gaffney I, Sallach J B, Wilson J, Bergstrom E, Thomas O J. 2021. Metabolomic approaches to studying the response to drought stress in corn(Zea mays)Cobs. Metabolites, 11 (7):438-452. doi: 10.3390/metabo11070438 URL
[9]	Gai Z S, Wang Y, Ding Y, Qian W, Ding Z. 2020. Exogenous abscisic acid induces the lipid and flavonoid metabolism of tea plants under drought stress. Scientific Reports, 10 (1):12275-12287. doi: 10.1038/s41598-020-69080-1 pmid: 32704005
[10]	Guan Ren-wei, Guo Rui-qi, Lin Hui-bin, Lin Jian-qiang. 2022. Effect of drought and salt stress on flavonoids in Scutellariabaicalensis Georgi based on plant metabolomics. Chinese Traditional and Herbal Drugs, 53 (5):1504-1511. (in Chinese)
	管仁伟, 郭瑞齐, 林慧彬, 林建强. 2022. 基于植物代谢组学技术的干旱及盐胁迫对黄芩中黄酮类成分影响的研究. 中草药, 53 (5):1504-1511.
[11]	Guo Rui, Zhou Ji, Yang Fan, Li Feng. 2017. Effects of alkaline stress on metabonomic responses of wheat(Triticum aestivum Linn)leaves. Scientia Agricultura Sinica, 50 (2):250-259. (in Chinese)
	郭瑞, 周际, 杨帆, 李峰. 2017. 碱胁迫对小麦(Triticum aestivum Linn)叶片代谢过程的影响. 中国农业科学, 50 (2):250-259. doi: 10.3864/j.issn.0578-1752.2017.02.005
[12]	Han Z, Ahsan M, Adil M F, Chen X, Zhang G. 2020. Identification of the gene network modules highly associated with the synthesis of phenolics compounds in barley by transcriptome and metabolome analysis. Food Chemistry, 323:126862. doi: 10.1016/j.foodchem.2020.126862 URL
[13]	He S Y, Ye Y, Yuan Y, Lv M, Wang M X, Xu Q, Xu X W, Chen X H. 2023. Insights into flavonoid biosynthesis during cucumber fruit peel coloration based on metabolite profiling and transcriptome analyses. Horticultural Plant Journal, 9 (4):763-776. doi: 10.1016/j.hpj.2023.02.002 URL
[14]	Juan M, Cevallos C, José I, Reyes D C, Edgardo E, Michelle D D, Gary E R. 2009. Metabolomic analysis in food science: a review. Trends in Food Science & Technology, 20 (11-12):557-566.
[15]	Li Dan-dan, Liang Zong-suo, Pubu Zhuo-ma, Yang Zong-qi, Han Rui-lian, Xu Xue-xuan. 2020. Flavonoids contents and flavonoids synthetic key enzyme activities in alfalfa under drought stress. Acta Botanica Boreali-Occidentalia Sinica, 40 (8):1380-1388. (in Chinese)
	李丹丹, 梁宗锁, 普布卓玛, 杨宗岐, 韩蕊莲, 徐学选. 2020. 干旱胁迫对紫花苜蓿黄酮类化合物含量及其合成途径关键酶活性的影响. 西北植物学报, 40 (8):1380-1388.
[16]	Liu Chunju, Wang Haiou, Li Dajing, Liu Chunquan. 2015. Effects of vinegar pickling and drying on the volatile flavor compounds of garlic. Journal of Nuclear Agricultural Sciences, 29 (9):1743-1748. (in Chinese) doi: 10.11869/j.issn.100-8551.2015.09.1743
	刘春菊, 王海鸥, 李大婧, 刘春泉. 2015. 醋浸和干燥对大蒜挥发性风味成分的影响. 核农学报, 29 (9):1743-1748. doi: 10.11869/j.issn.100-8551.2015.09.1743
[17]	Matsuda F, Nakbayashi R, Yang Z, Yang Z G, Okazaki Y, Yonemaru J, Ebana K, Yano M, Saito K. 2015. Metabolome-genome-wide association study dissects genetic architecture for generating natural variation in rice secondary metabolism. Plant Journal for Cell & Molecular Biology, 81 (1):13-23.
[18]	Meng D, Dong B Y, Niu L L, Song Z H, Wang L T, Amin R, Cao H Y, Li H H, Yang Q, Fu Y J. 2021. The pigeon pea CcCIPK14-CcCBL 1 pair positively modulates drought tolerance by enhancing flavonoid biosynthesis. Plant Journal, 106 (5):1278-1297. doi: 10.1111/tpj.v106.5 URL
[19]	Nakabayashi R, Yonekura S K, Urano K, Suzuki M, Yamada Y, Nishizawa T, Matsuda F, Kojima M, Sakakibara H, Shinozaki K, Michael A J, Tohge T, Yamazaki M, Saito K. 2014. Enhancement of oxidative and drought tolerance in Arabidopsis by overaccumulation of antioxidant flavonoids. Plant Journal, 77 (3):367-379. doi: 10.1111/tpj.2014.77.issue-3 URL
[20]	Sun Xiao-xiao. 2016. Analysis on drought disaster risk in eastern agricultural areas of Qinghai Province[M. D. Dissertation]. Yangling: Northwest A & F University. (in Chinese)
	孙晓晓. 2016. 青海省东部农业区旱灾风险分析[硕士论文]. 杨凌: 西北农林科技大学.
[21]	Tu Ling-yan, Wu Xue-qian, Xu Hai-shun. 2021. Effects of water stress on chloroplast ultrastructure and key enzymes of flavonoid synthesis in Tetrastigma hemsleyanum. Journal of Zhejiang A & F University, 38 (3):577-586. (in Chinese)
	屠玲艳, 吴学谦, 许海顺. 2021. 水分胁迫对三叶青叶绿体超微结构及黄酮合成关键酶的影响. 浙江农林大学学报, 38 (3):577-586.
[22]	Wan H L, Zhang X L, Wang P, Qiu H J, Guo Y F, Cheng Y J, Wen W W. 2022. Integrated multi-omics analysis of developing‘Newhall’orange and its glossy mutant provide insights into citrus fragrance formation. Horticultural Plant Journal, 8 (4):435-449. doi: 10.1016/j.hpj.2021.12.002 URL
[23]	Wang Gai-li, Wei Zhong, He Shao-xuan, Zhou Xue-jie, Liang Zong-suo. 2011. Effects of drought stress in soil on flavonoids metabolism in leaf and some growth and physiological indexes of Ziziphus jujuba var. spinosa. Journal of Plant Resources and Environment, 20 (3):1-8. (in Chinese)
	王改利, 魏忠, 贺少轩, 周雪洁, 梁宗锁. 2011. 土壤干旱胁迫对酸枣叶片黄酮类代谢及某些生长和生理指标的影响. 植物资源与环境学报, 20 (3):1-8.
[24]	Wang F, Chen L, Chen H P, Chen S W, Liu Y P, Celestinos B. 2019. Analysis of flavonoid metabolites in citrus peels(Citrus reticulata “Dahongpao”)using UPLC-ESI-MS/MS. Molecules, 24 (15):2680. doi: 10.3390/molecules24152680 URL
[25]	Yan Jun, Wu Yu, Wang Ying, Xu Shuang, Zhu Wei-min. 2017. Effects of drought stress on the growth and accumulation of flavonoids in celery. Acta Horticulturae Sinica, 44 (S1):119. (in Chinese)
	阎君, 吴珏, 王颖, 许爽, 朱为民. 2017. 干旱胁迫对芹菜生长及黄酮类化合物积累的影响. 园艺学报, 44 (S1):119.
[26]	Yu X T, Yang T, Qi Q Q, Du Y M, Shi J, Liu X M, Liu Y H, Zhang H B, Zhang Z F, Yan N. 2021. Comparison of the contents of phenolic compounds including flavonoids and antioxidant activity of rice(Oryza sativa)and Chinese wild rice(Zizania latifolia). Food Chemistry, 344 (15):128600. doi: 10.1016/j.foodchem.2020.128600 URL
[27]	Zhan X Q, Shen Q W, Chen J, Yang P, Wang X M, Hong Y Y. 2019. Rice sulfoquinovosyltransferase SQD2.1 mediates flavonoid glycosylation and enhances tolerance to osmotic stress. Plant,Cell & Environment, 42 (7):2215-2230.
[28]	Zhao M L, Ren Y J, Wei W, Yang J M, Zhong Q W, Li Z. 2021. Metabolite analysis of Jerusalem artichoke(Helianthus tuberosus L.)seedlings in response to polyethylene glycol-simulated drought stress. International Journal of Molecular Sciences, 22 (7):3294-3294. doi: 10.3390/ijms22073294 URL
[29]	Zhu Z B, Liang Z S, Han R L. 2009. Saikosaponin accumulation and antioxidative protection in drought-stressed Bupleurum chinense DC. plants. Environmental and Experimental Botany, 66 (2):326-333. doi: 10.1016/j.envexpbot.2009.03.017 URL
