Genome-Wide Identification of the HSP20 Gene Family in Strawberry and its Functional Analysis in Fruit Response to High-Temperature Stress and Ripening Regulation

doi:10.16420/j.issn.0513-353x.2026-0341

Acta Horticulturae Sinica ›› 2026, Vol. 53 ›› Issue (7): 2053-2074.doi: 10.16420/j.issn.0513-353x.2026-0341

• Genetic & Breeding · Germplasm Resources · Molecular Biology • Previous Articles Next Articles

Genome-Wide Identification of the HSP20 Gene Family in Strawberry and its Functional Analysis in Fruit Response to High-Temperature Stress and Ripening Regulation

ZHAO Yanxia¹, SUN Jiabo¹, Wu Yiqing¹^,², LI Qian², LIANG Hongmin¹, LI Bingbing²^,^*()

¹ Institute of Leisure Agriculture， Shandong Academy of Agricultural Sciences;Key Laboratory of East China Urban Agriculture，Ministry of Agriculture and Rural Affairs;Shandong Engineering Research Center of Ecological Horticultural Plant Breeding， Ji’nan 250100， China
² College of Horticulture， China Agricultural University， Beijing 100193， China

Received:2026-04-13 Revised:2026-06-22 Online:2026-07-25 Published:2026-07-23
Contact: LI Bingbing

Abstract

Abstract:

Small heat shock protein 20（HSP20）are pivotal regulators involved in plant high-temperature stress response as well as growth and development. To dissect the high-temperature response mechanism of the strawberry HSP20 gene family and its regulatory function in fruit ripening，diploid woodland strawberry（Fragaria vesca）was used as material in this study. A genome-wide identification of the FvHSP20 gene family was carried out using bioinformatics methods，and the gene structure，phylogeny，chromosomal localization，and cis-acting elements were systematically analyzed. Furthermore，combined with transcriptome and qRT-PCR technologies，the expression patterns of this family at different fruit developmental stages and under high-temperature stress in both woodland strawberry and cultivated strawberry（Fragaria × ananassa）were resolved，and the biological function of key gene was further validated in cultivated strawberry. The results showed that a total of 33 FvHSP20 genes were identified from the F. vesca genome. The encoded HSP20 proteins contained 78 to 399 amino acids with stable physicochemical properties，and were targeted to cytoplasm，chloroplasts，mitochondria and other organelles，exhibiting obvious subcellular compartmentalization. Phylogenetic analysis categorized these genes into 13 subfamilies，among which a novel clade designated CXⅡ subfamily was newly classified in this study. Notably，strawberry HSP20 family lacked endoplasmic reticulum subfamily members，reflecting unique evolutionary characteristics of this species. The 33 FvHSP20 genes were unevenly mapped onto seven strawberry chromosomes，most family members possessed compact gene structures with zero or one intron. Promoter sequence of various genes analysis revealed numerous stress-responsive and hormone-responsive cis-elements，among which light-responsive，abscisic acid（ABA）-responsive and methyl jasmonate（MeJA）-responsive elements were the most abundant. Transcriptomic results indicated that both FvHSP20 and FaHSP20 genes displayed fruit developmental stage-specific expression patterns. Fruits at the white stage were most susceptible to high-temperature stress，and core genes including HSP20-13，HSP20-14 and HSP20-20 were significantly upregulated upon heat treatment. Distinct transcriptional responses to heat stress were detected between two cultivated strawberry cultivars：the heat-tolerant cultivar‘Kaorino’exhibited milder and more stable gene expression fluctuations. Transient overexpression assays verified that FaHSP20-13 accelerated fruit coloration，enhanced sugar enrichment under normal temperature conditions. Furthermore，FaHSP20-13 maintained ABA signaling homeostasis to relieve heat-induced growth inhibition in strawberry fruits，performing dual functions in promoting maturation and heat resistance. In this study，the basic characteristics and high-temperature response patterns of the strawberry HSP20 family were clarified，and key candidate genes for heat tolerance and ripening regulation were identified，which provided theoretical basis and genetic resources for molecular breeding of heat tolerance and high-quality improvement in strawberry.

Key words: strawberry, HSP20, genome-wide identification, high-temperature stress, fruit ripening regulation

ZHAO Yanxia, SUN Jiabo, Wu Yiqing, LI Qian, LIANG Hongmin, LI Bingbing. Genome-Wide Identification of the HSP20 Gene Family in Strawberry and its Functional Analysis in Fruit Response to High-Temperature Stress and Ripening Regulation[J]. Acta Horticulturae Sinica, 2026, 53(7): 2053-2074.

Figures/Tables 15

References 57

[1]	Aomura N, Ninohei R, Noguchi M, Sakoda M, Inoue E, Narisawa K, Mochizuki Y. 2026. Dark septate endophytic fungi improve dry matter production and fruit yield in ever-bearing strawberry(Fragaria × ananassa Duch.)under high temperatures. Plants, 15 (1):129. doi: 10.3390/plants15010129 URL
[2]	Arce D P, De Las Rivas J, Pratta G R. 2020. Interactomic analysis of the sHSP family during tomato fruit ripening. Plant Gene, 21:100208. doi: 10.1016/j.plgene.2019.100208 URL
[3]	Bailey T L, Boden M, Buske F A, Frith M, Grant C E, Clementi L, Ren J, Li W W, Noble W S. 2009. MEME SUITE:tools for motif discovery and searching. Nucleic Acids Research,37:W202-W208.
[4]	Bondino H G, Valle E M,ten Have A. 2012. Evolution and functional diversification of the small heat shock protein/α-crystallin family in higher plants. Planta,235:1299-1313.
[5]	Chen C, Wu Y, Li J, Wang X, Zeng Z, Xu J, Liu Y, Feng J, Chen H, He Y, Xia R. 2023. TBtools-II:a“one for all,all for one”bioinformatics platform for biological big-data mining. Molecular Plant,16:1733-1742.
[6]	Chen Q, Lin X, Tang W, Deng Q, Wang Y, Lin Y, He W, Zhang Y, Li M, Luo Y, Zhang Y, Wang X and Tang H. 2022. Transcriptomic complexity in strawberry fruit development and maturation revealed by nanopore sequencing. Front, Plant Science, 13:872054.
[7]	Ding C K, Wang C Y, Gross K C, Smith D L. 2001. Reduction of chilling injury and transcript accumulation of heat shock proteins in tomato fruit by methyl jasmonate and methyl salicylate. Plant Science, 161 (6):1153-1159. doi: 10.1016/S0168-9452(01)00521-0 URL
[8]	Dos Santos T B, Ribas A F, De Souza S G H, Budzinski I G F, Domingues D S. 2022. Physiological responses to drought,salinity,and heat stress in plants:a review. Stresses, 2 (1):113-135. doi: 10.3390/stresses2010009 URL
[9]	Feng Jia, Lu Peng, Li Li, Yang Li, Yang Lei. 2025. Genome wide identification and functional characterization of strawberry pectate lyases related to fruit softening. Acta Horticulturae Sinica, 52 (6):1441-1450. (in Chinese) doi: 10.16420/j.issn.0513-353x.2024-0488
	冯佳, 路鹏, 李莉, 杨莉, 杨雷. 2025. 草莓果胶裂解酶基因家族分析及其调控果实软化的功能研究. 园艺学报, 52 (6):1441-1450. doi: 10.16420/j.issn.0513-353x.2024-0488
[10]	Feng Q Q, Wei L Z, Liu T, Wang K X, Li X J, Liu C, Sun R H, Li X, Yin Z N, Wei Y R, Yuan H Z, Li Q, Li B B. 2026. FvMAPK6-mediated FvMYB44s/FvSWEET1 dual-layer regulation modulates sugar accumulation in strawberry fruit,with FvSPS3 enabling quality-yield balance. Plant Biotechnology Journal, 24 (6):4221-4239. doi: 10.1111/pbi.v24.6 URL
[11]	Guo M, Liu J H, Lu J P, Zhai Y F, Wang H, Gong Z H, Wang S B, Lu M H. 2015. Genome-wide analysis of the CaHsp20 gene family in pepper:comprehensive sequence and expression profile analysis under heat stress. Frontiers in Plant Science, 6:806.
[12]	Hu Y P, Zhang T T, Liu Y, Li Y X, Wang M, Zhu B B, Liao D L, Yun T H, Huang W F, Zhang W, Zhou Y. 2021. Pumpkin(Cucurbita moschata) HSP20 gene family identification and expression under heat stress. Frontiers in Genetics, 12:753953. doi: 10.3389/fgene.2021.753953 URL
[13]	Huang J J, Hai Z X, Wang R Y, Yu Y Y, Chen X, Liang W H, Wang H H. 2022. Genome-wide analysis of HSP20 gene family and expression patterns under heat stress in cucumber(Cucumis sativus L.). Frontiers in Plant Science, 13:968418. doi: 10.3389/fpls.2022.968418 URL
[14]	Huang X Y, Liu Y, Yu X, Cai Y J, Hou L Y, Zhang J Y, Yang H C. 2025. Genome-wide identification and evolution-profiling analysis of heat shock protein gene family in Poaceae Barnhart. International Journal of Molecular Sciences, 26 (9):4269. doi: 10.3390/ijms26094269 URL
[15]	Jeffares D C, Penkett C J, Bähler J. 2008. Rapidly regulated genes are intron poor. Trends in Genetics, 24 (8):375-378. doi: 10.1016/j.tig.2008.05.006 pmid: 18586348
[16]	Ji X R, Yu Y H, Ni P Y, Zhang G H, Guo D L. 2019. Genome-wide identification of small heat-shock protein(HSP20)gene family in grape and expression profile during berry development. BMC Plant Biology, 19 (1):433. doi: 10.1186/s12870-019-2031-4
[17]	Lescot M, Déhais P, Thijs G, Marchal K, Moreau Y, Peer Y, Rouzé P, Rombauts S. 2002. PlantCARE,a database of plant regulatory elements and a portal to tools for promoter sequence analysis. Nucleic Acids Research,30: 325-327.
[18]	Li B J, Shi Y N, Jia H R, Yang X F, Sun Y F, Lu J, Giovannoni J J, Jiang G H, Rose J K C, Chen K S. 2023. Abscisic acid mediated strawberry receptacle ripening involves the interplay of multiple phytohormone signaling networks. Front Plant Science, 14:1117156. doi: 10.3389/fpls.2023.1117156 URL
[19]	Li Gang, Zhao Xia, Zhu Lu, Zhou Houcheng. 2016. Cloning and expression analysis of small heat shock protein(FaHSP17.4)gene from strawberry fruit(Fragaria ananassa). Molecular Plant Breeding, 14 (2):328-336. (in Chinese)
	李刚, 赵霞, 周路, 周厚成. 2016. 草莓果实小分子量热激蛋白基因FaHSP17.4的克隆及表达分析. 分子植物育种, 14 (2):328-336.
[20]	Lian X, Wang Q, Li T, Gao H, Li H, Zheng X, Wang X, Zhang H, Cheng J, Wang W. 2022. Phylogenetic and transcriptional analyses of the HSP20 gene family in peach revealed that PpHSP20-32 is involved in plant height and heat tolerance. International Journal of Molecular Sciences, 23 (18):10849. doi: 10.3390/ijms231810849 URL
[21]	Lin Q, Xie Y J, Guan W Q, Duan Y Q, Wang Z D, Sun C D. 2019. Combined transcriptomic and proteomic analysis of cold stress induced sugar accumulation and heat shock proteins expression during postharvest potato tuber storage. Food Chemistry, 297:124991. doi: 10.1016/j.foodchem.2019.124991 URL
[22]	Mattick J S, Gagen M J. 2001. The evolution of controlled multitasked gene networks:the role of introns and other noncoding RNAs in the development of complex organisms. Molecular Biology and Evolution, 18 (9):1611-1630. doi: 10.1093/oxfordjournals.molbev.a003951 pmid: 11504843
[23]	Menzel C M. 2022. Effect of temperature on soluble solids content in strawberry in Queensland,Australia. Horticulturae, 8:367. doi: 10.3390/horticulturae8050367 URL
[24]	Mondal S, Karmakar S, Panda D, Pramanik K, Bose B, Singhal R K. 2023. Crucial plant processes under heat stress and tolerance through heat shock proteins. Plant Stress, 10:100227. doi: 10.1016/j.stress.2023.100227 URL
[25]	Pandey B, Kaur A, Gupta O P, Sharma I, Sharma P. 2015. Identification of HSP20 gene family in wheat and barley and their differential expression profiling under heat stress. Applied Biochemistry and Biotechnology, 175 (5):2427-2446. doi: 10.1007/s12010-014-1420-2 URL
[26]	Ren X Y, Vorst O, Fiers M W E J, Stiekema W J, Nap J P. 2006. In plants, highly expressed genes are the least compact. Trends in Genetics, 22 (10):528-532. doi: 10.1016/j.tig.2006.08.008 URL
[27]	Saleem M H, Mfarrej M F B, Khan K A, Ercisli S, Elsharkawy M M, Fahad S. 2024. Advances in physiochemical and molecular mechanisms of abiotic stress tolerance in plants. Journal of Crop Health,76:753-767.
[28]	Sarkar N K, Kim Y K, Crover A. 2009. Rice sHSP genes:genomic organization and expression profiling under stress and development. BMC Genomics, 10:393. doi: 10.1186/1471-2164-10-393
[29]	Seo M, Peeters A J, Koiwai H, Oritani T, Marion-Poll A, Zeevaart J A, Koornneef M, Kamiya Y, Koshiba T. 2000. The Arabidopsis aldehyde oxidase 3(AAO3)gene product catalyzes the final step in abscisic acid biosynthesis in leaves. Proceedings of the National Academy of Sciences of the United States of America, 97 (23):12908-12913.
[30]	Scharf K D, Siddique M, Vierling E. 2001. The expanding family of Arabidopsis thaliana small heat stress proteins and a new family of proteins containing alpha-crystallin domains(ACD proteins). Cell Stress Chaperones, 6 (3):225-237. doi: 10.1379/1466-1268(2001)006<0225:TEFOAT>2.0.CO;2 URL
[31]	Shen W Q, Zeng C F, Sun J X, Meng J, Yuan P, Bu F W, Zhu K J, Liu J W, Li G H. 2025. PpHSP20-26,a small heat shock protein,confers enhanced autotoxicity stress tolerance in peach. Horticultural Plant Journal, 11 (3):1012-1025. doi: 10.1016/j.hpj.2024.01.011 URL
[32]	Shi L C, Kang Y D, Ding L, Xu L J, Liu X J, Yu A M, Liu A Z, Li P. 2025. Comprehensive characterization of poplar HSP20 gene family:genome-wide identification,stress-induced expression profiling,and protein interaction verifications. BMC Plant Biology, 25 (1):251. doi: 10.1186/s12870-025-06264-9
[33]	Shulaev V, Sargent D J, Crowhurst R N, Mockler T C, Folkerts O, Delcher A L, Jaiswal P, Mockaitis K, Liston A, Mane S P, Burns P, Davis T M, Slovin J P, Bassil N, Hellens R P, Evans C, Harkins T, Kodira C, Desany B, Folta K M. 2011. The genome of woodland strawberry (Fragaria vesca). Nature Genetics,43:109-116.
[34]	Swindell W R, Huebner M, Weber A P. 2007. Transcriptional profiling of Arabidopsis heat shock proteins and transcription factors reveals extensive overlap between heat and non-heat stress response pathways. BMC Genomics, 8:125. pmid: 17519032
[35]	Tamura K, Stecher G, Peterson D, Filipski A, Kumar S. 2013. MEGA6:molecular evolutionary genetics analysis version 6.0. Molecular Biology and Evolution, 30:2725-2729. doi: 10.1093/molbev/mst197 URL
[36]	Tang J L, Xu H, Yuan P, Chen M J, Bu F W, Wang R C, Luo F X. 2025. Integrated analysis of physiological responses and transcriptional regulation in kiwifruit under high temperature. BMC Plant Biology, 25:802. doi: 10.1186/s12870-025-06890-3 pmid: 40604460
[37]	Wang Mengyao, Wang Mengjie, Lai Huiping, He Yaping, Yan Lu, Li Peng, Guo Liting, Ai Ye. 2024. Research progress on the effect of temperature on anthocyanin accumulation in plants. Acta Horticulturae Sinica, 51 (7):1501-1515. (in Chinese) doi: 10.16420/j.issn.0513-353x.2023-0556
	王梦瑶, 王梦洁, 赖慧萍, 贺雅萍, 鄢璐, 黎鹏, 郭丽婷, 艾叶. 2024. 温度影响植物花青苷积累的研究进展. 园艺学报, 51 (7):1501-1515.
[38]	Wang Q, Wu Y Q, Wu W L, Lyu L F, Li W L. 2025. Research progress on the physiological,biochemical and molecular regulatory mechanisms of fruit tree responses to high-temperature stress. Horticultural Plant Journal, 11 (1):1-14. doi: 10.1016/j.hpj.2023.09.008 URL
[39]	Wang W X, Vinocur B, Shoseyov O, Altman A. 2004. Role of plant heat-shock proteins and molecular chaperones in the abiotic stress response. Trends in Plant Science, 9 (5):244-252. doi: 10.1016/j.tplants.2004.03.006 pmid: 15130550
[40]	Wang X A, Zheng Y J, Chen B R, Zhi C C, Qiao L J, Liu C, Pan Y P, Cheng Z H. 2021. Genome-wide identification of small heat shock protein (HSP20)homologs in three cucurbit species and the expression profiles of CsHSP20s under several abiotic stresses. International Journal of Biological Macromolecules,190:827-836.
[41]	Waters E R, Vierling E. 2020. Plant small heat shock proteins:evolutionary and functional diversity. New Phytologist, 227 (1):24-37. doi: 10.1111/nph.v227.1 URL
[42]	Waters E R. 2013. The evolution,function,structure,and expression of the plant sHSPs. Journal of Experimental Botany, 64 (2):391-403. doi: 10.1093/jxb/ers355 URL
[43]	Wei L Z, Mao W W, Jia M R, Xing S N, Ali U, Zhao Y Y, Chen Y T, Cao M L, Dai Z R, Zhang K, Dou Z C, Jia W S, Li B B. 2018. FaMYB44.2,a transcriptional repressor,negatively regulates sucrose accumulation in strawberry receptacles through interplay with FaMYB10. Journal of Experimental Botany, 69 (20):4805-4820. doi: 10.1093/jxb/ery249 URL
[44]	Wu Q C, Wang Y J, Mu Z X. 2025. Identification of the HSP20 gene family in L. barbarum and their contrasting response to heat stress between two varieties. Genes(Basel), 16 (4):440.
[45]	Wu W, Cao S F, Shi L Y, Chen W, Yin X R, Yang Z F. 2023. Abscisic acid biosynthesis,metabolism and signaling in ripening fruit. Frontiers in Plant Science, 14:1279031. doi: 10.3389/fpls.2023.1279031 URL
[46]	Xiao K, Fan J M, Bi X Y, Tu X Y, Li X Y, Cao M G, Liu Z, Lin A Q, Wang C, Xu P B, Lian H L. 2025. A NAC transcription factor and a MADS-box protein antagonistically regulate sucrose accumulation in strawberry receptacles. Plant Physiology, 197 (3):kiaf043.
[47]	Xu Tong, Wang Yue, Wu Lina, Zhang Hang, Yin Lilai, Xu Keyu, Zheng Xiaolin. 2025. Effects of melatonin treatment on fruit quality and anthocyanin metabolism of postharvest‘Taoxingli’plum. Acta Horticulturae Sinica, 52 (2):395-405. (in Chinese) doi: 10.16420/j.issn.0513-353x.2024-0413
	许桐, 王越, 吴丽娜, 张航, 尹立来, 徐柯宇, 郑小林. 2025. 褪黑素处理对‘桃形李’采后果实品质及花色苷代谢的影响. 园艺学报, 52 (2):395-405. doi: 10.16420/j.issn.0513-353x.2024-0413
[48]	Yadav R, Juneja S, Kumar S. 2021. Cross priming with drought improves heat-tolerance in chickpea(Cicer arietinum L.) by stimulating small heat shock proteins and antioxidative defense. Environmental Sustainability,4:171-182.
[49]	Yao F W, Song C H, Wang H T, Song S W, Jiao J, Wang M M, Zheng X B, Bai T H. 2020. Genome-wide characterization of the HSP20 gene family identifies potential members involved in temperature stress response in apple. Frontiers in Genetics, 11:609184. doi: 10.3389/fgene.2020.609184 URL
[50]	Yu J H, Cheng Y, Feng K, Ruan M Y, Ye Q J, Wang R Q, Li Z M, Zhou G Z, Yao Z P, Yang Y J, Wan H J. 2016. Genome-wide identification and expression profiling of tomato Hsp20 gene family in response to biotic and abiotic stresses. Frontiers in Plant Science, 7:1215.
[51]	Yu M, Sun P, Huang X Y, Zha Z Y, Wang X, Mantri N, Lou H Q, Jiang B, Shen Z G, Sun Y F, Lu H F. 2023. Interacting effects of CO₂,temperature,and nitrogen supply on photosynthetic,root growth,and nitrogen allocation of strawberry at the fruiting stage. Agronomy, 13 (5):1353. doi: 10.3390/agronomy13051353 URL
[52]	Yuan Huazhao, Pang Fuhua, Wang Jing, Cai Weijian, Xia Jin, Zhao Minzhen. 2023. Identification of anthocyanin compositions and expression analysis of key related genes in Fragaria × ananassa. Acta Horticulturae Sinica, 50 (4):791-801. (in Chinese) doi: 10.16420/j.issn.0513-353x.2022-0066
	袁华招, 庞夫花, 王静, 蔡伟建, 夏瑾, 赵密珍. 2023. 草莓花色苷物质鉴定及关键基因表达分析. 园艺学报, 50 (4):791-801. doi: 10.16420/j.issn.0513-353x.2022-0066
[53]	Zhang C H, Zhang Y P, Su Z W, Shen Z J, Song H F, Cai Z X, Xu J L, Guo L, Zhang Y Y, Guo S L, Sun M, Li S G, Yu M L. 2023. Integrated analysis of HSP20 genes in the developing flesh of peach:identification,expression profiling,and subcellular localization. BMC Plant Biology, 23 (1):663. doi: 10.1186/s12870-023-04621-0
[54]	Zhang Q Q, Dai B W, Fan M, Yang L L, Li C, Hou G G, Wang X F, Gao H B, Li J R. 2024. Genome-wide profile analysis of the Hsp20 family in lettuce and identification of its response to drought stress. Frontiers in Plant Science, 15:1426719. doi: 10.3389/fpls.2024.1426719 URL
[55]	Zhao P, Wang D D, Wang R Q, Kong N N, Zhang C, Yang C H, Wu W T, Ma H L, Chen Q. 2018. Genome-wide analysis of the potato Hsp20 gene family:identification,genomic organization and expression profiles in response to heat stress. BMC Genomics, 19 (1):61. doi: 10.1186/s12864-018-4443-1
[56]	Zhao Xi, Zhang Tingting, Xing Wenting, Wang Jian, Song Xiqiang, Zhou Yang. 2021. Genome-wide identification and expression analysis under temperature stress of HSP70 gene family in Dendrobium catenatum. Acta Horticulturae Sinica, 48 (9):1743-1754. (in Chinese)
	赵溪, 张婷婷, 邢文婷, 王健, 宋希强, 周扬. 2021. 铁皮石斛热激蛋白HSP70基因家族鉴定及温度胁迫下的表达分析. 园艺学报, 48 (9):1743-1754. doi: 10.16420/j.issn.0513-353x.2020-0710
[57]	Zou J, Liu C F, Liu A L, Zou D, Chen X B. 2012. Overexpression of OsHsp17.0 and OsHsp23.7 enhances drought and salt tolerance in rice. Journal of Plant Physiology, 169 (6):628-635. doi: 10.1016/j.jplph.2011.12.014 URL

基因 Gene	上游引物序列（5′-3′） Forward primer	下游引物序列（5′-3′） Reverse primer
FaSUS1	CCCTGATTCTGACCTTTACTGG	GATGATGAAGTCGGTGTGGTT
FaSUS2	TTGCTGAGGATGTTGCAGGT	AACAACGAGGCGACGAGATT
FaSPS1	GAGCCTTGAATGTCCCAATGT	ATCTCCTGTCTGGTGCTGGTT
FaSPS3	CGTAGATTGGAGTTATGGAGAGC	CGAATGATGTAAGAACCACTGC
FaCHS1	GCCTTTGTTTGGCTGGCT	CCCAGGAACATCTTTGAGGA
FaCHI1	AGCGAAAGCCATTGAAAAGT	CATTTGGTGATTGTGTGAAGAG
FaPAL	CTTCTGTGGTGCTGTTTGATG	AGGGTGGTGCTTCAGTTTATGT
FaMYB10	CAACAGCACCACCACAGACT	GCTTGCCGATTGTACCGTAT
FaPYL1	GCTTCGTAATGAGCGTGGGA	CTCTCCTCGTCCAGCAAGTC
FaCYP707A4a	CCCGCTACAAAGAAGAACTGA	TGTCACCGATAATGTGCCTC
FaNCED1	ACTGCTTCTGCTTCCATCTCT	AGACACTCGTCGCATTCATT
FaNCED2	GACACCTTTTGCTTCCACTTG	GGATTTCGGACAACACACTCT
FaNCED3	CAAACCCTATCACCCTTCTCAC	TGGGCAACTTCTGCTTCTTT
FaAAO3	AACAGCTTCTTCAATGGGGAGG	TCAGTTTCTACCTGCGAACCA
FaRIF	GAGCACCGGAAATGGTTCTA	CCCCGGAAGTTGATACTGTG
FaHSP20-13	GGACCCATTCCTCGACTTCC	GCTGCTTTGAGAACGTGAGC
FaHSP20-14	TGTCGCTCATCCCCAGTTTC	GACAAAGGCCGAGTTTTCGC
FaHSP20-20	CAATCGCTCTCAGAAGGGCA	CGAGAAACAGAGGGGGCTAC
FaACTIN	GCCAACCGTGAGAAGATG	TCCAGAGTCAAGAACAATACCAG

基因 Gene	上游引物序列（5′-3′） Forward primer	下游引物序列（5′-3′） Reverse primer
FaSUS1	CCCTGATTCTGACCTTTACTGG	GATGATGAAGTCGGTGTGGTT
FaSUS2	TTGCTGAGGATGTTGCAGGT	AACAACGAGGCGACGAGATT
FaSPS1	GAGCCTTGAATGTCCCAATGT	ATCTCCTGTCTGGTGCTGGTT
FaSPS3	CGTAGATTGGAGTTATGGAGAGC	CGAATGATGTAAGAACCACTGC
FaCHS1	GCCTTTGTTTGGCTGGCT	CCCAGGAACATCTTTGAGGA
FaCHI1	AGCGAAAGCCATTGAAAAGT	CATTTGGTGATTGTGTGAAGAG
FaPAL	CTTCTGTGGTGCTGTTTGATG	AGGGTGGTGCTTCAGTTTATGT
FaMYB10	CAACAGCACCACCACAGACT	GCTTGCCGATTGTACCGTAT
FaPYL1	GCTTCGTAATGAGCGTGGGA	CTCTCCTCGTCCAGCAAGTC
FaCYP707A4a	CCCGCTACAAAGAAGAACTGA	TGTCACCGATAATGTGCCTC
FaNCED1	ACTGCTTCTGCTTCCATCTCT	AGACACTCGTCGCATTCATT
FaNCED2	GACACCTTTTGCTTCCACTTG	GGATTTCGGACAACACACTCT
FaNCED3	CAAACCCTATCACCCTTCTCAC	TGGGCAACTTCTGCTTCTTT
FaAAO3	AACAGCTTCTTCAATGGGGAGG	TCAGTTTCTACCTGCGAACCA
FaRIF	GAGCACCGGAAATGGTTCTA	CCCCGGAAGTTGATACTGTG
FaHSP20-13	GGACCCATTCCTCGACTTCC	GCTGCTTTGAGAACGTGAGC
FaHSP20-14	TGTCGCTCATCCCCAGTTTC	GACAAAGGCCGAGTTTTCGC
FaHSP20-20	CAATCGCTCTCAGAAGGGCA	CGAGAAACAGAGGGGGCTAC
FaACTIN	GCCAACCGTGAGAAGATG	TCCAGAGTCAAGAACAATACCAG

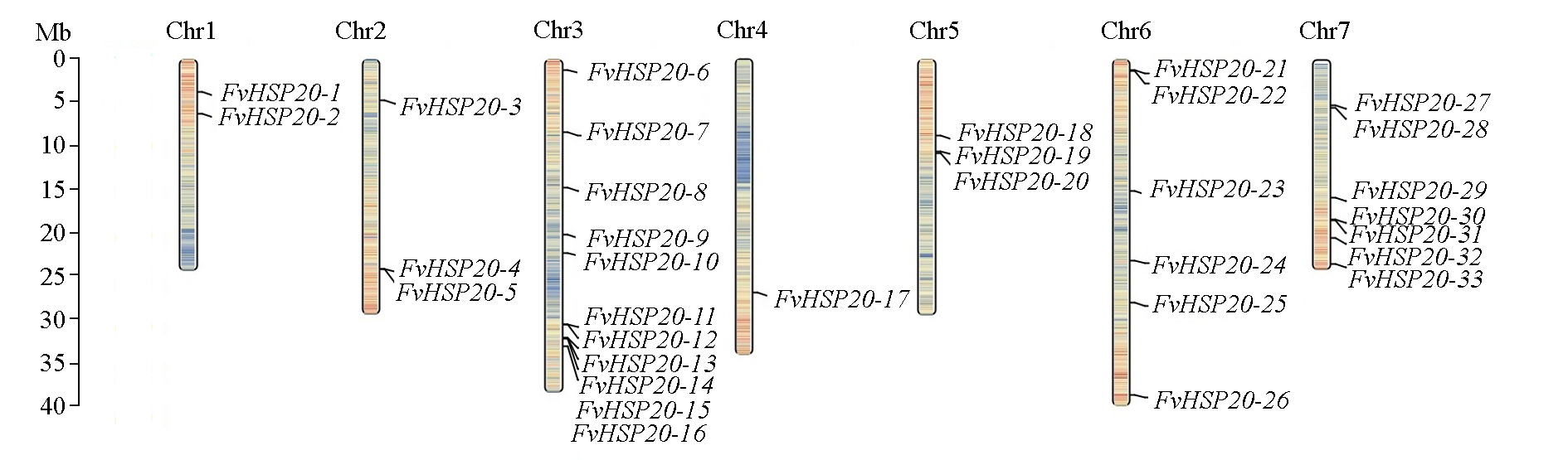

基因名 Gene name	基因ID Gene ID	染色体 Chromo- some	氨基酸数量 No. of amino acids	分子量/kD Molecular weight	等电点 pI	稳定系数 Instability index	脂溶性指数Aliphatic index	亲水性 Hydro- phylicity	亚细胞定位 Subcellular localization
FvHSP20-1	FvH4_1g07080.t1	Chr1	142	16.02	6.92	58.51	83.73	-0.434	过氧化物酶体 Peroxisomal
FvHSP20-2	FvH4_1g11472.t1	Chr1	246	27.23	9.36	59.87	82.85	-0.550	叶绿体Chloroplast
FvHSP20-3	FvH4_2g05762.t1	Chr2	146	16.43	4.98	47.35	79.45	-0.566	细胞质Cytoplasmic
FvHSP20-4	FvH4_2g31370.t1	Chr2	240	26.30	9.13	48.26	74.21	-0.685	细胞质Cytoplasmic
FvHSP20-5	FvH4_2g31371.t1	Chr2	159	17.82	5.34	42.49	85.22	-0.443	细胞质Cytoplasmic
FvHSP20-6	FvH4_3g02330.t1	Chr3	141	16.52	5.36	61.28	87.80	-0.448	细胞质Cytoplasmic
FvHSP20-7	FvH4_3g13900.t1	Chr3	150	17.09	7.06	45.99	80.47	-0.702	细胞质Cytoplasmic
FvHSP20-8	FvH4_3g21680.t1	Chr3	196	22.62	5.38	48.97	69.59	-0.671	细胞质Cytoplasmic
FvHSP20-9	FvH4_3g27040.t2	Chr3	399	44.61	9.00	45.62	66.49	-0.768	细胞质Cytoplasmic
FvHSP20-10	FvH4_3g29131.t1	Chr3	90	10.25	9.98	52.94	75.78	-0.939	线粒体Mitochondrion
FvHSP20-11	FvH4_3g35270.t1	Chr3	151	17.31	6.19	51.03	78.68	-0.685	细胞核Nucleus
FvHSP20-12	FvH4_3g35280.t1	Chr3	107	12.34	9.39	55.35	65.61	-0.462	细胞质Cytoplasmic
FvHSP20-13	FvH4_3g37320.t1	Chr3	143	15.96	4.69	58.01	87.90	-0.215	细胞质Cytoplasmic
FvHSP20-14	FvH4_3g37330.t1	Chr3	157	18.13	5.35	53.60	73.18	-0.641	细胞核Nucleus
FvHSP20-15	FvH4_3g37360.t1	Chr3	154	17.81	5.51	38.91	70.19	-0.737	细胞核Nucleus
FvHSP20-16	FvH4_3g38620.t1	Chr3	158	18.09	5.81	48.23	72.09	-0.685	细胞核Nucleus
FvHSP20-17	FvH4_4g24850.t1	Chr4	232	26.22	9.24	57.46	62.24	-0.759	叶绿体Chloroplast
FvHSP20-18	FvH4_5g15440.t1	Chr5	247	27.59	5.18	36.12	81.26	-0.552	细胞质Cytoplasmic
FvHSP20-19	FvH4_5g18340.t1	Chr5	226	25.37	8.70	42.60	73.36	-0.700	细胞质Cytoplasmic
FvHSP20-20	FvH4_5g18720.t1	Chr5	225	25.12	7.82	67.05	77.07	-0.616	线粒体Mitochondrial
FvHSP20-21	FvH4_6g02120.t1	Chr6	207	22.88	6.85	55.74	75.85	-0.546	叶绿体Chloroplast
FvHSP20-22	FvH4_6g02150.t1	Chr6	101	11.51	8.78	48.72	66.53	-0.791	叶绿体Chloroplast
FvHSP20-23	FvH4_6g21590.t1	Chr6	170	18.71	5.14	50.74	73.35	-0.656	线粒体Mitochondrial
FvHSP20-24	FvH4_6g29880.t1	Chr6	229	25.53	5.90	49.19	77.51	-0.694	线粒体Mitochondrial
FvHSP20-25	FvH4_6g35450.t1	Chr6	149	16.47	7.78	41.89	88.26	-0.505	细胞核Nucleus
FvHSP20-26	FvH4_6g52210.t1	Chr6	141	15.96	5.78	40.45	84.18	-0.712	细胞核Nucleus
FvHSP20-27	FvH4_7g04830.t1	Chr7	170	19.00	8.82	58.50	78.59	-0.389	细胞质Cytoplasmic
FvHSP20-28	FvH4_7g05240.t1	Chr7	382	42.29	9.04	37.33	67.98	-0.839	细胞质Cytoplasmic
FvHSP20-29	FvH4_7g19240.t1	Chr7	78	8.95	9.77	68.28	94.87	-0.429	叶绿体Chloroplast
FvHSP20-30	FvH4_7g23650.t1	Chr7	158	17.94	9.10	48.89	73.35	-0.692	细胞质Cytoplasmic
FvHSP20-31	FvH4_7g23710.t3	Chr7	184	20.95	9.10	45.78	60.92	-0.860	细胞质Cytoplasmic
FvHSP20-32	FvH4_7g27540.t1	Chr7	199	22.41	6.01	61.37	79.75	-0.539	线粒体Mitochondrial
FvHSP20-33	FvH4_7g32800.t1	Chr7	227	27.07	6.64	55.24	71.32	-0.634	叶绿体Chloroplast

基因名 Gene name	基因ID Gene ID	染色体 Chromo- some	氨基酸数量 No. of amino acids	分子量/kD Molecular weight	等电点 pI	稳定系数 Instability index	脂溶性指数Aliphatic index	亲水性 Hydro- phylicity	亚细胞定位 Subcellular localization
FvHSP20-1	FvH4_1g07080.t1	Chr1	142	16.02	6.92	58.51	83.73	-0.434	过氧化物酶体 Peroxisomal
FvHSP20-2	FvH4_1g11472.t1	Chr1	246	27.23	9.36	59.87	82.85	-0.550	叶绿体Chloroplast
FvHSP20-3	FvH4_2g05762.t1	Chr2	146	16.43	4.98	47.35	79.45	-0.566	细胞质Cytoplasmic
FvHSP20-4	FvH4_2g31370.t1	Chr2	240	26.30	9.13	48.26	74.21	-0.685	细胞质Cytoplasmic
FvHSP20-5	FvH4_2g31371.t1	Chr2	159	17.82	5.34	42.49	85.22	-0.443	细胞质Cytoplasmic
FvHSP20-6	FvH4_3g02330.t1	Chr3	141	16.52	5.36	61.28	87.80	-0.448	细胞质Cytoplasmic
FvHSP20-7	FvH4_3g13900.t1	Chr3	150	17.09	7.06	45.99	80.47	-0.702	细胞质Cytoplasmic
FvHSP20-8	FvH4_3g21680.t1	Chr3	196	22.62	5.38	48.97	69.59	-0.671	细胞质Cytoplasmic
FvHSP20-9	FvH4_3g27040.t2	Chr3	399	44.61	9.00	45.62	66.49	-0.768	细胞质Cytoplasmic
FvHSP20-10	FvH4_3g29131.t1	Chr3	90	10.25	9.98	52.94	75.78	-0.939	线粒体Mitochondrion
FvHSP20-11	FvH4_3g35270.t1	Chr3	151	17.31	6.19	51.03	78.68	-0.685	细胞核Nucleus
FvHSP20-12	FvH4_3g35280.t1	Chr3	107	12.34	9.39	55.35	65.61	-0.462	细胞质Cytoplasmic
FvHSP20-13	FvH4_3g37320.t1	Chr3	143	15.96	4.69	58.01	87.90	-0.215	细胞质Cytoplasmic
FvHSP20-14	FvH4_3g37330.t1	Chr3	157	18.13	5.35	53.60	73.18	-0.641	细胞核Nucleus
FvHSP20-15	FvH4_3g37360.t1	Chr3	154	17.81	5.51	38.91	70.19	-0.737	细胞核Nucleus
FvHSP20-16	FvH4_3g38620.t1	Chr3	158	18.09	5.81	48.23	72.09	-0.685	细胞核Nucleus
FvHSP20-17	FvH4_4g24850.t1	Chr4	232	26.22	9.24	57.46	62.24	-0.759	叶绿体Chloroplast
FvHSP20-18	FvH4_5g15440.t1	Chr5	247	27.59	5.18	36.12	81.26	-0.552	细胞质Cytoplasmic
FvHSP20-19	FvH4_5g18340.t1	Chr5	226	25.37	8.70	42.60	73.36	-0.700	细胞质Cytoplasmic
FvHSP20-20	FvH4_5g18720.t1	Chr5	225	25.12	7.82	67.05	77.07	-0.616	线粒体Mitochondrial
FvHSP20-21	FvH4_6g02120.t1	Chr6	207	22.88	6.85	55.74	75.85	-0.546	叶绿体Chloroplast
FvHSP20-22	FvH4_6g02150.t1	Chr6	101	11.51	8.78	48.72	66.53	-0.791	叶绿体Chloroplast
FvHSP20-23	FvH4_6g21590.t1	Chr6	170	18.71	5.14	50.74	73.35	-0.656	线粒体Mitochondrial
FvHSP20-24	FvH4_6g29880.t1	Chr6	229	25.53	5.90	49.19	77.51	-0.694	线粒体Mitochondrial
FvHSP20-25	FvH4_6g35450.t1	Chr6	149	16.47	7.78	41.89	88.26	-0.505	细胞核Nucleus
FvHSP20-26	FvH4_6g52210.t1	Chr6	141	15.96	5.78	40.45	84.18	-0.712	细胞核Nucleus
FvHSP20-27	FvH4_7g04830.t1	Chr7	170	19.00	8.82	58.50	78.59	-0.389	细胞质Cytoplasmic
FvHSP20-28	FvH4_7g05240.t1	Chr7	382	42.29	9.04	37.33	67.98	-0.839	细胞质Cytoplasmic
FvHSP20-29	FvH4_7g19240.t1	Chr7	78	8.95	9.77	68.28	94.87	-0.429	叶绿体Chloroplast
FvHSP20-30	FvH4_7g23650.t1	Chr7	158	17.94	9.10	48.89	73.35	-0.692	细胞质Cytoplasmic
FvHSP20-31	FvH4_7g23710.t3	Chr7	184	20.95	9.10	45.78	60.92	-0.860	细胞质Cytoplasmic
FvHSP20-32	FvH4_7g27540.t1	Chr7	199	22.41	6.01	61.37	79.75	-0.539	线粒体Mitochondrial
FvHSP20-33	FvH4_7g32800.t1	Chr7	227	27.07	6.64	55.24	71.32	-0.634	叶绿体Chloroplast

基序Motif	基序一致性序列Motif consensus
1	FSRRFRLPENAKVDEIKAEMENGVLTVT
2	DWKETPEAHVFKADLPGLKKEDVKVEVED
3	GVLQISGERKREEEE
4	FSLDLWDPFKDFPFPSSSLST
5	KWHRVERSSGK
6	FPSPPRRLPALRAQAGGDGSVDVAVNQGSNNQGTQMEKRPSARR
7	PKVEVKKPDVKAIEI
8	RENSAFVNTRI
9	RTLSQMLDTMDRJFEBPMLSPG
10	MSLIPSFRRNS

Genome-Wide Identification of the HSP20 Gene Family in Strawberry and its Functional Analysis in Fruit Response to High-Temperature Stress and Ripening Regulation

RichHTML

PDF

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 15

References 57

Related Articles 15

Recommended Articles

Metrics

Comments

[1]	CHANG Linlin, SUN Rui, DONG Jing, LI Shuangtao, ZHONG Chuanfei, ZHANG Hongli, WEI Yongqing, WEI Lingzhi, ZHUANG Yan, SUN Jian, WANG Guixia. A New Strawberry Cultivar‘Jingxiang 1’ [J]. Acta Horticulturae Sinica, 2026, 53(S1): 113-114.
[2]	LIU Zhitai, GUO Jiulin, ZHANG Wenjie, LIU Xiaohua, WANG Ping, WANG Hongle, LI Chengpu, FENG Kaibin, XU Liping, HU Zhansen, LI Zhufei. A New Strawberry Cultivar‘Chengmei 1’ [J]. Acta Horticulturae Sinica, 2026, 53(S1): 115-116.
[3]	ZHANG Jiaqi, DONG Lihong, FU Yifan, WANG Peipei, GUO Qinggang, MA Ping. Establishment of a TaqMan Real-Time Fluorescence Quantitative PCR Detection Method for Strawberry Root Rot Pathogen Dactylonectria spp. [J]. Acta Horticulturae Sinica, 2026, 53(3): 857-866.
[4]	CHEN Lijuan, HE Ruyu, WANG Dong, LI Hongwen. A New Strawberry Cultivar‘Shuxing’ [J]. Acta Horticulturae Sinica, 2025, 52(S2): 87-88.
[5]	LIU Lifeng, SONG Yanhong, ZHAO Xia, LI Gang, and ZHOU Houcheng. Analysis of FvPDS Gene Using CRISPR/Cas9 System in Strawberry [J]. Acta Horticulturae Sinica, 2025, 52(7): 1687-1695.
[6]	YANG Lei, LU Peng, ZHANG Jianjun, YANG Li, FAN Jingfang, LI Li, and FENG Jia. A New Strawberry Cultivar‘Jixiang’ [J]. Acta Horticulturae Sinica, 2025, 52(7): 1935-1936.
[7]	FENG Jia, LU Peng, LI Li, YANG Li, and YANG Lei. Genome Wide Identification and Functional Characterization of Strawberry Pectate Lyases Related to Fruit Softening [J]. Acta Horticulturae Sinica, 2025, 52(6): 1441-1450.
[8]	SUN Wenjing, LI Xiaoyan, ZHANG Jingyun, ZHOU Hui, HUANG Xiaojun, MA Fengwang, GONG Xiaoqing. The Inositol-Phosphate Synthase Gene，MdMIPS1，Enhances Heat Stress Tolerance in Transgenic Apple Plants [J]. Acta Horticulturae Sinica, 2025, 52(12): 3143-3156.
[9]	YIN Tao, DONG Junxiao, SHAO Yongchun, ZHANG Cuiling, ZHANG Ruifen, HOU Junhe, LI Shaoxuan, YU Fushun, LIU Fangxin, SUN Hongtao. A New Strawberry Cultivar‘Chunsha’ [J]. Acta Horticulturae Sinica, 2025, 52(1): 259-260.
[10]	LI Wenjing, SHI Shuo, ZHANG Hao, ZHANG Jiangyan, SONG Sihao, YANG Aizhen, SHEN Yuanyue, GUO Jiaxuan, GAO Fan. Effects of Exogenous Nitric Oxide and Putrescine on Drought Resistance of Strawberry Seedlings [J]. Acta Horticulturae Sinica, 2024, 51(9): 2131-2142.
[11]	CHEN Jiayue, DUAN Yingming, ZHOU Yan, XIAO Yang, BIAN Yinbing, GONG Yuhua. Identification，Expression and Function Analysis of ALDH Gene Family in Lentinula edodes [J]. Acta Horticulturae Sinica, 2024, 51(5): 1033-1046.
[12]	YANG Juanbo, GUO Lili, LU Shixiong, GOU Huimin, WANG Shuaiting, ZENG Baozhen, MAO Juan. Cloning and Functional Analysis of FaGH3.17 Gene in Strawberry [J]. Acta Horticulturae Sinica, 2024, 51(11): 2483-2494.
[13]	ZHAO Xia, LI Gang, LIU Lifeng, HU Panpan, SONG Yanhong, and ZHOU Houcheng. A New Strawberry Cultivar‘Huafeng 1’ [J]. Acta Horticulturae Sinica, 2023, 50(S1): 35-36.
[14]	LIU Jinying, KONG Lingxi, WANG Weihao, QIN Guozheng, WANG Yuying. Advances in Aroma Compounds Biosynthesis of Strawberry Fruit [J]. Acta Horticulturae Sinica, 2023, 50(9): 1959-1970.
[15]	NING Yuansheng, LI Huan, SONG Jianfei, YU Tingting, HAN Mengyuan, PENG Lulin, JIA Junqi, ZHANG Weiwei, YANG Hongqiang. Characterization of NCL Family Genes in Malus and Their Relationship with Cellular Calcium Concentration in Root [J]. Acta Horticulturae Sinica, 2023, 50(3): 475-484.
