马铃薯叶片光合效率遗传变异分析及高光效种质筛选

doi:10.16420/j.issn.0513-353x.2020-0904

摘要/Abstract

摘要：

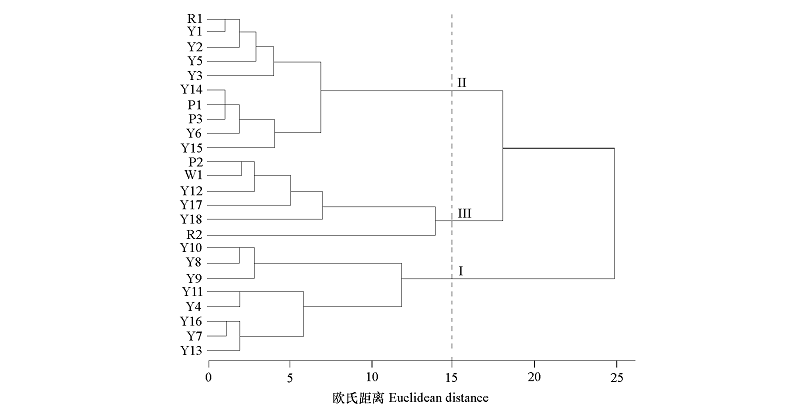

以24份不同地理来源的马铃薯种质为试材,测定其叶片气体交换参数、瞬时羧化效率（CE）、气孔限制值（L_s）、内禀水分利用率（iWUE）和叶绿素含量（SPAD值）等8个光合性状,结合相关性分析、主成分分析和聚类分析方法,对参试材料进行了遗传变异分析与高光效种质筛选。结果显示,24份马铃薯种质间光合性状的差异显著,变异系数介于8.42% ~ 25.21%,其中气孔导度（G_s）、蒸腾速率（T_r）、L_s和iWUE的变异程度较大,说明从马铃薯种质资源中筛选出高光效种质具有较大的可能性。广义遗传力（h²）分析表明,光合性状的h²变化范围为11.95% ~ 83.69%,6个性状的h²超过60%,具有高水平的遗传力,其中SPAD值的h²最高,为83.69%。主成分分析和聚类分析表明,24份马铃薯种质资源根据光合效率强弱可分为3个等级,筛选到‘闽薯4号’‘闽薯7号’‘云薯108’‘云薯109’‘天薯10号’‘陇薯7号’‘N210’和‘龙薯9号’共8份高光效种质,这些种质可作为光合作用机制研究及高光效育种的材料。通过相关性分析发现,SPAD值与光合效率综合评价指数存在显著正相关（R = 0.801^**）,其可作为马铃薯高光效种质的初筛指标。

关键词: 马铃薯, 光合效率, 遗传变异, 种质筛选, SPAD值

Abstract:

Twenty-four potato germplasms from different geographical regions were used to measure leaf gas exchange,instantaneous carboxylation efficiency（CE）,stomatal limitation value（L_s）,intrinsic water use efficiency（iWUE）and chlorophyll content（SPAD）of potato. Correlation analysis,principal component analysis and cluster analysis were combined to evaluate the genetic variation and screen high photosynthetic efficiency germplasm of tested materials. The results showed that,significant variation in all photosynthetic traits were observed among 24 germplasms,the coefficient of variation ranging from 8.42% to 25.21%,and more obviously variation in stomatal conductance（G_s）,transpiration rate（T_r）,L_s and iWUE were found,suggesting a promising opportunity for selection of greater photosynthetic efficiency in potato. Analysis of broad-sense heritability（h²）showed that,the h² of photosynthetic traits varied from 11.95% to 83.69%,six traits had a high level of heritability,whose h² were exceeded 60%,and the highest heritability was observed in SPAD（83.69%）. Principal component and cluster analysis revealed that,twenty-four germplasms were divided into three photosynthetic efficiency groups,and screened out eight germplasm with relatively higher photosynthetic efficiency,including‘Minshu 4’,‘Minshu 7’,‘Yunshu 108’,‘Yunshu 109’,‘Tianshu 10’,‘Longshu 7’,‘N210’and‘Longshu 9’. These germplasms can be used as genetic resources for the photosynthetic mechanism research and high photosynthetic efficiency breeding. In addition,the SPAD was significantly and positively correlated with comprehensive evaluation value of photosynthetic efficiency,so SPAD could be used as an early screening indicators of photosynthetic efficiency in potato germplasms.

Key words: potato, photosynthetic efficiency, genetic variation, germplasms screening, SPAD

中图分类号:

S532

许国春, 罗文彬, 李华伟, 许泳清, 纪荣昌, 张鸿, 邱思鑫, 汤浩. 马铃薯叶片光合效率遗传变异分析及高光效种质筛选[J]. 园艺学报, 2021, 48(11): 2239-2250.

XU Guochun, LUO Wenbin, LI Huawei, XU Yongqing, JI Rongchang, ZHANG Hong, QIU Sixin, TANG Hao. Screening for Genetic Variation in Photosynthesis and High Photosynthetic Efficiency Germplasm in Potato[J]. Acta Horticulturae Sinica, 2021, 48(11): 2239-2250.

图/表 9

参考文献 26

[1]	Acevedo-Siaca L G, Coe R, Wang Y, Kromdijk J, Quick W P, Long S P. 2020. Variation in photosynthetic induction between rice accessions and its potential for improving productivity. New Phytologist, 227 (4):1-12. doi: 10.1111/nph.v227.1 URL
[2]	Chen Jian-feng, Shen Yun-gang. 2010. My humble opinions on high photosynthetic efficiency of crop. Acta Agronomica Sinica, 36 (8):1235-1247. (in Chinese) doi: 10.3724/SP.J.1006.2010.01235 URL
	程建峰, 沈允钢. 2010. 作物高光效之管见. 作物学报, 36 (8):1235-1247.
[3]	Duan Shao-guang, Jin Li-ping, Li Guang-cun, Bian Chun-song, Xu Jian-fei, Hu Jun, Qu Dong-yu. 2016. Analysis of genetic relationship and cytoplasm type on potato cultivars in China. Acta Horticulturae Sinica, 43 (12):2380-2390. (in Chinese)
	段绍光, 金黎平, 李广存, 卞春松, 徐建飞, 胡军, 屈冬玉. 2016. 中国马铃薯主要审定品种系谱分析和细胞质分型研究. 园艺学报, 43 (12):2380-2390.
[4]	Flood P J, Harbinson J, Aarts M G M. 2011. Natural genetic variation in plant photosynthesis. Trends in Plant Science, 16 (6):327-335. doi: 10.1016/j.tplants.2011.02.005 URL
[5]	Gao Huan-huan, Ye Sang, Wang Qian, Wang Liu-yan, Wang Rui-li, Chen Liu-yi, Tang Zhang-lin, Li Jia-na, Zhou Qing-yuan, Cui Cui. 2019. Screening and comprehensive evaluation of aluminum-toxicity tolerance during seed germination in Brassca napus. Acta Agronomica Sinica, 45 (9):1416-1430. (in Chinese) doi: 10.3724/SP.J.1006.2019.84169
	郜欢欢, 叶桑, 王倩, 王刘艳, 王瑞莉, 陈柳依, 唐章林, 李加纳, 周清元, 崔翠. 2019. 甘蓝型油菜种子萌发期耐铝毒特性综合评价及其种质筛选. 作物学报, 45 (9):1416-1430. doi: 10.3724/SP.J.1006.2019.84169
[6]	Giunta F, Motzo R, Deidda M. 2002. SPAD readings and associated leaf traits in durum wheat,barley and triticale cultivars. Euphytica, 125:197-205. doi: 10.1023/A:1015878719389 URL
[7]	Hamblin J, Stefanova K, Angessa T T. 2014. Variation in chlorophyll content per unit leaf area in spring wheat and implications for selection in segregating material. PLoS ONE, 9 (3):e92529. doi: 10.1371/journal.pone.0092529 URL
[8]	Li Cai-bin, Guo Hua-chun. 2017. Evaluation of low-light tolerance of different potato varieties and screening of the evaluation indexes. Scientia Agricultura Sinica, 50 (18):3461-3472. (in Chinese)
	李彩斌, 郭华春. 2017. 马铃薯品种耐弱光性评价及其指标的筛选. 中国农业科学, 50 (18):3461-3472.
[9]	Long S P, Marshall-Colon A, Zhu X G. 2015. Meeting the global food demand of the future by engineering crop photosynthesis and yield potential. Cell, 161:56-66.
[10]	Qin Yu-zhi, Xing Zheng, Zou Jian-feng, He Chang-zheng, Li Yan-lin, Xiong Xing-yao. 2014. Effects of sustained weak light on seedling growth and photosynthetic characteristics of potato seedlings. Scientia Agricultura Sinica, 47 (3):537-545. (in Chinese)
	秦玉芝, 邢铮, 邹剑锋, 何长征, 李炎林, 熊兴耀. 2014. 持续弱光胁迫对马铃薯苗期生长和光合特性的影响. 中国农业科学, 47 (3):537-545.
[11]	Silva-Pérez V, Faveri J D, Molero G, Deery D M, Condon A G, Reynolds M P, Evans J R, Furbank R T. 2020. Genetic variation for photosynthetic capacity and efficiency in spring wheat. Journal of Experimental Botany, 71 (7):2299-2311. doi: 10.1093/jxb/erz439 pmid: 31565736
[12]	Simkin A J, López-Calcagno P E, Raines C A. 2019. Feeding the world:improving photosynthetic efficiency for sustainable crop production. Journal of Experimental Botany, 70 (4):1119-1140. doi: 10.1093/jxb/ery445 URL
[13]	Sun Ming, Lei Xiong, Zhang Xin-quan, Zhang Cheng-lin, Wu Wen-dan, Zhao Wen-da, Yang Xiao-peng, Ma Xiao. 2018. Assessment of genetic variability in prairie grass. Acta Pratacuhurae Sinica, 27 (1):131-141. (in Chinese)
	孙铭, 雷雄, 张新全, 张成林, 伍文丹, 赵文达, 杨晓鹏, 马啸. 2018. 扁穗雀麦优良品系数量性状的变异分析及遗传参数评估. 草业学报, 27 (1):131-141.
[14]	Sun Xin-e, Shen Ming, Wang Zhong-hua, Li Cui, Zhang Zhi-ping, Wang Liang-ju. 2011. Effects of two leaf fertilizers on photosynthesis and fruit quality of kidney bean in solar greenhouse. Journal of Nanjing Agricultural University, 34 (3):37-42. (in Chinese)
	孙新娥, 申明, 王中华, 李翠, 张治平, 汪良驹. 2011. 两种叶面肥对日光温室芸豆叶片光合作用和果实品质的影响. 南京农业大学学报, 34(3):37-42.
[15]	Syukur M, Rosidah S. 2014. Estimation of genetic parameter for quantitative characters of pepper(L.) Capsicum annuum. Journal of Tropical Crop Science, 1(1):4-7.
[16]	Tang Hao, Cai Nan-tong, Luo Wen-bin, Wu Qiu-yun, Qiu Yong-xiang, Xu Yong-qing, Li Guang-xing. 2007. Potato breeding and development in Fujian Province. Chinese Agricultural Science Bulletin, 23(8):615-618. (in Chinese)
	汤浩, 蔡南通, 罗文彬, 吴秋云, 邱永祥, 许泳清, 李光星. 2007. 福建马铃薯育种研究现状与发展对策. 中国农学通报, 23(8):615-618.
[17]	Wang Ming-hua, Li Jia-jia, Lu Shao-qi, Shao Wen-tao, Cheng An-dong, Zhang Wen-ming, Wang Xiao-bo, Qiu Li-juan. 2019. Construction of evaluation standard for tolerance to high-temperature and screening of heat-tolerant germplasm resources in soybean. Journal of Plant Genetic Resources, 20 (4):891-902. (in Chinese)
	汪明华, 李佳佳, 陆少奇, 邵文韬, 程安东, 张文明, 王晓波, 邱丽娟. 2019. 大豆品种耐高温特性的评价方法及耐高温种质筛选与鉴定. 植物遗传资源学报, 20 (4):891-902.
[18]	Xie Cong-hua. 2012. Potato industry:status and development. Journal of Huazhong Agricultural University(Social Sciences Edition), 97:1-4. (in Chinese)
	谢从华. 2012. 马铃薯产业的现状与发展. 华中农业大学学报(社会科学版), 97:1-4.
[19]	Xu Jian-fei, Jin Li-ping. 2017. Advances and perspectives in research of potato genetics and breeding. Scientia Agricultura Sinica, 50 (6):990-1015. (in Chinese)
	徐建飞, 金黎平. 2017. 马铃薯遗传育种研究:现状与展望. 中国农业科学, 50 (6):990-1015.
[20]	Yang Jing. 2003. Research on the varieties difference of the photosynthetic rate of vegetable soybeans and their relations of output in high and cold area. Northern Horticulture, 27 (1):44-45. (in Chinese)
	杨菁. 2003. 高寒地区菜用大豆品种间光合速率的差异及其与产量关系的探讨. 北方园艺, 27 (1):44-45.
[21]	Ye Zi-piao, Xie Zhi-liang, Duan Shi-hua, An Ting, Zeng Guang-hui, Kang Hua-jing. 2020. Stomatal and non-stomatal limitation of photosynthesis for Tetrastigma hemsleyanum under the condition of facility cultivation. Plant Physiology Journal, 56(1):41-48. (in Chinese)
	叶子飘, 谢志亮, 段世华, 安婷, 曾光辉, 康华靖. 2020. 设施栽培条件下三叶青叶片光合的气孔和非气孔限制. 植物生理学报, 56 (1):41-48.
[22]	Yin Zhi-tong, Meng Fan-fan, Song Hai-na, Liu Chun-ying, Yu De-yue. 2009. Variation of photosynthetic gas-exchange parameters among soybean germplasm. Soybean Science, 28 (5):801-805. (in Chinese)
	印志同, 孟凡凡, 宋海娜, 刘春英, 喻德跃. 2009. 大豆资源光合气体交换参数的变异. 大豆科学, 28 (5):801-805.
[23]	Zhang Gui-he, Guo Hua-chun. 2017. Comparison of photosynthetic characteristics and cluster analysis in potato varieties(Lines). Acta Agronomica Sinica, 43 (7):1067-1076. (in Chinese) doi: 10.3724/SP.J.1006.2017.01067 URL
	张贵合, 郭华春. 2017. 马铃薯不同品种(系)的光合特性比较与聚类分析. 作物学报, 43 (7):1067-1076.
[24]	Zhang Xiao-li, Wang Qiang, Chen Lei, Tang Mao-yan, Lü Rong-hua, Guo Hui, Liang Tian-feng, Gao Guo-qing. 2014. Photosynthetic characters of special rice germplasm resources from Southeast Asia. Journal of Plant Genetic Resources, 45(8):1358-1362. (in Chinese)
	张晓丽, 王强, 陈雷, 唐茂艳, 吕荣华, 郭辉, 梁天锋, 高国庆. 2014. 东南亚水稻种质资源的光合特性比较及聚类分析. 南方农业学报, 45(8):1358-1362.
[25]	Zhang Yao-wen, Zhao Xiao-guang, Guan Zhou-bo, Hou Jun-li, Wang Xue-fang, Dong Yu-hong, Tian Jian-hua, Li Dian-rong, Wang Zhu-yun. 2019. High photosynthetic-efficiency germplasm screening of crop:research progress. Chinese Agricultural Science Bulletin, 35 (18):1-11. (in Chinese)
	张耀文, 赵小光, 关周博, 侯君利, 王学芳, 董育红, 田建华, 李殿荣, 王竹云. 2019. 作物高光效种质筛选的研究进展. 中国农学通报, 35 (18):1-11.
[26]	Zhang Zhong-xin, Wang Qing-dong, Zhao Jing-yi, Dong Wen-zhao, Han Suo-yi, Gao Wei, Liu Hua, Xu Jing, Du Pei. 2020. Nutritional components comprehensive analysis of stalk and kernels in different peanut varieties. Journal of Plant Genetic Resources, 21 (1):215-223. (in Chinese)
	张忠信, 王庆东, 赵婧伊, 董文召, 韩锁义, 高伟, 刘华, 徐静, 杜培. 2020. 不同花生品种秸秆与籽仁营养成分综合分析. 植物遗传资源学报, 21 (1):215-223.

编号 Code	种质资源 Germplasm	来源 Origin	编号 Code	种质资源 Germplasm	来源 Origin
Y1	紫花851 Zihua 851	黑龙江 Heilongjiang	Y13	N210	北京 Beijing
Y2	费乌瑞它 Favorita	荷兰 Netherlands	Y14	N215	北京 Beijing
Y3	闽薯1号 Minshu 1	福建 Fujian	Y15	D597	北京 Beijing
Y4	闽薯4号 Minshu 4	福建 Fujian	Y16	龙薯9号 Longshu 9	黑龙江 Heilongjiang
Y5	闽薯9号 Minshu 9	福建 Fujian	Y17	龙薯14号 Longshu 14	黑龙江 Heilongjiang
Y6	闽薯6号 Minshu 6	福建 Fujian	Y18	W8	新疆 Xinjiang
Y7	闽薯7号 Minshu 7	福建 Fujian	W1	中龙薯1号 Zhonglongshu 1	黑龙江 Heilongjiang
Y8	云薯108 Yunshu 108	云南 Yunnan	P1	闽彩薯2号 Mincaishu 2	福建 Fujian
Y9	云薯109 Yunshu 109	云南 Yunnan	P2	闽彩薯3号 Mincaishu 3	福建 Fujian
Y10	天薯10号 Tianshu 10	甘肃 Gansu	P3	华颂66 Huasong 66	内蒙古 Inner Mongolia
Y11	陇薯7号 Longshu 7	甘肃 Gansu	R1	红美 Hongmei	内蒙古 Inner Mongolia
Y12	N143	北京 Beijing	R2	红玫瑰 Hongmeigui	山东 Shandong

编号 Code	种质资源 Germplasm	来源 Origin	编号 Code	种质资源 Germplasm	来源 Origin
Y1	紫花851 Zihua 851	黑龙江 Heilongjiang	Y13	N210	北京 Beijing
Y2	费乌瑞它 Favorita	荷兰 Netherlands	Y14	N215	北京 Beijing
Y3	闽薯1号 Minshu 1	福建 Fujian	Y15	D597	北京 Beijing
Y4	闽薯4号 Minshu 4	福建 Fujian	Y16	龙薯9号 Longshu 9	黑龙江 Heilongjiang
Y5	闽薯9号 Minshu 9	福建 Fujian	Y17	龙薯14号 Longshu 14	黑龙江 Heilongjiang
Y6	闽薯6号 Minshu 6	福建 Fujian	Y18	W8	新疆 Xinjiang
Y7	闽薯7号 Minshu 7	福建 Fujian	W1	中龙薯1号 Zhonglongshu 1	黑龙江 Heilongjiang
Y8	云薯108 Yunshu 108	云南 Yunnan	P1	闽彩薯2号 Mincaishu 2	福建 Fujian
Y9	云薯109 Yunshu 109	云南 Yunnan	P2	闽彩薯3号 Mincaishu 3	福建 Fujian
Y10	天薯10号 Tianshu 10	甘肃 Gansu	P3	华颂66 Huasong 66	内蒙古 Inner Mongolia
Y11	陇薯7号 Longshu 7	甘肃 Gansu	R1	红美 Hongmei	内蒙古 Inner Mongolia
Y12	N143	北京 Beijing	R2	红玫瑰 Hongmeigui	山东 Shandong

参数 Parameter	F	平均值 Mean	标准差 SD	变幅 Range	变异系数/% CV	广义遗传力/% h²
P_n	11.51^**	17.50	2.57	13.06 ~ 21.87	14.69	77.15
G_s	6.84^**	0.39	0.10	0.24 ~ 0.60	25.18	68.42
C_i	3.51^**	280.15	23.59	235.12 ~ 327.76	8.42	11.95
T_r	5.62^**	5.08	1.02	3.47 ~ 6.95	20.02	60.60
CE	12.76^**	0.06	0.01	0.04 ~ 0.08	16.83	79.90
L_s	2.56^**	0.28	0.07	0.16 ~ 0.47	25.21	34.15
iWUE	7.08^**	46.74	10.28	29.41 ~ 70.77	21.99	66.99
SPAD	16.31^**	38.57	4.25	31.73 ~ 48.83	11.01	83.69

参数 Parameter	F	平均值 Mean	标准差 SD	变幅 Range	变异系数/% CV	广义遗传力/% h²
P_n	11.51^**	17.50	2.57	13.06 ~ 21.87	14.69	77.15
G_s	6.84^**	0.39	0.10	0.24 ~ 0.60	25.18	68.42
C_i	3.51^**	280.15	23.59	235.12 ~ 327.76	8.42	11.95
T_r	5.62^**	5.08	1.02	3.47 ~ 6.95	20.02	60.60
CE	12.76^**	0.06	0.01	0.04 ~ 0.08	16.83	79.90
L_s	2.56^**	0.28	0.07	0.16 ~ 0.47	25.21	34.15
iWUE	7.08^**	46.74	10.28	29.41 ~ 70.77	21.99	66.99
SPAD	16.31^**	38.57	4.25	31.73 ~ 48.83	11.01	83.69

参数 Parameter	P_n	G_S	C_i	T_r	CE	L_s	iWUE	SPAD
P_n	1
G_S	-0.527^**	1
C_i	-0.074	0.415^**	1
T_r	0.477^**	0.580^**	0.164	1
CE	0.835^**	0.194	-0.602^**	0.295^*	1
L_s	-0.161	-0.495^**	-0.488^**	-0.362^**	0.144	1
iWUE	-0.034	-0.823^**	-0.600^**	-0.388^**	0.300^*	0.523^**	1
SPAD	0.697^**	0.367^**	-0.053	0.340^**	0.574^**	-0.084	-0.023	1
