Studies on Detection of Cucumis Melo Endornavirus Using TaqMan RT-qPCR Method

doi:10.16420/j.issn.0513-353x.2021-0620

Acta Horticulturae Sinica ›› 2022, Vol. 49 ›› Issue (11): 2471-2478.doi: 10.16420/j.issn.0513-353x.2021-0620

• New Technology and New Methods • Previous Articles Next Articles

Studies on Detection of Cucumis Melo Endornavirus Using TaqMan RT-qPCR Method

ZHAO Liqun¹, ZHANG Xiaofei², QIU Yanhong²^,³^,^*(), LIU Hui², ZHANG Jian²^,³, YANG Jingjing², ZHANG Haijun²^,³, XU Xiulan²^,³, WEN Changlong²^,³^,^*()

¹Beijing Agricultural Extension Station，Beijing 100029，China
²Key Laboratory of Biology and Genetics Improvement of Horticultural Crops（North China），Institute of Vegetable Science，Beijing Academy of Agricultural and Forestry Sciences，Beijing 100097，China
³Supervision，Inspection and Test Center of Vegetable Seed Quality of Ministry of Agriculture and Rural Affairs，Beijing 100097，China

Received:2022-01-19 Revised:2022-03-24 Online:2022-11-25 Published:2022-11-25
Contact: QIU Yanhong,WEN Changlong E-mail:qiuyanhong@nercv.org;wenchanglong@nercv.org

Abstract

Abstract:

Cucumis melo endornavirus is an important plant virus that infects a wide range of hosts，occurs popularly and transmits highly in seeds. One set of specific primers and probes were designed according to the conserved sequence of CmEV genome，and a detecting method of CmEV was established using the Real-Time Fluorescent Quantitative PCR with TaqMan probes（TaqMan RT-qPCR）. This detection method could detect the virus in 1 × 10^-2ng · μL^-1 RNA samples and 1.8 × 10³ copies · μL^-1 plasmids，the sensitivity of which was about one hundred times higher than traditional RT-PCR. We used the CmEV TaqMan RT-qPCR technique to detect 11 seedling lots of Cucumis melo，Citrullus lanatus，Cucumis sativus，Cucurbita moschata stock that randomly sampled from the main cucurbit industries of Beijing，Shandong，Liaoning and Hainan provinces. It was found that Cucumis melo seedling from Shandong and Hainan industries carried CmEV. The novel TaqMan RT-qPCR method was proved to be efficient in testing CmEV，which could be a technical support for precisely detecting and scientific controlling of this virus，and could help preventing the virus spread from the source.

Key words: cucumis melo endornavirus, TaqMan qPCR, cucurbits crops, seedling-borne disease

CLC Number:

S652

ZHAO Liqun, ZHANG Xiaofei, QIU Yanhong, LIU Hui, ZHANG Jian, YANG Jingjing, ZHANG Haijun, XU Xiulan, WEN Changlong. Studies on Detection of Cucumis Melo Endornavirus Using TaqMan RT-qPCR Method[J]. Acta Horticulturae Sinica, 2022, 49(11): 2471-2478.

Figures/Tables 7

Table 1 The information of Cucurbits crops seedlings for detection of CmEV

序号 Number	种苗 Seedling	产地 Area	序号 Number	瓜类种苗 Seedling	产地 Area
1	甜瓜 Melon	北京 Beijing	7	黄瓜Cucumber	北京 Beijing
2	甜瓜 Melon	山东 Shandong	8	黄瓜Cucumber	山东 Shandong
3	甜瓜 Melon	辽宁 Liaoning	9	黄瓜Cucumber	辽宁 Liaoning
4	甜瓜 Melon	海南 Hainan	10	南瓜砧木Pumpkin stock	北京 Beijing
5	西瓜 Watermelon	北京 Beijing	11	南瓜砧木Pumpkin stock	辽宁 Liaoning
6	西瓜 Watermelon	山东Shandong

Table 2 The sequence of primers used for detection of the CmEV

引物 Primer	序列（5′-3′） Sequence	扩增片段/bp Amplified fragement
CmEV-qRT	P：CATACGCTTCGAAGACCCTCTTGCT	160
	F：GAGATACTTGTGGGTCAGTGGCAG
	R：GTCGGAAATTGGTTTATGTGGTG
CmEV-500	F：GGTAATGGCTTCATTCCCCATTAC	500
CmEV-RT	F：CGCGGAAATTGCACTTCCGAGAT	755
CmEV-RT	R：CTAGCAACTTGTTTGCTGGCACATG	755

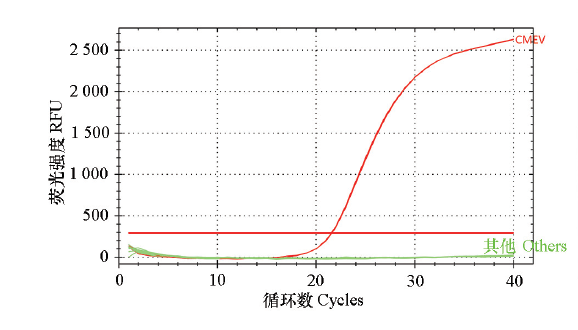

Fig. 1 Specificity of TaqMan-based RT-qPCR for detection CmEV

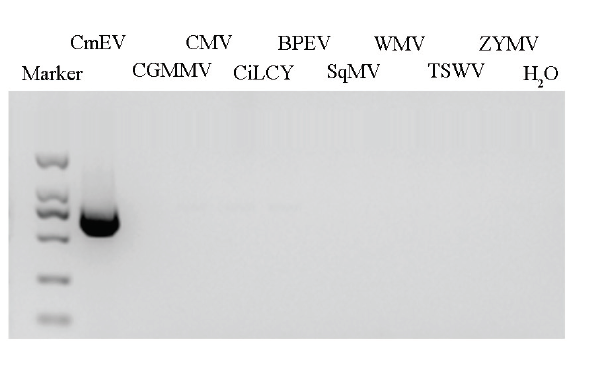

Fig. 2 The amplified results of RT-PCR detection

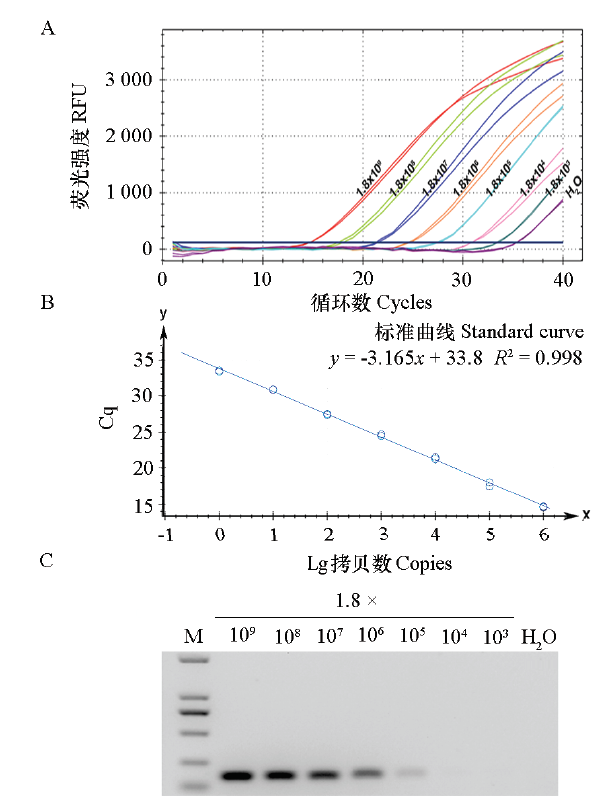

Fig. 3 The detection sensitivity of TaqMan RT-qPCR and conventional RT-PCR of CmEV A：Amplification curves of TaqMan RT-qPCR of seven serial dilutions，B：TaqMan RT-qPCR standard quantification curve，C：Sensitivity of the conventional PCR assay.

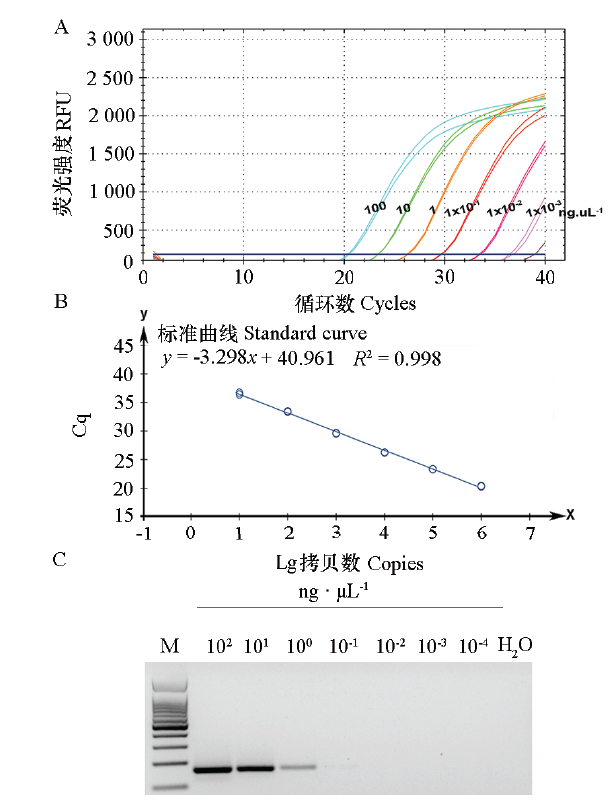

Fig. 4 The detection sensitivity of TaqMan qPCR and conventional RT-PCR of CmEV A：Amplification curves of TaqMan qPCR of seven ten-fold serial dilutions，B：TaqMan qPCR standard quantification curve，C：Sensitivity of the conventional PCR assay.

Fig. 5 Detection of CmEV in major cucurbits crops seedlings

References 21

[1]	Chai Ali,Patiguli,Guo Weitao,Shi Yanxia,Xie Xuewen,Xi Xianmei,Li Baoju. 2019. Development and application of quantitative PCR for detection of Pseudomonas syringae pv. tomato. Acta Horticulturae Sinica, 46 (1):182-192. (in Chinese)
	柴阿丽, 帕提古丽, 郭威涛, 石延霞, 谢学文, 席先梅, 李宝聚. 2019. 番茄细菌性斑点病菌实时荧光定量PCR检测方法的建立及应用. 园艺学报, 46 (1):182-192. doi: 10.16420/j.issn.0513-353x.2018-0294
[2]	Cheng Yingchao, Kang Hua-jun, Shi Yanxia, Chai Ali, Zhang Hongjie, Xie Xuewen, Li Baoju. 2018. Development and application of real-time fluorescent quantitative PCR for detection of Phytophthora capsici. Acta Horticulturae Sinica 45,( 5):997-1006. (in Chinese)
	程颖超, 康华军, 石延霞, 柴阿丽, 张红杰, 谢学文, 李宝聚. 2018. 辣椒疫霉菌RT-PCR检测技术的建立及应用. 园艺学报, 45 (5) :997-1006.
[3]	Choi G S. 2001. Occurrence of two tobamovirus diseases in cucurbits and control measures in Korea. The Plant Pathology Journal, 17 (5):243-248.
[4]	Coutts R H A. 2005. First report of an endornavirus in the Cucurbitaceae. Virus Genes, 31:361-362.
[5]	Da Costa A C, Leal E, Gill D, Milagres F A D P, Komninakis S V, Brustulin R, Teles M D A R, Lobato M C A B S,das Chagas R T,Abrao M D F N D S,Soares C V D A,Deng X,Delwart E,Sabino E C,Luchs A. 2019. Discovery of Cucumis melo endornavirus by deep sequencing of human stool samples in Brazil. Virus Genes, 55:332-338. doi: 10.1007/s11262-019-01648-0 pmid: 30915664
[6]	Dinant S, Lot H. 1992. Lettuce mosaic virus. Plant Pathology, 41:528-542. doi: 10.1111/j.1365-3059.1992.tb02451.x URL
[7]	Fan Xu-dong, Dong Ya-feng, Zhang Zun-ping, Ren Fang, Hu Guo-jun, Zhu Hong-juan. 2014. Progress on molecular detection of grapevine virus. Acta Horticulturae Sinica, 41 (5):1009-1019. (in Chinese)
	范旭东, 董雅凤, 张尊平, 任芳, 胡国君, 朱红娟. 2014. 葡萄病毒分子检测技术研究进展. 园艺学报, 41 (5):1009-1019.
[8]	Fukuhara T. 2019. Endornaviruses:persistent dsRNA viruses with symbiotic properties in diverse eukaryotes. Virus Genes, 55:165-173. doi: 10.1007/s11262-019-01635-5 URL
[9]	He Zhen, Dong Tingting, Wu Weiwen, Chen Wen, Li Liangjun. 2020. Development and evaluation of a Real-time fluorescent quantitative PCR assay for detection of sweet potato latent virus-lotus in lotus plants. Acta Horticulturae Sinica, 47 (7):1412-1420. (in Chinese)
	贺振, 董婷婷, 吴伟文, 陈雯, 李良俊. 2020. 莲藕中甘薯潜隐病毒实时荧光定量PCR检测技术的建立及应用. 园艺学报, 47 (7):1412-1420.
[10]	Hui Wen-guang, Zhao Ting-chang, Schaad N W, Sun Fu-zai, Wang Jian-rong. 2007. Establishment of rapid detection method for the pathogen of hami melon fruit blotch. Scientia Agricultura Sinica, 40 (11):2495-2501. (in Chinese)
	回文广, 赵廷昌, Schaad N W, 孙福在, 王建荣. 2007. 哈密瓜细菌性果斑病菌快速检测方法的建立. 中国农业科学, 40 (11):2495-2501.
[11]	Maule A J, Wang D. 1996. Seed transmission of plant viruses:a lesson in biological complexity. Trends in Microbiology, 4 (4):153-158. doi: 10.1016/0966-842x(96)10016-0 pmid: 8728609
[12]	Qin Zi-yu, Sun Jian-she, Wang Na, Shao Jian-zhu. 2015. Development of a TaqMan real-time RT-PCR method for detecting Apple stem pitting virus (ASPV). Acta Horticulturae Sinica, 42 (7):1400-1408. (in Chinese)
	秦子禹, 孙建设, 王娜, 邵建柱. 2015. 苹果茎痘病毒TaqMan探针实时荧光定量RT-PCR检测方法的建立. 园艺学报, 42 (7):1400-1408.
[13]	Quito-Avil D F, Peralta E L, Martin R R, Ibarra M A, Alvarez R A, Mendoza A, Insuasti M, Ochoa L. 2014. Detection and occurrence of melon yellow spot virus in Ecuador:an emerging threat to cucurbit production in the region. Eur J Plant Pathol, 140:193-197. doi: 10.1007/s10658-014-0454-1 URL
[14]	Ren Fang, Dong Yafeng, Zhang Zunping, Fan Xudong, Hu Guojun. 2018. Development and application of a quantitative RT-PCR approach fordetection of Grapevine virus A. Acta Horticulturae Sinica, 45 (11):2243-2253. (in Chinese)
	任芳, 董雅凤, 张尊平, 范旭东, 胡国君. 2018. 葡萄病毒 A 实时荧光定量RT-PCR检测技术的建立及应用. 园艺学报, 45 (11):2243-2253.
[15]	Sabanadzovic S, Wintermantel W M, Valverdec R A, McCreight J D, Aboughanem-Sabanadzovic N. 2016. Cucumis melo endornavirus:genome organization,host range and co-divergence with the host. Virus Research, 214:49-58. doi: 10.1016/j.virusres.2016.01.001 pmid: 26805037
[16]	Sun Jie, Wang Wan, Rao Xue-qin,Li Hua-ping. 2016. Development of TaqMan Real-time PCR Assay of Banana bunchy top virus. Acta Horticulturae Sinica, 43 (12):2473-2480. (in Chinese)
	孙洁, 王婉, 饶雪琴, 李华平. 2016. 香蕉束顶病毒实时荧光 PCR 检测方法的建立. 园艺学报, 43 (12):2473-2480.
[17]	Wang Yan-jiao, Cui Tian-tian, Huang Ai-jun, Chen Hong-ming, Li Zhong-an, Zhou Chang-yong, Song Zhen. 2016. Development and application of a quantitative RT-PCR approach for quantification of Citrus vein enation virus. Acta Horticulturae Sinica, 43 (8):1613-1620. (in Chinese)
	王艳娇, 崔甜甜, 黄爱军, 陈洪明, 李中安, 周常勇, 宋震. 2016. 柑橘脉突病毒实时荧光定量RT-PCR检测体系的建立与应用. 园艺学报, 43 (8):1613-1620.
[18]	Wu Hui-Jie, Qin Bi-xia, Chen Hong-yun, Peng Bin, Cai Jian-he, Gu Qin-sheng. 2011. The rate of seed contamination and transmission of cucumber green mottle mosaic virus in watermelon and melon. Scientia Agricultura Sinica, 44 (7):1527-1532. (in Chinese)
	吴会杰, 秦碧霞, 陈红运, 彭斌, 蔡建和, 古勤生. 2011. 黄瓜绿斑驳花叶病毒西瓜、甜瓜种子的带毒率和传毒率. 中国农业科学, 44 (7):1527-1532.
[19]	Zeng R, Xu L H, Gao S G, Song Z W, Gao P, Dai F M. 2020. First report of Cucumis melo endornavirus on Cucumis melo in China. Journal of Plant Pathology, 102:1355. doi: 10.1007/s42161-020-00637-9 URL
[20]	Zhang Mengyan, Zhang Zunping, Ren Fang, Hu Guojun, Fan Xudong, Dong Yafeng. 2020. Establishment and application of a real-time fluorescent quantitative RT-PCR for detection of Grapevine fabavirus. Acta Horticulturae Sinica, 47 (1):187-194.
	张梦妍, 张尊平, 任芳, 胡国君, 范旭东, 董雅凤. 2020. 葡萄蚕豆萎蔫病毒实时荧光定量 RT-PCR 检测方法及应用. 园艺学报, 47 (1):187-194.
[21]	Zhou Jun, Fan Xu-dong,Dong Ya-feng,Zhang Zun-ping,Hu Guo-jun,Ren Fang,Li Zheng-nan. 2016. Development and application of a quantitative RT-PCR approach for quantification of Grapevine fanleaf virus. Acta Horticulturae Sinica, 43 (3):538-548. (in Chinese)
	周俊, 范旭东, 董雅凤, 张尊平, 胡国君, 任芳, 李正男. 2016. 葡萄扇叶病毒实时荧光定量RT-PCR检测方法的建立及应用. 园艺学报, 43 (3):538-548.
