红心柚和美国枸橼杂种后代对柑橘溃疡病的抗性评价

doi:10.16420/j.issn.0513-353x.2022-0094

摘要/Abstract

摘要：

为了探究枸橼对柑橘溃疡病（Xanthomonas citri subsp. citri，Xcc）的抗性遗传规律，以感溃疡病品种红心柚为母本，与抗溃疡病种质美国枸橼进行杂交，获得了F₁代杂种，并以F₁自交后获得了F₂代。对F₁杂种进行活体叶片注射接种鉴定，对所有F₂代253株进行离体叶片注射接种鉴定，随后对其中的225株F₂活体叶片进行注射接种鉴定，并对部分F₂代活体叶片接种后进行溃疡病菌定量分析。鉴定结果表明，红心柚和美国枸橼杂交获得的75个F₁全部为感病，没有抗感性状分离。对253株F₂植株离体叶片鉴定结果显示，76株表现为抗病，177株表现为感病。对225株F₂植株活体叶片鉴定结果显示，72株为感病，症状与感病品种‘冰糖橙’类似；118株为较感病，发病程度较‘冰糖橙’轻，与感病亲本红心柚的病症相似；10株为较抗病，抗性接近于抗病亲本美国枸橼；4株为抗病，抗性与抗病种质枸橼C-05相似；此外有21株接种溃疡病后，叶片正、反面感病症状差异较大，10株叶正面感病，反面抗病，11株叶反面抗病，叶正面感病。溃疡病菌菌定量与活体鉴定的结果相吻合。综上所述，F₁杂种没有出现抗感性状分离，F₂代植株存在抗感性状分离，抗感比例为1︰15，表明抗感性可能是数量性状遗传。

关键词: 枸橼, 红心柚, F₂代植株, 柑橘溃疡病, 抗性鉴定, 溃疡病菌定量

Abstract:

In order to investigate the genetic mechanism of citron in resistance against citrus canker disease（Xanthomonas citri subsp. citri，Xcc），in this study，the susceptible variety Red pomelo was crossed with the resistant genotype American citron and F₁ hybrids were obtained. F₂ progeny was further gained by self-crossing the F₁ plants. Resistance identification wan performed on the F₁ hybrid plants by in vivo inoculation of Xcc. All the F₂ plants were in vitro inoculated and 225 F₂ plants were successively identified for the resistance by in vivo inoculation. Bacterial quantification was conducted on some of the F₂plants following the inoculation with Xcc. The results from in vivo inoculation of F₁ plants indicated that all F₁ hybrids were susceptible，and no segregation between resistance and susceptibility was observed on the F₁ progeny. In vitro identification of 253 F₂ plants showed that 76 plants were resistant and 177 were susceptible. The results of in vivo inoculation on 225 F₂ plants demonstrated that 72 plants were susceptible，with symptoms similar to those of the susceptible variety Bingtang sweet orange，118 slightly less susceptible than Bingtang sweet orange，but similar to those of the susceptible parent Red pomelo；10 were resistant，similar to the resistant parent American citron and four were resistant as the resistant genotype citron C-05. In addition，the symptoms of 21 F₂ plants showed different reaction following the inoculation with Xcc between the adaxial and abaxial leaf surface. On 10 plants，typical canker symptoms appeared on the adaxial leaf surface but not on the abaxial one；while for the other 11 plants，the typical symptoms inversely emerged on the abaxial leaf surface and not on the adaxial leaf surface. The quantification results of Xcc on the inoculated leaves was consistent with the of in vivo identification. In summary，no segregation of resistance and susceptibility was observed in F₁ progeny，but did in the F₂ generation. The ratio of resistant to susceptible F₂ plant was 1︰15，indicating that resistance and susceptibility may be inherited as quantitative traits.

Key words: citron, Red pomelo, F₂ plant, citrus canker disease, resistance identification, quantification of Xcc

中图分类号:

S666

王萍, 盛玲, 杨锦鹏, 周凌磊, 金燕, 罗旭钊, 马先锋, 邓子牛. 红心柚和美国枸橼杂种后代对柑橘溃疡病的抗性评价[J]. 园艺学报, 2023, 50(4): 765-777.

WANG Ping, SHENG Ling, YANG Jinpeng, ZHOU Linglei, JIN Yan, LUO Xuzhao, MA Xianfeng, DENG Ziniu. Evaluation of Resistance to Citrus Canker Disease in Hybrid Progeny of Red Pomelo and American Citron[J]. Acta Horticulturae Sinica, 2023, 50(4): 765-777.

图/表 9

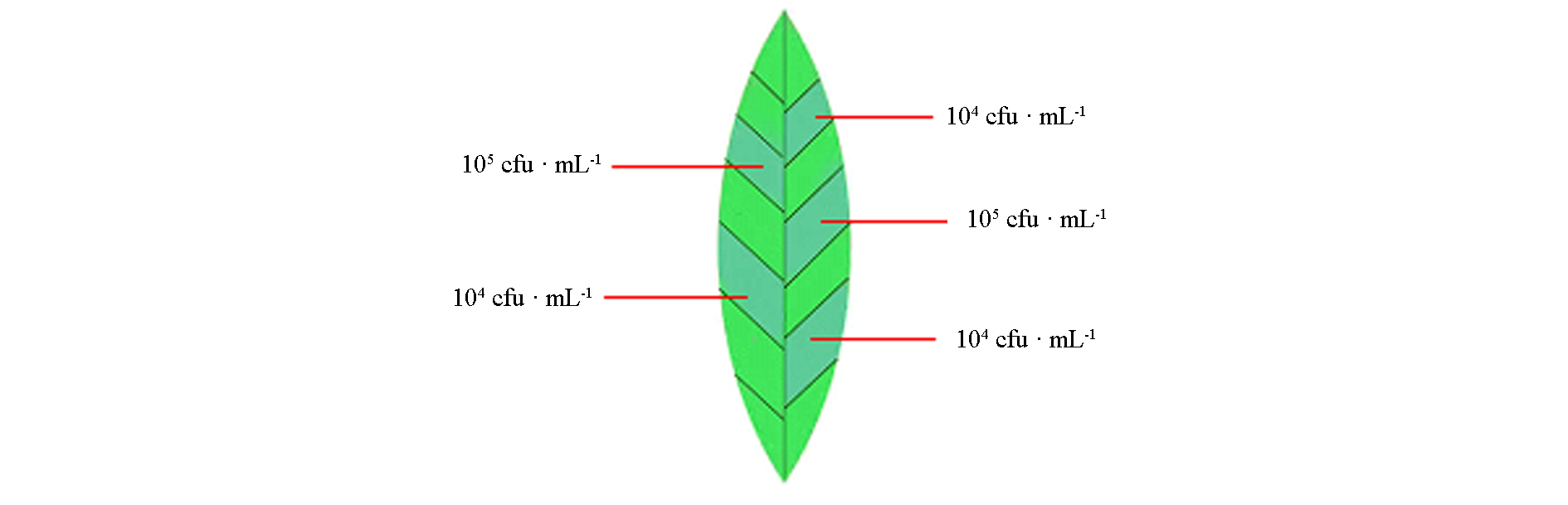

图1 柑橘植株活体叶片接种溃疡病菌示意图

Fig. 1 Schematic diagram of in vivo inoculation of Xcc

图2 F2柑橘活体叶片接种溃疡病菌后症状分级及代表单株

Fig. 2 F2 citrus live leaves are graded and represent individual strains after inoculation with canker bacteria

图3 红心柚与美国枸橼杂交F1部分单株活体叶片注射接种（105和104 cfu · mL-1）溃疡病菌后（20 d）的症状

Fig. 3 Symptoms at 20 d after injection of single live leaf of F1 part of Red pomelo and American citron （105 and 104 cfu · mL-1）with ulcerative pathogen

图4 红心柚与美国枸橼杂交F2部分单株离体叶片接种（105、106和107 cfu · mL-1）溃疡病菌后（10 d）的症状

Fig. 4 Symptoms of single isolated leaves of hybrid F2 of Red pomelo and American citron inoculated with ulcerative pathogen（105，106 and 107 cfu · mL-1）at 10 d

表1 红心柚 × 美国枸橼F2代活体接种溃疡病症状等级分类

Table 1 Classification of canker disease sumptoms following in vivo inoculation of F2 plants of Red pumelo × American citron

F₁ 单株 F₁ plant	植株数 Number of plants
F₁ 单株 F₁ plant	F₂	等级1 Grade Ⅰ	等级2 Grade Ⅱ	等级3 Grade Ⅲ	等级4 Grade Ⅳ	叶正面极感 Adaxial leaf surface sensation	叶反面极感 Abaxial leaf surface serious
E48	156	3	5	70	46	5	9
E73	63	1	1	31	23	1	1
E65	16	—	22	7	—	4	—
E5	18	—	2	10	3	—	1
总计（株） Total（plant）	253	4	10	118	72	10	11

图5 红心柚与美国枸橼杂交的F2代部分单株活体叶片接种溃疡病菌（105和104 cfu · mL-1）后（20 d）的症状

Fig. 5 Symptoms（20 d）of single living leaves of the F2 part of a hybrid of Red pumelo × American citron inoculated with ulcerative bacteria（105 and 104 cfu · mL-1）

图6 红心柚与美国枸橼杂交的F2代部分单株活体接种溃疡病菌（105和104 cfu · mL-1）后（20 d）叶正、反面差异大的症状

Fig. 6 Symptoms of large difference between the front and back sides of the leaves（20 d）of a single plant of F2 hybridization of Red pumelo × American citron inoculated with ulcerative bacteria（105 and 104 cfu · mL-1）

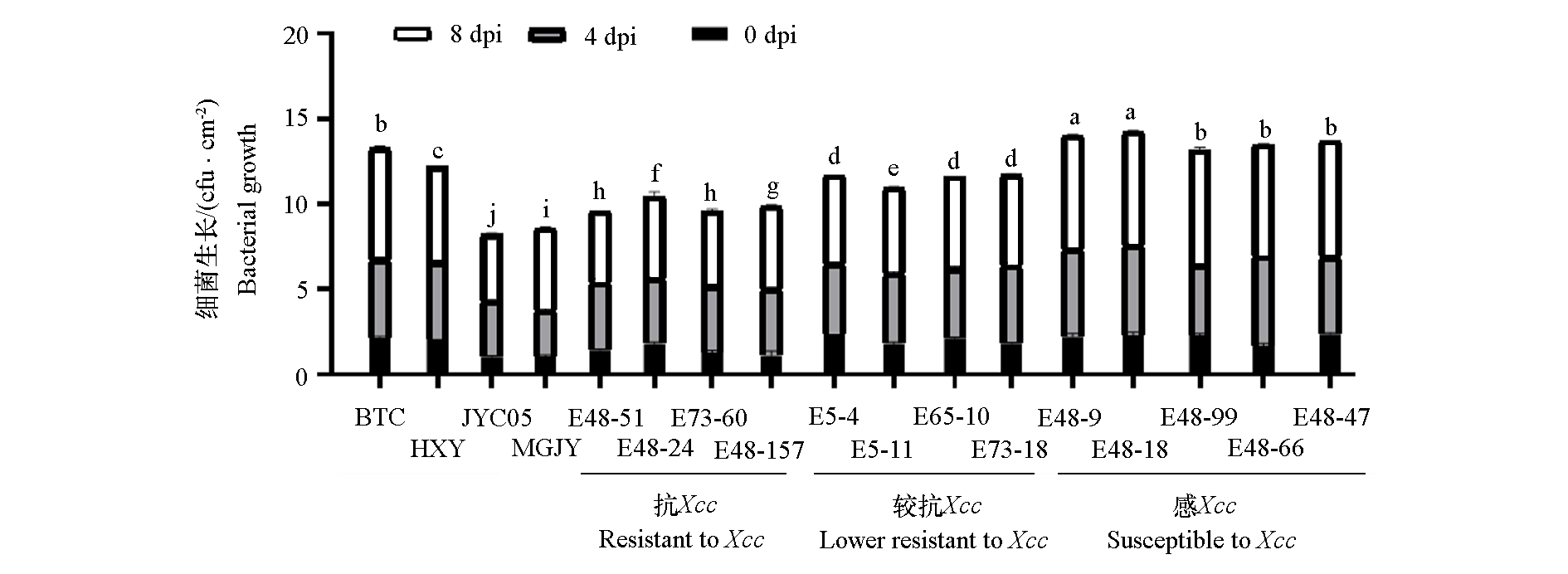

图7 不同抗性种质与部分F2植株叶片接种后溃疡病菌的生长量 BTC：‘冰糖橙’；HXY：红心柚；JYC05：枸橼C05；MGJY：美国枸橼。不同小写字母表示不同叶片接种后溃疡病菌含量差异显著（P < 0.05）。

Fig. 7 Growth of ulcerative bacteria after inoculation with different resistant germplasm and some F2 plant leaves BTC：‘Bingtang’sweet orange；HXY：Red pommelo；JYC05：Citron C-05；MGJY：American citron. Different lowercase letters indicate signicant differences in the content of ulcerative bacteria between different leaves（P < 0.05）.

表2 红心柚 × 美国枸橼F2后代植株对柑橘溃疡病抗感情况汇总

Table 2 Summary of the resistant and susceptle F2 plants of Red pomelo × American citron

F₁单株 F₁plant	植株数 Number of plants
F₁单株 F₁plant	F₂	活体鉴定 Identified	抗病株 Resistant plant	感病株Susceptible plant
E48	156	138	8	130
E73	63	58	2	56
E65	16	13	2	11
E5	18	16	2	14
总计Total	253	225	14	211

参考文献 27

[1]	Amaral A M, Carvalho S A, Silva L F C. 2010. Reaction of genotypes of citrus species and varieties to Xanthomonas citri subsp. citri under greenhouse conditions. Journal of Plant Pathology, 92:519-524.
[2]	Brunings A M, Gabriel D W. 2003. Xanthomonas citri:breaking the surface. Mol Plant Pathol, 4 (3):141-157. doi: 10.1046/j.1364-3703.2003.00163.x pmid: 20569374
[3]	Chen Li-geng. 1993. Inheritance and breeding of resistance to citrus canker disease. China Citrus,(1):19-20. (in Chinese)
	陈力耕. 1993. 柑桔溃疡病的抗性遗传与育种. 中国柑桔,(1):19-20.
[4]	Deng Z N, Xu L, Li D Z, Long G Y, Liu L P, Fang F, Shu G P. 2010. Screening citrus genotypes for resistance to canker disease(Xanthomonas axonopodis citri). Plant Breeding, 129:341-345. doi: 10.1111/pbr.2010.129.issue-3 URL
[5]	Ge Hongjuan, Long Guiyou, Dai Suming, Li Dazhi, Li Na, Deng Ziniu. 2015. Effects of sugar orange and citron C-05 on growth characteristics of Ulcerative bacteria. Scientia Agricultura Sinica, 48 (7):1383-1391. (in Chinese) doi: 10.3864/j.issn.0578-1752.2015.07.13
	葛红娟, 龙桂友, 戴素明, 李大志, 李娜, 邓子牛. 2015. 冰糖橙与枸橼C-05对溃疡病菌生长特性的影响. 中国农业科学, 48 (7):1383-1391. doi: 10.3864/j.issn.0578-1752.2015.07.13
[6]	Gottwald T R. 1993. Differential host range reaction of citrus and citrus relatives to citrus canker and citrus bacterial spot determinated by leaf mesophyll susceptibility. Plant Dis, 77 (10):1004-1009. doi: 10.1094/PD-77-1004 URL
[7]	Hu Qing-bo. 2010. Evaluation on resistance of citrus germplasm resources to canker disease[M. D. Dissertation]. Changsha: Hunan Agricultural University. (in Chinese)
	胡青波. 2010. 柑橘种质资源抗溃疡病评价[硕士论文]. 长沙: 湖南农业大学.
[8]	Hu Zhe. 2018. Genetic analysis of leaf traits and resistance to canker disease in citron and its hybrids[M. D. Dissertation]. Changsha: Hunan Agricultural University. (in Chinese)
	胡哲. 2018. 枸橼及其杂种叶性状和对溃疡病抗性的遗传学分析[硕士论文]. 长沙: 湖南农业大学.
[9]	Li Dazhi, Deng Ziniu, Gan Lin, Xiong Xingyao, Zhang Qiuming. 2005. Advances in studies on citrus canker. Journal of Hunan Agricultural University(Natural Science Edition), 31 (4):105-108. (in Chinese)
	李大志, 邓子牛, 甘霖, 熊兴耀, 张秋明. 2005. 柑橘溃疡病研究进展. 湖南农业大学学报(自然科学版), 31 (4):105-108.
[10]	Li Jianhui. 2013. Study on effective control of citrus canker disease[M. D. Dissertation]. Changsha: Hunan Agricultural University. (in Chinese)
	李建挥. 2013. 柑橘溃疡病有效防治的研究[硕士论文]. 长沙: 湖南农业大学.
[11]	Liu Liping. 2013. Study on pathogenic factors of citrus ulcer pathogen[Ph. D. Dissertation]. Changsha: Hunan Agricultural University. (in Chinese)
	刘利平. 2013. 柑橘溃疡病菌致病性影响因素的研究[博士论文]. 长沙: 湖南农业大学.
[12]	Ma Mingying, Hao Chenxing, Zhang Kai, Xiao Guihua, Su Hanying, Wen Kang, Deng Ziniu, Ma Xianfeng. 2022. CsSWEET2a promotes the infection of Xanthomonas citri subsp. citri. Acta Horticulturae Sinica, 49 (6):1247-1260. (in Chinese) doi: 10.16420/j.issn.0513-353x.2021-0323
	麻明英, 郝晨星, 张凯, 肖桂华, 苏翰英, 文康, 邓子牛, 马先锋. 2022. 甜橙SWEET2a促进柑橘溃疡病菌侵染. 园艺学报, 49 (6):1247-1260. doi: 10.16420/j.issn.0513-353x.2021-0323 URL
[13]	Ma Zhimin, Duan Yu, Xu Jianjian, Bin Yu, Zhou Changyong, Song Zhen. 2021. The rapid detection of Xanthomonas citri ssp. citri(Xcc)based on recombinase polymerase amplification(RPA)assay. Acta Horticulturae Sinica, 48 (3):590-599. (in Chinese) doi: 10.16420/j.issn.0513-353x.2020-0545 URL
	马志敏, 段玉, 许建建, 宾羽, 周常勇, 宋震. 2021. 基于重组酶聚合酶扩增技术(RPA)的柑橘溃疡病菌检测方法. 园艺学报, 48 (3):590-599. doi: 10.16420/j.issn.0513-353x.2020-0545 URL
[14]	Nicolosi E, Deng Z N, Gentile A. 2000. Citrus phylogeny and genetic origin of important species as investigated by molecular markers. Theor Appl Genet, 100:1155-1166. doi: 10.1007/s001220051419 URL
[15]	Peng Zhuchun, Gong Guizhi, Chen Shanchun, Zhang Gebi, Hong Qibin. 2010. Screening of SSR markers related to resistance to citrus canker disease. Acta horticulturae sinica, 37 (3):383-389. (in Chinese)
	彭祝春, 龚桂芝, 陈善春, 张戈壁, 洪棋斌. 2010. 柑橘溃疡病抗性相关的SSR标记筛选. 园艺学报, 37 (3):383-389.
[16]	Schaad N W. 2006. Emended classification of xanthomonad pathogens on citrus. Syst Appl Microbiol, 29:690-695. pmid: 17183629
[17]	Shi Q C. 2015. Responsiveness of different citrus genotypes to the Xanthomonas citri ssp. citri-derived pathogen-associated molecular pattern (PAMP)flg 22 correlates with resistance to citrus canker. Mol Plant Pathol, 16 (5):507-520. doi: 10.1111/mpp.2015.16.issue-5 URL
[18]	Song Shengying, Yang Guanglan, Pan Shengyong, Zhao Chunmu, Shi Anjiu. 2002. Investigation on resistance of different citrus cultivars to citrus canker disease. Journal of Forest Diseases and Pests in China, 21 (2):34-36. (in Chinese)
	宋盛英, 杨光兰, 潘盛勇, 赵春穆, 石安鸠. 2002. 不同柑橘品种对柑橘溃疡病的抗性调查. 中国森林病虫, 21 (2):34-36.
[19]	Tan Li-mei. 2019. Evaluation of resistance of lemons and their selfing progeny to citrus canker disease[M. D. Dissertation]. Changsha: Hunan Agricultural University. (in Chinese)
	谭李梅. 2019. 柠檬及其自交后代对柑橘溃疡病的抗性评价[硕士论文]. 长沙: 湖南农业大学.
[20]	Tan Limei, Fu Hongyan, Xu Jing, Zhu Zhimei, Hu Zhe, Xiao Shunyuan, Ma Xianfeng, Deng Ziniu. 2020. Identification of selfing seedlings of lemon zygote embryos and preliminary evaluation of resistance to Citrus canker disease. Molecular Plant Breeding, 18 (7):2258-2267. (in Chinese)
	谭李梅, 符红艳, 徐静, 朱志媚, 胡哲, 肖顺元, 马先锋, 邓子牛. 2020. 柠檬合子胚自交实生苗的鉴定及其对柑橘溃疡病的抗性初步评价. 分子植物育种, 18 (7):2258-2267.
[21]	Tan Limei, Liu Hui, Zhu Zhimei, Zhou Dong, Tang Tian, Deng Ziniu. 2017. Lemon selfing generations in vitro identification of citrus canker resistant. Journal of Hunan Agricultural Science,(3):58-62. (in Chinese)
	谭李梅, 刘慧, 朱志媚, 周东, 汤甜, 邓子牛. 2017. 柠檬自交后代抗柑橘溃疡病的离体鉴定. 湖南农业科学,(3):58-62.
[22]	Viloria Z, Drouillard D L, Graham J H, Grosser J W. 2004. Screening triploid hybrids of‘Lakeland’Limequat for resistance to citrus canker. Plant Dis, 88 (10):1056-1060. doi: 10.1094/PDIS.2004.88.10.1056 pmid: 30795244
[23]	Xu Jing. 2020. Genetic identification of citron germplasm based on resistance to citrus canker disease[M. D. Dissertation]. Changsha: Hunan Agricultural University. (in Chinese)
	徐静. 2020. 基于柑橘溃疡病抗性的构橼种质亲缘关系鉴定[硕士论文]. 长沙: 湖南农业大学.
[24]	Xu Jing, Tan Limei, Fu Hongyan, Zhu Zhimei, Long Libing, Hu Zhe, Ma Xianfeng, Deng Ziniu. 2021. Diversity analysis of 14 citron germplasm using molecular markers. Molecular Plant Breeding, 19 (14):4726-4737.. (in Chinese)
	徐静, 谭李梅, 符红艳, 朱志媚, 龙栎冰, 胡哲, 马先锋, 邓子牛. 2021. 利用分子标记对14份枸橼种质进行多样性分析. 分子植物育种, 19 (14):4726-4737.
[25]	Zhang Gebi, Yang Tingmi, Li Xiqing, Chen Zhusheng. 2004. Determination of resistance of different citrus varieties to citrus canker disease. Chinese Journal of Plant Protection, 31 (2):221-222. (in Chinese)
	张戈壁, 阳廷密, 李喜庆, 陈竹生. 2004. 不同柑桔品种对柑桔溃疡病抗病能力的测定. 植物保护学报, 31 (2):221-222.
[26]	Zhang Kai, Ma Mingying, Wang Ping, Li Yi, Jin Yan, Sheng Ling, Deng Ziniu, Ma Xianfeng. 2022. Identification of HSP 20 family genes in citrus and their expression in pathogen infection responses citrus canker. Acta Horticulturae Sinica, 49 (6):1213-1232. (in Chinese)
	张凯, 麻明英, 王萍, 李益, 金燕, 盛玲, 邓子牛, 马先锋. 2022. 柑橘HSP20家族基因鉴定及其响应溃疡病菌侵染表达分析. 园艺学报, 49 (6):1213-1232. doi: 10.16420/j.issn.0513-353x.2021-0331 URL
[27]	Zhu Zhimei, Tan Limei, Xu Jing, Fu Hongyan, Hu Zhe, Gong Lei, Yang Guibing, Wang Ping, Ma Xianfeng, Deng Ziniu. 2021. Identification of resistance of citron germplasm to Citrus canker disease. China Fruits,(1):43- 49,110-111. (in Chinese)
	朱志媚, 谭李梅, 徐静, 符红艳, 胡哲, 龚蕾, 杨贵兵, 王萍, 马先锋, 邓子牛. 2021. 枸橼种质对柑橘溃疡病的抗性鉴定. 中国果树,(1):43- 49,110-111.
