桑树MaNAC90的克隆及其在干旱胁迫下的功能分析

doi:10.16420/j.issn.0513-353x.2025-0214

摘要/Abstract

摘要：

以‘德果1号’桑树（Morus alba‘Deguo 1’）为材料，克隆了1个NAC转录因子基因MaNAC90，其开放阅读框为732 bp，编码243个氨基酸。MaNAC90蛋白分子量为27.436 kD，等电点为5.32，含有1个NAC保守结构域，与TERN亚族成员聚为一类，定位在细胞核和细胞膜。模拟干旱胁迫（200 mmol · L^-1甘露醇）下，与野生型相比，过表达MaNAC90的拟南芥的发芽率显著降低，根长显著变短，幼苗的萎蔫程度更严重，MDA含量和电导率均显著升高，RD22和RD29B的表达水平显著下调。本研究结果初步表明MaNAC90在干旱胁迫响应中发挥负调控作用。

关键词: 桑, 果用, MaNAC90, 干旱胁迫, 功能分析

Abstract:

A NAC transcription factor gene MaNAC90 was cloned from Morus alba‘Deguo 1’. The open reading frame of MaNAC90 was 732 bp，encoding 243 amino acids with molecular weight 27.436 kD and isoelectric point 5.32. MaNAC90 contained one NAC domain and belonged to TERN group，was localized in the nucleus and the cell membrane. Under simulated drought stress（200 mmol · L^-1mannitol），transgenic Arabidopsis expressing MaNAC90 exhibited a significant reduction in germination rate，a notable decrease in root length，an increased severity of seedling wilting，and significantly increased MDA content and electrolyte leakage，along with significantly decreased expression of RD22 and RD29B when compared to wild-type plants. These results preliminary indicated that MaNAC90 plays a negative regulatory role in response to drought stress.

Key words: mulberry, fruit use, MaNAC90, drought stress, function analysis

黄仁维, 李晓冬, 邓红梅, 杨晏, 曾睿, 杨财容. 桑树MaNAC90的克隆及其在干旱胁迫下的功能分析[J]. 园艺学报, 2026, 53(5): 1274-1284.

HUANG Renwei, LI Xiaodong, DENG Hongmei, YANG Yan, ZENG Rui, YANG Cairong. Cloning and Functional Analysis of Mulberry MaNAC90 Gene Under Drought Stress[J]. Acta Horticulturae Sinica, 2026, 53(5): 1274-1284.

图/表 9

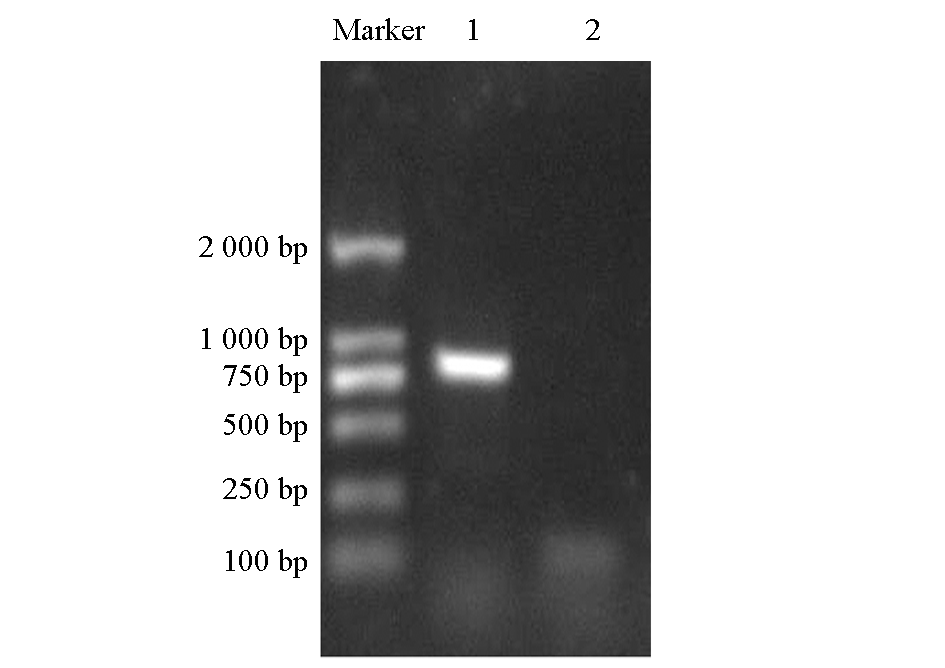

图1 MaNAC90基因的PCR扩增 1：MaNAC90条带；2：阴性对照

Fig. 1 PCR amplification of MaNAC90 gene 1：MaNAC90 fragment；2：Negative control

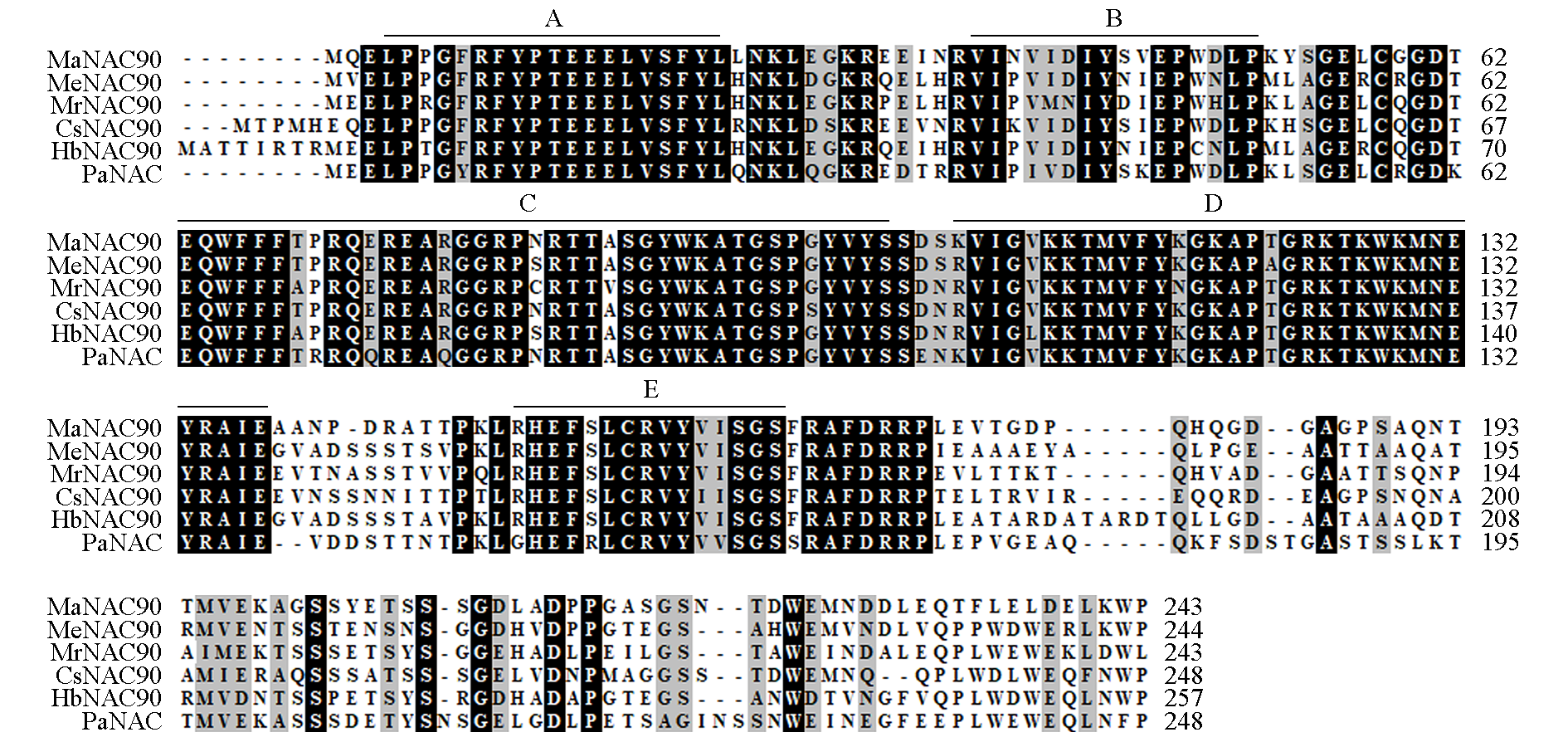

图2 MaNAC90蛋白与其他植物NAC的多序列比对 Ma：桑树；Me：木薯（XP_021629180.1）；Mr：杨梅（KAB1200809.1）；Cs：大麻（XP_030503399.2）；Hb：橡胶树（XP_021678053.1）；Pa：糙叶山麻黄（PON65421.1）。A ~ E：亚结构域

Fig. 2 Multiple sequence alignment of MaNAC90 with NAC protein other plants Ma：Morus alba；Me：Manihot esculenta（XP_021629180.1）；Mr：Morella rubra（KAB1200809.1）；Cs：Cannabis sativa（XP_030503399.2）；Hb：Hevea brasiliensis（XP_021678053.1）；Pa：Parasponia andersonii（PON65421.1）. A-E：Subdomain

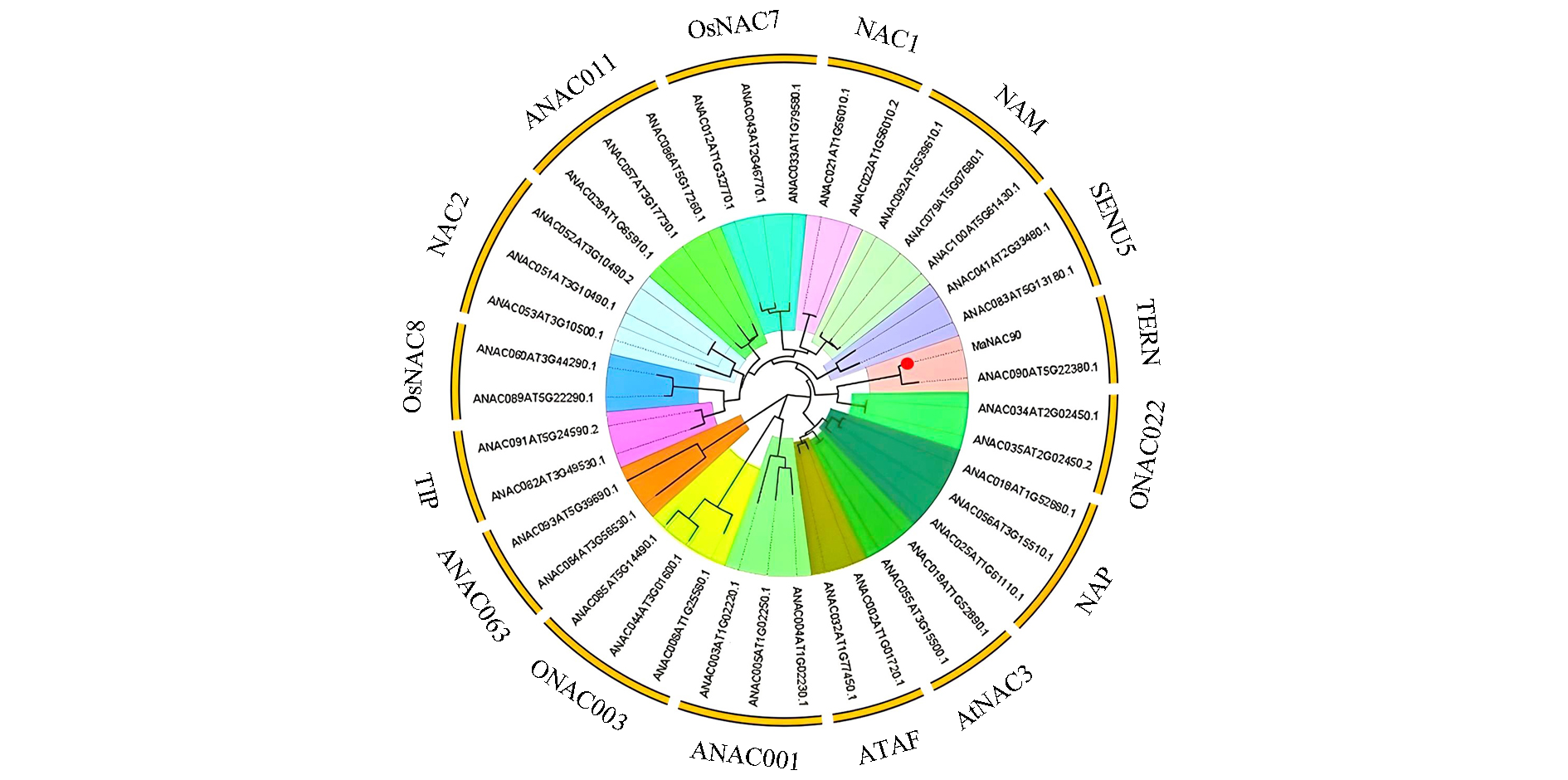

图3 MaNAC90与拟南芥NAC蛋白的进化树分析

Fig. 3 Phylogenetic tree analysis of MaNAC90 and NAC proteins from Arabidopsis

图4 MaNAC90蛋白的亚细胞定位

Fig. 4 Subcellular localization of MaNAC90 protein

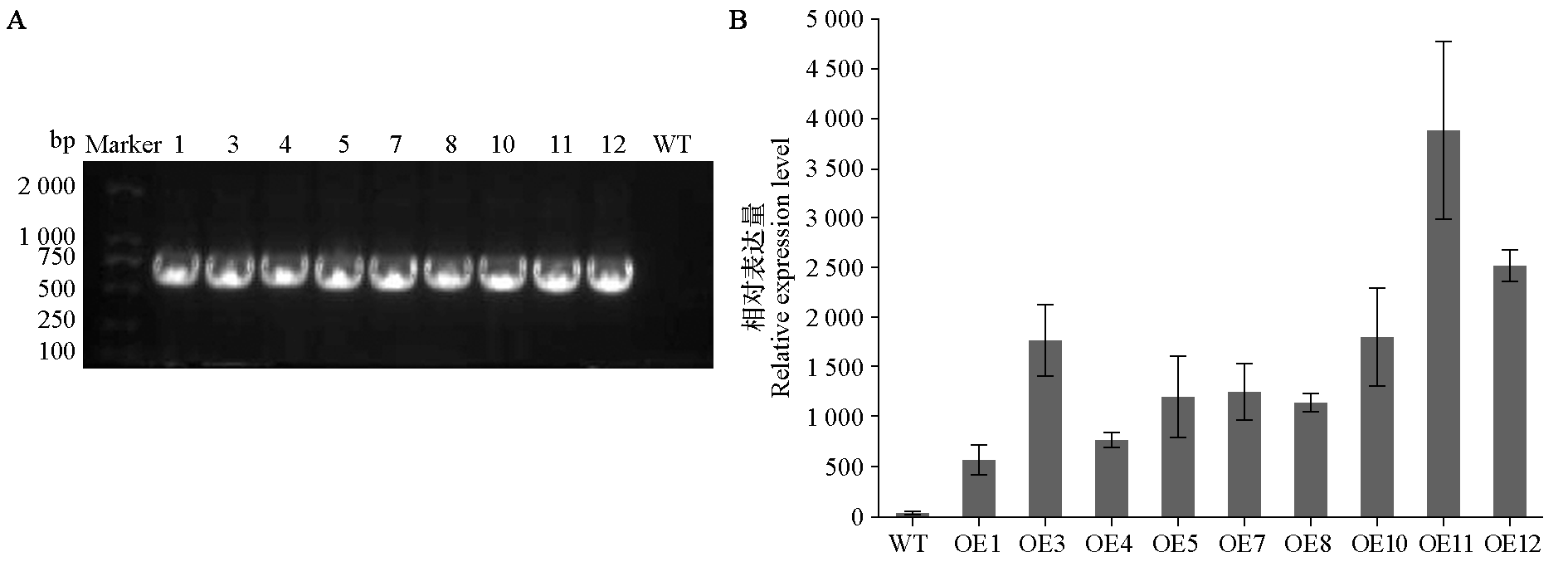

图5 MaNAC90转基因拟南芥DNA鉴定（A）及表达量检测（B） WT：野生型；OE：过表达株系。下同

Fig. 5 DNA identification（A）and expression level analysis（B）of MaNAC90 transgenic Arabidopsis WT：Wild type；OE：Over expression line. The same below

图6 200 mmol · L-1甘露醇处理下野生型和转基因拟南芥种子的发芽率及根长 A：发芽表型；B：发芽率；C：根长表型；D：根长。* 表示与野生型有显著差异（P < 0.05）。下同

Fig. 6 Seeds germination rate and root length of wild-type and transgenic Arabidopsis under 200 mmol · L-1 mannitol treatment A：Germination phenotype；B：Germination rate；C：Root length phenotype；D：Root length. * indicates significant differences from wild type（P < 0.05）. The same below

图7 自然干旱处理下野生型和转基因拟南芥的表型

Fig. 7 Phenotype of wild-type and transgenic Arabidopsis under natural drought treatment

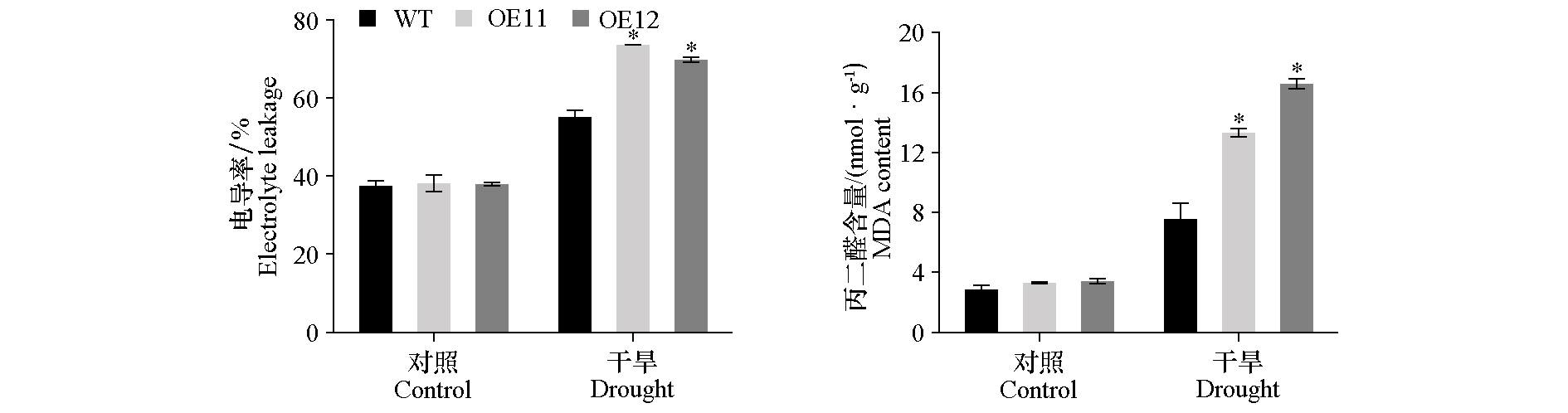

图8 干旱处理下野生型和转基因拟南芥的生理指标

Fig. 8 Physiological indicators of wild-type and transgenic Arabidopsis under drought treatment

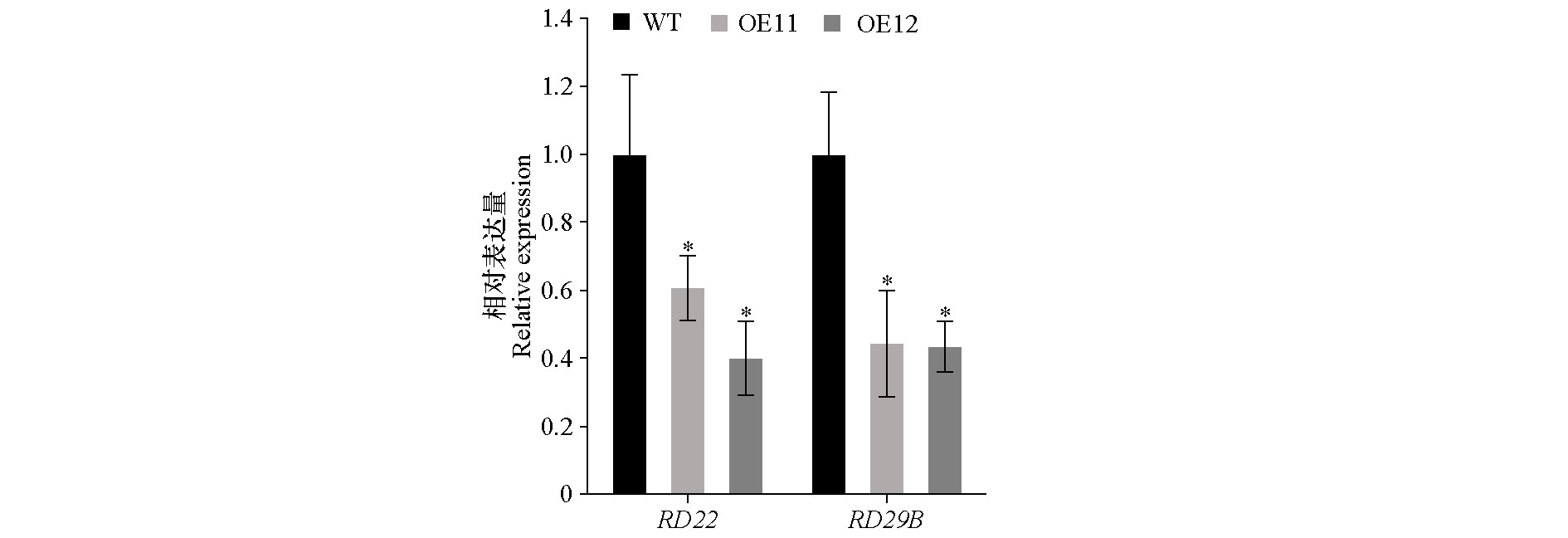

图9 干旱处理下野生型和转基因拟南芥中RD22和RD29B基因的表达水平

Fig. 9 The expression analysis of RD22 and RD29B of wild-type and transgenic Arabidopsis under drought treatment

参考文献 32

[1]	Baranwal V K, Khurana P. 2016a. Genome-wide analysis,expression dynamics and varietal comparison of NAC gene family at various developmental stages in Morus notabilis. Molecular Genetics and Genomics, 291:1305-1317. doi: 10.1007/s00438-016-1186-z URL
[2]	Baranwal V K, Negi N, Khurana P. 2016b. Genome-wide identification and structural,functional and evolutionary analysis of WRKY components of mulberry. Scientific Reports,6:30794.
[3]	Cui Xiyan, Zhang Yingying, Zhou Ying. 2022. Research progress of plant transcription factors in response to drought stress. Journal of Jilin Agricultural University, 44 (5):505-511. (in Chinese)
	崔喜艳, 张莹莹, 周莹. 2022. 植物响应干旱胁迫转录因子研究进展. 吉林农业大学学报, 44 (5):505-511.
[4]	He L, Bian J, Xu J Y, Yang K J. 2019. Novel maize NAC transcriptional repressor ZmNAC071 confers enhanced sensitivity to ABA and osmotic stress by downregulating stress-responsive genes in transgenic Arabidopsis. Journal of Agricultural and Food Chemistry, 67 (32):8905-8918. doi: 10.1021/acs.jafc.9b02331 URL
[5]	He N J, Zhang C, Qi X W, Zhao S C, Tao Y, Yang G J, Lee T H, Wang X Y, Cai Q L, Li D, Lu M Z, Liao S T, Luo G Q, He R J, Tan X, Xu Y M, Li T, Zhao A C, Jia L, Fu Q, Zeng Q W, Gao C, Ma B, Liang J B, Wang X L, Shang J Z, Song P H, Wu H Y, Fan L, Wang Q, Shuai Q, Zhu J J, Wei C J, Zhu-Salzman K, Jin D C, Wang J P, Liu T, Yu M D, Tang C M, Wang Z J, Dai F W, Chen J F, Liu Y, Zhao S T, Lin T B, Zhang S G, Wang J Y, Wang J, Yang H M, Yang G W, Wang J,H. Paterson A, Xia Q Y, Ji D F, Xiang Z H. 2013. Draft genome sequence of the mulberry tree Morus notabilis. Nature Communications,4:2445.
[6]	Hou Yiyao, Li Xiao, Long Ruicai, Yang Qingchuan, Kang Junmei, Guo Changhong. 2021. Effect of overexpression of the alfalfa MsHB7 gene on drought tolerance of Arabidopsis. Acta Prataculturae Sinica, 30 (4):170-179. (in Chinese) doi: 10.11686/cyxb2020181
	候怡谣, 李霄, 龙瑞才, 杨青川, 康俊梅, 郭长虹. 2021. 过量表达紫花苜蓿MsHB7基因对拟南芥耐旱性的影响. 草业学报, 30 (4):170-179. doi: 10.11686/cyxb2020181
[7]	Huang Y M, Du B S, Yu M X, Cao Y B, Liang K H, Zhang L Y. 2024. Picea wilsonii NAC31 and DREB2A cooperatively activate ERD1 to modulate drought resistance in transgenic Arabidopsis. International Journal of Molecular Sciences, 25 (4):2037. doi: 10.3390/ijms25042037 URL
[8]	Huang Y Y, Shi Y, Hu X H, Zhang X Q, Wang X, Liu S H, He G J, An K L, Guan F Y, Zheng Y Y, Wang X H, Wei S L. 2024. PnNAC2 promotes the biosynthesis of Panax notoginseng saponins and induces early flowering. Plant Cell Reports, 43 (3):73. doi: 10.1007/s00299-024-03152-8
[9]	Jiang G X, Yan H L, Wu F W, Zhang D D, Zeng W, Qu H X, Chen F, Tan L, Duan X W, Jiang Y M. 2017. Litchi fruit LcNAC1 is a target of LcMYC2 and regulator of fruit senescence through its interaction with LcWRKY1. Plant and Cell Physiology, 58 (6):1075-1089. doi: 10.1093/pcp/pcx054 pmid: 28419348
[10]	Jin X X, Chai Q C, Liu C C, Niu X, Li W X, Shang X G, Gu A X, Zhang D Y, Guo W Z. 2024. Cotton GhNAC4 promotes drought tolerance by regulating secondary cell wall biosynthesis and ribosomal protein homeostasis. The Plant Journal, 117 (4):1052-1068. doi: 10.1111/tpj.v117.4 URL
[11]	Jin Z L, Wang W N, Nan Q, Liu J W, Ju Y L, Fang Y L. 2025. VvNAC17,a grape NAC transcription factor,regulates plant response to drought-tolerance and anthocyanin synthesis. Plant Physiology and Biochemistry,219:109379.
[12]	Karanja B K, Xu L, Wang Y, Muleke E M, Jabir B M, Xie Y, Zhu X W, Cheng W W, Liu L W. 2017. Genome-wide characterization and expression profiling of NAC transcription factor genes under abiotic stresses in radish(Raphanus sativus L.). PeerJ,5:e4172.
[13]	Kiranmai K, Rao G L, Pandurangaiah M, Nareshkumar A, Reddy V A, Lokesh U, Venkatesh B, Johnson A M A, Sudhakar C. 2018. A novel WRKY transcription factor,MuWRKY3(Macrotyloma uniflorum Lam. Verdc.)enhances drought stress tolerance in transgenic groundnut(Arachis hypogaea L.)plants. Frontiers in Plant Science,9:346.
[14]	Li M R, Li Y, Li H Q, Wu G J, Näsholm T. 2011. Overexpression of AtNHX5 improves tolerance to both salt and drought stress in Broussonetia papyrifera(L.)Vent. Tree Physiology, 31 (3):349-357. doi: 10.1093/treephys/tpr003 URL
[15]	Li S, Jing X L, Tan Q P, Wen B B, Fu X L, Li D M, Chen X D, Xiao W, Li L. 2023. The NAC transcription factor MdNAC29 negatively regulates drought tolerance in apple. Frontiers in Plant Science, 14:1173107.
[16]	Liu X Q, Zhu J J, Wei C J, Guo Q, Bian C K, Xiang Z H, Zhao A C. 2015. Genome-wide identification and characterization of the DREB transcription factor gene family in mulberry. Biologia Plantarum, 59,253-265. doi: 10.1007/s10535-015-0498-x URL
[17]	Ma Xueqi, Yin Yanhong, Feng Jingxian, Chen Wansheng, Sun Lianna, Xiao Ying. 2021. Research progress of NAC transcription factors in plant. Plant Physiology Journal, 57 (12):2225-2234. (in Chinese)
	马雪祺, 阴艳红, 冯婧娴, 陈万生, 孙连娜, 肖莹. 2021. 植物NAC转录因子研究进展. 植物生理学报, 57 (12):2225-2234.
[18]	Ooka H, Satoh K, Doi K, Nagata T, Otomo Y, Murakami K, Matsubara K, Osato N, Kawai J, Carninci P, Hayashizaki Y, Suzuki K, Kojima K, Takahara Y, Yamamoto K, Kikuchi S. 2003. Comprehensive analysis of NAC family genes in Oryza sativa and Arabidopsis thaliana. DNA Research, 10 (6):239-247. doi: 10.1093/dnares/10.6.239 URL
[19]	Ren Yinghong, Liu Songqing, Qi Weiliang, Luo Cuihua, Gong Biran, Ou Liping. 2017. Changes of super oxygen anion in mulberry varieties under water stress. Guihaia, 37 (9):1122-1129. (in Chinese)
	任迎虹, 刘松青, 祁伟亮, 罗翠华, 龚壁燃, 欧莉萍. 2017. 干旱胁迫下桑树叶片中超氧阴离子的变化规律. 广西植物, 37 (9):1122-1129.
[20]	Shah F A, Chen Z, Ni F, Kamal K A, Zhang J M, Chen J H, Ren J. 2024. ArNAC 148 induces Acer rubrum leaf senescence by activating the transcription of the ABA receptor gene ArPYR13. International Journal of Biological Macromolecules,279 (Pt 2):134950.
[21]	Shang X G, Yu Y J, Zhu L J, Liu H Q, Chai Q C, Guo W Z. 2020. A cotton NAC transcription factor GhirNAC2 plays positive roles in drought tolerance via regulating ABA biosynthesis. Plant Science, 296:110498. doi: 10.1016/j.plantsci.2020.110498 URL
[22]	Shen J B, Lv B, Luo L Q, He J M, Mao C J, Xi D D, Ming F. 2017. The NAC-type transcription factor OsNAC2 regulates ABA-dependent genes and abiotic stress tolerance in rice. Scientific Reports,7:40641.
[23]	Sun L N, Xu H Q, Song J, Yang X Y, Wang X Y, Liu H Y, Pang M Z, Hu Y C, Yang Q, Ning X T, Liang S S, Zhang S J, Luan W J. 2024. OsNAC103,a NAC transcription factor,positively regulates leaf senescence and plant architecture in rice. Rice, 17 (1):15. doi: 10.1186/s12284-024-00690-3
[24]	Wang J L, Zhang X X, Yang H Q, Li S R, Hu Y, Wei D Y, Tang Q L, Yang Y, Tian S B, Wang Z M. 2024. Eggplant NAC domain transcription factor SmNST1 as an activator promotes secondary cell wall thickening. Plant,Cell & Environment, 47 (11):4293-4304. doi: 10.1111/pce.v47.11 URL
[25]	Wang W N, Yuan Y L, Yang C, Geng S P, Sun Q, Long L, Cai C W, Chu Z Y, Liu X, Wang G H, Du X M, Miao C, Zhang X, Cai Y F. 2016. Characterization,expression,and functional analysis of a novel NAC gene associated with resistance to Verticillium wilt and abiotic stress in Cotton. Genes Genomes Genetics, 6 (12):3951-3961.
[26]	Wang Haoran, Shao Zhilong, Zhu Yanyu, Kuang Hualin, Huang Minren, Chen Ying. 2015. Cloning and sub-cellular localization of Pd NAC1 in poplar‘Nanlin895’. Journal of Nanjing Forestry University(Natural Sciences Edition), 39 (3):50-54. (in Chinese)
	王浩然, 邵志龙, 朱燕宇, 匡华琳, 黄敏仁, 陈英. 2015. ‘南林895’杨PdNAC1基因克隆及蛋白的亚细胞定位. 南京林业大学学报(自然科学版), 39 (3):50-54. doi: 10.3969/j.issn.1000-2006.2015.03.010
[27]	Yang Rui, Yan Chaojun, Hu Shuaiya, Liu Shenhui, Chen Xiaochou, Chen Faxing. 2018. Physiological responses and tolerance of varieties of Anthurium andraeanum to low temperature. Fujian Journal of Agricultural Sciences, 33 (11):1136-1144. (in Chinese)
	杨芮, 颜超君, 户帅雅, 柳沈辉, 陈孝丑, 陈发兴. 2018. 红掌对低温胁迫的生理响应及耐冷性评价. 福建农业学报, 33 (11):1136-1144.
[28]	Yang Di, Zhang Kaixuan, Zhao Hui, Wu Xiaofang, Yang Keli, Zhou Meiliang, Zhang Jinlin. 2021. Molecular cloning and functional analysis of FtNAC11 from tartary buckwheat[Fagopyrum tataricum(L.)Gaertn.]. Journal of Plant Genetic Resources, 22 (5):1430-1441. (in Chinese) doi: 10.13430/j.cnki.jpgr.20210218004
	杨迪, 张凯旋, 赵辉, 伍小方, 杨克理, 周美亮, 张金林. 2021. 苦荞转录因子FtNAC11的克隆及其功能分析. 植物遗传资源学报, 22 (5):1430-1441. doi: 10.13430/j.cnki.jpgr.20210218004
[29]	Zhang S J, Li N, Gao F, Yang A F, Zhang J R. 2010. Over-expression of TsCBF1 gene confers improved drought tolerance in transgenic maize. Molecular Breeding,26:455-465.
[30]	Zhang X M, Yu H J, Sun C, Deng J, Zhang X, Liu P, Li Y Y, Li Q, Jiang W J. 2017. Genome-wide characterization and expression profiling of the NAC genes under abiotic stresses in Cucumis sativus. Plant Physiology and Biochemistry, 113:98-109. doi: S0981-9428(17)30035-9 pmid: 28193581
[31]	Zeng Rui, Ren Yinghong, Qi Weiliang, Huang Renwei, Li Lianlong, Li Xinxin, Wang Fei, Zhao Bihei. 2022. Comparative transcriptome analysis of drought stress responses in mulberries of differing drought resistances. Journal of Southern Agriculture, 53 (3):684-692. (in Chinese)
	曾睿, 任迎虹, 祁伟亮, 黄仁维, 李恋龙, 李鑫鑫, 王飞, 赵比黑. 2022. 不同桑树品种响应干旱胁迫的比较转录组学分析. 南方农业学报, 53 (3):684-692.
[32]	Zhu D, Che Y M, Xiao P L, Hou L X, Guo Y, Liu X. 2018. Functional analysis of a grape WRKY30 gene in drought resistance. Plant Cell,Tissue and Organ Culture,132:449-459.
