侵染云南草原龙胆的凤仙花坏死斑病毒鉴定

doi:10.16420/j.issn.0513-353x.2024-1043

摘要/Abstract

摘要：

在云南省昆明市呈贡区斗南镇进行花卉病害调查时，发现叶片表现坏死斑症状的草原龙胆植株。采集典型症状样品进行免疫试纸条检测，初步确定其病原为凤仙花坏死斑病毒（Impatiens necrotic spot virus，INSV）。利用电子显微镜观察发现直径为60 ~ 110 nm的球状病毒粒体，聚集于内质网膜内，叶绿体结构不完整，部分双层膜消失。为进一步明确病原，应用INSV的N、NSm和RdRp基因的特异性引物进行RT-PCR扩增、克隆和测序，分别获得长度为883、712和1 201 bp目的基因片段。序列比对分析发现，INSV-草原龙胆云南分离物与INSV-蜘蛛兰云南分离物的N、NSm基因氨基酸序列相似性达100%，与INSV-紫娇花云南分离物的RdRp基因氨基酸序列相似性达99.7%。基于INSV的N、NSm和RdRp基因序列构建系统进化树，发现INSV云南分离物之间的亲缘关系较近。综合试纸条检测、病毒粒体形态观察与分类相关基因的序列比对分析结果，明确感染云南草原龙胆的病毒为INSV。

关键词: 草原龙胆, 凤仙花坏死斑病毒, N基因, NSm基因, RdRp基因, 系统进化树

Abstract:

During the investigation of flower diseases in Dounan Town，Chenggong District，Kunming City，Yunnan Province，Eustoma grandiflorum plants with necrotic spot symptoms on their leaves were discovered. Samples with typical symptoms were collected and detected using immunostrip test strips，and the pathogen was preliminarily identified as Impatiens necrotic spot virus（INSV）. Observation by electron microscopy revealed spherical virus particles with a diameter of 60-110 nm，which aggregated within the endoplasmic reticulum membrane. The chloroplast structure was incomplete，and part of the double membrane had disappeared. To further confirm the pathogen，the specific primers of the INSV for N，NSm and RdRp genes were used RT-PCR amplification，cloning and sequencing. Target gene fragments with lengths of 883，712，and 1 201 bp were obtained，respectively. Sequence alignment analysis showed that the amino acid sequence similarities of the N and NSm genes between the E. grandiflorum isolate of INSV from Yunnan and the Hymenocallis littoralis isolate of INSV from Yunnan reached 100%，and the amino acid sequence similarity of the RdRp gene between the E. grandiflorum isolate of INSV from Yunnan and the Tulbaghia violacea isolate of INSV from Yunnan reached 99.7%. A phylogenetic tree was constructed based on the INSV for N，NSm and RdRp gene sequences，indicating that the INSV isolates from Yunnan plant materials were closely related. By integrating the results of test strip detection，observation of virus particle morphology，and sequence alignment analysis of classification- related genes，it was confirmed that the virus infecting E. grandiflorum in Yunnan was INSV.

Key words: Eustoma grandiflorum, Impatiens necrosis spot virus, N gene, NSm gene, RdRp gene, phylogenetic tree

杨秀梅, 张艺萍, 彭月, 李金泽, 黄望启, 苏艳, 王丽花. 侵染云南草原龙胆的凤仙花坏死斑病毒鉴定[J]. 园艺学报, 2026, 53(1): 275-284.

YANG Xiumei, ZHANG Yiping, PENG Yue, LI Jinze, HUANG Wangqi, SU Yan, WANG Lihua. Identification of Impatiens Necrosis Spot Virus Infecting Eustoma grandiflorum in Yunnan Province[J]. Acta Horticulturae Sinica, 2026, 53(1): 275-284.

图/表 8

表 1 INSV不同基因的扩增引物

Table 1 Primers of different genes of INSV

基因 Gene	引物名称 Primer name	引物序列（5′-3′） Primer sequence
N	INSV-S2016	ATTTAACACAACACAAAGCAAAC
	INSV-S2873	TTTAGTAATTTGAACACTTTAAGC
NSm	INSV-NsM9	CAGTGCATCAAAATTATATCTAGCCG
	INSV-NsM716	CATCTTTCTTGTAAACTTGATCACAT
RdRp	L1	AGAGCAATCAGGCACAACTA
	L866	ATGGTTTTGTTGTTTCTGGT
	L580	CCCGGCAAAAATAGTCAC AT
	L1198	TGATGCTTCTGGCTTCAAAA

图1 感染INSV的草原龙胆植株症状和免疫试纸条检测结果 A：发病初期叶片上的环状坏死斑；B：叶片上的坏死枯斑；C：茎杆上的坏死枯斑；D：叶片发黄、干枯；E：植株枯萎死亡；F：免疫试纸条检测结果

Fig. 1 Symptoms of lisianthus infected by INSV and immune test results A：Necrotic ringspot at early stage of infection；B：Necrotic spots on leaves；C：Necrotic spots on the stem；D：Leaves yellowing and withered；E：Plants withered and dead；F：Immune test results

图2 侵染草原龙胆的INSV病毒粒体及其形态特征 A：病毒粒体；B、C：细胞病变特征。VP：病毒粒体；CW：细胞壁；Chl：叶绿体

Fig. 2 Morphological characteristics of INSV in lisianthus A：Virus particles；B，C：Cytopathic features. VP：Virus particles；CW：Cell wall；Chl：Chloroplast

图3 指示植物接种测定 A：接种INSV的草原龙胆；B：接种INSV的黄花烟；C：接种INSV的一点红

Fig. 3 Indicator plants inoculation A：Eustoma grandiflorum inoculated with INSV；B：Nicotianal rustica inoculated with INSV；C：Emilia sonchifolia inoculated with INSV

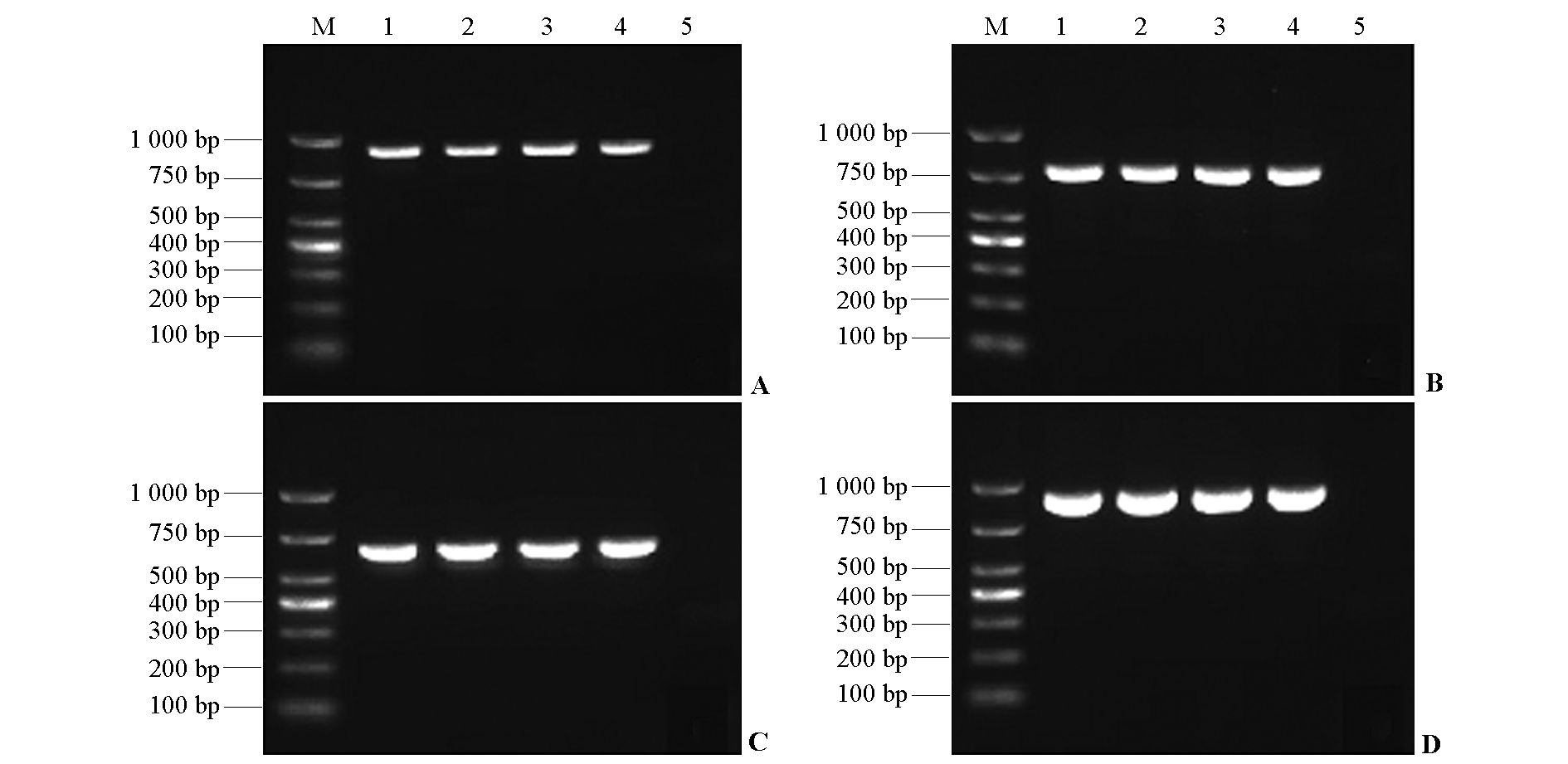

图4 草原龙胆样品INSV的N、NSm和RdRp基因扩增产物 A：N基因；B：NSm基因；C：RdRp基因（引物L580/L1198）；D：RdRp基因（引物L1/L866）。 M：DL1000 marker；1 ~ 4：草原龙胆样品；5：阴性对照

Fig. 4 Amplified products of N，NSm and RdRp genes from INSV of lisianthus A：N gene；B：NSm gene；C：RdRp gene（primer：L580/L1198）；D：RdRp gene（primer: L1/L866）. M：DL1000 marker；1-4：Lisianthus samples；5：Negative control

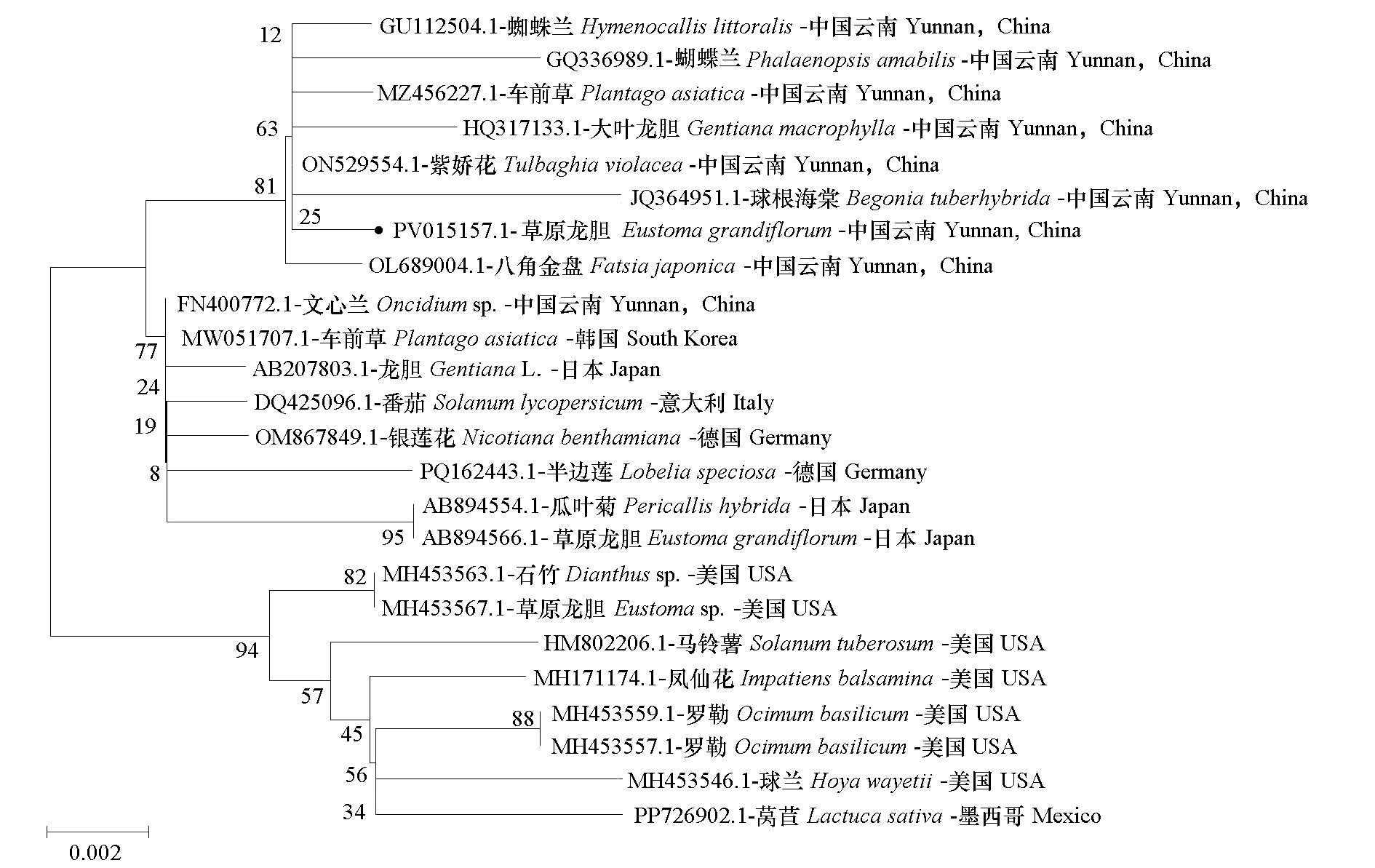

图5 基于INSV N基因构建的系统进化树

Fig. 5 Phylogenetic tree constructed based on the INSV N gene sequences

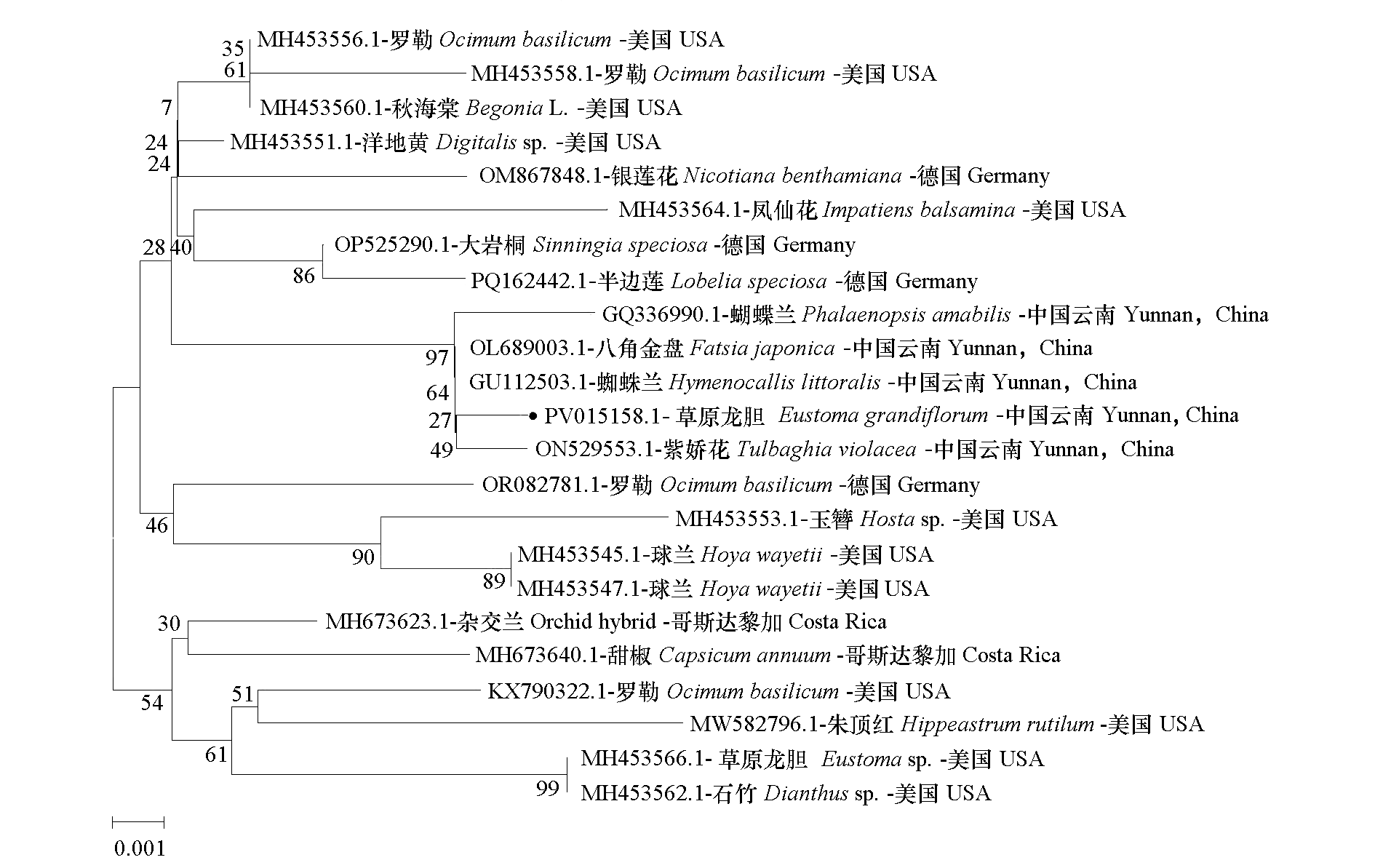

图6 基于INSV NSm基因构建的系统进化树

Fig. 6 Phylogenetic tree constructed based on the INSV NSm gene sequences

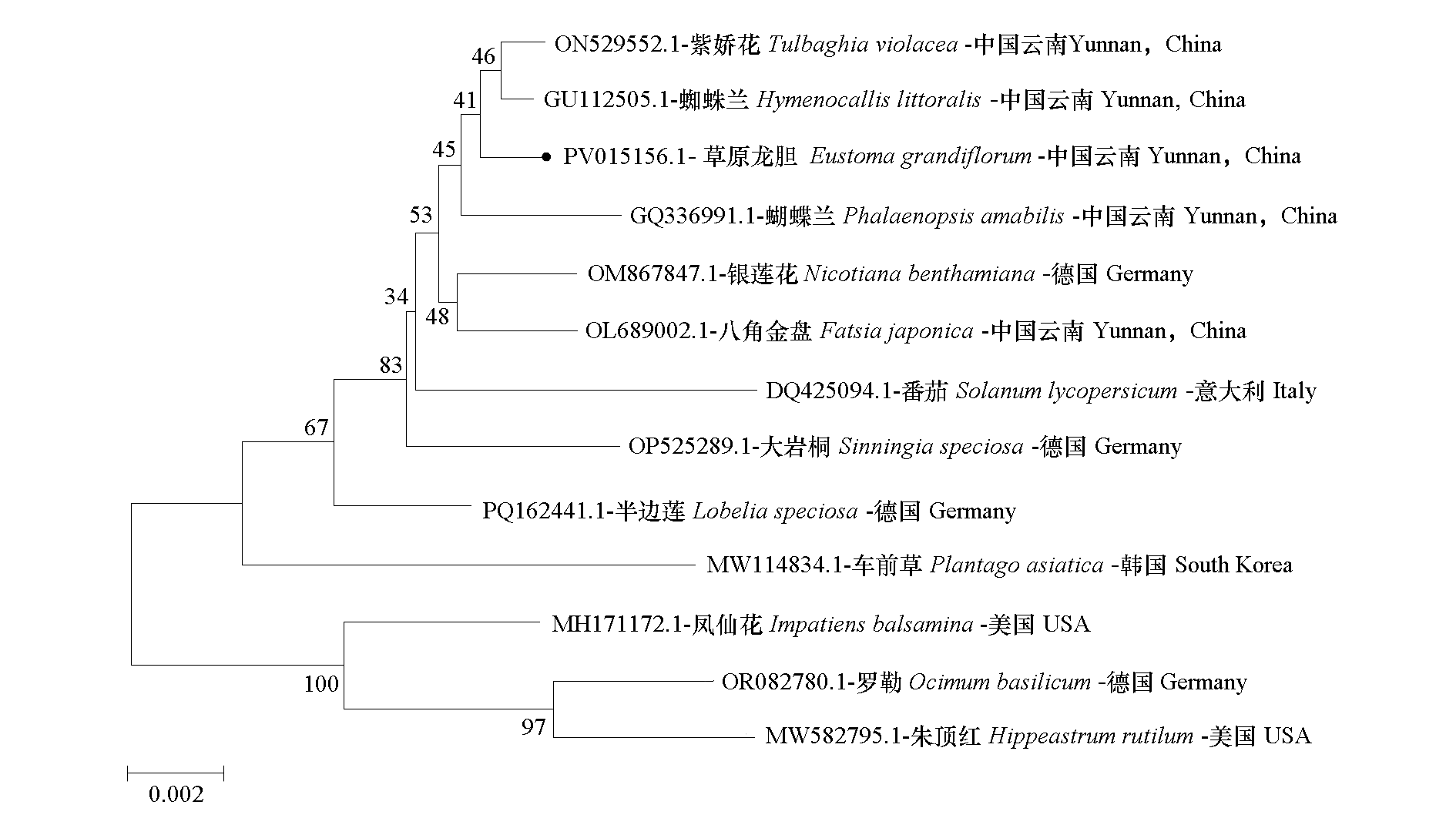

图7 基于INSV RdRp基因构建的系统进化树

Fig. 7 Phylogenetic tree constructed based on the INSV RdRp gene sequences

参考文献 19

[1]	Chen Xuejiao. 2012. Study on the transmission properties of Impatiens necrotic spot virus[M. D. Dissertation]. Kunming: Yunnan Agricultural University. (in Chinese)
	陈雪娇. 2012. 凤仙花坏死斑病毒传毒特性研究[硕士论文]. 昆明: 云南农业大学.
[2]	Cohen J, Gera A, Ecker R, Ben J R, Perlsman M, Gokkes M, Lachman O, Antignus Y. 1995. Lisianthus leaf curl a new disease of lisianthus caused by tomato yellow leaf curl virus. Plant Disease, 79 (4):416-420. doi: 10.1094/PD-79-0416 URL
[3]	Fang Qi, Dong Jiahong, Ding Ming, Yin Yueyan, Zhang Lizhen, Li Tingting, Su Xiaoxia, Li Zhan, Zhang Zhongkai. 2011. DAS-ELISA and electron microscopic diagnosis of tospoviruses infecting Hymenocallis littoraris and Hippeastrum vittatum in Kunming. Acta Horticulturae Sinica, 38 (10):2005-2009. (in Chinese)
	方琦, 董家红, 丁铭, 尹跃艳, 张丽珍, 李婷婷, 苏晓霞, 李展, 张仲凯. 2011. 侵染水鬼蕉和花朱顶红的番茄斑萎病毒属病毒的电镜和DAS-ELISA诊断. 园艺学报, 38 (10):2005-2009.
[4]	Fang Zhongda. 1998. Methodology for plant pathology. Beijing: China Agricultural Press. (in Chinese)
	方中达. 1998. 植病研究方法. 北京: 中国农业出版社.
[5]	Gera A G, Cohen J. 1990. The natural occurrence of bean yellow mosaic,cucumber mosaic and tobacco mosaic viruses in lisianthus in Isael. Plant Pathol, 39 (3):561-564. doi: 10.1111/ppa.1990.39.issue-3 URL
[6]	Hu Jingyu, Que Kaijuan, Miao Tianli, Wu Shaozheng, Wang Tiantian, Zhang Lei, Dong Xian, Ji Pengzhang, Dong Jiahong. 2023. Identification of tomato spotted wilt orthotospovirus infecting Iris tectorum. Acta Horticulturae Sinica, 50 (1):170-176. (in Chinese) doi: 10.16420/j.issn.0513-353x.2021-0806
	忽靖宇, 阙开娟, 缪田丽, 吴少政, 王田田, 张磊, 董鲜, 季鹏章, 董家红. 2023. 侵染鸢尾的番茄斑萎病毒的鉴定. 园艺学报, 50 (1):170-176. doi: 10.16420/j.issn.0513-353x.2021-0806
[7]	Iwaki M, Hanada K, Maria E R A, Onogi S. 1987. Lisianthus necrosis virus,a new necrovirus from Eustoma russellianum. Phytopathology, 77 (6):867-870. doi: 10.1094/Phyto-77-867 URL
[8]	Li Jinze, Xu Feng, Su Yan, Yu Rongpei, Yang Xiumei, Zhang Yiping. 2023. Review on the gentianaceae ornamentals breeding and cultivation technology. Heilongjiang Agricultural Sciences,(2):111-116,121. (in Chinese)
	李金泽, 许凤, 苏艳, 余蓉培, 杨秀梅, 张艺萍. 2023. 龙胆科观赏植物生理特性与育种技术综述. 黑龙江农业科学,(2):111-116,121.
[9]	Li Zhen, Ye Fumin, Yan Ye, Ma Ce. 2023. Preliminary study on winter cutting rooting experiment of Eustoma grandiflorum in northeast China. Horticulture & Seed, 43 (11):6-7,26. (in Chinese)
	李振, 叶福民, 闫烨, 马策. 2023. 东北地区洋桔梗穗条冬季扦插生根试验初探. 园艺与种苗, 43 (11):6-7,26.
[10]	Lin Fengying, Li Rongqiong, Ye Yu, Feng Dedang, Su Yunfang. 2022. Production and cultivation of cut flowers of Eustoma grandiflorum. Yunnan Agriculture,(2):62-65. (in Chinese)
	林峰莹, 李荣琼, 叶玉, 冯德党, 苏云芳. 2022. 洋桔梗切花生产栽培. 云南农业,(2):62-65.
[11]	Lisa V, Dellavalle G. 1987. Bean yellow mosaic virus in Lisianthus russellianus. Plant Pathol, 36 (2):214-215. doi: 10.1111/ppa.1987.36.issue-2 URL
[12]	Lisa V, Vaira A M, Milne R G, Luisoni E, Rapetti S. 1990. Tomato spotted wilt virus in five crops in Liguria. Informatore Fitopatologico, 40 (12):34-41.
[13]	Liu Y T, Zheng Y X, Li Y Z, Li Z Y. 2010. First report of Impatiens necrotic spot virus on spiderlily in China. Plant Disease, 94 (4):484. doi: 10.1094/PDIS-94-4-0484C pmid: 30754505
[14]	Shen Dengrong, He Chao, Liu Jia, Yuan Shengyong, He Shaoyu, Zhang Hongrui. 2015. Hazard and morphological variation of Thrips occidentalis in Yunnan. Jiangsu Agricultural Science, 43 (7):121-123. (in Chinese)
	沈登荣, 何超, 刘佳, 袁盛勇, 和绍禹, 张宏瑞. 2015. 西花蓟马在云南的发生危害及形态变异. 江苏农业科学, 43 (7):121-123.
[15]	Sun Lihua. 2017. Monoclonal antibody preparation of impatiens necrotic spot virus (INSV) and virus detection in Yunnan samples of tomato spotted wild virus(TSWV)[M. D. Dissertation]. Nanjing: Nanjing Agricultural University. (in Chinese)
	孙立华. 2017. 凤仙花坏死环斑病毒单克隆抗体的制备与番茄斑萎病毒云南样品的田间检测[硕士论文]. 南京: 南京农业大学.
[16]	Xu Ye, Wang Jinlong, Li Qiufang, Wang Wencheng, Jiang Changjie, Zhi Long, Liu Yating. 2013. Risk assessment and adaptability of impatiens necrotic spot virus in China. Plant Protection, 39 (6):26-31. (in Chinese)
	徐烨, 王金龙, 李秋芳, 王文成, 江常杰, 智龙, 刘雅婷. 2013. 凤仙花坏死斑病毒在中国的适生性风险评估. 植物保护, 39 (6):26-31.
[17]	Zhang Qiaoping, Ding Yuanming, Li Min, Zhou Jian, Bai Yonghua, Cun Dongyi, Cao Yunhua. 2008. Detection and molecular identification of impatiens necrotic spot virus isolated from potted Oncidium. Plant Quarantine, 22 (6):348-351. (in Chinese)
	张巧萍, 丁元明, 李旻, 周键, 白永华, 寸东义, 曹云华. 2008. 盆栽文心兰上的凤仙花坏死斑病毒的检测与分子鉴定. 植物检疫, 22 (6):348-351.
[18]	Zhao K X, Margaria P, Rosa C. 2018. Characterization of the first complete genome sequence of an Impatiens necrotic spot orthotospovirus isolate from the United States and worldwide phylogenetic analyses of INSV isolates. BMC Research Notes, 11 (1):288. doi: 10.1186/s13104-018-3395-5 pmid: 29747679
[19]	Zheng Yuanxian, Li Yongzhong, Liu Yating, Xu Xiaogang, Ye Mao, Zhu Qiuyan. 2010. Identification of impatiens necrosis spot virus from Phalaenopsis amabilis inYunnan. Acta Horticulturae Sinica, 37 (2):313-318. (in Chinese)
	郑元仙, 李永忠, 刘雅婷, 徐小刚, 叶茂, 朱秋燕. 2010. 云南省蝴蝶兰上凤仙花坏死斑病毒的鉴定. 园艺学报, 37 (2):313-318.
